KillerDock Upscale 3 1/2

KillerDock Upscale 3 1/2

Marine Grade Aluminum – with anti-corrosion clear coating.

KillerDock took what had for generations been an afterthought on docks across the globe and turned it into a masterpiece. We scrapped the wood, rusty steel nails, old T-tops, repurposed cabinets and used countertops. In their place we put a hand-crafted work of art that is ergonomically sound, build like a tank and will leave your neighbors with dock envy. This station is built to last a lifetime!

Each station is handmade in the USA using only the best materials. Engineered and fabricated by fishermen with a lifetime of experience both on the water and in the fab shop. We use marine grade aluminum, best in class protective coating (no regular maintenance required), king starboard cutting surface, 316 stainless hardware and many other top-quality materials. These stations are engineered to withstand 150 mph winds and “field testing” has proved they will withstand MUCH more!

Our standard features allow each customer to tailor their order to meet their individual needs. We can, however, make custom stations upon request.

*** For INSTALLATION information, click ——> HERE.

*** Winterization Instructional Video, click ——> HERE.

For the plumbing, you are responsible for connecting your plumbing to the bottom of the table leg. The coupling for each hose station is 3/4” Female NPT. We suggest using a brass 3/4” male NPT connector to transition to your plumbing material. These are readily available at any large home improvement store.

All KillerDock products are now protected by a unique anti-corrosion clear coating that has been created to protect metal against highly adverse environments. Our industrial two component resin-based clear coating solution is considerably better than other solutions like powder coating and ceramic, which have their own deficiencies and limitations. It is not simply a clear coating, but chemically reinforced to make it stronger and more durable. You can trust that your KillerDock product will be protected for many years to come. It keeps the aluminum looking great, and makes cleaning/washing a breeze.

Included: two accessory trays (Right and left side). Each with a cup holder, hose hanger, knife sharpener, and knife slot.

King Starboard cutting surface and accessory trays – NOW COMES STANDARD WITH GRAY KING STARBOARD

For most applications, it installs to the edge of your dock with lag bolts. All of our hardware is 316 grade Stainless Steel, the highest grade on the market.

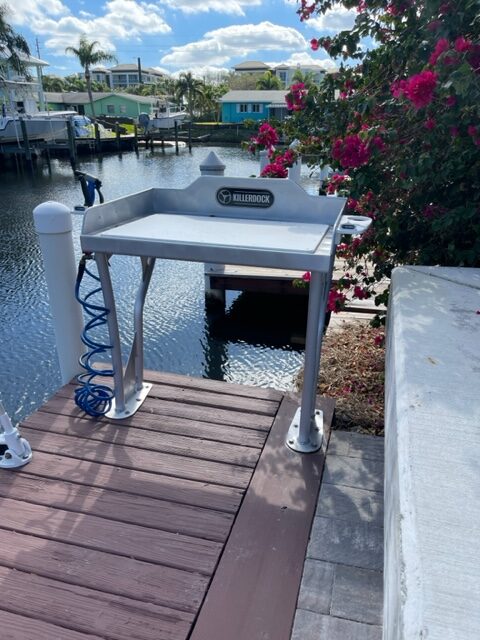

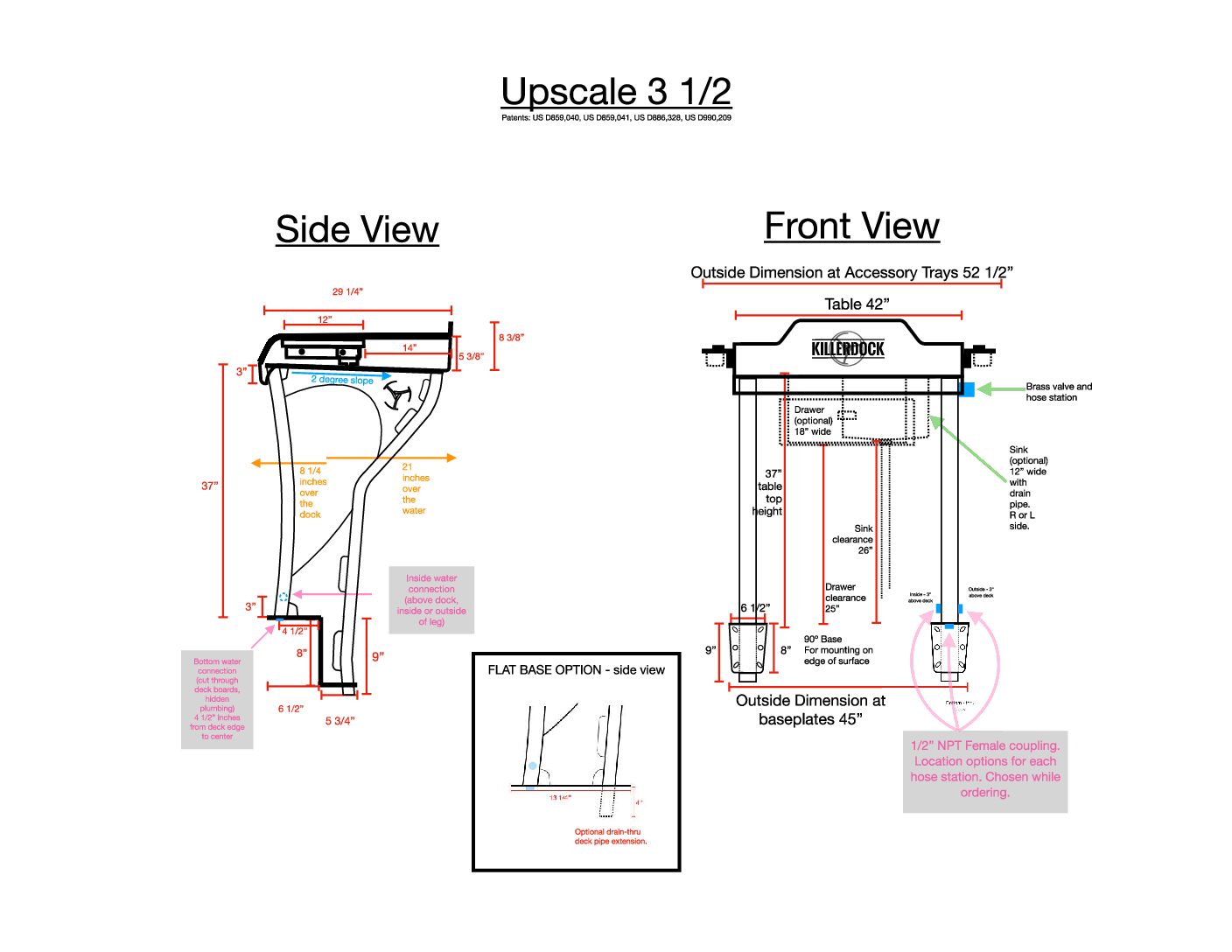

For the FLAT BASE option, if you also choose Below Dock draining, then the drain pipe will extend 4” through the flat base. You will need to use a 3” hole saw to drill through your top dock boards during install. If you choose Flat Base AND Slotted drain, then the base plate will be flat.

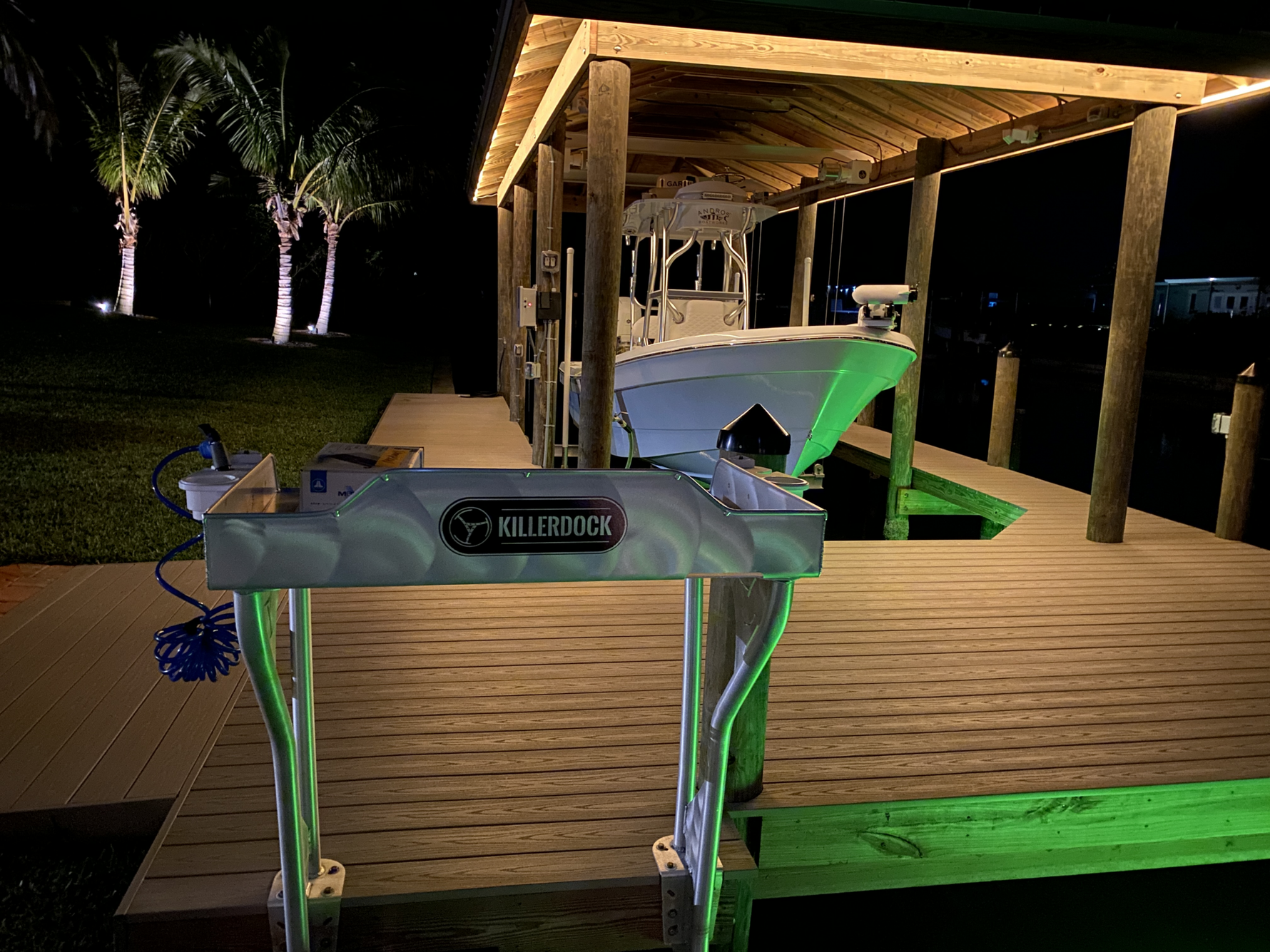

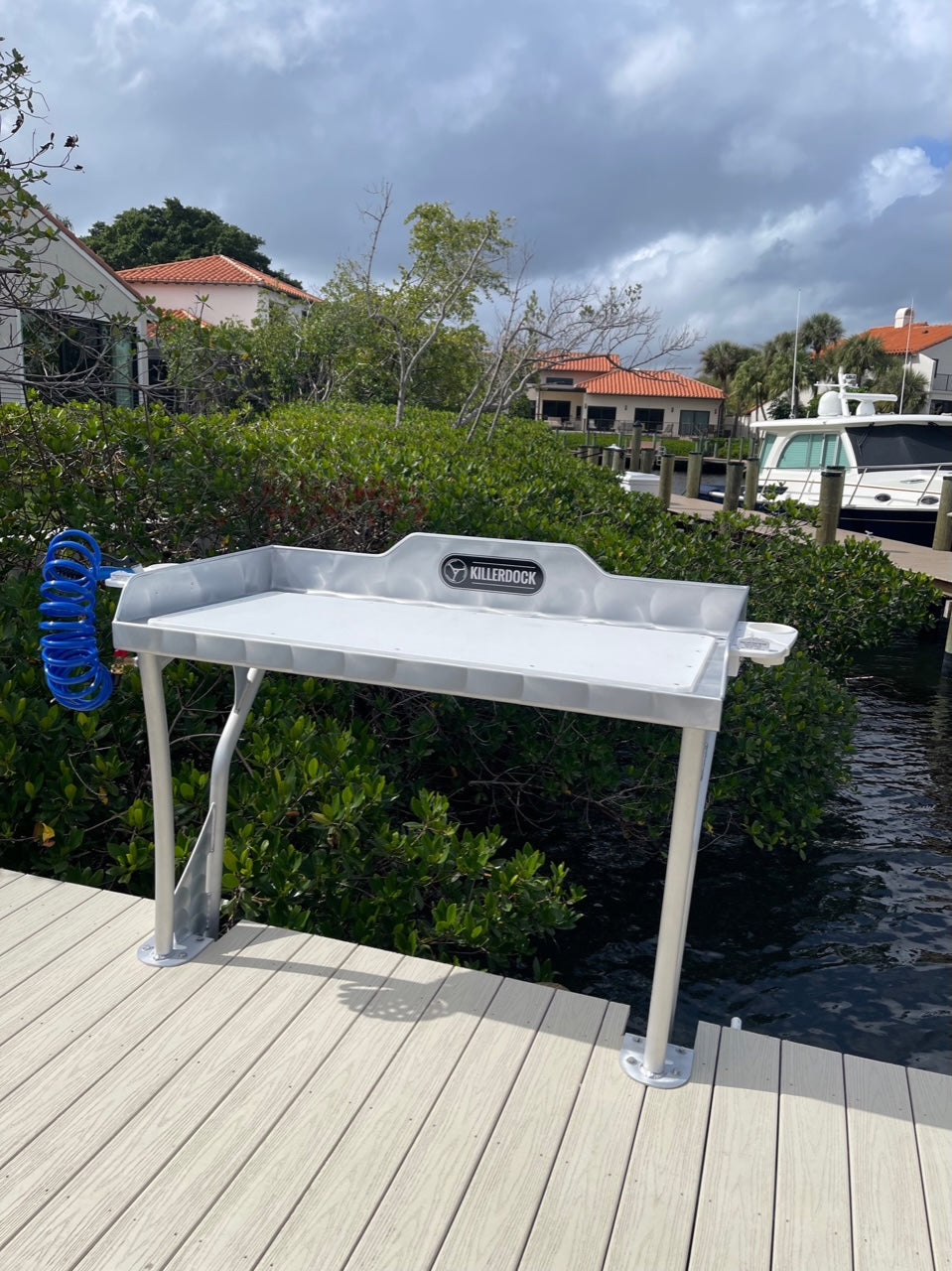

For the 90º BASE option, you will mount the table legs to the edge of your dock or seawall. This works for wood or concrete, and will include the appropriate mounting hardware. You will need a clean 90 degree edge, therefore you may need to trim down any overhanging or trim boards just where the legs connect.

The optional Under Mount Sink is a rounded rectangle sink that is 12” wide, 18” long, and 8” deep. It has the same clear coated Marine Grade Aluminum, and comes with a standard 1 ½” sink strainer, for you to add your own plumbing to be directed wherever you need it to drain.

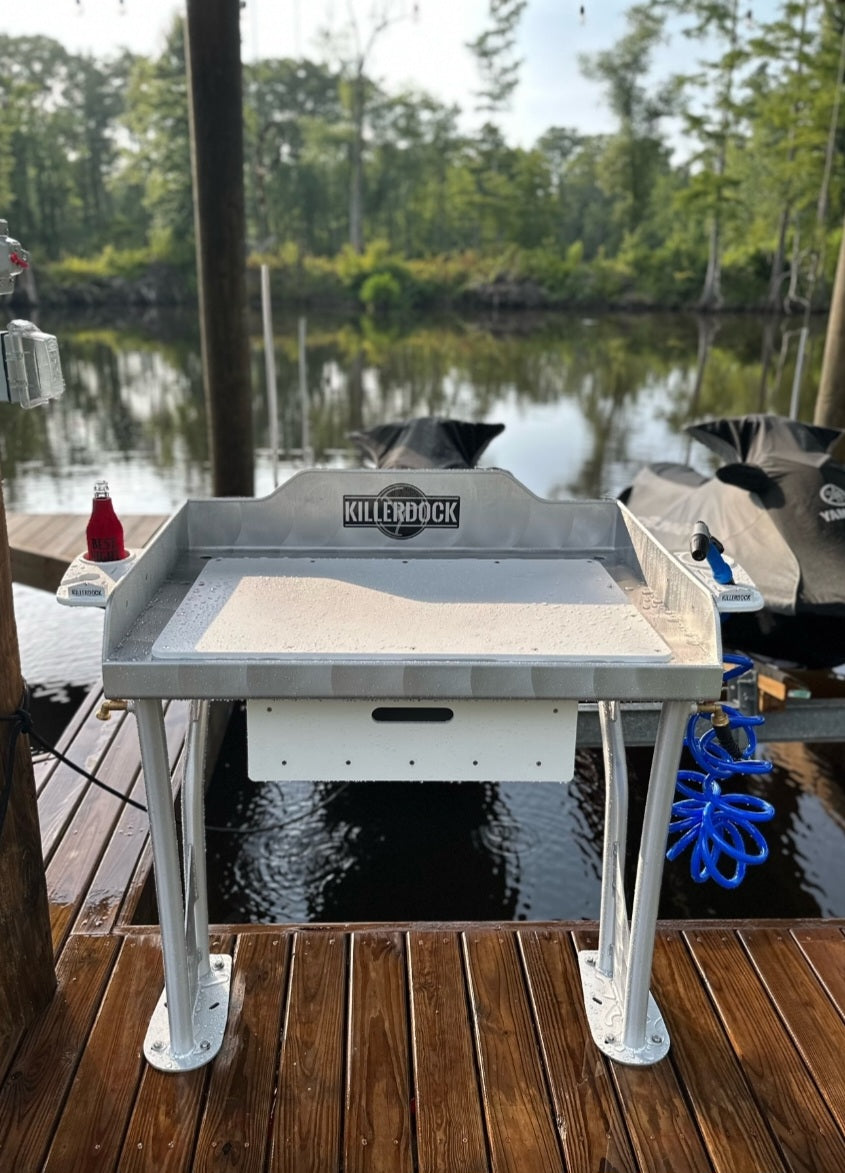

The optional Under Mount Drawer has the same clear coated Marine Grade Aluminum and King Starboard as our fish cleaning stations. Outside dimensions of drawer 16”x”19.5”x5”
