Communication

Raymarine Ray90 Wireless First Station Kit with Passive Speaker, Wireless Handset  Wireless Hub [T70433]

Ray90 Wireless First Station Kit with Passive Speaker, Wireless Handset & Wireless Hub

Modular Dual-Station VHF Radio System

Raymarine’s fixed mount Ray90 modular VHF radio brings multi-station communications to a whole new level of power, performance, and flexibility. The Ray90 is a black-box design with a transceiver that hides out of sight while the ergonomic RayMic handset and remote speaker provide full control of the radio with crystal clear audio.

Features:

• Black box, multi-station capable VHF radio
• Expandable to 2 handsets
• Built-in loudhailer and fog signal generator
• Optional external GPS
• Simple NMEA2000 and NMEA0183 Networking

Ray90 is equipped with a powerful 25-watt transmitter and commercial grade electronics for long life and superior performance. Channel scanning, dual-watch, tri-watch and weather alert are standard. Class D Digital Selective Calling radio and integrated GPS makes setting up the advanced safety and calling features easy. Simply input your vessel’s MMSI number during setup and you’re ready to go. For GPS operation the optional GA150 passive GPS antenna is required.

Position Tracking

Use Ray90’s position tracking feature to keep tabs on up to 5 nearby DSC equipped vessels. Their positions are automatically shared with your Raymarine MFD. Keep an eye on other boats in your cruising party, monitor vessels of interest, or manage your local fleet. In Europe the Ray90 supports the ATIS system on navigable inland waterways.

Loudhailer

Ray90’s built-in loudhailer will make you heard on-deck and across the harbour. Connect an optional hailing horn and make your presence known with 30-watts of audio output, plus 2-way talkback. When things get foggy, the loudhailer can also be set to automatically sound required fog signals for power and sailing vessels underway and at anchor.

Waterproof & Ruggedized

Ray90’s transceiver unit is cast in solid aluminum for shock and vibration resistance and maximum heat dissipation. RayMic handsets feature super-bright backlighting for easy viewing in all conditions and oversized keys provide a sure grip with easy access to commonly used functions.

Expand Your System

The Ray90 system includes 1 RayMic wired handset and a passive speaker kit. Expand your system with an additional RayMic handset and remote speaker. For noisy environments choose the optional active remote speaker. No matter how small or how large your vessel is, the Ray90 all the power and performance you need for essential communications on the water.

Specifications:

• Type: Misc
• Box Dimensions: 7"H x 13"W x 19"L WT: 5.15 lbs
• UPC: 723193826768

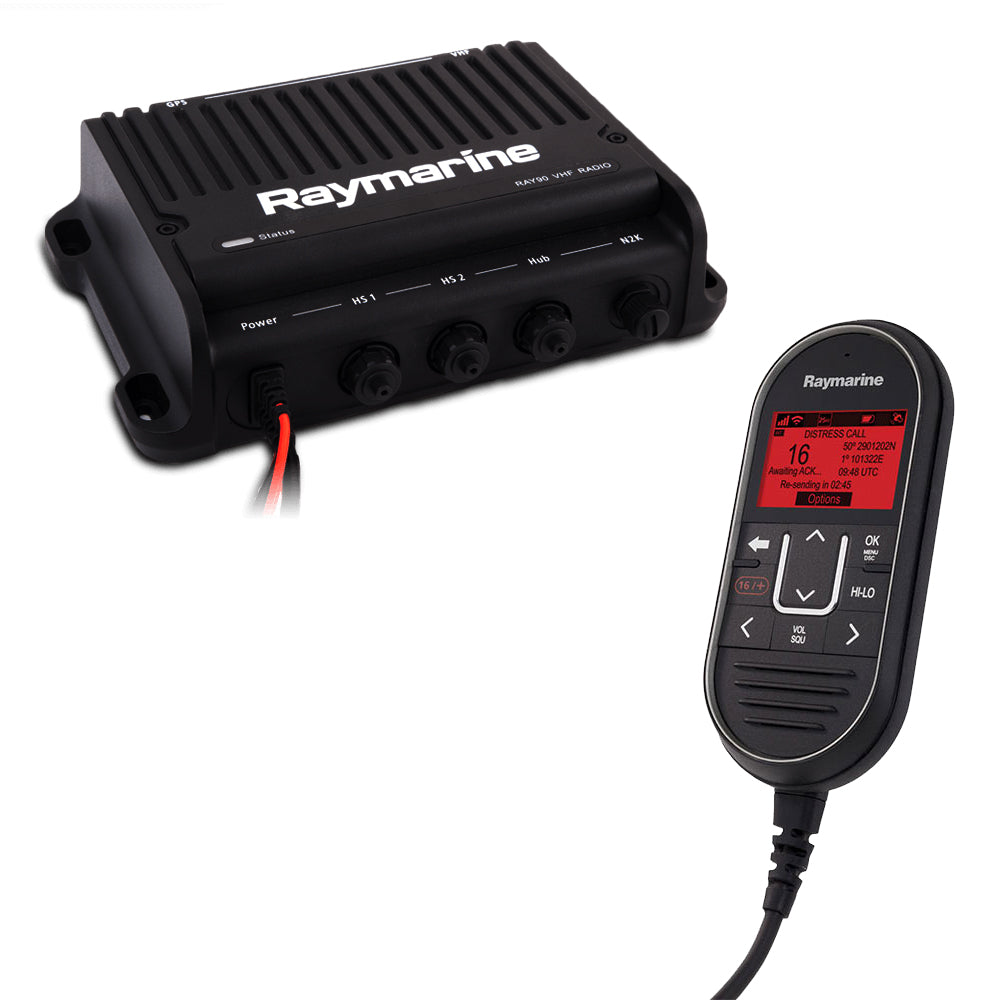

Ray91 Modular Dual-Station VHF Black Box Radio System with AIS

The Ray91 modular VHF radio brings dual-station communications and traffic management to a whole new level of power, performance, and flexibility. The Ray91 is a black-box design with a transceiver that hides out of sight while the ergonomic RayMic handset and remote speaker provide full control of the radio with crystal clear audio.

Features:

• Black box, dual-station capable VHF radio
• Built-in Automatic Identification System (AIS) Class B Receiver
• Wired handset and passive speaker included
• Expandable to 2 RayMic handsets
• Built-in loudhailer and fog signal generator
• Optional external GPS receiver and Class D Digital Selective Calling
• Simple NMEA2000 and NMEA0183 Networking

The Ray91 is also equipped with an integrated Automatic Identification System (AIS) receiver. Us the Ray91 to receive navigation and safety broadcasts from nearby AIS-equipped vessels and share them over NMEA2000 or NMEA0183 with compatible MFDs. AIS equipped vessels can easily be identified along with their vessel name, course, speed, CPA, and other voyage information.

Communications Powerhouse

Ray91 is equipped with a powerful 25-watt transmitter and commercial grade electronics for long life and superior performance. Channel scanning, dual-watch, tri-watch and weather alert are standard. Class D Digital Selective Calling radio and integrated GPS makes setting up the advanced safety and calling features easy. Simply input your vessel’s MMSI number during setup and you’re ready to go. For GPS operation the optional GA150 passive GPS antenna is required.

Position Tracking

Use Ray91’s position tracking feature to keep tabs on up to 5 nearby DSC equipped vessels. Their positions are automatically shared with your Raymarine MFD. Keep an eye on other boats in your cruising party, monitor vessels of interest, or manage your local fleet. In Europe the Ray91 supports the ATIS system on navigable inland waterways.

Loudhailer

Ray91’s built-in loudhailer will make you heard on-deck and across the harbour. Connect an optional hailing horn and make your presence known with 30-watts of audio output, plus 2-way talkback. When things get foggy, the loudhailer can be set to automatically sound required fog signals for power and sailing vessels underway and at anchor.

Waterproof & Ruggedized

Ray91’s transceiver unit is cast in solid aluminum for shock and vibration resistance and maximum heat dissipation. RayMic handsets feature super-bright backlighting for easy viewing in all conditions and oversized keys provide a sure grip with easy access to commonly used functions.

The Ray91 system includes 1 wired handset and a passive speaker kit. Expand your system with an additional wired station to keep you in communication from the tuna tower, flying bridge, helm, salon or even in staterooms!

No matter how small or how large your vessel is, the Ray91 from Raymarine has all the power and performance you need for essential communications, safety and situational awareness on the water.

Specifications:

• NMEA 2000: Yes
• Built-In GPS: Yes
• AIS: Yes
• Hailer: Yes
• Remote Mic Capable: Yes
• Scrambler Capable: No
• Color: Black
• Intercom Capability: Yes
• Listen-Back: No
• Box Dimensions: 9"H x 10"W x 11"L WT: 3.72 lbs
• UPC: 723193823194

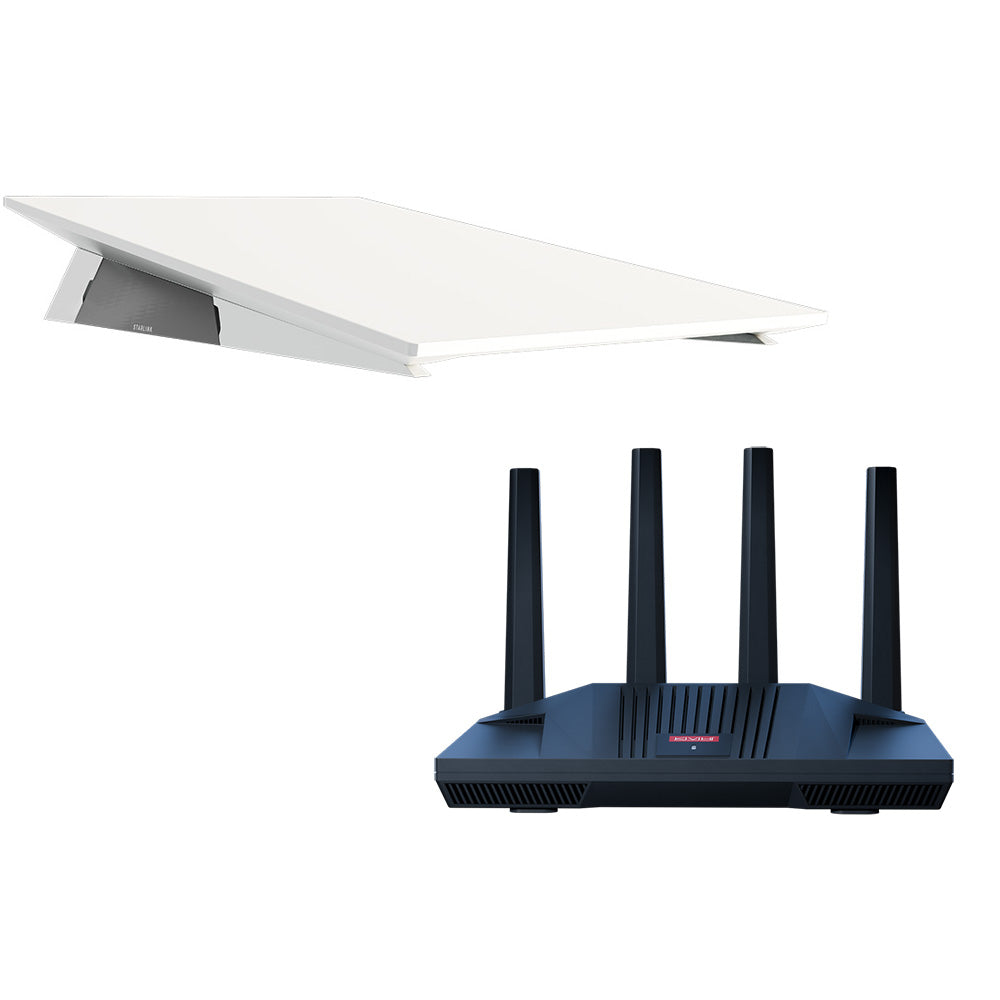

Starlink Performance Gen 3 Kit with Wedge Mount & CommBox Edge Core Communications Gateway & Wi-Fi Router

*Monthly service plans for this item are provided by KVH, an Authorized Starlink Reseller. Starlink activation is done through KVH, service and will not work with Starlink direct unless an unlock fee is paid*

Upgrade from Starlink with “just a router” to a smart, high-performance network with KVH’s exclusive Starlink + CommBox Edge Core Performance Bundle. Enjoy powerful controls and features you simply do not get with typical routers.

Designed for resilient connectivity in remote areas and harsh environments, including extreme weather, high-vibration settings, and in-motion usage.

The Starlink Performance Wedge Mount is designed to attach to a variety of vehicles, including cars, boats, and RVs. Crafted from durable, weather-resistant materials, the mount provides a sturdy foundation for your Starlink, capable of withstanding various environmental conditions, including winds of up to 280 km/h (174 mph). The 8-degree tilt of the mount is designed to encourage water shedding, which helps maintain a strong connection during rain events.

The Performance Wedge Mount has a bolt pattern that matches the previous generation Wedge Mount, streamlining the install process when upgrading to the new Starlink Performance Kit. The mount is accompanied by all necessary hardware and user-friendly instructions, ensuring a hassle-free setup process.

Features:

• The Starlink Performance Kit is currently capable of download speeds up to 400+ Mbps for fast, reliable connectivity whenever you need it. Starlink is focused on making network enhancements that will enable gigabit speeds starting in the most remote places on Earth with the Performance Kit. Service plan upgrades will be available in 2026. No hardware changes needed.
• Capable of enduring winds up to 270+ kph (170+ mph) and temperatures from -40°C to 60°C (-40°F to 140°F).
• Enhanced snow melting capacity, featuring an IP68 (unplugged) - IP69K (plugged) waterproof rating. Suitable for 1 meter of water submersion for up to 30 minutes and pressure washing.
• The Advanced Power Supply included with the Starlink Performance Kit is rack-mountable, operates on both AC and DC power, and supports DC input with a backup battery for uninterrupted operation. It features smart diagnostics, a high-power PoE port, and a LAN port, offering real-time monitoring, seamless connectivity, and reliable performance for demanding network and industrial applications.
• Designed for a 10-year mission life.

Technical Specifications:

• Field-of-View (FoV) - 140°
• Orientation - Software-Assisted Manual Orienting
• Weight - 11.5 lbs (5.2 kg)
• Dimensions - 24" (L) x 15.6" (W) x 1.6" (D)
• IP Rating - IP69K (with cables installed), IP68 (no cables installed)
• Operating Temperature - -40°C to 60°C (-40°F to 140°F)
• Wind Speed - Survivable: 280 kph+ (174 mph+)
• Snow Melt Capability - Up to 85 mm/hour (3.5 in / hour)
• Power Consumption - Average: 75 - 100W
• Router Compatibility - Starlink Gen3 Router, Starlink Mini Mesh Router, 3rd Party Routers

What's In The Box?

• Starlink Performance Dish
• Advanced Power Supply
• CommBox Edge Core Communications Gateway and Wi-Fi Router
• 25m (82') Starlink Performance Cable
• 5m (16.4') Starlink Ethernet Cable
• 1.5m (4.9') Starlink AC Power Cable
• 1.5m (4.9') Starlink DC Power Cable

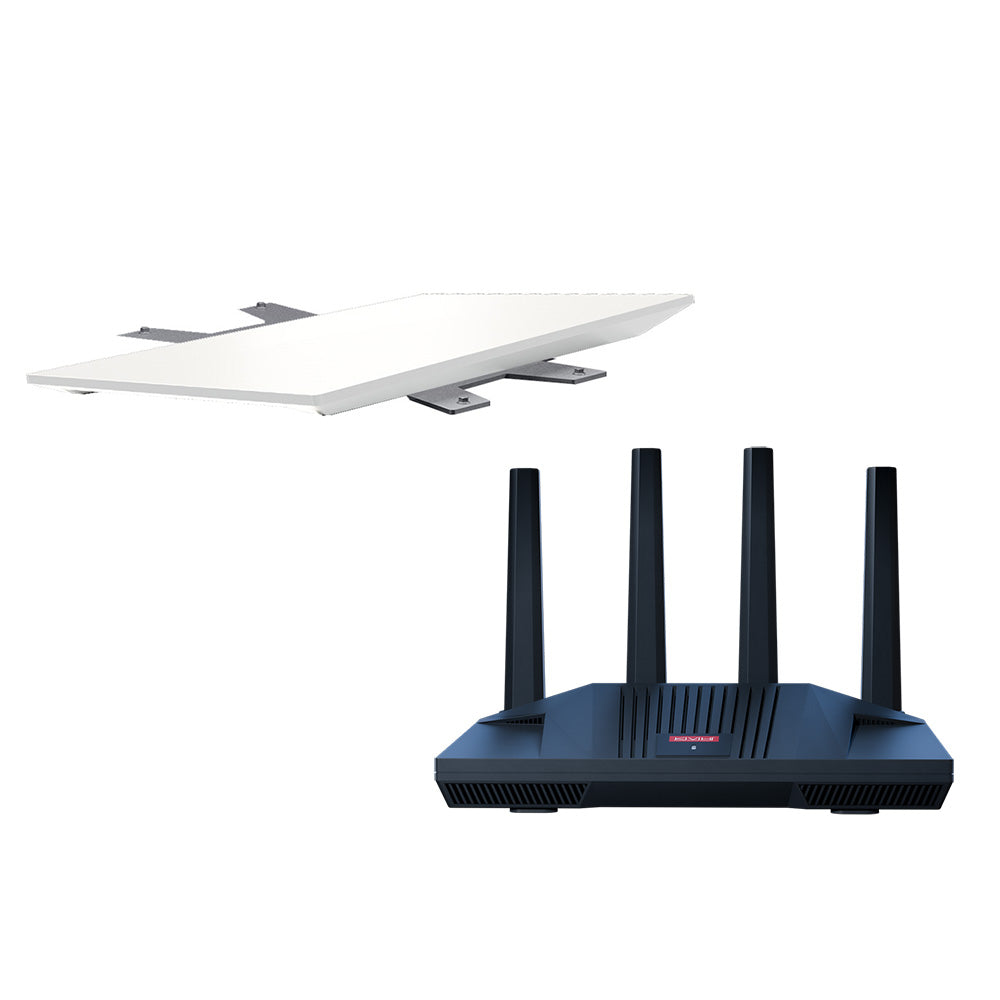

Starlink Performance Gen 3 Kit with Flat Mount & CommBox Edge Core Communications Gateway & Wi-Fi Router

*Monthly service plans for this item are provided by KVH, an Authorized Starlink Reseller. Starlink activation is done through KVH, service and will not work with Starlink direct unless an unlock fee is paid*

Upgrade from Starlink with “just a router” to a smart, high-performance network with KVH’s exclusive Starlink + CommBox Edge Core Performance Bundle. Enjoy powerful controls and features you simply do not get with typical routers.

Designed for resilient connectivity in remote areas and harsh environments, including extreme weather, high-vibration settings, and in-motion usage.

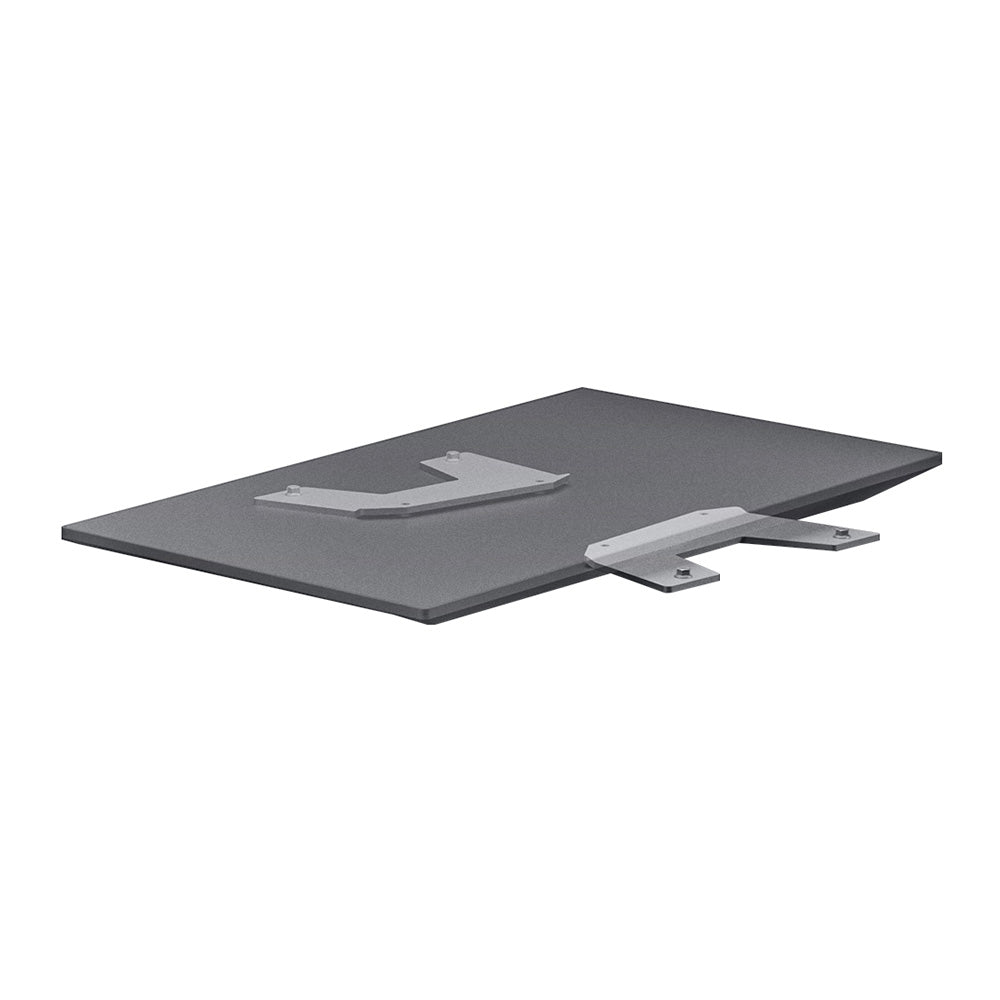

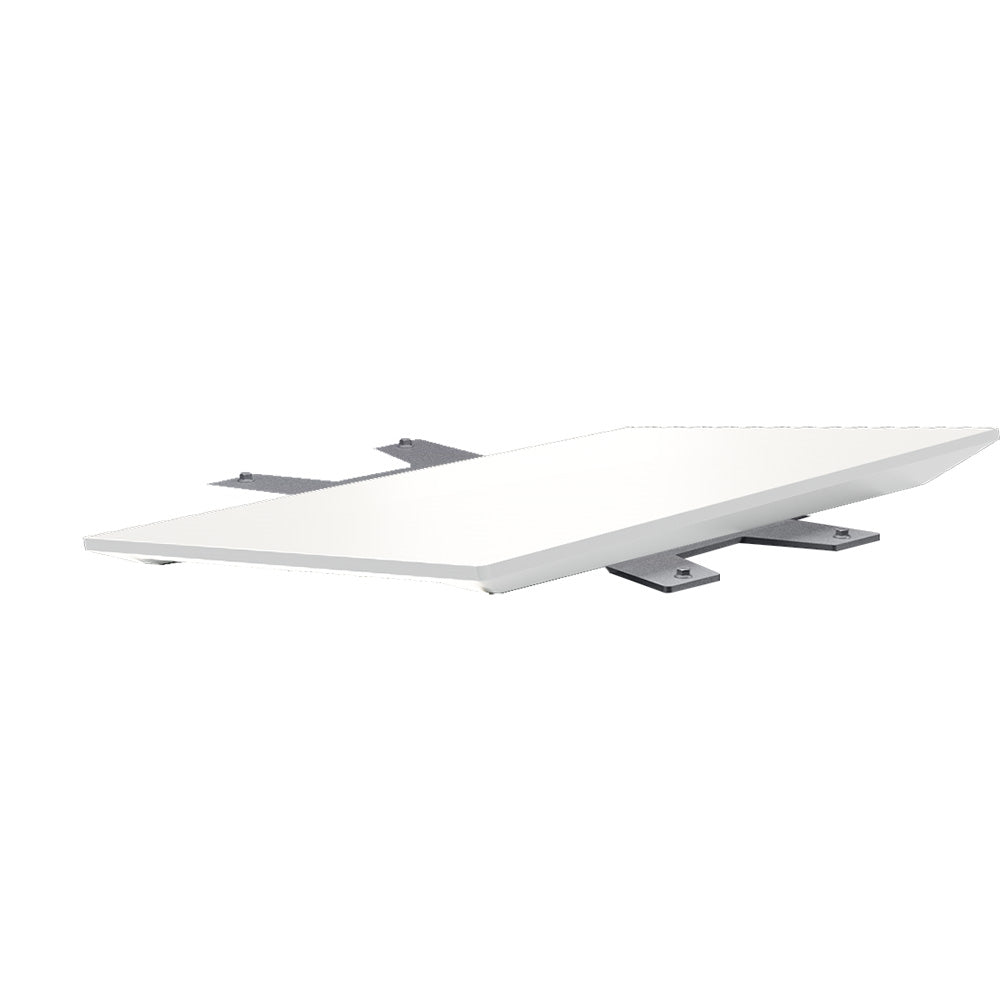

The Starlink Performance Flat Mount is designed to provide a sleek, low-profile installation option on a variety of vehicles, including cars, boats, and RVs. Crafted from durable, weather-resistant materials, the mount can ensure a sturdy and enduring foundation for your Starlink, capable of withstanding various environmental conditions, including winds up to 280 kmh (174 mph). The mount has a 2-degree tilt, which is less optimal for maintaining a strong connection if stationary during wet weather than the 8-degree tilt of the Wedge Mount.

The mount is accompanied by all necessary hardware and user-friendly instructions, ensuring a hassle-free setup process.

Features:

• The Starlink Performance Kit is currently capable of download speeds up to 400+ Mbps for fast, reliable connectivity whenever you need it. Starlink is focused on making network enhancements that will enable gigabit speeds starting in the most remote places on Earth with the Performance Kit. Service plan upgrades will be available in 2026. No hardware changes needed.
• Capable of enduring winds up to 270+ kph (170+ mph) and temperatures from -40°C to 60°C (-40°F to 140°F).
• Enhanced snow melting capacity, featuring an IP68 (unplugged) - IP69K (plugged) waterproof rating. Suitable for 1 meter of water submersion for up to 30 minutes and pressure washing.
• The Advanced Power Supply included with the Starlink Performance Kit is rack-mountable, operates on both AC and DC power, and supports DC input with a backup battery for uninterrupted operation. It features smart diagnostics, a high-power PoE port, and a LAN port, offering real-time monitoring, seamless connectivity, and reliable performance for demanding network and industrial applications.
• Designed for a 10-year mission life.

Technical Specifications:

• Field-of-View (FoV) - 140°
• Orientation - Software-Assisted Manual Orienting
• Weight - 11.5 lbs (5.2 kg)
• Dimensions - 24" (L) x 15.6" (W) x 1.6" (D)
• IP Rating - IP69K (with cables installed), IP68 (no cables installed)
• Operating Temperature - -40°C to 60°C (-40°F to 140°F)
• Wind Speed - Survivable: 280 kph+ (174 mph+)
• Snow Melt Capability - Up to 85 mm/hour (3.5 in / hour)
• Power Consumption - Average: 75 - 100W
• Router Compatibility - Starlink Gen3 Router, Starlink Mini Mesh Router, 3rd Party Routers

What's In The Box?

• Starlink Performance Dish
• Advanced Power Supply
• CommBox Edge Core Communications Gateway and Wi-Fi Router
• 25m (82') Starlink Performance Cable
• 5m (16.4') Starlink Ethernet Cable
• 1.5m (4.9') Starlink AC Power Cable
• 1.5m (4.9') Starlink DC Power Cable

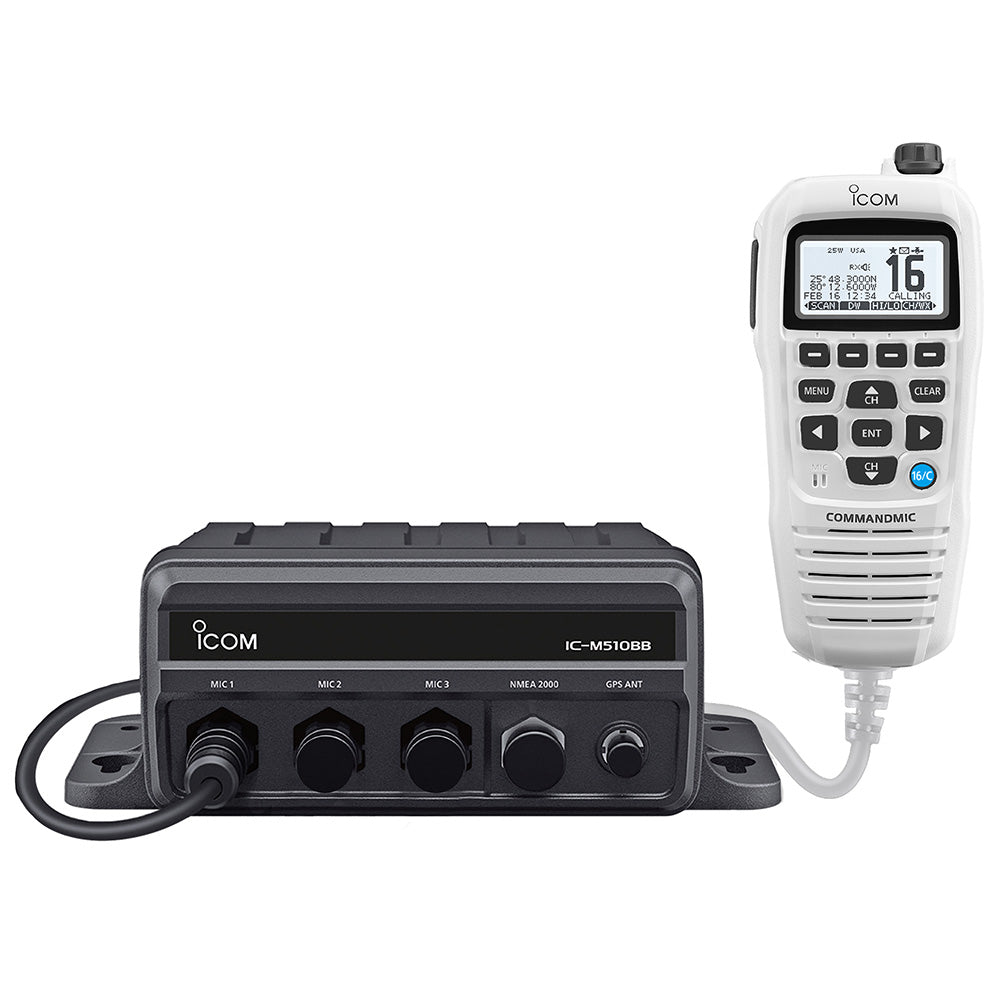

IC-M510BB GW 21 Black Box VHF with White Command Mic & 3 Command Mic Ports

Icom’s IC-M510BB is perfect for boats that need AIS to receive functionality without taking up precious helm space. The supplied white CommandMic™ provides all the safety and communication functions for commercial and leisure boaters.

Clean Installation for Limited Helm Space

The IC-M510BB consists of a CommandMic™ and a black box RF unit. Use the CommandMic™ for all operations, including DSC. Install the RF unit out of sight, placing it up to 60 ft (18.3 m)* away from the CommandMic™.

*Two OPC-1541 cables are required for the 60 ft installation

CommandMic™ Stations

Add up to two additional CommandMic™ microphones for boats requiring two or three comms stations. Extend communication points around the boat, including the cockpit, flybridge, and tower. Access the intercom functions for one-to-all or one-to-one communications on the boat.

AIS Receive

The IC-M510BB includes an integrated AIS receiver, perfect for remote station information via the CommandMic™, or integrated into the NMEA 2000® bus to display radar and chart plotter information on an MFD (Multi-Function Display).

DSC Functionality and Remote Control

In addition to the conveniently located DSC button on the back of every CommandMic™, the IC-M510BB introduces a dedicated DSC Remote Control (EN 300 338-8 compatible) terminal, allowing a connection to an external device to centralize emergency communications control.

NMEA200® and NMEA 0183-HS®

The NMEA 2000® network provides plug-and-play data communication to interconnect other marine equipment, such as an MFD (Multi-Function Display). The radio can send AIS, GNSS (GPS) position, DSC call, and radio channels to other equipment.

Class D DSC Functionality

On the back of every CommandMic™ is a conveniently located DSC button. Once triggered, the IC-M510BB transmits a DSC alert signal to nearby vessels with the MMSI* and GPS location of your vessel. *MMSI number must be obtained and programmed for each vessel/radio.

Loud One-Way RX Hailer

The built-in 15W amplifier increases the audio output of an external hailer speaker. The one-way RX hailer function enables you to broadcast radio traffic through the hailer speaker to listen to radio traffic on the deck or tower. You can also hear foghorn patterns from the hailer speaker.

Active Noise Cancelling

The Active Noise cancellation function digitally removes background noise from transmitting and receiving audio to provide clear communications in noisy maritime environments.

Features:

• AquaQuake™ function
• Anchor watch function

Specifications:

• Command Mic Color: White
• Remote Stations: Up to 3
• Output Power: 25W
• GPS: Internal GPS GNSS Receiver, with external GPS antenna connection
• NMEA: NMEA 2000®/ NMEA 0183® -HS
• Waterproof Rating: IPX7
• Frequency Range: Tx - 156.025 157.425 MHz / Rx - 156.050 163.275 MHz / DSC - 156.525 MHz
• Usable Channels: USA, INT, CAN, WX channels
• Type of Emission: 16K0G3E (FM), 16K0G2B (DSC), 16K0GXW (AIS)*
• Power Supply Requirement: 13.8 V DC nominal (11.7 15.9 V DC) (Negative ground)
• Current Drain (at 13.8 V DC): TX Max. power - 5.5 A Max. / RX Max. audio - 1.5 A (One CommandMic™) 4.0 A (Two CommandMic™ and RX hailer)
• Operating Temperature Range: –20°C-60°C /  –4°F-140°F
• Antenna Impedance: 50 Ω nominal
• Dimensions (W x H x D) (Projections Not Included): RF unit - 216 × 79 × 113 mm; 8.5 × 3.1 × 4.4 in. / CommandMic™ - 67.5 × 144.5 × 37 mm; 2.7 × 5.7 × 1.5 in.
• Approximate Weight: RF unit - 890 g; 2 lb. / CommandMic™ - 400 g; 14.1 oz

Transmitter Specifications:

• Output Power (at 13.8V DC):  25 W, 1 W (high, low)
• Max. Frequency Deviation: +/- 5 kHz
• Frequency Tolerance: +/- 0.5 kHz
• Spurious Emissions: Less than –70 dBc (high power), Less than –56 dBc (low power)
• Residual Modulation: More than 40 dB
• Adjacent Channel Power: More than 70 dB

Receiver Specifications:

• Sensitivity: FM (at 12dB SINAD): 0.22 μV typical / DSC (at 1% BER): –7 dBμ emf typical
• Adjacent Channel Selectivity: FM - More than 70 dB / DSC (1% BER) - More than 73 dBµ emf
• Spurious Response: FM - More than 70 dB / DSC (1% BER) - More than 73 dBμ emf
• Intermodulation: FM - More than 75 dB / DSC (1% BER) - More than 68 dBµ emf
• Hum and Noise: More than 40 dB
• Audio Output Power: CommandMic™ - More than 2 W (4 Ω, 10% distortion) / Rx hailer - More than 15 W (4 Ω)

Specifications:

• AIS: Yes
• Built-In GPS: Yes
• Color: White
• Hailer: Yes
• Intercom Capability: Yes
• NMEA 2000: Yes
• Remote Mic Capable: Yes
• Box Dimensions: 6"H x 9"W x 10"L WT: 5 lbs
• UPC: 4909723164487

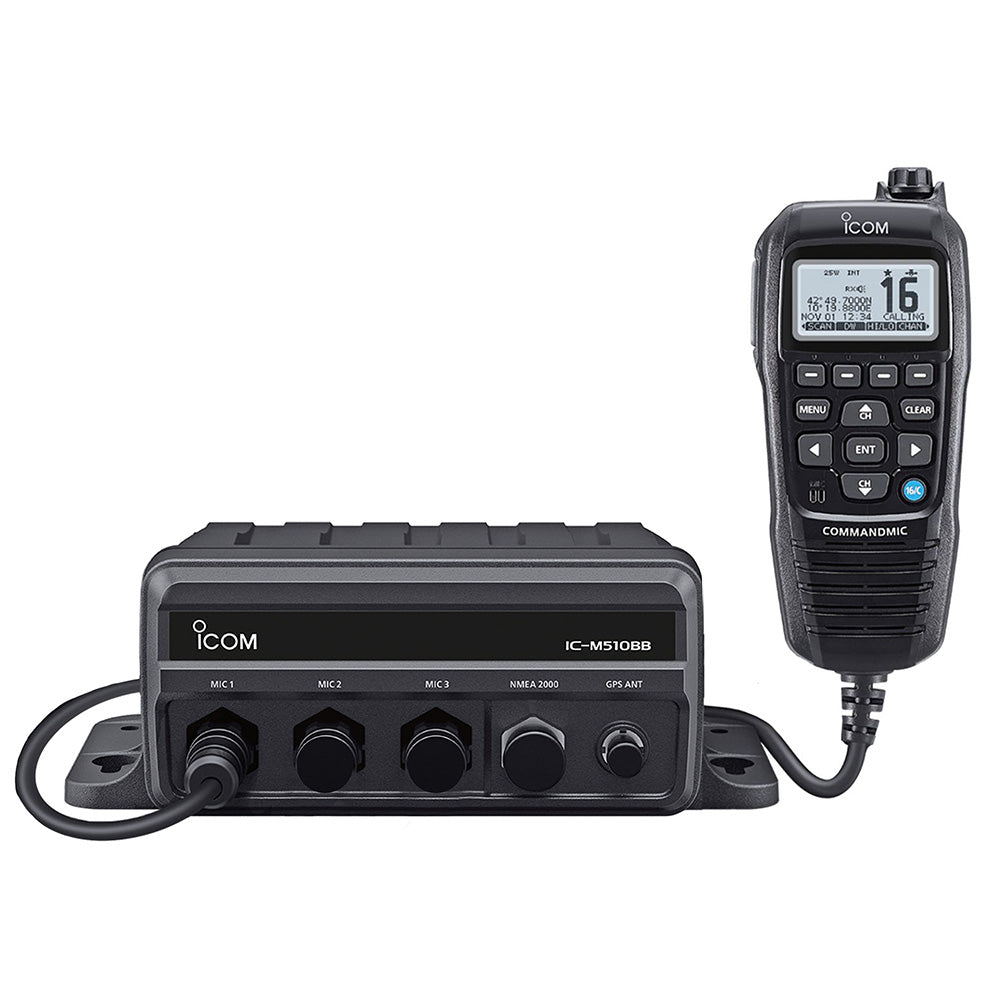

IC-M510BB 21 Black Box VHF with Black Command Mic & 3 Command Mic Ports

Icom’s IC-M510BB is perfect for boats that need AIS to receive functionality without taking up precious helm space. The supplied black CommandMic™ provides all the safety and communication functions for commercial and leisure boaters.

Clean Installation for Limited Helm Space

The IC-M510BB consists of a CommandMic™ and a black box RF unit. Use the CommandMic™ for all operations, including DSC. Install the RF unit out of sight, placing it up to 60 ft (18.3 m)* away from the CommandMic™.

*Two OPC-1541 cables are required for the 60 ft installation

CommandMic™ Stations

Add up to two additional CommandMic™ microphones for boats requiring two or three comms stations. Extend communication points around the boat, including the cockpit, flybridge, and tower. Access the intercom functions for one-to-all or one-to-one communications on the boat.

AIS Receive

The IC-M510BB includes an integrated AIS receiver, perfect for remote station information via the CommandMic™, or integrated into the NMEA 2000® bus to display radar and chart plotter information on an MFD (Multi-Function Display).

DSC Functionality and Remote Control

In addition to the conveniently located DSC button on the back of every CommandMic™, the IC-M510BB introduces a dedicated DSC Remote Control (EN 300 338-8 compatible) terminal, allowing a connection to an external device to centralize emergency communications control.

NMEA200® and NMEA 0183-HS®

The NMEA 2000® network provides plug-and-play data communication to interconnect other marine equipment, such as an MFD (Multi-Function Display). The radio can send AIS, GNSS (GPS) position, DSC call, and radio channels to other equipment.

Class D DSC Functionality

On the back of every CommandMic™ is a conveniently located DSC button. Once triggered, the IC-M510BB transmits a DSC alert signal to nearby vessels with the MMSI* and GPS location of your vessel. *MMSI number must be obtained and programmed for each vessel/radio.

Loud One-Way RX Hailer

The built-in 15W amplifier increases the audio output of an external hailer speaker. The one-way RX hailer function enables you to broadcast radio traffic through the hailer speaker, allowing you to listen to it on the deck or tower. You can also hear foghorn patterns from the hailer speaker.

Active Noise Cancelling

The Active Noise Cancellation function digitally removes background noise from transmitted and received audio to provide clear communication in noisy maritime environments.

Features:

• AquaQuake™ function
• Anchor watch function

Specifications:

• Command Mic Color: Black
• Remote Stations: Up to 3
• Output Power: 25W
• GPS: Internal GPS GNSS Receiver, with external GPS antenna connection
• NMEA: NMEA 2000®/ NMEA 0183® -HS
• Waterproof Rating: IPX7
• Frequency Range: Tx - 156.025 157.425 MHz / Rx - 156.050 163.275 MHz / DSC - 156.525 MHz
• Usable Channels: USA, INT, CAN, WX channels
• Type of Emission: 16K0G3E (FM), 16K0G2B (DSC), 16K0GXW (AIS)*
• Power Supply Requirement: 13.8 V DC nominal (11.7 15.9 V DC) (Negative ground)
• Current Drain (at 13.8 V DC): TX Max. power - 5.5 A Max. / RX Max. audio - 1.5 A (One CommandMic™) 4.0 A (Two CommandMic™ and RX hailer)
• Operating Temperature Range: –20°C-60°C /  –4°F-140°F
• Antenna Impedance: 50 Ω nominal
• Dimensions (W x H x D) (Projections Not Included): RF unit - 216 × 79 × 113 mm; 8.5 × 3.1 × 4.4 in. / CommandMic™ - 67.5 × 144.5 × 37 mm; 2.7 × 5.7 × 1.5 in.
• Approximate Weight: RF unit - 890 g; 2 lb. / CommandMic™ - 400 g; 14.1 oz

Transmitter Specifications:

• Output Power (at 13.8V DC):  25 W, 1 W (high, low)
• Max. Frequency Deviation: +/- 5 kHz
• Frequency Tolerance: +/- 0.5 kHz
• Spurious Emissions: Less than –70 dBc (high power), Less than –56 dBc (low power)
• Residual Modulation: More than 40 dB
• Adjacent Channel Power: More than 70 dB

Receiver Specifications:

• Sensitivity: FM (at 12dB SINAD): 0.22 μV typical / DSC (at 1% BER): –7 dBμ emf typical
• Adjacent Channel Selectivity: FM - More than 70 dB / DSC (1% BER) - More than 73 dBµ emf
• Spurious Response: FM - More than 70 dB / DSC (1% BER) - More than 73 dBμ emf
• Intermodulation: FM - More than 75 dB / DSC (1% BER) - More than 68 dBµ emf
• Hum and Noise: More than 40 dB
• Audio Output Power: CommandMic™ - More than 2 W (4 Ω, 10% distortion) / Rx hailer - More than 15 W (4 Ω)

Specifications:

• AIS: Yes
• Built-In GPS: Yes
• Color: Black
• Hailer: Yes
• Intercom Capability: Yes
• NMEA 2000: Yes
• Remote Mic Capable: Yes
• Box Dimensions: 6"H x 9"W x 10"L WT: 5.3 lbs
• UPC: 731797044600

IC-M410BB 11 Black Box VHF with Black Command Mic & 2 Command Mic Ports

Icom’s IC-M410BB is a flexible black box mounted on a fixed mount that provides VHF communications for vessels with limited helm space. The supplied black CommandMic™ controls the radio for essential communications on the water.

Clean Installation for Limited Helm Space

The IC-M410BB consists of a CommandMic™ and a black box RF unit. Use the CommandMic™ for all operations, including DSC. Install the RF unit out-of-sight, placing it up to 60 ft (18.3 m)* away from the CommandMic™.

*Two OPC-1541 cables are required for the 60 ft installation

CommandMic™ Stations

Add CommandMic™ to extend communication points for boats requiring a second communications station. This is ideal for boats that need communication between the cockpit and other locations on the boat. Access the intercom functions for one-to-all or one-to-one communications on the boat.

Class D DSC Functionality

On the back of every CommandMic™ is a conveniently located DSC button. Once triggered, the IC-M410BB transmits a DSC alert signal to nearby vessels with the MMSI* and GPS location of your vessel.

NMEA200® and NMEA 0183-HS®

The NMEA 2000® network provides plug-and-play data communication to interconnect other marine equipment, such as an MFD (Multi-Function Display). The radio can send AIS, GNSS (GPS) position, DSC call, and radio channels to other equipment.

Loud One-Way RX Hailer

The built-in 15W amplifier increases the audio output of an external hailer speaker. The one-way RX hailer function enables you to broadcast radio traffic through the hailer speaker, allowing you to listen to it on the deck or tower. You can also hear foghorn patterns from the hailer speaker.

Active Noise Cancelling

The Active Noise Cancellation function digitally removes background noise from transmitted and received audio to provide clear communication in noisy maritime environments.

Features:

• AquaQuake™ function
• Anchor watch function

Specifications:

• Command Mic Color: Black
• Remote Stations: Up to 2
• Output Power: 25W
• GPS: Internal GPS GNSS Receiver, with external GPS antenna connection
• NMEA: NMEA 2000®/ NMEA 0183® -HS
• Waterproof Rating: IPX7
• Frequency Range: Tx - 156.025 157.425 MHz / Rx - 156.050 163.275 MHz / DSC - 156.525 MHz
• Usable Channels: USA, INT, CAN, WX channels
• Type of Emission: 16K0G3E (FM), 16K0G2B (DSC), 16K0GXW (AIS)*
• Power Supply Requirement: 13.8 V DC nominal (11.7 15.9 V DC) (Negative ground)
• Current Drain (at 13.8 V DC): TX Max. power - 5.5 A Max. / RX Max. audio - 1.5 A (One CommandMic™) 4.0 A (Two CommandMic™ and RX hailer)
• Operating Temperature Range: –20°C-60°C /  –4°F-140°F
• Antenna Impedance: 50 Ω nominal
• Dimensions (W x H x D) (Projections Not Included): RF unit - 216 × 79 × 113 mm; 8.5 × 3.1 × 4.4 in. / CommandMic™ - 67.5 × 144.5 × 37 mm; 2.7 × 5.7 × 1.5 in.
• Approximate Weight: RF unit - 890 g; 2 lb. / CommandMic™ - 400 g; 14.1 oz

Transmitter Specifications:

• Output Power (at 13.8V DC):  25 W, 1 W (high, low)
• Max. Frequency Deviation: +/- 5 kHz
• Frequency Tolerance: +/- 0.5 kHz
• Spurious Emissions: Less than –70 dBc (high power), Less than –56 dBc (low power)
• Residual Modulation: More than 40 dB
• Adjacent Channel Power: More than 70 dB

Receiver Specifications:

• Sensitivity: FM (at 12dB SINAD): 0.22 μV typical / DSC (at 1% BER): –7 dBμ emf typical
• Adjacent Channel Selectivity: FM - More than 70 dB / DSC (1% BER) - More than 73 dBµ emf
• Spurious Response: FM - More than 70 dB / DSC (1% BER) - More than 73 dBμ emf
• Intermodulation: FM - More than 75 dB / DSC (1% BER) - More than 68 dBµ emf
• Hum and Noise: More than 40 dB
• Audio Output Power: CommandMic™ - More than 2 W (4 Ω, 10% distortion) / Rx hailer - More than 15 W (4 Ω)

Specifications:

• Built-In GPS: Yes
• Color: Black
• Hailer: Yes
• Intercom Capability: Yes
• NMEA 2000: Yes
• Remote Mic Capable: Yes
• Box Dimensions: 7"H x 9"W x 11"L WT: 5.05 lbs
• UPC: 731797044587

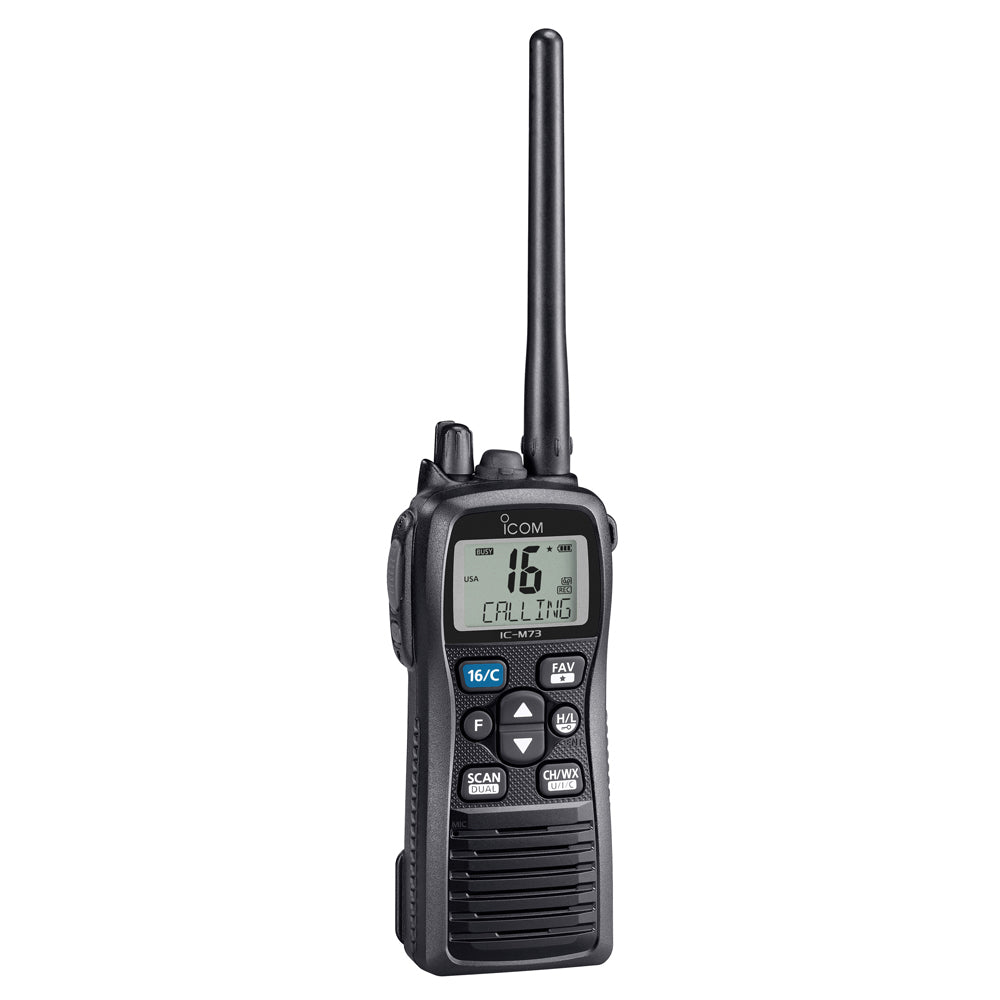

IC-M73 PLUS Handheld VHF Marine Radio with Active Noise Cancelling & Voice Recording - 6W

The IC-M73’s ergonomic design fits easily in the user’s hand and is a rugged, durable radio. The large screen and high-intensity LCD offer bright, easy-to-read characters. Yacht customers benefit from the optional VOX headset and adapter option that allows someone handling dock lines to use both hands while docking the boat, simultaneously communicating with the captain.

Features:

• Output Power: 6W
• Battery Life: 2000mAh Li-ion battery, up to 16 hours
• Waterproof Rating: IPX8
• Loud Audio - The IC-M73 uses a BTL (bridge-tied load) amplifier that doubles the audio output. Its internal speaker delivers a loud 700mW audio output with clear sound.

IC-M73 PLUS Additional Features:

• Active noise canceling to reduce background noise and hear conversations better
• The bass boost function provides a rich bass sound for both transmit and receive signals
• Last call voice recording automatically saves the last incoming call for one minute. You can also start recording manually
• AquaQuake™ water draining function
• Dual/Tri-Watch function for monitoring Channel 16 and/or call channel
• 4-level battery indicator
• Favorite channel and tag scan functions
• Auto power save function
