SLEIPNER SRV100/185T VERTICAL RETRACTING THRUSTER KIT | 12V ON-OFF | 100KG/220LB | SRV100/185T-12V

SLEIPNER SRV100/185T VERTICAL RETRACTING THRUSTER KIT | 12V ON-OFF | 100KG/220LB | SRV100/185T-12V

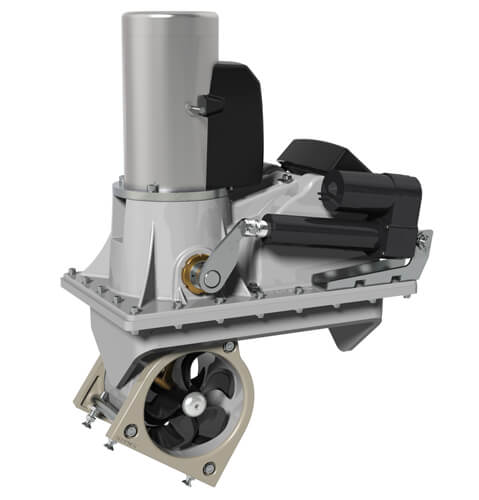

Command heavy-duty docking muscle with zero cruising drag on a standard 12V system. The Sleipner Side-Power SRV100 (SRV100/185T-12V) is a high-performance, vertically retracting on-off thruster kit engineered for mid-sized vessels. Delivering a massive 100 kg (220 lbs) of lateral thrust, this unit drops straight down for flawless maneuvering in tight marinas and pulls back completely flush into the hull when underway, guaranteeing zero underwater resistance.

This "component-only" kit features a flange-mounted configuration where the core thruster and motor assembly are enclosed in a bolt-down casing. This makes it an ideal drop-in replacement or straightforward component for custom boat builders looking to integrate premium retractable thruster technology into standard 12V house or thruster battery banks.

(Note: This SKU contains the vertical mechanical thruster unit, actuator, and 12V motor assembly; it does not include the installation outer frame or mold-in flange base).

Key Features:

• Vertical Retraction Mechanism: Extends vertically downward to maximize water depth and pushing leverage, then retracts straight up flush with the hull to completely eliminate speed-robbing drag.

• Heavy-Duty 100 kg (220 lbs) Thrust: Provides robust pushing power to easily pivot your bow or stern, giving you complete command even in strong crosswinds or tight docking slips.

• 12V Drop-In Compatibility: Integrates seamlessly into standard 12V marine electrical systems, providing heavy-duty docking power without the need for complex voltage converters or independent 24V battery banks.

• Deep Waterline Leverage: Because a retractable thruster deploys deeper under the waterline than a traditional fixed tunnel thruster, it operates with maximum efficiency and avoids drawing in surface air (cavitation).

• Twin Q-Prop™ Counter-Rotating Propellers: Outfitted with aerodynamically skewed 5-blade twin propellers that deliver maximum thrust efficiency while cutting down cabin vibration and noise by up to 75%.

• Intelligent Power Control (IPC): Sleipner’s patented smart monitoring firmware protects your solenoids and mechanical gears by preventing instant direction changes and automatically cutting power if a fault is detected.

Specifications:

• Part Number: SRV100/185T-12V

• Thrust Power: 100 kg (220 lbs) at 10.5V / 116 kg (255 lbs) at 12V

• System Voltage: 12V DC

• Tunnel Diameter: 185 mm (7.3'')

• Operation Type: Standard Single-Speed (On / Off)

Important Buyer Note: This unit does not include the outer mounting frame or base flange. It is designed as a direct replacement component or for custom yacht building projects where the fiberglass flange base is supplied separately or constructed directly into the hull by the builder.
