SLEIPNER E350 eVision PROPORTIONAL THRUSTER | 48V | 350KG/770LB | HEAVY DUTY BODY ONLY | E350/300TC-HDB

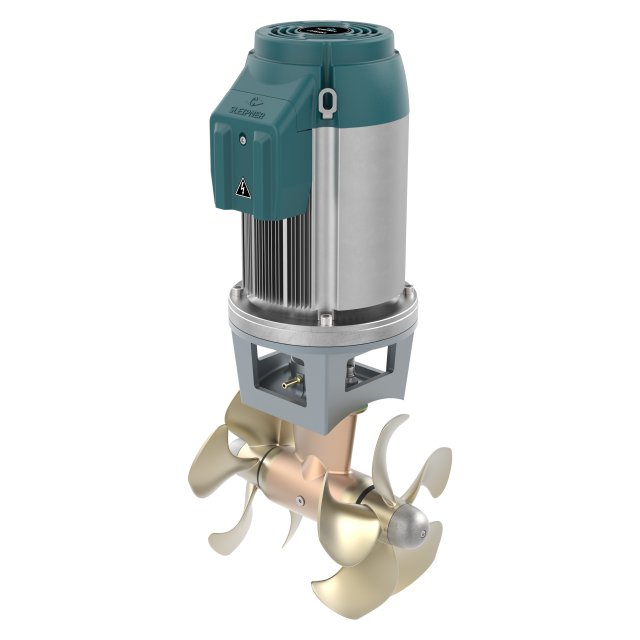

The ultimate heavy-duty drop-in core component for mega-yacht refits, modular upgrades, or direct replacement. The Sleipner E350/300TC-HDB is a "Heavy Duty Body" (HDB) configuration of the flagship eVision 48V proportional thruster series. Engineered for massive continuous variable thrust in luxury vessels and commercial craft from 62 to 98 feet, this unit includes the cutting-edge 6-phase PMSM (Permanent Magnet Synchronous Motor), integrated variable-speed motor drive controller, and the DNV-type-approved gearleg assembly.
⚠️ IMPORTANT NOTE: This is an "HDB" (Heavy Duty Body Only) package. It is designed for retrofits, component swaps, or custom builds where the structural 300mm fiberglass tunnel, S-Link™ CAN-bus network cables, and helm joysticks are already present or sourced separately.
Key Features:
-
EVision Brushless PMSM Core: By eliminating performance-fading brushes and utilizing an electric-vehicle-grade Permanent Magnet Synchronous Motor, the E350 outputs up to 22 kW (29 HP) of pure variable-speed power with near-zero friction or internal maintenance.
-
Heavy Duty (HD) Commercial Grade Engineering: The "HDB" version utilizes a ruggedized, DNV-certified submerged gearhouse built to withstand continuous operational loading, making it ideal for heavier displacement hulls or high-duty-cycle yachts.
-
Continuous Performance Runtimes: Unlike traditional DC motors that heat up and shut off within minutes, the integrated active air cooling and smart inverter allow the E350 to run continuously. If thermal boundaries are pushed, it seamlessly derates power slightly rather than shutting down.
-
True Proportional Control (S-Link™ Ready): Built to plug directly into your vessel's existing S-Link™ CAN-bus network. Experience absolute precision over your hull, using a gentle 15% thrust nudge for calm docking or leveraging the automated "Hold" function to pin the yacht single-handedly against a slip.
-
Galvanic Isolation Shielding: The immersed gearleg is 100% structurally and electrically isolated from the onboard 48V electrical grid. This breaks the electrical circuit, entirely eliminating the risk of stray-current galvanic corrosion eating away at your hull gear.
-
Twin Counter-Rotating Q-Prop™ Setup: Features aerodynamically skewed, 5-blade composite twin propellers moving in opposing directions. This forces massive volume through a 300mm tunnel while dropping cabin cavitation noise and hull vibrations by up to 75%.
-
Zero Lifetime Maintenance Gearleg: Sealed with a high-grade mechanical carbon/ceramic interface that keeps seawater out and factory-grade lubrication in, eliminating the need for periodic gear oil changes.
Specifications:
-
Part Number: E350/300TC-HDB
-
Thrust Power: 350 kg (771 lbs) continuous at both 42V and 48V
-
Motor Output: 22.00 kW (29 HP)
-
Target Vessel Class: 62 to 98 Feet (19 to 30 meters)
-
System Voltage: 48V DC
-
Required Tunnel ID: 300 mm (11.81'')
-
Propulsion Layout: Twin Counter-Rotating 5-Blade Q-Prop™
-
Control Architecture: S-Link™ Digital CAN-Bus
-
Waterproof Rating: IPx7 Rated Drive Enclosure
