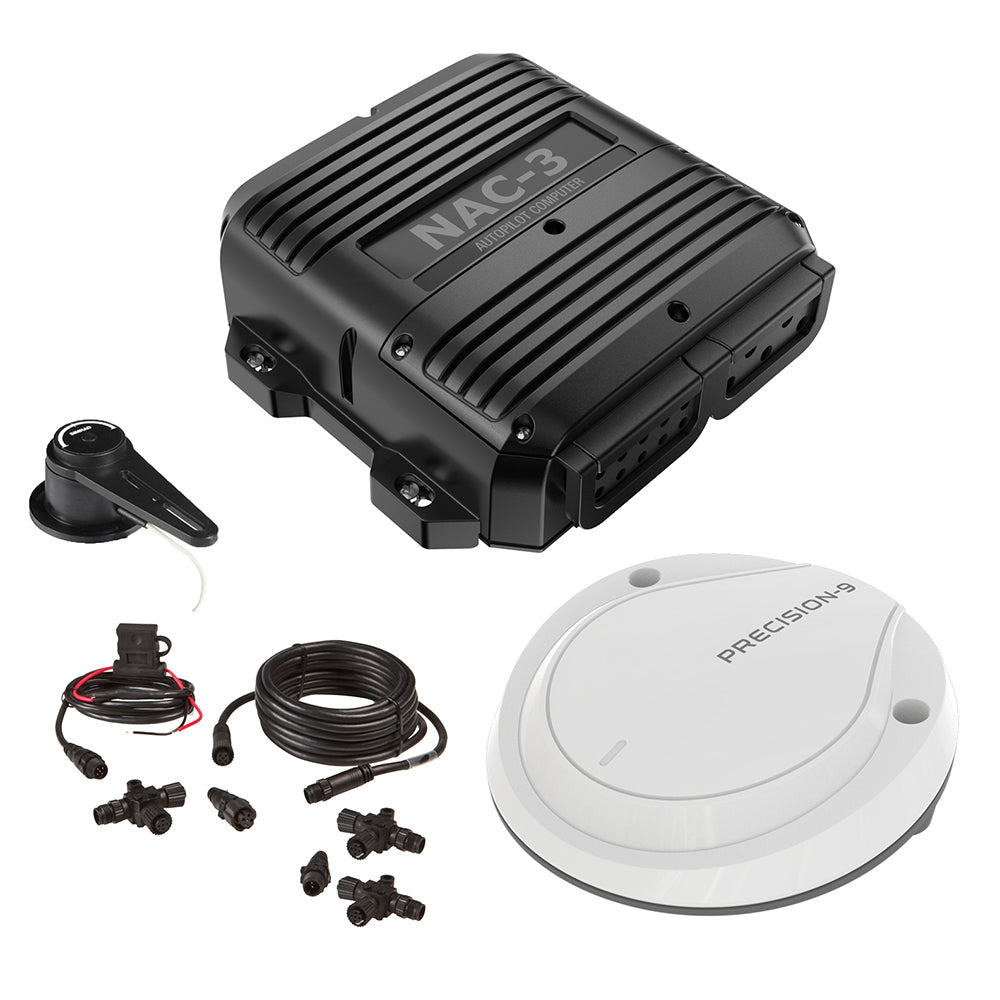

Simrad NAC-3 Autopilot Core Pack - NAC-3, Precision-9, RF25N & N2k Starter Kit [000-13336-001]
NAC-3 Autopilot Core Pack - NAC-3, Precision-9, RF25N & N2k Starter Kit
Comprising of the high-current NAC-3 autopilot computer, Precision-9 compass, RF-25 rudder feedback unit & N2k Starter Kit.
The NAC-3 Autopilot Computer is the brains behind your autopilot system. NAC-3 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-3 was designed for boats 10M (33') or greater in length and is rated to operate high-current hydraulic drives, mechanical drive units, and solenoid valves with a current rating of 30 Amps continuous (50 Amps peak).
Precision-9 Compass
The Precision-9 Compass. Outputs Heading (20 hZ), Rate Of Turn (20 hZ), roll, and pitch (10 hZ) over the NMEA 2000® network.
RF25N NMEA2000
RF25N, Rudder Feedback Unit: With transmission link and 5M (16.5') NMEA2000 Micro-C cable
N2k Backbone Starter Kit
NMEA 2000 Micro-C Network starter kit: Includes Network power cable, 4.5M (15') N2K cable, 3 x T-connectors, 2 x network terminators
Specifications:
- Temperature, operation: 0 to +55°C
- Temperature, storage: -32 to +70°C
- Protection: IPx7
- Weight in Kg: 0.7kg, 1.6lbs
- Dimmension Max size, mm (length x width x height): 211 x 196 x 65.5mm, 8.31" x 7,72" x 2.58"
- Mounting: Bulkhead
- Construction: Plastic
- Color: Black
- Cable inlet: Grommet (Spare Incl)
- Local Power supply: 12/24 V DC +10-30%
- NMEA 2000 Load Equivalent number (50mA): 1
- Reversible motor control of rudder: Max continious load 30A, peak 50A for 1s
- On/off solenoid control of rudder: 12/24V DC, common, load range 10mA to 10A, off current <1mA
- Engage output for bypass/clutch: 12/24V DC, min 10mA, max 3A
- Rudder angle, frequency input: 15V, 1.4 to 5kHz, resol. 20Hz/x OR NMEA2000
- NFU port/stbd input and mode indicator output: External open/close contact, common ret, contact current max 30mA
- Mode input: External open/close or pulse contact for SYSTEM SELECT, common ret, close to activate, contact current max 30mA
- External alarm output for buzzer/relay: Max 100mA, voltage level as local supply
- IEC 61162-1 input (NMEA0183 In): 1 ch
- IEC 61162-1 output (NMEA0183 Out): 1 ch
- IEC 61162-1 speed: 4.8 & 38.4 kbaud
- NMEA2000: Certified (pending)
Specifications:
- Steering Type: Hydraulic
- Box Dimensions: 14"H x 14"W x 18"L WT: 8.8 lbs
- UPC: 9420024155646
