Raymarine RVX1000 3D Chirp Sonar Module [E70511]
Raymarine RVX1000 3D Chirp Sonar Module [E70511]
Out of stock
✓ Used by Hundreds of Customers
✓ Trusted by Sailors Nationwide
✓ Expert Customer Service
✓ Bulk Pricing Available
At MarineXGear, we are proud to have the best refund and return policies in the industry. If you’re not satisfied with your purchase for any reason, you may return it to us within 30 days for a refund.
If you have a problem with our order (there are missing components, damages, or the product is not functioning), please reach out to us as quickly as possible. Some of the problems can be resolved by going through the product manual or the product FAQs.
Refer to our Refunds & Return Policy for more details.
Order Processing
Once we receive your order, we will send you a confirmation email. Then we will process the order by confirming that the product is in stock and ready for shipment. If any of the items in your order are back-ordered, we will reach to you via email or phone and you may choose to either wait or receive a 100% refund.
Please allow 1-3 days for processing your order.
Shipping
We ship to the lower 48 continental United States only at this time.
Shipping times and shipping method will depend on the specific product and brand you purchase. If you have any shipping question, feel free to ask on the chat or email us at info@marinexgear.com.
We will send tracking information by email the same day the shipping tracking number is created/available.
Before you sign the shipping bill, please THOROUGHLY INSPECT YOUR ITEM. Signing for the receipt of a damaged product removes the liability of the shipping company and MarineXGear. Once you accept your shipment as non-damage, your item is your property.
![Raymarine RVX1000 3D Chirp Sonar Module [E70511]](http://marinexgear.com/cdn/shop/files/71949XL.jpg?v=1775864417&width=150)

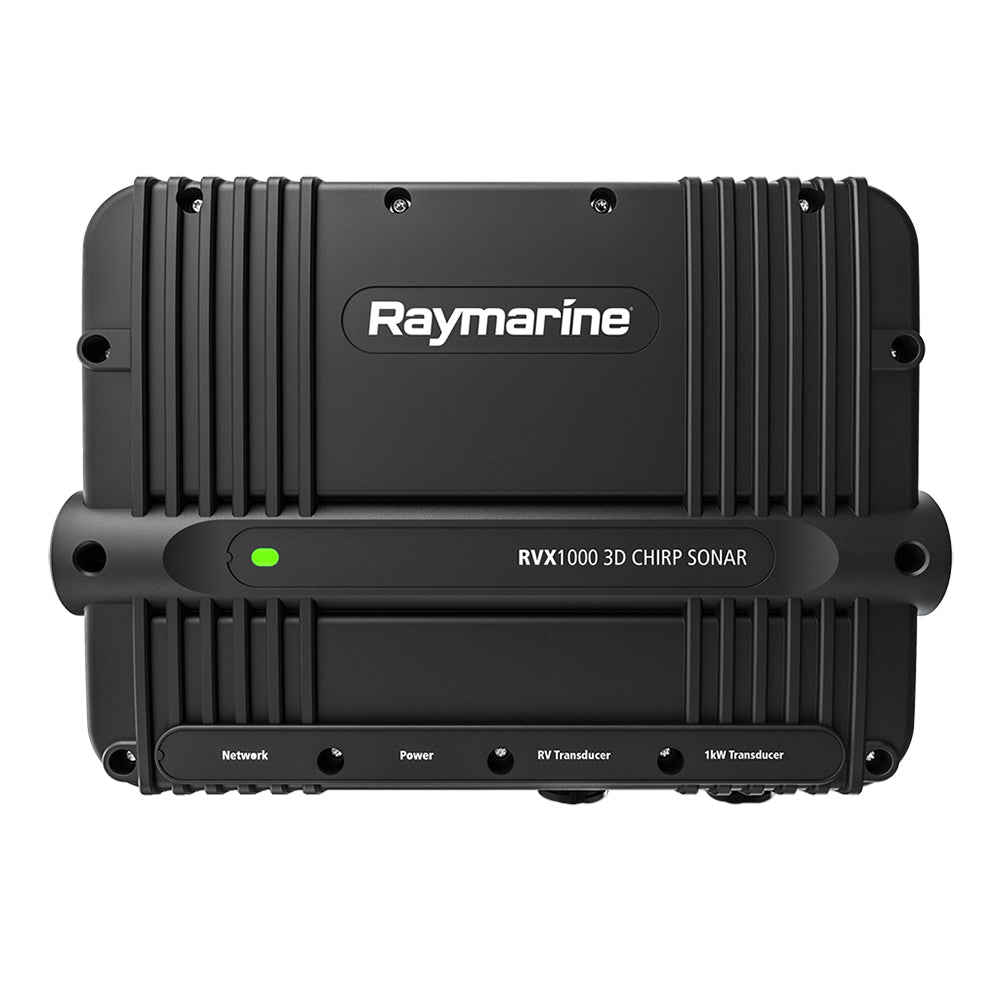

RVX1000 3D Sonar Module
The RVX1000 offers all of the sonar performance and features of Raymarine Axiom Pro in a remotely mounted black box sonar module. With Raymarine’s award winning RealVision 3D sonar technology, CHIRP Side and DownVision, plus a high powered 1kW dual channel CHIRP sonar, the RVX1000 is a versatile sonar solution for both inshore and offshore fishing.
Features:
- 5-channel sonar with RealVision 3D, CHIRP Down and SideVision, high-frequency CHIRP and high-power 1kW CHIRP Sonar
- RealVision 3D with GPS Track
- Sonar Scroll Back – Rewind, pause, and playback recorded sonar history
- Raymarine’s TrueZoom™ magnification technology
- RealVision 3D gyro stabilization compensates for boat movement, delivering life-like 3D imagery
- Dual transducer connections supporting both RealVision 3D and Airmar CHIRP 1kW transducers
- Fast quad core processor delivers stunning 3D sonar imagery alongside CHIRP, DownVision and SideVision sonar channels without any lag or delay
Specifications:
- Connections: 1x RVX Port = 25 pin RealVision connector | 1x 1kw Port = 11 pin 1kW connector | 1x Power connection | 1x Raynet connection
- Sonar: SonarRealVision 3D (CHIRP Side and DownVision, High Frequency CHIRP, 3D Sonar) + 1kW High Power CHIRP
- Sonar Depth: High Frequency CHIRP = 900 feet | DownVision = 600 feet | SideVision = 300 feet Port and Starboard | 1kw = 5,000 feet
- Nominal Supply Voltage: 12 V and 24 V DC
- Operating Voltage: Range10.8 V to 31.2 V DC
- Power Consumption: 10.4 W (Maximum)
- Current: 2.4 A Peak; 1.2 A RMS
- Fuse/Breakers: 5amp
- Waterproof Rating: IPX6/IPX7
- Operating Temperature: -25 C (-13 F) to +55 C (+131 F)
- Storage Temperature: -30 C (-22 F) to +70 C (+158 F)
The RVX1000 is compatible with all LightHouse 3 enabled Multifunction Displays running software version 3.4 or higher.
In the Box:
- RVX1000 Sonar Module (1)
- Power Cable, 1.5M (1)
- Fixing Screws, #8 (4)
- Documentation Pack (1)
- RayNet Network Cable, 2M (1)
