Lowrance
Lowrance 000-15987-001 HDS PRO 12 w/C-MAP DISCOVER OnBoard + Active Imaging HD
$3,099.00
Lowrance 000-15987-001 HDS PRO 12 w/C-MAP DISCOVER OnBoard + Active Imaging HD
$3,099.00
Get it between June 28 and June 30.
Low in stock
✓ Used by Hundreds of Customers
✓ Trusted by Sailors Nationwide
✓ Expert Customer Service
✓ Bulk Pricing Available
At MarineXGear, we are proud to have the best refund and return policies in the industry. If you’re not satisfied with your purchase for any reason, you may return it to us within 30 days for a refund.
If you have a problem with our order (there are missing components, damages, or the product is not functioning), please reach out to us as quickly as possible. Some of the problems can be resolved by going through the product manual or the product FAQs.
Refer to our Refunds & Return Policy for more details.
Order Processing
Once we receive your order, we will send you a confirmation email. Then we will process the order by confirming that the product is in stock and ready for shipment. If any of the items in your order are back-ordered, we will reach to you via email or phone and you may choose to either wait or receive a 100% refund.
Please allow 1-3 days for processing your order.
Shipping
We ship to the lower 48 continental United States only at this time.
Shipping times and shipping method will depend on the specific product and brand you purchase. If you have any shipping question, feel free to ask on the chat or email us at info@marinexgear.com.
We will send tracking information by email the same day the shipping tracking number is created/available.
Before you sign the shipping bill, please THOROUGHLY INSPECT YOUR ITEM. Signing for the receipt of a damaged product removes the liability of the shipping company and MarineXGear. Once you accept your shipment as non-damage, your item is your property.
Lowrance HDS PRO 12 w/C-MAP DISCOVER OnBoard + Active Imaging HD 000-15987-001

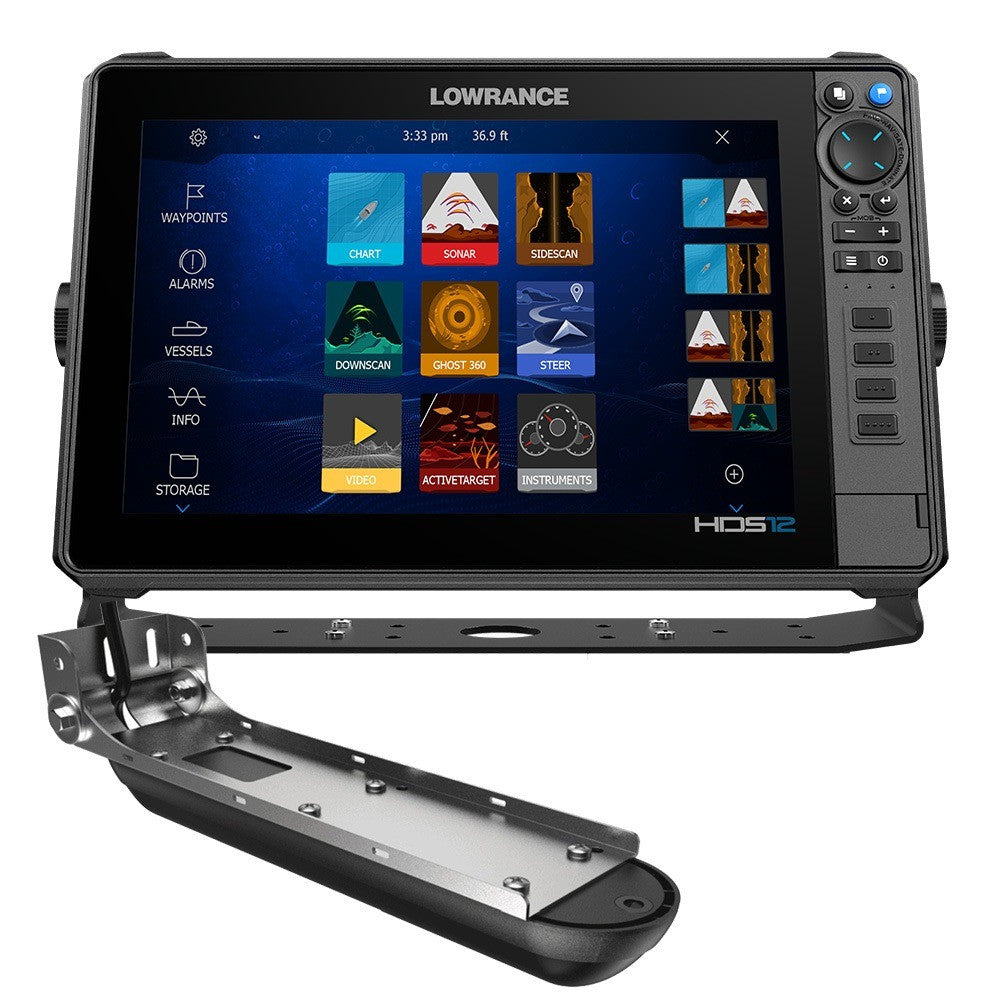

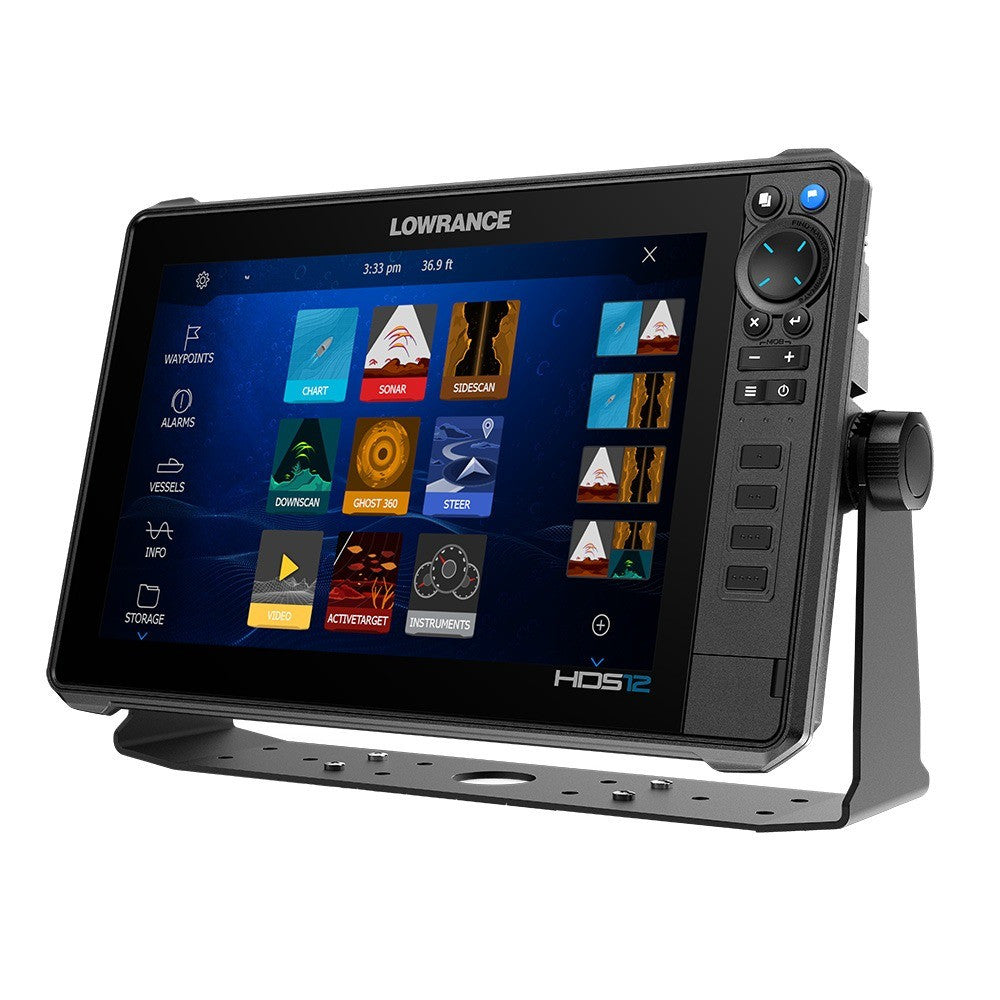

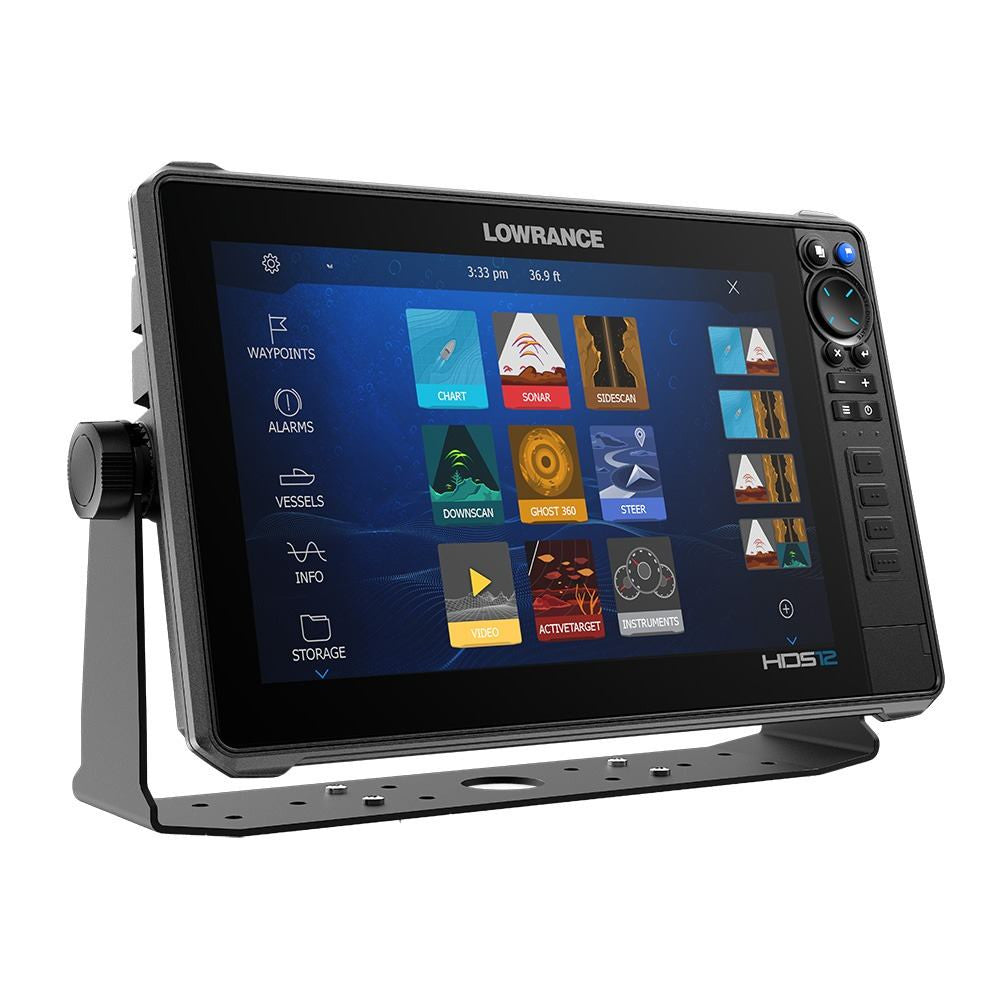

HDS PRO 12 - with Preloaded C-MAP DISCOVER OnBoard & Active Imaging HD Transducer
See more and catch more with the HDS PRO 12 fishfinder/chartplotter. Watch fish react to your lure live with support for high-resolution ActiveTarget® 2 Live Sonar, and find fish and holding structure with ultra-high-definition Active Imaging™ HD Transducer. Quickly locate prime fishing areas with preloaded C-MAP® DISCOVER OnBoard charts and get full fishing system networking with expanded boat control from bow to stern.
In the box:
- HDS PRO fishfinder/chartplotter (12-inch display screen)
- C-MAP DISCOVER OnBoard (Preloaded in HDS PRO fishfinder/chartplotter)
- Lowrance Active Imaging HD 3-in-1 Transducer (part number: 000-16062-001)
Features (Lowrance Active Imaging HD 3-in-1 Transducer):
- High definition (up to 1.2MHz) SideScan and DownScan Imaging™ deliver the clearest images of fish and structure
- Lowrance® CHIRP with superb clarity and target separation
- FishReveal™ DownScan view makes fish identification easy
- Supports Medium and High CHIRP (83/200kHz) + 455/800kHz and 455/1.2MHz frequencies
- Smart transducer design boosts signal clarity
- Compatible directly with Lowrance HDS PRO or with an S3100 module with HDS LIVE, HDS Carbon, and Elite FS
Features:
- Preloaded C-MAP DISCOVER OnBoard charts with 1-foot contours on 19,000+ US Lakes, 9,400+ Canadian Lakes
- SolarMAX™ HD Touchscreen viewable at extreme angles and through polarized lenses
- High-definition Active Imaging™ HD ready (Lowrance CHIRP/SideScan/DownScan Imaging™)
- High-resolution ActiveTarget 2 Live Sonar ready
- FishReveal™ with SideScan view, as well as Downscan (*Requires S3100 and compatible transducer)
- Real-time mapping is available with C-MAP Genesis Live.
- Support for ActiveTarget Scout and Ghost Trolling Motor 360 chart overlay views
- Large programmable keys
- Touchscreen control of Power-Pole anchors, Ghost Trolling Motor, Autopilot, and Lowrance Outboard Pilot
- NMEA 2000, wireless and bluetooth, connectivity – plus smartphone notifications
Display:
- Backlight Color: Pure white LED
- Display Resolution: 1280 x 800
- Viewing Angles: 80° top/bottom, 80° left/right

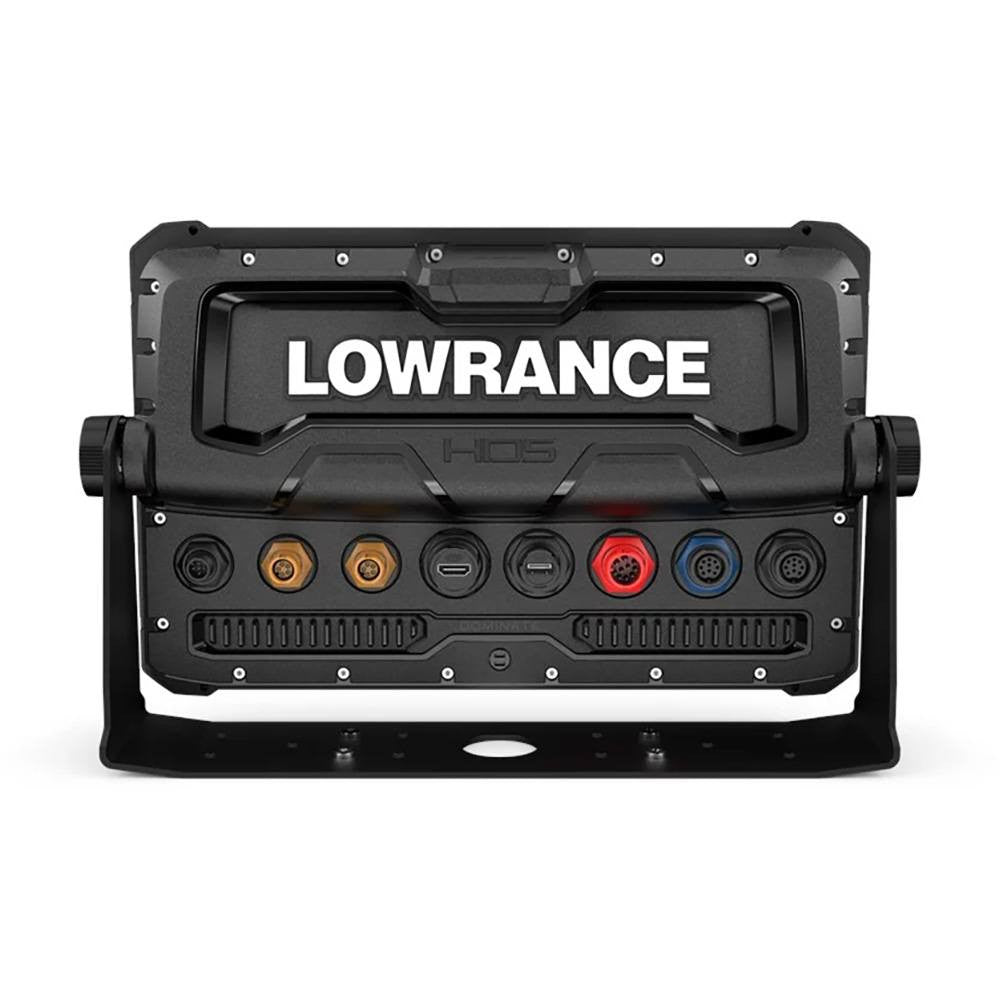

Connectivity:
- Bluetooth: Integrated Bluetooth 4.0 with support for Bluetooth Classic
- Ethernet Ports: 2 x 100 Mbit, 6 max MFD's on a network
- Connectivity WiFi: Internal 802.11b/g/n and compatible with WiFi-1 Module
- NMEA 2000 Connectivity: 1x Micro-C
- SD Card Storage: 2 micro SD cards up to 32GB
Electrical:
- Power Consumption Max: 3.6A @ 13VDC with full backlight, sonar on
- Power Consumption Minimum: 2.3A @ 13VDC with full backlight, sonar on
- Power Consumption Typical: 2.3A @ 13VDC with full backlight, sonar on
- Recommended Fuse Rating: 5A
- Supply Voltage: 12 v DC (10.8-17VDC)
Environment:
- Operating Temperature Range: 5°F to 131°F (-15°C to 55°C )
- Storage Temperature Range: 4°F to 140°F (-20°C to 60°C )
GPS:
- GPS Receiver Channels: 16
- Update rate: 10 Hz
MFD (Multi-Function Display):
- Cartography included: C-MAP Discover OnBoard (AMER models), C-MAP World Background (ROW models), Navionics basemap (AMER and ROW models)
- Internal Storage: 8.0 GB Internal
- Waypoints, Routes, Tracks: 3000 Waypoints, 100 Routes, and 100 Trails with up to 10,000 points per trail
Specifications:
- Cartography Brand: C-Map
- Included Transducer: 000-16062-001
- Screen Size: 12"
- Touchscreen: Yes
- Transducer Included: Yes
- Box Dimensions: 11"H x 16"W x 17"L WT: 14 lbs
- UPC: 9420064129676
Quick Guide (pdf)
Owner's Manual (pdf)
