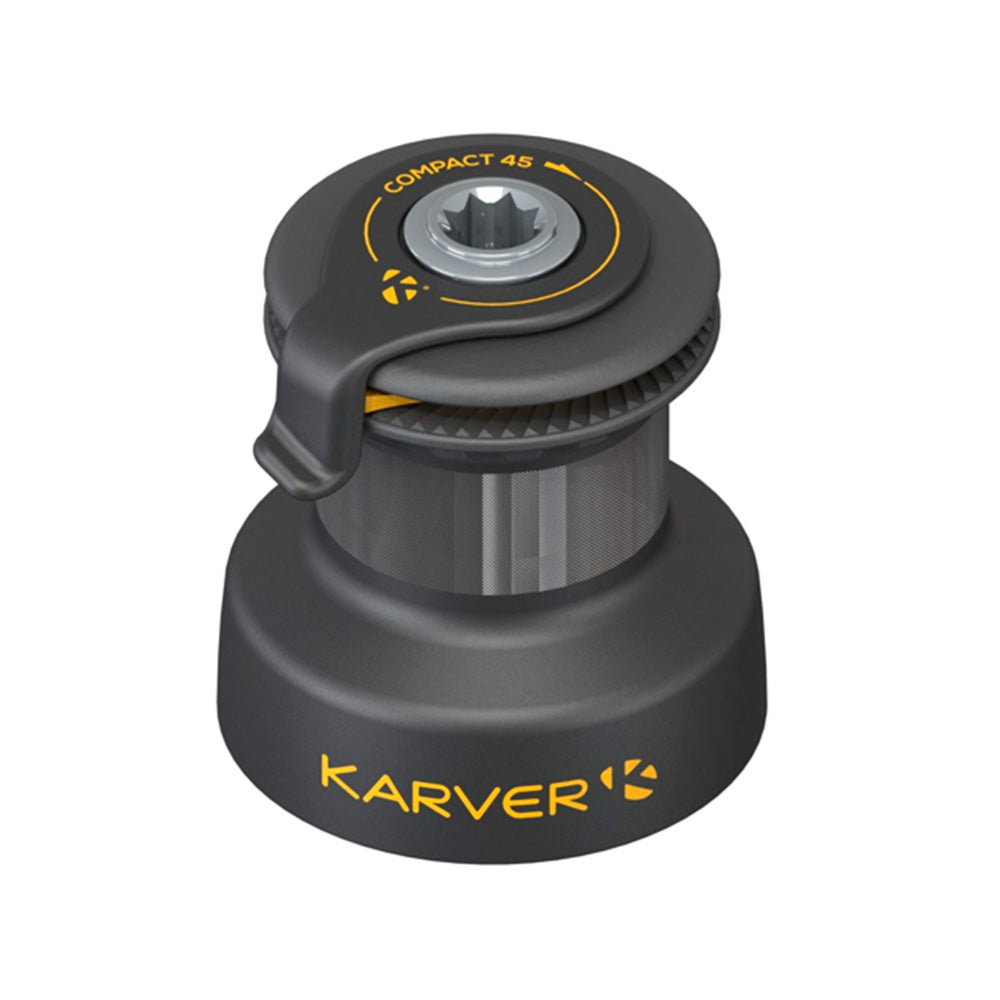

Karver KCW45 Ultra Compact 2-Speed Winch

Karver KCW45 Ultra Compact 2-Speed Winch

The Karver KCW45 Ultra Compact 2-Speed Winch is designed for sailboats up to 40 feet (12 meters) and combines an ultra-compact design with two distinct operating speeds. Its first speed provides fast line handling, while its second speed delivers the power needed for demanding loads.

Designed as a replacement for winches up to size 40, the KCW45 provides a compact solution for sailors who want faster sail handling without sacrificing pulling power.

The KCW45 was awarded the DAME Award 2019 in the Hardware, Rigging & Sails category at the international equipment manufacturers' fair, recognizing its innovation and design.

Key Features

• Ultra-compact two-speed winch
• Designed for sailboats up to 40 ft (12 m)
• Fast first speed for rapid line handling
• Powerful second speed for higher-load applications
• Designed to replace conventional winches up to size 40
• Working load of 850 kg, equivalent to a size 40 winch
• Suitable for a variety of sailing and specialized winching applications
• Award-winning design
• Used on Mini 650 sailboats

Two-Speed Operation

The KCW45 combines two complementary speeds:

• 1st Gear: The fastest speed, indicated by the arrow on the headstock. Ideal for quickly handling line and sail maneuvers.
• 2nd Gear: The more powerful speed, designed to make demanding loads easier to handle.

This combination is particularly useful when sending a large sail or during tacking, allowing sailors to switch between speed and power as needed.

Working Load & Compatibility

The KCW45 has a working load of 850 kg, equivalent to a traditional size 40 winch.

Because of this working load, Karver states that the KCW45 can be installed on boats originally designed for size 20, 30, or 40 winches, provided the application is suitable for the winch's working load.

The KCW45 can also be used on larger sailboats for applications where the load remains within its working limits. Examples include:

• Davit winches
• Sail hoisting applications where the sail is subsequently hooked
• Applications where the load is limited to the weight of the sail

Handle Compatibility

KCW winches designed for 8 to 11 mm ropes are supplied without a handle. They can be used with compatible winch handles, including Karver carbon cranks.

Karver Tips & Important Notes

• The KCW currently exists in one size.
• The arrow on the headstock indicates first gear, which is the fastest speed.
• The KCW45 has an 850 kg working load.
• The KCW45 can be suitable for applications originally designed around size 20, 30, or 40 winches when the working load requirements are appropriate.
• Larger sailboats may use the KCW45 for applications with lower loads, such as certain davit or sail-hoisting applications.
• Select the winch based on the actual load requirements of the intended application.
• KCW45 winches for 8 to 11 mm ropes are delivered without a handle.

Product Information

Applications

The Karver KCW45 is suited to sailboats requiring a compact winch with both fast and powerful operating speeds. It is also used in specialized applications where the required working load is within its 850 kg rating, including certain davit and sail-hoisting setups.
