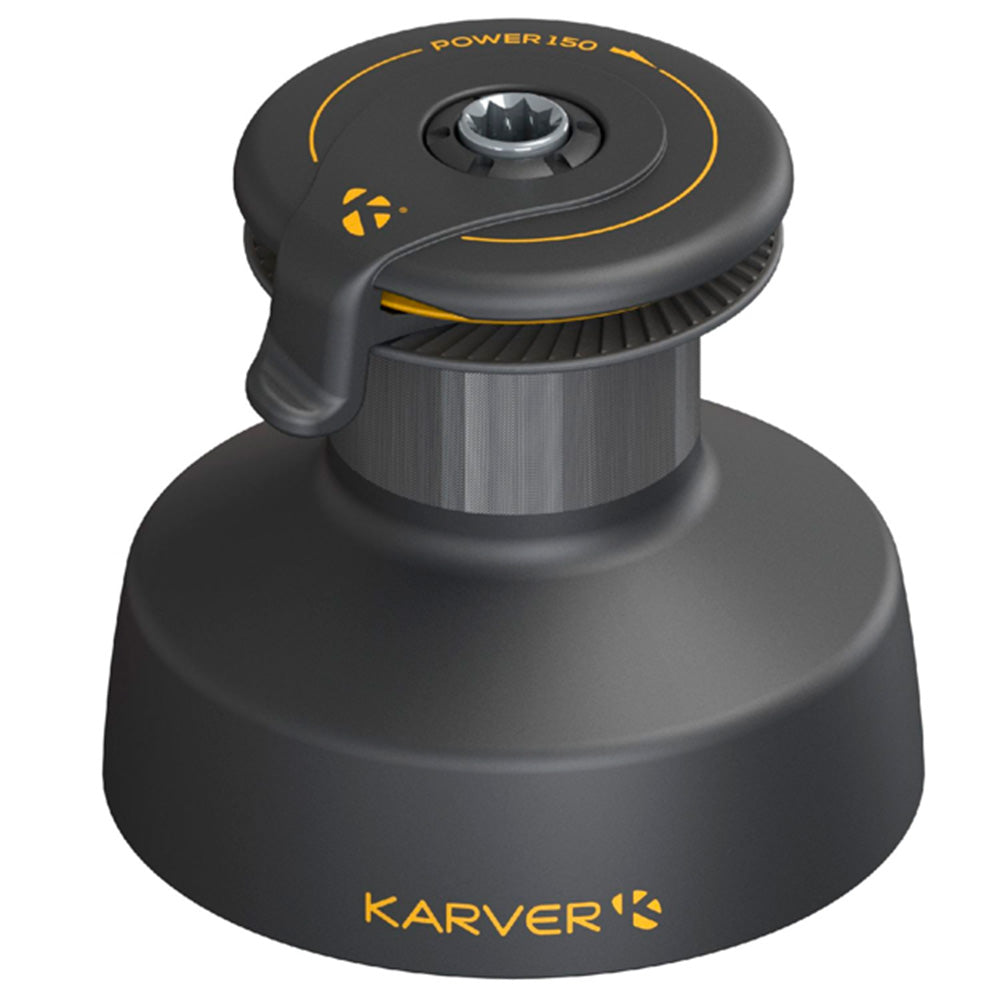

Karver KPW150 4-Speed Automatic Winch

Karver KPW150 4-Speed Automatic Winch

The Karver KPW150 4-Speed Automatic Winch is designed for sailors who want significantly more power with less physical effort. Its four-speed automatic system combines the two speeds found on traditional winches with two additional high-power speeds designed to make handling heavy loads substantially easier.

With dimensions comparable to a size 50 winch, including a 220 mm base, the KPW150 delivers the power of a significantly larger winch while maintaining a compact footprint. Its additional power can reduce the effort required to handle similar loads, making sailing more accessible and less physically demanding.

Key Features

• Four-speed automatic winch
• Two traditional winch speeds plus two additional high-power speeds
• Compact dimensions comparable to a size 50 winch
• 220 mm base
• Designed to reduce the physical effort required to pull heavy loads
• Automatic speed changes based on line load
• Returns to first gear when line load drops sharply
• High-strength materials designed for demanding workloads
• Can be used with a shorter winch handle where space is limited
• Suitable for cruising, racing, and specialized sailing applications

4-Speed Automatic Operation

The KPW system is designed to make gear selection intuitive. The four speeds change automatically based on the effort required:

• 1st Gear: Fastest speed and the starting gear
• 2nd Gear: Traditional winch speed
• 3rd Gear: The most powerful and longest gear
• 4th Gear: Allows racers to "pump" the winch and is less commonly used by recreational sailors

When the load becomes too great, changing the direction of operation automatically changes the speed. After a tack or jibe, the winch returns to first gear when the load on the line drops sharply.

Power & Efficiency

The number in a KPW model indicates its mechanical power ratio. For example, a KPW130 develops 130 kg of force on the line for every 1 kg applied to the crank.

The KPW range is designed to deliver substantially more power than conventional winches of similar physical dimensions. This can allow sailors to use a smaller, lighter winch while maintaining significantly greater pulling power.

KPW vs. Conventional Winches

The KPW provides the two traditional speeds expected from a standard winch while adding two additional high-power speeds. This makes it particularly useful for sailors who find conventional winches physically demanding.

Karver notes that increasing the size of a conventional winch may provide only a modest increase in power. By comparison, a KPW can provide substantially greater power without requiring a corresponding increase in mounting dimensions.

Applications

The KPW150 can be used for a wide range of sailing applications, including:

• General sheet handling
• Running backstays
• Foiling control
• Sail handling
• Racing applications
• Cruising applications
• Situations where reduced physical effort is desired
• Tight spaces where a shorter winch handle may be beneficial
• Applications requiring substantial power in a compact footprint

Karver Tips & Important Notes

• Do not use the KPW as a docking cleat, as this can unnecessarily stress the internal load sensor.
• The arrow on the headstock indicates first gear, which is always the fastest gear.
• The KPW's two additional high-power speeds are gears 3 and 4.
• If your priority is rapid maneuvering rather than high-power operation, Karver recommends the KSW range instead.
• The KPW and KSW speed configurations cannot be combined. The KPW is designed around high-power additional speeds, while the KSW places its additional speeds toward faster operation.
• The third gear is the KPW's most powerful and longest gear.
• The fourth gear is primarily useful for racing techniques such as pumping.
• A short handle can be useful when operating a winch under a hood or while steering, particularly on tiller-steered boats.
• The KPW can also be used for specialized applications beyond conventional winching.

Product Information

Why Choose the KPW150?

The Karver KPW150 is designed for sailors who want greater mechanical advantage without moving to a substantially larger winch. By combining compact dimensions with four automatic speeds and additional high-power gearing, it offers a practical way to reduce the physical effort involved in handling demanding loads.
