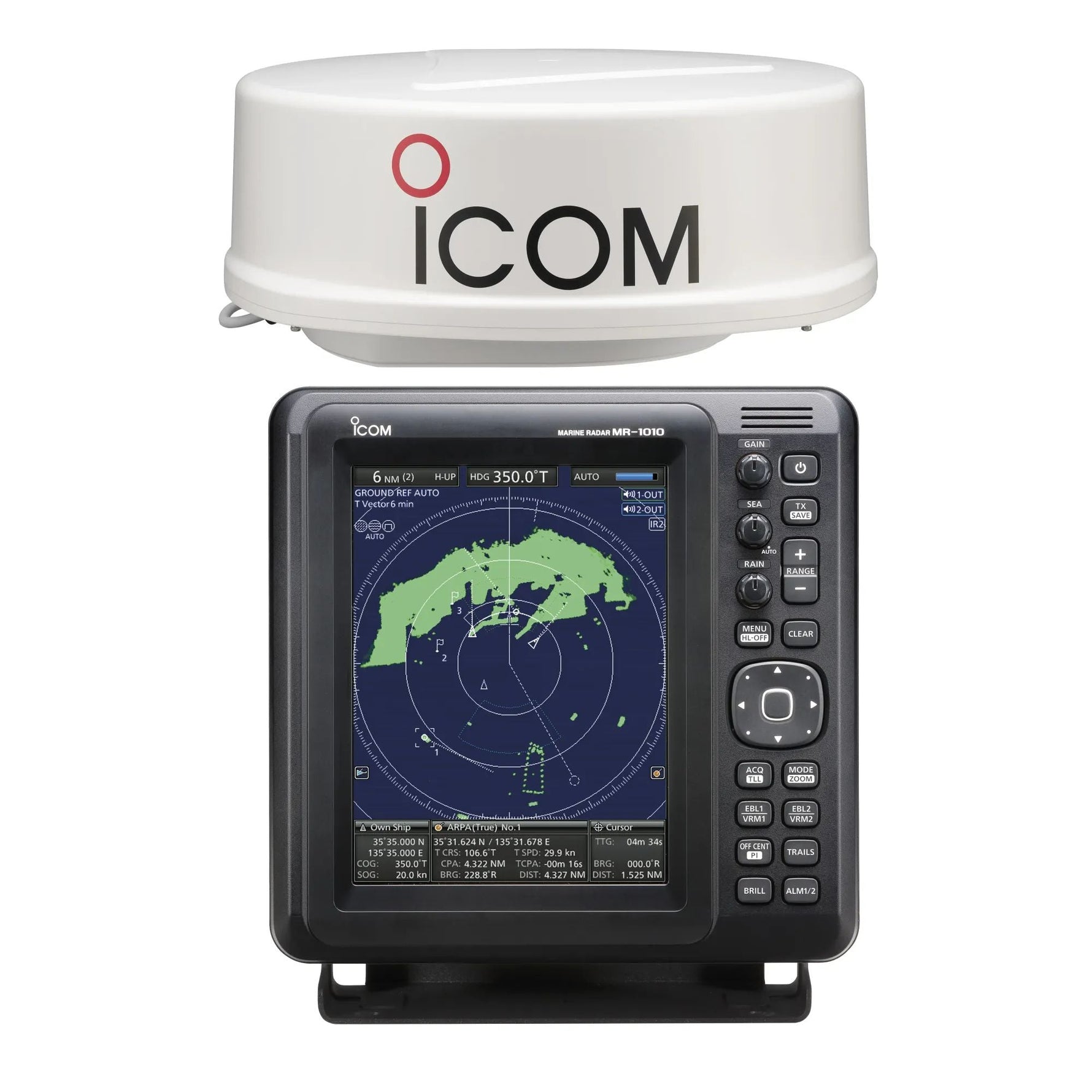

Icom MR-1010RII Marine Radar System with 4kW Radome Scanner and Wide Angle 10.4" Color TFT LCD Display (MR1010R2 23)
Icom MR-1010RII Marine Radar System with 4kW Radome Scanner and Wide Angle 10.4" Color TFT LCD Display (MR1010R2 23)
Get it between August 12 and August 14.
Low in stock
✓ Used by Hundreds of Customers
✓ Trusted by Sailors Nationwide
✓ Expert Customer Service
✓ Bulk Pricing Available
At MarineXGear, we are proud to have the best refund and return policies in the industry. If you’re not satisfied with your purchase for any reason, you may return it to us within 30 days for a refund.
If you have a problem with our order (there are missing components, damages, or the product is not functioning), please reach out to us as quickly as possible. Some of the problems can be resolved by going through the product manual or the product FAQs.
Refer to our Refunds & Return Policy for more details.
Order Processing
Once we receive your order, we will send you a confirmation email. Then we will process the order by confirming that the product is in stock and ready for shipment. If any of the items in your order are back-ordered, we will reach to you via email or phone and you may choose to either wait or receive a 100% refund.
Please allow 1-3 days for processing your order.
Shipping
We ship to the lower 48 continental United States only at this time.
Shipping times and shipping method will depend on the specific product and brand you purchase. If you have any shipping question, feel free to ask on the chat or email us at info@marinexgear.com.
We will send tracking information by email the same day the shipping tracking number is created/available.
Before you sign the shipping bill, please THOROUGHLY INSPECT YOUR ITEM. Signing for the receipt of a damaged product removes the liability of the shipping company and MarineXGear. Once you accept your shipment as non-damage, your item is your property.

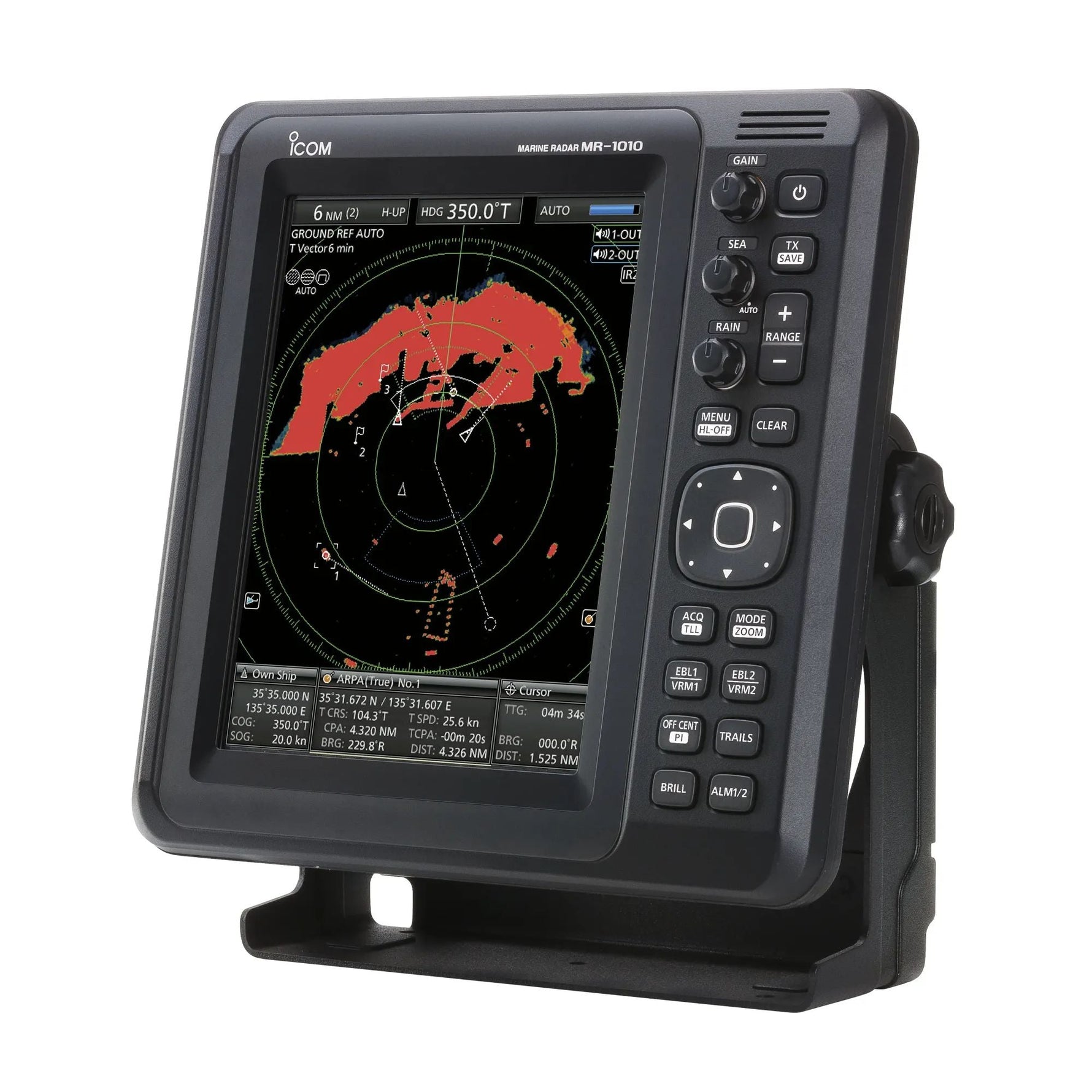

Icom MR-1010RII Marine Radar System with 4kW Radome Scanner and Wide Angle 10.4" Color TFT LCD Display (MR1010R2 23)
Icom MR-1010RII Marine Radar System with 4kW Radome Scanner and Wide Angle 10.4" Color TFT LCD Display

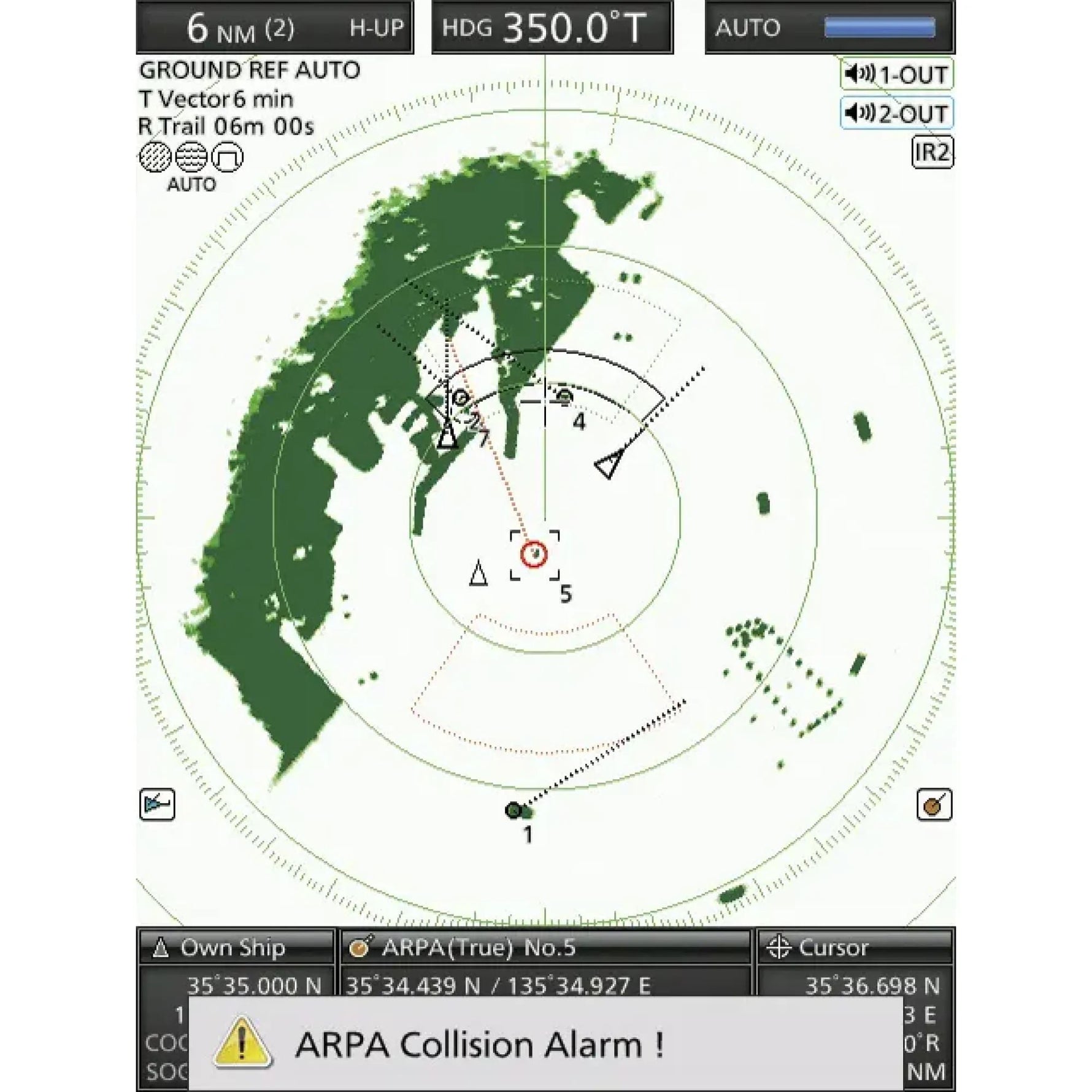

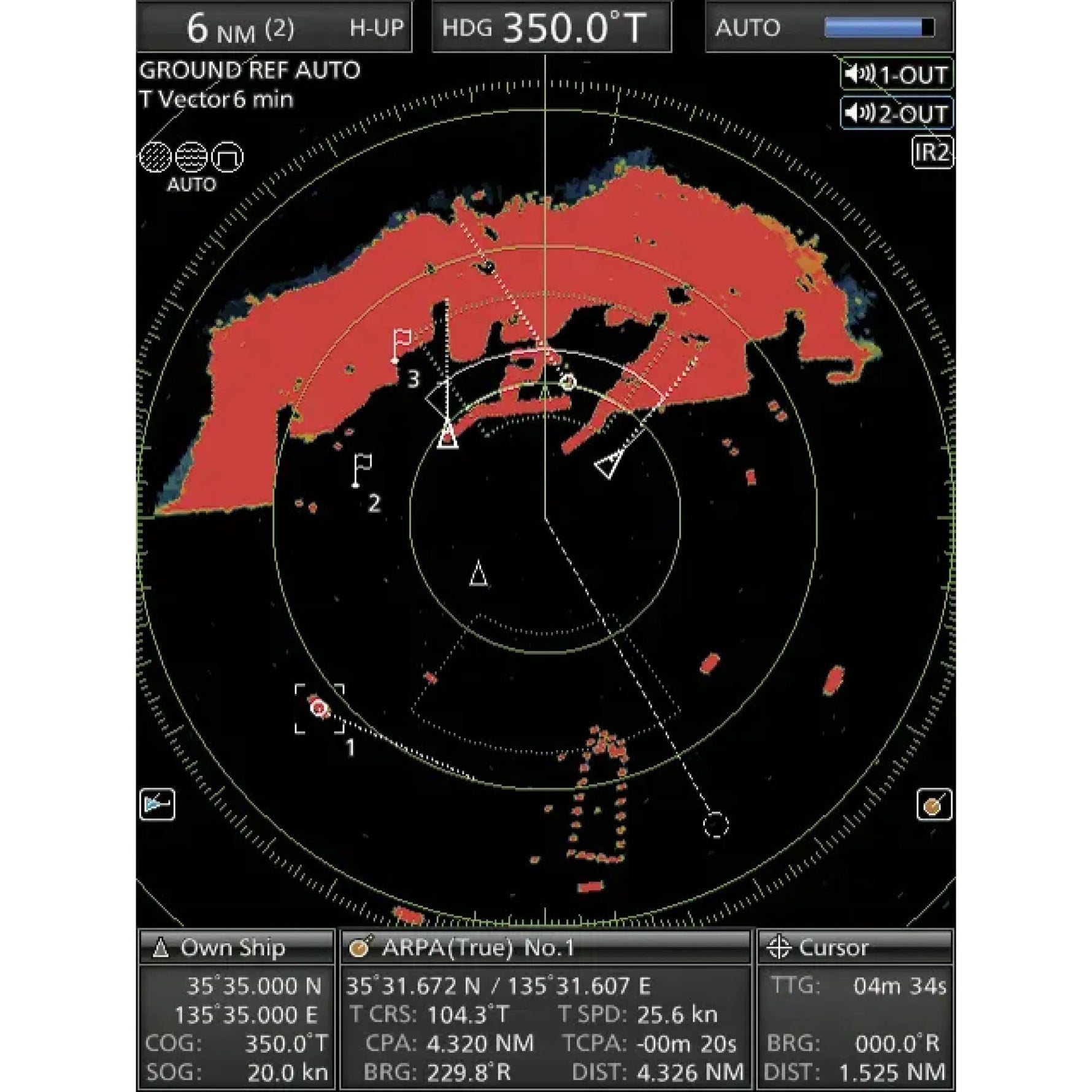

Simplified ARPA (Automatic Radar Plotting Aids) Function*
The simplified ARPA function helps to prevent a collision risk with other vessels or objects. Up to five targets can be automatically tracked on the radar echo, when a target enters within the set watch area, (or up to ten targets can be tracked when manually set). By selecting one of the targets, the target information such as position, course, speed, CPA, TCPA, bearing, and distance is shown on the lower side of the display. When the target enters within the CPA and TCPA limits, an alarm message is displayed with a beep alarm.
* External bearing, speed, and position data required.

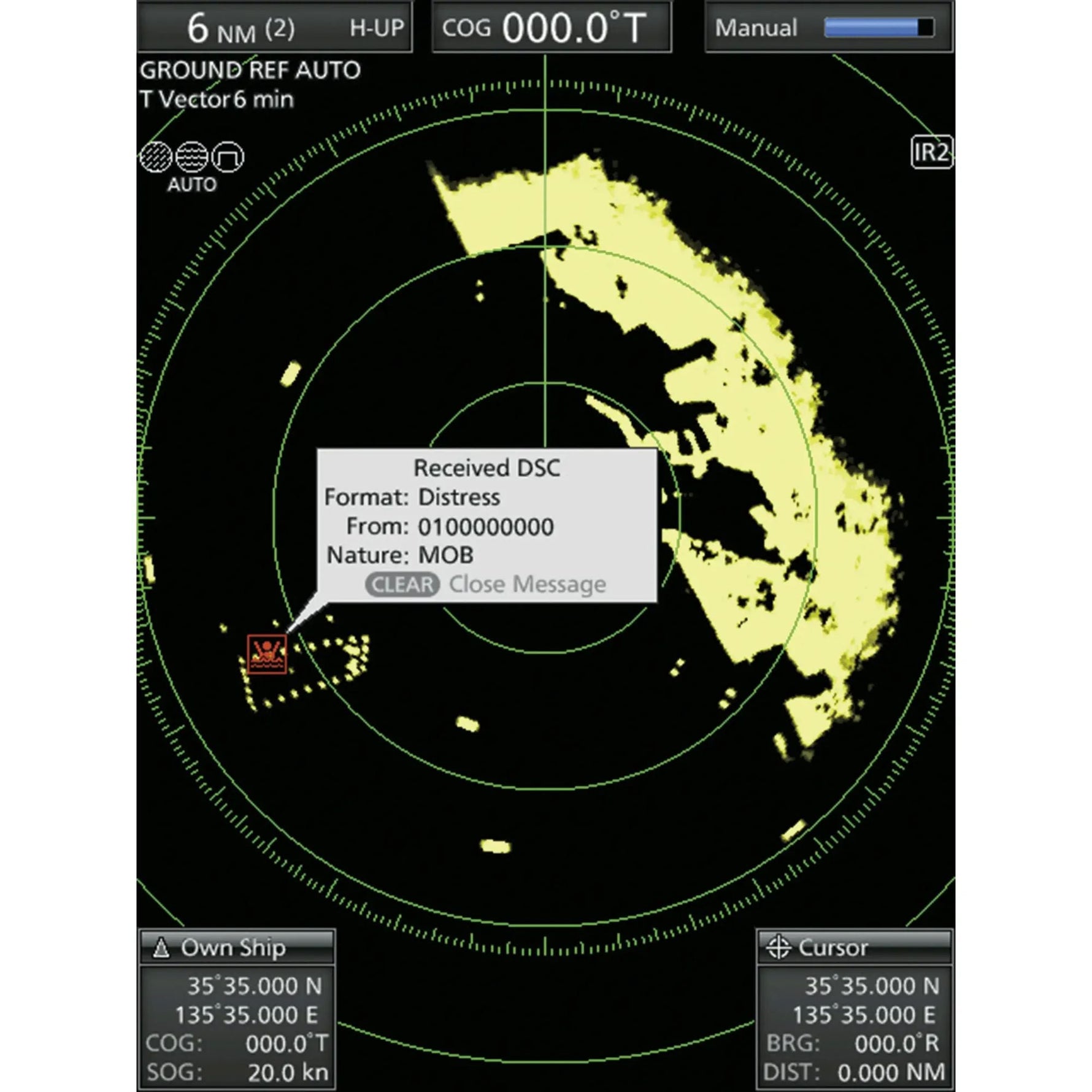

DSC (Digital Selective Calling) Information Function*
When connected to a DSC radio and a DSC call is received, the received message is transferred to the MR-1010RII. Up to 20 DSC messages can be plotted on the radar echo. If a MOB position information is transmitted from a DSC handheld transceiver (including Icom IC-M94D), the MR-1010RII can show the MOB waypoint on the radar echo to assist in search and rescue operation.
* External bearing, position, and DSC data required.

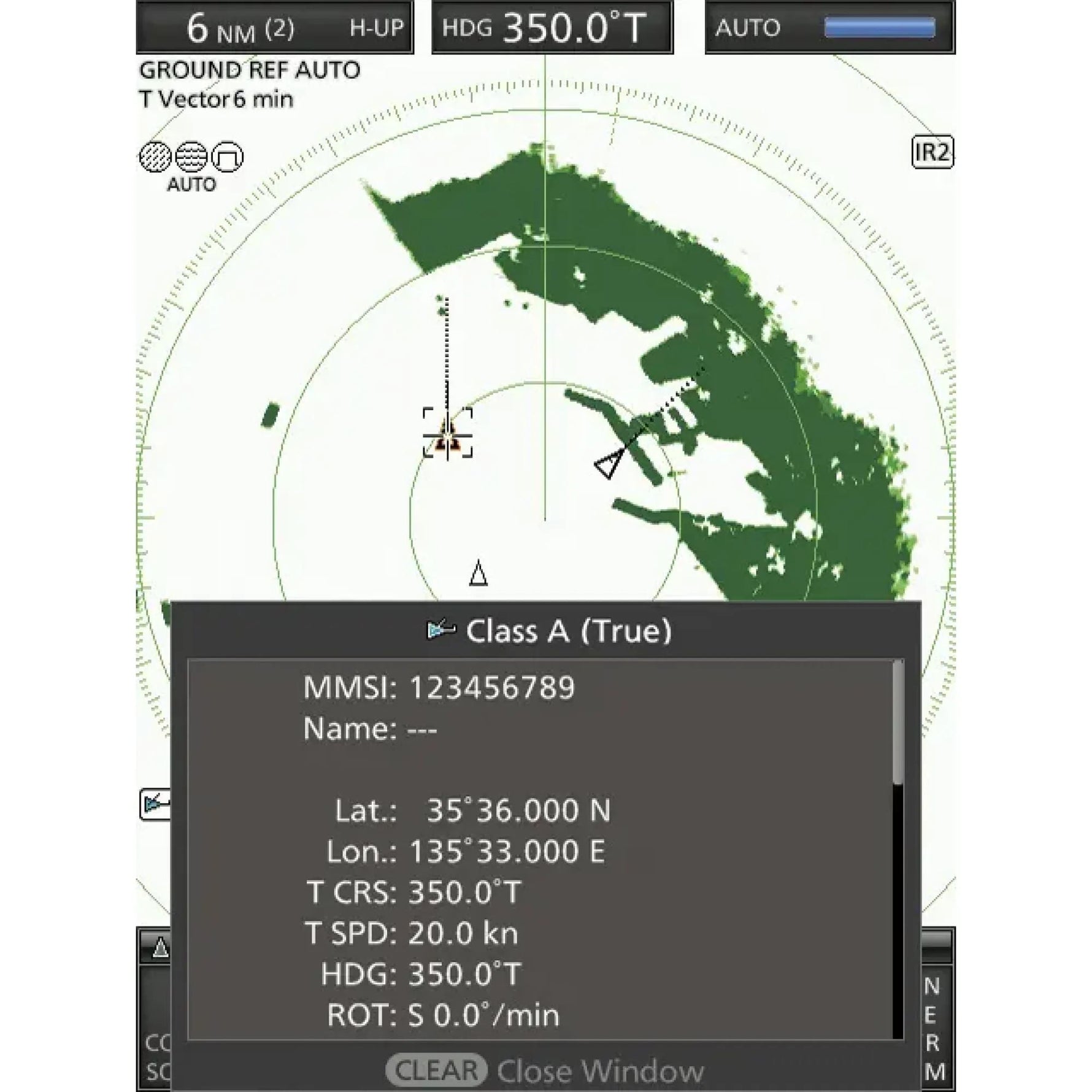

AIS (Automatic Identification System) Overlay Function*
When connected to an external AIS device (including Icom IC-M605, IC-M510 AIS, and, IC-M506 AIS), up to 100 AIS target icons are overlaid on the radar echo. By selecting an AIS icon, vessel information such as AIS class, MMSI number, vessel name, course, speed, CPA, TCPA, bearing, and distance are shown on the lower side of the display.
* External bearing, position, and DSC data required.

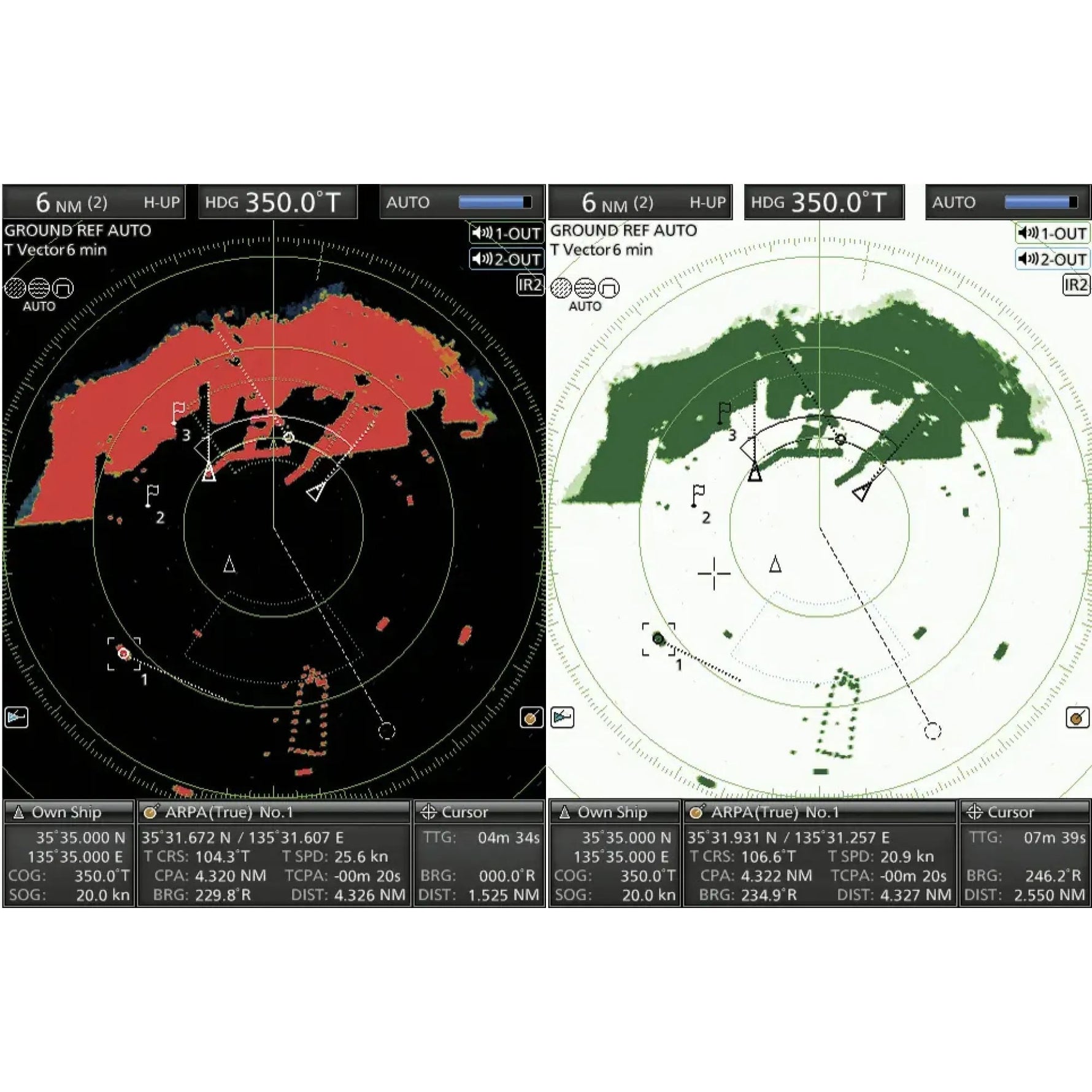

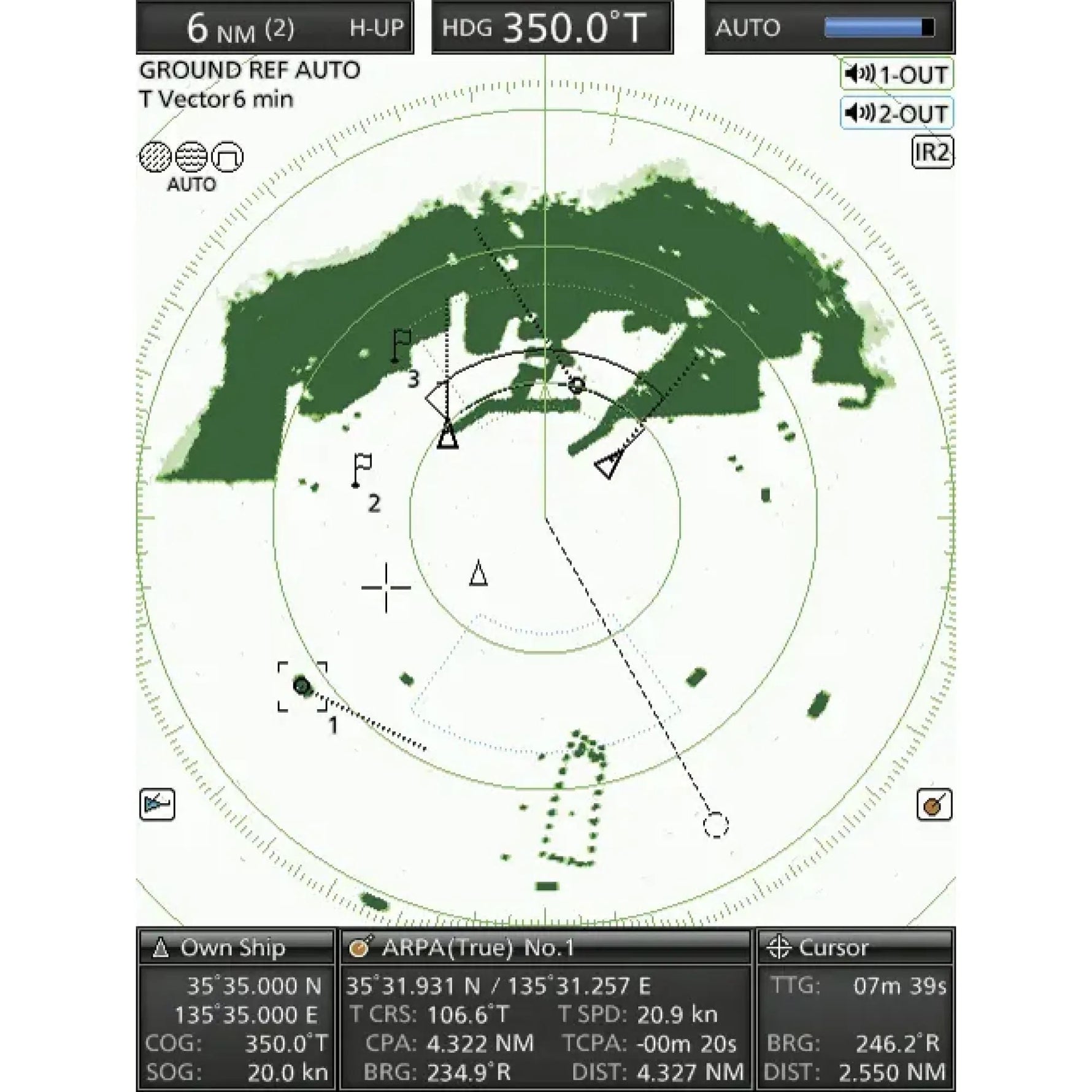

Wide Viewing Angle Color TFT LCD
The wide viewing angle color TFT LCD offers bright, vivid echoes with 16-step gradient intensity. The screen intensity and screen color (day, night, and user settings) can be instantly adjusted with the "BRILL" button. In addition, the auto-hide information function enlarges radar echoes to full size.
Multi-Lingual Intuitive User Interface
The language setting of the MR-1010RII is selectable from multiple languages.* The large eight-direction cursor key provides smooth operation even when wearing gloves. Various settings can be configured through the visually intuitive operation.
* EXP version: English, Indonesian, Korean, Portuguese, Spanish, Thai, and Vietnamese/EUR version: Arabic, English, French, Italian, Portuguese, Spanish, and Turkish
Optional Video Output Unit
With an optional video output unit, UX-252*, the MR-1010RII can be connected to an external display. The same radar echoes can be observed on the main unit and external display at the same time.
*Except for the EUR version.
TLL (Target Latitude Longitude) Function*
The MR-1010RII can mark points with icons and transfer the position data with NMEA TLL sentences to other NMEA 0183 devices such as an external plotter.* External bearing and position data required.
True Trail Function*
The true trail function cancels its ship movement and shows true moving objects with trails, while static objects are not trailed.* External bearing and position data required.
Features:
- 10.2–42 V wide DC input to prevent over-voltage damage
- Two-user programmable alarm zones
- Waypoint indication*
- Designed, engineered, and Made in Japan
*External bearing, position, and waypoint data required.
Specifications:
- Display Type: 10.4-inch Color TFT LCD
- Resolution: 480 × 640 dots
- Minimum range: 25 m; 82 ft (at 1⁄8 NM range)
- Maximum range: 36 NM
- Range scales
- NM: 1⁄8, 1⁄4, 1⁄2, 3⁄4, 1, 1.5, 2, 3, 4, & 6, 8, 12, 16, 24, 32, 36
- km: 1⁄4, 1⁄2, 3⁄4, 1, 1.5, 2, 3, 4, & 6, 8, 12, 16, 24, 32, 36, 48
- Preheat time: 90 seconds
- Power supply: 0.2–42 V DC
- Power consumption (at zero wind velocity): 55 W (approximately)
- Usable temperature range: −15°C to +55°C; +5°F to +131°F
- Input data format: NMEA 0183, N+1, AUX, IEC61162-2
- Output data format: NMEA 0183
- Radome diameter: 60 cm
- Radome range: 36 nm
- ARPA and True Trail functions

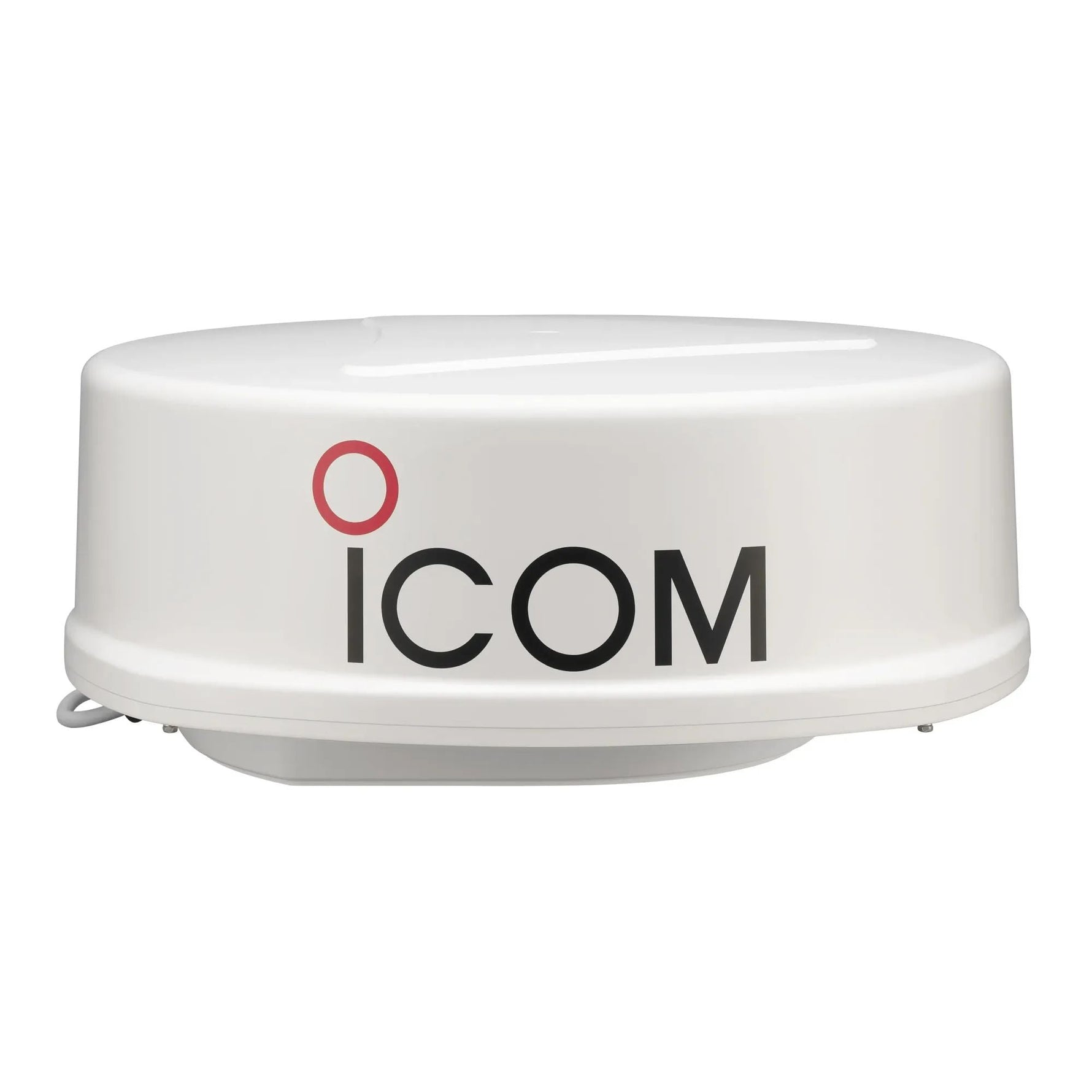

| Radar Dome Scanner Specifications: | |
| Type | 60 cm; 2 ft radome scanner |
| Rotation speed | 24, 36 rpm typ. |
| Horizontal beamwidth | 4° typ. |
| Vertical beamwidth | 22° typ. |
| Sidelobe | −22 dB typ. |
| Usable temperature range | −25°C to +70°C; −13°F to +158°F |
| Usable humidity range | Less than 95% (at 40°C; +104°F) |
| Frequency | 9410 MHz ±30 MHz |
| Modulation | P0N |
| Peak output power | 4 kW |
| Pulse-width/repetition rate | 80 ns/2160 Hz, 80 ns/1440 Hz, 250 ns/1440 Hz, 350 ns/1440 Hz, 900 ns/720 Hz |
| Modulator | FET switching |
| Intermediate frequency | 60 MHz (EUR Version), 250 MHz (EXP Version) |
| IF bandwidth | 10 MHz / 3 MHz (EUR Version), 15 MHz / 3 MHz (EXP Version) |
| Tuning | Auto/manual selectable |
| Supplied system cable | 15 m; 49.2 ft (OPC-2341) |
What's in the Box:
- 1 - 10.4" TFT LCD radar display
- 1 - Radome antenna
- 1 - Power cable (15m)
- 1 - PDF documentation
