Go Power 800 Watt Solar All Electric 4 Kit - Solar-AE-4
NOTE: GO POWER NOW SHIP THESE KITS VIA FREIGHT SERVICE, SO STANDARD SHIPPING CHARGES ARE $400. PLEASE CONTACT US FOR A FREIGHT QUOTE THAT MAY BE LOWER.
This 4-panel, 800-watt kit is ideal for charging large battery banks.
The 800 watt Solar AE-4 kit is one of the latest offerings from Go Power! The multi-panel kit provides 800 watts / 38.4 amps of output power and paired with a Go Power! IC SERIES INVERTER/CHARGER makes it ideal for charging power-hungry appliances in your RV, like an all-electric refrigerator. Choosing a solar panel kit for your RV or boat eliminates the need for conventional battery charging systems, such as generators. Take your next adventure off the grid. The Solar AE-4 kits comes with a 25 year limited power output warranty. IDEALLY PAIRED WITH OUR INVERTER CHARGER TO POWER YOUR AC LOADS.
*Best paired with 800AH+ OF AGM BATTERY Power or LITHIUM BATTERY Power.
Kit Includes:

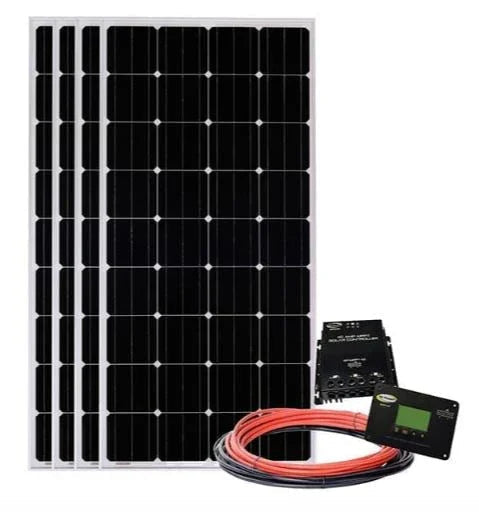

- 800 watts / 38.4 amps solar charging kit (4x 200-watt Solar Panels)
- 2x 30-amp MPPT Solar Controller
- NEW PowerTrak 3” color touch-screen remote display (GP-RVC-DIS-3)

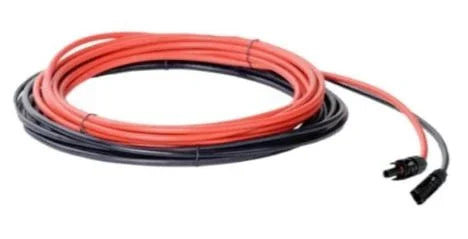

- 25′ of Solar output cable – RED (#10)
- 25′ of Solar output cable – BLACK (#10)

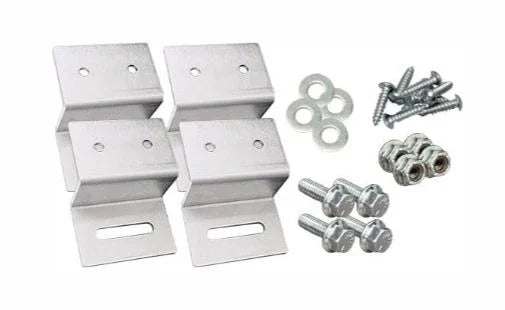

- Mounting hardware (4 x GP-MH-4-KB)
- 25-year solar module power output warranty
Product Specifications
SOLAR PANEL SPECS
| Solar cell type | Monocrystalline |
|
Output power
|
200 W
|
|
Rated current
|
9.62 A |
|
Rated DC voltage
|
20.8 V
|
| Open-circuit voltage | 24.3 V |
| Module efficiency | 21.5% |
| Connectivity | Solar Branch Connectors |
| Frame type | Clear anodized aluminum frame |
| Certifications | CE |
| Dimensions | 59.1 x 26.3 x 1.57 in / 1500 x 668 x 40 mm |
|
Weight
|
26.4 lbs / 12 kg
|
|
Warranty
|
25 YEARS POWER OUTPUT (module)
|
SOLAR CONTROLLER SPECS
|
SPEC |
GP-RVC-MPPT-30 |
||||
|
System Voltage |
12/24V |
||||
|
No-load Loss |
8ma |
||||
|
Max PV Input Voltage |
<100V |
||||
|
Rated Current Charge |
30A |
||||
|
Max PV Input Power |
600W/12V;1200W/24V |
||||
|
Battery Type Selection |
GEL |
AGM |
FLOODED |
LiFePO4 |
Custom |
|
Equalize Charge Voltage |
– |
– |
14.9V/29.8V |
– |
8.32V |
|
Bulk-Absorption Voltage |
14.1V/28.2V |
14.4V/28.8V |
8.32V |
||
|
Float Charge Voltage |
13.7V/27.4V |
14.0V/28.0V |
8.32V |
||
|
Recharge Voltage |
13.2V/26.4V |
8.32V |
|||
|
Over-Discharge Return Voltage |
12.8V/25.2V |
12.2V/24.4V |
8.32V |
||
|
Under-Voltage Warning Level |
12.0V/24.0V |
8.32V |
|||
|
Over-Discharge Voltage |
11.0V/22.0V |
8.32V |
|||
|
Operation Temperature |
-35°C ~ +45°C |
||||
|
Dimensions |
3.37 x 7.77 x 5.71 in (85.6 x 197.5 x 145 mm) |
||||
|
Weight |
3.14lb (1.42kg) |
||||
|
IP Protection |
IP30 |
||||
|
Communication |
RS485, Canbus |
||||
|
Operation Altitude |
< 3000M |
||||
|
Warranty |
5-years |
||||
POWERTRAK SCREEN
|
Display Size |
3.2 inches |
|
Display Resolution |
320×240 |
|
Touchscreen |
Resistive |
|
Supply Voltage |
12-48 VDC |
|
Max Supply Current |
@ 12 VDC Input – 400 mA @ 24 VDC Input – 200 mA |
|
Operating Temperature Range |
-20 to +50 °C |
|
Storage Temperature Range |
-30 to +70 °C |
|
Humidity |
5-95 % RH, non-condensing |
|
Bluetooth Range |
50 meters |
|
WiFi Bandwidth |
2.4 Ghz |
|
LCD Screen |
320×240 resolution |
|
Connectivity |
4 pin, 2mm pitch header connection |
Kit Includes:
- 800 watts / 38.4 amps solar charging kit (4x 200-watt Solar Panels)
- 2x 30-amp MPPT Solar Controller
- Digital Remote Display
- Bluetooth-Enabled MPPT Remote
- 25′ of Solar output cable – RED (#10)
- 25′ of Solar output cable – BLACK (#10)
- Mounting hardware (4 x GP-MH-4-KB)
- 25-year solar module power output warranty
Documents:
Spec Sheet
User Manual
