Garmin
Garmin LiveScope Plus Ice Fishing System [010-02706-40]
Garmin LiveScope Plus Ice Fishing System [010-02706-40]
Out of stock
✓ Used by Hundreds of Customers
✓ Trusted by Sailors Nationwide
✓ Expert Customer Service
✓ Bulk Pricing Available
At MarineXGear, we are proud to have the best refund and return policies in the industry. If you’re not satisfied with your purchase for any reason, you may return it to us within 30 days for a refund.
If you have a problem with our order (there are missing components, damages, or the product is not functioning), please reach out to us as quickly as possible. Some of the problems can be resolved by going through the product manual or the product FAQs.
Refer to our Refunds & Return Policy for more details.
Order Processing
Once we receive your order, we will send you a confirmation email. Then we will process the order by confirming that the product is in stock and ready for shipment. If any of the items in your order are back-ordered, we will reach to you via email or phone and you may choose to either wait or receive a 100% refund.
Please allow 1-3 days for processing your order.
Shipping
We ship to the lower 48 continental United States only at this time.
Shipping times and shipping method will depend on the specific product and brand you purchase. If you have any shipping question, feel free to ask on the chat or email us at info@marinexgear.com.
We will send tracking information by email the same day the shipping tracking number is created/available.
Before you sign the shipping bill, please THOROUGHLY INSPECT YOUR ITEM. Signing for the receipt of a damaged product removes the liability of the shipping company and MarineXGear. Once you accept your shipment as non-damage, your item is your property.
![Garmin LiveScope Plus Ice Fishing System [010-02706-40]](http://marinexgear.com/cdn/shop/files/109879XL.jpg?v=1780002943&width=150)

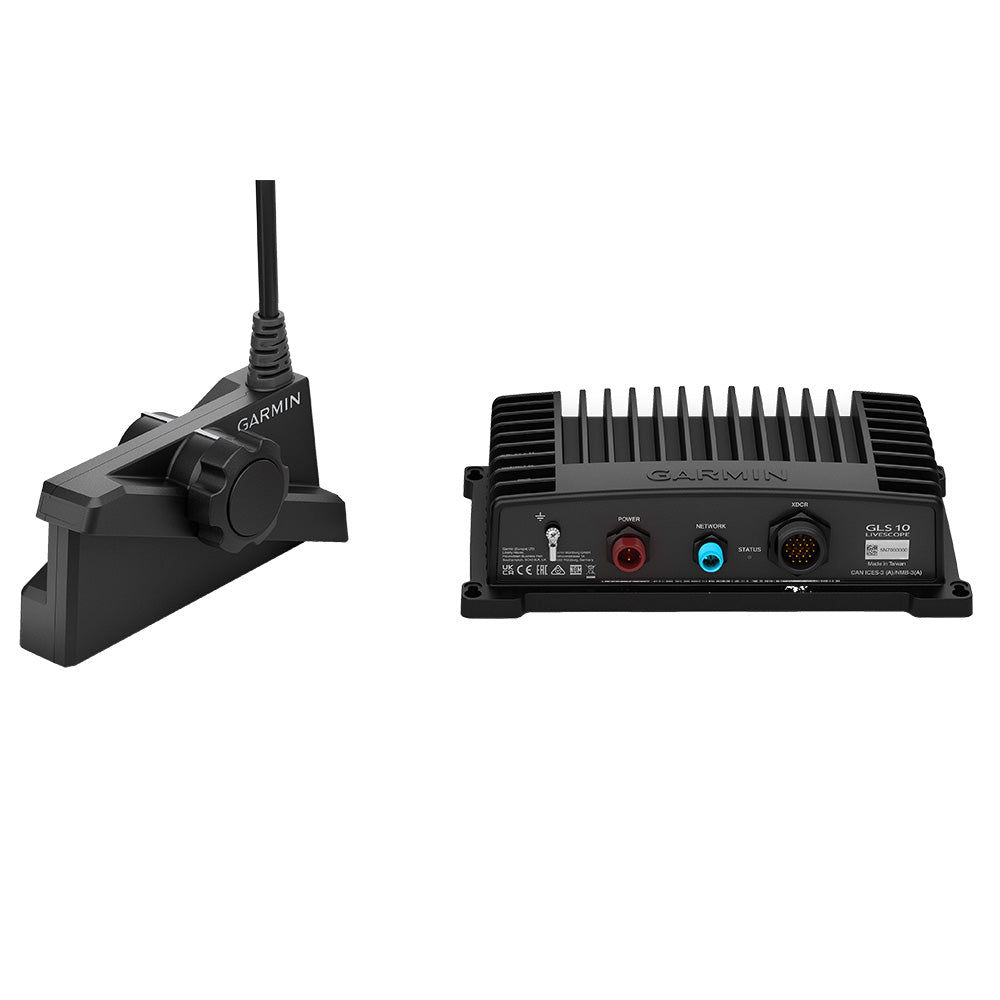

LiveScope™ Plus Ice Fishing System
UPGRADE YOUR ICE FISHING EXPERIENCE WITH LIVESCOPE PLUS SONAR
When paired with your Garmin chartplotter, this versatile LiveScope Plus package — with LVS34-IF ice fishing transducer, flexible cold-weather transducer cable, and all-in-one power cable — provides the essentials to help you find the best spots to drill and fish.
Features:
- Catch your limit with the power of LiveScope Sonar
- Just add your compatible chartplotter, a battery, and...ice
- Use LiveScope Forward mode to locate fish and drill where you find 'em
- See how fish react to your jig with LiveScope Down Mode
- Locate fish at a distance of up to 200' in any direction
- Scan with sharper images and reduced noise
TWO MODES, ONE TRANSDUCER
Adapt your fishing technique with the LiveScope Plus transducer with live, real-time scanning sonar that lets you see under the ice — up to 200' in any direction.
LIVESCOPE FORWARD
LiveScope Forward mode shows up to 200' all around you, so you can locate schools of fish and know where to drill the next hole.
LIVESCOPE DOWN
LiveScope Down mode homes in on targets, so you can watch how fish respond to your jig.
SEE FISH IN REAL TIME
Easy-to-interpret live-scanning sonar lets you see images of fish and structure. See your jig as it moves, and even distinguish between species of fish swimming around and below you.
CLEAR VISION
See exactly what you need with reduced noise and fewer artifacts that impede your picture of fish and structure.
CUSTOMIZE YOUR VIEW
Switch up the view on your chartplotter with layout options such as range, gain, color limit, and color brightness. Choose from vivid color palettes to see fish and structure in maximum contrast and clarity.
Specifications:
- Transducer beamwidth: 20° x 135°
- Transducer cable length: 20 ft
- Transducer number of pins: 21
- Dimensions: GLS 10 sonar black box: 9.7” x 5.9” x 2.6” (24.5 x 14.9 x 6.5 cm); LiveScope Plus LVS34-IF transducer: 6.4” x 3.1” x 1.9” (16.2 x 7.8 x 4.8 cm)
- Weight: GLS 10 sonar black box: 4.3 lbs (2.0 kg), LiveScope Plus LVS34-IF transducer: 2.25 lbs (1.02 kg)
- Water rating: IPX7
- Temperature range: GLS 10 black box: Operating: -15° C to 70° C; LiveScope Plus LVS34-IF transducer: Operating: 0° C to 40° C
- Frequency: 530 - 1,100 kHz
- Transmit power: 500 W
- Maximum depth: Down and Forward: 200’ (61.0 m)
- Sonar Type: Live
- Target Separation @100': 14"
- Garmin Marine Network Ports: 1 (small connector)
What's In The Box?
- LiveScope Plus LVS34-IF transducer
- GLS™ 10 sonar module
- 0-degree pole mount
- Lithium-ion four-in-one power cable
- Hardware
- Documentation
Specifications:
- Included Transducer: LVS-34
- Transducer Included: Yes
- Box Dimensions: 8"H x 10"W x 12"L WT: 9.5 lbs
- UPC: 753759364540
