Eartec UltraLITE PRO16 Wireless Intercom System

Eartec UltraLITE PRO16 Wireless Intercom System

The Eartec UltraLITE PRO16 is a professional-grade, all-in-one full-duplex wireless intercom system designed for hands-free communication among crews of up to 16 users. With the radio integrated directly into each headset, the system eliminates the need for belt packs, external wires, or a base station.

Its two-channel communication allows users to operate as two separate groups or combine everyone into a single full-duplex conference. With Active Frequency Hopping, Auto Mute Boom technology, rechargeable batteries, and a range of up to 1/2 mile line of sight, the PRO16 is designed for flexible communication in demanding work environments.

Lightning Fast, Crystal Clear

• All-in-one wireless headset design with the full-duplex radio integrated into the earcups
• No beltpack, external transceiver, or base station required
• Supports hands-free communication for up to 16 users
• Two communication channels allow crews to operate as separate groups
• Main headset Combine Switch connects both groups into one conference
• Field-programmable headsets allow communication patterns to be modified as crew requirements change

Up to 16 Users

• Supports simultaneous full-duplex communication for up to 16 users

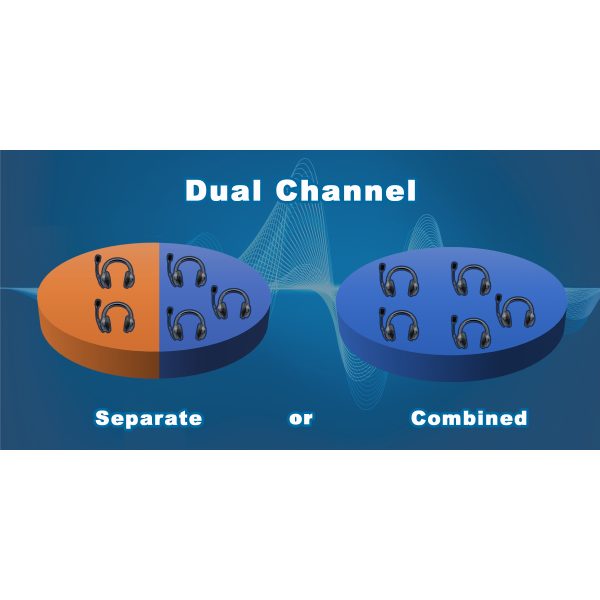

• Two-channel architecture allows two groups to communicate privately
• Combine function allows the entire crew to communicate together
• Single- and dual-ear headset configurations can be combined within the same system
• Systems requiring more than 16 users can be expanded to up to 30 with the optional CMod and additional Main headset
• CMod functions as a digital repeater and can provide up to 1/2-mile line-of-sight communication, depending on terrain and operating conditions

Active Frequency Hopping

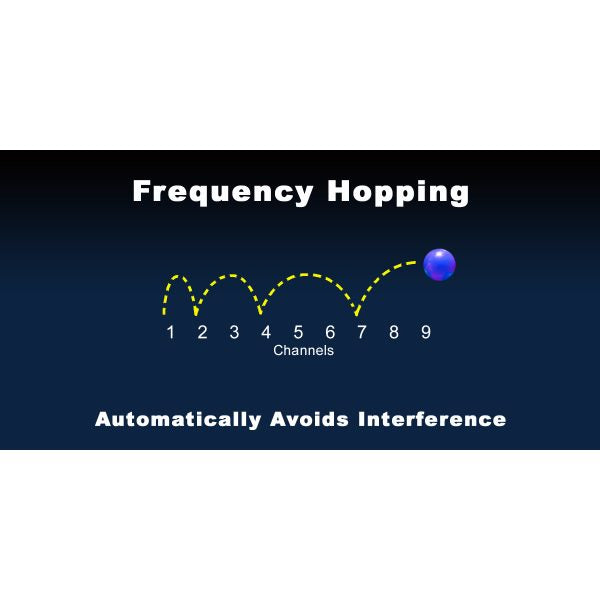

• Uses Active Frequency Hopping technology to automatically switch channels when necessary
• Designed to help avoid interference during operation
• Provides an operating range of up to 1/2 mile line of sight, terrain dependent

Auto Mute Boom Technology

• Integrated Auto Mute microphone boom automatically mutes the microphone when moved to the UP position
• Provides quick and intuitive microphone control during active use
• Noise-cancelling microphone technology is included

Comfortable All-In-One Design

• Wireless radio is integrated directly into the headset
• Eliminates the need for a separate belt-worn transceiver
• Available in single- and dual-ear configurations
• Lightweight design suitable for extended crew communication

Rechargeable Battery System

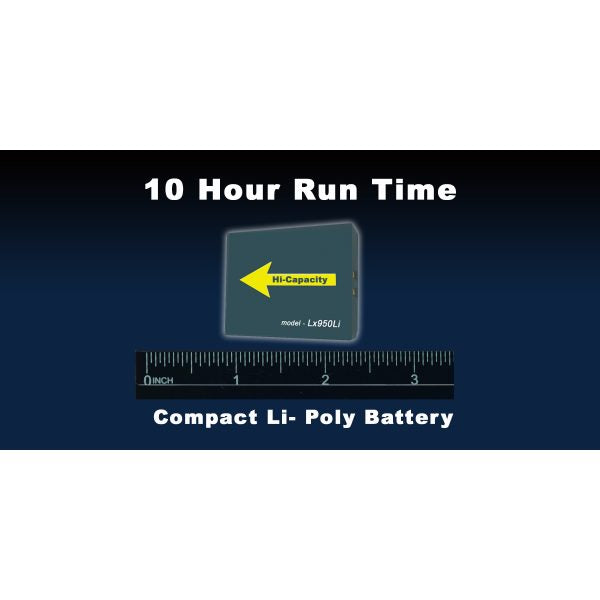

• High-capacity rechargeable lithium polymer batteries provide up to 10 hours of operation
• Batteries charge externally and are field replaceable
• Replaceable battery design allows spare batteries to be kept available for extended operation
• Multi-port charger included with complete systems
• LED charging indicators display charging status, with green indicating a full charge

Specifications

• Frequency: 2407–2475 MHz (USA)
• Receive Tuning Range: 2407–2475 MHz
• Maximum Transmit Power: 80 mW
• Frequency Management: Automatic Frequency Hopping
• Channel Tuning Step: ≥2 MHz
• Channel Bandwidth: 2 MHz
• Modulation Type: FLRC
• Transmission Speed: 1.3 Mbps
• Duplexing: Time Division Duplex (TDD)
• Speech Encoding: ADPCM / 16-bit/s
• RF Access: Time Division Multiple Access (TDMA)
• Range: Up to 1/2 mile line of sight, terrain dependent
• Headset Power Supply: Rechargeable Lithium 3.7 V
• Charger Power Supply: 5 V
• Operating Time: Up to 10 hours
• Normal Operating Temperature: 0°C to 45°C
• Storage Temperature: 0°C to 30°C
• FCC License: Not required
• Weight: 215 g per headset
• Package Weight: 3 lbs
• Package Dimensions: 12 × 9 × 7 in

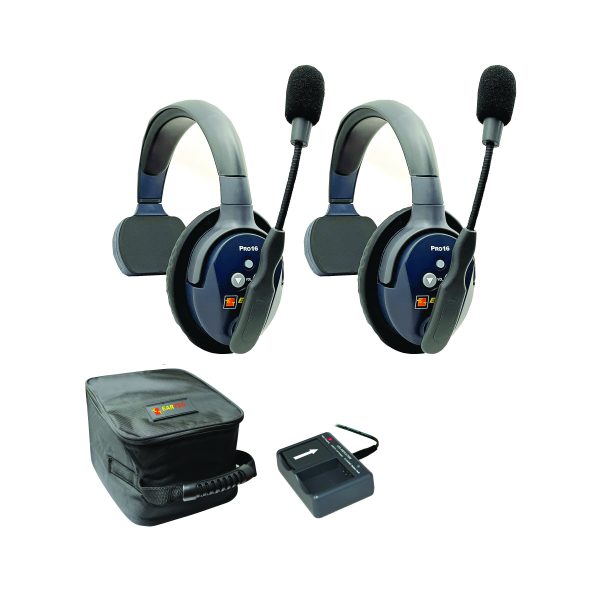

Package Includes

• Eartec UltraLITE PRO16 wireless headsets
• Rechargeable lithium polymer batteries
• Multi-port external charger
• Carrying case
• Complete system components based on selected configuration

Notes

• Actual communication range depends on line of sight, terrain, environmental conditions, and operating conditions.
• PRO16 configurations may include single- or dual-ear headsets or a combination of both.
• The system supports up to 16 users in the standard configuration.
• Expansion beyond 16 users requires compatible CMod components and an additional Main headset.
• Verify the selected configuration and headset quantity before purchase.
