SIMRAD / LOWRANCE XSONIC AIRMAR PM275LH-W | 000-13940-001

SIMRAD / LOWRANCE XSONIC AIRMAR PM275LH-W | 000-13940-001

Get the absolute best of both worlds with ultimate dual-channel, wide-beam coverage. The Airmar PM275LH-W is a premium 1 kW pocket/keel-mounted CHIRP transducer engineered for sportfishing and commercial vessels 25 feet and up. This dual-channel powerhouse combines a specialized Low-Frequency CHIRP to track extreme depths with a High-Wide CHIRP that provides a massive, constant 25° beamwidth. The result is unparalleled target resolution in the upper water column paired with rock-solid bottom tracking in the deep.

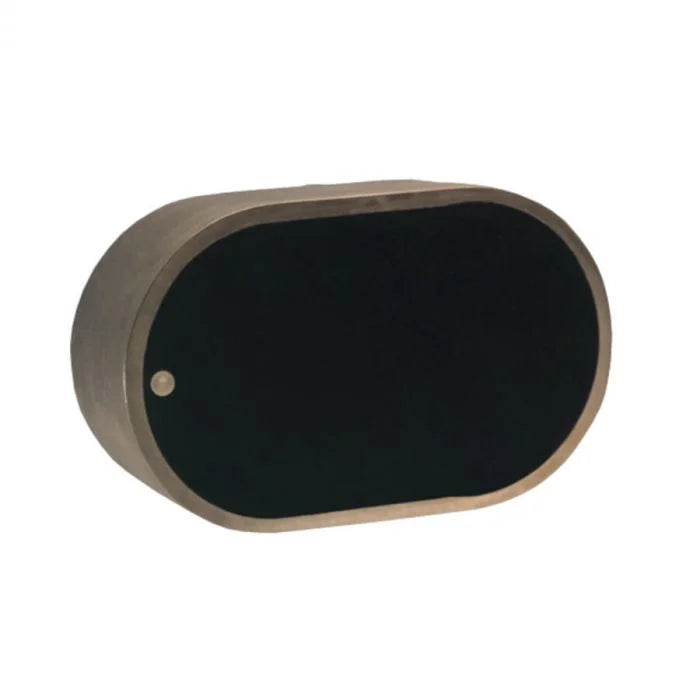

Designed for pocket, cavity, or custom keel mounting, this bronze-housed transducer fits flush inside the hull or keel. This custom positioning delivers exceptionally clean water flow across the face of the transducer, guaranteeing noise-free sonar readings even at cruising speeds.

Key Features:

• Dual-Channel CHIRP Versatility: Combines Low CHIRP and High-Wide CHIRP in one unit, allowing you to scan deep offshore trenches and shallow structure simultaneously.

• High-Wide Band (150–250 kHz): Features a fixed 25° beam angle across the entire frequency range. This broad coverage yields twice the underwater scanning area and significantly larger, clearer fish arches compared to standard narrow-beam transducers.

• Low Band (42–65 kHz): Packs 1 kW of power to cut through the water column and track the ocean floor down to a maximum depth of 3,000 feet (914 meters).

• Flush Pocket Mounting: Eliminates drag and the need for a fairing block. Perfect for solid fiberglass hulls where clean hydrodynamic performance is mandatory.

• Dual xSonic 9-Pin Connectors: Features black 9-pin connectors for direct, plug-and-play integration with modern Simrad and Lowrance dual-channel sonar modules and multi-function displays.

• Fast-Response Temperature Sensor: Delivers rapid, precise water temperature updates straight to your helm display.

Specifications:

• Part Number: 000-13940-001

• Power Rating: 1000W (1 kW)

• Frequencies: Low CHIRP (42–65 kHz) & High-Wide CHIRP (150–250 kHz)

• Beamwidth: 25° to 16° (Low) / 25° Constant (High-Wide)

• Housing Material: Premium Bronze

• Cable Length: 10 meters (33 ft)

Pro Tip: The PM275LH-W is the ultimate choice for pelagic tournament anglers. The High-Wide element gives you massive coverage for tracking baitfish and pelagic gamefish in the top 500 feet of the water column, while the Low frequency lets you keep a lock on deep structure down to 3,000 feet.
