Airmar DX900+ Multilog Smart Electromagnetic Speed Sensor Thru‑Hull NMEA0183 [DX900-ST-0]
Ships Direct From Manufacturer

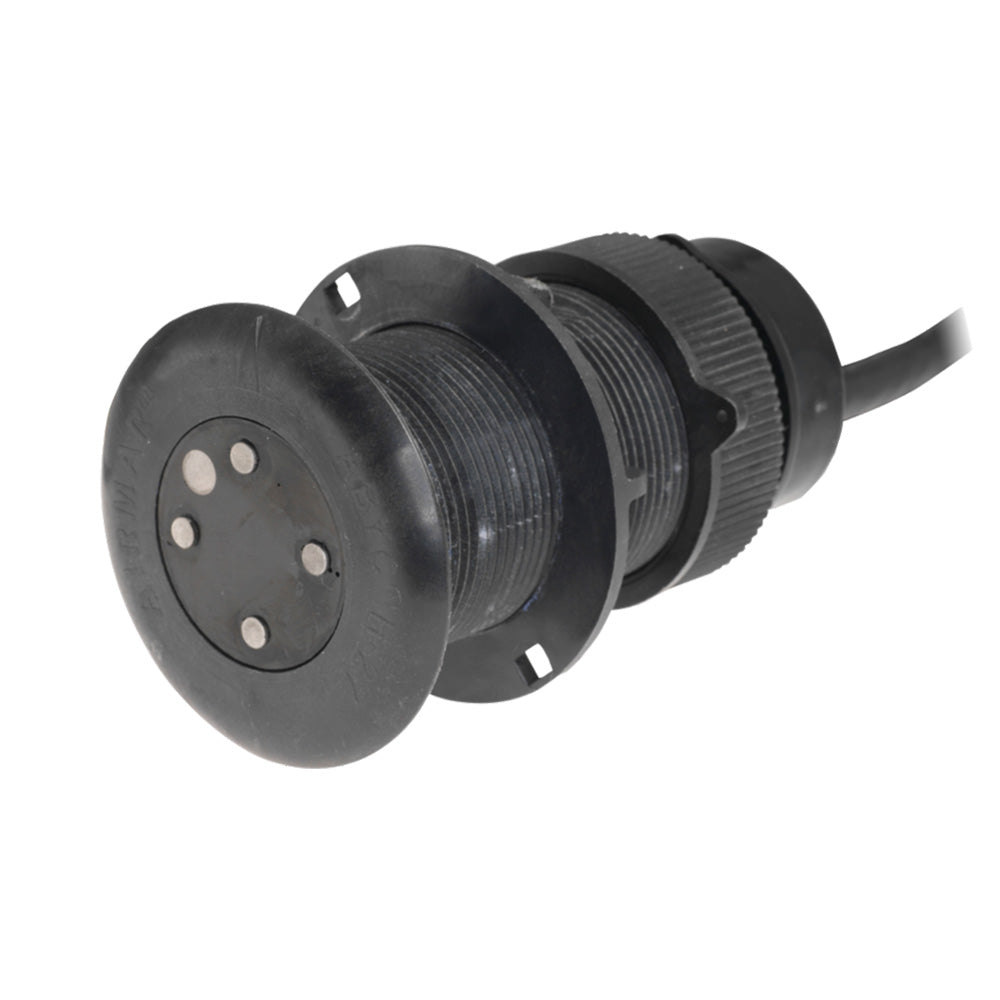

DX900+ Multilog Smart™ Electromagnetic Speed Sensor Thru‑Hull NMEA 0183
Say goodbye to the paddlewheel and hello to Smart® Sensor technology. The DX900+ uses electromagnetic technology to accurately measure dual-axis speed through water plus immediately calculate leeway travel. Paddlewheels need cleaning and only measure speed longitudinally. The DX900+ measures water flow at 360° and will immediately deliver the leeway data to your instrument. There are no moving parts to clean or maintain. Performance sailors, racers, or long-distance cruisers will immediately see the benefits of the accuracy and reliability of the DX900+.
The DX900+ is available as a Speed and Water-temperature sensor.
Features:
- Electromagnetic dual-axis speed, and water temperature with no moving parts
- Measures transverse and longitudinal speed that instantaneously calculates leeway angle and speed through water with no latency
- Connects and shares data wirelessly with AIRMAR’s CAST™ app. Perfect for displaying performance data on phones or tablets, plus makes calibration fast and easy.
- Outputs heel and trim
- The sensing pins in contact with the water are made from very high-quality alloy, allowing very stable measurements and high resistance to corrosion. (Do not use any bottom paint on exposed sensing pins.)
- Thru-hull, low-profile housing with water valve
- Retractable insert for safe storage
- Available in a plastic (P717V) or stainless steel (SS617V) housing
- Retrofits to existing P617V housing
Specifications:
- Weight (sensor, box, and cable):
- Plastic—1 kg (2.3 lb.)
- Stainless steel—2 kg (4.4 lb.)
- Hull Material: Plastic housing for fiberglass or metal hull/Stainless steel housing compatible with all hull materials
- Deadrise Angle: Up to 22°
- Hole Diameter: Fiberglass or wood—51 mm or 2", Stainless steel housing in metal hull—57 mm or 2-1/4"
- Transverse Speed Range: ±6 knots
- Longitudinal Speed Range: ±60 knots
- Accuracy of Transverse and Longitudinal Speed: ±0.1 knots for speeds under 10 knots, ±1% for speeds above 10 knots
- Display Resolution: 0.01 knots
- Outputs: NMEA 0183—speed and temperature
- Configurable Data Update Rate: Up to 10 Hz
- Operating Temperature Range: -15°C to 55°C (5°F to 131°F)
- Water Temperature Accuracy: +0.5°C (+1.0°F)
- Power: Supply Voltage: 9 to 16 VDC
- Average Power Consumption: NMEA 0183 - 2.5 W
- Standard Cable Length: NMEA 0183 - 6M (20')
- Includes: Blanking plug
- CE Compliant: Yes to IEC60945
