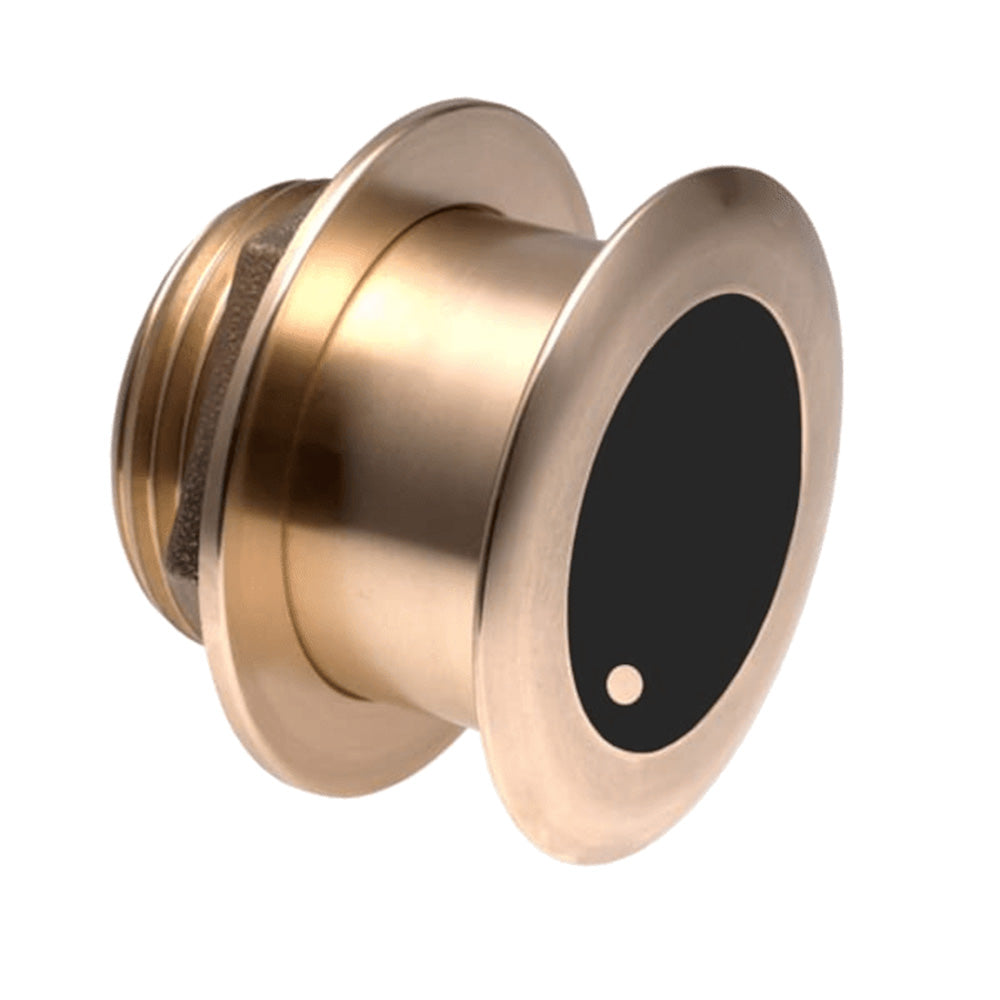

![Airmar B164 1kW 20 Degree Tilted Element 8-Pin f/Garmin [B164-20-8G]](http://marinexgear.com/cdn/shop/files/109041XL.jpg?v=1776318500&width=150)
Airmar B164 1kW 20 Degree Tilted Element 8-Pin f/Garmin [B164-20-8G]
Ships Direct From Manufacturer
B164 1kW 20 Degree Tilted Element 8-Pin for Garmin
Step up to a 1 kW—without a fairing! The 1 kW, flush-mount, Tilted Element™ transducer is perfect for fast, trailered vessels that cannot accommodate a High-performance Fairing. The flush-mounted, bronze housing extends less than 6.35 mm (1/4") below the hull, so it can sit on trailer rollers and bunks. The ceramic arrays are tilted inside the housing, providing the perfect vertical beam with maximum energy on what is directly below the boat.
Features:
- Fixed 20° tilted version for 16 to 24° hull deadrise angles
- Depth and fast-response water-temperature sensing
- 1 kW of power
- Dual-frequency elements:
- 50 kHz with a wide 22° beamwidth for depth performance to 529 m (1800')
- 200 kHz with a 6° beamwidth for depth performance to 235 m (800')
- Interfaces to any 600 W or 1 kW echo sounder
- Engineered for center-console and trailered boats
- Low-profile bronze housing extends less than 6.35 mm (0.25") below the hull
- No effect on the boat’s running performance
- Available in a stainless steel housing (SS164) for use in all hull materials
- Patented Xducer ID® technology
Specifications:
- Power Rating: 1 kW
- Max Deadrise Angle: 24°
- Housing: Bronze
- Functions: Depth, Temperature
- Hull Material: Fiberglass or wood
- Max Vessel LOA: Up to 11 m (36')
- Hole Size: 95 mm (3-3/4")
- Usable Shaft Length: 71 mm (2.80")
- Acoustic Window: Urethane
- Common Use: Leisure/Yachting, Fishing
- Conventional Beam: 22°x20°/6°
- Max Deadrise: Up to 24°
- Max Depth: 500 m (1640')
- Mounting Style: Tilted Element Thru-Hull
- Retractable housing: No
- Single or Dual Frequency: Conventional Dual Frequency
- Tilted Element: Yes
- Weight: 2.7 kg (6 lbs.)
