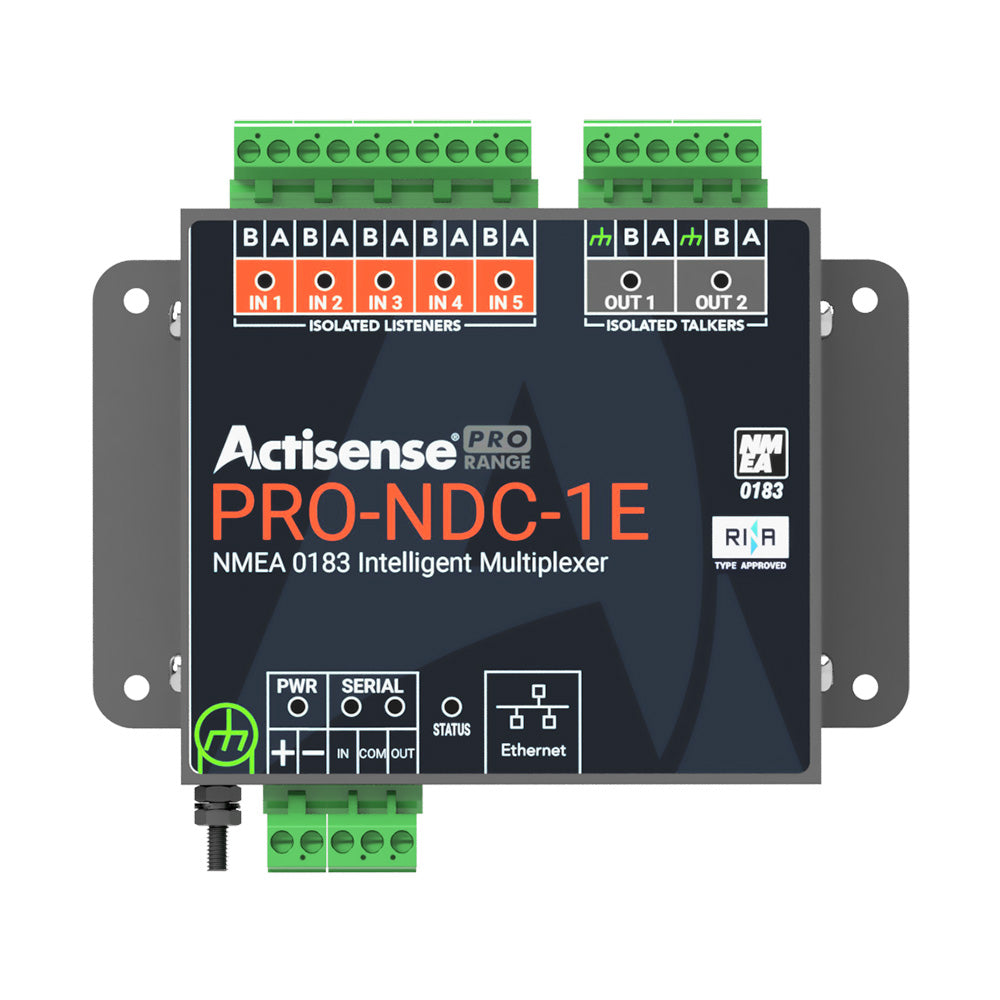

Actisense PRO NMEA 0183 Multiplexer - 5 Inputs 2 ISO-Drive Outputs, Ethernet Serial Connections [PRO-NDC-1E]
PRO NMEA 0183 Multiplexer - 5 Inputs & 2 ISO-Drive Outputs, Ethernet & Serial Connections
The PRO-NDC-1E is more than just an NMEA 0183 Multiplexer…
Rugged, Robust, type-approved multiplexer with powerful, advanced features enables baud rate adjustments, auto-switching, and sentence-level filtering.
Features:
- Auto-switching between inputs to allow for a primary, secondary, and tertiary priority input.
- Configurable baud rates to allow 38400 and 4800 baud devices to operate through the same multiplexer.
- Sentence filtering to block unwanted sentences from specific outputs helps to limit bandwidth consumption.
- Easy to configure using the web-based UI, no need to manually enter and edit strings of text.
- RINA type-approved device means the multiplexer is fit for leisure, commercial, and class/type installations.
- Multiple LEDs allow for ‘quick glance’ diagnostics to ensure everything is operating correctly.
- NMEA 0183 data streaming over Ethernet enables connectivity to existing Ethernet devices and systems.
- 5 OPTO-Isolated NMEA 0183 inputs and 2 ISO-Drive NMEA 0183 outputs provide protection for all connected instruments.
- Dedicated bi-directional Serial port (fully isolated utilising ISO-Drive technology)
- A serial port can be used as an additional input/output
- Ethernet port supports direct and network connections
- NMEA 0183 streaming via Ethernet
- Configurable input and output baud rates
- Allows Data combining and rate conversion
- 2 independent Autoswitch virtual inputs with priority
- Isolation from battery supply
- Diagnostic LED’s
- Optional DIN rail mount
- Type Approved
- Quick and easy to install
- Configuration using a standard web browser, no PC operating system compatibility issues
- Advanced features solve NMEA 0183 data routing problems
- Fully isolated with ISO-Drive technology for peace of mind
- Easy firmware updates make the device future-proof
Technical Specifications:
Power Supply
- Input supply voltage - 9 to 35 V DC
- Input supply current - 150mA max @ 12V DC (all outputs @ full drive into 100 ohm loads)
- Input protection - Continuous reverse polarity, transient overvoltage, and ESD protection
- Power indicator - LED, Blue – indicates unit is functioning correctly
- Input Supply connector - Pluggable 2-way screw terminal, 5.08mm pitch (12 to 30 AWG)
NMEA 0183 Port – Listener & Talker
- Number of Listener / Input Ports - 5 isolated NMEA 0183 Listeners
- Number of Talker / Output Ports - 2 isolated NMEA 0183 Talkers
- Compatibility - Fully NMEA 0183, RS422 & RS232 compatible. RS-485 Listener compatible
- Speed/baud rate - 4800 to 38400 bps
- Talker Output Voltage Drive - >= 2.2V (differential) into 100 ohm
- Talker Output Current Drive - 20 mA maximum per output
- Talker Output Protection - Short circuit and ESD
- Talker Data Indicator - LED, Orange (Flashes with data rate)
- Listener Input Voltage Tolerance - -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second)
- Listener Input Protection - Current limited, overdrive protection to 40 VDC, and ESD protection
- Listener Data Indicator - LED, Green (Flashes with data rate)
- Connectors - Pluggable 2/3 way screw terminals, 5.08mm pitch (12 to 30 AWG)
Serial Port
- Compatibility - RS422 & RS232 compatible. RS-485 Listener compatible
- Speed/baud rate - 115200 bps
- Output voltage drive - >= 2.1V (differential) into 100 ohms
- Output current drive - 20 mA max
- Output protection - Short circuit and ESD
- Input voltage tolerance - -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second)
- Input protection - Current limited, overdrive protection to 40 VDC, and ESD protection
- Data Indicators - LED’s: Green = Receive, Orange = Transmit
- Connectors - Pluggable 3-way screw terminals, 5.08mm pitch (12 to 30 AWG)
Ethernet Port
- Host interface - 10/100BaseT, automatic polarity detection
- Supported protocols - TCP/IP for configuration and firmware updating, TCP/IP and UDP for NMEA 0183 comms
- Connector - RJ45
- Indicators - Green – Link, Yellow – 100 Mbps
Isolation
- NMEA 0183 Listener - Uses IsoDriveTM, Hi-Pot tested to 1000V
- NMEA 0183 Talker - Uses IsoDriveTM, Hi-Pot tested to 1000V
- Serial Port - Uses IsoDriveTM, Hi-Pot tested to 1000V
- Ethernet Port - 2kv for 60s
Mechanical
- Housing Material - 316 Stainless Steel
- Dimensions - 139mm (W) x 98mm (H) x 26mm (D)
- Weight - 360g
- Mounting - Bulkhead mount or DIN rail mount (DIN kit 1)
Approvals and Certifications
- EMC - IEC 60945:2002-08, DNVGL-CG-0339:2019 & IACS UR E10 Rev7
- Compass Safe Distance - 300mm
- Type Approval Certificate - RINA
- Operating Temperature - -25 to +70°C
- Storage Temperature - -40 to +85°C
- Relative Humidity (RH) - 95% @ 55°C
- Environmental Protection - IP40
- Guarantee - 3 years (5 Years if registered)
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Specifications:
- Data Interface: NMEA 0183
- Box Dimensions: 2"H x 6"W x 10"L WT: 1 lbs
- UPC: 5060998710577
