Sailing - Winches

Ronstan 30QT Orbit Winch, 2-Speed, QuickTrim, E1 12V [RA630201100]

30QT Orbit Winch, 2-Speed, QuickTrim, E1 12V

Lightweight electric aluminium winch with QuickTrim™ self-tailer and a high-quality European-engineered & manufactured E1 motor.

Features:

• Now available with an E1 Single Speed Electric Motor
• Perfect for enjoying sailing short-handed or with friends and family
• Engineered with unsurpassed levels of functionality, monitoring, and protection
• Installation is simple with no external control box required, while the illuminated “intelligent” push button aids in several safety precautions, including overload protection, thermal overload protection, accidental start protection, reverse polarity protection, and more.
• At the heart of the system is a high-quality, European-engineered and manufactured series-wound motor, matched with the optimum gearbox for efficient pulling power and line speed.

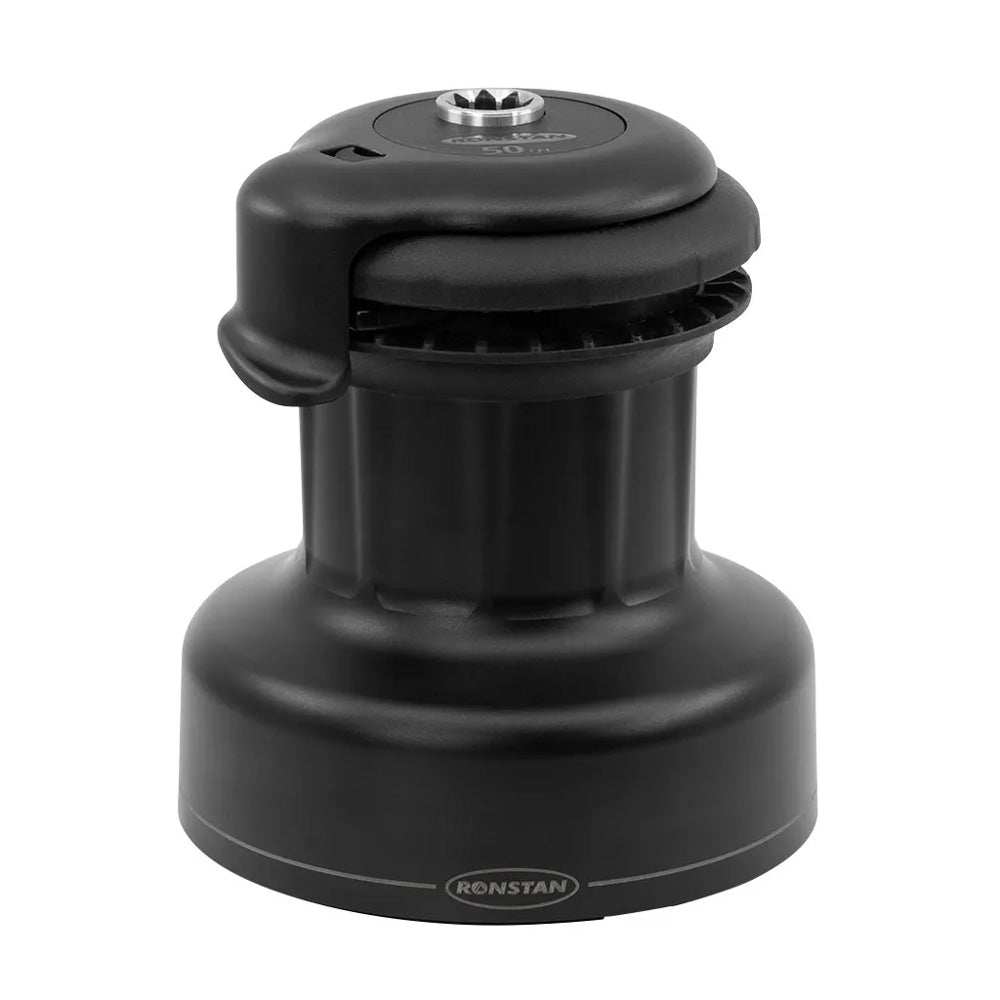

Ronstan 50QT Orbit Winch, 2-Speed, QuickTrim [RA6502]

50QT Orbit Winch, 2-Speed, QuickTrim

Lightweight aluminium winch with QuickTrim™ self-tailer, 2 speeds, and Power Ribs™ for controlled grip on the line at all times.

FEATURES

• Sprung self-tailing jaws to accept 8 - 14mm line.
• QuickTrim™ patented self-tailing feature for rapid sail trim and smooth adjustment.
• Ball bearings carry the thrust loads, roller bearings carry the radial loads of the drum to minimise rotational friction.
• Proven gearing configuration.
• Power Rib™ ensures a controlled grip on the line at all times, whether trimming or easing. Minimal rope wear compared to more abrasive drum surface finishes.
• Machined aluminium drum – stronger and lighter than traditional cast aluminium drums.
• Lightweight aluminium centre stem provides significant weight savings over traditional bronze stems.
• Low line entry due to gearing configuration geometry.

Specifications

• Weight (lb)    11.91
• Max Pull (lb)    2980
• Gear ratio 1st speed    3.0 : 1
• Gear ratio 2nd speed    10.8 : 1
• Gear ratio 3rd speed    -
• Power ratio 1st speed    13.4 : 1
• Power ratio 2nd speed    49.3 : 1

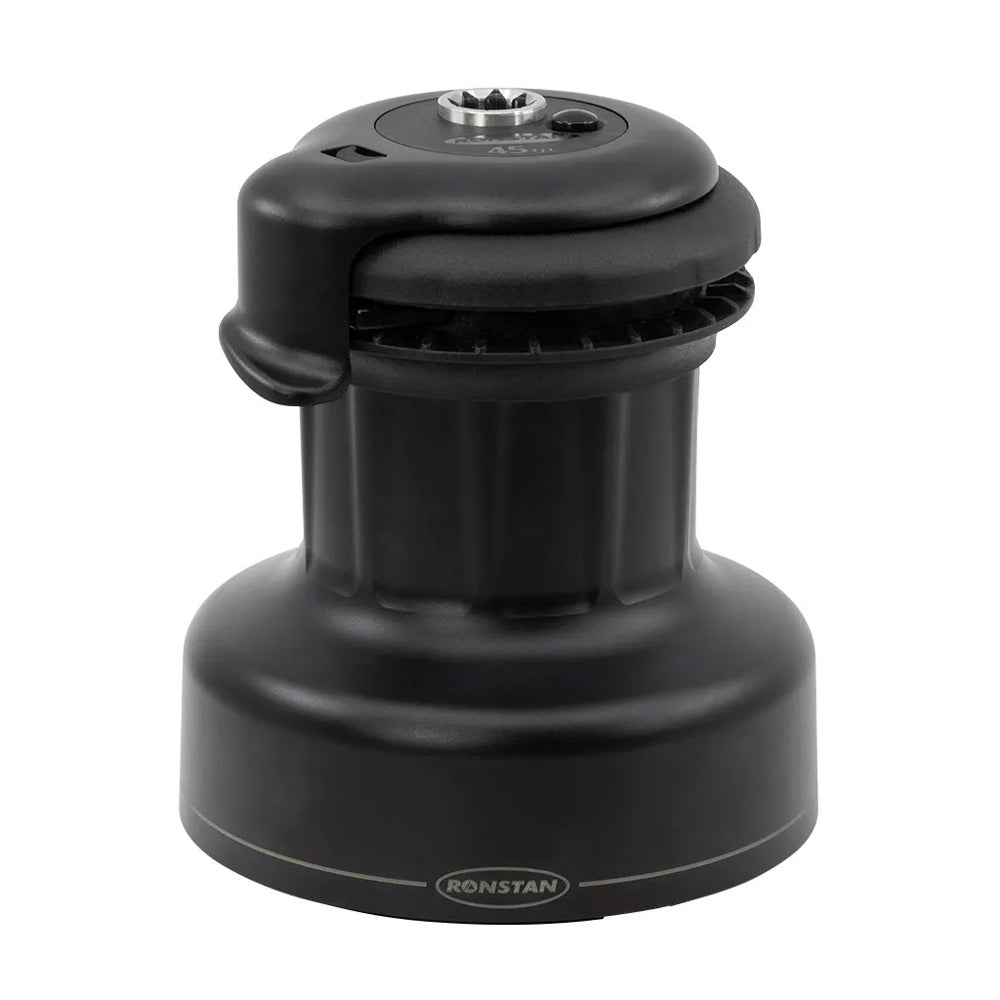

Ronstan 45QT Orbit Winch, 3-Speed, QuickTrim [RA6453]

45QT Orbit Winch, 3-Speed, QuickTrim

Lightweight aluminium winch with QuickTrim™ self-tailer, 3 speeds, and Power Ribs™ for controlled grip on the line at all times.

FEATURES

• Sprung self-tailing jaws to accept 8 - 14mm line.
• QuickTrim™ patented self-tailing feature for rapid sail trim and smooth adjustment.
• Ball bearings carry the thrust loads, roller bearings carry the radial loads of the drum to minimise rotational friction.
• Proven gearing configuration.
• Power Rib™ ensures a controlled grip on the line at all times, whether trimming or easing. Minimal rope wear compared to more abrasive drum surface finishes.
• 45QT and 50QT available as three-speed models.
• Machined aluminium drum – stronger and lighter than traditional cast aluminium drums.
• Lightweight aluminium centre stem provides significant weight savings over traditional bronze stems.
• Low line entry due to gearing configuration geometry.

Specifications

• Weight (lb)    13.01
• Max Pull (lb)    2650
• Gear ratio 1st speed    1.4 : 1
• Gear ratio 2nd speed    3.0 : 1
• Gear ratio 3rd speed    10.0 : 1
• Power ratio 1st speed    6.3 : 1
• Power ratio 2nd speed    13.4 : 1
• Power ratio 3rd speed    45.5 : 1

Ronstan 50QT Orbit Winch, 3-Speed, QuickTrim [RA6503]

50QT Orbit Winch, 3-Speed, QuickTrim

Lightweight aluminium winch with QuickTrim™ self-tailer, 3 speeds, and Power Ribs™ for controlled grip on the line at all times.

FEATURES

• Sprung self-tailing jaws to accept 8 - 14mm line.
• QuickTrim™ patented self-tailing feature for rapid sail trim and smooth adjustment.
• Ball bearings carry the thrust loads, roller bearings carry the radial loads of the drum to minimise rotational friction.
• Proven gearing configuration.
• Power Rib™ ensures a controlled grip on the line at all times, whether trimming or easing. Minimal rope wear compared to more abrasive drum surface finishes/
• Machined aluminium drum – stronger and lighter than traditional cast aluminium drums.
• Lightweight aluminium centre stem provides significant weight savings over traditional bronze stems.
• Low line entry due to gearing configuration geometry.

Specifications

• Weight (lb)    13.01
• Max Pull (lb)    2980
• Gear ratio 1st speed    1.4 : 1
• Gear ratio 2nd speed    3.0 : 1
• Gear ratio 3rd speed    10.8 : 1
• Power ratio 1st speed    6.3 : 1
• Power ratio 2nd speed    13.4 : 1
• Power ratio 3rd speed    49.3 : 1

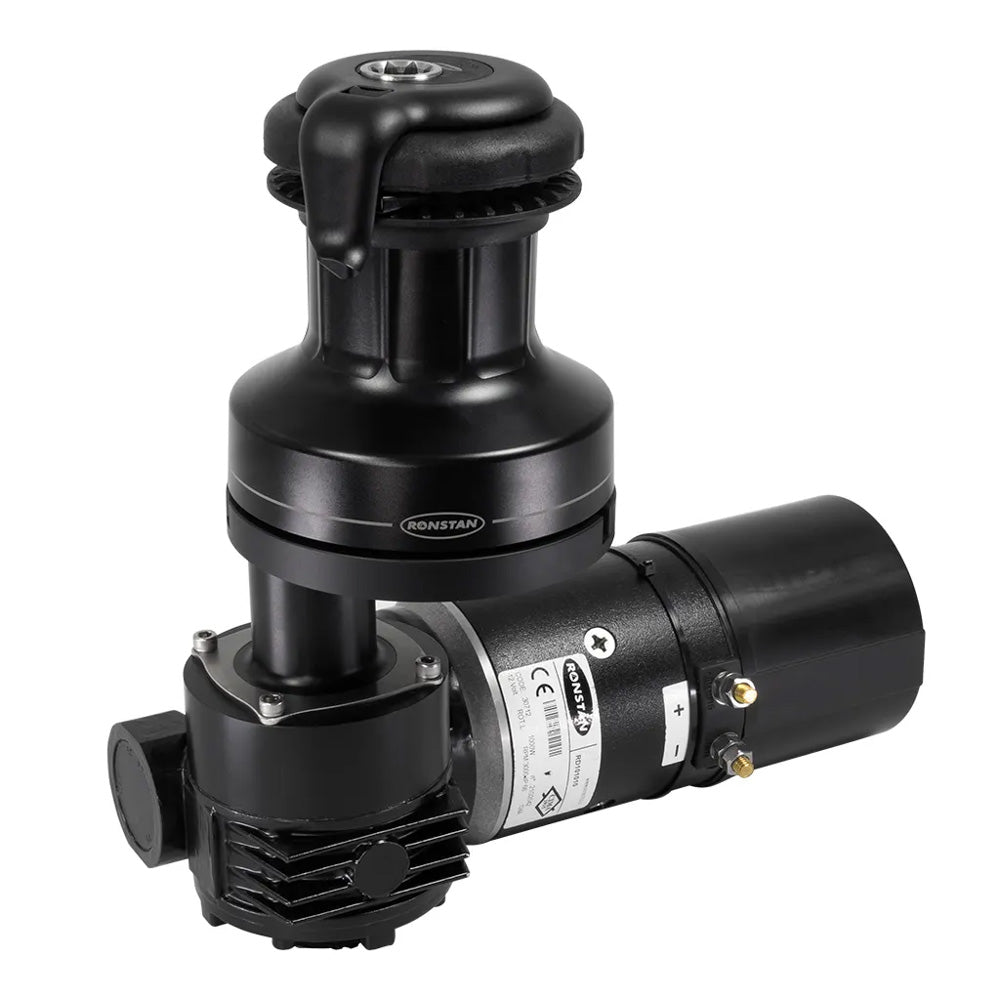

Ronstan 40QT Orbit Winch, 2-Speed, QuickTrim, E1 12V [RA640201100]

40QT Orbit Winch, 2-Speed, QuickTrim, E1 12V

Lightweight electric aluminium winch with QuickTrim™ self-tailer and a high quality European engineered & manufactured E1 motor.

FEATURES

• Now available with an E1 Single Speed Electric Motor.
• Perfect for enjoying sailing short-handed or with friends and family,
• Engineered with unsurpassed levels of functionality, monitoring, and protections.
• Installation is simple with no external control box required, while the illuminated “intelligent” push button aids in several safety precautions including overload protection, thermal overload protection, accidental start protection, reverse polarity protection, and more.
• At the heart of the system is a high quality, European engineered and manufactured series-wound motor, matched with the optimum gearbox for efficient pulling power and line speed.

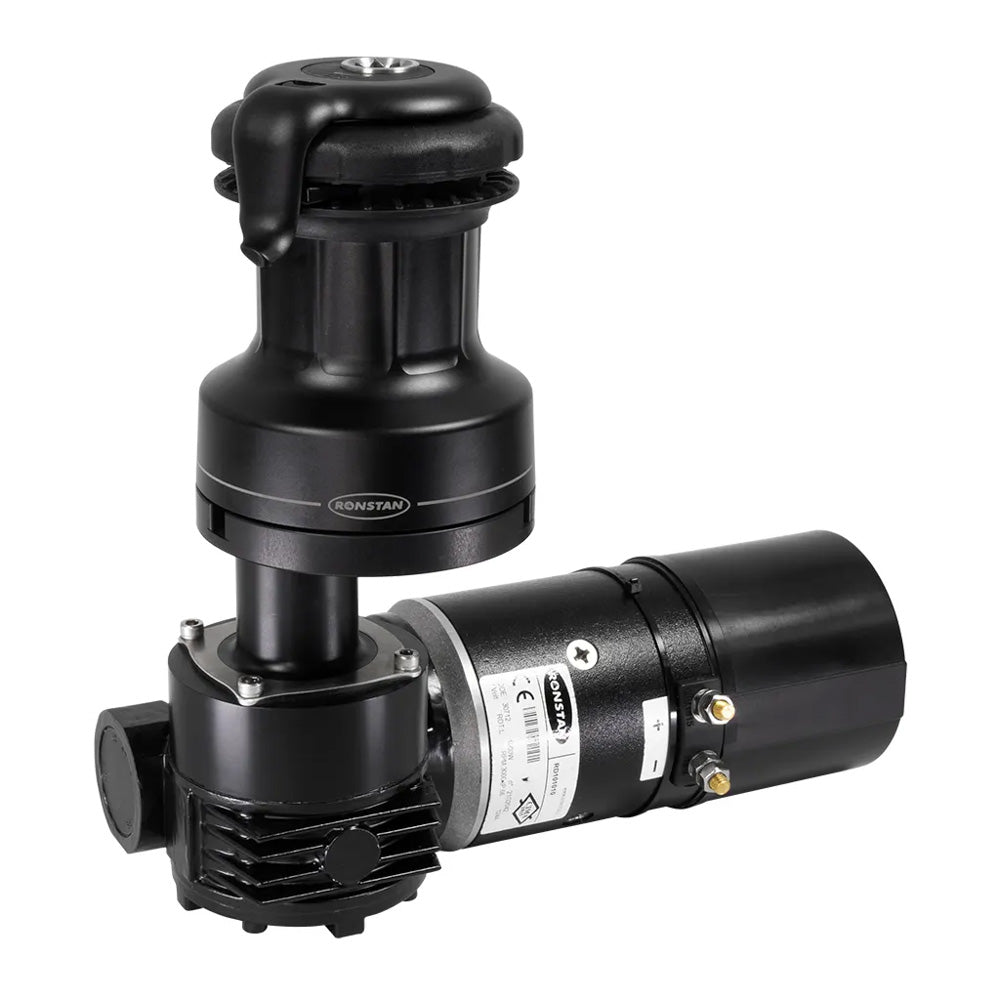

Ronstan 30QT Orbit Winch, 2-Speed, QuickTrim, E1 24V [RA630201200]

30QT Orbit Winch, 2-Speed, QuickTrim, E1 24V

Lightweight electric aluminium winch with QuickTrim™ self-tailer and a high quality European engineered & manufactured E1 motor.

FEATURES

• Now available with an E1 Single Speed Electric Motor.
• Perfect for enjoying sailing short-handed or with friends and family,
• Engineered with unsurpassed levels of functionality, monitoring, and protections.
• Installation is simple with no external control box required, while the illuminated “intelligent” push button aids in several safety precautions including overload protection, thermal overload protection, accidental start protection, reverse polarity protection, and more.
• At the heart of the system is a high quality, European engineered and manufactured series-wound motor, matched with the optimum gearbox for efficient pulling power and line speed.

Ronstan 40QT Orbit Winch, 2-Speed, QuickTrim, E1 24V [RA640201200]

40QT Orbit Winch, 2-Speed, QuickTrim, E1 24V

Lightweight electric aluminium winch with QuickTrim™ self-tailer and a high quality European engineered & manufactured E1 motor.

FEATURES

• Now available with an E1 Single Speed Electric Motor.
• Perfect for enjoying sailing short-handed or with friends and family,
• Engineered with unsurpassed levels of functionality, monitoring, and protections.
• Installation is simple with no external control box required, while the illuminated “intelligent” push button aids in several safety precautions including overload protection, thermal overload protection, accidental start protection, reverse polarity protection, and more.
• At the heart of the system is a high quality, European engineered and manufactured series-wound motor, matched with the optimum gearbox for efficient pulling power and line speed.

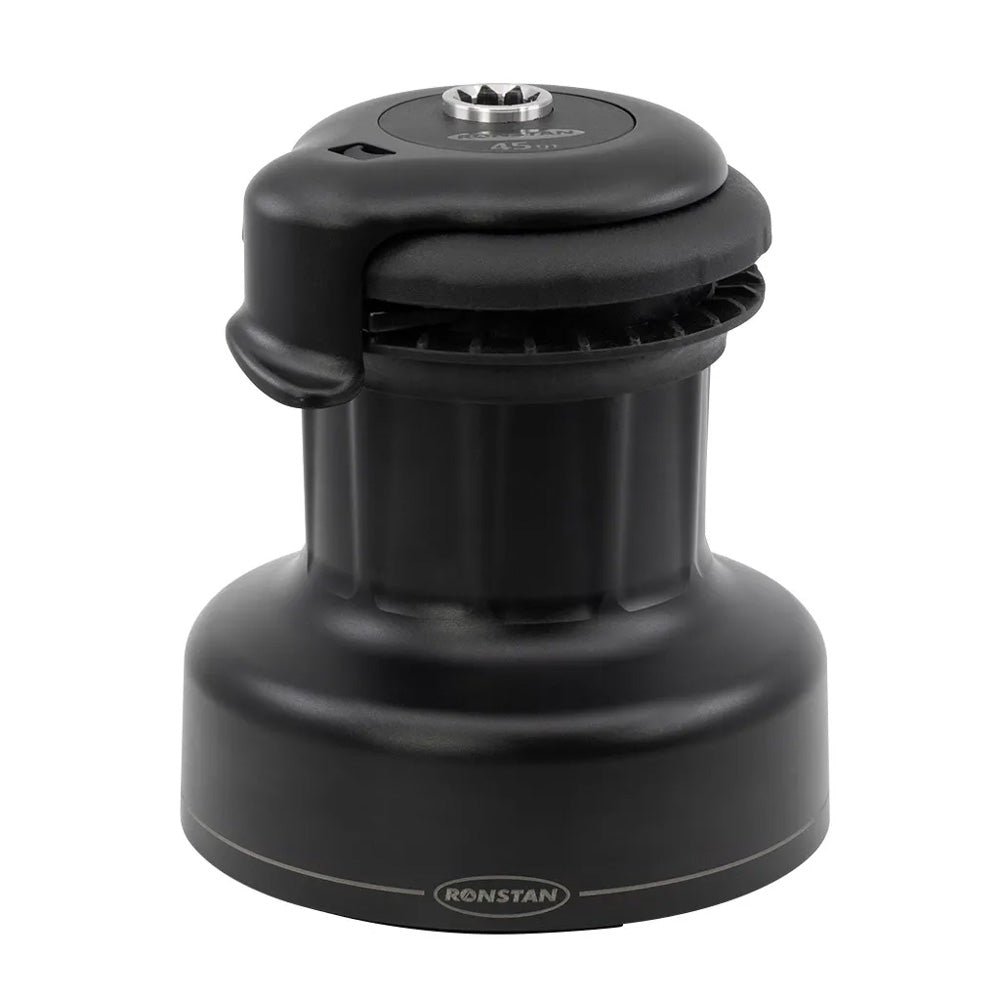

Ronstan 45QT Orbit Winch, 2-Speed, QuickTrim [RA6452]

Ships Direct From Manufacturer

45QT Orbit Winch, 2-Speed, QuickTrim

Lightweight aluminium winch with QuickTrim™ self-tailer, 2 speeds, and Power Ribs™ for controlled line grip at all times.

Features:

• Sprung self-tailing jaws to accept 8-14mm line.
• QuickTrim™ patented self-tailing feature for rapid sail trim and smooth adjustment.
• Ball bearings carry the thrust loads, roller bearings carry the radial loads of the drum to minimise rotational friction.
• Proven gearing configuration.
• Power Rib™ ensures a controlled grip on the line at all times, whether trimming or easing. Minimal rope wear compared to more abrasive drum surface finishes.
• 45QT and 50QT available as three-speed models.
• Machined aluminium drum – stronger and lighter than traditional cast aluminium drums.
• Lightweight aluminium centre stem provides significant weight savings over traditional bronze stems.
• Low line entry due to gearing configuration geometry.

Specifications:

• Weight (lb): 11.91
• Max Pull (lb): 2980
• Gear ratio 1st speed: 3.0:1
• Gear ratio 2nd speed: 10.0:1
• Power ratio 1st speed: 13.4:1
• Power ratio 2nd speed: 45.5:1

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
