Sailing - Winches

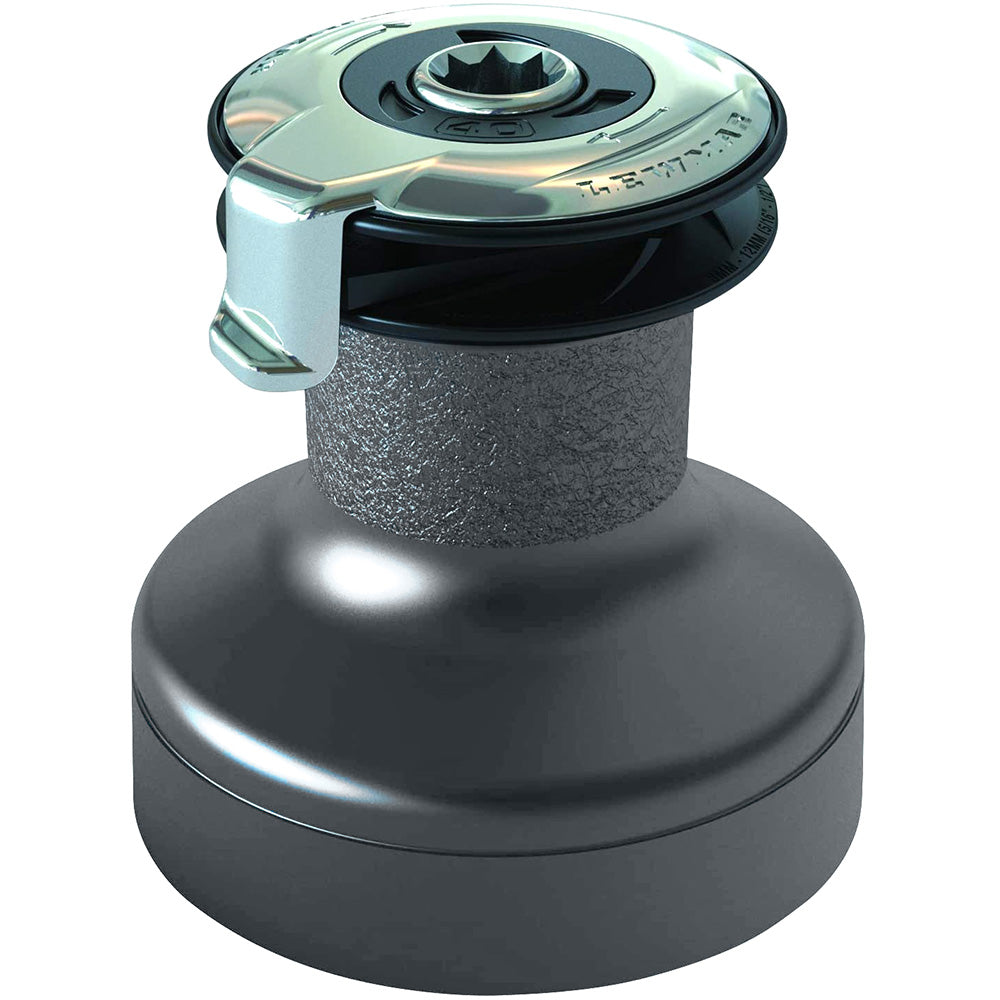

Lewmar 55ST EVO Self Tailing Winch Alloy - Grey [49555057]

Ships Direct From Manufacturer

55ST EVO® Self Tailing Winch Alloy - Grey

An evolution of the renowned Lewmar Ocean winch, the EVO® Self-Tailing Winch draws on a wealth of design and manufacturing experience to produce a state-of-the-art winch.

Features:

• Easy Servicing – no tools required
• User-friendly direction arrows
• Convertible to electric

Technical Specifications:

• Drum Diameter - 4.13"
• Base Diameter -  8.07"
• Height - 9.35"
• Line entry - 4.53"
• Line size: - .32" - .63"
• Gear Ratio 1st Gear - 2.8:1
• Gear Ratio 2nd Gear -11.2:1
• Power Ratio 1st Gear  - 13.8:1
• Power Ratio 2nd Gear - 54.1:1
• SWL - 3263lbs
• Weight - 26.4lbs

In the Box:

• Winch
• Instruction manual

*Sold as an Individual

Owner's Manual (pdf)

Harken 46 Self-Tailing Radial Chrome Winch - 2 Speed [46.2STC]

Ships Direct From Manufacturer

46 Self-Tailing Radial Chrome Winch - 2 Speed

The Radial winch drum’s gripping surface is shaped for each winch size and drum material and features diagonal ribs (rather than textured abrasive materials) to maximize gripping power and greatly reduce line wear. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails.

Specifications:

• Material: Chrome
• Configuration: Self-tailing
• Speed: 2
• Drum: 100mm/ 3-7/8in
• Base: 184 mm/ 7-1/4in
• Height: 201mm/ 7-15/16in
• Weight: 7.8kg/ 17.2lb
• Line entry height: 90mm/ 3-9/16in
• Minimum line: 8mm/ 5/16in
• Maximum line: 14mm/9/16in
• Fastener circle: 150mm/ 5-7/8in
• Fasteners: 8 SH mm/ 5/16 SH in
• Number of fasteners: 5
• Gear ratio-1: 2.30
• Gear ratio-2: 9.17
• Power ratio-1: 11.70
• Power ration-2: 46.50
• Available power: Manual

Lewmar 30ST EVO Self Tailing Winch Alloy - Grey [49530057]

Ships Direct From Manufacturer

30ST EVO® Self Tailing Winch Alloy - Grey

An evolution of the renowned Lewmar Ocean winch, the EVO® Self-Tailing Winch draws on a wealth of design and manufacturing experience to produce a state-of-the-art winch.

Features:

• Easy Servicing – no tools required
• User-friendly direction arrows

Technical Specifications:

• Drum Diameter - 2.91"
• Base Diameter -  5.43"
• Height - 5.74"
• Line entry - 2.72"
• Line size: - .25" - .5"
• Gear Ratio 1st Gear - 2:1
• Gear Ratio 2nd Gear - 4:2:1
• Power Ratio 1st Gear  - 13.8:1
• Power Ratio 2nd Gear - 29:2:1
• SWL - 1510lbs
• Weight - 9.2lbs

In the Box:

• Winch
• Instruction manual

*Sold as an Individual

Owner's Manual (pdf)

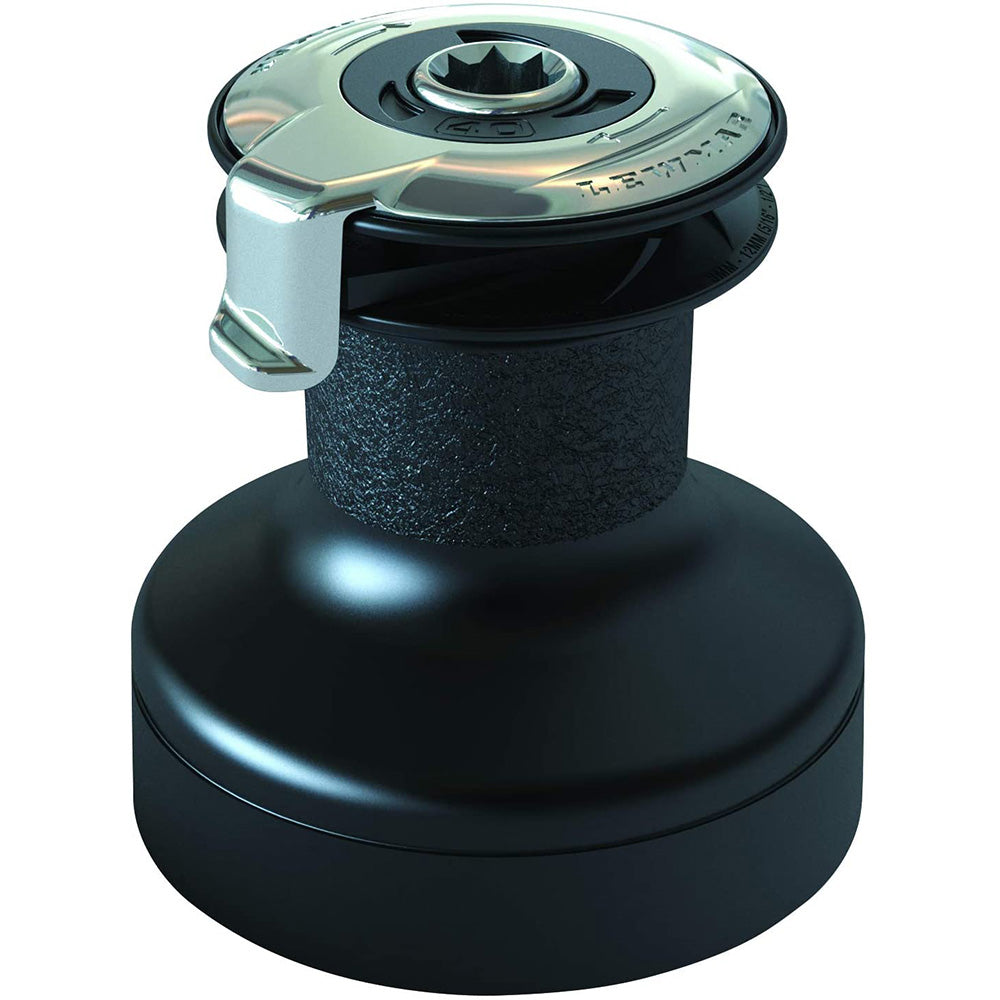

Lewmar 15ST EVO Self Tailing Winch Alloy - Black [49515055]

15ST EVO® Self Tailing Winch Alloy  - Black

An evolution of the renowned Lewmar Ocean winch, the EVO® Self-Tailing Winch draws on a wealth of design and manufacturing experience to produce a state-of-the-art winch.

Features:

• Easy Servicing – no tools required
• User-friendly direction arrows

Technical Specifications:

• Drum Diameter - 2.59"
• Base Diameter -  4.76"
• Height - 4.53"
• Line entry - 2.28"
• Line size: - .25" - .5"
• Gear Ratio - 2:1
• Power Ratio 1st - 15.8:1
• SWL - 1257lbs
• Weight - 6.4lbs

In the Box:

• Winch
• Instruction manual

*Sold as an Individual

Owner's Manual (pdf)

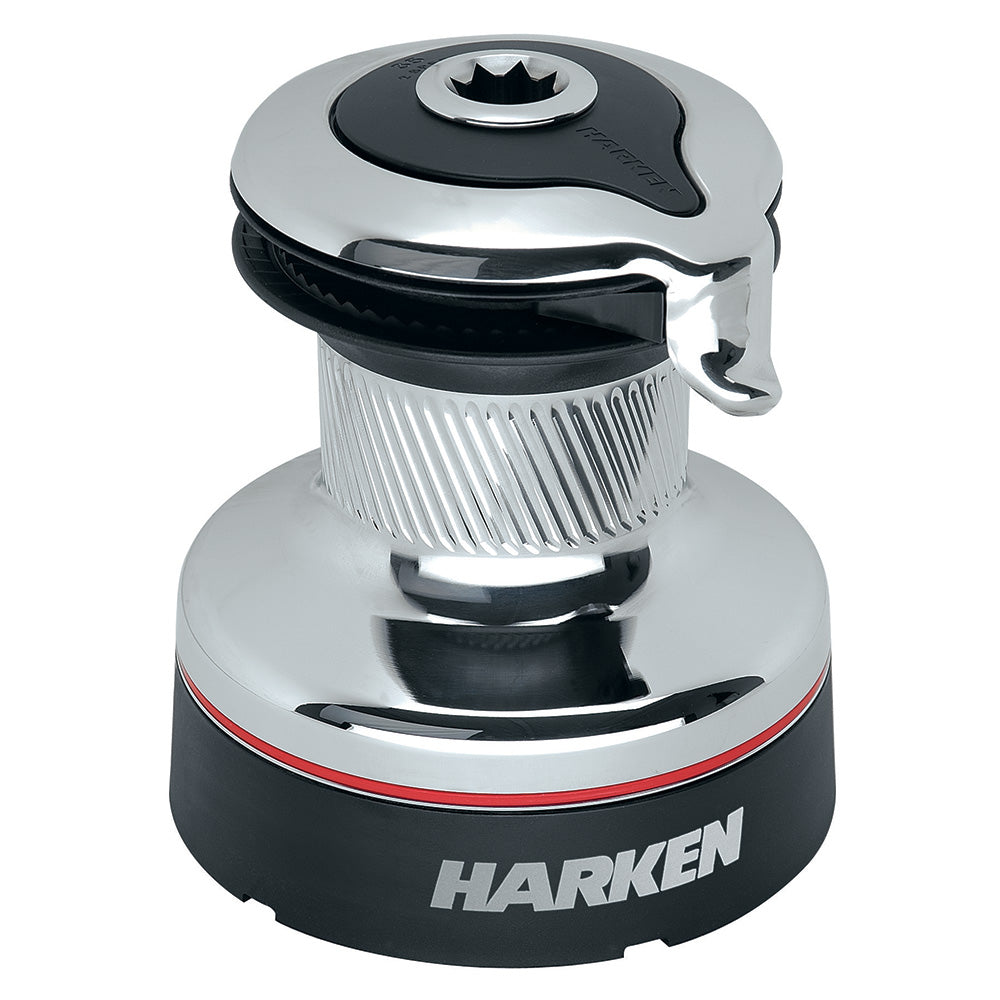

Harken 35 Self-Tailing Radial Chrome Winch - 2 Speed [35.2STC]

Ships Direct From Manufacturer

35 Self-Tailing Radial Chrome Winch - 2 Speed

The Radial winch drum’s gripping surface is shaped for each winch size and drum material and features diagonal ribs (rather than textured abrasive materials) to maximize gripping power and greatly reduce line wear. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails.

Specifications:

• Material: Chrome
• Configuration: Self-tailing
• Speed: 2
• Drum: 80mm/ 3-1/8in
• Base: 149 mm/ 5-7/8in
• Height: 170mm/ 6-11/16in
• Weight: 4.8kg/ 10.6lb
• Line entry height: 79mm/ 3-1/8in
• Minimum line: 8mm/ 5/16in
• Maximum line: 12mm/1/2in
• Fastener circle: 123mm/ 4-7/8in
• Fasteners: 6 SH mm/ 1/4 SH in
• Number of fasteners: 5
• Gear ratio-1: 2.13
• Gear ratio-2: 5.65
• Power ratio-1: 13.50
• Power ration-2: 35.90
• Available power: Manual

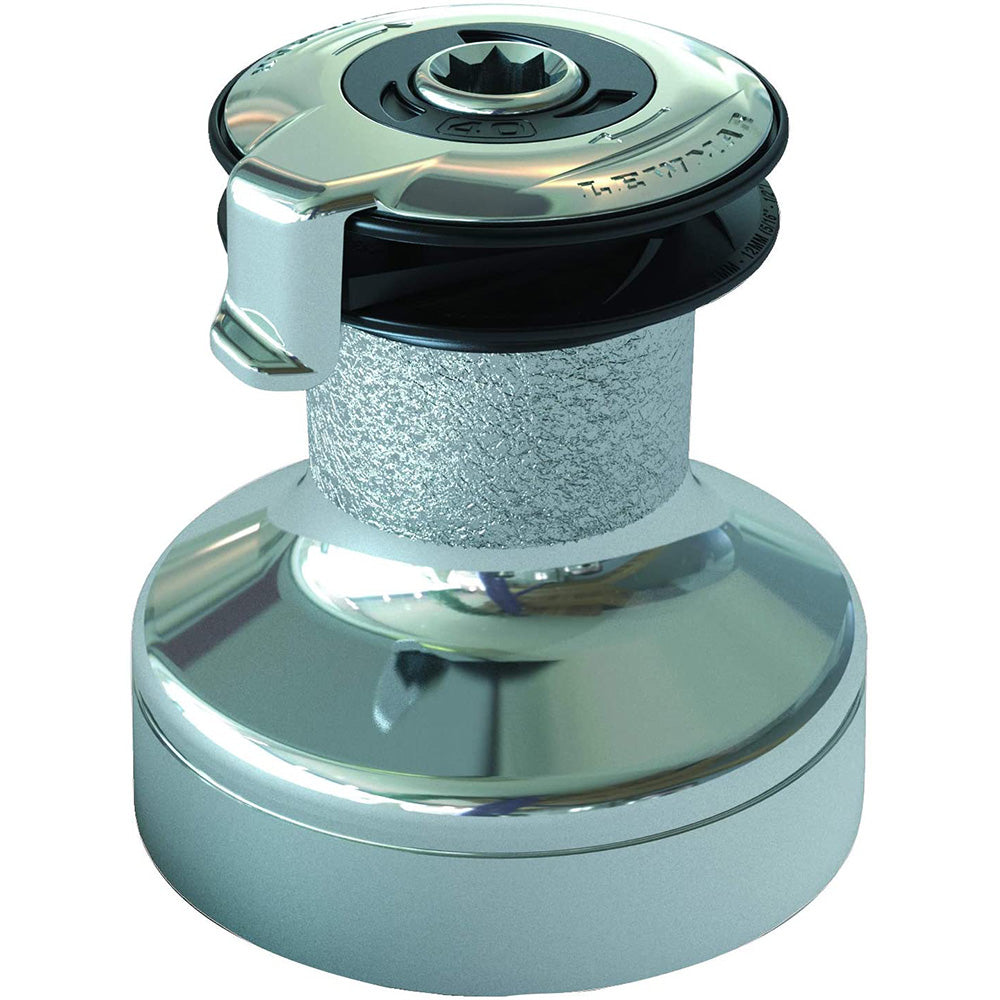

Lewmar 45ST EVO Self Tailing Winch Alloy - Chrome [49545056]

Ships Direct From Manufacturer

45ST EVO® Self Tailing Winch Alloy - Chrome

An evolution of the renowned Lewmar Ocean winch, the EVO® Self-Tailing Winch draws on a wealth of design and manufacturing experience to produce a state-of-the-art winch.

Features:

• Easy Servicing – no tools required
• User-friendly direction arrows
• Convertible to electric

Technical Specifications:

• Drum Diameter - 3.42"
• Base Diameter -  6.61"
• Height - 6.99"
• Line entry - 3.31"
• Line size: - .32" - .55"
• Gear Ratio 1st Gear - 2.4:1
• Gear Ratio 2nd Gear - 7.6:1
• Power Ratio 1st Gear  - 13.9:1
• Power Ratio 2nd Gear - 44.8:1
• SWL - 2646lbs
• Weight - 15.8lbs

In the Box:

• Winch
• Instruction manual

*Sold as an Individual

Owner's Manual (pdf)

Lewmar 50ST EVO Self Tailing Winch Alloy - Grey [49550057]

Ships Direct From Manufacturer

50ST EVO® Self Tailing Winch Alloy - Grey

An evolution of the renowned Lewmar Ocean winch, the EVO® Self-Tailing Winch draws on a wealth of design and manufacturing experience to produce a state-of-the-art winch.

Features:

• Easy Servicing – no tools required
• User-friendly direction arrows
• Convertible to electric

Technical Specifications:

• Drum Diameter - 3.66"
• Base Diameter -  7.13"
• Height - 7.75"
• Line entry - 3.39"
• Line size: - .32" - .55"
• Gear Ratio 1st Gear - 2.6:1
• Gear Ratio 2nd Gear - 9:1
• Power Ratio 1st Gear  - 13.9:1
• Power Ratio 2nd Gear - 48.6:1
• SWL - 2756lbs
• Weight - 19.4lbs

In the Box:

• Winch
• Instruction manual

*Sold as an Individual

Quick Guide (pdf)
Owner's Manual (pdf)

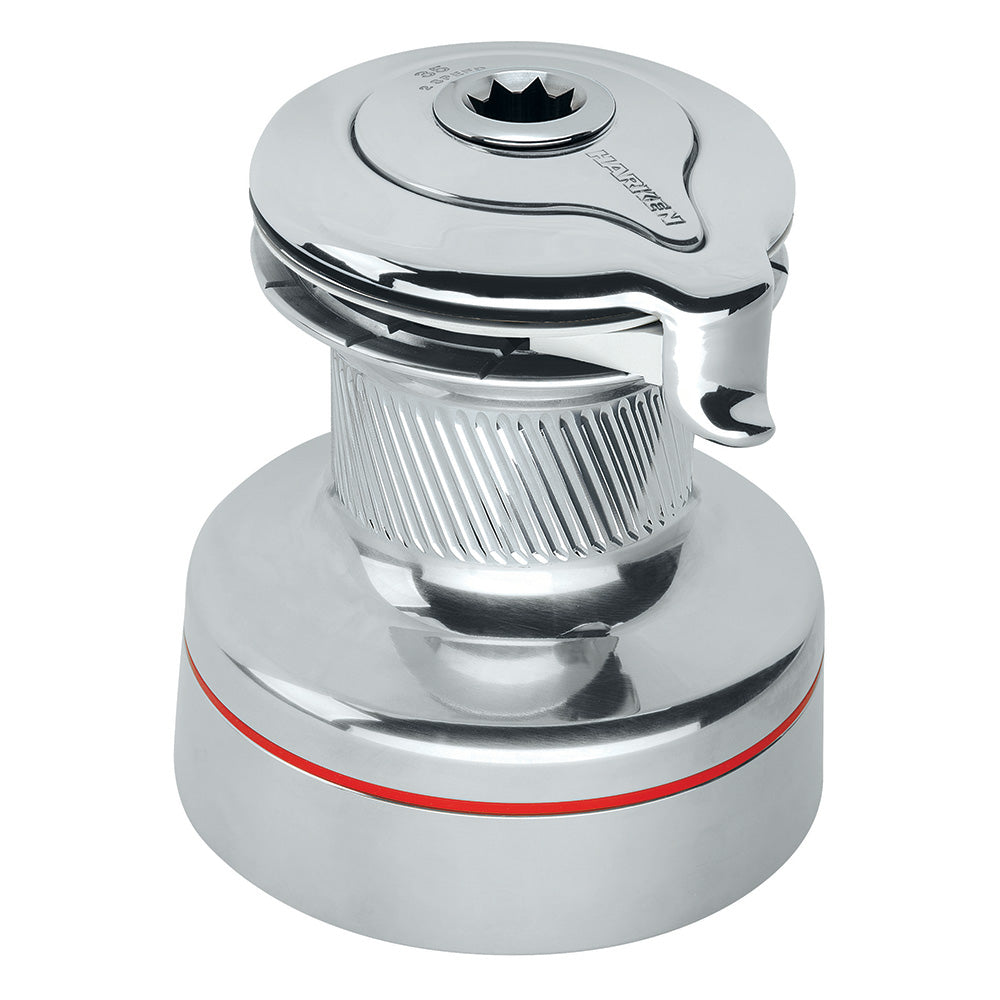

Harken 35 Self-Tailing Radial All-Chrome Winch - 2 Speed [35.2STCCC]

Ships Direct From Manufacturer

35 Self-Tailing Radial All-Chrome Winch - 2 Speed

The Radial winch drum’s gripping surface is shaped for each winch size and drum material and features diagonal ribs (rather than textured abrasive materials) to maximize gripping power and greatly reduce line wear. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails.

Specifications:

• Material: All-Chrome
• Configuration: Self-tailing
• Speed: 2
• Drum: 80mm/ 3-1/8in
• Base: 149 mm/ 5-7/8in
• Height: 170mm/ 6-11/16in
• Weight: 5.5kg/ 12.1lb
• Line entry height: 79mm/ 3-1/8in
• Minimum line: 8mm/ 5/16in
• Maximum line: 12mm/1/2in
• Fastener circle: 123mm/ 4-7/8in
• Fasteners: 6 SH mm/ 1/4 SH in
• Number of fasteners: 5
• Gear ratio-1: 2.13
• Gear ratio-2: 5.65
• Power ratio-1: 13.50
• Power ration-2: 35.90
• Available power: Manual
