Marine Plumbing & Ventilation - Washdown / Pressure Pumps

Aqua Jet Duo WPS 10.4 Gallons - 24V Water Pressure Pump System

High capacity unit with two parallel connected Aqua Jet WPS capacity 40 l/min fixed on a base with PUM Protector inlet strainers and a 2 liters pre-pressurized accumulator tank. Quiet and pulsation free even at low speeds, the Aqua Jet five chamber diaphragm pump provides the perfect water pressure solution for both small and medium sized leisure and commercial boats. Efficient and compact, Aqua Jet pumps are particularly suitable where low amperage and sounds levels in relation to water flow are placed at a premium - such as in shower and galley applications. Operates in fresh or sea water. Self priming. Aqua Jet units have PP/PPA body, EPDM valves and santoprene diaphragm. Capacity: 10.4 GPM/Pressure Cut-Off: 41 psi/Fuse Size: 25 Amp/Connection: 3/4" hose.

Features:

• Two parallel-connected Aqua Jet WPS fixed on a base with PUM Protector inlet strainers and 2 liters pre-pressurized accumulator tank
• 5-chamber Aqua Jet WPS pumps provide a reliable "heart" for small boat and RV water pressure systems
• Lower noise and water pulsation
• 10.4 GPM Capacity

Marine Water Pressure Booster System - 12V

Jabsco Marine Water Pressure Booster Systems are fully assembled water pressure systems for your onboard freshwater setup.

Features:

• Panel System
• Run dry ability
• Smooth even flow
• Thermal overload protection
• ISO 8846 MARINE (Ignition Protection)

Jabsco panel systems are fully assembled with pump, pressure switch, accumulator tank, and strainer and are mounted on one board for rapid and easy installation. Panel systems are ideal for up to four outlets.

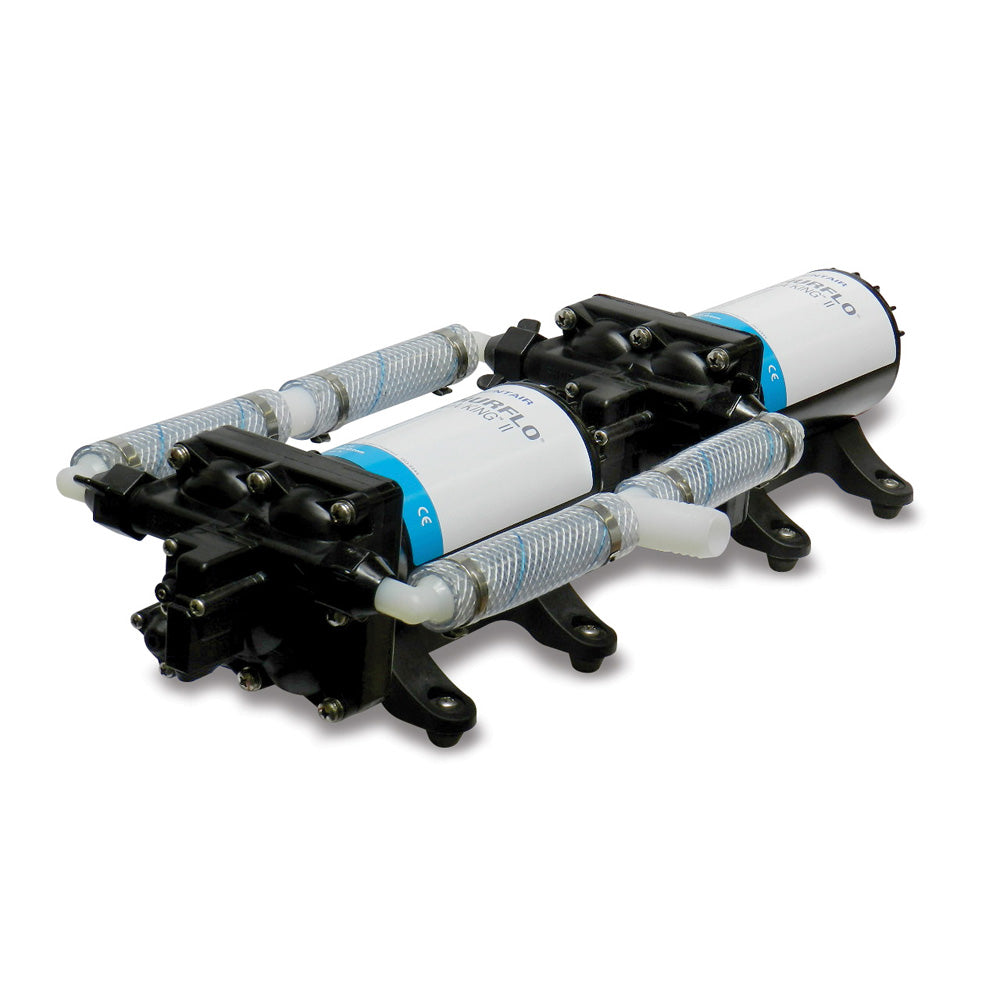

High Flow Dual Pump System - 12 VDC - 10.0 GPM

The most advanced system available. This fully-automatic, quiet unit delivers water smoothly and consistently.

Features:

• Replaces 5907

• System Delivers up to 10 GPM at Open Flow

• Includes the AQUA KING II Supreme 5.0 Pump and PRO BLASTER II Ultimate 5.0 Pump

• 12 VDC

• 55 PSI Shut-off Pressure

• Built to Withstand the Harsh Marine Environment with Electro-Coated Motor, O-ring Seals and Fully-Sealed Wire Entries

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Volts: 12v
• Max PSI: 55
• Gallons Per Minute: 10 GPM
• Box Dimensions: 7"H x 7"W x 24"L WT: 17.8 lbs

Jabsco Utility Pump w/Open Drip Proof Motor - 115V [6050-0003]

Utility Pump

The 6050-Series pumps are the highest capacity, self-priming, portable Utility Pumps offered by Jabsco

• Bronze pump head

• 23 GPM output at 10ft total head

• Continuous duty motor with thermal over-load protection

• Motor wired to operate with 115v and can be converted to 230v

• Open drip proof motor

• 8' power cord with grounded plug

• convenient carrying handle

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Gallons Per Minute: 23 GPM
• Volts: 115v
• Box Dimensions: 12"H x 12"W x 13"L WT: 28.75 lbs
• UPC: 671880004374

Owner's Manual (pdf)

Marine Water Pressure Booster System - 24V

Jabsco Marine Water Pressure Booster Systems are fully assembled water pressure systems for your onboard freshwater setup.

Features

• Panel System
• Run dry ability
• Smooth even flow
• Thermal overload protection
• ISO 8846 MARINE (Ignition Protection)

Jabsco panel systems are fully assembled with pump, pressure switch, accumulator tank, and strainer and are mounted on one board for rapid and easy installation. Panel systems are ideal for up to four outlets.

Bronze AC Motor Pump Unit

Flow rate: up to 9.6 USgpm, maximum head 40ft (17.3psi)
Self-priming from dry up to 7.8ft

Features:

• Easy to service and maintain.

• Will tolerate abrasive wear (this may affect performance - seek advice from your distributer).

• Handles hard and soft solids without clogging.

• Non pulsating flow.

APPLICATIONS

MARINE:
Bait tank circulation, transfer oil, wash down, and utility dock pumps.

INDUSTRIAL:
Circulate coolant on machine tools, industrial filling systems, utility shop pump, transfer gum arabic, transfer distilled water, recharge water softeners, ice water recirculation, hydrostatic pressure testing, vacuum pump, and aspirating pump.

FOOD, BEVERAGE, & DAIRY:
Circulate cooling water, defrost refrigeration coils, fill drums, wash down equipment and floors, and utility pump.

HOME:
Fill and empty tubs and pools, empty basements, cesspools, water systems, water lawns and gardens, remove water from low areas, and recharge water softeners.

PLUMBING:
Empty clogged sumps, drains, sinks and tubs, and pump out water closets.

FARM:
Fill tractor tires, fill water tanks, pump out silo pits, liquid manures, transfer oil, and flush and clean animal pens.

CONTRACTORS:
Remove water from excavations, supply water to mortar boxes and cement mixing, and washdown equipment.

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Gallons Per Minute: 9.6 GPM
• Max PSI: 17.3
• Volts: 115v
• Box Dimensions: 10"H x 11"W x 11"L WT: 22.45 lbs
• UPC: 671880007573

Owner's Manual (pdf)

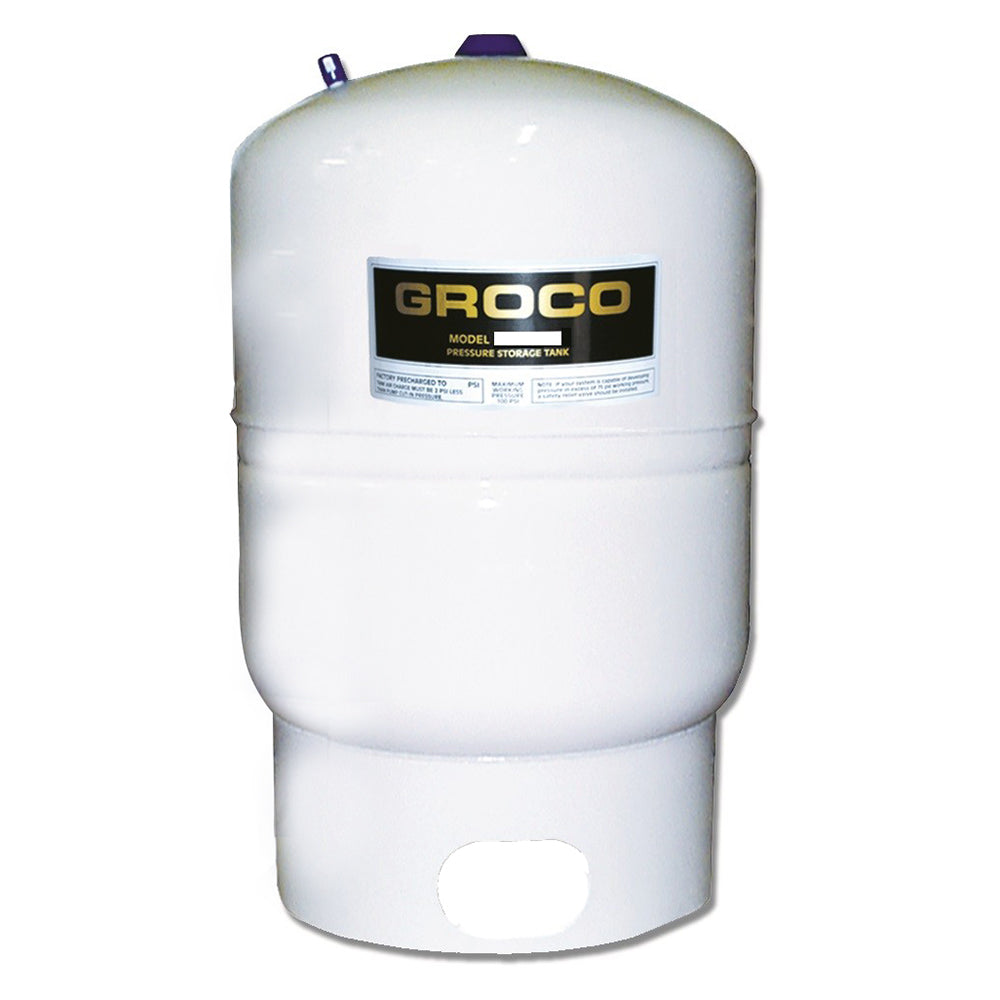

Pressure Storage Tank - 3.2 Gallon Drawdown

A pneumatic pressure charge, matched to the pump cut on pressure prevents water logging by separating the air charge from system water pressure with a rubber bladder. The result is smooth pressure delivery, even temperature mix in showers, and reduced pump cycling. Tanks may be mounted in any position, and anywhere in the cold water plumbing after the pump. PST tanks may be used for fresh or salt water. Mount hardware is included. PST-6 has a pump stand for mounting PJR, WSC-60 or WSC-80 pump.

Specifications:

• Diameter: 15"
• Mounting: Stand
• 30/50 Drawdown: 3.2 gallon
• Thread NPT: 3/4"

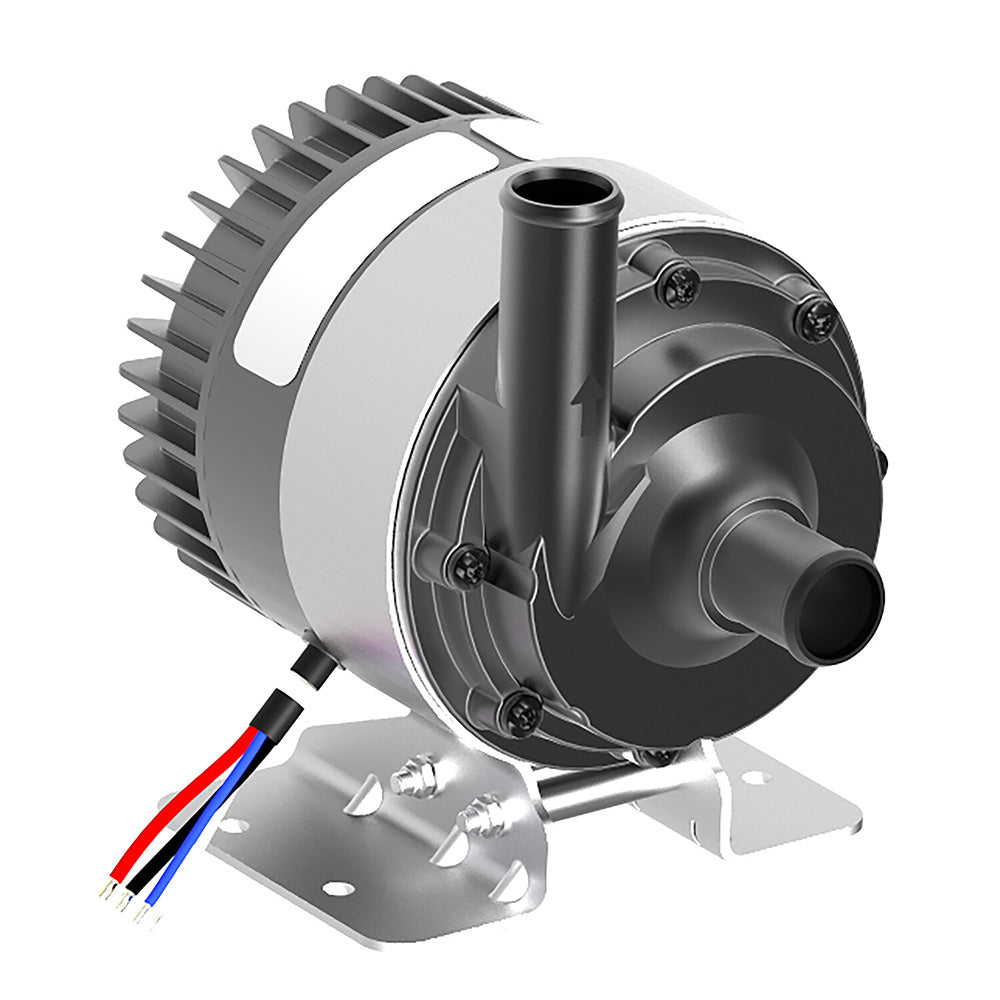

CM100HP Aluminum Brushless Motor 27.2V Circulation Pump High Pressure Diameter 38mm

These heavy-duty, magnetically driven, seal-less circulation pumps feature brushless motors designed for continuous use. They are ideal for circulation tasks in heating and cooling systems for buses, trains, boats, and similar applications. They also function well as general-purpose pumps wherever self-priming is not essential.

Features:

• Limited 2-Year Warranty
• Centrifugal pump (must be primed)
• Magnetic drive (no shaft or mechanical seal)
• Brushless motor
• Long service life
• Wide temperature range
• Built-in thermal overload protection

EMC approved according to:

• EN 55014-1:2006 + A1:2009 + A2:2011
• EN 55014-2:1997 + A1:2001
• EN 61000-6-3:2007 + A1:2011; Part 6-3
• UN Regulation 10 (2004/104/EC:2004)
• EN 61000-6-2:2005

Johnson Pump CM Series Pumps are normal-priming centrifugal pumps and should be mounted to ensure they are always flooded or be primed before being switched on.

These pumps should not be used with soiled water containing hard particles.

Specifications:

• Pump Body: Black Anodized Aluminum
• Impeller: PPS GF
• Shaft: Hardened Stainless Steel
• Motor: Permanent magnet brushless motor with ball bearings and electronics included
• Liquid: Water/glycol mixture; max. 60% glycol, fresh water
• Liquid temp.: Min. -40°C Max. +100°C (Min. -40°F Max. 212°F)
• System pressure: -0,2 to 2,5 bar at +100°C (+212°F)
• Port size: 25 mm (1") hose or 38 mm (1½") hose
• Dry running: Max. 20 minutes
• Input Power: Max. 315 W
• Mounting: Separate universal bracket for flat surfaces

CAUTION: Do not pump gasoline, solvents, thinners, highly concentrated or organic acids. If corrosive fluids must be handled, pump life will be prolonged by flushing with water after each use or at the end of each work day.
