Marine Plumbing & Ventilation - Washdown / Pressure Pumps

CM100HF Aluminum Brushless Motor 27.2V Circulation Pump High Pressure Diameter 38mm

These heavy-duty, magnetically driven, seal-less circulation pumps feature brushless motors designed for continuous use. They are ideal for circulation tasks in heating and cooling systems for buses, trains, boats, and similar applications. They also function well as general-purpose pumps wherever self-priming is not essential.

Features:

• Limited 2-Year Warranty
• Centrifugal pump (must be primed)
• Magnetic drive (no shaft or mechanical seal)
• Brushless motor
• Long service life
• Wide temperature range
• Built-in thermal overload protection

EMC approved according to:

• EN 55014-1:2006 + A1:2009 + A2:2011
• EN 55014-2:1997 + A1:2001
• EN 61000-6-3:2007 + A1:2011; Part 6-3
• UN Regulation 10 (2004/104/EC:2004)
• EN 61000-6-2:2005

Johnson Pump CM Series Pumps are normal-priming centrifugal pumps and should be mounted to ensure they are always flooded or be primed before being switched on.

These pumps should not be used with soiled water containing hard particles.

Specifications:

• Pump Body: Black Anodized Aluminum
• Impeller: PA 12
• Shaft: Hardened Stainless Steel
• Motor: Permanent magnet brushless motor with ball bearings and electronics included (IP6K9K)
• Liquid: Water/glycol mixture; max. 60% glycol, fresh water
• Liquid temp.: Min. -40°C Max. +102°C (Min. -40°F Max. 216°F)
• System pressure: 2.5 bar max (36 psi)
• Port size: 38 mm (1 1/2") hose
• Dry running: Max. 25 minutes
• Input Power: Max. 410 kW
• Mounting: Separate universal bracket for flat surfaces

CAUTION: Do not pump gasoline, solvents, thinners, highly concentrated or organic acids. If corrosive fluids must be handled, pump life will be prolonged by flushing with water after each use or at the end of each work day.

CM95HP Aluminum Brushless Motor 27.2V Circulation Pump High Pressure Diameter 25mm

These heavy-duty, magnetically driven, seal-less circulation pumps feature brushless motors designed for continuous use. They are ideal for circulation tasks in heating and cooling systems for buses, trains, boats, and similar applications. They also function well as general-purpose pumps wherever self-priming is not essential.

Features:

• Limited 2-Year Warranty
• Centrifugal pump (must be primed)
• Magnetic drive (no shaft or mechanical seal)
• Brushless motor
• Long service life
• Wide temperature range
• Built-in thermal overload protection

EMC approved according to:

• EN 55014-1:2006 + A1:2009 + A2:2011
• EN 55014-2:1997 + A1:2001
• EN 61000-6-3:2007 + A1:2011; Part 6-3
• UN Regulation 10 (2004/104/EC:2004)
• EN 61000-6-2:2005

Johnson Pump CM Series Pumps are normal-priming centrifugal pumps and should be mounted to ensure they are always flooded or be primed before being switched on.

These pumps should not be used with soiled water containing hard particles.

Specifications:

• Pump Body: Black Anodized Aluminum
• Impeller: PPS GF
• Shaft: Hardened Stainless Steel
• Motor: Permanent magnet brushless motor with ball bearings and electronics included
• Liquid: Water/glycol mixture; max. 60% glycol, fresh water
• Liquid temp.: Min. -40°C Max. +100°C (Min. -40°F Max. 212°F)
• System pressure: -0,2 to 2,5 bar at +100°C (+212°F)
• Port size: 25 mm (1") hose or 38 mm (1½") hose
• Dry running: Max. 20 minutes
• Input Power: Max. 315 W
• Mounting: Separate universal bracket for flat surfaces

CAUTION: Do not pump gasoline, solvents, thinners, highly concentrated or organic acids. If corrosive fluids must be handled, pump life will be prolonged by flushing with water after each use or at the end of each work day.

CM100HP Aluminum Brushless Motor 27.2V Circulation Pump High Pressure Diameter 25mm

These heavy-duty, magnetically driven, seal-less circulation pumps feature brushless motors designed for continuous use. They are ideal for circulation tasks in heating and cooling systems for buses, trains, boats, and similar applications. They also function well as general-purpose pumps wherever self-priming is not essential.

Features:

• Limited 2-Year Warranty
• Centrifugal pump (must be primed)
• Magnetic drive (no shaft or mechanical seal)
• Brushless motor
• Long service life
• Wide temperature range
• Built-in thermal overload protection

EMC approved according to:

• EN 55014-1:2006 + A1:2009 + A2:2011
• EN 55014-2:1997 + A1:2001
• EN 61000-6-3:2007 + A1:2011; Part 6-3
• UN Regulation 10 (2004/104/EC:2004)
• EN 61000-6-2:2005

Johnson Pump CM Series Pumps are normal-priming centrifugal pumps and should be mounted to ensure they are always flooded or be primed before being switched on.

These pumps should not be used with soiled water containing hard particles.

Specifications:

• Pump Body: Black Anodized Aluminum
• Impeller: PPS GF
• Shaft: Hardened Stainless Steel
• Motor: Permanent magnet brushless motor with ball bearings and electronics included
• Liquid: Water/glycol mixture; max. 60% glycol, fresh water
• Liquid temp.: Min. -40°C Max. +100°C (Min. -40°F Max. 212°F)
• System pressure: -0,2 to 2,5 bar at +100°C (+212°F)
• Port size: 25 mm (1") hose or 38 mm (1½") hose
• Dry running: Max. 20 minutes
• Input Power: Max. 315 W
• Mounting: Separate universal bracket for flat surfaces

CAUTION: Do not pump gasoline, solvents, thinners, highly concentrated or organic acids. If corrosive fluids must be handled, pump life will be prolonged by flushing with water after each use or at the end of each work day.

CM95HP Aluminum Brushless Motor 27.2V Circulation Pump High Pressure Diameter 38mm

These heavy-duty, magnetically driven, seal-less circulation pumps feature brushless motors designed for continuous use. They are ideal for circulation tasks in heating and cooling systems for buses, trains, boats, and similar applications. They also function well as general-purpose pumps wherever self-priming is not essential.

Features:

• Limited 2-Year Warranty
• Centrifugal pump (must be primed)
• Magnetic drive (no shaft or mechanical seal)
• Brushless motor
• Long service life
• Wide temperature range
• Built-in thermal overload protection

EMC approved according to:

• EN 55014-1:2006 + A1:2009 + A2:2011
• EN 55014-2:1997 + A1:2001
• EN 61000-6-3:2007 + A1:2011; Part 6-3
• UN Regulation 10 (2004/104/EC:2004)
• EN 61000-6-2:2005

Johnson Pump CM Series Pumps are normal-priming centrifugal pumps and should be mounted to ensure they are always flooded or be primed before being switched on.

These pumps should not be used with soiled water containing hard particles.

Specifications:

• Pump Body: Black Anodized Aluminum
• Impeller: PPS GF
• Shaft: Hardened Stainless Steel
• Motor: Permanent magnet brushless motor with ball bearings and electronics included
• Liquid: Water/glycol mixture; max. 60% glycol, fresh water
• Liquid temp.: Min. -40°C Max. +100°C (Min. -40°F Max. 212°F)
• System pressure: -0,2 to 2,5 bar at +100°C (+212°F)
• Port size: 25 mm (1") hose or 38 mm (1½") hose
• Dry running: Max. 20 minutes
• Input Power: Max. 315 W
• Mounting: Separate universal bracket for flat surfaces

CAUTION: Do not pump gasoline, solvents, thinners, highly concentrated or organic acids. If corrosive fluids must be handled, pump life will be prolonged by flushing with water after each use or at the end of each work day.

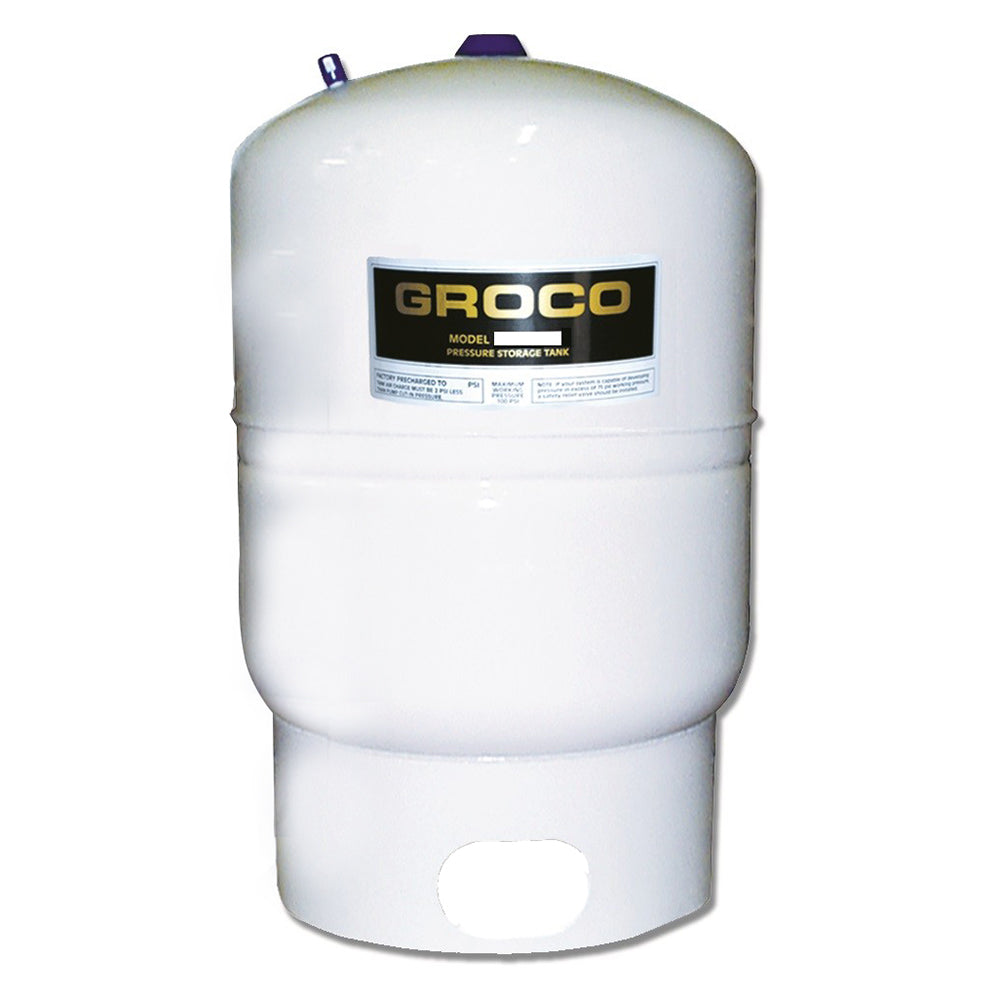

Pressure Storage Tank - 6.2 Gallon Drawdown

A pneumatic pressure charge, matched to the pump cut on pressure prevents water logging by separating the air charge from system water pressure with a rubber bladder. The result is smooth pressure delivery, even temperature mix in showers, and reduced pump cycling. Tanks may be mounted in any position, and anywhere in the cold water plumbing after the pump. PST tanks may be used for fresh or salt water. Mount hardware is included. PST-6 has a pump stand for mounting PJR, WSC-60 or WSC-80 pump.

Specifications:

• Diameter: 15"
• Mounting: Stand
• 30/50 Drawdown: 6.2 gallon
• Thread NPT: 3/4"

Pressure Storage Tank - 4.3 Gallon Drawdown

A pneumatic pressure charge, matched to the pump cut on pressure prevents water logging by separating the air charge from system water pressure with a rubber bladder. The result is smooth pressure delivery, even temperature mix in showers, and reduced pump cycling. Tanks may be mounted in any position, and anywhere in the cold water plumbing after the pump. PST tanks may be used for fresh or salt water. Mount hardware is included. PST-6 has a pump stand for mounting PJR, WSC-60 or WSC-80 pump.

Specifications:

• Diameter: 15"
• Mounting: Stand
• 30/50 Drawdown: 4.3 gallon
• Thread NPT: 3/4"

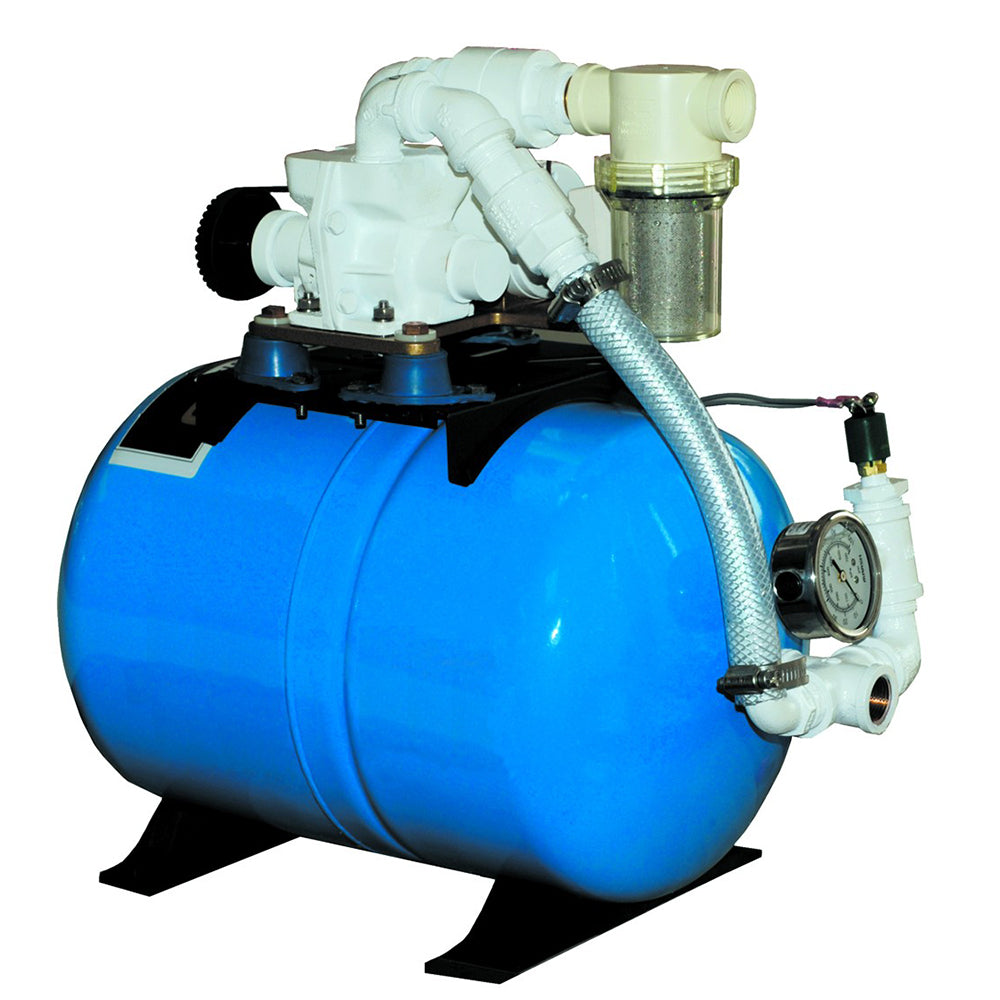

Paragon Junior 12v Water Pressure System - 2 Gal Tank - 7 GPM

Water Pressure System for Yachts under 50'.

Features:

• Max 7 GPM.
• Operating pressure range 20-40 PSI.
• Intended for yachts 50ft and smaller.
• Complies with NSF-61 low-lead standard.
• Compact and powerful 2-stage rotary pump.
• Pressure gauge and 3/4" strainer included.
• Patented NOFLO;Dry-run protection.
• NOTE : Pressure storage tank is required for water pressure system application.

Specifications:

• Yacht Size: Up to 50'
• Pressure Range: 20-40 psi
• Max GPM: 7
• Pressure Storage Tank Included: 2-Gallon
• Self Priming: Yes
• Breaker DC: 30 amp

Specifications:

• Gallons Per Minute: 7 GPM
• Max PSI: 40
• Volts: 12v
• Box Dimensions: 21"H x 22"W x 31"L WT: 47.85 lbs
• UPC: 742985135055

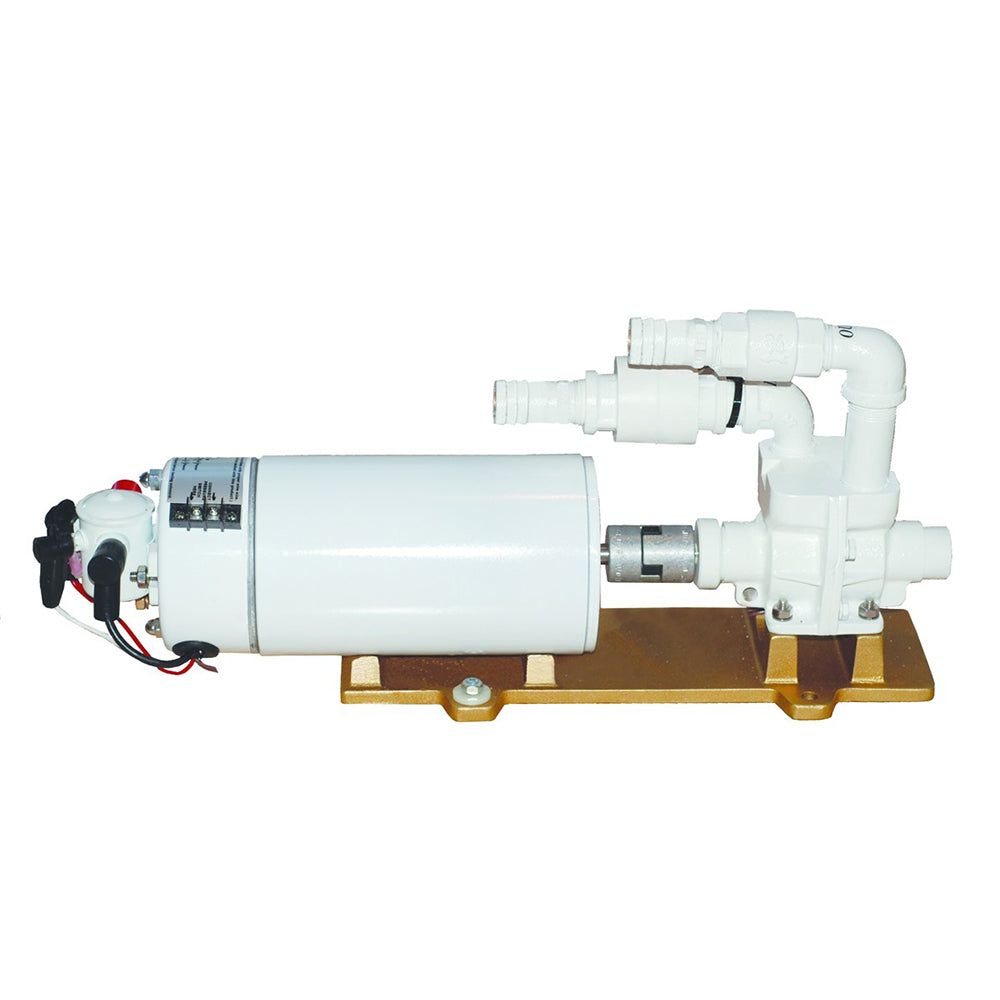

Paragon Senior Water Pressure System - 230VAC

Water Pressure System for Yachts over 50'.

Features:

• Max 11 GPM.
• Operating pressure range 30-50 PSI.
• Intended for yachts over 50ft in length.
• Complies with NSF-61 low-lead standard.
• Powerful 2-stage rotary pump.
• Pressure gauge and 1" strainer included.
• Patented NOFLO Dry-run protection.
• Order PST-2, 3, 4 or 5 tank separately.

Specifications:

• Yacht Size: Over 50'
• Pressure Range: 30-50 psi
• Max GPM: 11
• Pressure Storage Tank Included: Order Separately
• Self Priming: Yes
• Breaker DC: 5 amp

Specifications:

• Max PSI: 50
• Volts: 230v
• UPC: 742985062696
