Marine Plumbing & Ventilation - Marine Sanitation

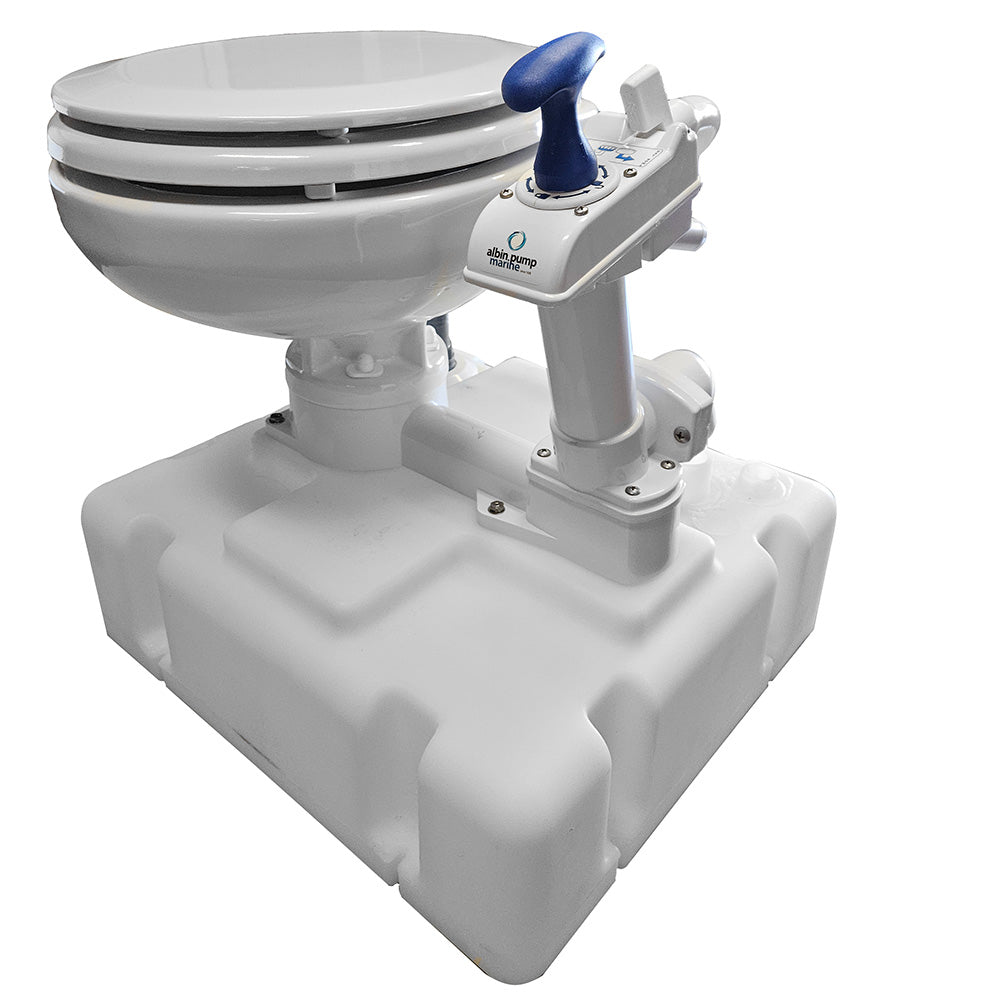

Albin Group Voyager Manual Toilet System w/Tank [07-06-015]

Voyager Manual Toilet System with Tank

Complete sanitation system designed for small compartment systems where tanks cannot be installed. Does not need a pressurized water system. Just needs a water hookup.

Features:

• Does not require electricity
• Hand pump to utilize water and flush
• 8-gallon tank
• Discharge fitting for easy pump out to a deck fitting
• Utilizes proven marine toilets

Specifications:

• Dimensions: 19" x 17" x 18-1/2"

Brochure (pdf)

Aquatic AV PRO Sport Platinum Kit [CK501]

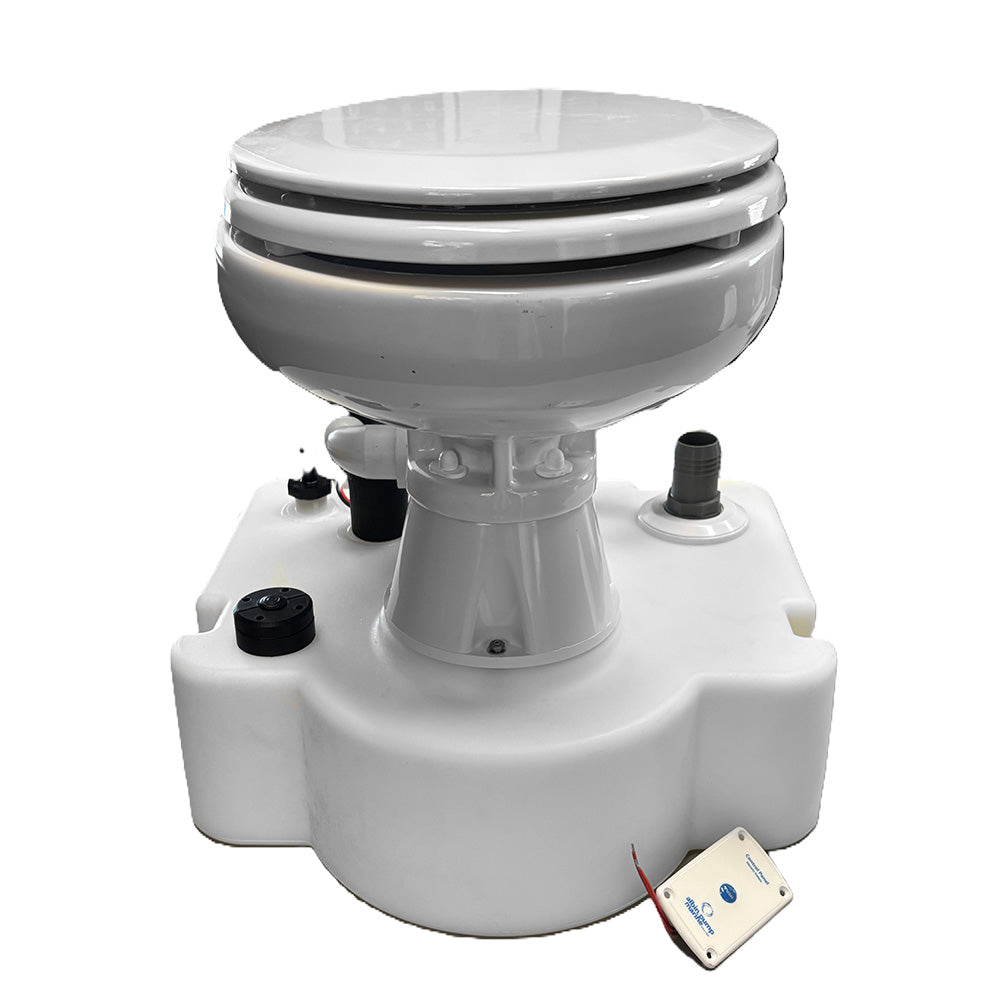

Voyager Electric Compact Toilet System with Tank - 12V

A complete sanitation system is designed for small compartment systems where tanks cannot be installed. Does not need a pressurized water system. Just needs a water hookup.

Features:

• Utilizes a suction pump on the toilet
• 8-gallon tank
• 1-button flush and fill
• Low profile allows for ample headroom
• All ceramic bowl
• Compact design, compact seats

Specifications:

• Dimensions: 19" x 21" x 20-1/2"

Brochure (pdf)

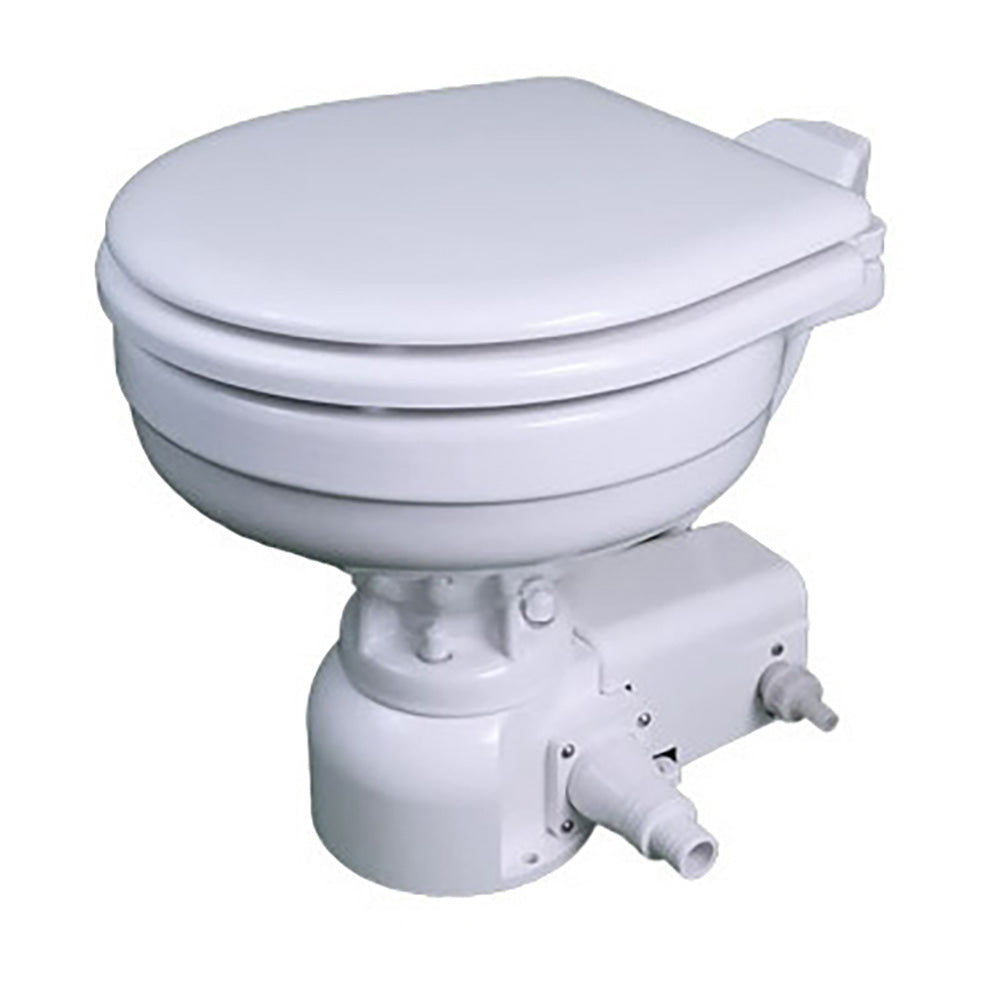

Sea Era Marine Size Pressurized Freshwater Toilet with Multifunction Panel - White - 12V

This robust little electric marine toilet is the perfect fit for someone looking for a reliable macerator as a step up from a manual toilet. The base is able to rotate 90 degrees, allowing it to fit nicely in spots where a manual toilet had been installed. The SeaEra QC differentiates itself from the original SeaEra by offering the installation option of either pressurized freshwater with a solenoid valve that is built into the base or with a remote intake pump for outside raw water.

Features:

• Powerful flushing action with advanced design features
• An excellent replacement for less durable non-Raritan units
• Low water usage (as little as 1 quart (1 liter))
• The bowl can be rotated 90 degrees for mounting in confined spaces
• Full-size joker valve reduces clogs
• Stainless steel macerating blade
• Household or marine-size bowls are available
• Self-priming inlet pump can be run dry
• Separation of intake and discharge means dirty water cannot enter the bowl if the seal fails
• Two-year warranty
• Both 90-degree and straight discharge included

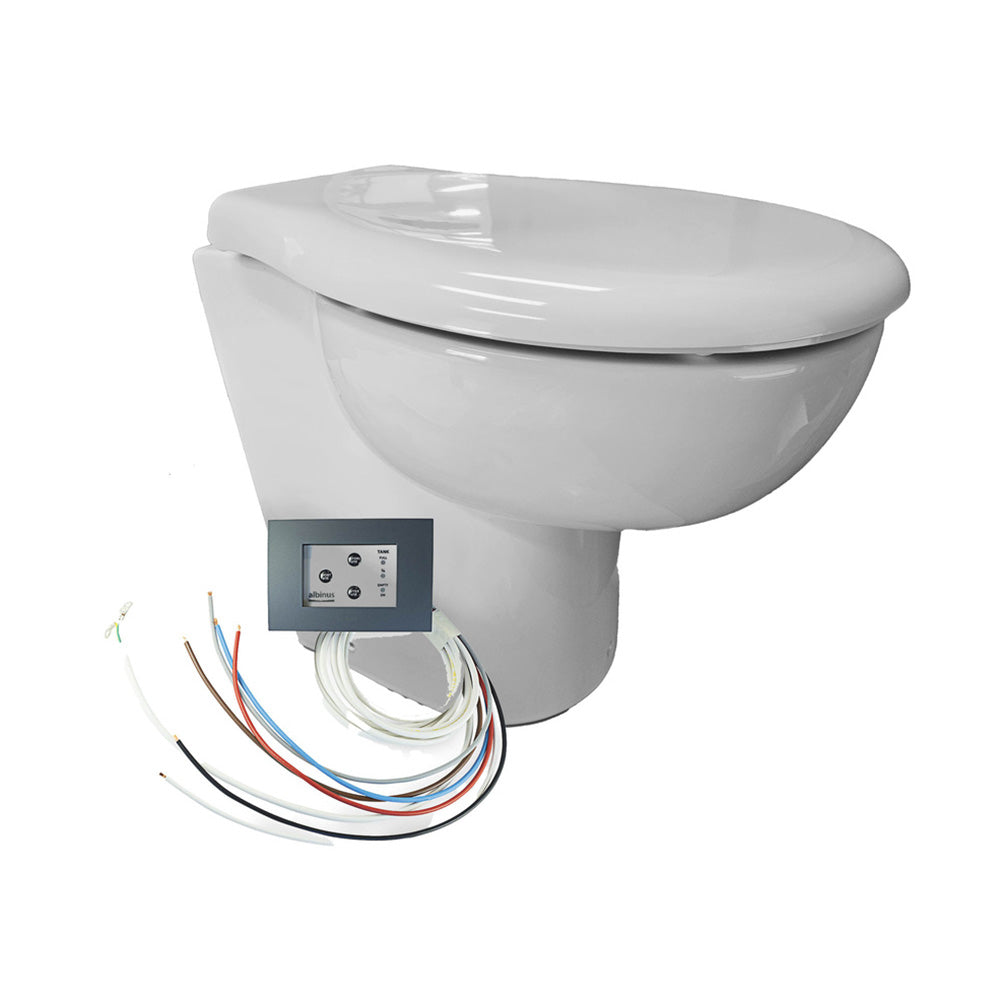

Albin Group Ultra Slim Premium Standard 12V Toilet [07-06-011]

Ultra Slim Premium Standard 12V Toilet

Designed to fit into small head compartments with the compact base and residential bowl. Soft-close seat, beveled back to fit the contours bulkhead. Full macerator toilet with nozzle water feed for exceptional cleaning of the bowl.

Features:

• Electronic 3-button function panel
• Short use
• Digital control panel
• Electronic switch
• Optional tank monitoring and lockout harness available

Brochure (pdf)

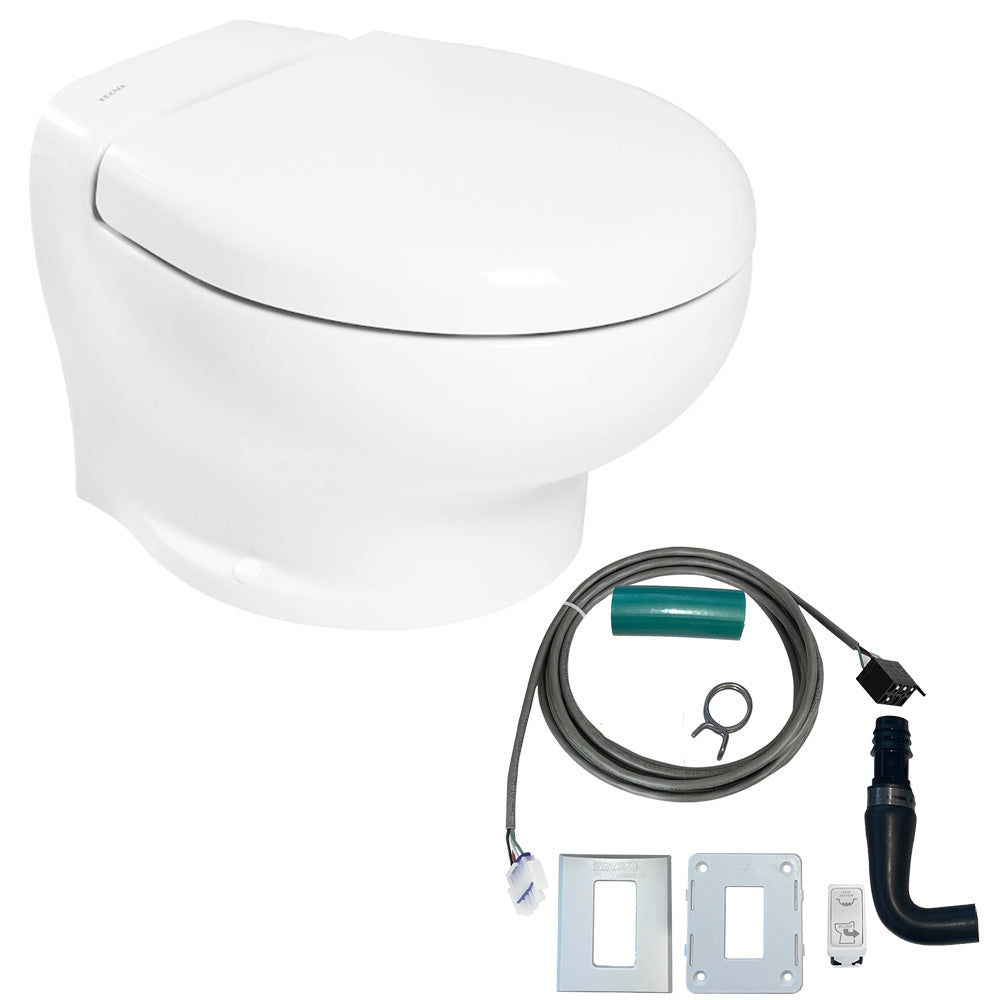

Thetford Nano Eco Compact Toilet Raw Water Kit (No Inlet Pump) - 24V [T-NAN024PW/E/NA-RWKITNP]

Nano Eco Compact Toilet Raw Water Kit (No Inlet Pump) - 24V

From the experts in macerating toilets, Nano toilet utilizes Turbine Technology to produce a powerful, clog-resistant flush. This model is the ultimate combination of a highly efficient marine toilet and the smallest design capable of offering the same comfort as bigger units. It’s the result of a strong relationship with the market and fulfills new requirements for vessels below 50′ (45m). The Thetford Marine product development team has created an extremely elegant design, but also very flexible to install, thanks to its compact size.

The performance of the macerator pump meets all quality standards, while the technology inside the toilet has been further developed to keep the sound emission to the lowest level possible, while limiting the water and electrical consumption to minimal levels. The installation, plumbing, and wiring are easy and fast, with virtually no maintenance.

Features:

• Uses 2 check valves, and this, combined with a water trap, ensures there are no odor issues
• Incredibly quiet operation
• Can use both raw water and pressure water flush
• Leaves a clean, dry bowl after every powerful flush
• User-friendly Eco rocker switch (to reduce energy and water consumption) or a smart flush controller with high-end flush and tank control features

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

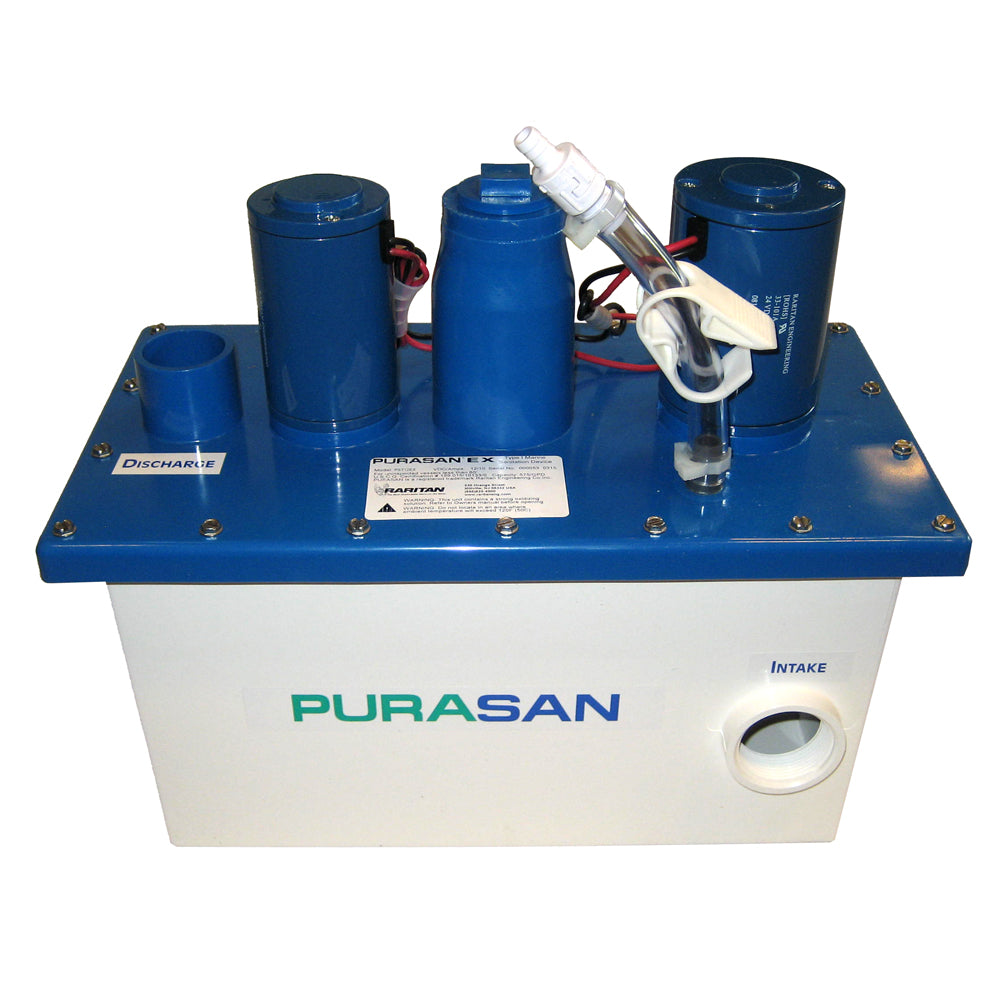

Complete Purasan EX Treatment System - 12V

Raritan Purasan Waste Treatment System is suitable for all marine sanitation needs. The Purasan EX was originally developed for the freshwater lakes in Kentucky as an alternative to the Lectra/San.

This Type I Marine Sanitation Device (MSD) has become increasingly popular with many users in both salt and freshwater. Raritan believes that treating a single flush at the source and discharging into tidal water is far more effective than risking having a holding tank dumped overboard when a pump-out cannot be found or is not functioning. Each user has unique needs when boating and for many a holding tank may be the best solution while some prefer to treat and discharge. There are a few things to consider when choosing a Type I MSD.

While Treatment is required inside the three-mile limit there are areas that prohibit discharge from Marine Sanitation Device. The areas that do not allow discharge of any type are called No Discharge Zones and these zones are specific, at this time, to treated black water only. So, any vessel operator or owner should consider the amount of time spent cruising, the areas in which they will be cruising and the availability of pumpouts. A holding tank should never be discharged overboard.

The Purasan EX is a flow through system which means that the toilet is connected to the tank and the tank is connected to the thru-hull. With each flush of the toilet the waste enters the tank where a small amount of disinfectant is introduced to neutralize the waste. At the same time an equal amount of treated waste is forced out of the tank and overboard.

Purasan Improvements

The tablets used are very similar to the mixture used in commercial waste water treatment plants. When the toilet flushes a small amount of water is run over the tablets to create a disinfectant that drains into the tank and a high-speed macerator inside the tank breaks down waste and ensures that the disinfectant comes in contact with the waste.  This system does require the user to buy tablets to keep the system functioning properly. While the original Purasan remained largely unchanged for a long time the newest version the Purasan EX has added a control that will notify the user when tablets need to be added.

Another improvement in the Purasan EX over the original design is the addition of an air pump that forces the water down into the treatment tank. This makes mounting of the system easier and prevents the tablets from disintegrating too fast. While it was originally designed for just freshwater use and for use with specific toilets it can now be used with almost any marine toilet. The only freshwater required is the water that passes over the tablets. However, toilets can flush with either salt or freshwater.

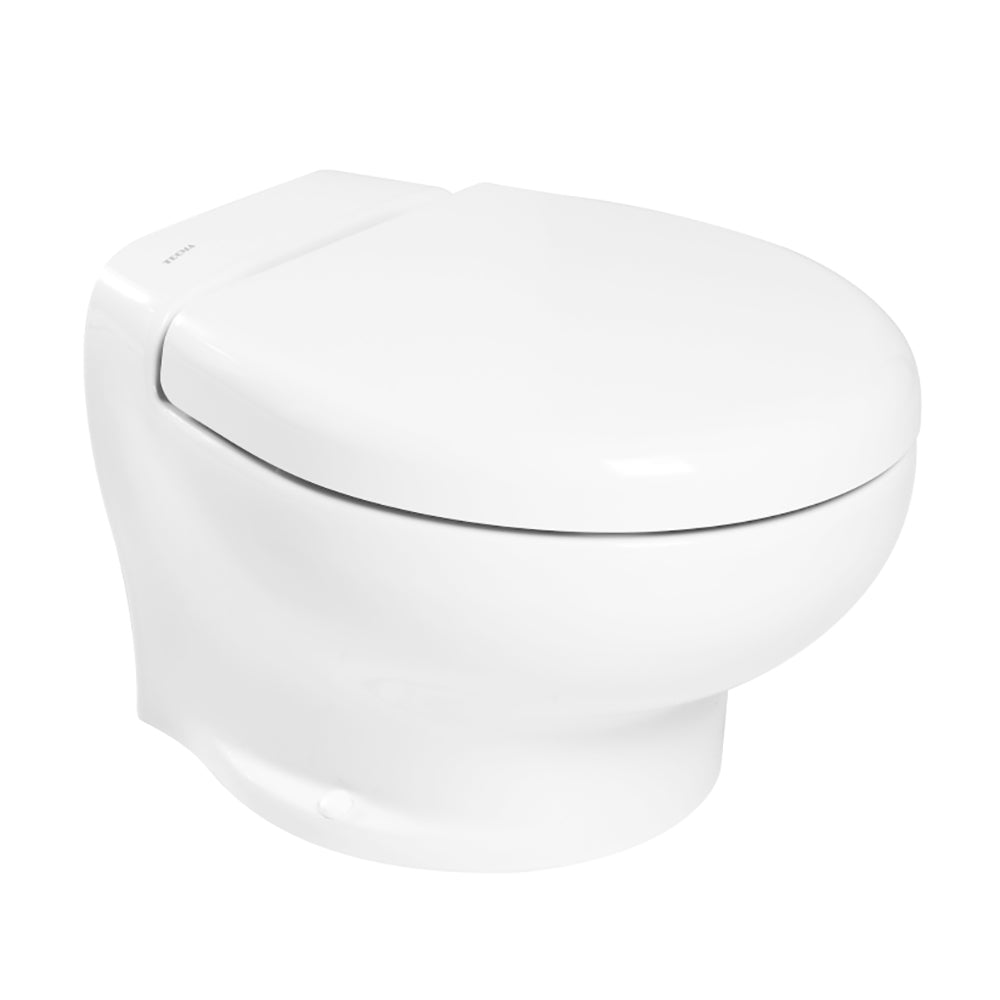

Thetford Nano Eco Compact Toilet - 24V [T-NAN024PW/E/NA]

Nano Eco Compact Toilet - 24V

The Tiny Turbo Toilet!

From the experts in macerating toilets, Nano toilet utilizes Turbine Technology to produce a powerful, clog-resistant flush. This model is the ultimate combination of a highly efficient marine toilet and the smallest design capable of offering the same comfort as bigger units. It’s the result of a strong relationship with the market and fulfills new requirements for vessels below 50′ (45m). The Thetford Marine product development team has created an extremely elegant design, but also very flexible to install, thanks to its compact size.

The performance of the macerator pump meets all quality standards, while the technology inside the toilet has been further developed to keep the sound emission to the lowest level possible, while limiting the water and electrical consumption to minimal levels. The installation, plumbing, and wiring are easy and fast, with virtually no maintenance. The toilet can be operated in combination with two different control panels: Eco rocker switch and Premium Plus.

Features:

• Uses 2 check valves, and this, combined with a water trap, ensures there are no odor issues
• Incredibly quiet operation
• Can use both raw water and pressure water flush
• Leaves a clean, dry bowl after every powerful flush
• Optional User-friendly Eco rocker switch (to reduce energy and water consumption) or a smart flush controller with high-end flush and tank control features (sold separately)

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Color: White
• Gallons Per Minute: 3 GPM
• Inlet Size: 1/2"
• Operation Method: Electric
• Outlet Size: 1.5"
• Rinse Water: Raw/Fresh
• Size: Compact Size
• Suction Lift (ft.): 13'
• Type: Toilet
• Volts: 24v
• Box Dimensions: 17"H x 17"W x 21"L WT: 45.25 lbs

Owner's Manual (pdf)

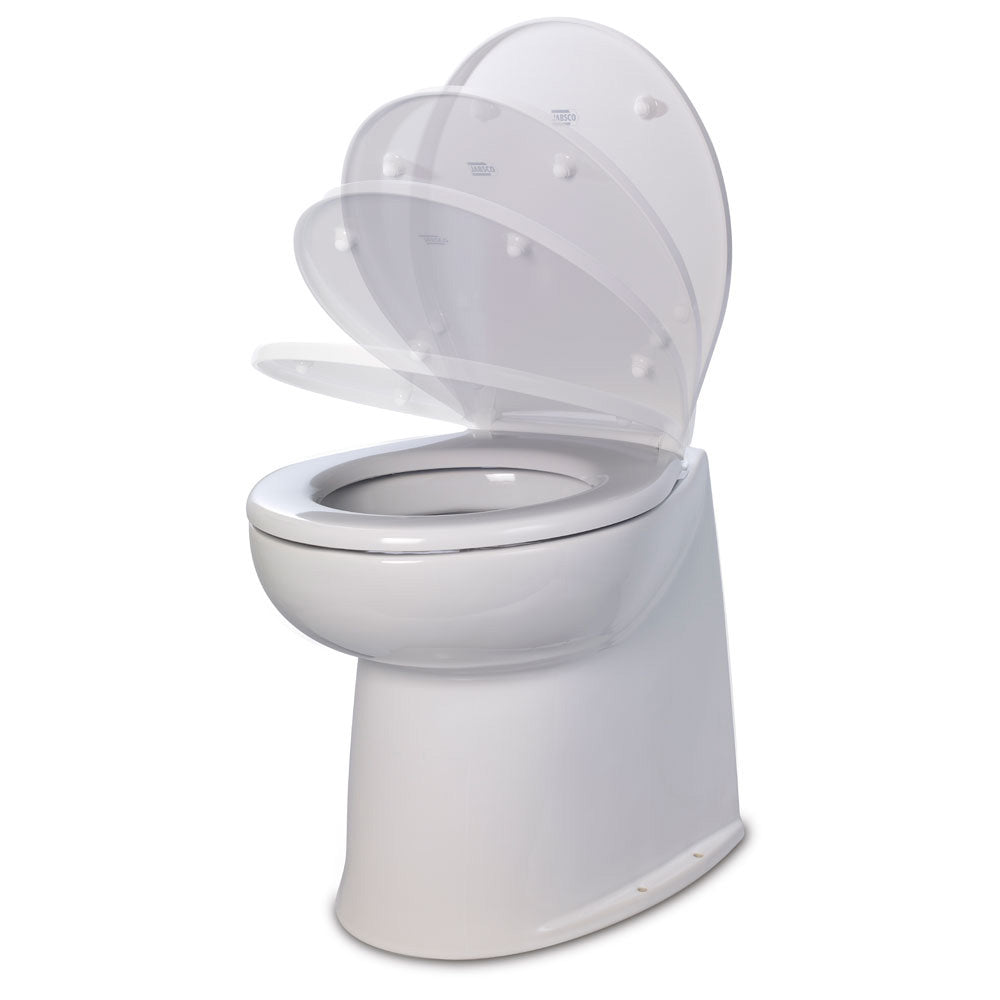

Deluxe Flush 14" Straight Back 12V Freshwater Electric Marine Toilet with Solenoid Valve & Soft Close Lid

You can experience all the comforts of home at sea with Jabsco Deluxe Flush electric marine toilet. Designed for the discerning owner looking for luxury and comfort, the Deluxe Flush portfolio features a space-saving, stylish design with minimal water usage and virtually silent operation.

Features:

• 14" Straight back
• Space-saving stylish design
• Household size soft closing seat
• Virtually silent operation
• Fresh water rinse model
• Powerful non-clogging large bore flush pump macerates waste

Specifications:

• Bowl Size: Domestic
• Lid: Soft close
• Rinse Type: Freshwater
• Rinse Pump/Solenoid Valve: Solenoid valve
• Voltage DC: 12V DC
• Recommended fuse Size (AMP): 25
• Flush control Switch: 4-Button Touch Panel
• Height: (inch) 14.4” / (mm) 366
• Width: (inch) 14.8” / (mm) 375
• Depth: (inch) 17.7" / (mm) 450
• Weight: (LBS) 55.1" / (kg) 25

One-Touch Control Pad:

All Deluxe Flush marine toilets come complete with a multi-function, one-touch control pad. The control pad is supplied with a standard surface mount unit with a clean white bezel.

The control pad offers four options: fill, quick flush, flush, or empty. In addition, the owner can set the control at any time so that the bowl is always left either dry or wet after flushing. The recommended dry setting minimizes total water usage. If water usage is not a concern, the wet setting automatically fills the bowl after flushing, ready for the next user. Simultaneously holding down both the quick flush and flush buttons for 5 seconds switches between bowl always left dry and bowled always left wet modes.

Control Pad Options:

• Fill may be touched when the bowl is dry add 1 quart (1 liter) of water before use, if necessary
• Quick Flush first rinses and then empties the bowl after light use. On the dry setting, this uses less than 1 quart (1 liter) of water
• Flush rinses and empties the bowl twice after heavy use. If the bowl is dry, touching the fill before use is recommended. This uses just 2.5 quarts (2.5 liters) of water
• Empty does exactly what it says without adding any water, whenever desired. Even when the bowl appears to be dry, there is an anti-odor water lock in the pump housing

Rinse Options:

• Supplied with a solenoid valve assembly for connection to any existing pressurized water system capable of delivering 2.9 GPM (11 LPM) or more
• The solenoid valve features dual non-return valves to protect the freshwater system from possible black flow from the toilet into the water system

Specifications:

• Color: White
• Gallons Per Minute: 2.9
• Operation Method: Electric
• Rinse Water: Fresh
• Volts: 12
• Box Dimensions: 20"H x 23"W x 25"L WT: 62.6 lbs
• UPC: 671880638692
