Marine Plumbing & Ventilation - Marine Sanitation

Deluxe Flush 14" Straight Back 12V Raw Water Electric Marine Toilet with Remote Rinse Pump & Soft Close Lid

You can experience all the comforts of home at sea with Jabsco Deluxe Flush electric marine toilet. Designed for the discerning owner looking for luxury and comfort, the Deluxe Flush portfolio features a space-saving, stylish design with minimal water usage and virtually silent operation.

Features:

• 14" Straight back
• Space-saving stylish design
• Household size soft closing seat
• Virtually silent operation
• Sea, river, or lake water rinse model
• Powerful non-clogging large bore flush pump macerates waste

Specifications:

• Bowl Size: Domestic
• Lid: Soft close
• Rinse Type: Raw water
• Rinse Pump/Solenoid Valve: Remote Rinse Pump
• Voltage DC: 12V DC
• Recommended fuse Size (AMP): 25
• Flush control Switch: 4-Button Touch Panel
• Height: (inch) 14.4” / (mm) 366
• Width: (inch) 14.8” / (mm) 375
• Depth: (inch) 17.7" / (mm) 450
• Weight: (LBS) 55.1" / (kg) 25

One-Touch Control Pad:

All Deluxe Flush marine toilets come complete with a multi-function, one-touch control pad. The control pad is supplied with a standard surface mount unit with a clean white bezel.

The control pad offers four options: fill, quick flush, flush, or empty. In addition, the owner can set the control at any time so that the bowl is always left either dry or wet after flushing. The recommended dry setting minimizes total water usage. If water usage is not a concern, the wet setting automatically fills the bowl after flushing, ready for the next user. Simultaneously holding down both the quick flush and flush buttons for 5 seconds switches between bowl always left dry and bowled always left wet modes.

Control Pad Options:

• Fill may be touched when the bowl is dry add 1 quart (1 liter) of water before use, if necessary
• Quick Flush first rinses and then empties the bowl after light use. On the dry setting, this uses less than 1 quart (1 liter) of water
• Flush rinses and empties the bowl twice after heavy use. If the bowl is dry, touching the fill before use is recommended. This uses just 2.5 quarts (2.5 liters) of water
• Empty does exactly what it says without adding any water, whenever desired. Even when the bowl appears to be dry, there is an anti-odor water lock in the pump housing

Rinse Options:

• Supplied with a remote-mounted, self-priming pump to bring in sea, river, or lake rinse water
• Complete with a Jabsco Pumpgard strainer

Specifications:

• Color: White
• Operation Method: Electric
• Rinse Water: RAW
• Volts: 12
• Box Dimensions: 23"H x 23"W x 25"L WT: 64 lbs
• UPC: 671880638715

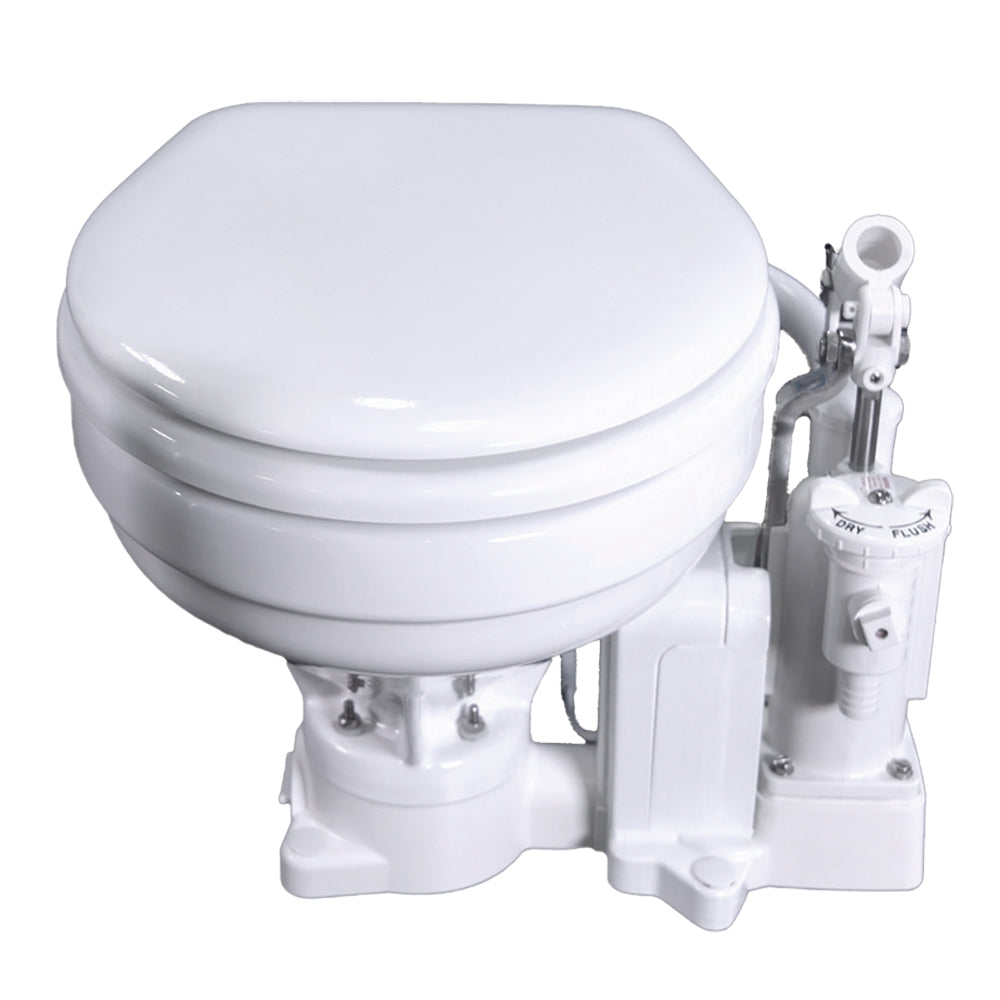

Raritan PH PowerFlush Electric/Manual Toilet - Marine Size - 12v - White [P101E12]

PH PowerFlush Electric/Manual Toilet - Marine Size - 12v - White

PH Powerflush was designed to provide a unique option not available in any other marine toilet. Most toilets are either manual operation or electric macerating toilets. The Powerflush does not macerate but does offer the best of both worlds for those needing the option to switch to manual operation. The PH pump used on the PH Powerflush is a design that is timeless. The dual action pump is 66% larger in diameter than any competitive market. Because the housing is larger it more easily moves more water in and out of the bowl meaning you spend less time pumping and more time enjoying your time on the water.

If water usage is a concern the intake water can easily be turned off and the unit can still be pumped to allow flushing with virtually no water being used. When installed as a Powerflush the simple push of a button activates the motor and arm that moves the piston up and down to flush the toilet. Should you lose power or need to conserve power the toilet converts easily to manual operation by removing the pin and inserting a handle into the pump.

Features:

• PH PowerFlush electric model can be switched to manual superflush within minutes.
• Upgrading to PH SuperFlush and PowerFlush is fast and easy! Mounting base configuration
• matches the bolt pattern used on most competitive toilets.
• Clear the bowl with less strokes! Our robust double action piston pump is 66% larger than competitive models making its use quick, easy and efficient.
• Trouble free operation! Proprietary full size 1½” joker valve is specially designed to maintain pump performance.
• Slow close seat design - Seat locks in place while boat is rocking, no more slamming seats
• Full size joker valve which helps to prevent clogs and improves the flushing action

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Color: White
• Type: Toilet
• Size: Compact Size
• Inlet Size: 3/4"
• Operation Method: Electric
• Outlet Size: 1-1/2"
• Rinse Water: RAW
• Volts: 12v
• Box Dimensions: 16"H x 23"W x 24"L WT: 36 lbs
• UPC: 085462040955

Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)

Aigean 7 Source Programmable Multi-WAN Router (Rackmountable) [MFR-7]

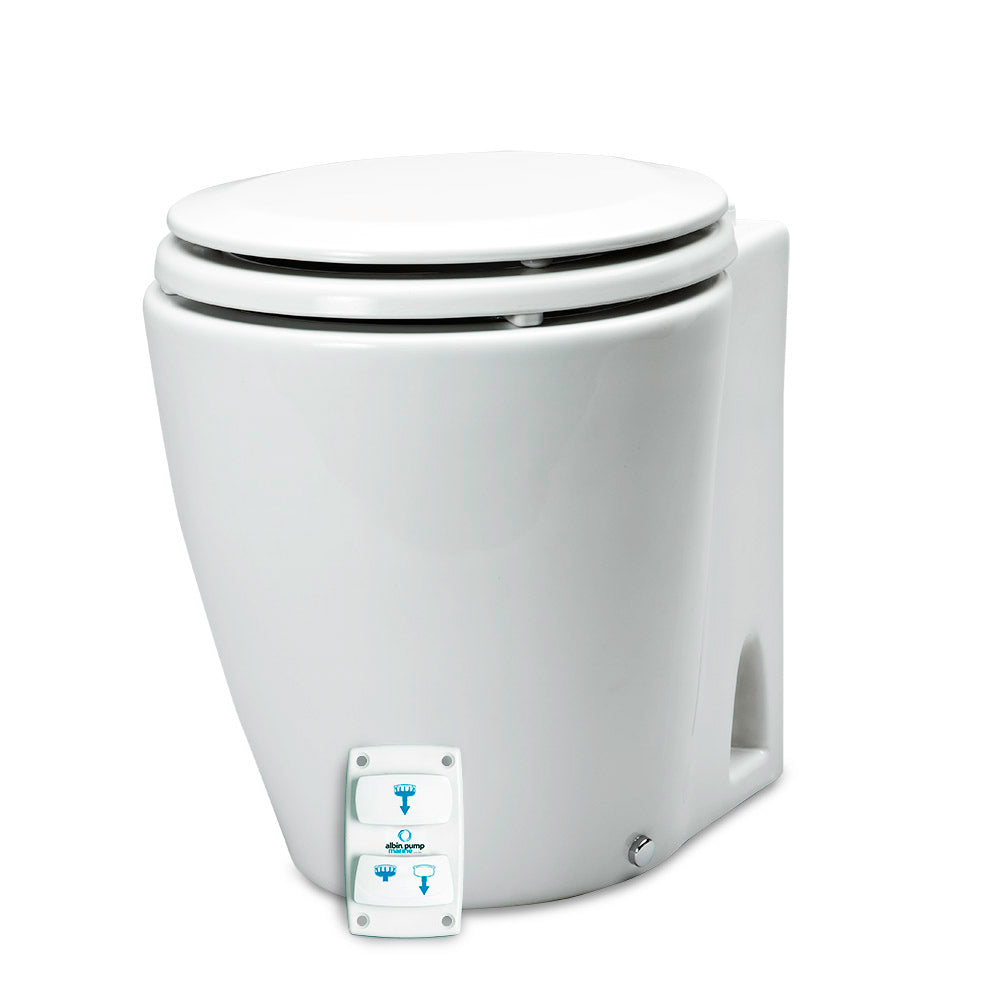

Design Marine Toilet Silent Electric - 12V

Design silent electric compact toilet with seperated flushing and waste disposal cycle. Including electronic 3 function control panel, before use, after use and short use plus a trimmer to regulate the flow rate.

Water is from existing pressurized water system onboard with 12V solenoid valve (PN 07-66-030) or 12V flush pump (PN 07-66-032)- not included!

Port conections inlet 19mm (3/4″), outlet 25mm or 38mm (1″ or 1,5″). Silent operation and low water consumption.

Easy to clean white ceramic design bowl and white wooden seat. Robust, stable and compact with a preferred appearance like a home toilet.

Specifications:

• Weight: 15.2 kg/39 lbs
• Dimensions: 405/15.9L x 410/16.14H x 340/13.4W mm/in
• Type: Design Dual Operation Electric

*Certification: CE marked 94/25/ECC, ISO8846 Small Craft, Electromagnetic compatibility 89/336/EEC, EN51014 1993/radio disturbance

Specifications:

• Color: White
• Size: Compact Size
• Inlet Size: 3/4"
• Operation Method: Electric
• Outlet Size: 1" or 1-1/2"
• Rinse Water: Fresh
• Volts: 12v
• Type: Toilet
• Box Dimensions: 15"H x 18"W x 18"L WT: 40.5 lbs
• UPC: 7340176601902

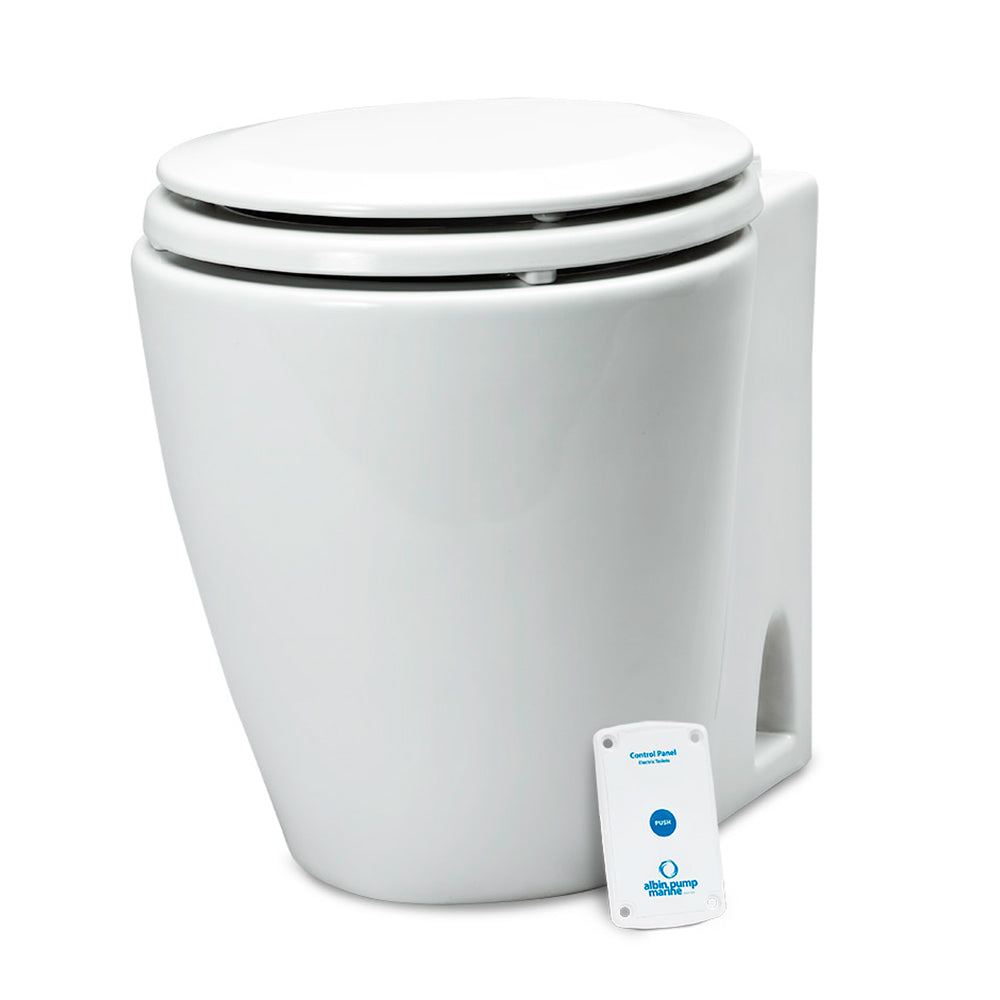

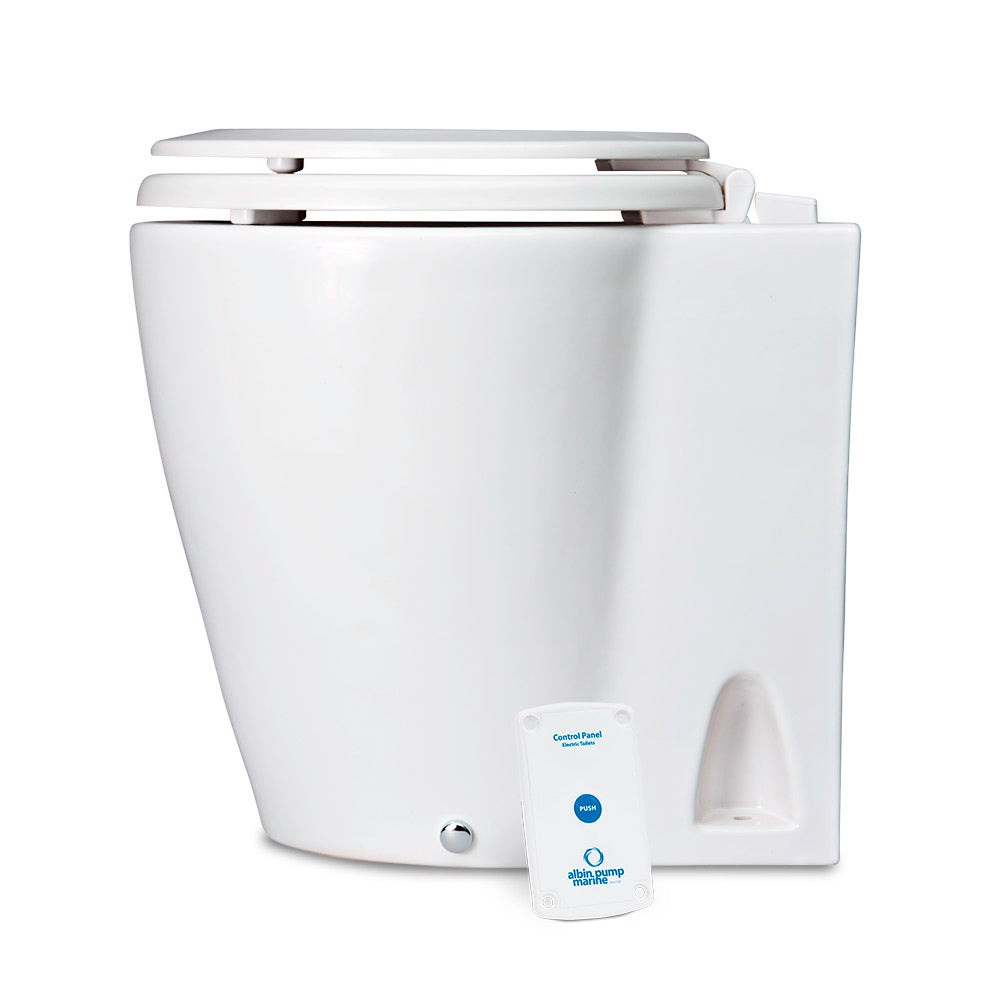

Albin Group Marine Design Marine Toilet Standard Electric - 12V [07-02-043]

Design Marine Toilet Standard Electric - 12V

Designed standard electric compact toilet with a combined electrical 12V macerator and pump for waste disposal and flushing in one single operation.

Including one touch electrical control panel. Easy to clean white ceramic design bowl and white wooden seat.

Port conections inlet 19mm (3/4″), outlet 25mm or 38mm (1″ or 1,5″). Robust, stable and compact with a preferred appearance like a home toilet.

Specifications:

• Weight: 15.5 kg/39 lbs
• Type: Design Single Operation Electric

*Certification: CE marked 94/25/ECC, ISO8846 Small Craft, Electromagnetic compatibility 89/336/EEC, EN51014 1993/radio disturbance

Specifications:

• Color: White
• Size: Compact Size
• Inlet Size: 3/4"
• Operation Method: Electric
• Outlet Size: 1" or 1-1/2"
• Rinse Water: RAW
• Volts: 12v
• Type: Toilet
• Box Dimensions: 16"H x 18"W x 19"L WT: 39.3 lbs
• UPC: 7340176601889

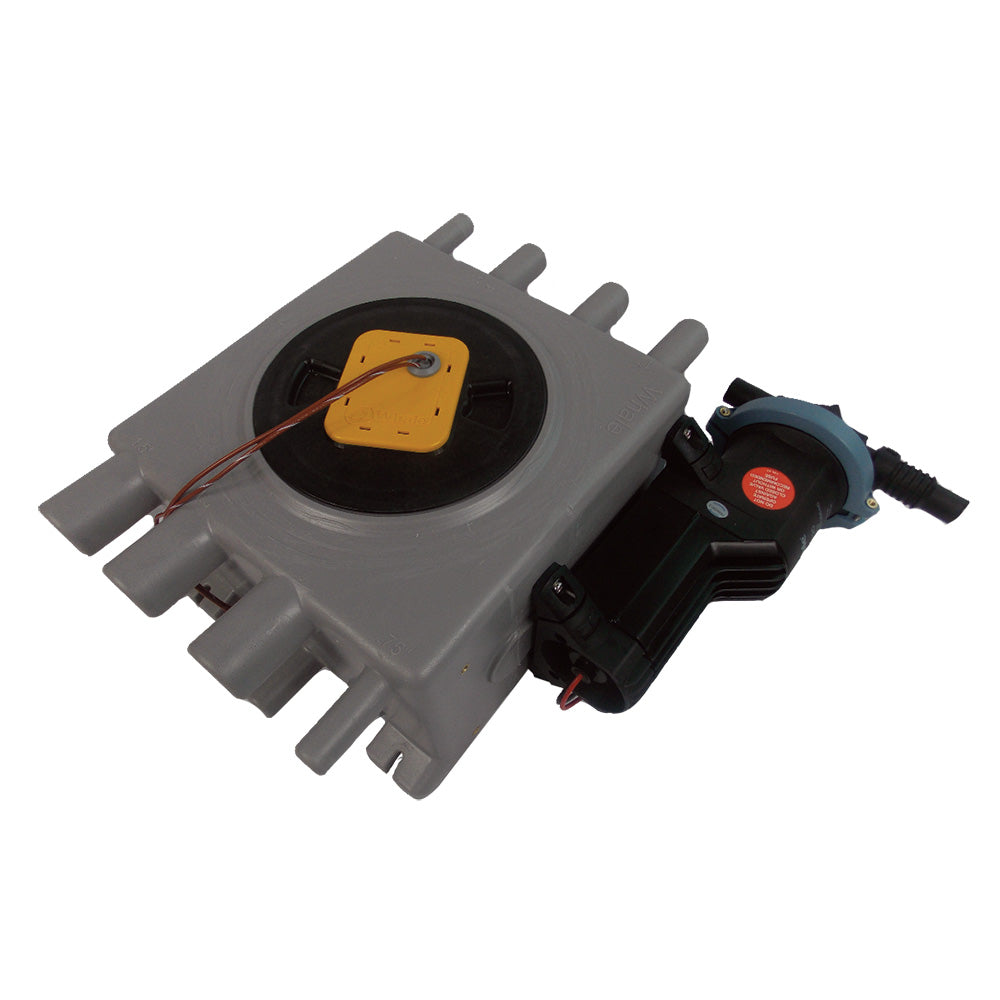

Whale Grey Waste Tanks w/Intelligent Control [GK1512]

Grey Waste Tanks with Intelligent Control

Robust compact tanks with multi-port options to suit your installation.

Whale’s Largest Range of Multi-Port Grey Waste Tanks Ever!

Simple system - Allows you to manage all grey waste on board through one thru-hull fitting.
Resilient polyethylene one-piece moulded tanks designed to handle grey waste on board - ideal for use with Gulper Grey Waste pumps for unbeaten debris handling.

8 liter capacity grey waste tanks - compact design allows you to mount a Gulper pump directly to the side to save space and simplify pipe runs.

16 liter capacity grey waste tanks - higher capacity design allows you to mount a Gulper pump directly to the side to save space and simplify pipe runs.

20 liter capacity grey waste tanks - outlet ports and sensor locations minimize air pumping noise.

Grey waste tank lid with fully integrated sensor:

• Intelligent Control - sensor activates pump automatically to empty grey waste tank only when required
• Robust - enclosed housing with dual seal ensures the best component protection in the harsh grey waste environment
• Reliable - designed to reduce dirt and debris build-up
• Compatible - lid design allows retrofitting to existing Whale grey waste tank systems
• Simple installation - two wires can connect to any 12 or 24V pump system, up to 20A, with no requirement for a relay

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Type: Holding Tanks
• Box Dimensions: 10"H x 11"W x 20"L WT: 9 lbs
• UPC: 766478955852

17" Deluxe Flush Raw Water Electric Toilet w/Soft Close Lid - 12V

You may install JABSCO Deluxe Flush electrically operated marine toilets in
both power and sailing craft, either above or below the waterline, for use
on sea, river, lake or canal.

Features:

• Space saving stylish design

• Regular household size seat

• Virtually silent operation for undisturbed sleep

• User selectable choice of "one touch" flush cycles for minimal water
  usage - a 'Quick Flush'uses less than 1 quart (1 litre)

• Owner selectable choice of leaving bowl wet or dry after use

• Non-clogging large bore flush pump macerates waste

• Uses less than 1.0 amp/hour per day

• ISO 8846 MARINE - Ignition Protection

• Crevice free contours for added cleanliness and hygiene

• All plumbing and wiring easily concealed

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Specifications:

• Color: White
• Operation Method: Electric
• Rinse Water: RAW
• Volts: 12v
• Type: Toilet
• Box Dimensions: 20"H x 22"W x 24"L WT: 66 lbs
• UPC: 671880628532

17" Deluxe Flush Fresh Water Electric Toilet w/Soft Close Lid - 24V

You may install JABSCO Deluxe Flush electrically operated marine toilets in both power and sailing craft, either above or below the waterline, for use on sea, river, lake or canal.

Features:

• Space saving stylish design

• Regular household size seat

• Virtually silent operation for undisturbed sleep

• User selectable choice of "one touch" flush cycles for minimal water usage - a 'Quick Flush'uses less than 1 quart (1 litre)

• Owner selectable choice of leaving bowl wet or dry after use

• Non-clogging large bore flush pump macerates waste

• Uses less than 1.0 amp/hour per day

• ISO 8846 MARINE - Ignition Protection

• Crevice free contours for added cleanliness and hygiene

• All plumbing and wiring easily concealed

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Specifications:

• Type: Toilet
• Color: White
• Operation Method: Electric
• Rinse Water: Fresh
• Volts: 24v
• Box Dimensions: 20"H x 22"W x 24"L WT: 32 lbs
• UPC: 671880628518

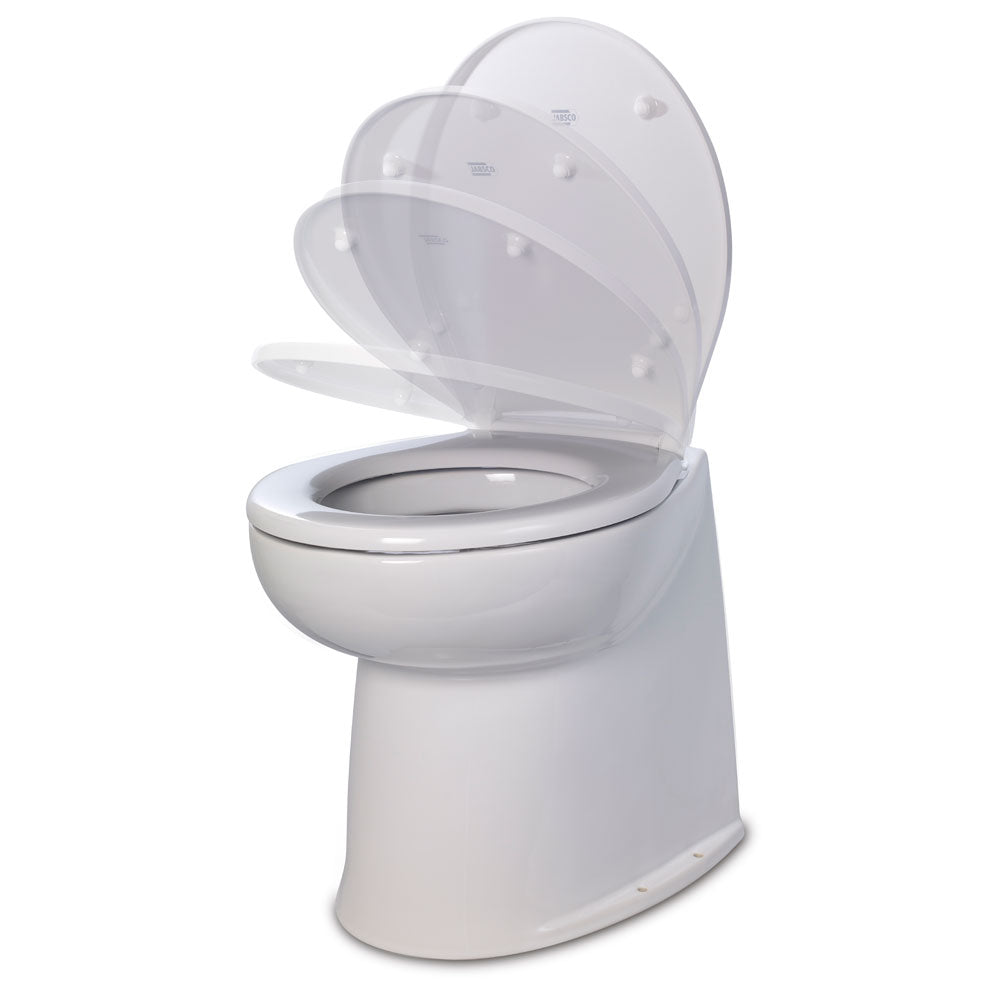

17" Deluxe Flush Fresh Water Electric Toilet w/Soft Close Lid - 12V

You may install JABSCO Deluxe Flush electrically operated marine toilets in both power and sailing craft, either above or below the waterline, for use on sea, river, lake or canal.

Features:

• Space saving stylish design

• Regular household size seat

• Virtually silent operation for undisturbed sleep

• User selectable choice of "one touch" flush cycles for minimal water usage - a 'Quick Flush'uses less than 1 quart (1 litre)

• Owner selectable choice of leaving bowl wet or dry after use

• Non-clogging large bore flush pump macerates waste

• Uses less than 1.0 amp/hour per day

• ISO 8846 MARINE - Ignition Protection

• Crevice free contours for added cleanliness and hygiene

• All plumbing and wiring easily concealed

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Specifications:

• Type: Toilet
• Color: White
• Operation Method: Electric
• Rinse Water: Fresh
• Volts: 12v
• Box Dimensions: 20"H x 22"W x 24"L WT: 32 lbs
• UPC: 671880628495
