Marine Plumbing & Ventilation - Marine Sanitation

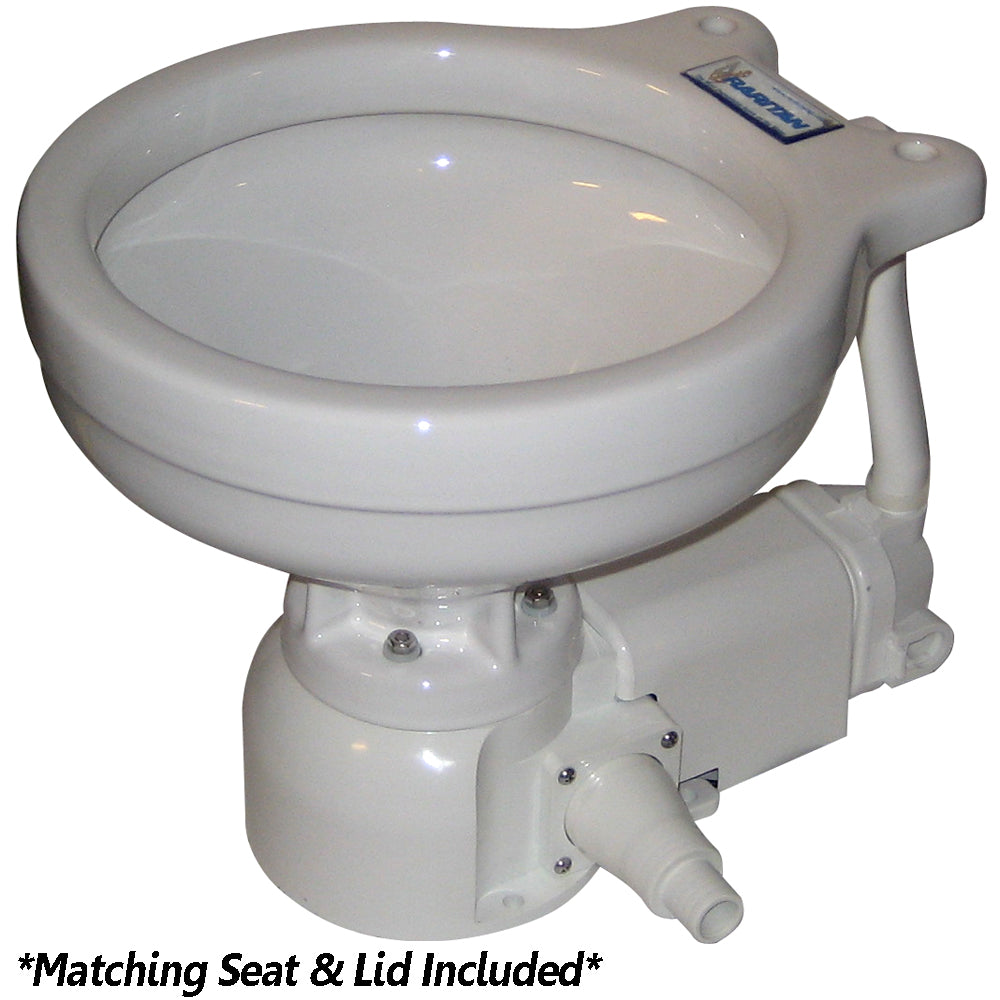

Sea Era QC Marine Size Pressurized Freshwater Toilet with Multifunction Panel - White - 12V

This robust little electric marine toilet is the perfect fit for someone looking for a reliable macerator as a step up from a manual toilet. The base is able to rotate 90 degrees, allowing it to fit nicely in spots where a manual toilet had been installed. The SeaEra QC differentiates itself from the original SeaEra by offering the installation option of either pressurized freshwater with a solenoid valve that is built into the base or with a remote intake pump for outside raw water.

Features:

• Powerful flushing action with advanced design features
• An excellent replacement for less durable non-Raritan units
• Low water usage (as little as 1 quart (1 liter))
• The bowl can be rotated 90 degrees for mounting in confined spaces
• Full-size joker valve reduces clogs
• Stainless steel macerating blade
• Household or marine-size bowls are available
• Self-priming inlet pump can be run dry
• Separation of intake and discharge means dirty water cannot enter the bowl if the seal fails
• Two-year warranty
• Both 90-degree and straight discharge included

Quiet Flush E2 Fresh Water Toilet Regular Bowl - 12V - Soft Close Lid

From crowded charter boats to racing yachts and everything in between, the award-winning Jabsco Quiet Flush E2 marine toilet has been designed to solve some of the biggest marine waste challenges facing boat owners and manufacturers. With its simplified installation, ease of serviceability, and sleek touch sensor control, the Quiet Flush E2 brings a whole new level of convenience and comfort to the water.

Easy 2 Install

The Quiet Flush E2 gives even the occasional boater the confidence to install this toilet. For maximum flexibility in tight spaces, the base can be rotated, allowing you to install the pump with the discharge to the left, right, or rear.

Easy 2 Service

Designed for recreational craft but built to withstand the abuse of commercial use, the quick-release system provides easy access to the macerator pump and discharge hose with no tools needed.

Easy 2 Operate

Marine toilets bring the comfort of home with you, but there are additional considerations on a boat, which is why the Quiet Flush E2 puts you in complete control. With its sleek touch sensor panel, you can choose three settings — including a water-saving, eco-flush cycle.

Installation:

• Base can be rotated to the left, right, or rear of the bowl to suit multiple installation options
• Discharge pump can be rotated 180° to suit the base orientation and ensure pipework is routed to the rear of the toilet
• Straight or 90° discharge port for easy install

Quick Release for Easy Servicing:

• Quick release system allows for fast and easy removal of discharge pump and hose when servicing is necessary
• C-Clip design releases the pump assembly from the toilet base without the need for tools, resulting in fast service time

Multi-Function Touch Panel:

• Stylish low-profile design
• Touch-sensitive operation
• Eco flush, full flush, or empty functions
• Only 1-litre (1-quart) per flush using eco mode
• Designed for wet room installations
• No spill ‘empty’ feature to leave bowl dry when the boat is in motion

Specifications:

• Bowl Size: Regular
• Seat & Lid: Composite
• Slow-Close Lid: Yes
• Water: On-board fresh water
• Device: Solenoid valve
• Flush Control Switch: Touch Panel
• Voltage DC: 12
• Recommended Fuse Size: 25 amp

Dimensions:

• Height: 14.4 in. (365 mm)
• Width: 14.8 in. (375 mm)
• Depth: 18.9 in. (480 mm)
• Weight: 38.6 lbs (17.5 kg)

Specifications:

• Rinse Water: Fresh
• Type: Toilet
• Volts: 12v
• Box Dimensions: 21"H x 24"W x 24"L WT: 45.9 lbs
• UPC: 671880640978

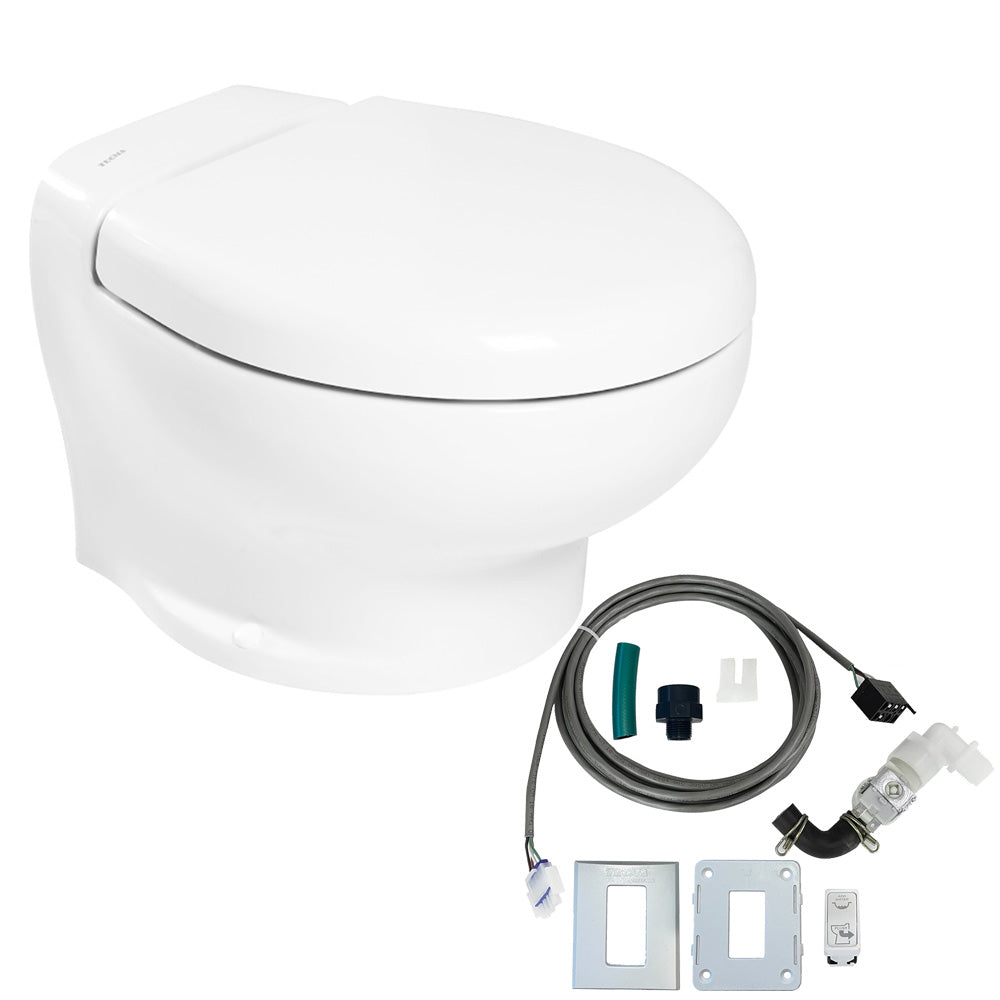

Thetford Nano Eco Compact Toilet Freshwater Kit - 12V [T-NAN012PW/E/NA-FWKIT]

Nano Eco Compact Toilet Freshwater Kit - 12V

From the experts in macerating toilets, Nano toilet utilizes Turbine Technology to produce a powerful, clog-resistant flush. This model is the ultimate combination of a highly efficient marine toilet and the smallest design capable of offering the same comfort as bigger units. It’s the result of a strong relationship with the market and fulfills new requirements for vessels below 50′ (45m). The Thetford Marine product development team has created an extremely elegant design, but also very flexible to install, thanks to its compact size.

The performance of the macerator pump meets all quality standards, while the technology inside the toilet has been further developed to keep the sound emission to the lowest level possible, while limiting the water and electrical consumption to minimal levels. The installation, plumbing, and wiring are easy and fast, with virtually no maintenance.

Features:

• Uses 2 check valves, and this, combined with a water trap, ensures there are no odor issues
• Incredibly quiet operation
• Can use both raw water and pressure water flush
• Leaves a clean, dry bowl after every powerful flush
• User-friendly Eco rocker switch (to reduce energy and water consumption) or a smart flush controller with high-end flush and tank control features

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Atlantes Freedom™

The Atlantes was one of the first toilets to incorporate the idea of having all components mounted within the bowl. The idea behind the Atlantes was to offer a metal handle on the side of the bowl to make the marine bathroom less intimidating for those not used to being on a boat. We offer the metal handle with many options but most people understand they simply need to push it to have the toilet flush. The head area of any boat can be very daunting for those not familiar with how the toilets work. By offering a handle on the side of the bowl your guests will feel more at ease. The other, and probably equally important, feature of the original Atlantes was to appeal to the women on the boat. The Atlantes is far more aesthetically appealing than tons of nooks and crannies which ultimately means the toilet looks much cleaner. Users in any bathroom can appreciate the smooth minimal lines to make cleaning a quick and easy chore.

Today the Atlantes now incorporates the same Vortex-Vac technology as the Marine Elegance but in a bowl that offers a more substantial footprint as well as the just like home handle option. The advantage of the Vortex-Vac technology is that the waste is efficiently moved from the bowl by a vacuum action created by the pump rather than depending on remote vacuum generation. While a vacuum toilet may use slightly less water, the advantage of Vortex-Vac is that one does not need to depend on the vacuum generator pump that tends to run for about 45 seconds to generate the vacuum. The timed flush cycle brings water in then runs a discharge then water again and discharge for the least amount of water usage and effectiveness of moving waste out of the toilet.

Standard Features:

• One piece china bowl
• Anti-clog "power shred" discharge system
• Household style
• Smart toilet control (STC) with water saver feature
• Freshwater solenoid
• Powerful bronze cutting blades designed to "shred" most objects

Benefits:

• Vortex-Vac technology
• Simple flexible installation
• Low power consumption
• Three modes of operation - Fill, dry flush or fill and flush
• Freedom from clogged toilets and marine size bowls, excellent performance even in commercial applications
• Easy to clean and maintain
• Diaphragm intake pump can be run dry
• Microprocessor control and solid state circuit breaker
• No fuses or relays inside the unit
• Easily installs above or below waterline on any vessel

The Raritan Programmable Smart Toilet Control:

The Raritan Smart Toilet Control is a fully programmable flush control. The control allows users to flush the toilet with no water, a small amount of water or a fully timed flush. the timed flush feature can be adjusted on the panel without having to remove any components.

• Normal Flush - starts a timed flush, walk away and the toilet will run through a sequence of intake and discharge modes ensuring maximum bowl rinse, bowl re-fills to leave water in the bow
• Water Saver - starts a timed flush using half of the water of a normal flush. Bowl refills to leave water in the bowl.
• Water Only - adds additional water to the bowl without discharging any of the contents of the bowl. Allows the user to wet the bowl prior to use or fill the bowl to a certain level to minimize water usage.
• Empty Only - allows the user to evacuate the bowl while using no water. While the button is pressed the discharge pump will run, when released the pump stops.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Color: White
• Gallons Per Minute: 3 GPM
• Inlet Size: 1/2"
• Operation Method: Electric
• Outlet Size: 1"
• Rinse Water: Fresh
• Suction Lift (ft.): 4'
• Volts: 12v
• Type: Toilet
• Size: Household Size
• Box Dimensions: 19"H x 19"W x 26"L WT: 60 lbs
• UPC: 085462029820

Albin Group Marine Design Marine Toilet Standard Electric - 12V [07-02-043]

Design Marine Toilet Standard Electric - 12V

Designed standard electric compact toilet with a combined electrical 12V macerator and pump for waste disposal and flushing in one single operation.

Including one touch electrical control panel. Easy to clean white ceramic design bowl and white wooden seat.

Port conections inlet 19mm (3/4″), outlet 25mm or 38mm (1″ or 1,5″). Robust, stable and compact with a preferred appearance like a home toilet.

Specifications:

• Weight: 15.5 kg/39 lbs
• Type: Design Single Operation Electric

*Certification: CE marked 94/25/ECC, ISO8846 Small Craft, Electromagnetic compatibility 89/336/EEC, EN51014 1993/radio disturbance

Specifications:

• Color: White
• Size: Compact Size
• Inlet Size: 3/4"
• Operation Method: Electric
• Outlet Size: 1" or 1-1/2"
• Rinse Water: RAW
• Volts: 12v
• Type: Toilet
• Box Dimensions: 16"H x 18"W x 19"L WT: 39.3 lbs
• UPC: 7340176601889

Lite Flush Electric 12V Toilet With Footswitch

An electric toilet designed to instantly retro-fit your existing manual toilet or to give your bathroom a modernstylish look.
The innovative design offers both low power and water consumption with an integral rinse and waste pump system. The 'Lite Flush' electric toilet features a simple foot switch. Just press down once to fill the bowl, and press again to flush. The 'Lite Flush' has the same footprint, fixing points and hose attachments as Jabsco's existing manual toilet for easeof installation and a true retro-fit.

Simple Foot Switch Feature
For the footswitch variant, simply press down once to fill the bowl, and press again to flush.

Features:

• Lightweight and compact

• Stylish and contemporary design

• Quiet and efficient flush pump technology

• Low water usage - 1.2 litres(1.3 US Quarts) per flush

• Low power consumption

• Ceramic inner, plastic outer for light weight construction

• Rinse pump integrated into unit for compact design

• Slow close seat and lid

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Specifications:

• Operation Method: Electric
• Volts: 12v
• Color: White
• Type: Toilet
• Box Dimensions: 16"H x 20"W x 20"L WT: 31.2 lbs
• UPC: 671880594189

Deluxe Flush Pump Assembly - 24V

The Jabsco 58103-1024 is a Deluxe Flush Pump Assembly, 24 V DC, for a Jabsco Pump.

Specifications:

• Packaged Dimensions: L:30.00 x H:20.00 x W:20.00 cm
• Actual Weight: 4.22 kg  (Approx. 4.72 kg packed)

Compass Eco Toilet - Low, White - 12V

The narrow footprint and smart back of the Compass toilet give maximum space and maximum flexibility wherever it is installed on board. It can go straight to a wall or even further towards the hull thanks to the cutaway. The Compass is not limited by a vertical back. This way, the visual installation remains perfect with whatever installation space you have. The small footprint and the hose design facilitate a very easy installation. The discharge pipes can easily be connected either below the step or surface-mounted in all directions. By having both a high and a short profile, the Compass range offers maximum flexibility on board.

The performance of the macerator pump meets all quality standards, while the technology inside the toilet has been further developed to keep the sound emission to the lowest level possible, while limiting the water and electrical consumption to minimal levels. The installation, plumbing, and wiring are easy and fast, with virtually no maintenance.

Both the Compass High and Short versions are equipped with an innovative soft closing system. A gentle finger touch to the lid activates the soft-close damper mechanism, which controls the closing speed of the cover. In addition to user convenience, a slow-closing lid keeps noise to a minimum and prevents potential damage to the toilet seat.

The soft-close damper mechanism is a design original to Tecma.

Features:

• Italian ceramic
• Wide range of control panels (sold separately)
• Silent flush
• Low consumption

Technical Specifications:

• Weight - 40 lbs
• Water Usage - 0.5-2L/0.1-0.5 gal per flush
• Color - White
• Seat and Cover - Thermosetting with soft closing
• Outlet Pump - MAC 4 12/24V
• Inlet Device - Solenoid

Specifications:

• Color: White
• Inlet Size: 1/2"
• Operation Method: Electric
• Outlet Size: 1/4"
• Rinse Water: Fresh
• Size: Compact Size
• Suction Lift (ft.): 13'
• Type: Toilet
• Volts: 12v
• Box Dimensions: 19"H x 25"W x 25"L WT: 51.1 lbs
• UPC: 850080338315
