Marine Navigation & Instruments

EV-100 Tiller Evolution Autopilot

Features:

• A complete autopilot-in-a-box
• Evolution Ai for superior performance
• No calibration required
• Quick and easy installation
• Powerful tiller drive is compact and unobtrusive
• Used by the world's top single-handed sailors
• For tiller steered boats up to 13,200 lbs (6,000 kg)
• For 12V DC power systems
• Includes p70s Autopilot Controller

Includes:

• EV-1 Sensor Core
• p70s Autopilot Control Head
• ACU-100 Actuator Control Unit
• Tiller Drive
• Tiller Pin (sold in packages of 5)
• Mounting Socket (sold in packages of 5)
• Evolution Cabling Kit
• EV Unit O-Ring Pack (set of 2)
• Wall Mounting Bracket

The EV Sensor Core

At the center of every Evolution system is the intelligent EV sensor core, a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-toinstall housing.

Mount the EV sensor core above or below decks, the rugged enclosure is fully sealed and built to IPX6 and IPX7 waterproofing and submersion standards.

The EV-1 is designed for Evolution mechanical and hydraulic autopilot systems. SeaTalk^ng networking enables a single cable connection for power and data to the Evolution ACU (actuator control unit) and extended SeaTalk^ng and NMEA2000 networks.

Features:

• Precision monitoring of heading, pitch, roll, and yaw allowing the =autopilot to evolve instantly as sea conditions and vessel dynamics change
• Flexible installation options
• Mount above or below deck
• Simple SeaTalk^ng connectivity to the control head and ACU
• Solid state sensor technology delivers dynamic accuracy to within 2 degrees in all conditions
• Fast and reliable heading data for MARPA, radar overlay, and heading modes on Raymarine multifunction displays

p70 Autopilot Control Head

The p70 is a push-button operation controller designed primarily for sailboats.

Features:

• LightHouse user interface is simple and quick to use
• Wide 160° viewing angles
• Start up wizard helps you configure the pilot quickly and easily
• Anti-reflective coating for improved visibility in bright sunlight
• Low power - typically 132mA/1.6W - 27% less than ST70 at x4 measured brightness
• Supported autopilot modes: Auto; Standby; Pattern; Track; Wind Vane; Power Steer and Jog Steer
• Simple system and group dimming/illumination
• Support for multiple data sources
• SeaTalk^ng/NMEA2000 and SeaTalk1 connectivity (no bridging required)

ACU-100 Autopilot Control Unit (ACU)

The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalk^ng bus. Choose the ACU that fits your steering system type.

Evolution Cabling Kit

• 1 x SeaTalk^ng Power Cable (0.4m)
• 1 x SeaTalk^ng Backbone Cable (5m)
• 1 x SeaTalk^ng Spur Cable (0.4m)
• 1 x SeaTalk^ng 5-way Connector Block
• 2 x SeaTalk^ng T-piece Connector
• 2 x SeaTalk^ng Terminator

Specifications:

• Steering Type: Tiller
• Box Dimensions: 12"H x 13"W x 31"L WT: 12.05 lbs
• UPC: 723193854204

Autopilot Control Unit (ACU)

The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalk^ng bus. Choose the ACU that fits your steering system type.

Drive Current Output
Maximum continuous 30 Amps at supply voltage
Drive Clutch Output

• Up to 4 Amp continuous at 12V on 12V systems

• Up to 4 Amp continuous at 24V on 24V systems

• Up to 4 Amp continuous at 12V on 24V systems

• Includes the M81105 Rotary Rudder Reference
• Sleep switch

• Power

• Drive motor

• Drive clutch

• Ground

• Digital Input / Output (DIO)

• Operating Temperature: -20°C to +55°C (-4°F to +131°F)

• Storage Temperature: -30°C to +70°C (-22°F to +158°F)

• Relative Humidity: MAX 93%

• Europe: 2004/108/EC

• Australia and New Zealand: C-Tick, Compliance Level 2

Specifications:

• Type: Parts
• Box Dimensions: 7"H x 11"W x 17"L WT: 7 lbs
• UPC: 723193768921

EV-100 Wheel Evolution Autopilot

Features:

• A complete autopilot-in-a-box
• Evolution Ai for superior performance
• No calibration required
• Quick and easy installation
• Fits most types of sailboat wheels
• Simple, robust clutch engagement
• For boats up to 16,500 lbs (7,500 kg)
• For 12V DC power systems
• Includes p70s Autopilot Controller

Includes:

• EV-1 Sensor Core
• p70s Autopilot Control Head
• ACU-100 Actuator Control Unit
• Wheel Drive
• Evolution Cabling Kit
• EV Unit O-Ring Pack (set of 2)
• Wall Mounting Bracket

The EV Sensor Core

At the center of every Evolution system is the intelligent EV sensor core, a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-toinstall housing.

Mount the EV sensor core above or below decks, the rugged enclosure is fully sealed and built to IPX6 and IPX7 waterproofing and submersion standards.

The EV-1 is designed for Evolution mechanical and hydraulic autopilot systems. SeaTalk^ng networking enables a single cable connection for power and data to the Evolution ACU (actuator control unit) and extended SeaTalk^ng and NMEA2000 networks.

Features:

• Precision monitoring of heading, pitch, roll, and yaw allowing the autopilot to evolve instantly as sea conditions and vessel dynamics change
• Flexible installation options. Mount above or below deck
• Simple SeaTalk^ng connectivity to the control head and ACU
• Solid state sensor technology delivers dynamic accuracy to within 2 degrees in all conditions
• Fast and reliable heading data for MARPA, radar overlay, and heading modes on Raymarine multifunction displays

p70s Autopilot Control Head

The p70s is a push-button operation controller designed primarily for sailboats.

Features:

• LightHouse user interface is simple and quick to use
• Wide 160° viewing angles
• Start up wizard helps you configure the pilot quickly and easily
• Anti-reflective coating for improved visibility in bright sunlight
• Low power - typically 132mA/1.6W - 27% less than ST70 at x4 measured brightness
• Supported autopilot modes: Auto; Standby; Pattern; Track; Wind Vane; Power Steer and Jog Steer
• Simple system and group dimming/illumination
• Support for multiple data sources
• SeaTalk^ng/NMEA2000 and SeaTalk1 connectivity (no bridging required)

ACU-100 Autopilot Control Unit (ACU)

The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalk^ng bus. Choose the ACU that fits your steering system type.

Evolution Cabling Kit

• 1 x SeaTalk^ng Power Cable (0.4m)
• 1 x SeaTalk^ng Backbone Cable (5m)
• 1 x SeaTalk^ng Spur Cable (0.4m)
• 1 x SeaTalk^ng 5-way Connector Block
• 2 x SeaTalk^ng T-piece Connector
• 2 x SeaTalk^ng Terminator

Specifications:

• Steering Type: Wheel Pilot
• Box Dimensions: 15"H x 16"W x 27"L WT: 15 lbs
• UPC: 723193854211

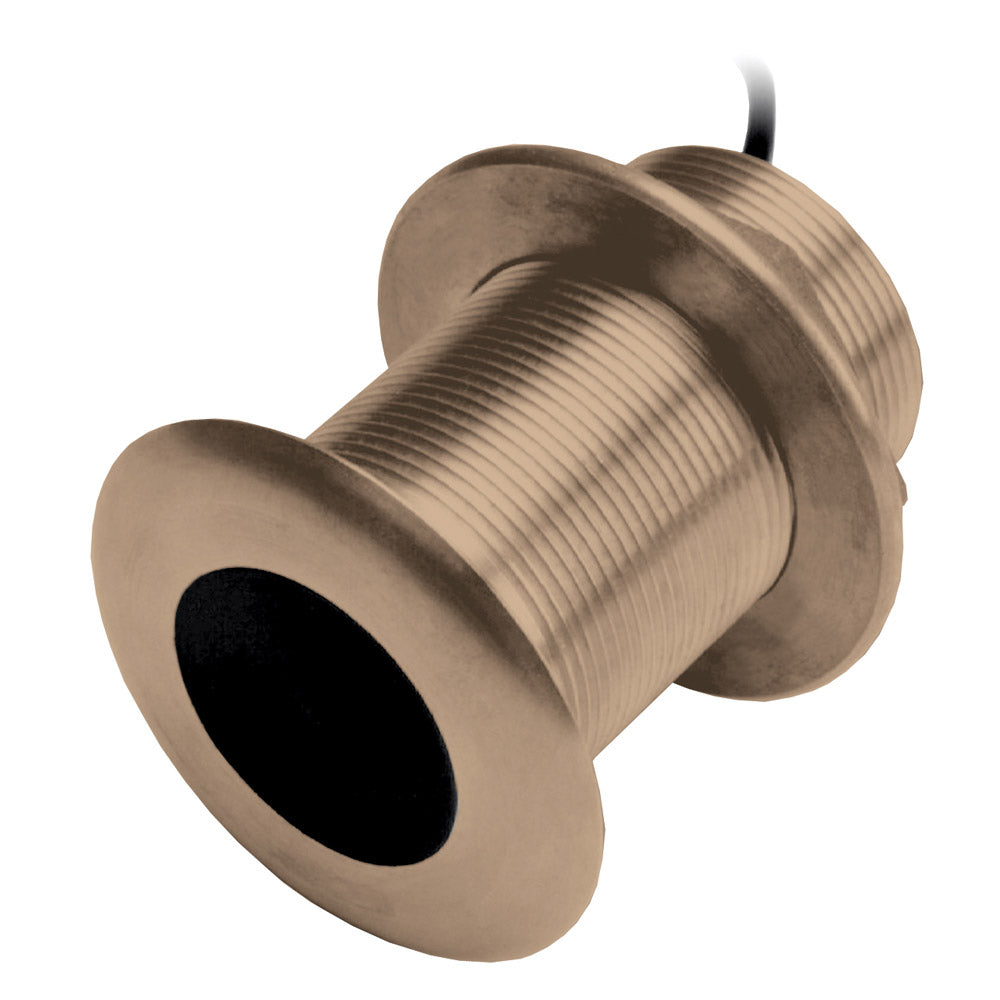

Garmin B150M Bronze 20 Degree Thru-Hull Transducer - 300W, 8-Pin [010-11927-22]

Airmar B150M
w/20° Tilt
300W

Flush-mounted bronze housing,tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. Low, medium, and high frequency versions provide maximum flexibility for the choice of frequencies. Excellent for fiberglass and wood hulls.

Entry Level Chirp Solution. Provides good depth capability and good target separation.

Max Depth - 1,500'
Suppoarted Deadrise/Transom Angles - 16-24° Deadrise

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Chirp: Medium
• Cable Length (Feet): 39'
• Temperature: Yes
• Speed Included: No
• Pins: 8
• Mounting Style: Thru-Hull
• Imaging: Standard
• Box Dimensions: 4"H x 8"W x 10"L WT: 3.8 lbs
• UPC: 753759997694

Owner's Manual (pdf)
Brochure (pdf)

FAP7002

Processor Unit for NAVpilot 700 Series

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Type: Parts
• Box Dimensions: 7"H x 11"W x 12"L WT: 6.05 lbs
• UPC: 611679331854

Raymarine i50 Depth Display System w/Thru-Hull Transducer [E70148]

i50 SeaTalk^ng Instruments - Depth w/Nylon Thru-Hull Transducer

The all-new i50 Instruments from Raymarine offer boaters an excellent combination of great looks, high performance and extreme value. Designed to accommodate either stand-alone or fully integrated installations, the i50 instruments feature Raymarine's exclusive SeaTalk^ng networking for simple installation and bullet-proof reliability. Each instrument offers extra-large digits, razor-sharp LCD displays and red backlighting for outstanding visibility in all lighting conditions. i50 Digital Instrument displays are fully compatible with our i70 Color Multifunction Instrument too. Boaters can now customize their systems with any combination of monochrome LCD, color LCD and analog instruments as needed. Raymarine also offers the p70 and p70R Color Autopilot controllers which also match with our instruments and multifunction displays.

For the ultimate in flexibility the i50 Instruments support SeaTalk^ng 0 CANBUS networking, as well as our original SeaTalk 1 networking. This makes upgrading older instruments a breeze. Connect your analog depth, speed and wind transducers directly to respective instrument display, or use the displays as repeaters for SeaTalk^ng smart transducer data: the choice is yours.

The ultra-sleek design of i50 line is designed to complement our full line of a-Series, c-Series and e-Series Multifunction displays, and looks great on the helm of any boat. Each instrument comes with a low-profile surface mounting kit and silicone rubber sun cover. An optional bracket mounting kit is also available separately.

i50 Instruments are designed to operate from 12V DC power, and are ultra-efficient drawing less than 1W as repeaters, or 2.4W while hosting a transducer. All of the i50 Instruments are waterproof to IPX6 standards. The i50 instruments are all covered by Raymarine's industry leading 2-year warranty, upgradeable to 3-years at no charge by registering online with 90 days of purchase.

i50 Depth Instrument
The i50 Depth Instrument offers accurate and reliable displays of depth, max depth and minimum depth. Shallow and deep depth alarms will keep you alert, along with a shallow and deep anchor alarms.

• Red backlighting for outstanding night-time visibility.

• SeaTalk^ng and SeaTalk-1 connectivity for maximum flexibility

• Connect additional i50 depth displays

• Built-in depth transducer connection

i50 Key Features

• Ultra-modern design complements Raymarine's latest a-Series, c-Series and e-Series Multifunction display and instrument systems.

• Large, crisp LCD displays with high contrast for excellent visibility.

• Red backlighting for outstanding night-time visibility.

• SeaTalk^ng and SeaTalk-1 Networking for maximum flexibility.

• Fully compatible with i70, p70 and p70R Color Instruments and Autopilots.

• 110mm x 115mm footprint is identical to older Raymarine ST60+ instrumentation making upgrading easy

Specifications:

• Transducer Type: Thru-Hull
• Shape: Square
• Instrument Function: Depth
• Box Dimensions: 4"H x 10"W x 14"L WT: 4.75 lbs
• UPC: 723193854259

Owner's Manual (pdf)

Raymarine i60 Wind Display System [E70061]

i60 SeaTalk^ng Instruments - Wind

The all-new i60 Instruments from Raymarine offer boaters an excellent combination of great looks, high performance and extreme value. Designed to accommodate either stand-alone or fully integrated installations, the i60 instruments feature Raymarine's exclusive SeaTalk^ng networking for simple installation and bullet-proof reliability. Each instrument offers extra-large digits, razor-sharp LCD displays and red backlighting for outstanding visibility in all lighting conditions. i60 Analog Instrument displays are fully compatible with our i70 Color Multifunction Instrument too. Boaters can now customize their systems with any combination of monochrome LCD, color LCD and analog instruments as needed. Raymarine also offers the p70 and p70R Color Autopilot controllers which also match with our instruments and multifunction displays.

For the ultimate in flexibility the i60 Instruments support SeaTalk^ng 0 CANBUS networking, as well as our original SeaTalk 1 networking. This makes upgrading older instruments a breeze. Connect your analog depth, speed and wind transducers directly to respective instrument display, or use the displays as repeaters for SeaTalk^ng smart transducer data: the choice is yours.

The ultra-sleek design of i60 line is designed to complement our full line of a-Series, c-Series and e-Series Multifunction displays, and looks great on the helm of any boat. Each instrument comes with a low-profile surface mounting kit and silicone rubber sun cover. An optional bracket mounting kit is also available separately.

i60 Instruments are designed to operate from 12V DC power, and are ultra-efficient drawing less than 1W as repeaters, or 2.4W while hosting a transducer. All of the i60 Instruments are waterproof to IPX6 standards. The i60 instruments are all covered by Raymarine's industry leading 2-year warranty, upgradeable to 3-years at no charge by registering online with 90 days of purchase.

i60 Wind Instrument
Full featured wind display for cruising and racing sailboats. The i60 Wind features an easy-to-read analog dial, nighttime red backlighting and high-contrast text and graphics.

• Compatible with Raymarine's masthead transducer (recommend for sailboats) or the Rotavecta transducer (recommended for powerboats)

• Displays wind speed, direction, Beaufort, max wind speed, VMG, and tack

• Alarms for high and low apparent wind angle, low true wind speed, and maximum true wind speed.

• Apparent wind display and True wind when integrated with a compass or autopilot, and speed instrument

i60 Key Features

• Ultra-modern design complements Raymarine's latest a-Series, c-Series and e-Series Multifunction display and instrument systems.

• Large, crisp LCD displays with high contrast for excellent visibility.

• Red backlighting for outstanding night-time visibility.

• SeaTalk^ng and SeaTalk-1 Networking for maximum flexibility.

• Fully compatible with i70, p70 and p70R Color Instruments and Autopilots.

• 110mm x 115mm footprint is identical to older Raymarine ST60+ instrumentation making upgrading easy

Specifications:

• Shape: Square
• Instrument Function: Wind
• Box Dimensions: 4"H x 7"W x 10"L WT: 1.8 lbs
• UPC: 723193762851

Owner's Manual (pdf)

SI-TEX Inboard Rotary Rudder Feedback w/50' Cable - does not include    linkage [20330008]

Inboard Rotary Feedback

The SI-TEX Inboard Rotary Feedback, provides the Autopilot with information about the physical position of the rudder. This is necessary to provide optimum steering performance and accuracy. The rudder follower package includes rudder follower, 15.2cm (50') cable.

Features:

• Horizontal or vertical mounting positions

• Snap together assembly

• Stainless steel, brass and plastic construction

• Watertight glass fiber reinforced housing

Specifications:

• Type: Parts
• Box Dimensions: 4"H x 15"W x 15"L WT: 3.3 lbs
• UPC: 010407610160
