i50 SeaTalk^ng Instruments - Tridata

The i50 Instruments from Raymarine offer boaters an excellent combination of great looks, high performance and extreme value. Designed to accommodate either stand-alone or fully integrated installations, the i50 instruments feature Raymarine's exclusive SeaTalk^ng networking for simple installation and bullet-proof reliability. Each instrument offers extra-large digits, razor-sharp LCD displays and red backlighting for outstanding visibility in all lighting conditions. i50 Digital Instrument displays are fully compatible with our i70 Color Multifunction Instrument too. Boaters can now customize their systems with any combination of monochrome LCD, color LCD and analog instruments as needed. Raymarine also offers the p70 and p70R Color Autopilot controllers which also match with our instruments and multifunction displays.

For the ultimate in flexibility the i50 Instruments support SeaTalk^ng 0 CANBUS networking, as well as our original SeaTalk 1 networking. This makes upgrading older instruments a breeze. Connect your analog depth, speed and wind transducers directly to respective instrument display, or use the displays as repeaters for SeaTalk^ng smart transducer data: the choice is yours.

The ultra-sleek design of i50 line is designed to complement our full line of a-Series, c-Series and e-Series Multifunction displays, and looks great on the helm of any boat. Each instrument comes with a low-profile surface mounting kit and silicone rubber sun cover. An optional bracket mounting kit is also available separately.

i50 Instruments are designed to operate from 12V DC power, and are ultra-efficient drawing less than 1W as repeaters, or 2.4W while hosting a transducer. All of the i50 Instruments are waterproof to IPX6 standards. The i50 instruments are all covered by Raymarine's industry leading 2-year warranty, upgradeable to 3-years at no charge by registering online with 90 days of purchase.

i50 Tridata Instrument
The i50 Tridata is a convenient 3-line instrument that combines the functions of the Speed and Depth Instruments into one display. This makes the i50 Tridata ideal for installations on helms where space is a premium, or as a depth and speed repeater solution for other locations on the boat.

• Red backlighting for outstanding night-time visibility.

• SeaTalk^ng and SeaTalk-1 connectivity for maximum flexibility

• Use a primary display or as repeater of i50 depth and speed instruments

• Built-in depth and speed transducer connections

• Ultra-modern design complements Raymarine's latest a-Series, c-Series and e-Series Multifunction display and instrument systems.

• Large, crisp LCD displays with high contrast for excellent visibility.

• Red backlighting for outstanding night-time visibility.

• SeaTalk^ng and SeaTalk-1 Networking for maximum flexibility.

• Fully compatible with i70, p70 and p70R Color Instruments and Autopilots.

• 110mm x 115mm footprint is identical to older Raymarine ST60+ instrumentation making upgrading easy

Specifications:

• Shape: Square
• Instrument Function: Multifunction
• Digital/Analog: Digital
• Box Dimensions: 4"H x 7"W x 10"L WT: 2 lbs
• UPC: 723193730737

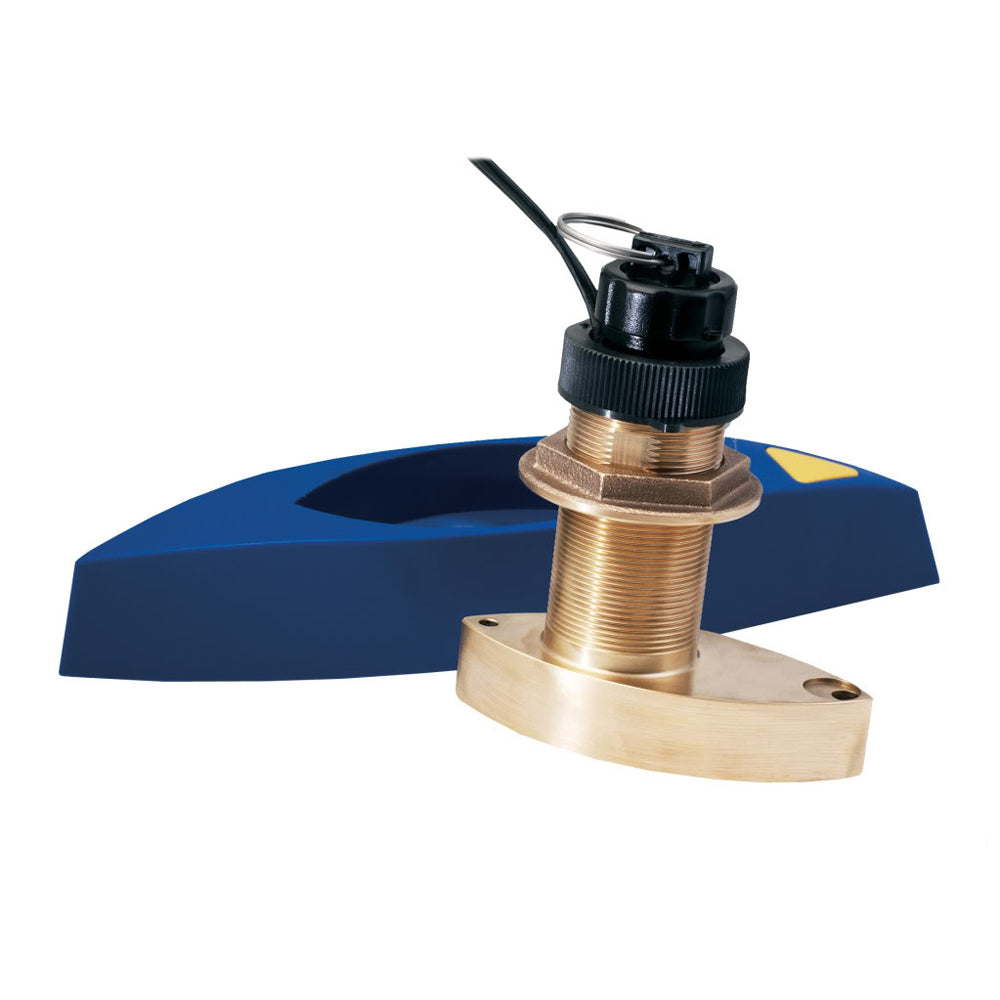

Garmin B744V 600W Triducer 50/200kHz - 8-Pin [010-10183-22]

B744V 600W Triducer 50/200kHz - 8-Pin

Garmin's bronze, thru-hull mount transducer with fairing provides depth, temperature and speed data. Garmin's transducer has an operating frequency of 50 or 200 kHz and mounts on a 0-24° deadrise angle.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Pins: 8
• Mounting Style: Thru-Hull
• Imaging: Standard
• Chirp: No
• Cable Length (Feet): 39'
• Speed Included: Yes
• Temperature: Yes
• Box Dimensions: 4"H x 12"W x 16"L WT: 7.6 lbs
• UPC: 801769000580

Owner's Manual (pdf)
Brochure (pdf)

PG700 Integrated Heading Sensor, NMEA2000

The PG-700 is a rate compensated heading sensor that incorporates innovative electromagnetic compass technology for highly accurate and stable readouts of your ship's heading. These sophisticated components are contained within a rugged, compact case. Unique design elements make the PG-700 virtually maintenance-free and easy to install. The PG-700 heading sensor detects terrestrial magnetism and produces compass data that can be utilized in CAN bus network.

Features:

• Angular velocity sensor and magnetic bearing sensor incorporated

• Automatic determination of installation site suitability

• L-shaped mounting base for mounting on bulkhead

• Output of magnetic bearing data to FURUNO CAN bus device

Verado Hydraulic Hose Kit

The Verado Hydraulic Hose Kit is a kit specifically designed for installing a SmartPilot Autopilot System on Mercury Verado Engines.

SI-TEX MDA-1 Metadata Class B AIS Transceiver w/Internal GPS - Must Be Programmed [MDA-1]

MDA-1 Metadata Class B AIS Transceiver

**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at time of purchase. A copy of the MMSI Registration or FCC Ship Station License is required along with the vessel master or owner's signature on the completed programming form.**

Click here to download form.

Utilizes a compact (5.5"X3.9"X1.9") module that is IPx7 Waterproof rated, for flexible location and rugged performance in any marine environment.

Class B AIS Transceiver featuring an Rmax Class B engine that provides maximum range and efficient real-time AIS message processing for all message types. Despite its compact size, the Metadata Class B Transceiver features an internal 50-channel GPS smart antenna, eliminating the need for an external GPS antenna in many installations. It also features NMEA0183, NMEA2000 and USB connectivity for easy plug-and-play installations on recreational or commercial vessels wanting to send and receive AIS data.

Unit will need to be mounted with a clear view of the sky to utilize the internal GPS antenna.

Specifications:

Power

• 12 to 24V DC
• Power consumption: 150mA @12VDC, <2W average

Data Interfaces

• USB
• NMEA2000
• IEC61162-1 (NMEA0183) output, 38400baud
• IEC61162-1 (NMEA0183) input, 4800baud
• Silent mode switch input

Supplied with

• 2m power and NMEA0183 cable
• User manual and quick start guide
• Product CD
• Fixing screws

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Display Included: No
• GPS Included: Yes
• Function: Receive/Transmit
• AIS Class: B
• Antenna Included: No
• Box Dimensions: 5"H x 6"W x 8"L WT: 1.6 lbs
• UPC: 010407510484

Brochure (pdf)

CVS-128 Digital Echo Sounder

Features a digital signal processor for a clearer high-definition image that enhances fish targets in shallow and deep depths. Brilliant 8.4" color LCD daylight viewable display with 8, 16 or 64 color levels, Dual-frequency 50/200 kHz operation, 1000 Watts with 8 ranges from 0-3600' and exclusive Sona-Tone identifies what's under boat with different sounds for fish or schools of fish.

Features:

• Stores up to 10 screen images in built-in memory for recall later.

• High-speed pulse rate transmission of 5000 times per minute for enhanced shallow water detection.

• Easy operation

• RGB output

• Auto fishing/cruising modes

• Audio/visual alarms

• Fishing hot spot function leads you back to your favorite fishing hot spots with input from GPS

• Bottom discrimination mode

• Real-time multi-color A-scope

• Built-in simulator

• Lat/Lon position with input from optional sensor

• Displays boat speed / surface water temp with Optional transducer

• IPX5 waterproof rating

• Over-head mounting and built-in flush mounting

• Display Unit with hard cover

• Mounting Bracket

• DC Power Cable

• Fuses

• Operation Manual

Specifications:

• Screen Size: 8.4"
• Transducer Type: Not Included
• Transducer Included: No
• Box Dimensions: 8"H x 11"W x 14"L WT: 10.85 lbs
• UPC: 010407320748

SI-TEX 18CI Pumpset 12V [81167]

Pumpset

Features:

• 18CU

• 12V

Specifications:

• Type: Pumps/Drives
• Box Dimensions: 4"H x 7"W x 11"L WT: 9.15 lbs
• UPC: 010407610238

SI-TEX CVS-126 Dual Frequency Color Echo Sounder [CVS-126]

CVS-126

Dual Frequency Color LCD Echo Sounder

The SI-TEX CVS-126 Dual-Frequency (50/200kHz) Echo Sounder features a digital signal processor (DSP) for a clearer image that enhances fish targets in shallow and deep depths, plus auto function for the most reliable setting and best performance.

Features:

• Digital 5.7" Dual-Frequency Color LCD Fishfinder

• a multi-conductor cable is supplied, used for power, and data output and input

• DSP technology for a clearer detailed image that enhances fish targets

• Digital signal processing

• State-of the-art digital signal processor offers advanced filtering capabilities

• Digital Filtering feature eliminates clutter by filtering out the noise to provide a clear detailed image that enhances fish targets in shallow and deep depths

• Making it easy to differentiate between baitfish, larger fish, schools of fish and the sea floor

• Sona-Tone

• Exclusive Sona-Tone identifies what's under your boat with different sounds for fish and schools of fish. So you will not miss any good opportunites even if you are away from the CVS-126

• Automatic Functions

• For best performance the Auto Function mode chooses the most reliable setting for such functions as Gain, Range and Shift

• Optimum settings are continuously selected automatically (GAIN, RANGE, SHIFT)

• Fishing Hot Spots

• Leads you back to your favorite fishing hot spots or other previously saved positioning in memory with input from optional GPS sensor

• Store the Image

• YouStores up to 10 screen images in built-in memory for recalling later by "one-touch"

• Great for recalling a potential hot spot for review later

• Easy Operation

• Easy access to all system functions with simply arranged keypad, dedicated-functions keys, rotary-knob control of Gain/Selection and comprehensive on-screen menus

• Sunlight Viewable

• Brilliant 5.7" color LCD display with 8, 16, or 64 color levels and an anti-reflective coating for excellent readability in direct sunlight

Specifications:

• Screen Size: 5.7"
• Transducer Type: Not Included
• Transducer Included: No
• Box Dimensions: 9"H x 11"W x 14"L WT: 5.55 lbs
• UPC: 010407320656

Quick Guide (pdf)
Owner's Manual (pdf)
