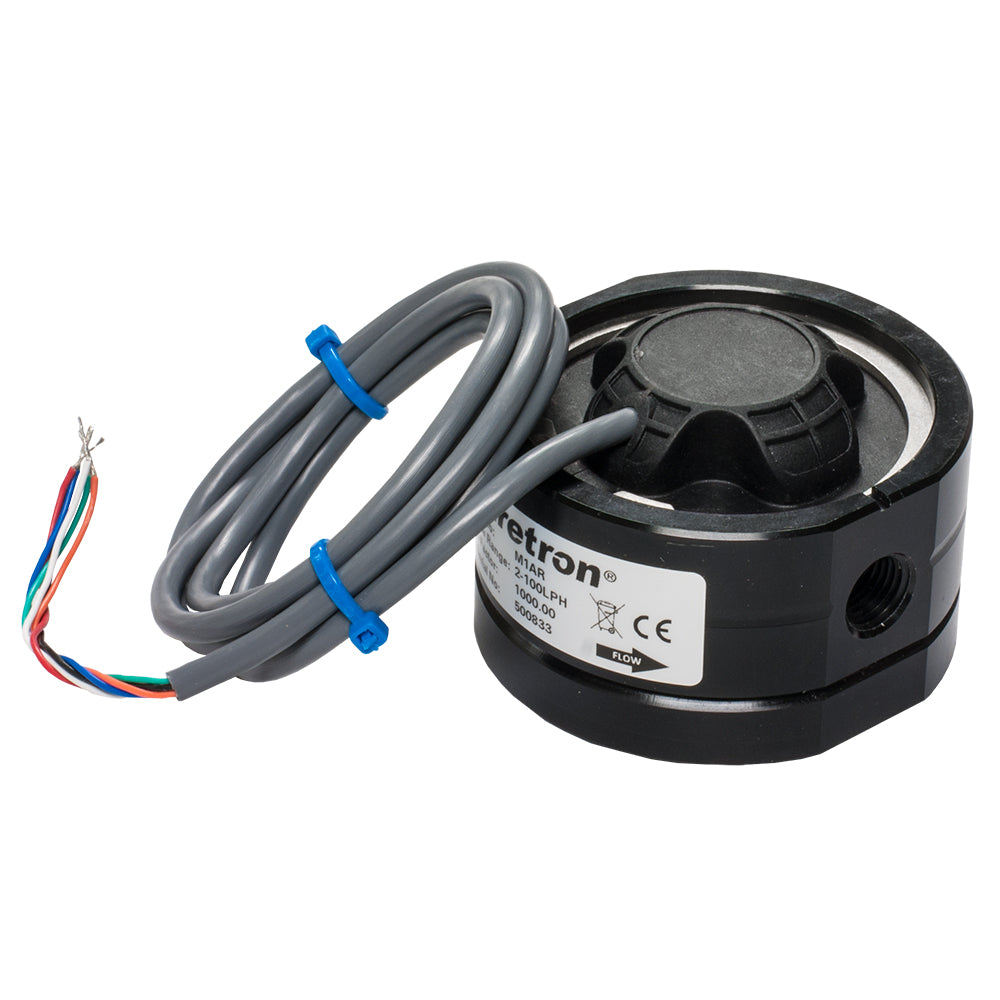

Fuel Flow Sensor - 2-100 LPH

Features:

• Flow Range: 2 LPH to 100 LPH (0.53 GPH to 26.4 GPH)

• All M1AR fuel flow sensor accessories for the FFM100 are fitted with 1/4" NPT female threads

• Nominal K Factor: 1000 pulses/L (3785.4 pulses/Gal)

• Cable Length: 1m (3.28')

• Strainer Size: 200 Mesh (If not already installed after fuel filter)

• Port Size: 1/4" NPT Female

• Maximum Viscosity: 1000 cPs

• Maximum Operating Pressure: 68.95 Bar (1000 PSI)

• Weight: 775g (1.71 lb)

• Construction: Aluminum Housing Material

• Rotors: PPS (Ryton)

• Shafts: 316/304 Stainless Steel

• Magnets: Samarium Cobalt

• O-Ring: FKM (Viton™)

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

CP370 Digital Sonar Module

High-Performance Sonar Module for Offshore & Coastal Fishing

Digital Sonar Module
The CP370 delivers exceptional clarity, sharper fish targets, and automatic operation using Raymarine's next-generation ClearPulse™ digital sonar processing.

The CP370 boasts up to 1,000 watts of power and operates at 200kHz for inshore and 50kHz for offshore fishing.

ClearPulse™ signal processing intelligently manages the CP370 sonar parameters in all conditions so anglers can spend more time fishing and less time adjusting the sonar.

Sharper, Clutter Free Targets
Spend less time looking for fish and more time fishing

• Smarter target intensity controls reveal bait and game fish with exceptional clarity

• Enhanced digital filtering reveals fish targets through the entire water column

• Spend less time looking for fish, and more time fishing. CP370 takes the guesswork out of interpreting the sonar display

• Up to 1,000 watts of power to track the sea floor down to 5,000 feet (1,500m)

• High performance dual-frequency (50/200 kHz) sonar for coastal and offshore fishing

• Track the bottom in extreme conditions with advance ClearPulse™ signal processing

• Improved bottom tracking algorithms deliver reliable performance in challenging conditions like running at high speeds and transitioning across canyons

• Recommended for Coastal Fishing

• Sonar Type: Digital

• Power: 600W/1000W depending on transducer

• Frequency & Channels: Fixed frequency 50kHz and 200kHz channels

• Depth Range: 5000 ft. (1,500m)

• Features ClearPulse™ automatic noise filtering and auto sensitivity control

• Standard Zoom

• IPX6 waterproof

• 12/24VDC

• 30.6W Maximum

CP470 CHIRP™ Sonar Module
High-Performance Sonar Module For Offshore and Coastal Fishing

CHIRP Sonar Module
Engineered for serious anglers, the CP470 sonar module bring best-in-class target separation and high resolution CHIRP sonar imagery to Raymarine multifunction displays. Using a wide spectrum of frequencies and greater sensitivity the CP470's advanced CHIRP transceiver can see through dense schools of baitfish, identify thermoclines, and simultaneously target desired game fish.

Rated for offshore use and rough conditions, the CP470 intelligently filters out unwanted noise while producing high resolution fish targets and reliable bottom tracking.

Serious Offshore Sonar
Superior target definition and enhanced sensitivity using Raymarine's exclusive wide spectrum CHIRP sonar technology.

Target fish, identify bait, and track the sea floor down to 10,000' (3,000M) with two adjustable CHIRP sonar channels.

Stunning Detail & Clarity
With 10 times the resolution of ordinary sonars the CP470 delivers sharper, more defined fish targets and automatically filter out unwanted noise so you never miss the action below.
TruZoom™ magnification mode reveals extra target detail without any loss of resolution.

Easy To Customise
Choose optional low, medium, and high CHIRP frequency transducers in standard or wide-beam to match your fishing preferences.

The CP470 automatically recognizes connected transducers and adjust sonar parameters for optimized performance
View and control each CHIRP channel independently and create your own combination of full or split screen sonar windows on Raymarine's LightHouse II powered multifunction displays.

Features

• TruZoom™TruZoom™ provides magnified views of fish targets, bottom structure, and baitfish without loss of resolution as seen by traditional sonar

• Automatic transducer identification with Airmar Xducer ID

• Airmar Wide Beam transducer compatible

• Waterproofing Standard:IPX6 waterproof rugged aluminum enclosure

• Compatibility:aSeries | cSeries | eSeries | gS Series

• Nominal Supply Voltage:12/24 V DC

• Power Consumption: 30.6W (Maximum)

• Connections:Power connection | Network connection (RayNet connector) 10/100 Mb/s | Transducer connection

• Sonar Type: Wide Spectrum CHIRP

• Power:1kW / 2kW depending on transducer

• Frequency & Channels:Dual independent CHIRP channels from 25 to 250kHz

• Depth Range:10,000' (3,000M)

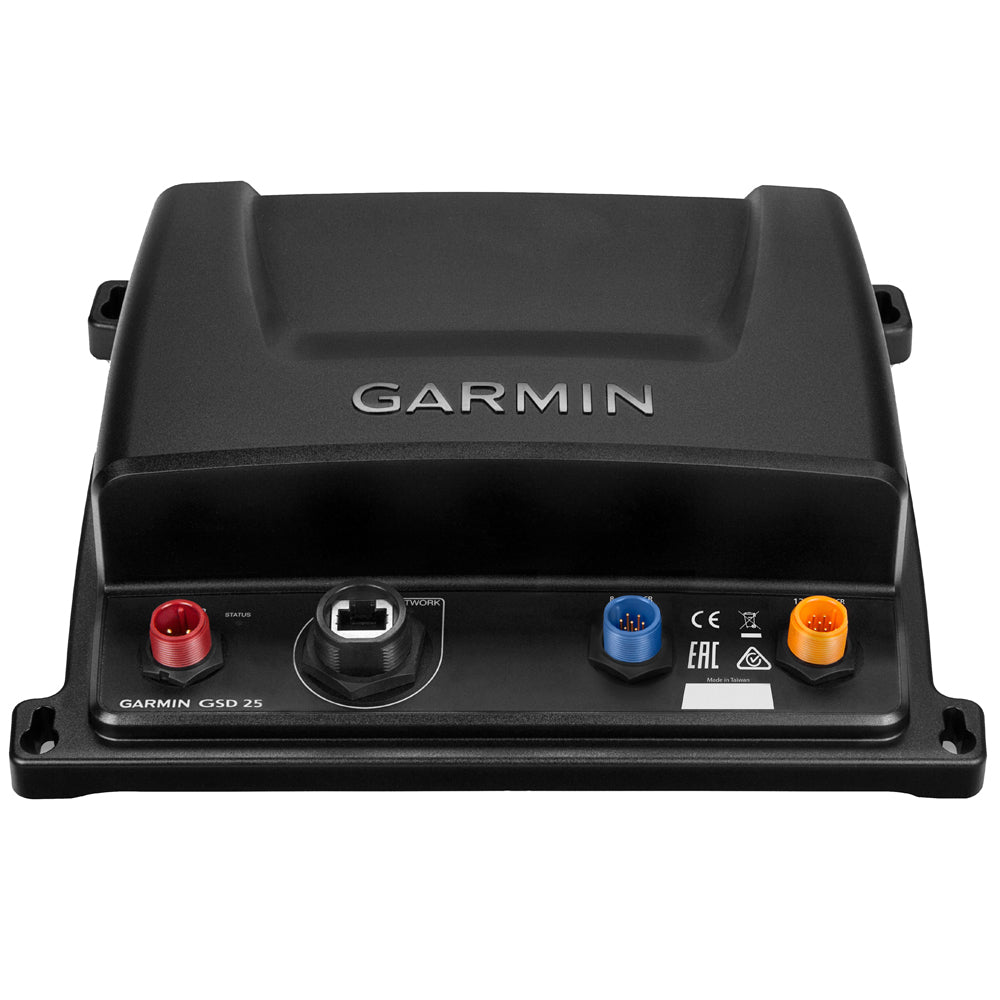

GSD™ 25 Premium Sonar Module

The GSD 25 premium sonar module is a remote network solution that provides outstanding fishfinding and bottom tracking capabilities. It offers dual-channel 1 kW CHIRP, plus Garmin CHIRP DownVü and SideVü sonar scanning for the clearest scanning images on the water. The images sent to your compatible Garmin chartplotter have target details so clear and precise, you can actually distinguish between small and closely spaced fish at key fishing depths all the way down to 5,000 feet.For the serious offshore sportfisherman, this "one-box" remote network sonar solution provides outstanding fishfinding and depth sounder capabilities for vessels with networked MFD installations.

True Dual-Channel 1kW CHIRP

CHIRP is the most sophisticated sonar technology available for use by the fishing and boating public. CHIRP is an acronym for Compressed High-Intensity Radiated Pulse. What it means to you is much better target resolution, clarity and crispness than any other sonar system. Having Garmin true dual 1 kW CHIRP as your traditional sonar allows you to adjust CHIRP frequencies to low/medium, low/high, medium/high to further optimize your sonar performance. Transducer sold separately.

Clearest Scanning Sonar Images on the Water

Adding CHIRP technology to DownV resolution, target separation and clarity of the sonar images of fish and structure that pass below and to the sides of your boat. Built-in to our new GPSMAP xsv combos and GSD 25 Premium Sonar Module, it uses 1 transducer for traditional CHIRP HD-ID sonar and CHIRP DownVü and SideVü scanning sonar. Transducer sold separately.

Choose a Garmin Transducer

This sonar is so unique Garmin has developed their own proprietary transducers that are specially designed to work with the sonar to provide the very best performance.

Features:

• Offers dual-channel 1kW CHIRP
• SideVü and DownVü sonar scanning for the clearest images on the water
• Target detail so precise you can actually distinguish between small and closely spaced fish at key fishing depths
• Depth capability to 5,000 feet

Compatible Devices:

• GPSMAP® 8000 Glass Helm Series
• GPSMAP® 7400/7600 Series Displays

In The Box

• GSD 25
• Right-angle power cable (6 feet)
• Right-angle network cable (6 feet)
• Mounting hardware
• Documentation

Connections

• Transducer pin numbers: 8 Pin and 12 Pin

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

1st Watch Wireless Radar w/o Power Cable

Untether & Explore - Furuno 1st Watch Wireless Radar, that you can access directly from your iOS devices.

Move Around & Explore

With Furuno's 1st Watch Wireless Radar, you can do things previously impossible. You can bring the Radar display whenever you go, even put it on the iPhone in your pocket. Since the display is untethered, you are free to roam the vessel while maintaining full situational awareness of your surroundings. For example, you can bring the Radar display with you when jumping into the cabin quickly to grab fishing gear or other tools needed during your voyage.

Easy To Use At 1st Glance

Plug in the Radar, set up the free app from App Store and you're good to go. With familiar gestures it's a breeze to use; you can even use two iOS devices simultaneously. The app has been created with simplicity and efficiency in mind, providing reliable information that is easily accessible.

Features:

• 4kW Radar antenna, powerful yet compact in size (same housing as DRS2D)
• Wireless LAN, first Radar in the world accessible from your iOS devies
• No extra wiring needed except the power source, making installation a breeze
• Exceptionally simple setup and intuitive operation with user-friendly and free iOS app
• Extremely economical power consumption
• Vivid, multi-color Radar target presentation (1/8nm - 24nm)
• Simple touch interface with familiar gestures
• User selectable range scale from 0.125 to 24 nm
• Simultaneously connect and utilize 2 iOS devices, via high-sensitivity wireless signal
• Power Cable sold as an accessory. 001-266-010-00

Power Requirements:

• 12-24 VDC
• Only 24W

*Please note: iOS devices and accessories are sold separately and do not come included with this product.

Specifications:

• Range - Max (Miles): 24nm
• Power - Output: 4kW
• Box Dimensions: 11"H x 21"W x 21"L WT: 18 lbs
• UPC: 611679357090

T-760 Compact Color Radar with 4kW 18" Dome

Big radar performance and features are available for any size boat -- and budget with the SI-TEX T-760. A vertically oriented, slim case boasts advanced touch screen technology and a host of professional features. Powerful 4kW output ensures superior target acquisition and tracking in the the most challenging conditions.

The T-760 Series case measures only 5.4" W X 8.9" H X 3.5" D. Yet, this system boasts a long list of professional-grade features, including powerful 4kW output, up to 24nm range, multi-speed antenna rotation, standard 50-target AIS tracking capability and standard 10-target MARPA - features often associated with larger, costlier systems. Control of all these features is achieved via the T-760's touch screen LCD display and single rotary encoder dial, for simple, intuitive operation.

The series includes the T-760, equipped with an 18-inch compact radome antenna for solid performance in a wide range of conditions and range scale choices from 1/8th nm to 24nm. Both the T-760 and T-761 feature powerful 4kW transmitters, ensuring accurate detection and presentation of targets large and small. Both models also offer multi-speed antenna rotation (16/27/36/48rpm) for optimum target detection and tracking over a range of boat speeds.

Among many other notable standard features of the T-760 Series are Relative Motion, True Motion, North-Up, Head-Up and Course-Up presentation modes, Auto or Manual Sea/Rain Clutter modes, 11 Trail Indication settings (including Off and Continuous), and more. With input from a SI-TEX Metadata AIS module (or other AIS receiver), the T-760 Series can track up to 50 AIS targets simultaneously for enhanced navigational safety in crowded waterways. With input of bearing, ship's speed and lat/lon data, the T-760 Series empowers navigators with professional MARPA tracking of up to 10 targets at distances up to 20nm.

In the SI-TEX tradition, the T-760 Series radar is ruggedly built to withstand harsh conditions at sea on commercial as well as recreational vessels. SI-TEX's two-year limited warranty and Long Island, New York-based service department are the navigator's assurance of reliable performance and long-term satisfaction

Features:

• 7" color LCD display
• 10M Cable
• Intuitive touch screen/rotary dial control
• Standard 50 target AIS tracking
• Standard 10 target MARPA
• Multi-speed (16-48 rpm) antenna rotation for optimum performance in real-world conditions
• Features include Relative Motion/True Motion/Head-Up/North-Up
• Optional color RGB video output

Specifications:

• Array Size (Inches): 18"
• Power - Output: 4kW
• Range - Max (Miles): 24nm
• Screen Size: 7"
• Box Dimensions: 16"H x 21"W x 21"L WT: 30 lbs
• UPC: 010407230740

Autopilot Control Unit (ACU)

The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalk^ng bus. Choose the ACU that fits your steering system type.

Drive Current Output
Maximum continuous 7 Amps at supply voltage
Drive Clutch Output
No clutch connection

Connections

• Rudder reference sensor

• Power

• Drive motor

• Ground

• Operating Temperature: -20°C to +55°C (-4°F to +131°F)

• Storage Temperature: -30°C to +70°C (-22°F to +158°F)

• Relative Humidity: MAX 93%

• Connector Panel: IPX2

• Drive Electronics: IPX6

• Europe: 2004/108/EC

• Australia and New Zealand: C-Tick, Compliance Level 2

Specifications:

• Type: Parts
• Box Dimensions: 4"H x 8"W x 12"L WT: 2 lbs
• UPC: 723193768907

EV-100 Power Evolution Autopilot

Features:

• A complete autopilot-in-a-box
• Type 0.5 Hydraulic Pump included
• Evolution Ai for superior performance
• No calibration required
• Ideal for small, hydraulically steered powerboats
• Built-in trolling patterns
• For 12V DC power systems
• Includes p70Rs Autopilot Controller

Includes:

• EV-1 Sensor Core
• p70Rs Autopilot Control Head
• ACU-100 Actuator Control Unit
• Type 0.5 Hydraulic Pump 12V
• Evolution Cabling Kit
• EV Unit O-Ring Pack (set of 2)
• Wall Mounting Bracket

The EV Sensor Core

At the center of every Evolution system is the intelligent EV sensor core, a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-toinstall housing.

Mount the EV sensor core above or below decks, the rugged enclosure is fully sealed and built to IPX6 and IPX7 waterproofing and submersion standards.

The EV-1 is designed for Evolution mechanical and hydraulic autopilot systems. SeaTalk^ng networking enables a single cable connection for power and data to the Evolution ACU (actuator control unit) and extended SeaTalk^ng and NMEA2000 networks.

Features:

• Precision monitoring of heading, pitch, roll, and yaw allowing the autopilot to evolve instantly as sea conditions and vessel dynamics change
• Flexible installation options
• Mount above or below deck
• Simple SeaTalk^ng connectivity to the control head and ACU
• Solid state sensor technology delivers dynamic accuracy to within 2 degrees in all conditions
• Fast and reliable heading data for MARPA, radar overlay, and heading modes on Raymarine multifunction displays

P70Rs Autopilot Control Head

The p70RS has a convenient rotary control knob and support for multiple autopilot modes including Auto, standby, trolling patterns, and track mode from your GPS or chartplotter.

Features:

• LightHouse user interface is simple and quick to use
• Wide 160° viewing angles
• Start up wizard helps you configure the pilot quickly and easily
• Anti-reflective coating for improved visibility in bright sunlight
• Low power - typically 132mA/1.6W - 27% less than ST70 at x4 measured brightness
• Supported autopilot modes: Auto; Standby; Pattern; Track; Wind Vane; Power Steer and Jog Steer
• Simple system and group dimming/illumination
• Support for multiple data sources
• SeaTalk^ng/NMEA2000 and SeaTalk1 connectivity (no bridging required)

ACU-100 Autopilot Control Unit (ACU)

The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalk^ng bus. Choose the ACU that fits your steering system type.

Support Drive Units

Type 0.5 Hydraulic Pump included-3.1" to 6.7" cu in ram

Evolution Cabling Kit

• 1 x SeaTalk^ng Power Cable (0.4m)
• 1 x SeaTalk^ng Backbone Cable (5m)
• 1 x SeaTalk^ng Spur Cable (0.4m)
• 1 x SeaTalk^ng 5-way Connector Block
• 2 x SeaTalk^ng T-piece Connector
• 2 x SeaTalk^ng Terminator

Specifications:

• Steering Type: Hydraulic
• Box Dimensions: 14"H x 17"W x 20"L WT: 16.2 lbs
• UPC: 723193854198
