B765C-LM Bronze CHIRP Transducer - Needs Mix & Match Cable - Does NOT Work with Simrad & Lowrance

Rely on Airmar’s broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 85 kHz of total bandwidth in just one installation, saving customers time and money.

A Thru-Hull Chirp transducer perfectly suited for smaller fishing boats, the B765L/M Chirps across the following bandwidths:*L/M -Low Frequency 40-75 kHz, Medium Frequency 80-130 kHz

* Please Note: The low frequency operating band is 300 W. The medium frequency operating band is 600 W.

Features

• Depth & fast-response water-temperature sensor
• Low—CHIRPS from 40 kHz to 75 kHz, 32° to 21° beamwidth
• Medium—CHIRPS from 80 kHz to 130 kHz, 24° to 16° beamwidth
• 85 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50, 88, and 107 kHz plus everything else in the bandwidth
• All the advantages of the larger Thru-Hull Chirp transducers, suitable for smaller boats
• Bronze transducer housing with High-Performance Fairing
• Boat Size: Up to 9 m (30’) and above
• Hull Type: Fiberglass or wood
• Exclusive Xducer ID® technology
• Hull Deadrise: Up to 24° with a fairing
• Acoustic Window: Urethane
• Weight: 2.5 kg (5.5 lb)

Specifications:

• Temperature: Yes
• Speed Included: No
• Pins: Bare Wires
• Mounting Style: Thru-Hull
• Imaging: Standard
• Chirp: Low/Medium
• Cable Length (Feet): 40'
• Box Dimensions: 4"H x 12"W x 16"L WT: 7.7 lbs

NavPro 1200 w/Wifi - Includes Internal GPS Receiver/Antenna

12" Touch Screen GPS/Chart Plotter w/Wifi, Includes Polaris Chart Card, all Accessory Cables & Internal GPS Receiver/Antenna

These powerful MFDs give fishermen, sailors and cruisers everything they need to navigate, catch fish and safely enjoy their time on the water, Hybrid Touch Control lets boaters operate the system using the large touchscreen display or a combination of robust hard keys, four-directional pad or rotary knob. WI-FI connectivity makes it easy to manage important data and software updates, allow for multiple display options and remote control of NavPro Series MFDs using a smartphone or tablet.

Features:

• Bright, high-resolution LCD displays
• Control the way you want, with advanced touchscreen or robust keys
• Offered with intergrated or Black Box CHIRP sonar
• Availabe in 46-65kHz, 100-140kHz or 160kHz-200kHz CHIRP
• Easy software updating over the Internet - no PC or app needed
• Mirror Control second display and remote control via NavPro app
• Automatic storage and synchronization of important data using Captain Cloud
• Backed by SI-TEX's 2 Year Warranty and U.S. based customer service

Precision navigation, powerful CHIRP sonar options and advanced connectivity and control-what more could today's modern boater want?!

Specifications:

• Cartography Brand: C-Map
• Screen Size: 12"
• Touchscreen: Yes
• Internal/External Antenna: Internal
• Box Dimensions: 6"H x 14"W x 17"L WT: 7 lbs
• UPC: 010407110905

NavPro 900 w/Wifi - Includes Internal GPS Receiver/Antenna

9" Touch Screen GPS/Chart Plotter w/Wifi, Includes Polaris Chart Card, all Accessory Cables & Internal GPS Receiver/Antenna

These powerful MFDs give fishermen, sailors and cruisers everything they need to navigate, catch fish and safely enjoy their time on the water, Hybrid Touch Control lets boaters operate the system using the large touchscreen display or a combination of robust hard keys, four-directional pad or rotary knob. WI-FI connectivity makes it easy to manage important data and software updates, allow for multiple display options and remote control of NavPro Series MFDs using a smartphone or tablet.

Features:

• Bright, high-resolution LCD displays
• Control the way you want, with advanced touchscreen or robust keys
• Offered with integrated or Black Box CHIRP sonar
• Available in 46-65kHz, 100-140kHz or 160kHz-200kHz CHIRP
• Easy software updating over the Internet - no PC or app needed
• Mirror Control second display and remote control via NavPro app
• Automatic storage and synchronization of important data using Captain Cloud
• Backed by SI-TEX's 2 Year Warranty and U.S. based customer service

Precision navigation, powerful CHIRP sonar options and advanced connectivity and control-what more could today's modern boater want?!

Specifications:

• Internal/External Antenna: Internal
• Cartography Brand: C-Map
• Touchscreen: Yes
• Screen Size: 9"
• Box Dimensions: 5"H x 9"W x 14"L WT: 4.85 lbs
• UPC: 010407110868

i70s System Pack with Color Instrument & Wind, DST Transducers, iTC-5, 3M Backbone, T-Piece, Power & 2 Backbone Terminators

Instrument Data is Now Beautiful

Maximum Visibility and Maximum Versatility

The i70s multifunction gives you the flexibility to display instrument and navigation data that is most important to you. Equipped with a bold and bright 4.1” display the i70s is easy-to-customize with digital, analog and graphical displays of depth, speed, wind and more. Add the i70s to your existing Raymarine instrument system or create a network of i70s displays and sensors, the choice is yours.

Features:

• 4.1” super bright oversized LCD for maximum visibility
• All weather optically bonded display technology delivers brighter colors, sharper contrast, and a wide viewing angle
• New glass bridge industrial design compliments Raymarine eS and gS Series multifunction displays
• Simple user interface with sculpted rubber keypad for precise operation in all conditions
• Customizable data displays of depth, speed, wind and more
• SeaTalkng networking for seamless connectivity to Raymarine systems and NMEA2000* networks
• NMEA2000 connectivity* for engine, environment fuel and navigation data
• Convenient AIS repeater mode allows you to visually track nearby AIS targets
• Combine the i70s with the ITC-5 instrument transducer convertor and connect to analog depth, speed, and wind sensors
• Network the i70s with Airmar DST800 transducers and the new in-hull P70s smart transducer
• Supplied with both black (eS Series style) & (e Series style) gunmetal bezels and protective suncover

*NMEA2000 certification pending. A DeviceNet to SeaTalkng adaptor is required for connecting the i70s to NMEA2000 backbone.

Intuitive LightHouse User Interface

The i70s places frequently used navigation functions right at your fingertips. The LightHouse instrument interface is consistent with Raymarine LightHouse multifunction displays, so Raymarine MFD users will feel right at home with the i70s.

Networking

Raymarine i70s allows for connectivity to the following on board networks:

• First generation SeaTalk networks using a SeaTalk to SeaTalkng adapter cable
• Current generation SeaTalkng networks
• NMEA2000 networks using a SeaTalkng to DeviceNet adaptor
• In addition to flexible networking capability the i70s features user-selectable data sources, for integration with multi-sensor networks.

AIS Repeater

Display AIS targets from NMEA 2000 AIS receivers. View the closest 25 AIS-equipped vessels and select individual targets to obtain vessel information.

Transducer Connectivity

Pair i70s instruments with the innovative iTC-5 instrument transducer converter for seamless integration with analog depth, wind, speed, compass and rudder transducer. Alternatively, you can network the i70s to DST800 and p79s Airmar smart tranducers.

Customization

The Raymarine i70s instrument is easily customized to suit your personal boating requirements.

From traditional analog dials to engine information and tank levels, i70s has the capabilities to show it all.

Package Contains:

1ea E70327 i70s Instrument

1ea E70010 ITC-5

1ea A22154 DST800 Transducer

1ea E22078 Standard Wind Transducer

2ea A06031 Backbone Terminator

1ea A06064 5-Way Connector

1ea A06035 Backbone Cable 3M

1ea A06049 Power Cable

Specifications:

• Instrument Function: Multifunction
• Box Dimensions: 7"H x 14"W x 26"L WT: 13.15 lbs
• UPC: 723193854082

AIS™ 800 Blackbox Transceiver

**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at time of purchase. A copy of the MMSI Registration or FCC Ship Station License is required along with the vessel master or owner's signature on the completed programming form. **

Click here to download form.

Help Avoid Running into Trouble on the Water

• Easy-to-use, reliable communication transmits your vessel information to other AIS receivers in your area while receiving AIS target data
• 5 watts of transmit power with Class B/SO provides faster positioning reporting than ever before¹
• Built-in GPS with connector for optional external antenna
• NMEA 2000® connectivity for easy integration with compatible chartplotters and multifunction displays
• Internal VHF antenna splitter allows VHF and AIS to share a single antenna

Increase your situational awareness and confidence on the water with the Garmin AIS 800 transceiver. It has 5 watts of transmit power and provides faster position reporting than ever before¹. It transmits your vessel information to other AIS receivers in your area while it receives their AIS target data. Garmin AIS 800 has an internal VHF antenna splitter, which allows the VHF and AIS to share a single antenna. It includes a built-in GPS (with connector for optional external antenna) and integrates seamlessly into the Garmin onboard system. The transceiver features NMEA 2000 connectivity for easy integration with compatible chartplotters and multifunction displays. And it’s all packed into an easy-to-install black box unit with a small footprint.

In The Box

• AIS 800
• NMEA 2000® T-connector
• NMEA 2000 drop cable (2 meters)
• VHF antenna extension (1.2 meters)
• USB adapter cable
• Power cable
• Mounting hardware
• Documentation

¹When cruising above 14 knots

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Display Included: No
• GPS Included: Yes
• Function: Receive/Transmit
• Antenna Included: No
• AIS Class: B
• Box Dimensions: 6"H x 8"W x 10"L WT: 5.6 lbs
• UPC: 753759209919

B285HW Bronze 1kW Wide Beam Chirp Thru-Hull Transducer

Requires Mix and Match Cable

Get more coverage under the boat with Airmar's wide beam Chirp product line. Offering a high frequency range of 150-250 kHz and a constant 25° Beamwidth, these transducers are truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the single band, wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducers

A unique property of the high frequency transducers is that the Beamwidth is a constant 25° angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's new wide beam format also creates crisper and larger return images on the display. We've got you covered.

Features:

• Depth & temperature
• 150-250 kHz High frequency
• Bronze housing
• 1 kW
• Wide 25° beam
• Exclusive Xducer ID® technology
• Boat Size: Up to 9M (30')

Specifications:

• Hull Deadrise: Up to 24°
• Acoustic Window: Urethane

Specifications:

• Mounting Style: Thru-Hull
• Chirp: High Wide
• Box Dimensions: 7"H x 18"W x 25"L WT: 18.8 lbs
• UPC: 801769002263

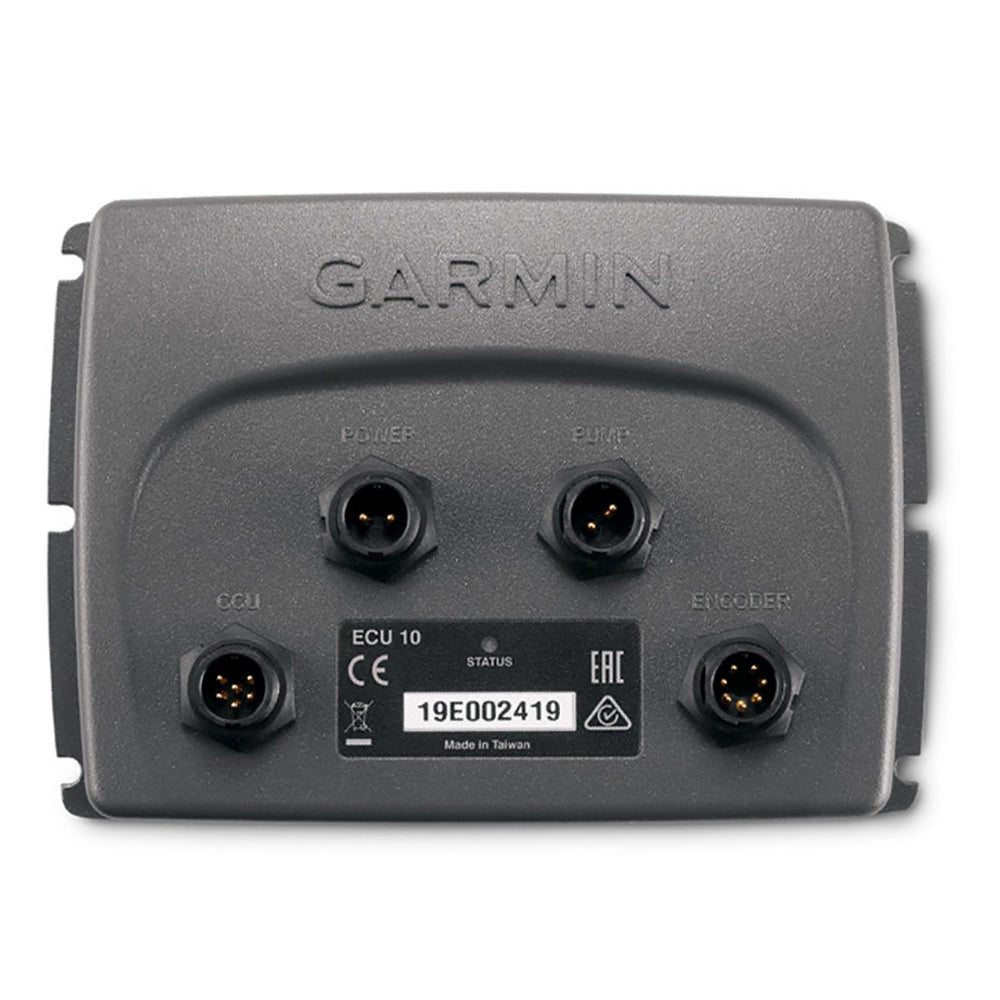

Garmin Electronic Control Unit (ECU) for GHP Compact Reactor [010-11053-01]

Electronic Control Unit (ECU) for GHP Compact Reactor™

One of the 5 main components of your GHP Compact Reactor autopilot system, the ECU connects and powers the course computer unit (CCU) and the hydraulic pump, controlling the pump based on information received from the CCU.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

DRS6ANXT Solid-State Doppler Radar Open Array - Add Cable & Array Antenna

The DRS6ANXT leverages the same pulse compression and Doppler frequency shift sensing technologies featured in the DRS4DNXT, as well as offering the same simplified connection with TZtouch and TZtouch2, and TZtouch3.

Target Analyzer

Target Analyzer may be one of the most innovative and revolutionary features available in the NXT family, automatically changing the color of targets approaching your boat to clearly show potential hazards. Green echoes represent stationary targets, land, or approaching targets moving at a velocity of less than 3 knots. Echoes dynamically turn red when targets are approaching your vessel at a speed of 3 knots or faster. It works the same when you are following another vessel. If the target is getting closer at a speed of 3 knots or more, the echo will be depicted in red. Incredibly, Target Analyzer works independently of one's own ship speed!

Target Tracking

Interpreting and tracking threats is easier than ever with NXT radar. Using Furuno's advanced Doppler technology, NXT Radars acquire and track targets in virtually every sweep. Almost instantly, you'll see the target's speed and course vector, and if the target is hazardous, it will also be displayed in red, making it easier to identify and predict its course. The NXT Radar's incredible ARPA signal processor tracks and displays up to 100 targets! The entire target theater can be viewed, monitored, and tracked simultaneously, at any range. For an even more detailed display, target trails and Furuno's unique True Trail feature can be utilized, allowing you to graphically see the direction in which a target is moving, independent of your own vessel's motion.

Bird Mode

Bird Mode is another standard feature found in NXT Radars. With a single selection on the MFD, the Radar automatically adjusts settings for echo enhancement to help locate birds. Of course, finding birds is an important step to zeroing in on the bite.

RezBoost

The resolution of NXT Radars is already impressive, but we've taken it a step further by incorporating our exclusive RezBoost beam sharpening technology. With RezBoost set to maximum, NXT Radars offer enhanced target separation, in addition to its impressive long-range target detection.

*NEED TO ORDER YOUR SIGNAL, POWER CABLE, AND ANTENNA SEPARATELY
