Transom Mount Multi-Beam Transducer

The 165T-TM54 is a multi-beam transducer for the DFF3D that affords a 120 degree port-starboard view of the underwater world. A built-in motion sensor stabilizes the display to give clear and stable images.

Features:

• Transom mount with stainless steel kick-up bracket
• DFF3D operating frequency: 165 kHz
• 2 x 10M Cables
• Bare ended cable for DFF3D sonar
• 7 pin connector for the motion
• Built-in motion sensor
• Built in temp sensor

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Explorer NavPro with Wi-Fi - No GPS Antenna

Electronic Charting System Control Unit

The Explorer NavPro Multi-Function Navigation System turns almost any "off the shelf" PC monitor into a full-featured C-MAP electronic charting system. Couple this unique product to an existing onboard monitor or add just about any size CRT or flat panel display for a very convenient two piece charting system with unlimited mounting possibilities.

Features:

• HDMI Video Output - replaces the original VGA Output of older models
• NMEA-2000 Network provides Engine Monitoring Capability & AIS Integration
• 2 NMEA-0183 Ports + GPS Smart Antenna Port
• Gigantic 4GB of Internal Mark and Track Memory
• Easy to use Operating System
• Extremely Fast Ultra Powerful Processor
• File Management System makes it very easy to save, edit and manage Mark, Track, and Route Memories
• Uses C-Map Max or C-Map 4D mini SD Card format for Navigation Chart Data
• Optional RF Remote Control, (#ENP-REMOTE) allows the unit to be operated from multiple locations

Specifications:

• Cartography Brand: C-Map
• Touchscreen: No
• Box Dimensions: 5"H x 8"W x 12"L WT: 2.2 lbs
• UPC: 010407110806

AIS700 Class B AIS Transceiver with Antenna Splitter

**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at time of purchase. A copy of the MMSI registration or FCC Ship Station License is required along with the vessel master or owner's signature on the completed programming form.**

Click here to download form.

The AIS700 from Raymarine is a Class B Automatic Identification System (AIS) transceiver designed for use with Raymarine multifunction navigation display systems.  AIS is an international marine navigation safety system that allows participating vessels to silently exchange key navigation information including vessel name, identification, course, speed and more.  AIS contacts can be displayed on Raymarine multifunction displays, chartplotters, radar displays and select instruments.  As a Class B AIS transceiver, the AIS700 not only receives broadcasts from other vessels, it also transmits your own boat’s information too helping you to be seen on other vessels’ systems.

The AIS700 is engineered using the very latest SO-TDMA (Self Organized Time Division Multiple Access) networking technology which allows it to perform faster and at longer ranges than d speed over previous generation AIS products.  For ease-of-installation, the AIS700 has a built in VHF-band antenna splitter which allows it to share a single antenna with your current VHF radio.  AIS700 also has its own internal, dedicated 72-channel GPS receiver with external antenna as required by international standards.

AIS700 also supports both hardware and software-enabled Silent Mode.  This allows you to temporarily restrict broadcasting your vessels own data, while continuing to receive updates from surrounding traffic.  Silent Mode can be particularly useful when transiting waters where extra security is a concern, or even in competitive tournament scenarios when you might want to prevent other from finding out the location of the hot bite.  Normal AIS safety broadcasts can be easily reinstated with a few simple touches of the AIS controls in your Raymarine MFD, or with the flip of a switch for hardware-silenced systems.

The AIS700 is super-compact for easy mounting inside your helm, in a service locker, or other out-of-the-way location.  It can connect to your other onboard electronics using the latest NMEA2000 networking.  AIS700 also has a built-in NMEA0183 multiplexer to assist in connecting it to older MFD’s and VHF radio systems.  AIS700 also has a built-in USB 2.0 connection that can be used to tie the transceiver into a computer or laptop running AIS compatible navigation software.  AIS700 has a Secure Digital (SD) memory slot that can be fitted with an owner-suppled flash memory card for continuous recording of the AIS data stream.

Features:

• Full transmit and receive AIS for enhanced situational awareness and safety
• Latest SO-TDMA networking for longer range and faster performance
• Built-in antenna splitter simplifies installation with existing VHF radio antenna
• NMEA2000, NMEA0183, PC and SeaTalk^ng Compatible
• Software or hardware switchable Silent Mode for enhanced security when needed

In the Box

• AIS700 Class B AIS Transceiver with built-in VHF antenna splitter
• GNSS (GPS) Antenna, gasket and pole mount kit
• Power and data cable (2 meters)
• VHF Radio antenna interconnect cable (1 meter)
• DeviceNet to SeaTalk NG Cable (1 meter)
• Mounting Hardware
• Pro-AIS Programming Software CD-ROM
• Documentation kit

Specifications:

• GPS Included: Yes
• Function: Receive/Transmit
• Display Included: No
• Antenna Included: No
• AIS Class: B
• Box Dimensions: 5"H x 9"W x 14"L WT: 3.85 lbs
• UPC: 723193822616

B175M Bronze CHIRP 0° Thru-Hull Transducer

Features:

• Depth/Temperature
• Thru-Hull
• Hull deadrise = 0º to 7º
• CP450C Plug on Cable
• Urethane
• Frequency: Medium 80-130 kHz
• Power: 1KW
• Medium: 24-16 degree beamwidth
• Hull type: Fiberglass and Wood
• Note: Requires A80328 Single B75/B175 Operation Cable

Specifications:

• Mounting Style: Thru-Hull
• Chirp: Medium
• Imaging: Standard
• Temperature: Yes
• Speed Included: No
• Box Dimensions: 8"H x 11"W x 12"L WT: 11.6 lbs
• UPC: 723193729069

EV-150 Evolution Core Pack - No Drive

The Evolution EV-150 Core Pack comes complete with our p70Rs autopilot controller, EV1 Sensor Core, ACU150 Actuator Control Unit, and an Evolution autopilot cabling kit.

Engineered for simplicity, Raymarine's award-winning Evolution autopilots eliminate the need for complicated set up and calibration. Thanks to the intelligent 9-axis EV sensor core, the autopilot automatically evolves and adapts to your vessel's steering characteristics without any user adjustments. The result is precise and confident course keeping, regardless of vessel speed or sea conditions.

The Evolution EV-150 system also employs Raymarine's patented Hydro-Balance™ technology which delivers superior autopilot performance for hydraulically steered boats, particularly those with outboard motors and rudder-reference less systems. Hydro-Balance automatically compensates for hydraulic system elasticity, steering system asymmetry, and torque steer to keep your boat on-course at trolling speed, cruising speed, and all-out running.

Anglers will also love the Evolution Autopilot's built-in trolling patterns. Let the autopilot work the boat while you prep bait, set your lines and adjust your spread.

The system is also equipped with Raymarine latest Evolution TrackIQ™ algorithms which deliver tighter track-keeping and faster track acquisition. It also uses information on vessel pitch, roll, yaw and heave to stabilize GPS navigation data like course over ground, speed over ground and cross track error for the best possible tracking to waypoints and routes.

The Raymarine EV-150 Hydraulic Autopilot System Pack is the ideal autopilot for small to medium sized hydraulically steered vessels with a steering ram capacity between 4.9 cu. in. (80cc) and 14.0 cu in. (230cc). The system is for 12-volt DC electrical systems only.

**Requires M81120 Type 1 12v Hydraulic Pump

Includes

• E70329 p70Rs Control Head
• E70096 EV-1 Sensor Core
• R70160 Evolution Cable Kit
• E70430 ACU-150 Actuator Control Unit

Specifications:

• Steering Type: Hydraulic
• Box Dimensions: 8"H x 17"W x 20"L WT: 8.2 lbs
• UPC: 723193854594

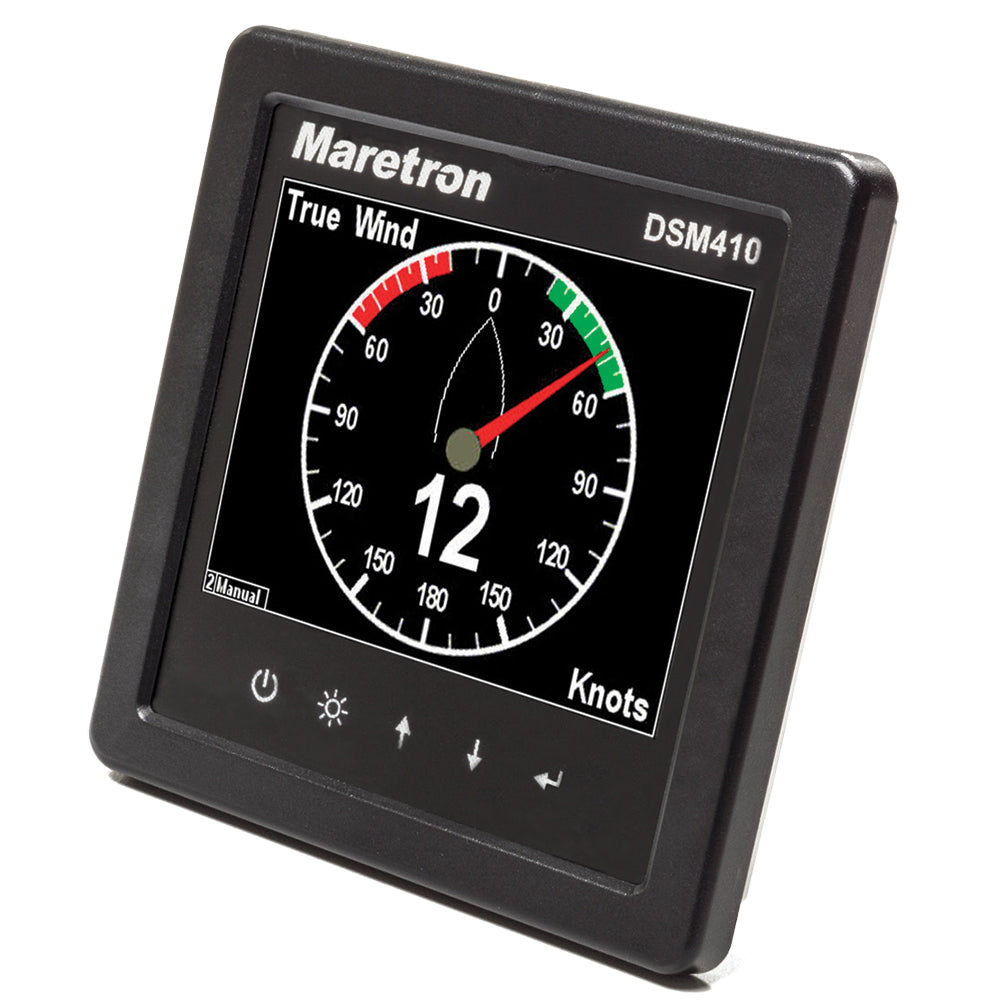

Maretron 4.1" High Bright Color Display - Black [DSM410-01]

4.1" High Bright Color Display - Black

Maretron’s DSM410 is a 4.1” high-resolution sunlight viewable color display that interprets and displays NMEA 2000® instrument, navigation, and vessel monitoring data. The DSM410 is a user friendly dedicated marine display with custom screen configurations and an easy-to-use five-key illuminated keypad. In addition to the monitoring and display capabilities, the DSM410 features an alert/alarm package and electrical switching capability.

Unlike traditional single-display units, DSM410 users can choose numeric, gauge, bar or graph formats in single or multiple displays, with cycling options possible for a wide range of favorite data. These multiple display options conserve mounting space and reduce overall system cost.

The DSM410 will directly connect with any NMEA 2000® network and with the exception of AIS data will display any or all information captured throughout the vessel. Various audio and visual alarms are also programmable.

The DSM410 displays a multitude of information including AC power, anchor status, battery, depth, electrical distribution, engine, environment, fuel management, GPS, heading, navigation, pressure/vacuum, rudder, speed, status indicators, tanks, temperature, time, transmission, water makers, weather, wind and more.

The DSM410 includes a comprehensive, flexible alert capability. Configure audio and visual alerts on virtually any data that the DSM410 is capable of monitoring. Available alert types include:

• High alert
• Low alert
• Data unavailable alert
• On alert
• Off alert
• Circuit breaker tripped alert
• Course alert
• GPS quality alert
• Outside radius alert
• Inside radius alert
• Direction alert
• Timer alert

The DSM410 is capable of sharing alert information with other DSM410 units as well as any DSM150, DSM250 and N2KView® installations on the network. An alert defined on any device can be acknowledged on any other device on the network.

Maretron's DSM410 is engineered and manufactured to the highest standards (IEC 60945 Maritime Navigation and Radiocommunication Equipment). Its compact waterproof housing will provide years of reliable performance.

Examples of data that the DSM410 can display are:

• AC power (Average Frequency, Voltage and Current, Phase-Neutral Frequency, Voltage and Current, Phase-Phase Frequency, Voltage and Current
• Anchor Watch
• Battery / DC (Voltage, Current, Battery Temperature, Battery State of Charge, Battery Time Remaining, Ripple Voltage, Power)
• Depth (Water Depth, Depth below Transducer)
• Electrical (Resistance)
• Electrical Distribution (Switch/Breaker, Breaker Current, On/Off/Error Counters, On/Off/Error Timers)
• Engine Monitor (Boost Pressure, Hours, Coolant Pressure, Coolant Temperature, Exhaust Gas Temperature, Fuel Pressure, Fuel Rate, Oil Pressure, Oil Temperature, Tachometer, Tilt/Trim, Voltage, Fuel Econmony, Fuel Consumption, Percent Load, Percent Torque, Trip Fuel Used, Warning Indicators)
• Environment (Barometer, Heat Index, Humidity, Temperatures, Wind Chill)
• Fluid Flow (Flow Rate, Trip Volume)
• Fuel management (Distance to Empty, Time to Empty, Total Fuel Capacity, Total Fuel Level, Total Fuel Consumption, Total Trip Fuel Used, Total Fuel Economy, Total Fuel Remaining)
• GPS (COG, Lat/Lon, SOG, Satellites, Time, Accuracy)
• Heading (Heading, Rate of Turn, Variation)
• Humidity (Inside, Outside, User Defined
• Indicators (Status, , On/Off/Error Counters, On/Off/Error Timers)
• Mechanical (dB, Force, Strain)
• Motion (Acceleration, Angle, Angular Velocity, Angular Acceleration, Distance, Rotation Rate, Velocity)
• Navigation (BOD, BTW, COG, XTE, DTW, ETA, Lat/Long, Rolling Road, Set/Drift, SOG, TTG, VWG, Waypoint Number and Name)
• Pressure / Vacuum
• Rudder
• SMS (Status, Signal Strength)
• Speed (Through Water, Over Ground, Total Log, Trip Log)
• Tanks (Capacity, Level, Remaining)
• Time (Local, UTC, Moon Phase, Sunrise, Sunset, Twilight)
• Transmission (Gear, Oil Pressure, Oil Temperature, Warning Indicators)
• Vessel (Heave, Pitch, Roll, Trim Tabs, Keel)
• Watermaker (Sea Recovery Status display)
• Wind (Apparent direction and speed, True direction and speed, Groud direction and speed)

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Instrument Function: Multifunction
• Box Dimensions: 4"H x 6"W x 7"L WT: 1 lbs
• UPC: 873804003757

Quick Guide (pdf)
Owner's Manual (pdf)

RealVision 3D™ Bronze Thru-Hull Transducer Pair Pack - 20° - 8M Cable & Y-Cable

Designed for inboard or outboard boats, the RV-220 Bronze Through Hull Transducer System lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D™ sonar.

The RV-220 system is a 4-channel, Wide Spectrum CHIRP transducer system with DownVision™, SideVision™, high frequency CHIRP fish targeting and RealVision 3D™ sonar inside. The transducer system has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, automatically compensating for vessel motion. You’ll enjoy crystal-clear imagery in waves, swells, and while maneuvering. The RV-220 system also has a built-in fast response water temperature sensor for quick, accurate readings.

Raymarine’s RV-220 Bronze Through Hull Transducer system pack contains a pair of RealVision 3D transducers with internal offset to accommodate hull deadrise angles from 13° to 20°. This completely eliminates the need for fairing blocks. The low-profile design slips effortlessly through the water without causing drag or cavitation. The near-flush RV-220 system works great on trailered boats too.

The RV-220 system features rugged cast-bronze through hull bodies suitable for fiberglass or wooden hulls. One transducer transmits and receives to port and downwards, the other to starboard and downwards, ensuring a full 180° of underwater coverage even on boats with deep keels or other underwater protrusions. Each transducer features a 2M pigtail, joining y-cable and 8-meter extension cable, resulting in an overall cable length of 10M (33'.)

What’s in the Box?

• RV-220P Bronze Port Transducer with 2M cable
• RV-220S Bronze Starboard Transducer with 2M cable
• RealVision 3D Transducer Y-Cable
• RealVision 3D 8M (26') Transducer Extension Cable
• Anti-rotation bolt kit
• Installation instructions

Specifications:

• Temperature: Yes
• Speed Included: No
• Pins: 25
• Imaging: Standard/Down/Side
• Chirp: High
• Cable Length (Feet): 33'
• Mounting Style: Thru-Hull
• Box Dimensions: 14"H x 16"W x 28"L WT: 23.2 lbs
• UPC: 723193855379

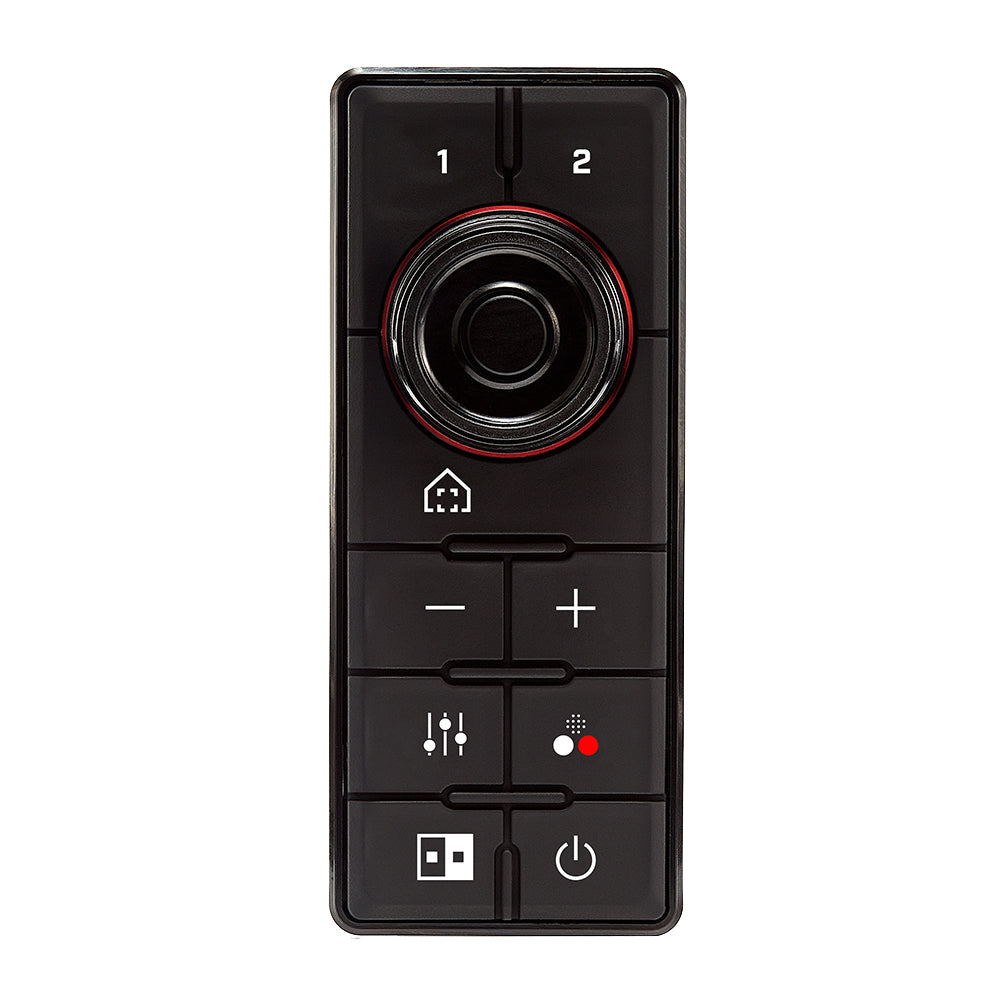

FLIR JCU-3P Compact Joystick Control Unit For M100 And M200 Includes Joystick Control Unit (JCU3), Power Cable, Cable | A80510

JCU3 Compact Joystick for M100/200 - Raymarine RayNet Network

FLIR’s JCU-3 Joystick Controller works with select Thermal Camera Systems to allow full access to the camera’s pan, tilt, zoom and menu settings.  The JCU-3 features 9 buttons plus a rotary controller and joystick trackpad in a compact housing the fits just about anywhere.  The JCU-3 can be mounted either horizontally or vertically using either of the 2 supplied key faces.

The JCU-3 is rugged and waterproof for mounting in the pilothouse or on-deck.  It can be surface or flush mounted to your helm, console or bulkhead.  Multiple JCU-3 controllers can be installed to allow control of a single camera from several different locations onboard.

The JCU-3’s keypad and rotary knob are backlit for easy viewing at night.  The JCU-3 can bepowered over Ethernet from the vessel’s onboard network, or connected directly to a 12V DC power source and interfaced to the camera with an Ethernet connection.    The JCU-3 is compatible with FLIR M100, M200 (M132, M232) M300, (M300, M332, M354, M364c, M364C LR.
