Marine Navigation & Instruments

Hybrid Class B AIS - 5W

This internationally certified SOTDMA Class B AIS provides 5W of transmit power (vs. typical 2W) and “Class-A” transmit priority for enhanced safety even in high-traffic areas.  Large color LCD display with C-MAP chart compatibility lets you view AIS targets and data over detailed cartography for professional performance.   Receives and decodes all AIS message types and excels at multiple target management.  Also features built-in long-range WI-FI for use with tablets and remote displays.

Features:

• MOB and SART alert and tracking systems
• AIS AtoN sensor information displays
• NMEA0183 and NMEA 2000 ports to connect gyrocompass, ECDIS, and DSC VHF
• IPX6/IPX7 waterproof
• Ruggedized against shock, vibration, and temperature

Specifications:

• Display Included: Yes
• AIS Class: B
• Function: Receive/Transmit
• Box Dimensions: 5"H x 10"W x 15"L WT: 5.4 lbs
• UPC: 010407421056

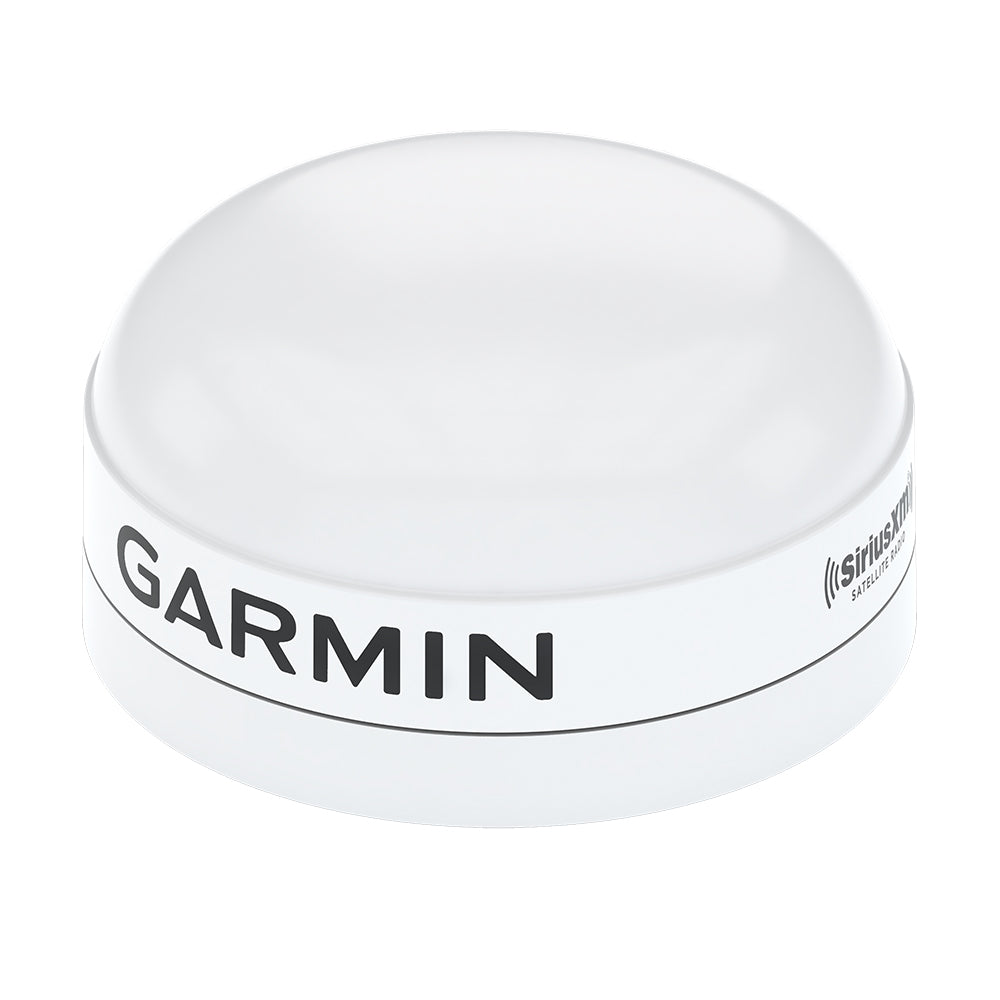

GXM™ 54 Satellite Weather/Radio Antenna - White

Add SiriusXM® Weather and Radio Plus Fish Mapping Directly on Your Chartplotter

The GXM 54 satellite weather/radio antenna with SiriusXM coverage lets you head out with detailed weather information¹ that’s delivered straight to your Garmin chartplotter.  With the most current weather conditions and forecasts, you’ll gain added awareness and confidence on the water, including NEXRAD, lightning, wind, and wave information.  And you’ll enjoy high-quality entertainment with more than 150 SiriusXM satellite radio channels.

Plus, you can add Fish Mapping™ to find suggested potential hot spots for popular species — including mahi, marlin, swordfish, wahoo, and yellowfin — based on sea conditions.  Display sea surface temperature contours, surface temperature front strength, and 30-meter subsurface temperature contours, and monitor plankton data such as concentration contours and plankton front strength.

GXM 54 is easy to install and use, and its reliable antenna provides the best possible reception — even on the fringes of SiriusXM coverage.

Compatible With:

• Garmin GPSMAP® 8400/8600
• Garmin GPSMAP 7400/7600
• Garmin GPSMAP 7x2/9x2/12x2 Touch
• GPSMAP 10x2/12x2 chartplotters and chartplotter/sonar combos.

Features:

• See detailed weather information¹ directly on your compatible Garmin chartplotter for increased situational awareness
• Experience high-quality entertainment with access to more than 150 channels of SiriusXM satellite radio¹
• Gain access to the most current weather conditions and forecasts, including NEXRAD, lightning, wind, and waves¹
• The reliable antenna provides the best possible reception — even on the fringes of SiriusXM coverage

In the Box:

• GXM 54
• Pole mount
• Surface mount
• Mounting hardware
• Cable (6 meters)
• Power and audio module
• Documentation

¹Weather and audio features each require a paid subscription with SiriusXM

SiriusXM and all related marks and logos are trademarks of SiriusXM Radio Inc.

*Sold as an Individual

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Cable Length (Feet): 19.69
• Box Dimensions: 5"H x 8"W x 10"L WT: 3 lbs
• UPC: 753759232474

DSM570 5.7" High Resolution Color Display with Black Enclosure

Maretron's DSM570 is a high-resolution sunlight viewable color display that allows easy interpretation of NMEA 2000® instrument and navigation data through custom display configurations, featuring an easy-to-use five-key illuminated keypad.

Unlike traditional single-display units, DSM570 users can choose numeric, gauge, or graph formats in single or multiple displays, with cycling options possible for a wide range of favorite data. These multiple display options conserve mounting space and reduce overall system cost.

The DSM570 will directly connect with any NMEA 2000® network and display any or all information captured throughout the vessel. Various audio and visual alarms are also programmable.

The DSM570 displays a multitude of information including AC power, battery, depth, engine, environment, fuel management, GPS, heading, navigation, rudder, speed, tanks, time, transmission, weather, wind and more.

The DSM570 includes a comprehensive, flexible alert capability. Configure audio and visual alerts on virtually any data that the DSM570 is capable of monitoring.

Available alert types include:

• High alert
• Low alert
• Data unavailable alert
• On alert
• Off alert
• Circuit breaker tripped alert
• Course alert
• GPS quality alert
• Outside radius alert
• Inside radius alert
• Direction alert
• Timer alert

Maretron's DSM570 is engineered and manufactured to the highest standards (IEC 60945 Maritime Navigation and Radiocommunication Equipment). Its compact waterproof housing will provide years of reliable performance.

Examples of data that the DSM570 can display are:

• AC power (Average Frequency, Voltage and Current, Phase-Neutral Frequency, Voltage and Current, Phase-Phase Frequency, Voltage and Current
• Anchor Watch
• Battery / DC (Voltage, Current, Battery Temperature, Battery State of Charge, Battery Time Remaining, Ripple Voltage, Power)
• Depth (Water Depth, Depth below Transducer)
• Electrical (Resistance)
• Electrical Distribution (Switch/Breaker, Breaker Current, On/Off/Error Counters, On/Off/Error Timers)
• Engine Monitor (Boost Pressure, Hours, Coolant Pressure, Coolant Temperature, Exhaust Gas Temperature, Fuel Pressure, Fuel Rate, Oil Pressure, Oil Temperature, Tachometer, Tilt/Trim, Voltage, Fuel Ecomony, Fuel Consumption, Percent Load, Percent Torque, Trip Fuel Used, Warning Indicators)
• Environment (Barometer, Heat Index, Humidty, Temoperatures, Wind Chill)
• Fluid Flow (Flow Rate, Trip Volume)
• Fuel management (Distance to Empty, Time to Empty, Total Fuel Capacity, Total Fuel Level, Total Fuel Consumption, Total Trip Fuel Used, Total Fuel Economy, Total Fuel Renmaining)
• GPS (COG, Lat/Lon, SOG, Satellites, Time, Accuracy)
• Heading (Heading, Rate of Turn, Variation)
• Humidity (Inside, Outside, User Defined
• Indicators (Status, , On/Off/Error Counters, On/Off/Error Timers)
• Mechanical (dB, Force, Strain)
• Motion (Acceleration, Angle, Angular Velocity, Angular Acceleration, Distance, Rotation Rate, Velocity)
• Navigation (BOD, BTW, COG, XTE, DTW, ETA, Lat/Long, Rolling Road, Set/Drift, SOG, TTG, VWG, Waypoint Number and Name)
• Pressure / Vacuum
• Rudder
• SMS (Status, Signal Strength)
• Speed (Through Water, Over Ground, Total Log, Trip Log)
• Tanks (Capacity, Level, Remaining)
• Time (Local, UTC, Moon Phase, Sunrise, Sunset, Twilight)
• Transmission (Gear, Oil Pressure, Oil Temperature, Warning Indicators)
• Vessel (Heave, Pitch, Roll, Trim Tabs, Keel)
• Watermaker (Sea Recovery Status display)
• Wind (Apparent direction and speed, True direction and speed, Groud direction and speed)

Specifications:

• Instrument Function: Multifunction
• Box Dimensions: 5"H x 7"W x 10"L WT: 2.15 lbs
• UPC: 873804004136

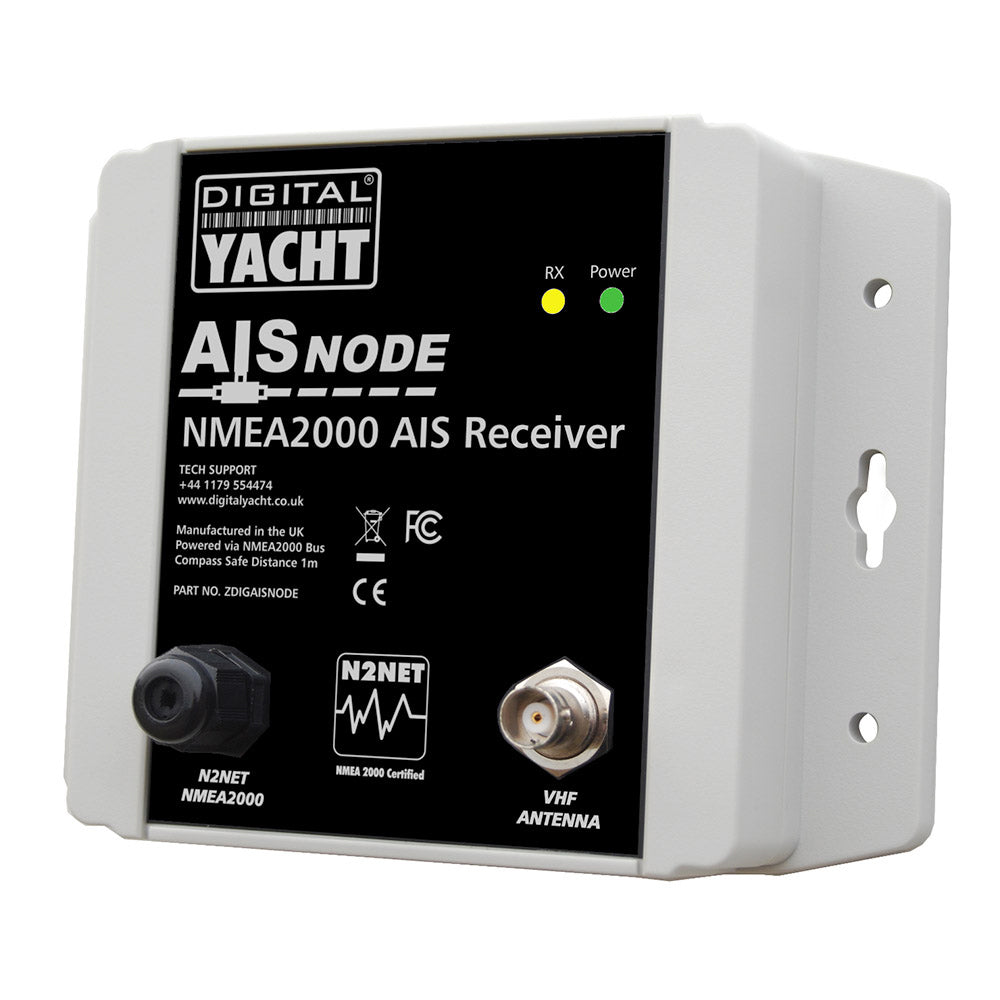

Digital Yacht AISnode NMEA 2000 Boat AIS Class B Receiver [ZDIGAISNODE]

AISnode NMEA 2000 Boat AIS Class B Receiver

AISnode is the first AIS Receiver to be designed exclusively for NMEA 2000. With a single, integral 0.75m NMEA 2000 cable that takes power from the network and outputs the AIS data on to the network, the AISnode is incredibly easy to install. Just find or fit a spare NMEA 2000 "T Piece", screw the AISnode cable to the connection, connect a VHF antenna and the installation is complete.

Utilizing the same high performance, true dual channel receiver that our latest Class B Transponders have, AISnode will receive every AIS equipped vessel within VHF range and never miss or drop a single target. All of the latest NMEA 2000 AIS message types are supported, including AIS SARTs, AtoNs and Class B static data, ensuring full compatibility with all of the latest AIS enabled chart plotters.

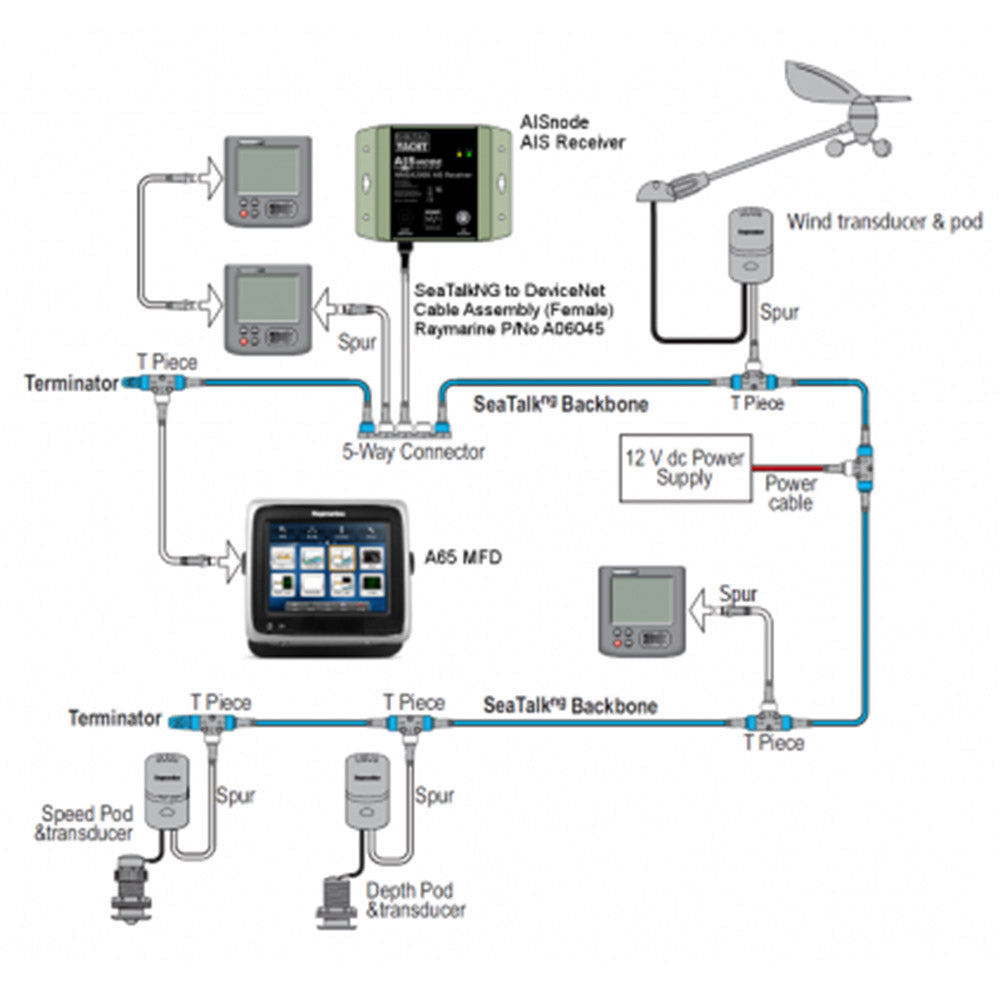

NMEA 2000 is becoming more and more popular on new boats and nearly all new chart plotters have an NMEA 2000 interface, with one or two models only providing an NMEA 2000 interface. With its reliability, easy plug and play connectivity and industry standard compatibility, it is not surprising why NMEA 2000 is gradually replacing the older NMEA0183 standard.

The AIT2000 and AIT3000 Class B Transponders already provide NMEA 2000 connectivity but not all customers want the extra expense of purchasing and installing a transponder and for small chart plotters an AIS receiver is still a popular choice.

Features:

• Application Domain: For Boats
• Type: Class B Receiver

Specifications:

• Display Included: No
• GPS Included: No
• Function: Receive Only
• Antenna Included: No
• AIS Class: B
• Box Dimensions: 4"H x 7"W x 10"L WT: 1 lbs
• UPC: 081159830403

MEGA 360 Imaging Foretrex™

Surround yourself with more detail than ever before. MEGA 360 Imaging™ sweeps up to 125’ in every direction around your boat to deliver the clearest images you’ve ever seen of structure, the bottom and fish, even while you’re sitting still. That means more accurate casts, more unforgettable moments and more incredible MEGA Imaging®—all around.

Once you’ve found your honey hole, get there and stay there. The MEGA 360 Imaging transducer is designed to mount to the Minn Kota® Foretrex™ for uninterrupted use, even while in Spot-Lock™.

Every Detail in Every Direction

With MEGA 360 Imaging, we didn’t reinvent the wheel. We redefined it, bringing the unmatched coverage of our 360 Imaging technology into the megahertz range for next-level detail. Like underwater radar, the MEGA 360 Imaging beam rotates giving you a 360-degree view of the water that’s constantly updating—with your boat at the center. Fish won’t ever see you coming–allowing you to cast and hook fish before they even know you’re there.

Let Us Show You Around

Whether you’re new to these parts, or know your surroundings like the back of your hand, Humminbird® can help you see fish you won’t find alone. MEGA 360 Imaging is compatible with SOLIX® Series and HELIX® Series fish finders equipped with MEGA Imaging+. In addition to unmatched detail and coverage, Humminbird provides built-in mapping, impressive screen resolution, intuitive control and many other features that lead anglers to choose Humminbird.

Customize Your View

MEGA 360 Imaging will change your perspective on fishing. How you see it is up to you. Custom viewing options let you choose how your returns appear, so you can dial them in based on your fishing style, conditions and what you’re after. Because more control means more confidence on the water.

Find Fish Like Clockwork

See a fish at 1 o’clock? You’ll be right on time with MEGA 360 Imaging. Just mark a waypoint directly on your Humminbird screen, and let range rings show you the distance from your boat to the target. Then, line up and cast to where the fish are.

Dial In Your Sweep Area

Nothing beats the coverage and detail of MEGA 360 Imaging. You can customize your sweep area from 360 degrees down to 10 degrees. Use preset view options, like 45° in front of your boat, to find and cast to productive spots without spooking fish.

Navigation Kit Plus for Sailboats

Complex boats need a smart solution. And we have it. VDO Marine OceanLink® display is the only product on the market able to interpret CAN, NMEA 2000® and analog signals without any additional external device.

Safety, performance, entertainment.  VDO Marine Navigation Kit and Navigation Kit Plus is the solution! Our Navigation Kits will become essential crew members which ensure you top performance in the open sea, even in the most extreme situations.

All in one box All you need is in one box including wiring harness and terminators. All products are REACH and RoHS compliant and NMEA 2000® certified.

NAVSENSOR (INCLUDED ONLY IN THE KIT NAVIGATION PLUS)

The multifunctional AcquaLink™ NavSensor offers an inertial sensor with a GNSS receiver module to provide the accurate readings of speed of travel as well as pitch & roll. Compass readings can be displayed electronically thanks to the embedded Fluxgate compass, which also facilitate course corrections in electronic autopilots. The barometer and air temperature sensors are early indicators of forthcoming weather conditions.

Navigation Kit Plus includes:

• 1x OceanLink 4.3 TFT Display/Gateway - Black
• 1x NMEA 2000 Wind Sensor
• 1x Nav Sensor
• 1x  Triducer Airmar Sensor (Speed/Depth/Water Temp)
• 1x 30m NMEA 2000 backbone (mast) cable
• 3x 6m NMEA 2000 drop cable
• 1x NMEA 2000 terminator (female)
• 1x NMEA 2000 terminator (inline)
• 3x NMEA 2000 T-splitter

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Transducer Type: Thru-Hull
• Shape: Rectangular
• Screen Size: 4.3"
• Instrument Function: Multifunction
• Box Dimensions: 7"H x 16"W x 31"L WT: 14.4 lbs
• UPC: 7640178728806

Element™ 12 HV Chartplotter & Fishfinder Combo - No Transducer

Knowledge is power—and the Element™ CHIRP sonar/GPS series from Raymarine gives you the power to make smarter decisions on the water. Built for anglers that want to be one step ahead of the game, Element delivers the sharpest view of the underwater world with HyperVision™ 1.2 megahertz super high-resolution sonar technology. HyperVision technology takes DownVision, SideVision, and Raymarine RealVison 3D sonar to the next level of precision imaging and fish identification, letting you see structures, vegetation, and fish with photo-like clarity.  And the power of Element doesn’t stop there—an onboard quad-core processor delivers instantaneous chart redraw, fast response, and smooth RealVision 3D imaging. To keep you on target, Element features simple keypad controls and an angler-centric user interface so you can focus on the fish—not the helm.  An oversized waypoint key puts you on your favorite spots, and Element’s RealBathy™ personal depth map generator lets you make your own high definition bathymetric maps on the fly.

Features:

• High-visibility sunlight viewable 12” display
• Superior HyperVision CHIRP sonar technology achieves 3x the clarity of conventional side and down imaging sonars
• Built-in RealVision 3D sonar gives you the power to accurately identify the location of ledges, channel beds, and other contour changes
• Fast quad-core processor allows instantaneous chart re-draw and continuous 3D rending while running a simple, easy-to-learn user interface.
• 1.2 megahertz HyperVision sonar provides outstanding resolution up to 100’ while 350kHz Down and SideVision delivers photo-like imaging up to 600’
• Take 3D sonar to the next level with HyperVision mode for unprecedented resolution and positional awareness
• Dedicated keypad controls for simple operation, plus an oversized waypoint key for marking favorite spots
• Raymarine RealBathy™ personal sonar mapping and Navionics SonarCharts Live support
• User-programmable keys allow quick access to most-used configurations
• Support for Raymarine LightHouse NC2 with Fishing Hot Spots, Navionics, C-MAP and other regional charting options
• NMEA2000 networking for VHF, engine, tanks, and heading sensor integration

Specifications:

• Transducer Included: No
• Cartography Brand: Navionics/C-Map/CMOR
• Screen Size: 12"
• Touchscreen: No
• Box Dimensions: 6"H x 13"W x 20"L WT: 9.2 lbs
• UPC: 723193828038

Veratron NMEA 2000 Wind Sensor - 9 to 16V [A2C59501984]

NMEA 2000® Wind Sensor - 9 to 16V

The wind vane turns in the direction of the wind and steers the wind direction gauge. The wind cups record the relative wind speed which in turn is displayed on the wind speed gauge.

Features:

• AcquaLink type wind sensor
• Output: NMEA-2000
• Measuring: Wind speed & direction
• Measuring system: Mechanical
• System: Hall-sensor & cross coils

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Instrument Function: Wind
• Box Dimensions: 6"H x 16"W x 31"L WT: 3.2 lbs
• UPC: 7640178725270

Brochure (pdf)
