Marine Navigation & Instruments

Airmar B164 Bronze Thru-Hull Transducer w/Humminbird  - 14-Pin Plug - 12 [B164-12-14HB]

Ships Direct From Manufacturer

B164 Bronze Thru-Hull Transducer w/Humminbird 14-Pin Plug - 12°

Step up to a 1kW - Without a Fairing! Airmar has taken our innovative Tilted Element™ technology to a higher power. The 1kW, flush-mount, Tilted Element transducer is perfect for fast, trailered, tournament sportfishing vessels that cannot have a High-Performance Fairing. The flush-mounted, bronze housing protrudes less than 6.35 mm (0.25") outside your hull and can sit on trailer rollers and bunks with no damage at all. The ceramic arrays are tilted inside the housing giving you the perfect vertical beam with maximum energy on what is directly below your boat. Take your fishfinder to the next power with this 1kW, Tilted Element transducer.

Features:

• 1 kW power, 50/200 kHz multiple-ceramics

• Engineered for center-console and trailered boats
• Low-profile protrusion below the hull
• No affect on your boats running performance
• Interfaces to any 600W or 1 kW echosounder
• Bronze transducer housing
• Depth and fast-response water-temperature sensor
• Boat Size: 8M to 11M (25' to 35')

Specifications:

• Weight: 2.7 kg (6 lb)

• Hull Deadrise: Up to 28°
• Acoustic Window: Urethane

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Pins: 14
• Mounting Style: Thru-Hull
• Temperature: Yes

Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)

Airmar B164 1kW 20 Degree Thru-Hull Transducer w/Blue Connector [B164-20-BL]

Ships Direct From Manufacturer

B164 1kW 20° Thru-Hull Transducer with Blue Connector

Step up to a 1kW - Without a Fairing!Airmar has taken our innovative Tilted Element™ technology to a higher power. The 1kW, flush-mount, Tilted Element transducer is perfect for fast, trailered, tournament sportfishing vessels that cannot have a High-Performance Fairing. The flush-mounted, bronze housing protrudes less than 6.35mm (0.25") outside your hull and can sit on trailer rollers and bunks with no damage at all.

Low-profile protrusion below the hull - no affect on your boats running performance

The ceramic arrays are tilted inside the housing giving you the perfect vertical beam with maximum energy on what is directly below your boat. Take your fishfinder to the next power with this 1kW, Tilted Element transducer.

Features:

• 1 kW (1,000 Watts) RMS Power

• Frequency: 50/200 kHz

• Cone: 50 kHz - 22° x 20° / 200 kHz - 6° x 6°

• Maximum Depth Range: 50 kHz - 353M to 529M (1,200' to 1,800') / 200 kHz - 152M to 235M (500' to 800')

• Engineered for center-console and trailered boats

• Interfaces to any 600W or 1 kW echosounder

• Bronze (B164) Housing

• Depth and fast-response water-temperature sensor

• Boat Size: 8M to 11M (25' to 35')

• Usable Shaft Length: 71mm (2.80")

• Fixed 20° tilted version for 16° to 24° hull deadrise

• 10M Cable included

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Mounting Style: Thru-Hull
• Box Dimensions: 8"H x 11"W x 12"L WT: 10.9 lbs

Maretron MBB300C Vessel Monitoring & Control Black Box [MBB300C-01]

Ships Direct From Manufacturer

Vessel Monitoring & Control Black Box

Maretron's third generation Black Box (MBB300C) is a dedicated processing unit that includes Maretron's N2KView® vessel monitoring and control software. Unlike a PC that allows any software to be loaded, the MBB300C runs only N2KView® software making it extremely stable and dedicated to monitoring and controlling your vessel.

The MBB300C is ruggedized for marine use and includes a solid state disk drive to withstand the pounding associated with waves. And since the MBB300C dissipates less than 10W, there is no need for internal cooling fans that are noisy and wear out causing electronics to overheat and fail.

The MBB300C connects to a monitor through a VGA connector or an HDMI connector while the associated touch screen connects through a USB or serial port. Alternatives to controlling the N2KView® software through a touch screen include keyboards, mice, or track balls connected through USB. In addition to the two completely isolated CAN bus connectors for simple connection to single or redundant NMEA 2000® networks, the MBB300C has an Ethernet port for connecting Internet Protocol (IP) cameras for viewing video within the N2KView® software.

Of course you get the same flexibility using Maretron's N2KView® software from the MBB300C as you would running the software on a PC, which includes the ability to configure as many screens as you want with exactly the information you want to see. Plus you get free upgrades to the software as improvements and new features are added.

Features:

• 9-36 Volt Power Supply

• Solid State Disk Drive

• Fanless Cooling System

• Dual CAN Bus for Single or Redundant NMEA 2000® Network Connections

• Four USB Ports for Touchscreen, Keyboard, Mouse, Trackball, or Thumb Drive Connections

• VGA or HDMI Video Connection (2560 x 1600 Maximum Resolution)

• Ethernet Connector for IP Camera Input or Email Alert Notification

Displays:

• Air conditioning (HVAC)

• Anchor watch

• AC power

• Battery

• Depth

• Engine

• Environment

• Fuel management

• GPS

• Heading

• Ice makers

• Navigation

• Rudder

• Speed

• Tanks

• Time

• Transmission

• Video

• Watermakers

• Weather

• Wind

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Owner's Manual (pdf)
Brochure (pdf)

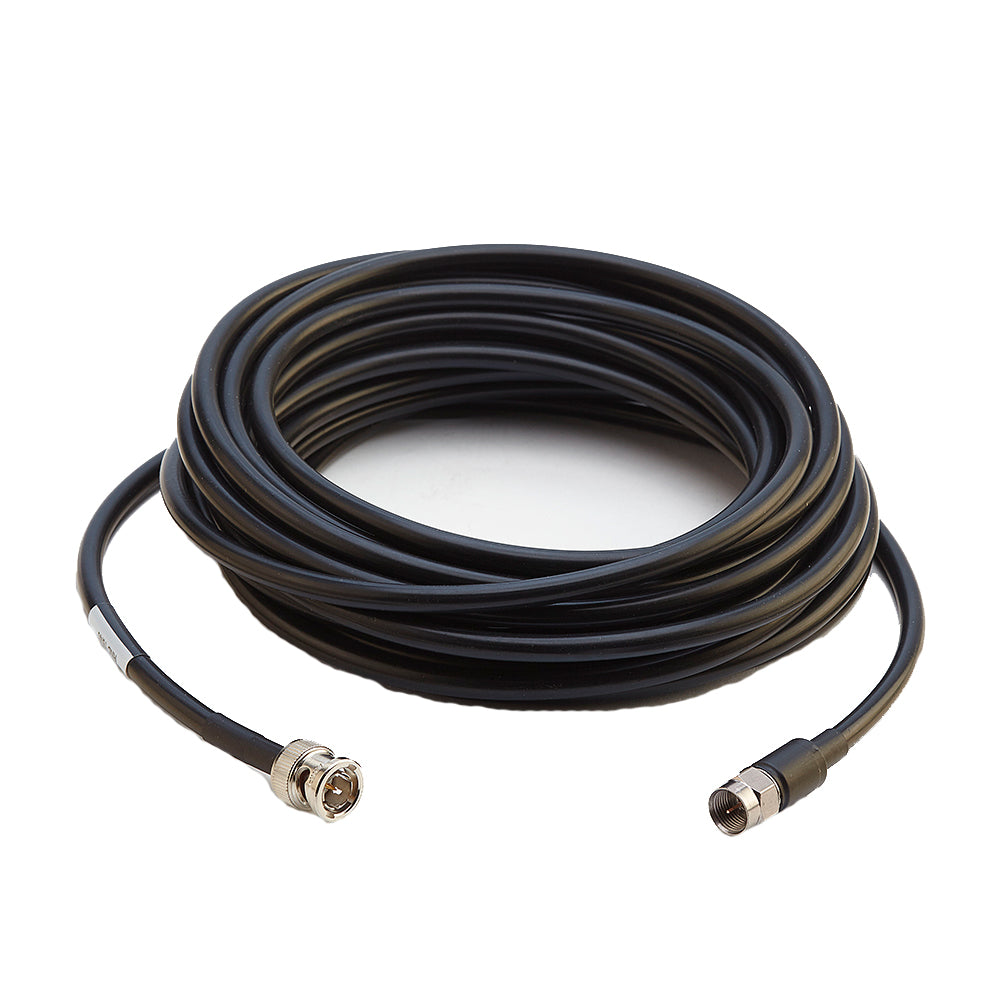

Video Cable F-Type to BNC - 100'

100' Cable - F-Type on one end, BNC on the other end

For use with MD-Series

Specifications:

• Type: Cables
• Box Dimensions: 1"H x 10"W x 11"L WT: 3.5 lbs
• UPC: 815121010797

Airmar R109C-LH 2kW Thru-Hull Transducer [R109C-LH]

Ships Direct From Manufacturer

R109C-LH 2kW Thru-Hull Transducer

CHIRP transducers enable bottom detection down to 3,000M (10,000') with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 117 kHz of total bandwidth in just one installation, saving customers time and money.

As the HARD CORE model in the CHIRP Thru-Hull product line, the R109 LH/LM CHIRPS across the following bandwidths:
LH Model - Low Frequency 38-75 kHz/High Frequency 130-210 kHz

Features:

• Depth & fast-response water-temperature sensor

• Low: CHIRPS from 38 kHz to 75 kHz 19° to 10° port-starboard beamwidth (10° to 5° fore-aft beamwidth)

• High: CHIRPS from 130 kHz to 210 kHz 8° to 4° beamwidth

• 117 kHz of total bandwidth from one transducer

• Covers popular fishing frequencies of 38, 50, and 200 kHz plus everything else in the bandwidth

• Fishing Profile: Commercial and recreational inshore and offshore fishing (deep-water canyon and sea-mount tracking)

• Urethane transducer housing with High-Performance FairingBoat Size: 12M (40') and above

• Hull Type: Fiberglass, wood, or metal

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Furuno Radar Signal Cable f/FAR1513 - 20M [001-421-540-00]

Radar Signal Cable f/FAR1513 - 20M

RW00224 Radar Signal Cable for FAR 1513

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Furuno 30M Cable f/FR8125 [001-325-990-00]

30M Cable for FR8125

Furuno's 30M Cable specifically for Furuno's FR8125.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

GNX™ Wireless Sail Pack 43

The Sail Pack You Need with 43 mm Transducers

• Includes Garmin GNX™ Wind and GNX 20 marine instruments, gWind™ Wireless 2 transducer, plus GDT 43 and GST 43 with 43 mm fittings and adapters for NMEA 2000® network sharing
• GNX Wind and GNX 20 instruments have highly visible monochrome LCD displays
• gWind Wireless 2 transducer eliminates running wires through masts up to 50 feet
• Accurate water depth, water speed and water temperature data and more
• Easy plug-and-play installation with NMEA 2000 network

Update your sailboat's electronics with the GNX Wireless Sail Pack 43 that includes everything you need with 43 mm transducer fittings for depth, temperature and water speed.

GNX Wind Instrument

GNX Wind gives you the wind data necessary to make confident decisions. Featuring high-visibility, glass-bonded backlit monochrome LCD display with customizable backlight colors, GNX Wind interfaces through the NMEA 2000 network to show 2 data fields and a digital wind rose simultaneously to display true and apparent wind data, steering guidance, boat speed and more. Low power consumption of 350 mW daylight (no backlight) and 400 mW nighttime (mid-level backlight) is perfect for sailboats. Customizable user settings allow you to configure the screen layout to your preferred setting. Display configurations include more than 15 important marine parameters for wind, speed and navigation. The GNX Wind connects wirelessly with the gWind Wireless 2 and also to a quatix® 3 GPS marine smartwatch via ANT® technology to stream wind data directly to your wrist.

gWind Wireless 2 Transducer

gWind Wireless 2 offers an easy-to-install solution that eliminates running wires through masts up to 50 feet. Accurate wind signals are sent wirelessly via an ANT connection directly to a GNX Wind instrument or to a compatible Garmin GPSMAP® chartplotter. The transducer features renowned Nexus twin-fin technology with a 3-bladed propeller, providing accurate wind speed and stable wind angle in lighter wind conditions.

GNX 20 Marine Instrument

The easy-to-read GNX 20 display with black digits on a white or color background clearly shows water depth, boat speed through the water, water temperature and 50-plus marine and boat parameters through the NMEA 2000 network. Customizable user settings allow you to choose from 5 available display configurations for sailboat or powerboat user profiles: single, dual and triple function plus gauge and graph mode to display wind, depth and speed data, or customize the pages to display the marine and boat data most important to you. Its glass-bonded display with anti-glare lens coating provides excellent daytime and nighttime readability with high-contrast digits scalable up to 36 mm. Uses only 25 mA with 350 mW daytime usage requiring no backlight and just 400 mW with a mid-level backlight setting at night.

GDT 43 & GST 43 Transducers with 43mm Fittings

If you already have 43 mm fittings for your thru-hull transducers, there_s no need to drill new holes. The bundle includes 43 mm thru-hull transducers, which can retrofit boats with existing Nexus TH43 transducers. The GST 43 is a speed and temperature transducer and the GDT43 is a depth transducer. Each transducer comes with an adapter that allows data to be shared over the NMEA 2000 network to a compatible Garmin chartplotter or instrument display.

In The Box

• gWind Wireless 2 transducer with mast bracket
• GNX™ Wind
• GNX™ 20
• GST™ 43 thru-hull speed and temperature transducer
• GST 10 adapter cable
• GDT™ 43 thru-hull depth sensor
• NMEA 2000® adapter
• NMEA 2000 power cable
• NMEA 2000 terminators
• 2 NMEA 2000 drop cable (2 meters)
• 4 NMEA 2000 T-connectors
• Mounting hardware
• NiMH battery
• Documentation

Specifications:

• Instrument Function: Multifunction
• Box Dimensions: 9"H x 10"W x 27"L WT: 11 lbs
• UPC: 753759171742
