Marine Navigation & Instruments

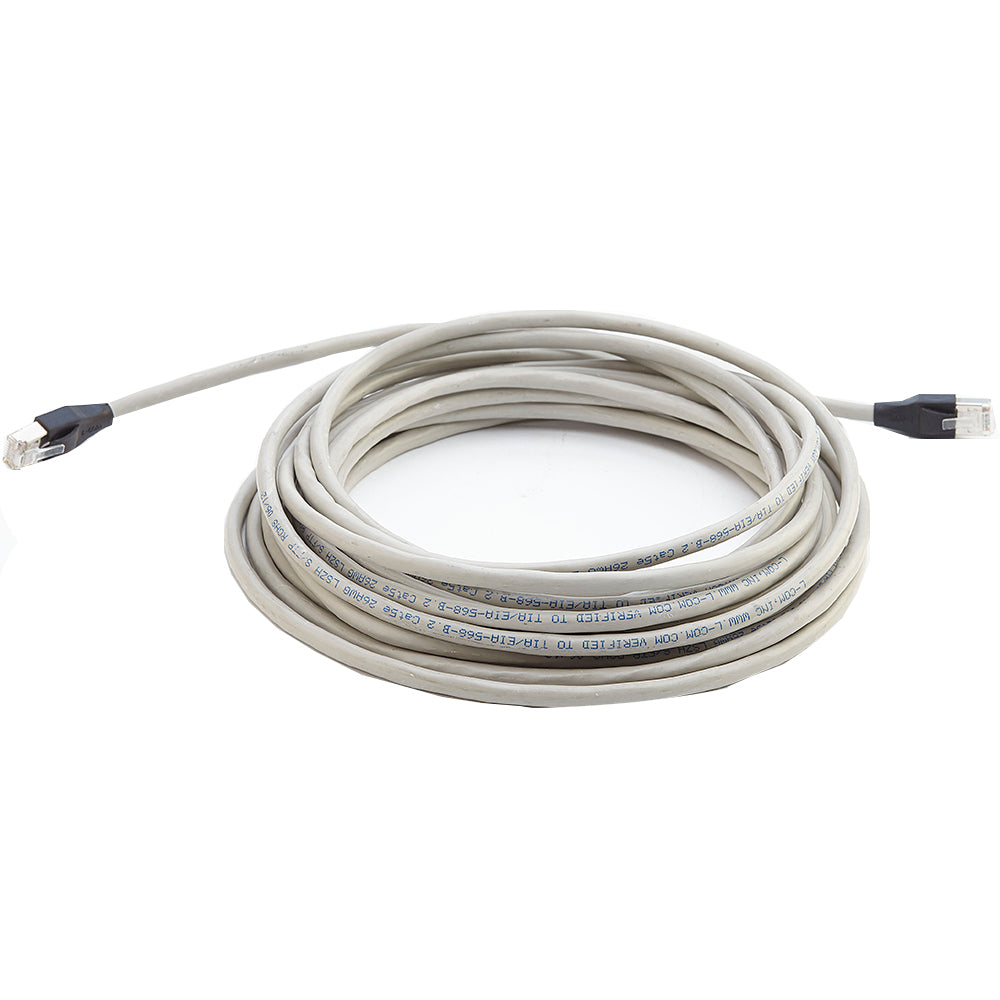

Ethernet Cable for M-Series - 75'

FLIR's 75' Ethernet Cable is for connecting the FLIR M-Series Cameras to
the Joystick Control Unit.

Features:

• Double Shielded

• RJ-45

• LSZH

• 75' long

Specifications:

• Cable Length (Feet): 75'
• Box Dimensions: 2"H x 12"W x 12"L WT: 2.2 lbs
• UPC: 822335045736

Octopus Hydraulic Gear Pump 12V 6-9CI Cylinder [OCTAFG0612]

Hydraulic Gear Pump 12V 6-9CI Cylinder

From the design team that brought you the legendary Octopus hydraulic drives, our new gear pump offers industry leading reliability and performance in a smaller, lighter, quieter package.

Features:

• Industry leading efficiency - lower power consumption, particularly under demanding conditions requiring higher flow rates equates to a major advantage over competing units.

• Cost saving - the increased efficiency and performance means the pumps can be used with smaller autopilot course computers than equivalent drive units.

• The smaller footprint of the compact gear pump increases installation flexibility.

• Lower noise and vibration make the gear pump particularly suitable for sailboat installations.

• Suitable for balanced or unbalanced cylinders.

• All models available for both 12v and 24v systems.

Specifications:

• Flow Rate: 600CC/min

• Voltage: 12 Volt

• Cylinder Range: 6-9ci CYLINDER

• Average Current Draw: 3.8A

• Operating Temperature: -15 to +75'C (5 - 167'F)

• Waterproofing: IP55

• Ignition Protection: ISO 8846 & SAEJ1171

• EMC Compliance: EN60945-9-2002

Specifications:

• Type: Pumps/Drives
• Box Dimensions: 5"H x 5"W x 9"L WT: 4.2 lbs

Quick Guide (pdf)

Octopus Hydraulic Gear Pump 12V 10-15CI Cylinder [OCTAFG1012]

Hydraulic Gear Pump 12V 10-15CI Cylinder

From the design team that brought you the legendary Octopus hydraulic
drives, our new gear pump offers industry leading reliability and
performance in a smaller, lighter, quieter package.

Features:

• Industry leading efficiency - lower power consumption, particularly
  under demanding conditions requiring higher flow rates equates to a major
  advantage over competing units.

• Cost saving - the increased efficiency and performance means the pumps
  can be used with smaller autopilot course computers than equivalent drive
  units.

• The smaller footprint of the compact gear pump increases installation
  flexibility.

• Lower noise and vibration make the gear pump particularly suitable for
  sailboat installations.

• Suitable for balanced or unbalanced cylinders.

• All models available for both 12v and 24v systems.

Specifications:

• Flow Rate: 1000CC/min

• Voltage: 12 Volt

• Cylinder Range: 10-15ci CYLINDER

• Average Current Draw: 5A

• Operating Temperature: -15 to +75'C (5 - 167'F)

• Waterproofing: IP55

• Ignition Protection: ISO 8846 & SAEJ1171

• EMC Compliance: EN60945-9-2002

Specifications:

• Type: Pumps/Drives
• Box Dimensions: 5"H x 5"W x 9"L WT: 4.4 lbs

Quick Guide (pdf)

Airmar DT812BV-235-N2 235 kHz Tilted Element Smart Sensor 12 Degree Tilt Bronze NMEA 2000 [DT812BV-235-N2]

Airmar DT812BV-235-N2 235 kHz Low Profile Tilted Element™ Smart™ Sensor 12° Tilt Bronze NMEA 2000

Airmar has taken its proven Tilted Element™ and broadband technologies and applied them to its leading line of Smart™ Sensors. The DT800 is a low-profile, retractable, thru-hull sensor that computes accurate depth and temperature data and sends it to any NMEA 0183 or NMEA 2000® display. The DT800 operates at a frequency of 235 kHz and can run simultaneously with other Airmar 50/200 kHz transducers on-board with no interference. The broadband ceramic delivers depth readings to 183M (600'), as well as accurate shallow-water readings in as little as 500 mm (1.6').

Airmar's Smart™ Sensors have embedded microelectronics - the transducer element and signal processor are only millimeters apart. The signal from the depth transducer is processed right inside the sensor itself. All that is needed to receive depth and temperature data is a single cable into a compatible device or display. Because the ceramic is tilted inside the housing, the transducer beam is oriented straight down, resulting in strong bottom echo returns and accurate depth readings. The retractable housing with a self-closing valve reduces water flow into the vessel when the transducer is removed for cleaning.

Smart™ Sensor Features

• Enhanced depth performance

• Maximum Depth Range: 180M (594')

• Minimum range 0.5M (1.6')

• Urethane face provides better sensitivity

• Excellent high-speed performance

• Fixed 20° tilt for 16° to 24° deadrise

• Fixed 12° tilt for 8° to 15° deadrise

• Fixed 0° tilt for 0° to 8° deadrise

• NMEA 2000 output

• 100 W RMS power

• Frequency: 235 kHz

• Cone: 12°

• All models have depth and temperature

• 235 kHz eliminates interference with fishfinders

• Retractable insert provides ease of serviceability

• Usable Shaft Length: 57mm (2.25")

• .6M(19.8') NMEA 2000® devicenet cable and connector

• 51mm (2") housing

• Blanking plug included

• Accommodates maximum hull thicknesses 54mm (2-1/8")

• Accommodates minimum hull thicknesses 6.3mm (0.25")

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Temperature: Yes
• Box Dimensions: 4"H x 8"W x 10"L WT: 3.8 lbs

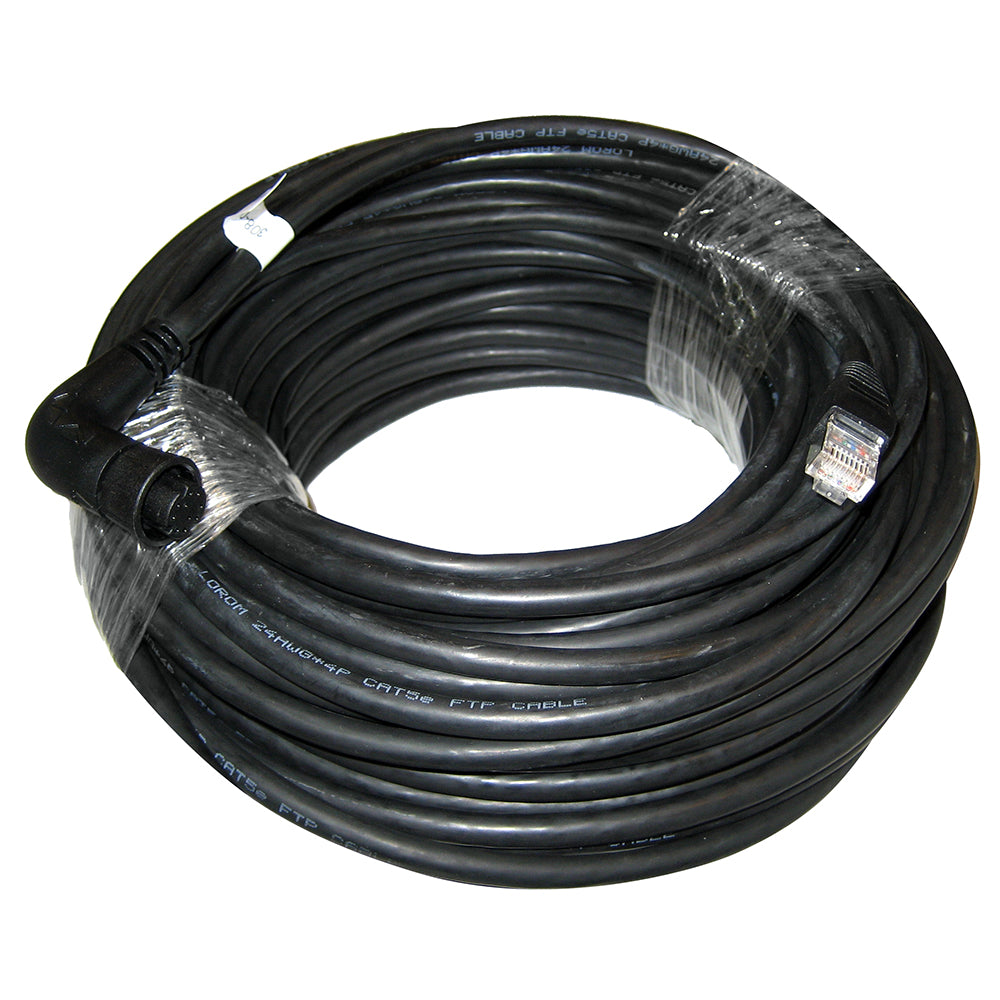

RayNet RA to RJ45 Cable - 100'

RayNet Right Angle to RJ45

100' Cable

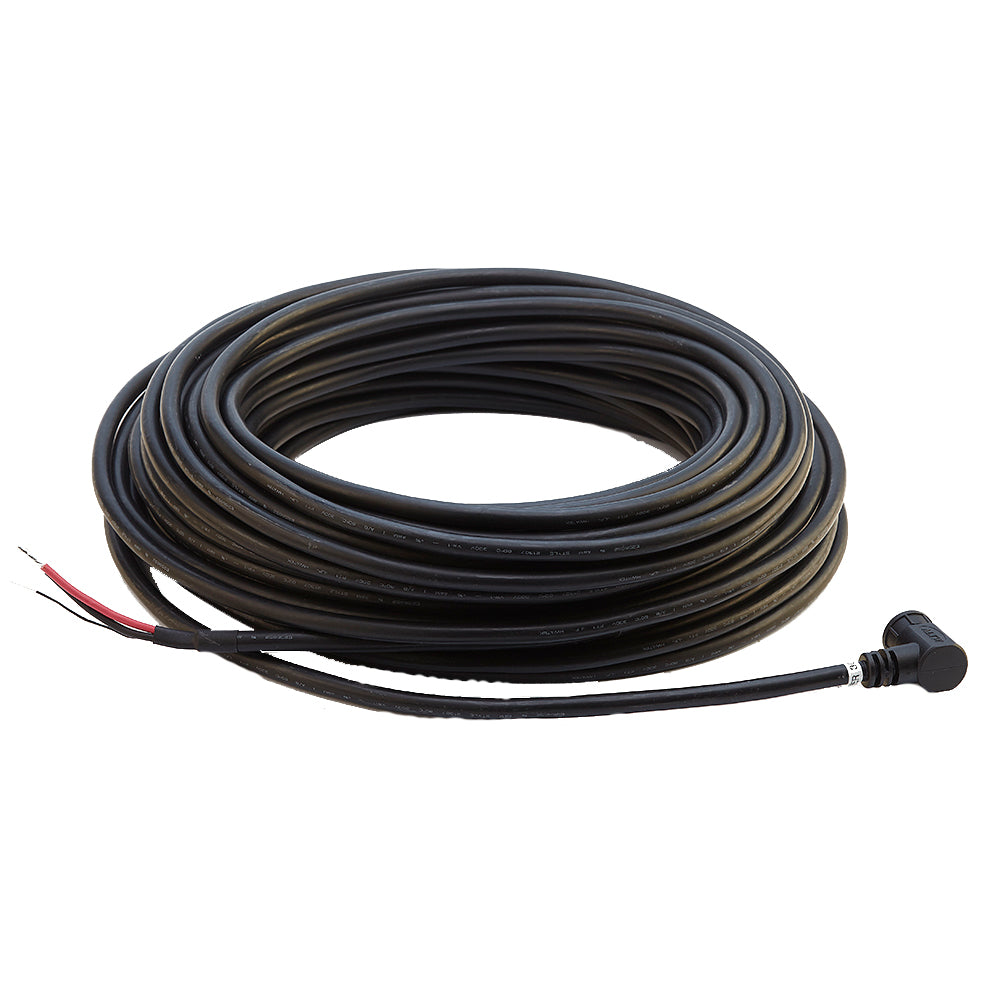

Power Cable RA 12 AWG - 100'

FLIR's Power Cable RA 12 AWG comes 100 feet in length.

Specifications:

• Type: Power Cords
• Box Dimensions: 5"H x 9"W x 10"L WT: 9.2 lbs

Type RS - Unique RS Sailboat Drive

EASY TO BUY - Everything you need supplied in one box - drive, 6ft steering
cable and universal connection kit.

EASY TO FIT - The simple to mount installation kit and optional integrated
rudder feedback make for easy fitting.

COMPACT - The remote drive unit has a tiny 0.25Ft2 footprint and can be
mounted in the most convenient location on your boat, horizontally or
vertically.

RELIABLE & SAFE - Proven, tested design. The drive unit features a manual
override without having to disengage the autopilot first.

COMPATIBLE WITH YOUR PILOT - The Type R Remote Drive System is compatible
with all major brand inboard autopilot systems.

The Octopus Remote Sailboat Drive System makes it easy and economical to
install an automatic pilot on light displacement Sail Boats steered with a
mechanical system from a wheel or tiller. The system is designed for the
modern mid range sail boat which has restricted space to mount a standard
Linear drive. The drive is very responsive and has little feedback
resistance when in 'Stand by' mode making it very suitable for racing
yachts.

Recommended for Yachts up to 38Ft (11.5m) with a maximum displacement of
15400 Ibs / 7000 Kg.

The system includes a drive unit, a steering cable and a linear drive
connection kit. The drive unit Can be mounted either horizontal or
vertically in any convenient location. The steering cable length is
determined by the relative position of the drive unit to the linear drive
connection kit.

Specifications:

• Type: Parts
• Box Dimensions: 8"H x 17"W x 27"L WT: 22.8 lbs
• UPC: 628309203900

Furuno CA82B-35R FRP Tank-Mounted Transducer - 65kHz-110kHz - 2kW (No Plug) [CA82B-35R]

Ships Direct From Manufacturer

CA82B-35R FRP Tank-Mounted Transducer - 65kHz-110kHz - 2kW (No Plug)

Furuno's CA82B-35R transducer has a wide bandwidth of 65kHz-110kHz, and is usable with the FCV295, FCV292*, FCV1150, FCV1100, FCV1200, DFF3 and BBFF3. When used with the FCV1100/1200, sensitivity remains high even if the frequency is shifted +/- 10% to suppress interference.

The CA82B-35R may be installed in the tank of the CA88B-10 or CA100B-10R. When retrofitting these or other transducers, the directional pattern and sidelobe characteristics of the beam will be different, and therefore the sounder image may differ from previous installations.

Features:

• 2kW

• Selectable frequency - 65kHz to 110kHz

• Beam angle becomes sharper at higher frequencies: 68kHz = 12.5°, 88kHz = 9.6°, 107kHz = 7.7°

• Rugged FRP construction - tank mounted

• 15 meter cable

• No connector provided

*88kHz frequency only

Shipping Information: 12 lbs, 14 x 14 x 9

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Speed Included: No
• Temperature: No
• Cable Length (Feet): 50'
• Box Dimensions: 8"H x 14"W x 14"L WT: 13 lbs
• UPC: 611679309099
