Marine Navigation & Instruments

Humminbird

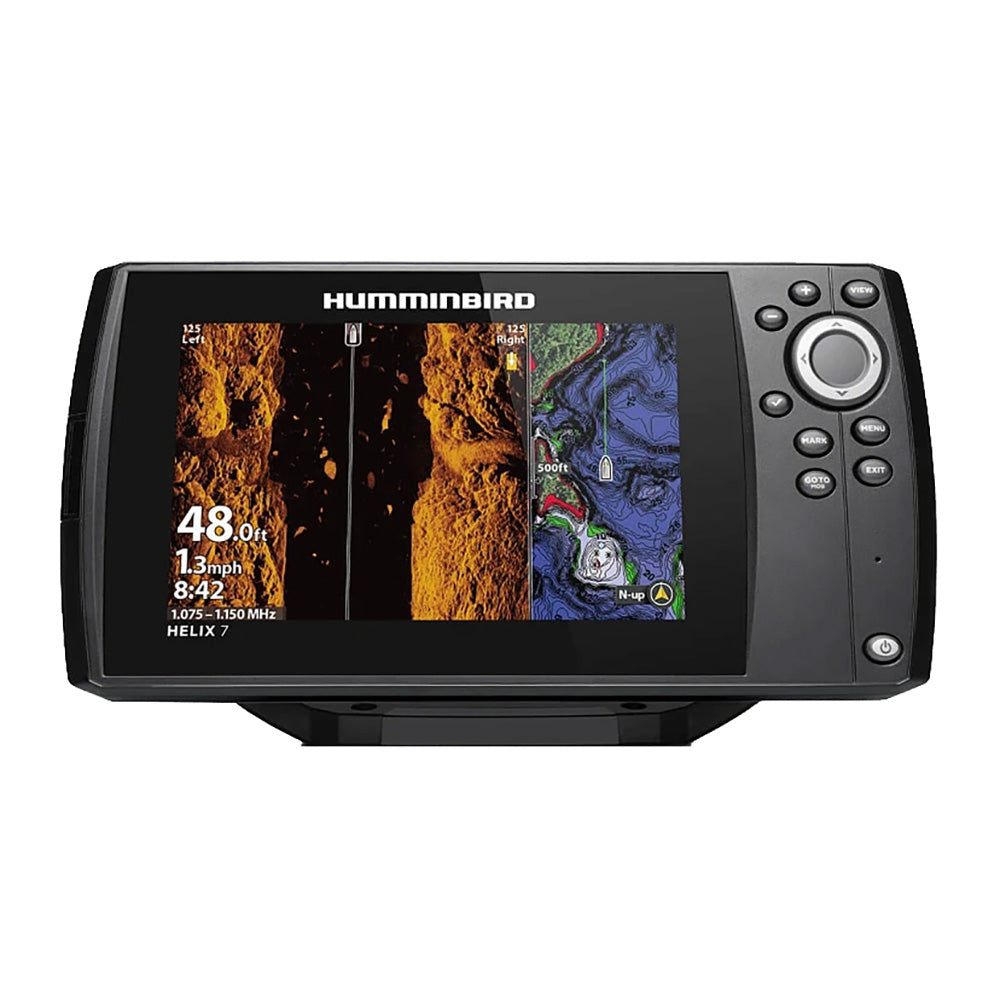

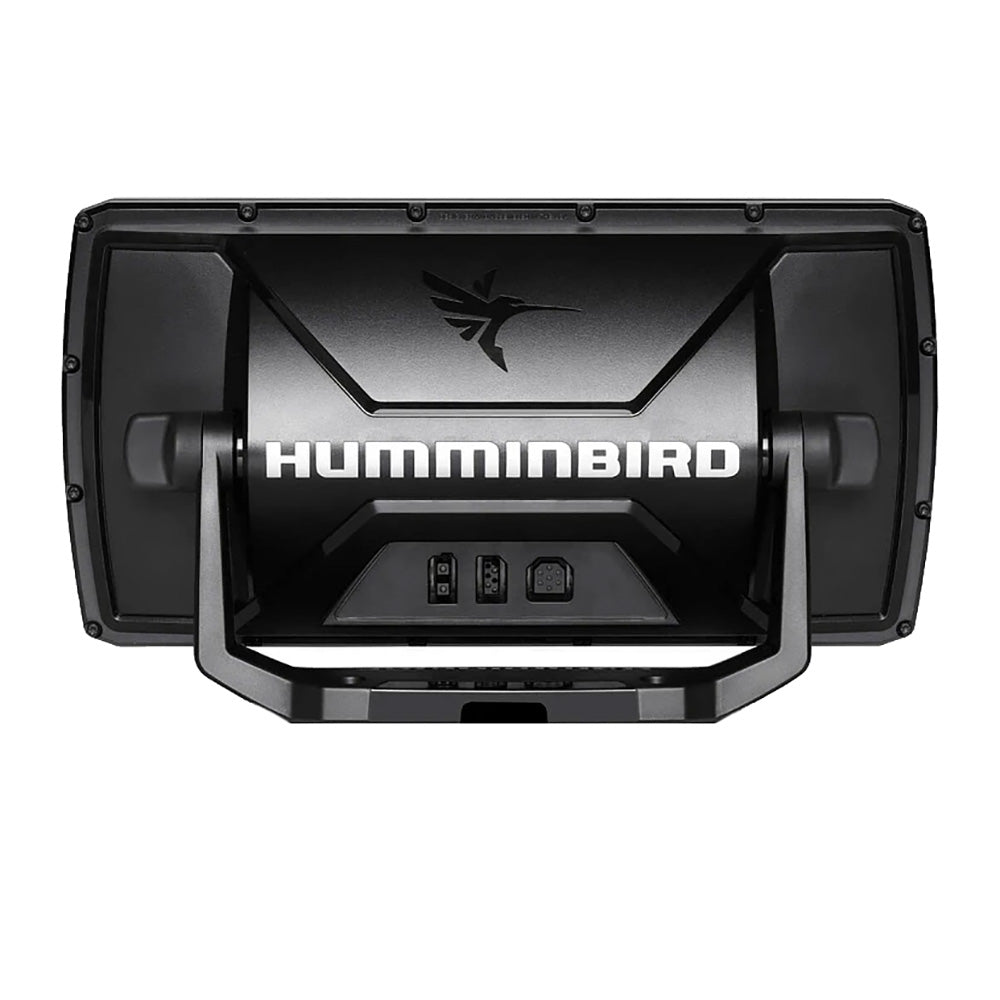

Humminbird HELIX 7 GPS CHIRP MSI G4 [411930-1]

$799.99

Humminbird HELIX 7 GPS CHIRP MSI G4 [411930-1]

HELIX 7 GPS CHIRP MSI G4

The HELIX 7 MEGA SI GPS G4 fish finder features MEGA Side Imaging, MEGA Down Imaging, Dual Spectrum CHIRP Sonar, AutoChart Live, Internal GPS, and Humminbird Basemap built-in. An upgraded high-definition 7" display will give you the best view of the many pre-loaded split screen view options, so users never miss a fish.

Features:

Keypad control: Master HELIX at the touch of a button. Access the pre-loaded views from the user-friendly menu system, operated by softkey controls that allow you to reliably operate your fish finder in any condition.
MEGA Side Imaging: See the world below like never before with crystal-clear viewing out to 125 feet on either side of the boat. Users unlock new details with up to 3X more detail than standard Side Imaging sonar.
MEGA Down Imaging: Get unprecedented underwater clarity with coverage down to 125 feet below your boat. Unlock new details with up to 3X more detail than standard Down Imaging sonar.
Dual Spectrum CHIRP sonar: Before you cast, know what's down there thanks to highly-detailed fish arches and a clear view of the fish-holding structure and the bottom. Powered by our proprietary, Low-Q CHIRP transducer, Dual Spectrum CHIRP 2D sonar offers two ways to search; Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail.
Internal GPS and Humminbird Basemap: Our enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers, and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S.
Premium Chart Compatible: Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbird's LakeMaster® and CoastMaster™ products, as well as your choice of compatible Navionics® charts.
AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness, and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually endless AutoChart Live mapping capacity.
Includes control head, transom-mount transducer, power cable, gimbal mounting bracket, and mounting hardware.
1-Year Limited Warranty

Specifications:

Display Size - Diagonal: 7"
Display Pixel Matrix: 1024H x 600V
Transducer Included: XNT 9 HW MSI 150 T
Compatible With: Minn Kota US2 Sonar, Minn Kota Built-In MEGA DI, AIS, AutoPilot
Features: Down Imaging, Built-In GPS, Side Imaging, Dual Spectrum CHIRP, Built In Mapping, MEGA Imaging
Memory Card Slot: Single Micro SD
Sonar-Standard: Dual Spectrum CHIRP, MEGA Down Imaging, MEGA Side Imaging
Sonar-Coverage: 20°, 42°, 60° & (2) 86° @ -10dB
Sonar-Optional: 53 kHz, 50/Low Airmar CHIRP
CHIRP - Frequencies Supported: Narrow Mode (180-240 kHz), 83/200 (75-155/130-250 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz)
Sonar-Frequencies Supported: 50/83/200/455/800 kHz & 1.2 MHz
Depth-Sonar: 3,500' (optional 50 kHz), 1,200 ft (standard transducer)
CHIRP - Imaging Frequencies Supported: 455 kHz (440-500 kHz), MEGA SI (1075-1150 kHz), MEGA DI (1075-1150 kHz)
Depth-Down Imaging: 75 ft (MEGA), 400 ft (455 kHz)
Range-Side Imaging (Side-To-Side): 800 ft (455 kHz), 250 ft (MEGA)
Interface: Keypad Control
Power Draw: 800 mA
Power Input: 10.8-20 VDC
Power Output Peak-to-Peak: 4000 Watts
Power Output RMS: 500 Watts
Screen Snap Shot: Included
Sonar Recording: Included
Mount-Standard: Gimbal
Mount-Standard Size: 10.54 in W x 5.8 in H x 3.68 in D
Mount-Optional: In-Dash Mounting Kit
Mount-Optional Size: 10.54 in W x 5.44 in H x 1.13 in D
Transducer Mount Location: Transom
GPS Chartplotting: Included
GPS Receiver: Internal
GPS Trackplotting: Included
Waypoints, Routes, Tracks/Points: 2,750, 47, 50/20,000
360 Imaging Compatibility: No
MEGA Live Compatibility: No
Humminbird Basemap: Included
LakeMaster Compatibility: Yes
CoastMaster Compatibility: Yes
Navionics Gold/HotMaps Compatibility: Yes
Navionics Platinum+ Compatibility: Yes
Platinum Compatibility: Yes
Minn Kota i-Pilot Link Compatibility: No
Minn Kota Talon Shallow Water Anchor Compatibility: No
Radar Compatibility: No
5-Port Ethernet Switch Compatibility: No
AIS Compatibility: Optional
Autopilot Compatibility: Yes
Heading Sensor GPS Compatibility: Yes
Target Separation: 2.5"
Interference Rejection: 6 Modes
Noise Rejection: 10 Steps
Upgradable Software: Yes
View Preset Keys: No
X-Press Menu System: Yes
Custom Digital Readout: Yes
Custom View Selections: No
Display Colors Grayscale: 16-Bit
Display Type: Color TFT
Speed: Included
Temperature: Built In
Temperature Alarm: Yes
Temperature Graph: Yes
HDMI Compatible: No
Warranty: One-Year Warranty

Specifications:

Cartography Brand: Humminbird/Navionics
Included Transducer: XNT-9-HW-MSI-150-T
Screen Size: 7"
Touchscreen: No
Transducer Included: Yes
Box Dimensions: 5"H x 14"W x 17"L WT: 5.2 lbs
UPC: 082324058295

Owner's Manual (pdf)

Raymarine

Raymarine i70s System Pack, Wind, Depth, Speed [T70226]

~~$1,759.99~~$1,721.99

Raymarine i70s Sailing System Pack, Wind, Depth, Speed

i70s Multi Display E70327

Maximum Visibility and Maximum Versatility

The i70s multifunction gives you the flexibility to display instrument and

navigation data that is most important to you. Equipped with a bold and

bright 4.1_ display, the i70s is easy-to-customize with digital, analogue

and graphical displays of depth, speed, wind and more. Add the i70s to your

existing Raymarine instrument system or create a network of i70s displays

and sensors, the choice is yours.

Features:

4.1" super bright oversized LCD for maximum visibility
All weather optically bonded display technology delivers brighter
colors, sharper contrast, and a wide viewing angle
Glass bridge industrial design compliments Raymarine eS and gS Series
multifunction displays
Simple user interface with sculpted rubber keypad for precise operation
in all conditions
Customizable data displays of depth, speed, wind and more
SeaTalkng networking for seamless connectivity to Raymarine systems and
NMEA2000* networks
NMEA2000 connectivity* for engine, environment fuel and navigation data
Convenient AIS repeater mode allows you to visually track nearby AIS
targets
Combine the i70s with the ITC-5 instrument transducer convertor and
connect to analog depth, speed, and wind sensors
Network the i70s with Airmar DST800 transducers and the new in-hull P70s
smart transducer
Supplied with both black (eS Series style) & (e Series style) gunmetal
bezels and protective suncover

*NMEA2000 certification pending. A DeviceNet to SeaTalknj adatop is required

for connecting the i70s to NMEA2000 backbone.

Intuitive LightHouse User Interface

The i70s places frequently used navigation functions right at your

fingertips. The LightHouse instrument interface is consistent with Raymarine

LightHouse multifunction displays, so Raymarine MFD users will feel right at

home with the i70s.

Networking

Raymarine i70s allows for connectivity to the following on board networks:

First generation SeaTalk networks using a SeaTalk to SeaTalkng
adapter cable
Current generation SeaTalkng networks
NMEA2000 networks using a SeaTalkng to DeviceNet adaptor
In addition to flexible networking capability the i70s features
user-selectable data sources, for integration with multi-sensor
networks.

AIS Repeater

Display AIS targets from NMEA 2000 AIS receivers. View the closest 25

AIS-equipped vessels and select individual targets to obtain vessel

information.

iTC5 Transducer Converter E70010

The iTC5 Instrument Transducer Converter enables the use of common analog

transducer signals with new digital instrument displays like Raymarine's i70

and ST70 Plus. The ultra-compact iTC5 has connections to host the five most

common analog transducers; depth, speed/temperature, wind, compass and

rudder. The iTC5 instantly converts these 5 analog signals to digital

SeaTalk^ng protocol.

In addition to providing analog-to-digital conversion, the iTC5 provides all

of the necessary power and communications connections to the transducers.

This greatly simplifies the installation of new systems, and also provides a

simple and cost-effective means for owners of older analog instrument

displays to upgrade to the latest digital display technology. The iTC5

eliminates the need for expensive "smart" transducers or individual

instrument pods. Complete control for calibration and alarms is performed

through the i70 or ST70 Plus instruments.

The iTC5 connects to Raymarine's SeaTalk^ng network and works with

most analog transducers from legacy Raymarine ST30, ST40, ST50, ST60, ST80

and ST290 series instruments. Additionally the iTC5 works with Raymarine

fluxgate compass modules as well as rotary and linear rudder feedback

transducers to support compass heading and rudder angle instruments.

Features:

All-in-one analog to digital converter for depth,
speed/temperature, wind, compass and rudder transducers
Outputs SeaTalk^ng and NMEA2000 data to digital instruments,
MFDs and more
Enables easy upgrade of legacy analog instrument displays without
replacing transducers
SeaTalk^ng network provides all necessary power and data
connections
Ideal for use with Raymarine i70 and ST70 Plus digital instrument
systems

Wind Vane E22078

Standard Forward Wind Transducer, Standard Length: 14 1/2" Includes 100ft. Cable.

DST800 Nylon Thru hull A22154

Raymarine DST800 Nylon Thru Hull Transducer with Depth, Speed, and Temp for

ST60, ITC-5

PACKAGE CONTAINS:

1ea E70327 i70s Instrument

1ea E70010 ITC-5

1ea A22154 DST800 Transducer

1ea E22078 Standard Wind Transducer

1ea A06031 Backbone Terminator

1ea A06074 Inline Terminator

1ea A06068 Backbone Cable 9M

1ea A06049 Power Cable

Specifications:

Instrument Function: Multifunction
Box Dimensions: 12"H x 12"W x 24"L WT: 12.3 lbs
UPC: 723193854075

Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)

Furuno

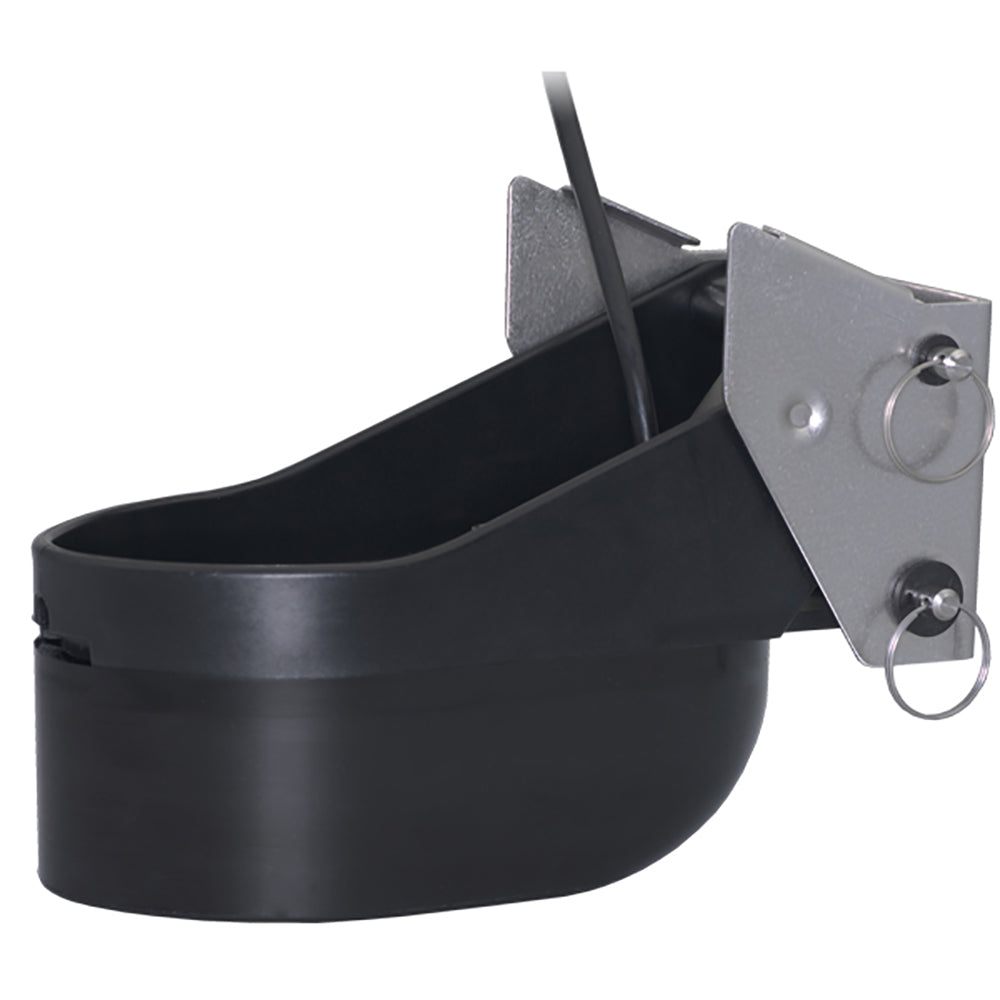

Furuno TM185M Medium-Frequency CHIRP Transducer w/Temperature - Urethane Transom Mount w/Stainless Bracket [TM185M]

$1,000.00

Furuno

Furuno DRS12AX 12kW UHD Digital Radar - Less Antenna Cable [DRS12AX]

$5,295.00

Humminbird

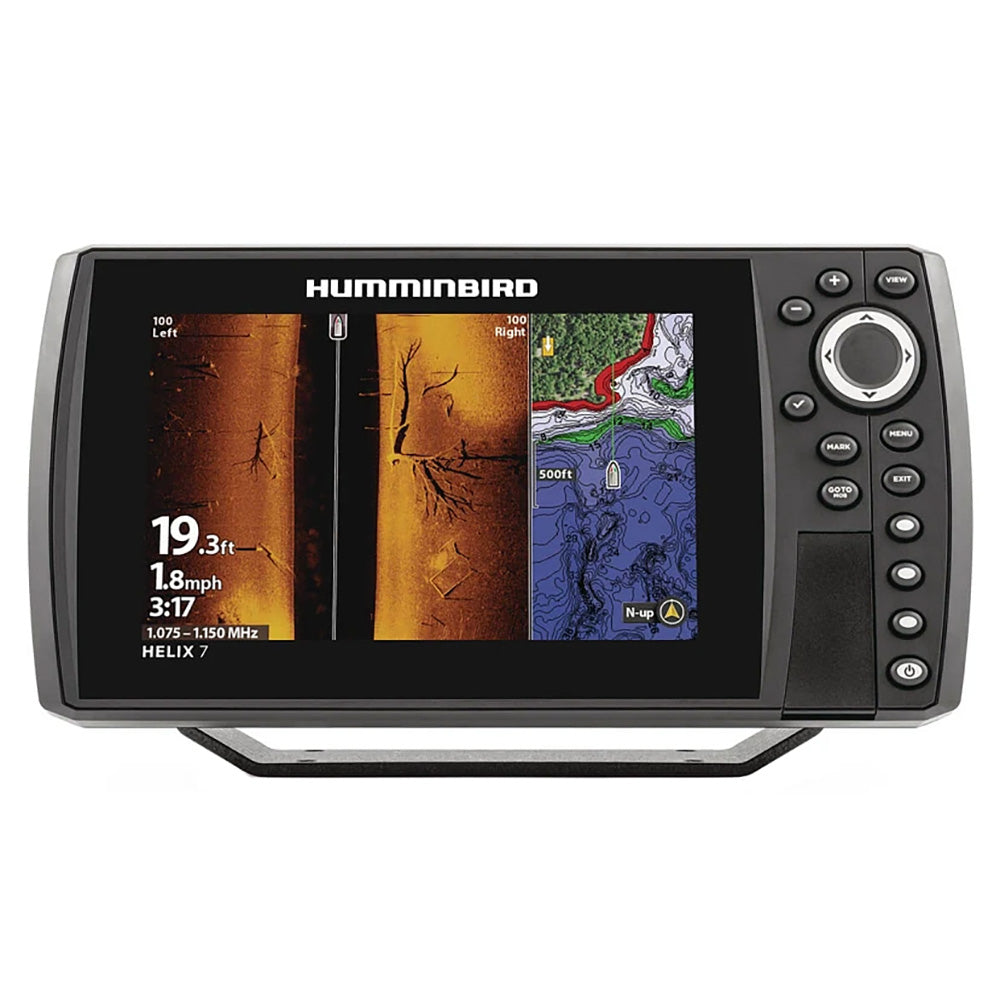

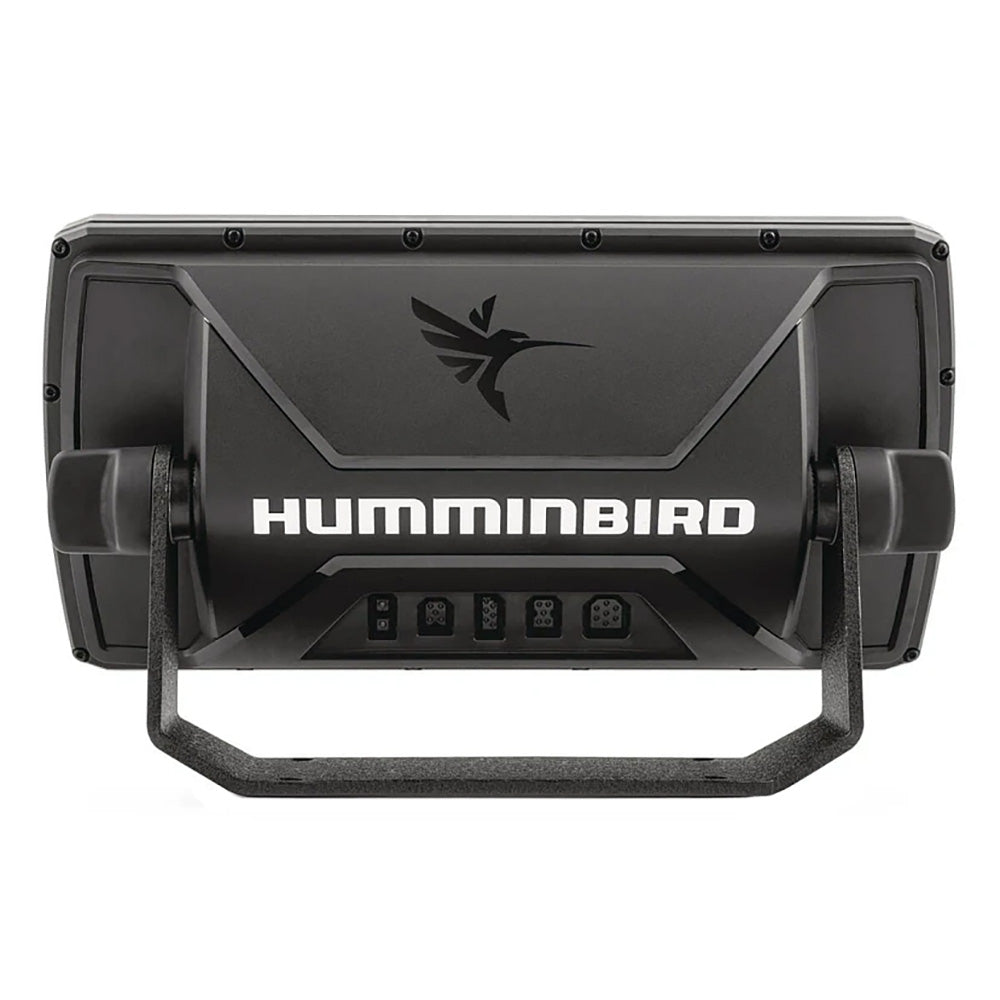

Humminbird Helix 7 GPS Chirp MSI G4N [411940-1]

$999.99

Humminbird Helix 7 GPS Chirp MSI G4N [411940-1]

Helix 7 GPS Chirp MSI G4N

The HELIX 7 MEGA SI GPS G4N fish finder features MEGA Side Imaging, MEGA Down Imaging, Dual Spectrum CHIRP Sonar, AutoChart Live, Internal GPS, and Humminbird Basemap built-in. An upgraded high-definition 7" display will give you the best view of the many pre-loaded split-screen view options so that you'll never miss a fish. All HELIX 7 G4N models support Ethernet networking, Bluetooth(R), NMEA 2000(R), and are compatible with the One-Boat Network(TM), which means you'll have total control of your fishing machine at your fingertips.

Keypad Control

Master HELIX at the touch of a button. Access the pre-loaded views from the user-friendly menu system, operated by softkey controls that allow you to reliably operate your fish finder in any conditions.

CHIRP Side Imaging

Filter out noise and clutter for a clearer view of the world below and out to each side of your boat. CHIRP Digital Sonar processing of Side Imaging sonar means that you'll see fish and structure to the left and right of your boat.

CHIRP Down Imaging

Filter out noise and clutter for a clear view beneath your boat. CHIRP Digital Sonar processing of Down Imaging sonar means that you'll see great detail to make finding the fish simple and easy.

Dual Spectrum CHIRP Sonar

See what's down there thanks to highly detailed fish arches and a clear view of fish-holding structure and the bottom. Powered by our proprietary Low-Q CHIRP transducer, Dual Spectrum CHIRP 2D sonar offers two ways to search: Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail.

Internal GPS and Humminbird Basemap

Our enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers, and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S.

Premium Chart Compatible

Get a complete view of the world below with optional charts from Humminbird's LakeMaster® and CoastMaster™ products, as well as your choice of compatible Navionics® charts.

AutoChart Live

Create real-time maps of your fishing spots with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness, and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually endless AutoChart Live mapping capacity.

Specifications

Display Size: 7"
Length: 3.08"
Height: 5.44"
Memory Card Slot: Dual Micro SD
Sonar-Standard: Dual Spectrum CHIRP, MEGA Down Imaging, MEGA Side Imaging
Width: 10.54"
Display Pixel: 1024h x 600v
Included Transducer: XNT 9 HW MSI 150 T

Specifications:

Cartography Brand: Humminbird/Navionics
Included Transducer: XNT-9-HW-MSI-150-T
Screen Size: 7"
Touchscreen: No
Transducer Included: Yes
Box Dimensions: 5"H x 14"W x 17"L WT: 5.6 lbs
UPC: 082324058172

Humminbird

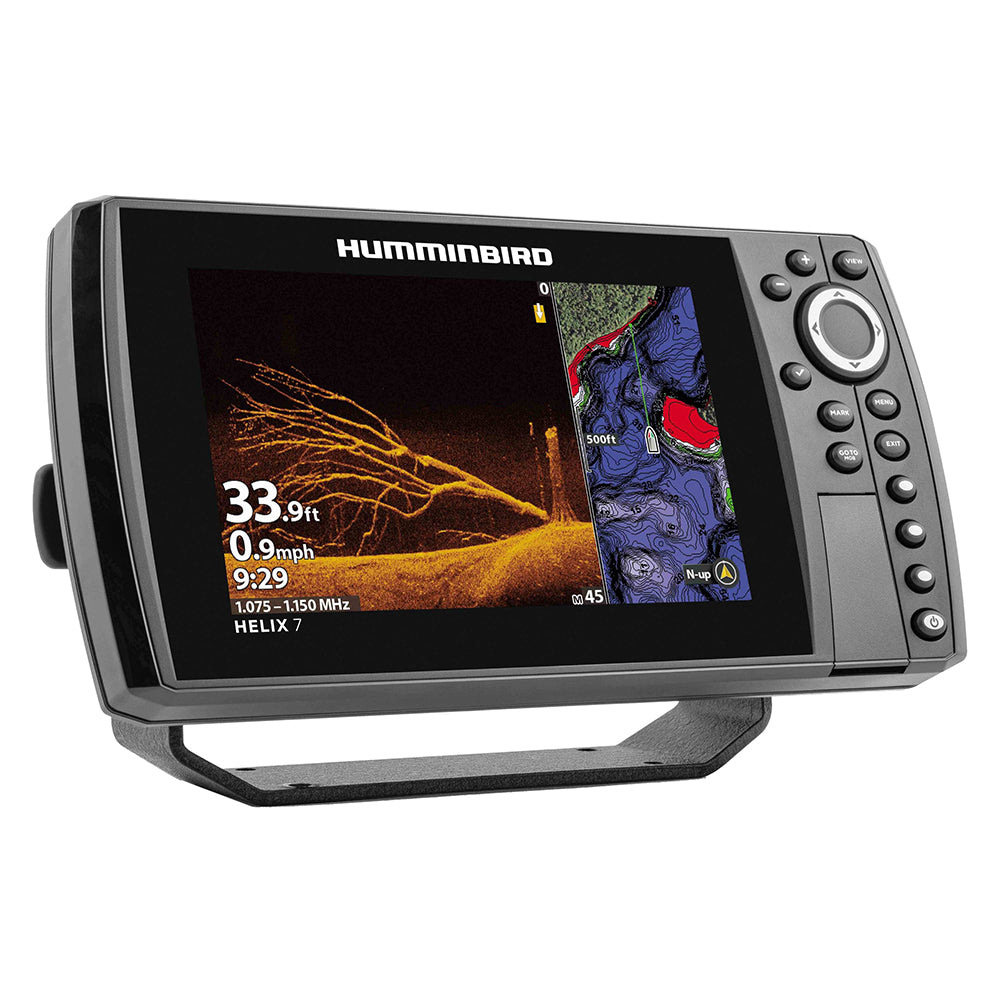

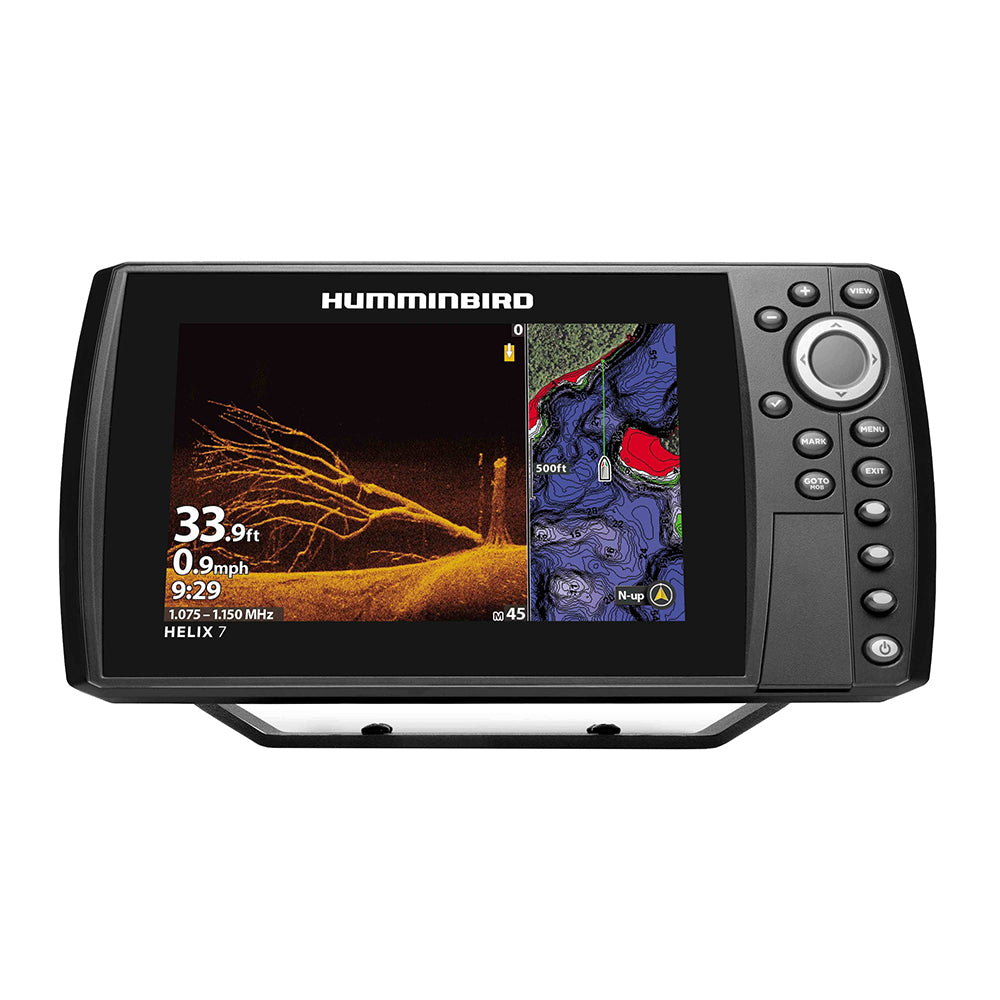

Humminbird HELIX 7 CHIRP MEGA DI GPS G4N [411640-1]

$799.99

Humminbird HELIX 7 CHIRP MEGA DI GPS G4N [411640-1]

HELIX 7 CHIRP MEGA DI GPS G4N

The HELIX 7 CHIRP MEGA DI GPS G4N fish finder features MEGA Down Imaging, Dual Spectrum CHIRP Sonar, AutoChart Live, Internal GPS, and Humminbird Basemap built-in. An upgraded high-definition 7" display will give you the best view of the many pre-loaded split screen view options so that you'll never miss a fish. All HELIX 7 G4N models support Ethernet networking, Bluetooth(R), NMEA 2000(R), Wi-Fi, and are compatible with the One-Boat Network(TM), which means you'll have total control of your fishing machine at your fingertips.

Features:

Keypad control: Master HELIX at the touch of a button. Access the pre-loaded views from the user-friendly menu system, operated by softkey controls that allow you to reliably operate your fish finder in any conditions.
MEGA Down Imaging: Get unprecedented underwater clarity with coverage down to 125 feet below your boat. You'll unlock new details with up to 3X more detail than standard Down Imaging sonar.
Dual Spectrum CHIRP sonar: Before you cast, know what's down there thanks to highly detailed fish arches and a clear view of the fish-holding structure and the bottom. Powered by our proprietary, Low-Q CHIRP transducer, Dual Spectrum CHIRP 2D sonar offers two ways to search; Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail.
Internal GPS and Humminbird Basemap: Our enhanced base map provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers, and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S.
Premium Chart Compatible: Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbird's LakeMaster® and CoastMaster™ products, as well as your choice of compatible Navionics® charts.
AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually-endless AutoChart Live mapping capacity.
One-Boat Network Compatible: These Humminbird models seamlessly integrate and communicate with other Humminbird and Minn Kota products to unlock more features and capabilities for anglers everywhere. Make the more of your time on the water with the exclusive boat control and fish-catching features of the One-Boat Network.
Ethernet Networking: High-speed Ethernet allows you to build a powerful, professional-grade fishing system. Easily connect multiple fish finders, or upgrade to add-on technologies like Minn Kota i-Pilot Link and Humminbird CHIRP Radar.
Bluetooth: Take control right from the screen of your Humminbird with wireless communication to compatible Talon and Raptor shallow water anchors. Additional features include wireless software updates from the Humminbird FishSmart App and a display of smartphone notifications on your Humminbird.
NMEA 2000 networking built-in: Connect an accessory NMEA 2000 network to your control head for even more information; from boat performance to weather and water conditions, make sense of it all with NMEA 2000 networking.
Includes control head, transom-mount transducer, power cable, gimbal mounting bracket, and mounting hardware.
1-Year Limited Warranty

Specifications:

Display Size - Diagonal: 7"
Display Pixel Matrix: 1024H x 600V
Sonar-Standard: Dual Spectrum CHIRP, MEGA Down Imaging
Sonar-Coverage: 20°, 42°, 60° & (2) 86° @ -10dB
Sonar-Optional: 53 kHz, 50/Low Airmar CHIRP
CHIRP - Frequencies Supported: 83/200 (75-155/130-250 kHz), Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz)
Sonar-Frequencies Supported: 50/83/200/455/800 kHz & 1.2 MHz
Depth-Sonar: 1,200 ft (standard transducer), 3,500 ft (optional 50 kHz)

Specifications:
