Marine Navigation & Instruments

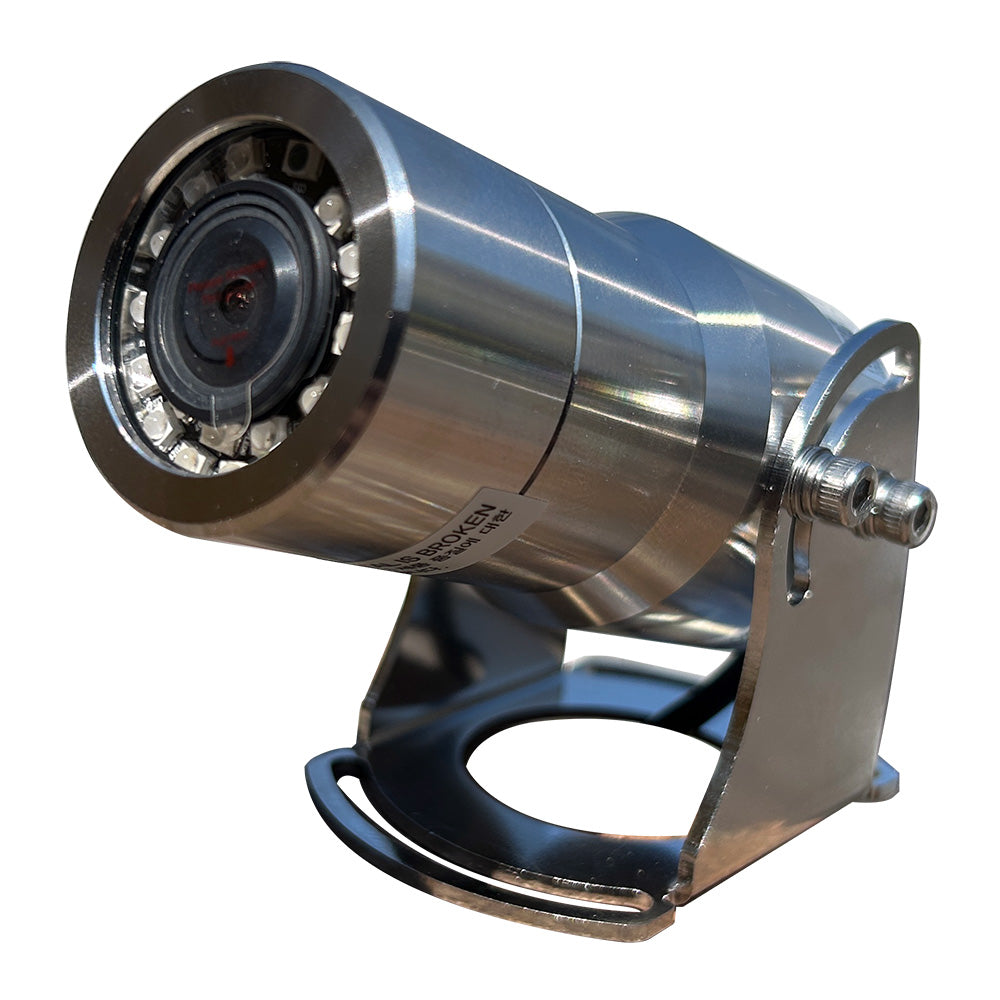

Iris 316 Stainless Steel Marine Camera  - TVL - Wide Angle - Reversible - Nitrogen Purged - Infrared [IRIS090]

316 Stainless Steel Marine Camera - TVL - Wide Angle - Reversible - Nitrogen Purged - Infrared

The IRIS090 fixed camera is an extremely compact 'bullet' style device that features 24 built-in infrared LEDs, a high-resolution SONY camera, and all the image enhancement features you come to expect from top-end cameras such as Dynamic Noise Reduction, Wide Dynamic Range, and much more.

The IRIS090 is fitted as standard with an extensive angled 2.1mm lens, providing a horizontal angle of view of 120°. This makes it the perfect choice for covering bathing platforms or monitoring engine rooms.

The IRIS090 housing is machined from solid billet A316 Stainless Steel, making it ideal for the toughest of marine environments.

Features:

• Machined from billet A316 Stainless Steel, the IRIS090 offers exceptional image quality in a tough, stylish housing that also boasts IP68 waterproof protection
• The Sony Super HAD II CCD chipset produces crisp 700TVL resolution composite video which can be viewed on all major chart-plotters and monitors with exceptional low-light clarity
• Built-in photo-diode activates a ring of 24 infrared LEDs (850nm) for illumination to a distance of up to 50 feet in pitch-black conditions
• Features an extensive list of setup functions to achieve the best possible images in all conditions

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Quick Guide (pdf)
Brochure (pdf)

Standalone 8" Chartplotter System with Color LCD, Internal & External GPS Antenna & C-MAP 4D Card

The SI-TEX SVS-880CE+ is a powerful big-screen performer designed to fit every boat and budget. This compact chartplotter and chartplotter/sonar system delivers the goods for any vessel, from center console skiffs to sailboats to light commercial boats.

Differences between SVS-880CE & SVS-880CE+

• The SVS-880CE+ has an updated Android processor and it only uses C-Map 4D cartridges.

Features:

• 8" high-resolution color LCD and compact case
• 52-channel GPS
• "Dual fuel" charting the C-MAP and Navionics cartography
• Global GPS compatibility
• Brilliant LED backlighting for daylight readability
• Easy, intuitive operation and control
• Video input for underwater and on-deck cameras
• Weather protector cover included

General Specifications:

• Display Screen SVS-880CE+: 8-inch Color LCD with LED backlight
• Resolution SVS-880CE+: SVGA (800 x 600 pixels)
• Power Supply: DC 12V-36V(±10%) SVS-880: 4W(without sonar)/ 6W(with sonar
• Operating Temperature: Display Unit -15 degrees C to +50 degrees C, Antenna Unit -25 degrees C to +70 degrees C
• Performance Standard: IMO Resolution MSC.112(73)

Chartplotter Specifications:

• Display Method: Mercator Projection
• Display Mode: True motion / N/S/E/W up / Course up / Head up
• Latitude Limits: Between 85 degrees N to 85 degrees S
• Map Scale: 0.05nm to 1500nm
• Map Datum: WGS-84 6
• Waypoints: 20,000 points *Total of 16 colors and 16 icons are selectable for each point with a name tag (6 alphanumeric characters)
• Track Points: 50,000 points (2 types)
• Route: Max capacity 100 Routes *20 WPTs per each Route. Each with name tags (8 alphanumeric characters)
• Draw Point: 1,000 points
• Area Name: 1,000 points
• Chart Data: Standard w/Navionics Gold C-MAP MAX optional
• Output Data: NMEA-0183
• Input Data: NMEA-0183
• Alarm Arrival, Anchor, XTE, Interval timer, Userline

GPS Receiver Specifications:

• GNSS Receiver Capabilities: GPS - L1 C/A code, GLONASS - L1OF/, QZSS - L1 C/A code, Galileo - E1B/E1C/L1
• Number of Channels: 52 channels
• Horizontal Positioning Accuracy: Autonomous 2.5m (CEP 50%)
• Sensitivity: Acquisition -148 dBm, Tracking -165 dBm, Reacquisition  -162 dBm, Nav Update 1Hz, 5Hz)
• Support: DGPS, SBAS (EGNOS,WAAS, MASA, GAGAN)

Sonar Specifications:

• Display Mode: Normal (single/dual-frequency), Bottom-lock.  Bottom-zoom, A-scope
• Frequency 50 and 200 KHz (single or dual)
• Output Power: 600W
• Range Speed: 600W - 2.5m - 600m
• Image Speed: Fixed 8 speeds (4/1, 2/1, 1/1, 1/2, 1/4, 1/8, 1/16, 1/32) and stop
• Rejection: Interference rejection: 3 levels, Noise rejection: 4 levels
• Function: Gain(auto/manual), Range(auto/manual), Shift(auto/manual), White/Black line Support speed sensor, Water temperature

Specifications:

• Cartography Brand: Navionics/C-Map
• Screen Size: 8"
• Touchscreen: No
• Box Dimensions: 11"H x 13"W x 15"L WT: 8.9 lbs
• UPC: 010407102122

SI-TEX 12CI Pumpset - 12VDC [OCTAFG1012]

12CI Pumpset - 12VDC

The 12CI Pumpset, 12 VDC is intended for use with Si-Tex autopilot systems.

GMI™ Wired Start Pack 52

A Perfect Start to Your New Instrument Network On Board

• Includes GMI 20 marine instrument, gWind™ transducer and AIRMAR® DST810 transducer
• GMI 20 instrument has a highly visible bright 4” color glass-bonded lens display with anti-glare finish
• gWind transducer features 3-bladed propeller and twin-fin design
• DST810 thru-hull smart transducer provides water depth, water speed and water temperature data — plus attitude sensing for heel/trim and pitch/roll inputs
• Wireless connectivity to devices with BLUETOOTH® technology enables DST810 calibration directly through the CAST™ app from AIRMAR
• Easy plug-and-play installation and integration with Garmin chartplotters via the NMEA 2000® network

A Good Start or Complete Pack

With a GMI Wired Start Pack 52, you’ll have all the equipment you need to know what’s going on with the wind and the water. If you’re looking to install more than just one instrument in your network, this is the perfect start pack to use. By using the NMEA 2000 network, it’s easy to expand with the number of instruments you want.

GMI 20 Marine Instrument

The GMI 20 digital marine instrument display is perfectly designed for both power and sail vessels. Designed to clearly show depth, speed, wind and 100-plus marine and vessel parameters, its large, bright 4” color display with extra-large digits is easy to read at a distance and 170 degree viewing angle.

A glass-bonded finish lens on GMI 20 prevents fogging and increases contrast. Daylight readability is enhanced with a high-contrast color scheme. For enhanced night visibility, you have a choice of red/black, green/black or the normal night mode color scheme along with a dimmer control. Screens can be set to auto-scroll — cycling between pages automatically without you having to do a thing. This is especially advantageous for sailors as it allows you to install the unit(s) in a greater variety of locations on the vessel. Default profiles can be customized for powerboat, sailboat, fishing, engine/fuel plus several other user-specified profiles. Power is supplied by the NMEA 2000 network.

gWind Transducer

gWind transducer features twin-fin technology with 3-bladed propeller for more accurate True Wind Speed (TWS) in lighter air while the twin-fin design gives a more stable True Wind Angle (TWA). The 3-bladed propeller, unlike a cups design, is always efficient. Combined with optic reading, this transducer provides superior accuracy at low wind speeds and also provides for excellent linearity.

AIRMAR DST810 Thru-hull Smart Transducer

DST810 combines precise depth, speed and temperature data with attitude sensing for heel/trim and pitch/roll inputs — which it provides to the NMEA 2000 network and GNX™ 20 instrument. This multisensor transducer can read depths to 330’, offers fast 5 Hz water speed signal output and has an operating frequency of 235 kHz with a fan-shaped beamwidth of 10 x 44 degrees. Additionally, wireless connectivity to devices with BLUETOOTH technology enables DST810 calibration directly through the CAST app from AIRMAR. Advanced speed calibration allows for calibration at multiple heel angles and speeds.

In The Box:

• gWind™ transducer
• GMI™ 20 marine instrument
• GND™10 black box bridge
• Airmar DST810 thru-hull smart transducer
• 2 NMEA 2000® drop cable (2 meters)
• NMEA 2000 power cable
• 4 NMEA 2000 T-connectors
• NMEA 2000 terminators
• Mast cable with female connector (25 meters)
• Nexus network cable (5 m; straight connector)
• Nexus female field installable connector
• Mast bracket
• Mounting hardware
• Documentation

The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Garmin is under license.

Ritchie HB-845 Helmsman Steel Boat Compass - Bracket Mount - Black [HB-845]

Helmsman Steel Boat Compass

Features:

• 3 3/4″(95 mm) Open Face Dial
• Special Reinforced Bracket with Quadrantal Correctors
• Built-in Standard Compensators and Booster Magnets on Base
• Hardened Steel Pivot and Sapphire Jewel Movement
• 45 Degree Lubber Lines
• Exclusive Built-in Green NiteVu Lighting
• Movable Sun Shield
• 100% Repairable
• Exclusive 5-Year Ritchie Warranty

Approx. Shipping Weight: 6 lbs (2.72 kg)

Notes:

Comes standard with 12v lighting. 24 & 32v lighting options are available. Some custom built OEM models may have different lighting.

Specifications:

• Read: Rear
• Mounting Style: Bracket
• Lubber Lines: Yes
• Backlight: Yes
• Box Dimensions: 7"H x 7"W x 8"L WT: 5 lbs
• UPC: 010342138651

Quick Guide (pdf)
Owner's Manual (pdf)

Nitron XD Pro Full Color Night Vision Camera -  4" Tall Base - HDMI - White

Experience unmatched clarity on the water with the Nitron XD Pro — the ultimate marine night vision camera. Engineered for maximum performance, it delivers true HD resolution and crystal-clear imagery even in complete darkness. Unlike thermal systems, it captures a realistic, full-color image - so you’ll always have a clear view of the horizon, channel markers, and other vessels, no matter the lighting conditions.

Superior Non-Thermal Night Vision

The Nitron XD Pro is a non-thermal night vision camera, meaning it doesn't rely on detecting heat signatures like thermal imaging systems. Instead, it utilizes advanced low-light imaging technology to amplify available ambient light, delivering high-resolution, full-color visuals even in near-total darkness. This approach offers several benefits:

Enhanced Detail Recognition

Unlike thermal cameras that produce monochromatic images based on heat differences, non-thermal systems like the Nitron XD Pro provide detailed, true-to-life visuals. This clarity is crucial for identifying specific objects, reading signage, or recognizing subtle obstacles during nighttime navigation.

Color Imaging

The Nitron XD Pro delivers full-color images, offering a more natural and intuitive viewing experience compared to the grayscale or false-color outputs typical of thermal cameras.

Unaffected by Heat Sources

Thermal cameras can struggle in environments with uniform temperatures or when distinguishing between objects of similar heat levels. The Nitron XD Pro's performance remains consistent regardless of ambient temperature variations.

Full Color HD

The Nitron XD Pro delivers up to 4K HD full-color video—so you can now see everything at night in vivid detail. Experience enhanced clarity, color accuracy, and next-level night navigation.

Built to Last

IP69 rated and built with military-grade materials. It resists salt spray, corrosion, UV, and moisture—perfect for long-term marine use.

See What's Out There

See markers, buoys, docks, and more with confidence. The camera captures clear visuals in zero-light conditions—no thermal imaging required.

Features:

• Ultra-Sensitive Sensor – Detects light levels as low as 0.0000025 lux for true night vision clarity.
• 4K Resolution – Captures every detail in stunning ultra-high definition.
• 60 Frames Per Second – Delivers smooth, real-time video with zero lag.
• Direct MFD Connection – Compatible with Garmin, Simrad, Raymarine, and more via Analog, HDMI, or POE.
• Marine-Grade IP69K Housing – Fully sealed and built to withstand salt, spray, and the harshest marine environments.
• Flexible Mounting Options – Install on top or bottom surfaces for optimal visibility.
• 12V DC Power – Simple, reliable power input for any vessel setup.
• Manual Vertical Tilt – Easily adjust the viewing angle to suit your boat or mounting position.
• 50° Field of View – Balanced perspective for wide-area visibility and depth perception.
• Auto Day/Night Filter – Seamlessly transitions for clear imaging in all lighting conditions.

Specifications:

• Operating Voltage - 12V DC
• Frame Rate - 60 FPS
• Resolution - Up to 4K
• Filter - Auto Day to Night
• Field of View - 50° FOV Horizontal
• Image - Full Color

What's In The Box?

• Nitron XD Pro Marine Camera – Precision-engineered for HD night vision performance
• 25' Quick-Connect Wiring Harness – Simple, plug-and-play installation
• 5 Amp Inline Fuse – Protects your system from power surges
• Anodized Aluminum Mount – Durable, corrosion-resistant construction
• Stainless Steel Screws – Marine-grade hardware for long-lasting reliability
• Dielectric Grease Packet – Single-use protection for electrical connections

Forward-Facing Motorized Sonar Mount

The FORESIGHT Forward-Facing Sonar Mount is the most sophisticated mounting system on the market. It allows the sonar transducer to stow and deploy with the bow-mount trolling motor but still be controlled independently.

*The FORESIGHT was designed to be used with a 0-degree transducer mounting bracket. The use of perspective mounts and other add-ons that move the transducer further away from the Foresight shaft may cause the transducer to contact the trolling motor.

Features:

• The wireless foot pedal is included

Specifications:

• Weight: 12 lbs.
• Dimensions: 39 × 10 × 5 inches
• Fit kit: Lowrance Ghost, Garmin Force, and Minn Kota Ultrex (Kits not included)

Specifications:

• Type: Mounting Brackets
• Box Dimensions: 5"H x 10"W x 39"L WT: 11.5 lbs
• UPC: 854127007912

MTMS Marine Thermal Monitoring System - Formally called AX8

Gain an entirely new view of your vessel's mechanical system with the FLIR AX8 thermal monitoring camera. Combining thermal and visible cameras in a small, affordable package, the AX8 integrates with Raymarine multifunction displays (MFDs) and sends audible and visual alerts when the temperature of machine parts rise above preset thresholds.

Keep a watchful eye on such critical equipment as engines, exhaust manifolds, and shaft bearings and spot problems before they leave you stranded on the water. And FLIR's exclusive MSXr imaging blends visible and thermal images for more detailed imagery that is easier to understand.

Spot Potential Problems Before They Happen

State-of-the-art thermal monitoring of engines and onboard machinery. Powered by Lepton, FLIR's most advanced micro thermal camera. Exclusive Multi-Spectral Dynamic Imaging (MSX®) for easy-to-understand thermal imagery.

On Board Thermal Alarming & Visual Analysis

Stream live thermal video of exhaust manifolds, propeller shafts, electrical panels, and other machinery. Program specific areas to generate automated spot alarms when temperatures exceed pre-set thresholds. Evaluate ongoing temperature trends. Help avoid costly repairs and unwanted breakdowns.

Raymarine Integration

View thermal, visible, and MSX video imagery on Raymarine LightHouse IIT MFDs. Continuous thermal monitoring with audible and visual alarms across the Raymarine network. Connect up to eight AX8 cameras using Ethernet

View and record thermal video and snapshots from any Raymarine display on the network. Easy setup and alarm programming with a PC and web browser.
