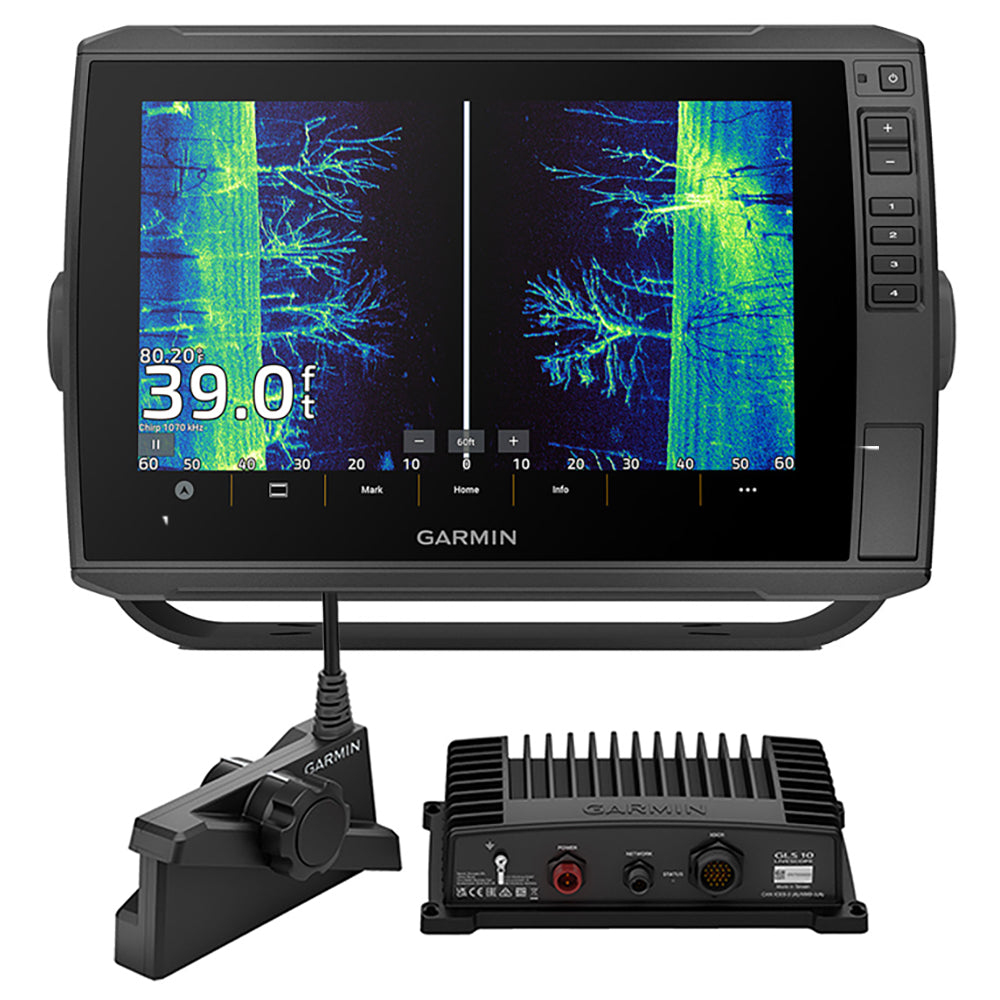

Garmin ECHOMAP Ultra 2 10" LiveScope Plus Bundle [010-02880-10]

The Garmin ECHOMAP Ultra 2 with LiveScope™ Plus System will give you all the tools you need for successful fishing. With a big, crisp, sunlight-readable touchscreen display, this versatile chartplotter puts a world of fishfinding capability at your fingertips. It has built-in Garmin Navionics+™ mapping, and the transducer bundle adds Forward, Down, and Perspective Mode Live Sonar.

Features:

• 10" touchscreen, sunlight-readable display
• Vivid color palettes: High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure
• Pre-loaded Charts and Navionics+ mapping for Canada and the U.S.A. for offshore, coastal, and inland
• Auto Guidance Technology which will show suggestions for routes to your destination
• Built-in Quickdraw Contours to create and share fishing maps with 1' contours onscreen
• Capture screen recordings to share fish catches
• Multi-Band GPS for improved position accuracy

Specifications:

• Screen Size: 10"
• Color Screen: Yes
• GPS: Yes
• Transducer: Panoptix LiveScope

What's In The Box?

• 10" Chartplotter with Garmin Navionics+ Maps bundled with a LiveScope™ Plus System
• GLS™ 10 Black Box
• Livescope™ Plus LVS34 Transducer

Specifications:

• Screen Size: 10"
• Box Dimensions: 11"H x 15"W x 17"L WT: 23 lbs
• UPC: 753759345082

Owner's Manual (pdf)

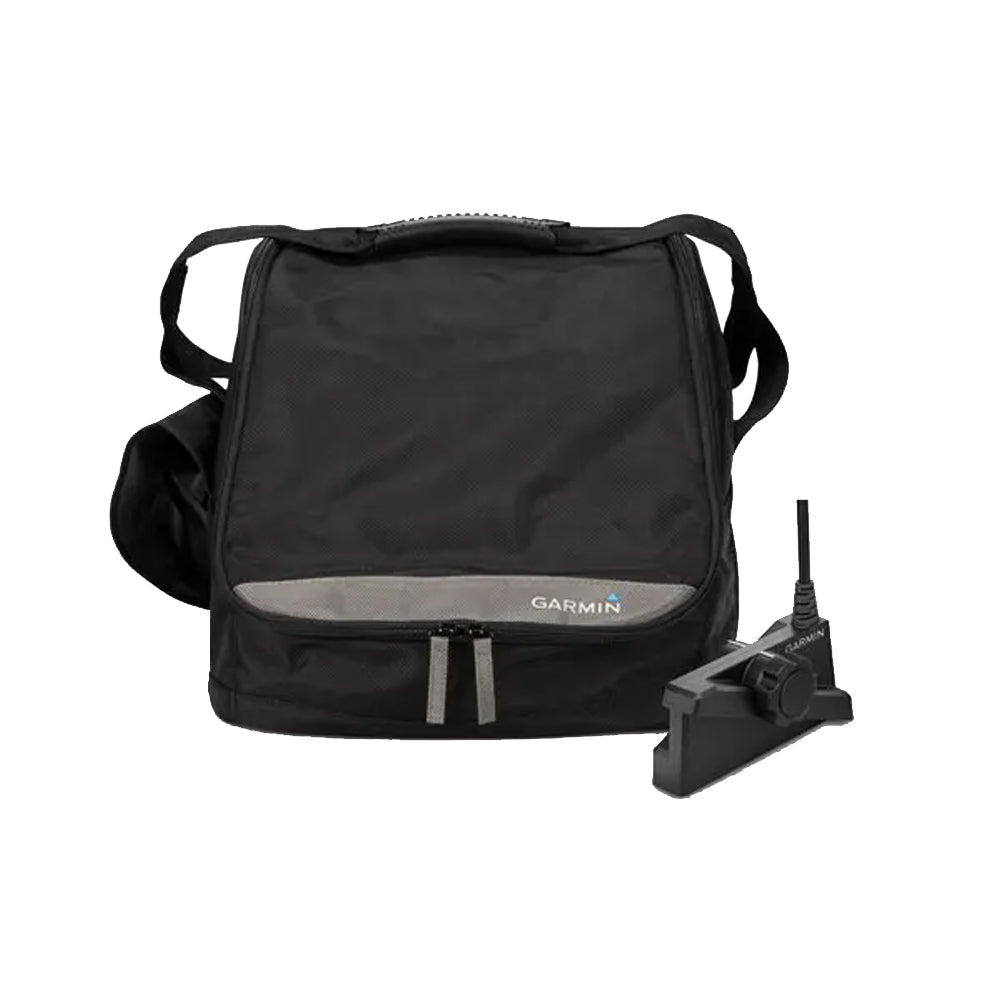

Garmin LiveScope Plus Ice Fishing Kitw/LiveScope Plus System  Lead Acid Battery [010-02706-30]

DRILL FEWER HOLES, CATCH MORE FISH

The LiveScope Plus ice fishing kit includes everything you need to take your ECHOMAP™ or GPSMAP® unit from your boat onto the ice and transform your fishing experience.

Features:

• Catch your limit with the power of LiveScope™ sonar.
• Just add your ECHOMAP or GPSMAP unit … and ice.
• Use LiveScope™ Forward mode to locate fish and drill where you find ’em.
• Keep an eye on your jig and how fish react to it with LiveScope™ Down mode.
• Everything goes where you go. All accessories fit in the rugged, portable carrying case.

TWO MODES, ONE TRANSDUCER

Adapt your fishing technique with the LiveScope Plus transducer with live, real-time scanning sonar that lets you see up to 200’ in any direction.

LIVESCOPE FORWARD

LiveScope Forward mode shows up to 200’ all around you, so you can locate schools of fish and know where to drill the next hole.

LIVESCOPE DOWN

LiveScope Down mode homes in on targets, so you can watch fish respond to your jig.

CARRYING CASE

The rugged, portable carrying case fits your ECHOMAP 7” or 9” units or GPSMAP 7” and 9” units plus all the included parts, so you can easily transport it from hole to hole and season to season.

ALL THE ACCESSORIES

Kit accessories include a swivel pole mount for the LiveScope transducer, 12Ah battery, charger, flexible power cable and transducer adapter cable.

What's In The Box?

• LiveScope™ Plus System
• Panoptix ice fishing mount
• Power cable
• Documentation
• Portable fishing kit
  • Bag with handle
  • Rechargeable battery
  • Battery charger

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

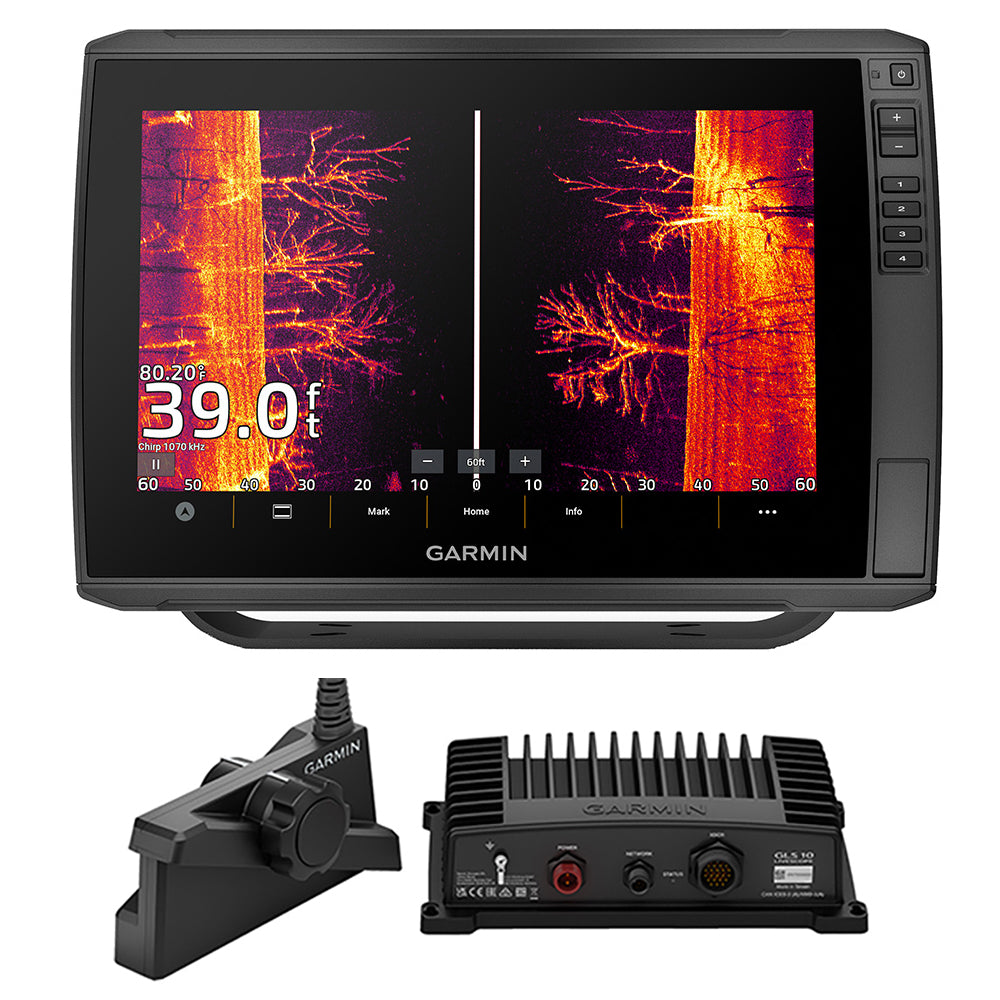

Garmin ECHOMAP Ultra 2 12" LiveScope Plus Bundle [010-02882-10]

The Garmin ECHOMAP Ultra 2 with LiveScope™ Plus System will give you all the tools you need for successful fishing. With a big, crisp, sunlight-readable touchscreen display, this versatile chartplotter puts a world of fishfinding capability at your fingertips. It has built-in Garmin Navionics+™ mapping, and the transducer bundle adds Forward, Down, and Perspective Mode Live Sonar.

Features:

• 12" touchscreen, sunlight-readable display
• Vivid color palettes: High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure
• Pre-loaded Charts and Navionics+ mapping for Canada and the U.S.A. for offshore, coastal, and inland
• Auto Guidance Technology which will show suggestions for routes to your destination
• Built-in Quickdraw Contours to create and share fishing maps with 1' contours onscreen
• Capture screen recordings to share fish catches
• Multi-Band GPS for improved position accuracy

Specifications:

• Screen Size: 12"
• Color Screen: Yes
• GPS: Yes
• Transducer: Panoptix LiveScope

What's In The Box?

• 12" Chartplotter with Garmin Navionics+ Maps bundled with a LiveScope™ Plus System
• GLS™ 10 Black Box
• Livescope™ Plus LVS34 Transducer

Specifications:

• Screen Size: 12"
• Box Dimensions: 12"H x 16"W x 18"L WT: 26.3 lbs
• UPC: 753759345099

Owner's Manual (pdf)

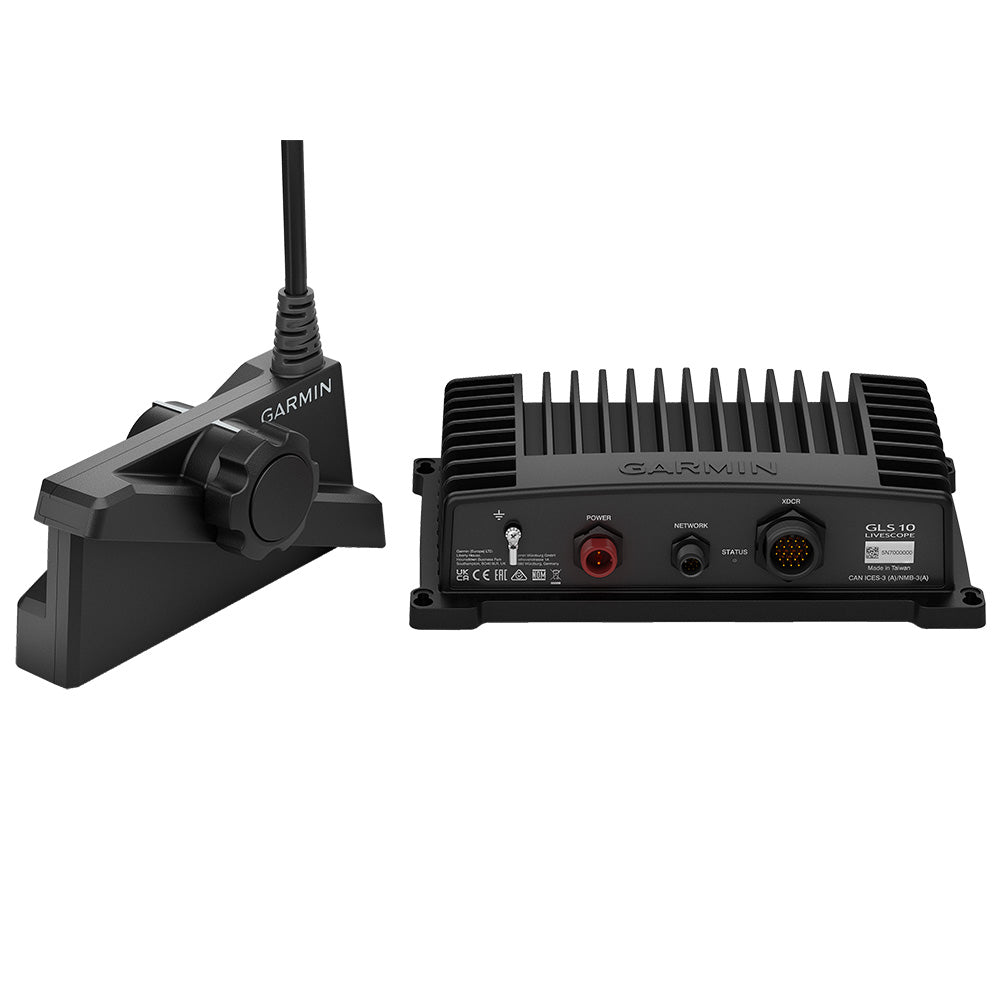

Garmin LiveScope Plus System w/GLS 10  LVS34 Transducer [010-02706-00]

THE BEST OF THE BEST JUST GOT BETTER

The latest in LiveScope technology, the LiveScope Plus System offers improved resolution, reduced noise, clearer images, and better target separation.

Features:

• See images clearly with improved screen clarity, transducer sensitivity, and target separation.
• Scan surroundings with sharper images, reduced noise, and fewer sonar artifacts.
• Upgrade your current LiveScope System black box (GLS™ 10 sonar module) with just a new transducer.
• Get maximum contrast and clarity in your images with vivid color palettes.
• Don’t miss a thing with supported Forward, Down and Perspective modes and necessary mount.

Real-Time Images

Real-time sonar ensures that your live images are as accurate as possible.

Clear Vision

See exactly what you need with reduced noise and fewer sonar artifacts that impede your picture of fish and structure.

Image Stabilization

A built-in stabilization system keeps the sonar image on your compatible chartplotter steady, even in rough conditions.

Vivid Color Palettes

Choose from seven vivid color options — including Aqua, Caribbean, Lava and more — to see fish and structure in maximum contrast and clarity.

Forward Mode

Scout ahead of your boat to see what’s happening in real-time.

Down Mode

Explore live views of the activity directly beneath your boat.

Perspective Mode

See under the water with a view from your perspective above the water.

In The Box:

• LiveScope GLS 10 sonar black box
• Panoptix LVS34 transducer
• Perspective mount
• Trolling motor barrel mount
• Shaft mount
• Power cable
• 2 meter Garmin Marine Network cable (small connector)
• Network adapter cable
• Documentation

Brochure (pdf)

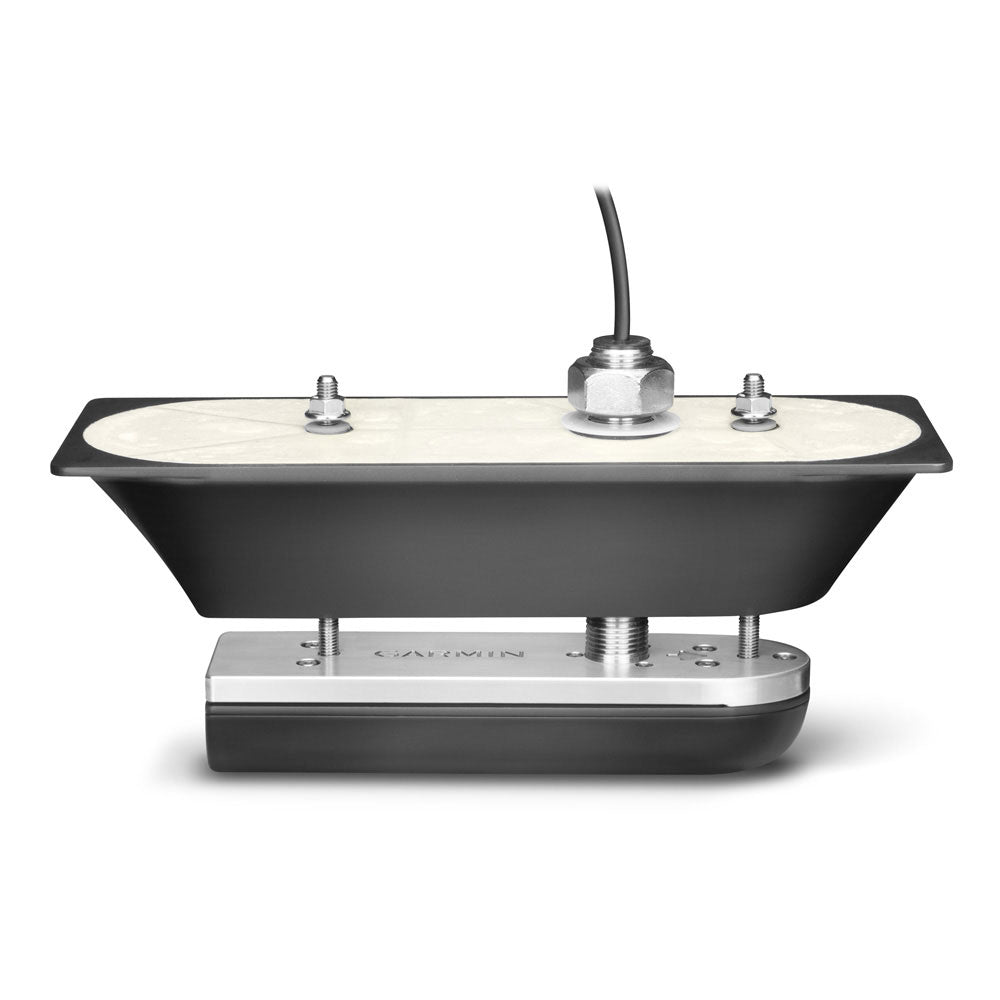

Garmin GT51M-TH SS TH DownV/SideV 500W (CHIRP 260/455 kHz) Traditional 600W (Mid-Band CHIRP 80-160) Transducer - 12-Pin [010-01966-10]

GT51M-TH - Stainless Steel Thru-Hull DownVü/SideVü 500 W (CHIRP 260/455 kHz) Traditional 600 W (Mid-band CHIRP 80-160 kHz) Transducer with Temp (12-Pin)

Perfect for the coastal and offshore fisherman who want CHIRP traditional sonar, CHIRP ClearVü and CHIRP SideVü scanning sonar with a stainless steel stem, this thru-hull mounted transducer consistently displays clear and crisp fish arches with superior target separation as well as clear pictures of objects, structure and fish that pass below and to each side of your boat and is optimized for rough sea conditions.

The CHIRP ClearVü/ SideVü elements have a power rating of 500 W per element and operating frequencies of 260/455 kHz. The traditional CHIRP sonar has a power rating of 600 W and operating frequencies of mid-band CHIRP 80-160 kHz. It includes a built-in fast-response temperature sensor.  For hull deadrises less than 5 degrees.

GT51M-TH includes a 12-pin transducer with stainless steel stem, fairing block, isolation plate and bushings, mounting hardware and installation instructions. Follow the instructions carefully to avoid damaging your boat.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Mounting Style: Thru-Hull
• Imaging: Standard/Down/Side
• Cable Length (Feet): 5' + 30' y-extension
• Temperature: Yes
• Speed Included: No
• Pins: 12
• Chirp: Medium/Non Traditional
• Box Dimensions: 6"H x 14"W x 17"L WT: 9.6 lbs
• UPC: 753759152925

Owner's Manual (pdf)

Autopilot Pump Type 3 Adjustable Reversing 12V Up to 30CI Cylinder

Features:

• RELIABLE - Piston pump technology with only three moving parts
• TWIC THE POWER - Delivers over twice the hydraulic output per watt of input
• HALF THE POWER CONSUMPTION - Accurate ram positioning means fewer course corrections
• ADJUSTABLE FLOW RATE - Configure performance to suit your vessel
• EASY SERVICING - Shut off valves allow removal without draining steering system

TWICE THE POWER

The unique Octopus piston pump delivers over twice the hydraulic output per watt of input than a standard hydraulic gear pump.

HALF THE POWER CONSUMPTION

Gear pumps leak oil between the gears, while a piston (such as used in car engines) does not.  This means the piston pump will place the cylinder ram exactly where it is required, positioning the rudder accurately.  This gives far sharper steering, reducingunnecessary course corrections meaning battery consumption on Octopus pumps is up to half that of other pumps.

PINPOINT ACCURACY

Leading autopilot manufacturers choose Octopus pumps for their non RFB pilot systems which do not have a Rudder Feedback unit. Previously, slop in the system caused by gear leakage meant that a Rudder Feedback unit was necessary to tell the pilot the exact rudder position. As Octopus pumps will always bring the ram back to the required position the Rudder Feedback unit is not required, which also greatly simplifies installation.

SAVE ON INSTALLATION COSTS

A professional installation should always have a method of isolating the pump from the steering system - Octopus pumps feature inbuilt shut off valves in the pump manifold.

ADJUSTABLE FLOW RATE

A pump that does not have variable flow (unless dedicated to a range of cylinders such as our fixed 0.8L pump) will be operating too fast or too slow in 90% of cases.  Autopilot manufacturers get around this problem by adjusting the output to the pump to compensate, which either forces the pump to operate for longer periods of time which increases power consumption and wear on the parts, or it will operate at high pressure for short periods of time - also putting unnecessary strain and wear on the system.

Octopus Variable Flow Reversing Pumps precisely control the speed of the ram, reducing unnecessary battery consumption, pressure, strain and wear on the hydraulic system.

Specifications:

• Type: Pumps/Drives
• Box Dimensions: 5"H x 6"W x 12"L WT: 8.75 lbs
• UPC: 628309272791

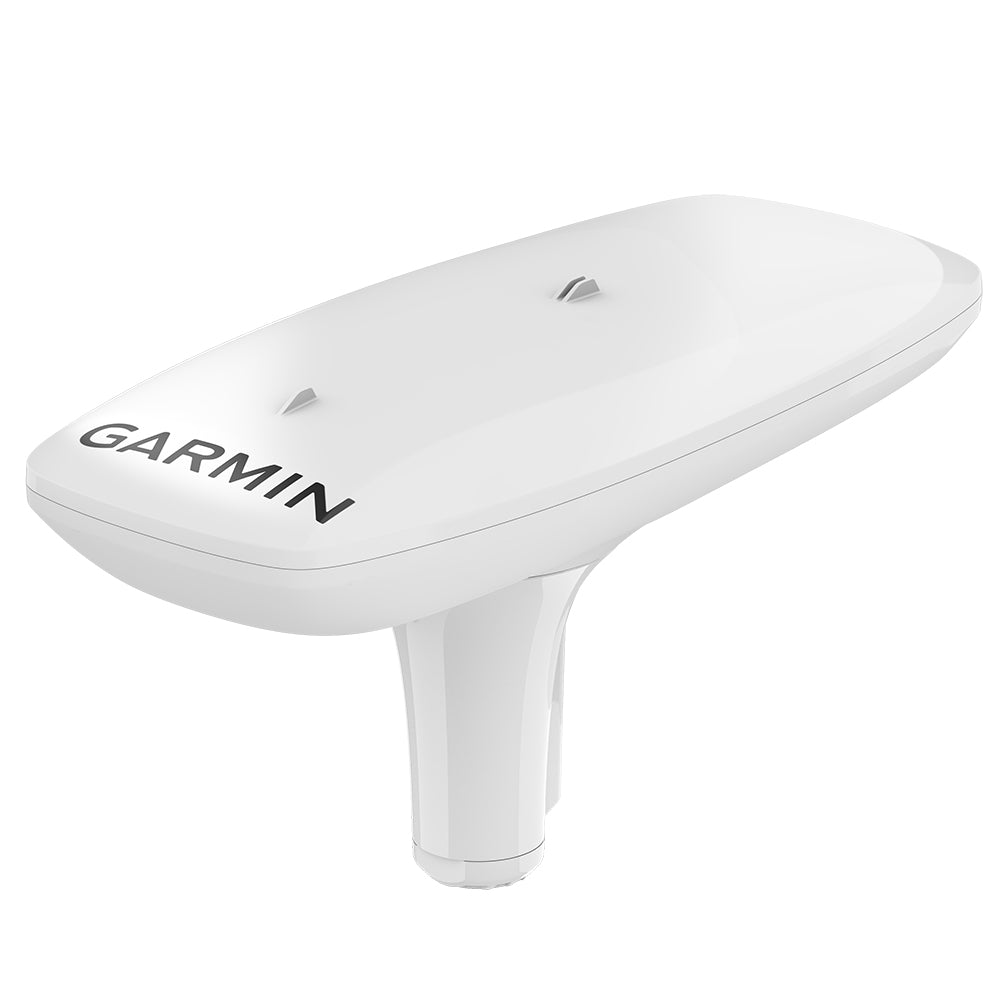

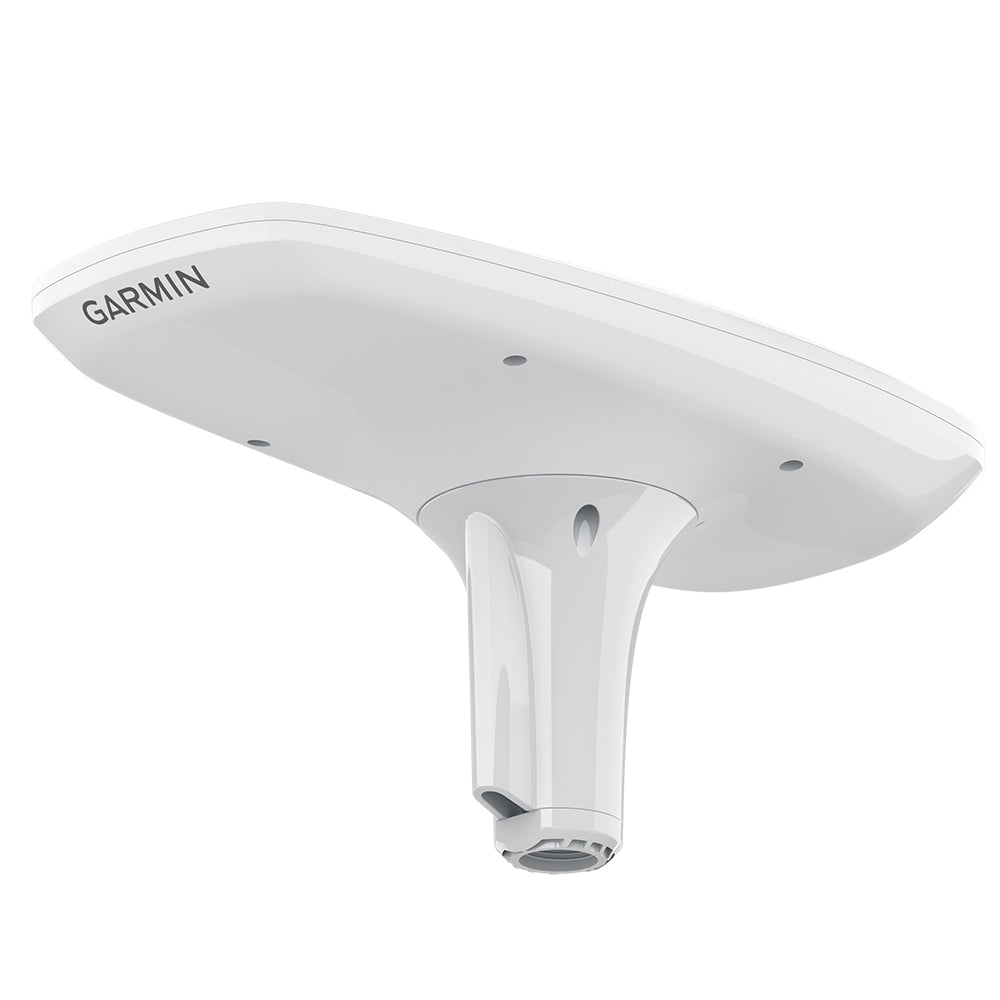

Garmin MSC 10 Marine Satellite Compass [010-02407-00]

MSC 10 Marine Satellite Compass

KNOW EXACTLY WHERE YOU'RE HEADED

Get reliable, accurate heading information with the easy-to-install GPS-based MSC 10 marine satellite compass.

Features:

• Accuracy comes easy when you’ve got a multi-band GNSS receiver on board.
• Faster updates. More detailed tracking.
• Rough waters got you worried? MSC 10 delivers pitch, roll, and heave info, too.
• If other onboard systems need a heading sensor, we’ve got you covered.

MULTI-BAND GNSS AND MULTI-CONSTELLATION

The multi-band GNSS (L1 and L5 GPS) and multi-constellation (GPS, Galileo¹, GLONASS, and BeiDou1) receiver deliver precise positioning².

BOAT HEAVE AND MORE

Get reliable, accurate boat heave, pitch, and roll information — even in rough waters.

BUILT-IN ATTITUDE HEADING REFERENCE SYSTEM (AHRS)

With a fully integrated attitude and heading reference system for better GPS heading at all speeds, including pitching in rough seas, taking sharp turns, or standing still.

ACCURATE HEADING DATA

Multiple receivers deliver heading accuracy within 2 degrees. Because it uses satellite signals, you don’t have to worry about magnetic interference.

PRIMARY SENSOR ACROSS MULTIPLE SYSTEMS

You can use MSC 10 as the primary sensor for autopilots and other onboard systems that need accurate heading information.

NMEA 2000® NETWORK COMPATIBLE

Get heading, pitch, roll, and heave information delivered straight to your compatible Garmin chartplotter via the NMEA 2000 network.

EASY TO INSTALL

This compact device is simple to install and easily integrates into your Garmin marine ecosystem.

10 HZ UPDATE RATE

Get better, more detailed tracking information, thanks to the 10 Hz position update rate.

BACKUP HEADING SENSOR

In the extremely rare case that you lose a satellite signal, MSC 10 will seamlessly transition from GPS-based to magnetometer-based heading³.

What's In The Box?

• MSC-10 Marine Satellite Compass
• Pole mount
• Mounting hardware
• NMEA 2000® backbone/drop cable (6 meters)
• NMEA 2000 T-connector
• Documentation

¹ Supported when available

² < 1 meter CEP, < 3 meters 95%

³ Magnetometer calibration required for backup magnetic heading support

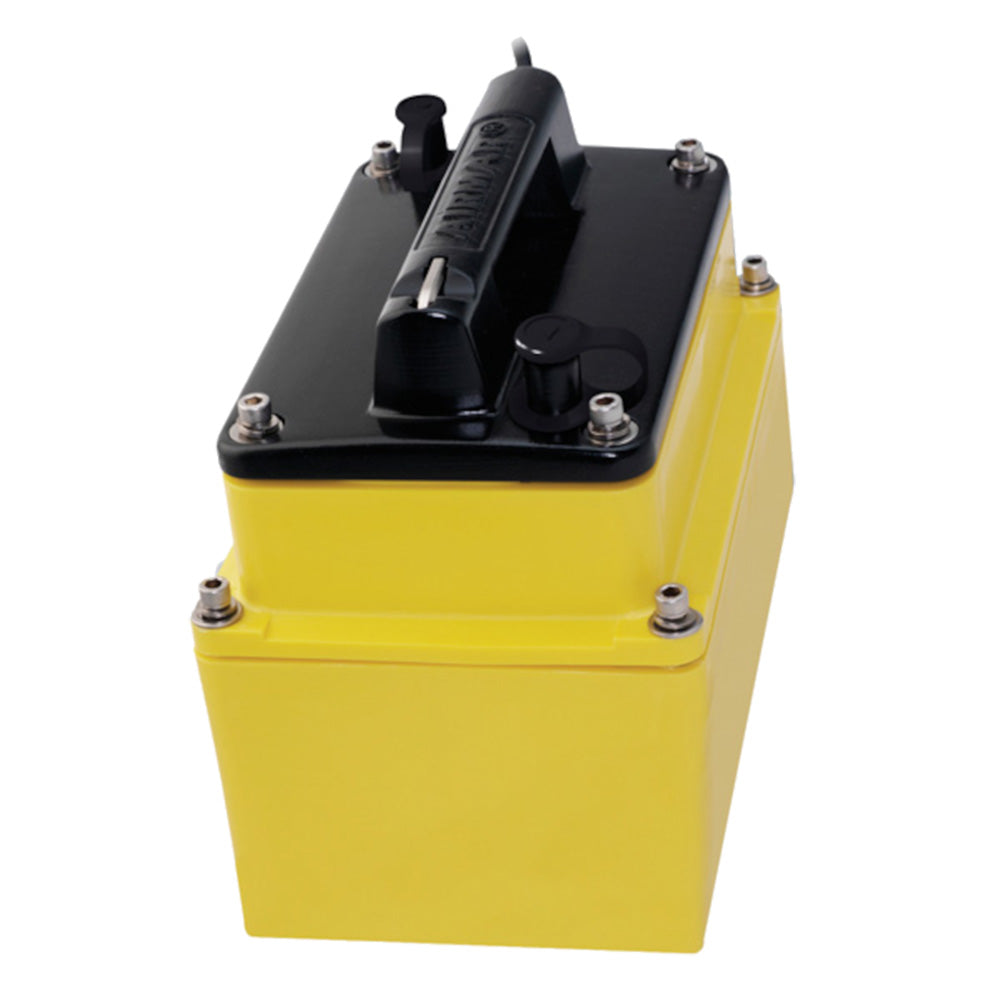

Airmar M265 Low-High Chirp 1KW In Hull Transducer [M265C-LH-MM]

*Requires Mix & Match Cable*

We know that specific frequencies excel at detecting certain species of fish: Bluefin Tuna—60 kHz, squid—133 kHz, and cod—175 kHz. The M265LH transducer includes all these frequencies plus every other frequency in the high and low bandwidths. This powerhouse delivers excellent resolution, bottom discrimination, and bait and game-fish separation at all depths.

Airmar’s M265LH is packed with a seven-element, low-frequency array that operates between 42 and 65 kHz for excellent deep-water performance. The high-frequency ceramic operates between 130 and 210 kHz with a narrow, 10° to 6°, bandwidth—perfect for picking apart structure and pinpointing tight-holding fish in structure.

The transducer is installed in the included tank, which is cut to the boat’s deadrise angle and affixed inside the hull. When the transducer is placed inside the tank, it is properly oriented for optimal performance. The M265LH is a popular choice for customers not wanting to drill a hole in their hull and for trailered or lifted boats.

Features:

• Depth only
• 1 kW of power for great deep-water performance
• Low frequency: 42 to 65 kHz, 25° to 16° beamwidth, Maximum depth of 914 m (3000')
• High frequency: 130 to 210 kHz, 10° to 6° beamwidth, Maximum depth of 304 m (1000')
• 103 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50 and 200 kHz, plus everything else in the bandwidth
• Plastic transducer housing and mounting tank
• Patented Xducer ID® technology

Specifications:

• Mounting Style: In-Hull
• Frequency Band: Low-High
• Max Deadrise Angle: 30°
• Material: Plastic
• Functions: Depth
• Max Deadrise: Accommodates a deadrise angle up to 30° with the longest side of the tank installed parallel to the centerline (keel) of the hull
• Power Rating: 1 kW
• Deadrise Range: 0° to 22°
• Max Vessel LOA: Up to 11 m (36')
• Display Connector: Mix and Match Cable Optional
• Hull Material: Solid fiberglass only
• Sensor Connector: MMC
• High Frequency: 130-210 kHz
• Low Frequency Beamwidth: 25°-16°
• Low Frequency: 42-65 kHz
• Acoustic Window: Urethane
• High Frequency Beamwidth: 10°-6°
• Single or Dual Frequency: CHIRP-Ready Dual-Band
• Country of Origin: USA
• Cable-Length: 9 m (30')
• Weight: 5.2 kg (11.5 lb.)
• Max Depth: Low frequency- 914 m (3000'), High frequency- 304 m (1000')

Brochure (pdf)
