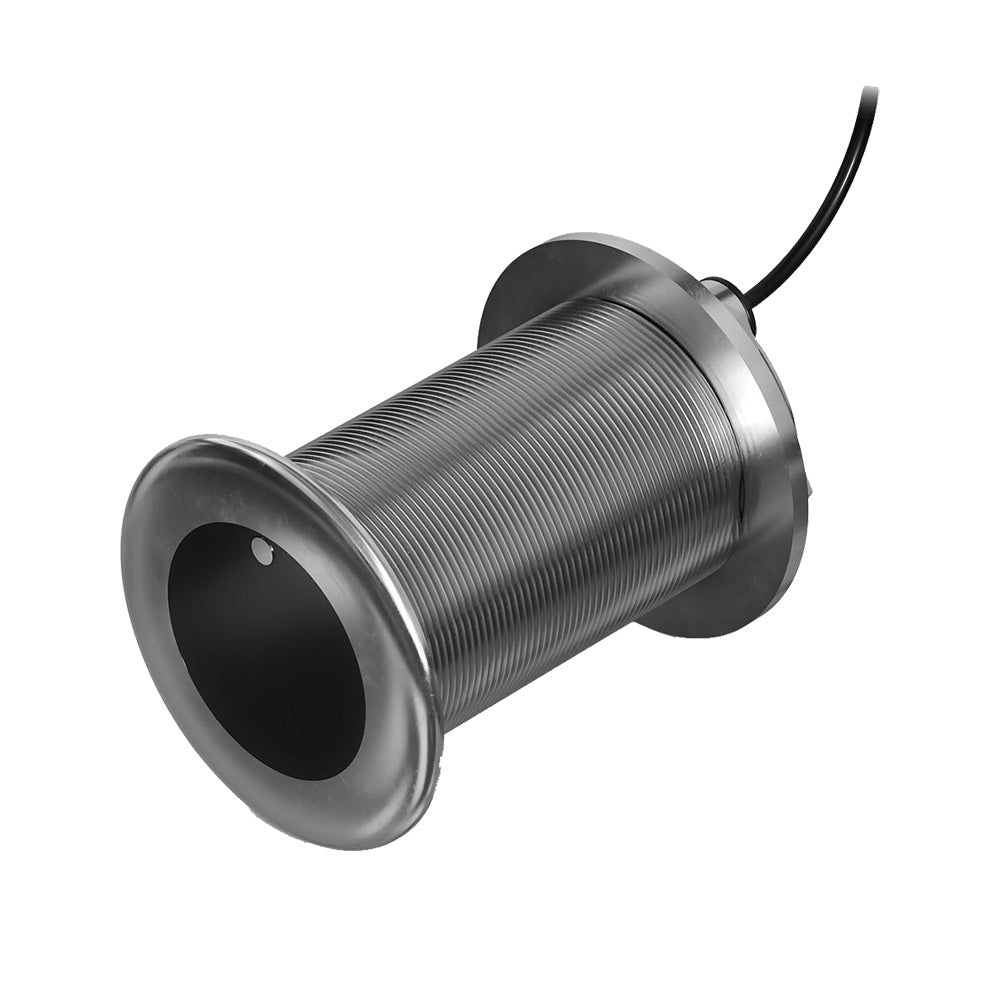

Garmin GT15M-THF 20 Degree 600W SS Thru-Hull Transducer [010-02868-02]

~~$799.99~~$719.99

Garmin GT15M-THF 20 Degree 600W SS Thru-Hull Transducer [010-02868-02]

GT15M-THF 20 Degree 600W SS Thru-Hull Transducer

Designed for reduced drag and optimum sonar performance on midsize fishing and cruising boats, this flush-mounted, 600-watt mid-band CHIRP transducer clearly defines fish arches, structure, and bottom depth returns on the display.

Midband Chirp Traditional Sonar

This 8-pin, 600-watt stainless steel thru-hull transducer features high-definition mid-band CHIRP sonar that clearly defines fish targets and structures down to 1,200’ in saltwater and 1,900’ in freshwater.

Broad Frequency Range

Use the perfect frequency for the waters being fished. Covering the medium frequency range, this transducer pulses from 85–165 kHz, displaying a wide coverage area, crisp fish arches, and accurate depth readings.

Optimum Ping Sensitivity

Offering excellent sonar sensitivity, low noise, high resolution, and good separation of targets, this robust transducer makes it easier than ever to distinguish fish and structure on a compatible chartplotter display.

Thru-Hull Installation

A durable stainless steel housing and stem offer straightforward thru-hull flush mounting for minimum drag and optimum beam orientation for clear sonar returns.

Auto-ID Technology

Enjoy simple plug-and-play operation with Garmin auto-identification technology — which enables the sonar to configure itself to the transducer being used automatically.

Fits Various Hull Types

Configurable for various boat hull materials, including fiberglass, composite, steel, aluminum, and wood, the transducer is available in a range of tilt versions to accommodate deadrise angles of 0–20 degrees without a fairing block.

Specifications:

Transducer Frequency: Medium band chirp (85-165 Khz)
Transducer Power: 600 W
Transducer Beam Width: 24-16 degrees
Transducer Maximum Depth: 1200 Ft Saltwater; 1900 Ft Freshwater
Transducer Cable Length: 50 ft.
Transducer Depth/Speed/Temperature: Depth, temperature
Transducer Number of Pins: 8-Pin
Transducer Supported Deadrise/Transom Angles: 20 degrees support hull deadrise angles from 16 degrees to 24 degrees
Housing Material: Stainless steel

In the Box:

GT15M-THF transducer
Jam nut
Washer
Thread isolator
Hull isolator
Documentation

Specifications:

Cable Length (Feet): 50'
Mounting Style: Thru-Hull
Temperature: Yes
Box Dimensions: 7"H x 7"W x 11"L WT: 7.2 lbs
UPC: 753759319946

Airmar

Airmar B785C-M CHIRP Bronze Thru-Hull w/Fairing Block - 600W [B785C-M-MM]

~~$1,319.99~~$1,197.91

Maretron

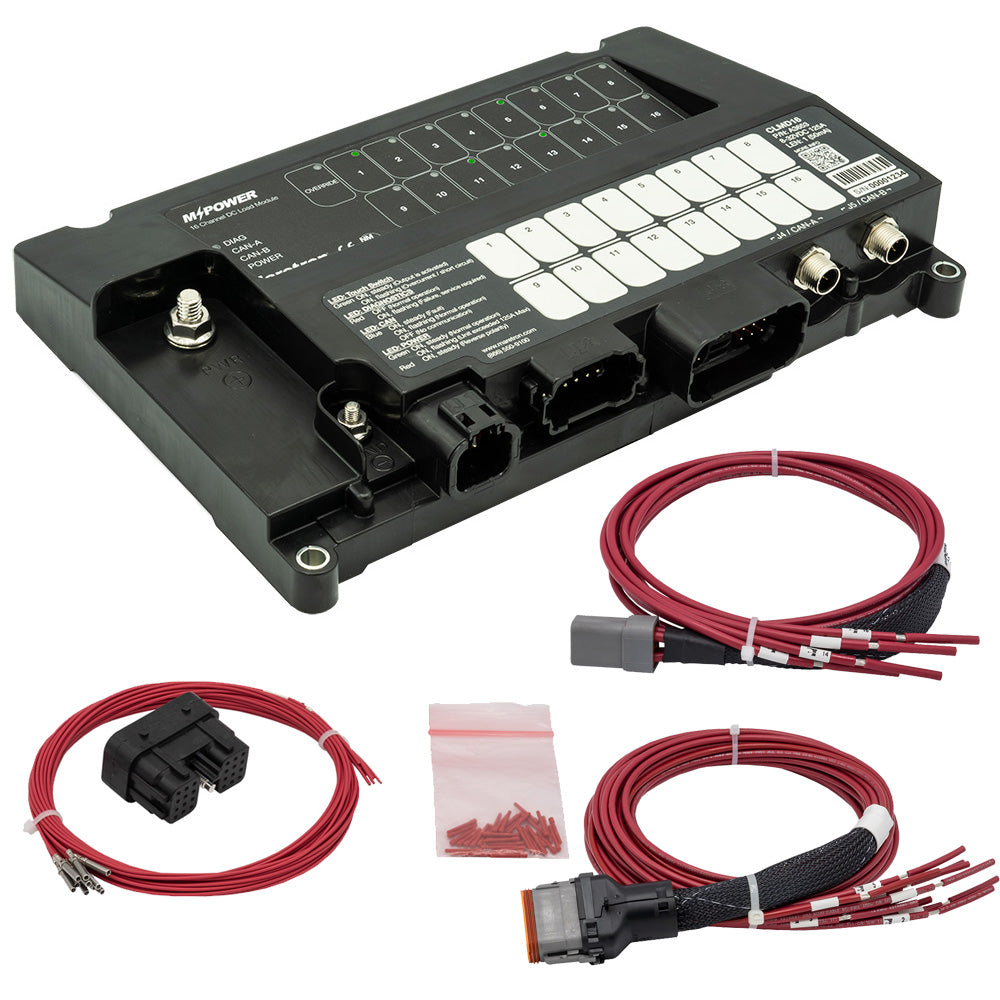

Maretron MPower 16-Channel DC Load Controller Module w/NMEA 2K w/J1 J2 Connectors [CLMD16-R]

~~$1,650.00~~$1,462.99

Maretron MPower 16-Channel DC Load Controller Module w/NMEA 2K w/J1 J2 Connectors [CLMD16-R]

For larger breakers and more circuits, the MPower® CLMD16 is a 16-Channel DC Load Controller Module. Four of the 16 breakers handle a maximum of 25 amps, and twelve breakers handle a maximum of 12 amps, with a total current capacity of 125 Amps. Additionally, circuits can be paralleled.

The CLMD16 also supports two H-Bridge reversing polarity circuits that can be used for loads such as engine hatches, passerelles, trim tabs, etc. The CLMD16 has 8 inputs for hard-wired switches that can be used to switch breaker states, or as inputs for other data, such as bilge alarms or hatch positions, etc. There are 3 inputs capable of monitoring tank levels.

The CLMD16 handles many DC load types such as lights, pumps, motors, and electronics. An added benefit of the CLMD16 is that it reports the current through each of the 16 breakers. This allows you to determine if loads are drawing too much or too little electrical current. This information can be used to report overcurrent faults and undercurrent conditions, such as burnt-out bulbs.

Features:

NMEA 2000® Interface
IP67 Rated
Ignition Protected
Opto-isolated from NMEA 2000®, eliminating potential ground loops
Sixteen (16) dimmable Electronic Circuit Breakers (ECBs) for On/Off Control over NMEA 2000® network
4 breakers capable of carrying up to 25 Amps
12 breakers capable of carrying up to 12 Amps
Individual breaker electrical current monitoring
Breakers can have Power-Up states defined (ON, OFF, or previous states)
Breakers can be locked against inadvertent actuation.
Capacitive touch switches for local control of all loads
All inputs and outputs are protected against short to Power and short to Ground
Automatic ECB overcurrent shutdown
Automatic ECB thermal shutdown (Overtemperature Protection)
Eight (8) discrete digital input channels capable of sensing +ve or ground signals
Two (2) resistive analog input channels
One (1) 4-20mA current loop input channel

Applications:

Remote control of navigation lights
Remote control of boarding lights
Burnt-out bulb alerts
Control of area lights with dimming

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

AC/DC: DC
Box Dimensions: 4"H x 10"W x 14"L WT: 5.5 lbs
UPC: 873804004365

Black Oak LED

Black Oak Nitron XD Pro Full Color Marine Night Vision Camera w/Standard Mount [NVCP-WSA]

~~$3,743.75~~$3,182.19

Airmar

Airmar B75M Bronze Chirp Thru Hull 0 Tilt - 600W - Requires Mix and Match Cable [B75C-0-M-MM]

~~$1,079.99~~$979.00

Ritchie

Ritchie FB-500 Globemaster Compass - Flush Mount - Black - 12V - 5 Degree Card [FB-500]

~~$976.99~~$973.99

Ritchie

Ritchie SS-5000W SuperSport Compass - Flush Mount - White [SS-5000W]

~~$993.99~~$990.99

Furuno

Furuno TZT10X 10" Chartplotter/Fishfinder [TZT10X]

$2,995.00

Furuno TZT10X 10" Chartplotter/Fishfinder [TZT10X]

TZT10X 10" Chartplotter/Fishfinder

The hybrid control 10” TZT10X incorporates all of NavNet TZtouchXL's multi-touch capabilities with Furuno’s RotoKey™ control knob and dedicated buttons, making navigation intuitive and easy under any sea conditions.

The TZT10X incorporates a powerful internal 1kW dual channel TruEcho CHIRP™ Fish Finder* designed to operate across a wide range of frequencies. For those who want to go even deeper, the 2kW/3kW DFF3-UHD TruEcho CHIRP™ Network Fish Finder delivers the ability to penetrate the deepest waters to find a catch. Also, with the BT-5 Booster Box, users can boost that output power up to 5 or 10 kW to take advantage of high-power transducer options that will unveil the deepest waters like users never experienced before.

Features:

10 in. display with hybrid controls
TZ MAPS for highly detailed navigation and fishing charts
Purchase and update charts directly from MFD with an internet connection
Powerful hexacore processor for rapid response
Video converter kits stream compatible sonar video data directly to TZtouchXL MFD
Furuno’s exclusive Fish-It, Drift-It, & Follow-It features save time and fuel and increase fish catch
Built-in Dual Channel 1kW TruEcho CHIRP™ & CW Fish Finder
Built-in 235kHz or 455kHz CHIRP Side-Scan

Built-In CHIRP Side-Scan

Furuno’s CHIRP Side-Scan for NavNet TZT10X scans both port and starboard, illuminating the shape of the bottom structure in high definition. CHIRP Side-Scan 6 reveals the shape of fish targets and fish-hoarding structure on each side of the vessel. CHIRP from 235kHz or 445kHz center frequencies with thru-hull, paired, or transom mount transducer options.

TZ MAPS

One of the most exciting TZtouchXL features is a chart offering called TZ MAPS. Not only are these some of the most detailed charts in the industry, but TZ MAPS users are in complete control of the chart content they want to download, such as raster or vector charts, satellite photos, and bathymetric data. Custom user objects can be shared with other registered TZ MAPS users through TimeZero's moderated service. Since custom objects reside on their chart layer on the TZtouchXL MFD, they can easily be displayed or hidden as desired. Additionally, for the first time, customers can purchase and update charts directly on their TZtouchXL MFD!

BathyVision

One of the most groundbreaking aspects of TZ MAPS is called BathyVision, providing amazingly detailed bathymetric data that can be configured to an incredible resolution of a mere 3 inches between contours! That's 3 times better than any other bathymetric chart currently on the market. BathyVision data, along with custom depth shading, can easily be overlaid on TZ MAPS navigation charts to create the ultimate "Fishing Charts"!

AI Routing

TZ MAPS unlocks the ability to utilize the powerful AI Routing function that intelligently plans out routes, taking into consideration the boat's draft and navigational obstacles. AI Routing takes traditional auto-routing to another level by automatically creating suggested routes based on varying navigational conditions.

Risk Visualizer & AI Avoidance Route

When connected to an NXT radar, two powerful safety features are unlocked: the Risk Visualizer and the AI Avoidance Route tool. Risk Visualizer provides a 360° visual representation of the potential collision risks of approaching objects around the vessel. Dynamic icons are automatically created for targets with the highest probability of collision, ensuring the captain has the necessary information to maintain safe distances when passing. The AI Avoidance Route function processes all available information provided to dynamically provide a safe route around those hazards, which can be sent to a Furuno NavPilot autopilot with a single tap.

Enhanced User Interface for Ease of Use & Customizability

In addition to offering all the great features that make NavNet super simple to operate, NavNet TZtouchXL MFDs also deliver BIG power and versatility! Users can now configure their MFD in many ways, thanks to an increased number of Page Builder configurations from four (4) to ten (10) custom combinations. Additionally, users can now custom-build a 6-way screen split of various components and sensors.

Match all those great screen layout options with enhanced Edge-Swipe feature access for the smoothest, easiest, and very best user experience Furuno has ever delivered! This is all driven by the most system memory and the highest level of processing power Furuno has ever integrated into a NavNet MFD.

Specifications:

Display Unit:

Type: Color TFT multi-touch IPS LCD
Screen Size: 10.1" Wide
Screen Resolution: WUXGA 1920 x 1200
Screen Brightness: 900 cd/m2 (typical)
Display Colors: 16,770,000 colors (Chart Plotter), 64 colors (Radar/Fish Finder)
Language: Bulgarian, Chinese, Danish, English (USA/UK), Finnish, French, German, Greek, Italian, Japanese, Norwegian, Portuguese, Russian, Spanish, Swedish, Turkish, Polish

GPS/WAAS:

Receiver Type: GPS: 72 channels, SBAS: 1 channel (C/A mode, WAAS)
Receiving Frequency: L1 (1575.42 MHz)
Time to First Fix: 100 s (cold start)
Accuracy: 10 m (GPS), 7 m (MSAS), 3 m (WAAS)
Position Update Interval: 100 ms or 10 Hz

Chartplotter:

Cartography: TZ MAPS, MM3 Vector, and CMOR capable (U.S. only)
Memory Capacity: 30,000 user points, 100,000 points for ship's tracks, 200 planned routes (500 points per route)
Alarms: Anchor Watch, XTE, Depth*, Speed, Sea Surface Temperature*, Trip Distance, Fuel Gauge* (*external data required)

Radar:

Display Modes: Head-up, North-up* *Heading input required.
Echo Trails: Interval: 15 s, 30 s, 1 min, 3 mins, 6 mins, 15 mins, 30 mins, and continuous (Heading input required)
Target Tracking: 100 ARPA Targets (Radar dependent) with fully automatic target acquisition (Heading input required)
Radar Alarms: Guard Zone, CPA/TCPA, Video, Azimuth, Heading Line

Fishfinder:

Transmit Frequency*: CW: 50/200 kHz, CHIRP: 40 kHz to 240 kHz (Low, Medium, and High)
Transducer: 300/600 W or 1 kW* *Matching box MB1100 required for some transducers
Display Range: 2 to 1,200 m; shift 0 to 1,200 m (1,200-2,400m / 4,000-8,000ft)
Extension Mode: ACCU-FISH™, A-Scope, Auto (Fishing/Cruising), Bottom Discrimination, TruEcho CHIRP™ (with compatible transducer)
Picture Advance: 8 steps: x4, x2, x1, 1/2, 1/4, 1/8, 1/16, stop
Fish Finder Alarms: Fish School, Fish School for the bottom lock

Side-Scan:

Transmit Frequency*: CHIRP: 220-240KHz/445-465KHz
Transducer: 225kHz: 225T-PR904, 225T-SS904. 225T-TM904 / 455kHz: 455T-PR903, 455T-SS903. 455T-TM903
Display Range: 750 feet to each side
Display Colors: Green, Blue, Amber, White
Display Screen Sizes: Full Screen, 1/2 Screen, 1/4 Screen, 1/6 Screen Full Screen, 1/2 Screen, 1/4 Screen, 1/6 Screen
Direct Connect to MFD: Direct connect to TZ10X, TZT13X, TZT16X only; may be networked with TZT22X/TZT24X

Interface:

NMEA200: 1 Port
Input: 065280, 126992/993/996, 127237/245/250/251/257/488/489/505, 128259/267, 129025/026/029/330/038/039/040/041/291/538/540, 129793/794/798/801/802/808/809/810, 130306/310/311/312/313/314/316/576/577/578, 130817/818/820/822/823/826/827/828/880
Output: 126992/993/996, 127250/251/257/258, 128259/267/275, 129025/026/029/033/283/284/285, 130306/310/311/312/313/314/316
NMEA0183: 1 Serial Output Port
Output: AAM, APB, BOD, DBT, DPT, GGA, GLL, GNS, GSA, GSV, RMB, RMC, RTE, TTM, VDM, VTG, WPL, XTE, ZDA
LAN: 1 Port (1000 BASE-T)
USB: 1 Port (USB 3.0) for control unit
Video I/O: Input: 1 port (NTSC/PAL)
AUX I/O: 2 Ports (Event Switch and External Power Switch)
SD Card Slot: 1 Slot (Micro SDXC, rear)
Wireless LAN: IEEE802.11b/g/n, Transmit frequency: 2.412 to 2,462 GHz, 11dBm max
Transducer Connection: 1 Port 12 pin for CHIRP/CW, 1 Port 12 pin for Side-Scan

Environment:

Temperature (IEC60945)-15°C to +55° C
Relative Humidity: 93% or less at +40° C
Waterproofing: IP56

Power:

12-24 VDC

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

Screen Size: 10"
Box Dimensions: 13"H x 14"W x 18"L WT: 15.1 lbs
