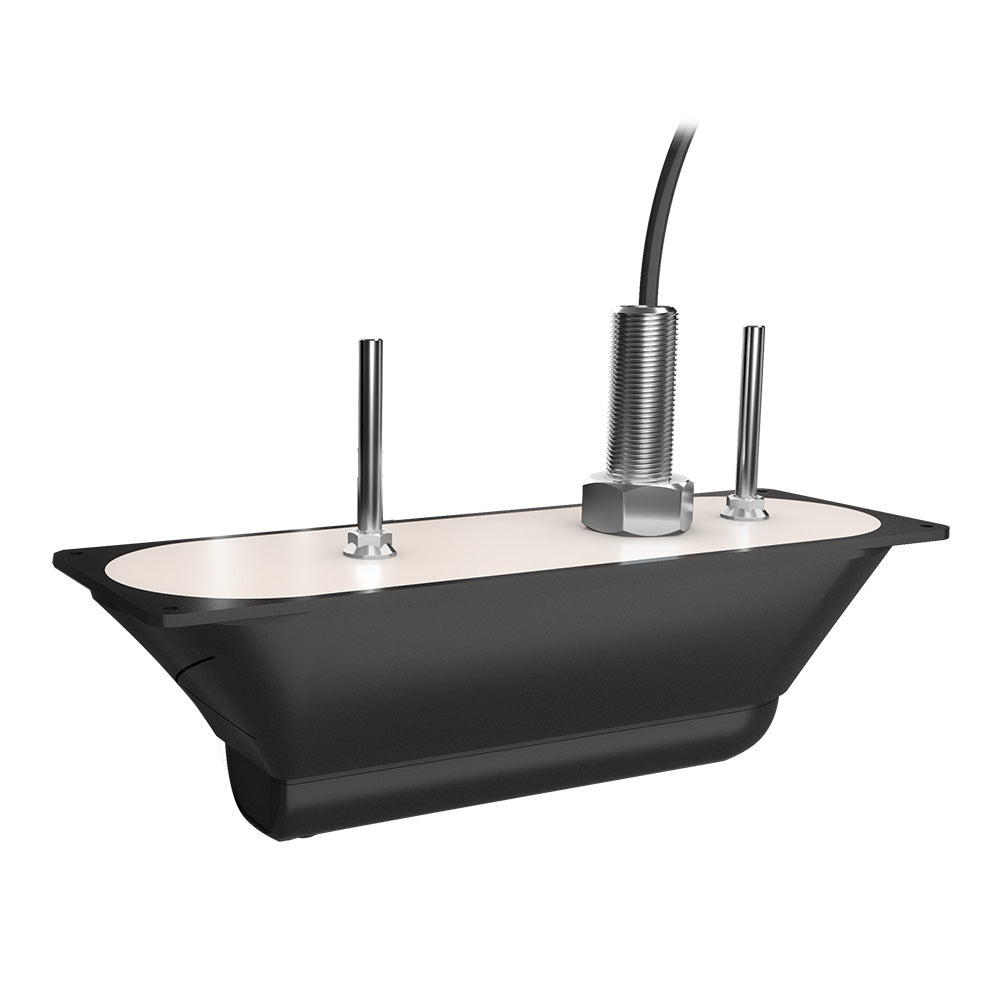

GT56UHD-TH Thru-Hull Mount Transducer

This all-in-one transducer offers ultimate versatility, featuring Ultra High-Definition ClearVü and SideVü scanning sonars, high wide CHIRP traditional sonar, and more, so you can spend more time catching fish.

Get brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars. It puts more power on targets via a downward-facing element. See everything the first time with stunningly clear images of structure and fish off to the sides of your boat. SideVü sonar now has a 20% greater range at 1,000 kHz, so you can see even farther than before.

Features:

• See everything below and around your boat with Ultra High-Definition scanning sonar
• High wide CHIRP traditional sonar delivers target separation like no other
• Multiple sonar frequencies have you covered — no matter what depth you’re fishing
• See targets and structure in bright, vivid color
• Mount this transducer your way — transom, trolling motor or thru-hull

Specifications:

• Cable Length (Feet): 25'
• Chirp: High Wide
• Imaging: Standard/Down/Side
• Mounting Style: Thru-Hull
• Pins: 12
• Speed Included: No
• Temperature: Yes
• Box Dimensions: 4"H x 7"W x 16"L WT: 9.2 lbs
• UPC: 753759294229

B175HW Bronze Thru Hull 12° Tilt - 1kW

Requires Mix and Match Cable

Get more coverage under the boat with Airmar's new wide beam Chirp product line. Offering a high frequency range of 150-250 kHz and a constant 25° beam width, these transducers are truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the new wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducers

A unique property of the new high frequency transducers is that the beam width is a constant 25° angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's new wide beam format also creates crisper and larger return images on the display. We've got you covered.

Features:

• Depth & fast-response water-temperature sensor
• 12 degree tilted version, 1KW
• High—CHIRPS from 150 kHz to 250 kHz
• 25° constant beamwidth
• 100 kHz of total bandwidth from one transducer
• Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth
• Boat Size: 8 m (25’) and above
• Hull Type: Fiberglass or wood
• Exclusive Xducer ID® technology

Specifications:

• Mounting Style: Thru-Hull
• Chirp: High Wide
• Box Dimensions: 8"H x 10"W x 12"L WT: 10.7 lbs
• UPC: 801769002072

Digital Yacht AISnet AIS Base Station [ZDIGAISNET]

AISnet AIS Base Station

AISnet is a new AIS receiver for use as an AIS base station at home or in the office. Utilising the same high performance dual channel AIS receiver as the rest of the Digital Yacht range, AISnet also features an ethernet socket so that you can connect it to your broadband router and send AIS data to an on-line AIS tracking service.

There are now a large number of internet based web sites which offer a view of AIS equipped vessels on a background chart allowing users to check the position and identity of ships and yachts. If your home/office is close to the coast and you would like to contribute your data to one of these sites, simply register with the company and they will give you an IP address and Port number.

Using the setup program that Digital Yacht supply, it takes seconds to program the IP address and Port in to AISnet, which will immediately start sending your local AIS data seamlessly across the internet to be displayed on the site.

It is also possible to view the data, that AISnet is collecting, locally on your PC using the free SmarterTrack Lite software that Digital Yacht include with every AISnet. Simply plug the USB connector into your PC and the AIS data will appear on your PC and still be transmitted over the internet.

AISnet is supplied with a universal UK/Euro/US mains adaptor that provides a regulated 12v supply from 240v/110v AC mains.

KEY FEATURES

• AIS base station for Home of Office use

• Integrated ethernet network controller for supplying AIS data to online AIS websites

• High performance dual channel AIS receiver

• Simple configuration via free setup program

• USB Interface for simple Plug and Play connection to a PC

• Requires VHF antenna or dedicated AIS antenna (available as optional accessory) or splitter

• Universal Mains power supply included

• Simple "fit and forget" black box solution

Specifications:

• GPS Included: No
• AIS Class: Both A & B
• Antenna Included: No
• Display Included: No
• Function: Receive Only
• Box Dimensions: 4"H x 13"W x 18"L WT: 3 lbs
• UPC: 738435472429

B923 Class B AIS Transceiver with VHF Splitter - 2W CSTDMA

**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at the time of purchase. A copy of the MMSI registration or FCC Ship Station License is required along with the vessel master or owner's signature on the completed programming form.**

Click here to download form.

Get the most from your on-the-water experience with the B923, a 2W CSTDMA AIS Class B transceiver. Small and lightweight, it delivers em-trak's advanced AIS performance to ensure you see all information and targets, even at maximum range, and with the lowest power consumption in its class.

The B923 is equipped with an integrated VHF antenna splitter, which enables your transceiver to share your existing VHF antenna without any loss of performance. It offers quick and simple installation, with built-in intelligent connectivity, including an integrated next-generation GPS receiver and antenna and em-trak's unique FLEXI-FIT® bracket system to get you up and running in no time at all. The dual NMEA2000 & 0183, coupled with serial ports, USB, optional Wi-Fi, and Bluetooth also make connecting to all your tablets, PCs, display, and navigation devices easy and simple.

Features:

• Certified AIS Class B – 2W CSTDMA
• Integrated VHF antenna splitter
• Global certification - USCG / FCC / Canada / Europe
• SRT-AIS™ Transceiver Engine for superlative proven performance
• FLEXI-FIT™ bracket system for easy, convenient, and secure installation
• Internal high-performance GPS receiver and antenna (external antenna optional)
• Water, pressure spray, and damp proof (IPx6, IPx7 certified)
• Protected from vibration, shock, and extreme temperatures
• Small and lightweight
• Ultra-low power consumption – best in class
• Guaranteed connectivity and interoperability with any chart plotter or PC
• NMEA 0183 & NMEA 2000
• Automated health and performance monitoring
• Silent mode (transmit-off) function
• Enhanced RF screening to protect against electromagnetic interference
• Built-in power surge protection
• Fail-safe VHF radio operation

Physical & Environmental Specifications:

• Size (H x W x D): 150 x 115 x 45mm
• Weight: 415kg
• Operating temperature: -25°C to +55°C
• Storage temperature: -25°C to +70°C
• Ingress protection: IPx6 and IPx7

Electrical Specifications:

• Supply voltage: 12V or 24V DC
• Supply voltage range: 9.6V - 31.2V DC
• Average current (at 12V): 245mA
• Peak current: 2A
• Average power consumption (at 12V): 2.9 W
• Galvanic isolation: NMEA 0183 inputs only, NMEA 2000, VHF antenna port

Connectors:

• VHF antenna: SO-239
• VHF radio: SO-239
• GNSS: TNC
• Power: 12-way circular multipole
• NMEA 2000: 5-way Micro-C connector
• USB: USB Micro-B

Data Interfaces:

• NMEA 0183: 2 x bi-directional ports
• NMEA 2000: NMEA 2000 Ed 3.101, LEN=1
• USB: PC virtual com port for NMEA 0183 data

Standards Compliance:

• AIS standards: IEC 62287-1 Ed. 3, ITU-R M.1371.5
• Product safety standards: EN60950-1 2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013 EN62311:2008
• Environmental standards: IEC 60945 Ed. 4
• Serial data interface standards: IEC 61162-1 Ed 5.0, IEC 61162-2 Ed 1.0
• NMEA 2000: NMEA 2000 Ed 3.101
• GNSS performance standards: IEC 61108-1 Ed 2.0, IEC 61108-02 Ed 1.0

GNSS:

• Systems supported: GPS, GLONASS, BeiDou, Galileo (two of any combination, three including GPS, Galileo)
• Channels: 72
• Internal/external antenna: Internal or optional external antenna
• Time to first fix from the cold start: 26s

VHF Transceiver:

• VDL access scheme: CSTDMA
• Operating frequency: 156.025MHz - 162.025MHz
• Channel bandwidth: 25kHz
• Receivers/transmitters: 2 x receivers, 1 x transmitter
• AIS receiver sensitivity (20% PER): -111dBm
• AIS transmitter power: 2W (+33dBm)

User Interface:

• Indicators: Power, transmit timeout, error, silent mode

In the Box:

• 1 x AIS transceiver
• 1 x Power and data cable (2M)
• 1 x FLEXI-FIT™ mounting bracket
• Complete with screws & optional fixing tape

Specifications:

• AIS Class: B
• Antenna Included: Yes
• Display Included: No
• Function: Receive/Transmit
• GPS Included: Yes
• Box Dimensions: 6"H x 7"W x 8"L WT: 2.25 lbs
• UPC: 672975210526

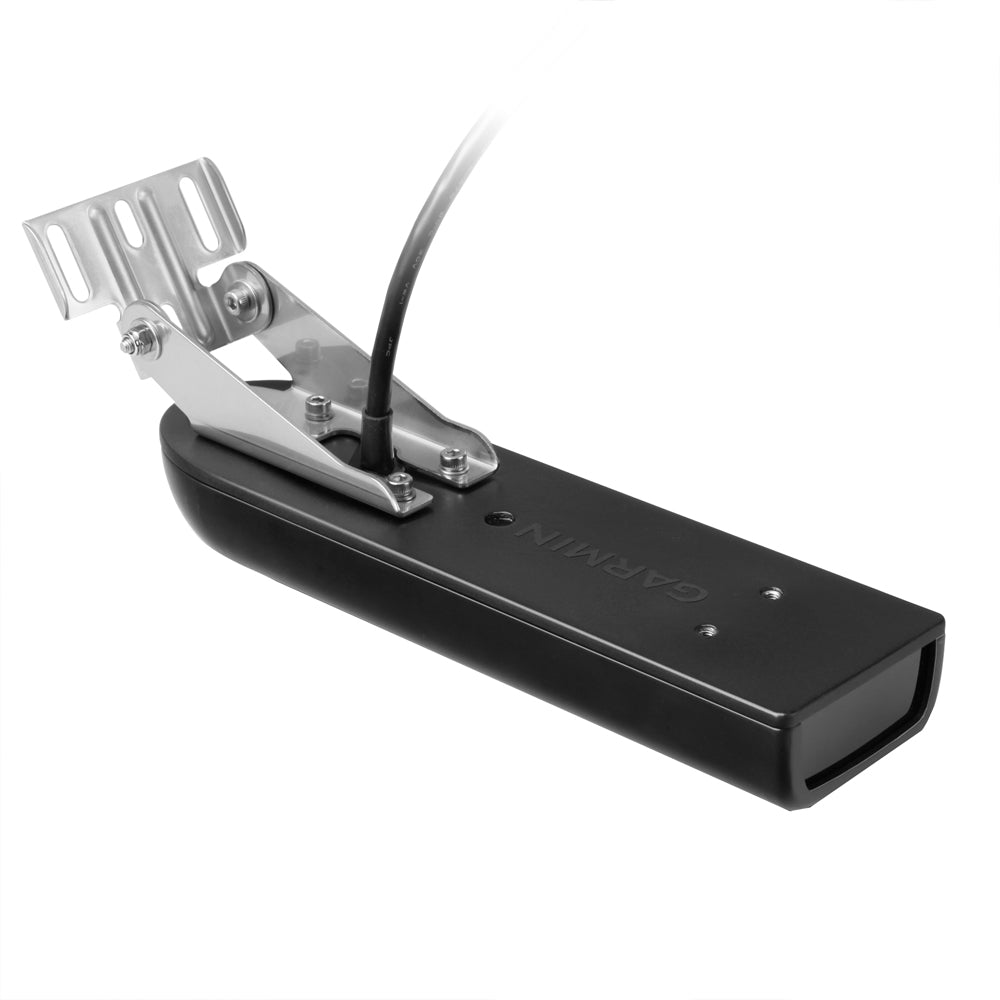

Garmin GT51M-TM Transom Mount DownVu/SideVu 500W, Traditional 600W Transducer Mid-Band CHIRP w/Temp - 12-Pin [010-01966-00]

GT51M-TM Transom Mount DownVü/SideVü 500W (CHIRP 260/455 kHz) Traditional 600W Mid-Band CHIRP 80-160 kHz Transducer with Temp - 12-Pin

The GT51M-TM transom mount transducer provides ultra-clear sonar pictures of objects, structure and fish that pass below your boat. This traditional CHIRP and CHIRP DownVü/SideVü transducer is optimized for depth performance and rough condidtions.

The CHIRP DownVü/SideVü elements have a power rating of 500W per element (1,500W total) and operating frequencies of 260/455 kHz. The traditional CHIRP sonar has a power rating of 600W and operating frequencies of mid-band CHIRP 80-160 kHz. It also includes a built-in fast response temperature sensor.

GT51M-TM includes a 12-pin transducer with mounting hardware and installation instructions. Follow the instructions carefully to avoid damaging your boat.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Temperature: Yes
• Speed Included: No
• Pins: 12
• Imaging: Standard/Down/Side
• Chirp: Medium/Non Traditional
• Mounting Style: Transom
• Cable Length (Feet): 30'
• Box Dimensions: 5"H x 6"W x 12"L WT: 3.5 lbs
• UPC: 753759152918

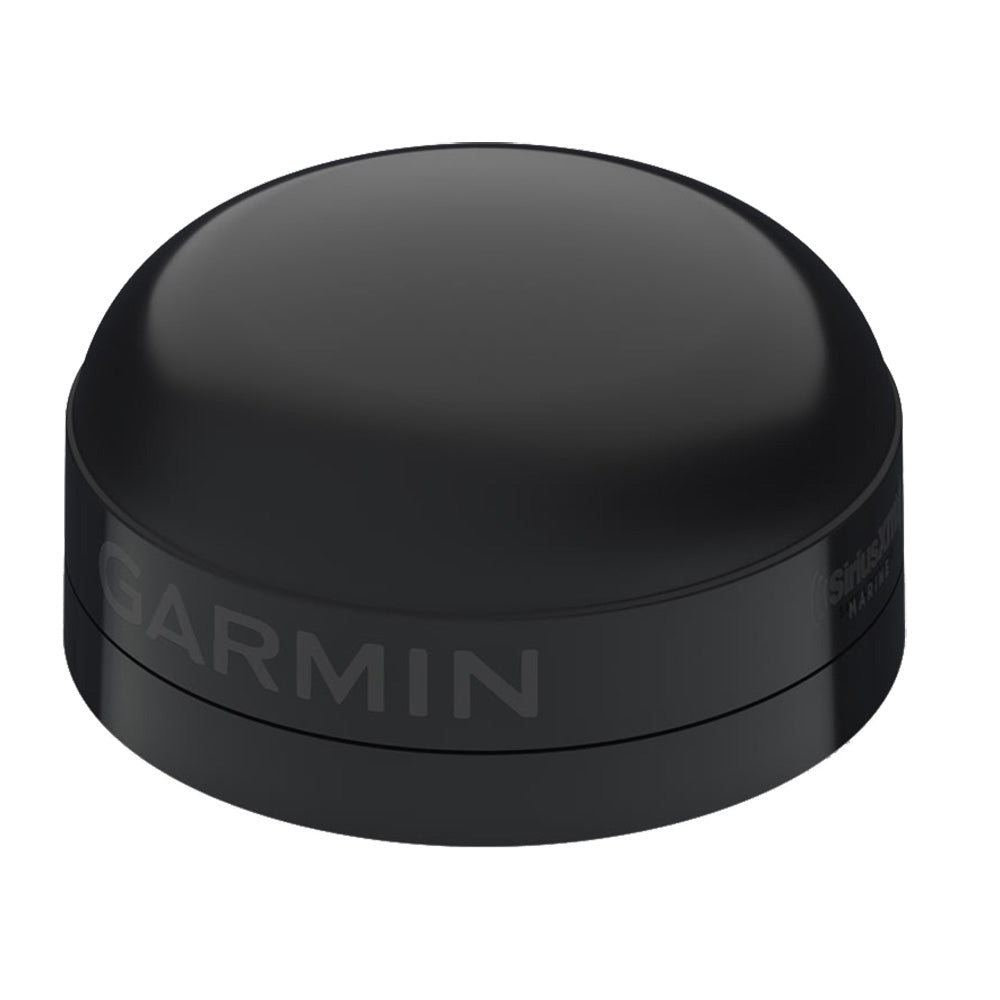

GXM™ 54 Satellite Weather/Radio Antenna - Black

The GXM 54 satellite weather/radio antenna with SiriusXM coverage lets users head out with detailed weather information¹ that’s delivered straight to a Garmin chartplotter. Users gain added awareness and confidence on the water with the most current weather conditions and forecasts, including NEXRAD, lightning, wind, and wave information. And users enjoy high-quality entertainment with more than 150 channels of SiriusXM satellite radio.

Plus, add Fish Mapping™ to find suggested potential hot spots for popular species — including mahi, marlin, swordfish, wahoo, and yellowfin — based on sea conditions. Display sea surface temperature contours, surface temperature front strength, and 30-meter subsurface temperature contours, and monitor plankton data such as concentration contours and plankton front strength.

GXM 54 is easy to install and use, and its reliable antenna provides the best possible reception — even on the fringes of SiriusXM coverage. It’s fully compatible with select Garmin chartplotters and chartplotter/sonar combos.

Features:

• See detailed weather information¹ directly on a compatible Garmin chartplotter for increased situational awareness
• Use the fish mapping feature¹ to find suggested potential hot spots for popular species and to view sea surface temperatures, plankton concentrations, floating algae, and more
• Refine the fish species that appear on the chartplotter map
• Experience high-quality entertainment with access to more than 150 channels of SiriusXM satellite radio¹
• Gain access to the most current weather conditions and forecasts, including NEXRAD, lightning, wind, and waves¹
• A reliable antenna provides the best possible reception — even on the fringes of SiriusXM coverage

Physical:

• Dimensions (D x H): 3.61” x 1.95” (91.6 x 49.5 mm)
• Weight: 7.9 oz (224 g)
• Operating temperature range: From -22 to 158 degrees F (from -30 to 70 degrees C)
• Storage temperature range: From -31 to 185 degrees F (from -35 to 85 degrees C)
• Case material: Fully gasketed, plastic and die-cast aluminum
• Water rating: IPX7

Electrical:

• Power input source: From 9 to 32 Vdc
• Input current: 500 mA max. at 12 Vdc
• Max power usage: 6 W
• Fuse: 32 V, 2 A, mini-blade type, fast-acting

In the Box:

• GXM 54
  • Pole mount
  • Surface mount
  • Mounting hardware
  • Cable (6 meters)
  • Power and audio module
  • Documentation

¹Weather, audio, and fish mapping features each require a paid subscription with SiriusXM

Specifications:

• Cable Length (Feet): 6m
• Box Dimensions: 6"H x 9"W x 11"L WT: 2.85 lbs
• UPC: 753759331238

TM265LH Plastic Transom Mount Transducer w/Depth & Temp - 12-Pin

Garmin's plastic transom mount performs well in deep water and provides exceptional bottom and water column detail.

The best performing 1 kW transom mount, this transducer has a maximum depth of 3,000 feet; an operating frequency of 42 to 65 kHz and 130 to 210 kHz; a beamwidth of 16 to 25 degrees or 6 to 10 degrees; and mounts on a 3 to 21 degree transom.

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.

Compatible Devices:

• GPSMAP® 7607xsv, 7608xsv, 7610xsv, 7612xsv, 7616xsv

• GSD™ 25 Premium Sonar Module

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Temperature: Yes
• Speed Included: No
• Pins: 12
• Mounting Style: Transom
• Imaging: Standard
• Chirp: Low/High
• Cable Length (Feet): 33'
• Box Dimensions: 8"H x 10"W x 11"L WT: 11.47 lbs
• UPC: 753759142407

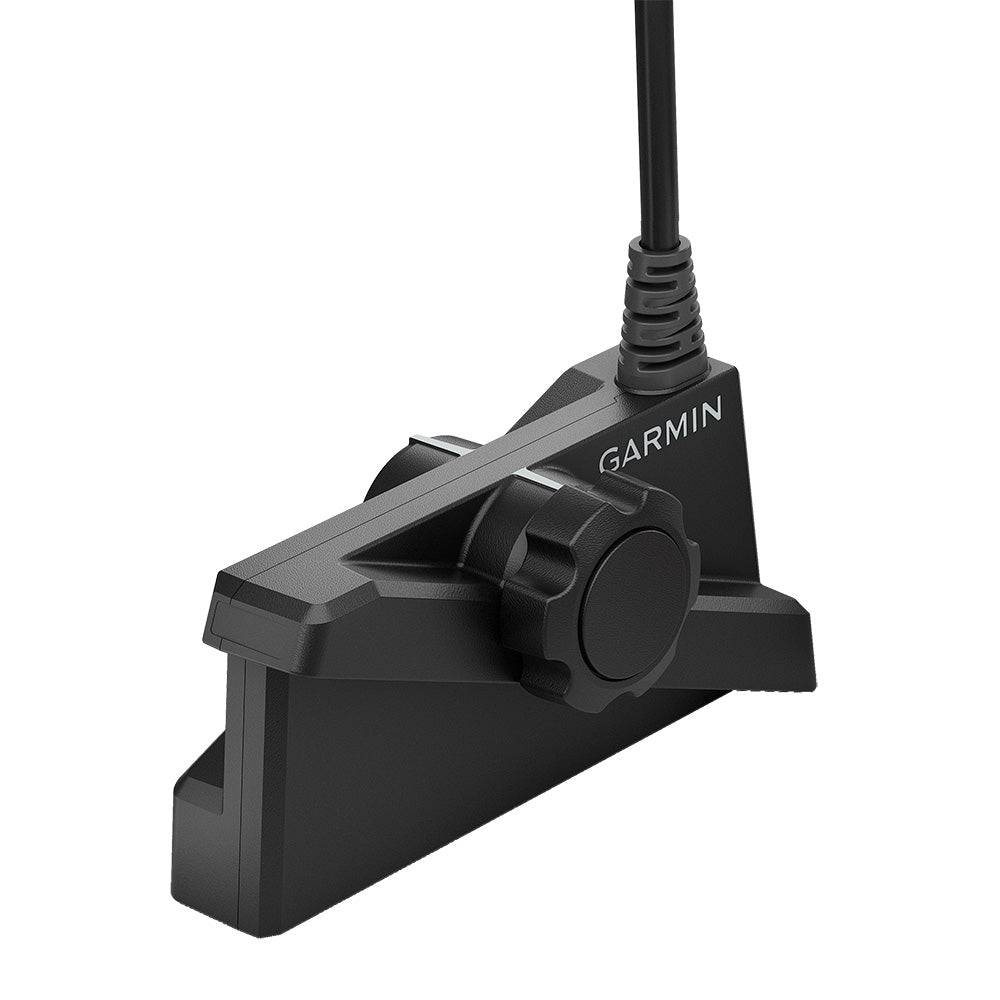

Garmin LiveScope Plus w/LVS34 Transducer Only [010-02706-10]

THE BEST OF THE BEST JUST GOT BETTER

The latest in LiveScope technology, the LiveScope Plus System offers improved resolution, reduced noise, clearer images, and better target separation.

Features:

• See images clearly with improved screen clarity, transducer sensitivity, and target separation.
• Scan surroundings with sharper images, reduced noise, and fewer sonar artifacts.
• Upgrade your current LiveScope System black box (GLS™ 10 sonar module) with just a new transducer.
• Get maximum contrast and clarity in your images with vivid color palettes.
• Don’t miss a thing with supported Forward, Down and Perspective modes and necessary mount.

Real-Time Images

Real-time sonar ensures that your live images are as accurate as possible.

Clear Vision

See exactly what you need with reduced noise and fewer sonar artifacts that impede your picture of fish and structure.

Image Stabilization

A built-in stabilization system keeps the sonar image on your compatible chartplotter steady, even in rough conditions.

Vivid Color Palettes

Choose from seven vivid color options — including Aqua, Caribbean, Lava and more — to see fish and structure in maximum contrast and clarity.

Forward Mode

Scout ahead of your boat to see what’s happening in real time.

Down Mode

Explore live views of the activity directly beneath your boat.

Perspective Mode

See under the water with a view from your perspective above the water.

In The Box:

• Panoptix LVS34 transducer
• Perspective mount
• Trolling motor barrel mount
• Shaft mount
• Documentation
