Marine Navigation & Instruments

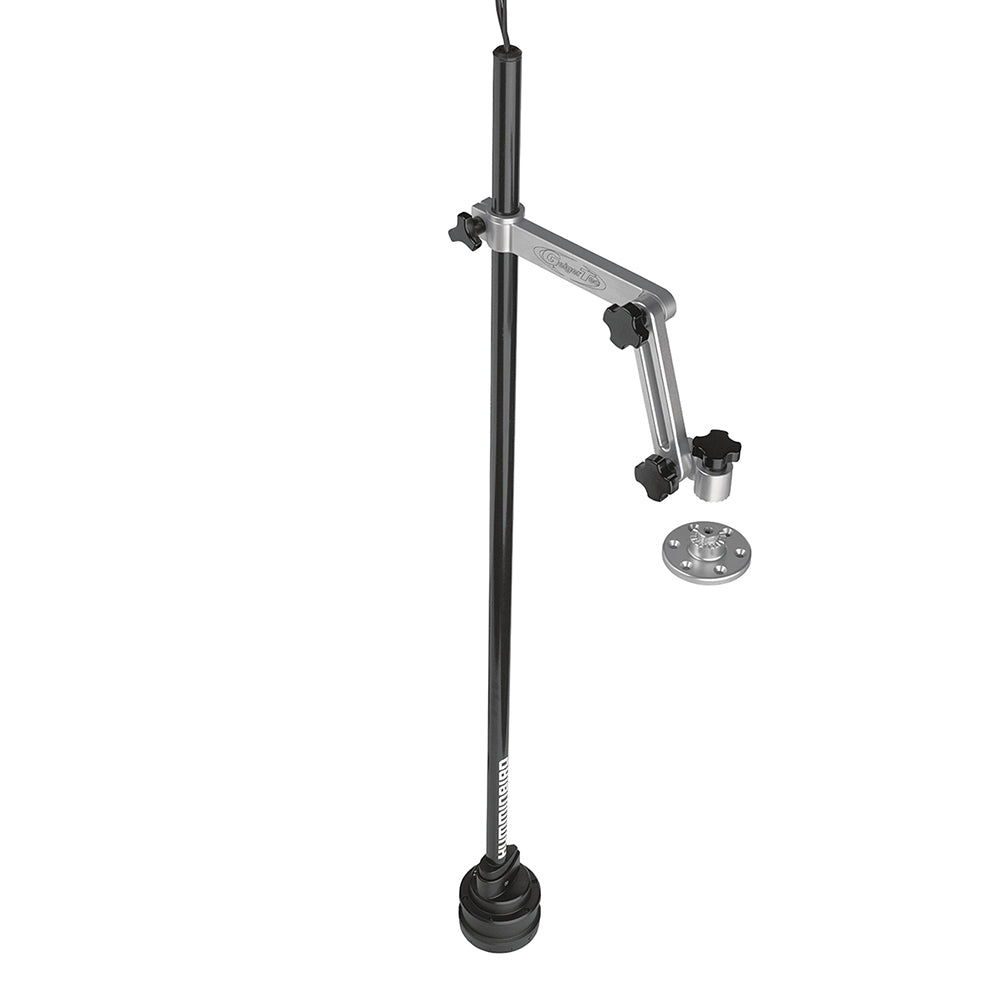

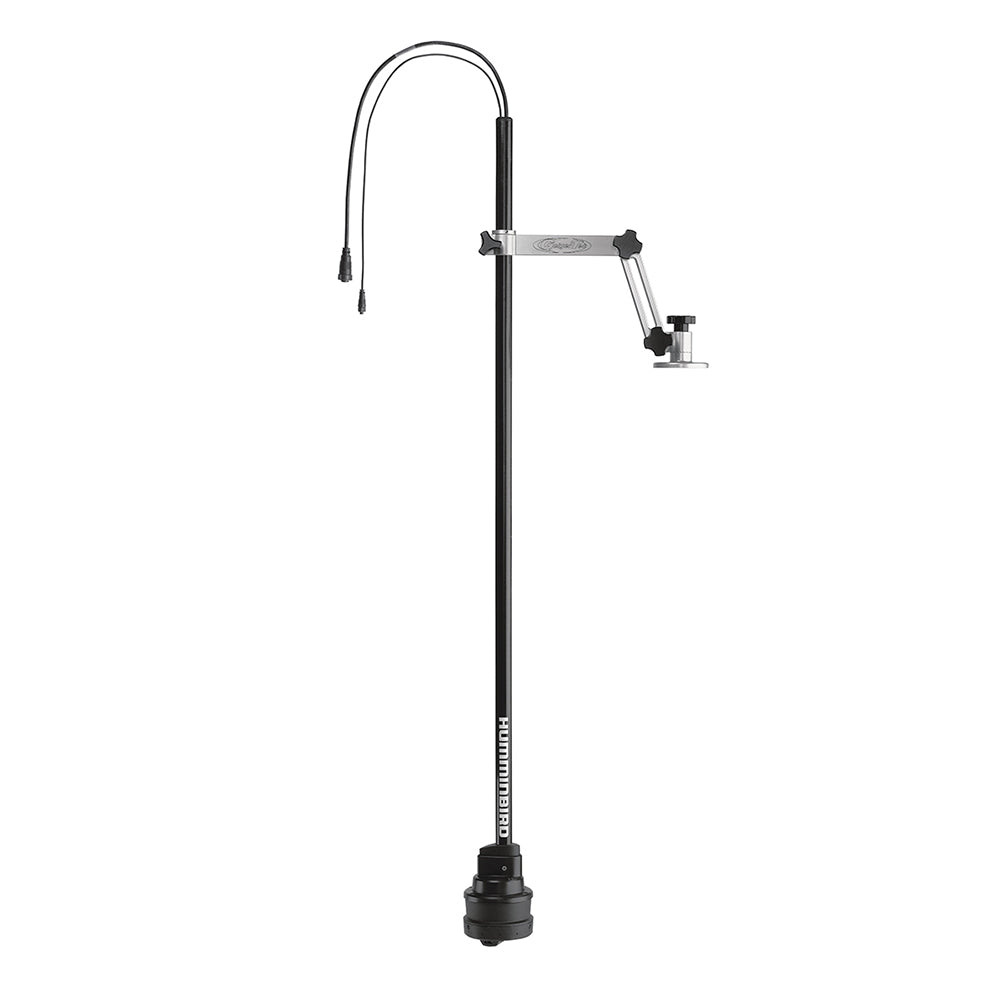

MEGA 360 Imaging with Universal Bracket

Every detail, in every direction, now for every boat.The MEGA 360 Imaging - Universal transducer shows you a 360-degree, detail rich view around your boat. Now bring this technology to virtually any boat, thanks to an adjustable GeigerTec mount, made from billet aluminum. And since MEGA 360 is mounted independent of your trolling motor's steering, you'll have an uninterrupted picture of what's below, even while fishing in wind, waves or using Spot-Lock™.

Features:

• The high-frequency beam of MEGA Imaging CHIRPs across the megahertz range to reveal the world below in picture-like detail all the way around your boat.
• Use MEGA 360 Imaging without sacrificing boat control. Whether trolling or using Spot-Lock, MEGA 360 Imaging is independently mounted, so your sonar picture remains unchanged as the trolling motor turns.
• Mark waypoints directly on your MEGA 360 Imaging screen and watch them update as your boat position changes, making it easy to find and then cast to fish and structure.
• Utilize optional range rings to show you the distance of targets from your boat, for a better understanding of exactly where the fish are.
• View MEGA 360 Imaging alongside your choice of multiple sonar and map technologies for a complete understanding of your surroundings.
• MEGA 360 Imaging allows you to customize sweep speed, viewing area, display information, sonar zoom and color palette to your specific fishing situation and preferences.
• MEGA 360 Imaging - Universal has a 50" shaft length and can mount to almost any boat with the included GiegerTec aluminum bracket.
• Compatible with HELIX G3N and SOLIX G2 models with MEGA Side Imaging+ or MEGA Down Imaging+.
• Once connected to a compatible HELIX G3N or SOLIX G2 unit with MEGA Imaging+, the MEGA 360 Imaging view can be shared to any SOLIX model and all HELIX G2N and G3N models via an Ethernet network.
• What's Included: MEGA360 Imaging transducer with attached power cable and transducer cable, 10 foot SOLIX transducer extension cable, 10 foot HELIX transducer adapter cable, 10 foot MEGA 360 Power Cable and adjustable, aluminum MEGA 360 Imaging mounting bracket with depth ring for shaft.
• 1-Year Limited Warranty

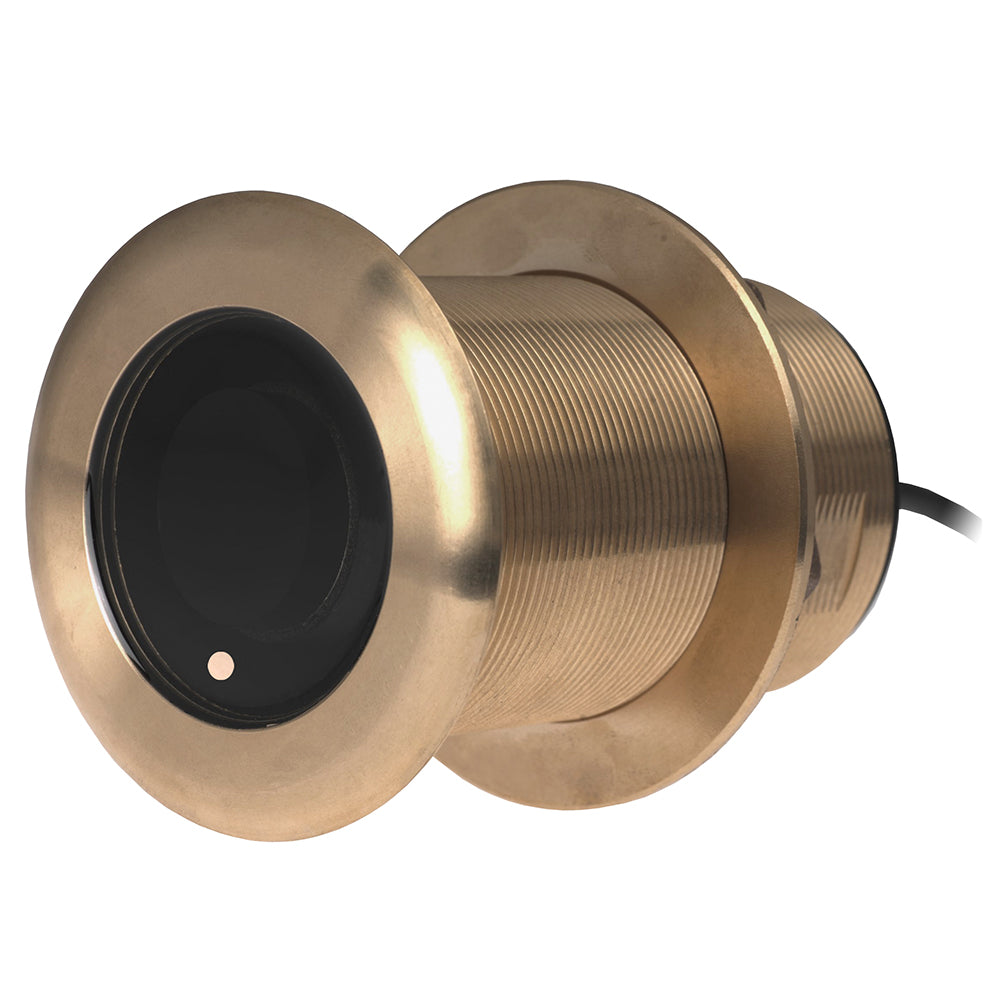

B75H Bronze Chirp Thru Hull 20° Tilt - 600W

Requires Mix and Match Cable

Rely on Airmar’s broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 80 kHz of total bandwidth in just one installation, saving customers time and money.

Features:

• Depth & fast-response water-temperature sensor
• High—CHIRPS from 130 kHz to 210 kHz, 15° to 9° beamwidth
• 20° tilted versions, 600W
• 80 kHz of total bandwidth from one transducer
• Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth
• Bronze transducer housing
• Boat Size: Up to 8 m (25’)
• Hull Type: Fiberglass or wood
• Exclusive Xducer ID® technology

Specifications:

• Chirp: High
• Mounting Style: Thru-Hull
• Box Dimensions: 5"H x 8"W x 12"L WT: 6.05 lbs
• UPC: 801769001822

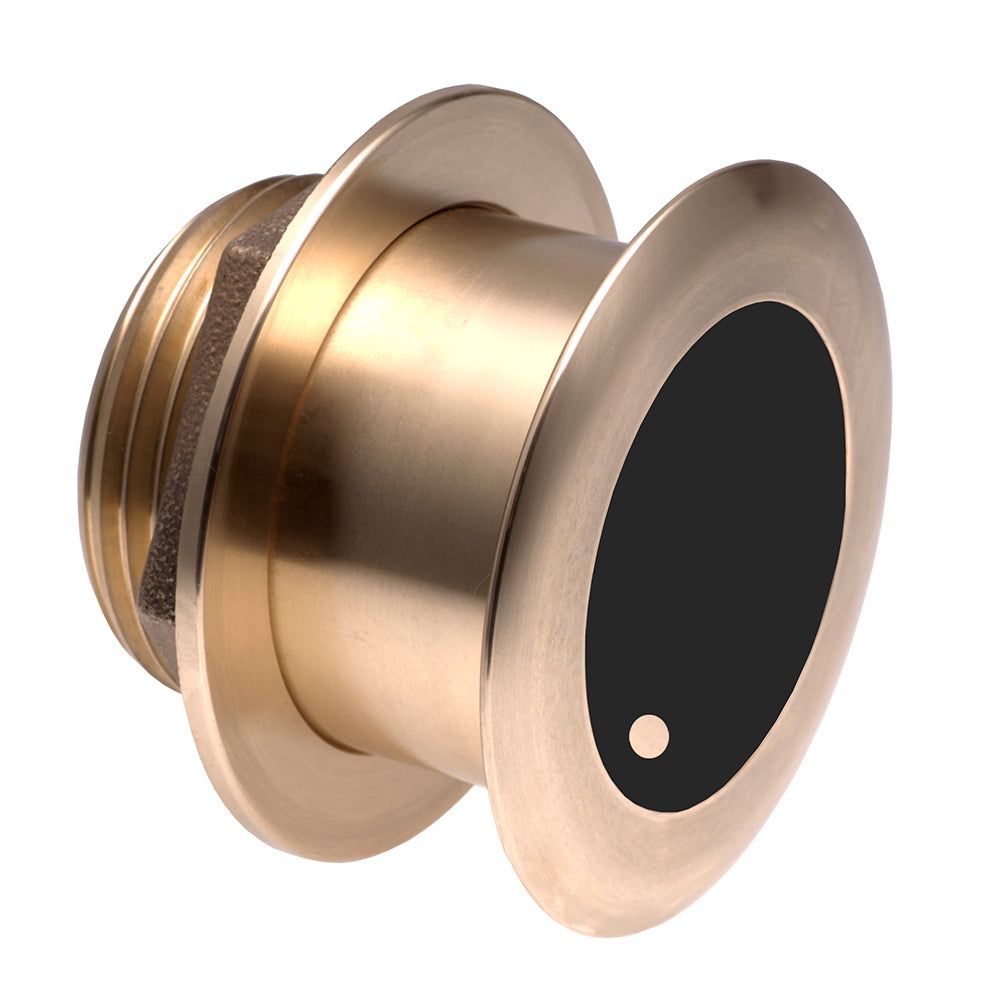

B175HW Bronze Thru Hull 20° Tilt - 1kW

Requires Mix and Match Cable

Get more coverage under the boat with Airmar's new wide beam Chirp product line. Offering a high frequency range of 150-250 kHz and a constant 25° beam width, these transducers are truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the new wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducers

A unique property of the new high frequency transducers is that the beam width is a constant 25° angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's new wide beam format also creates crisper and larger return images on the display. We've got you covered.

Features:

• Depth & fast-response water-temperature sensor
• 20 degree tilted version, 1KW
• High—CHIRPS from 150 kHz to 250 kHz
• 25° constant beamwidth
• 100 kHz of total bandwidth from one transducer
• Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth
• Boat Size: 8 m (25’) and above
• Hull Type: Fiberglass or wood
• Exclusive Xducer ID® technology

Specifications:

• Chirp: High Wide
• Mounting Style: Thru-Hull
• Box Dimensions: 8"H x 11"W x 12"L WT: 10.6 lbs
• UPC: 801769002089

1.2-Liter Pump Kit

Use Garmin's 1.2 Liter per minute (0.32 gallon per minute) pump kit with your Reactor™ 40 system to pump hydraulic fluid to the steering cylinders and steer the boat. Improved with ORB hydraulic ports and threaded cable collars for increased durability.

In The Box

• Pump assumbly
• Installation instructions
• Installation mounting hardware
• 3 pcs of ORB-5 to 3/8" compression marine tube fitting
• Note: all other hydraulic fittings, tees and hoses must be sourced separately

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Type: Pumps/Drives
• Box Dimensions: 5"H x 6"W x 15"L WT: 9.1 lbs
• UPC: 753759194666

Furuno FAP3011 Control Head f/NavPilot 300 [FAP3011]

FAP3011 Control Head for NavPilot 300

Only Up To 3 Control Heads On 1 System Done Via N2k.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Furuno FI5001 Wind Transducer [FI5001]

FI5001

The FI5001 is an analog Wind Transducer for use with NavNet 3D and the FI50 series of instrument displays. It is capable of detecting wind angle accuracy of better than 10° and wind speed accuracy of better than 5% (20 kt). The FI5001 has a power requirements of less than 40 mA on a 12VDC system.

Important Note: The FI5001 Sensor does not come with a cable as standard. Please select a 30 meter or 50 meter cable kit when ordering the FI5001 Wind Sensor.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

GT34UHD-THP Ultra HD Thru-Hull Transducer - Pair

Ultra High-Definition Sonar System Thru-hull Transducer
Add stunningly clear Ultra High-Definition ClearVü and Ultra High-Definition SideVü scanning sonar images to your compatible chartplotter via the GCV™ 20 sonar module. It includes 3 arrays, including a downward-facing element element — with frequencies ranging from 0.8 MHz (800 kHz) to 1.2 MHz (1,200 kHz) — and it’s recommended for hulls with up to a 5-degree deadrise angle.

Ultra High-Definition ClearVü Scanning
This mode provides brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars by putting more power on targets via a downward-facing element.

Ultra High-Definition SideVü Scanning
This mode delivers stunningly clear images of structure and fish off to the sides of your boat. This makes it easy to scout a fishing area quickly, because you can see everything the first time with such amazing clarity.

Specifications:

• Frequency:

• Ultra High-Definition ClearVü: 0.8 MHz (800 kHz), CHIRP range: 760-880 kHz
• Ultra High-Definition SideVü: 1.2 MHz (1,200 kHz), CHIRP range: 1,060-1,170 kHz

• Power: 500W
• Beamwidth:

• Ultra High-Defintion ClearVü: 0.74° x 46°
• Ultra High-Defintion SideVü: 0.44° x 55°

• Maximum depth:

• Ultra High-Defintion ClearVü: 200' down
• Ultra High-Defintion SideVü: 125' sides, 250' total

• Depth/Speed/Temperature: Depth and Temperature
• Number of pins: 12-pin
• Cable length: 20'
• Supported deadrise/Transom angles: Up to 25° deadrise

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Chirp: Non Traditional
• Cable Length (Feet): 20'
• Imaging: Down/Side
• Speed Included: No
• Pins: 12
• Mounting Style: Thru-Hull
• Temperature: Yes
• Box Dimensions: 5"H x 13"W x 14"L WT: 9.45 lbs
• UPC: 753759206369

Raymarine ST60 Wind Vane Transducer w/30M Cable [E22078]

Standard Forward Wind Transducer

Compatible with:

• ST70*

• ST60+

• ST290

• i70

Standard Length: 14 1/2"
Includes 100ft. Cable.

*Using with ST70 requires purchase of ST70 Wind Pod, sold seperately.

Specifications:

• Instrument Function: Wind
• Box Dimensions: 4"H x 11"W x 20"L WT: 5 lbs
• UPC: 723193220788
