Simrad NSX 3012UW - No Transducer [000-16299-001]

NSX 3012UW - No Transducer

Expand your horizons with the world's first fully-featured ultrawide marine display. NSX® ULTRAWIDE brings all the benefits of dual screens to a single display for our most immersive experience yet. Get a truly unique, eye-catching dash, see apps as they were meant to be seen, and experience C-MAP®'s X-Gen charts in more detail than ever.

Get a fresh perspective

NSX ULTRAWIDE offers a new perspective on boating. Discover an all-new aspect ratio for our most immersive on-the-water experience yet.

Simpler boating with our latest operating system

NSX ULTRAWIDE also delivers game-changing simplicity. Use the intuitive activities bar to pin your favorite apps and switch between them with a single touch. And the fully customizable instruments panel lets you make NSX your own, ensuring you always have the right data at hand, and nothing more.

The simplified interface means you’ll spend less time navigating menus, and more time navigating waters. And that’s quicker, too – with our fastest-ever auto-routing calculating routes in one-third of the time.

Superior engine control

Connectivity is at the heart of NSX ULTRAWIDE. The display feeds more information than ever to the helm, giving superior control over the full suite of on-board technology.

It all begins with superior engine control. Nobody integrates better with Mercury® than we do, and NSX ULTRAWIDE also offers superior integration with other leading propulsion brands such as Honda and Suzuki.

Bow-to-stern integration

Control with NSX ULTRAWIDE extends across the entire vessel, with support for CZone® digital switching, RGBW lighting, IP cameras, and audio – with an intuitive Setup Wizard to help you get it all connected.

Your fishing superpower

Anglers benefit from leading sonar tech like FishReveal™ and Active Imaging®, providing high-res images 300 feet to the sides and below your boat. Compatibility with a wide range of 1kW transducers means you can fish even the deepest waters.

*Requires additional sonar module and minimum 1.7 software update

Features:

• See near and far with full support for 3G, 4G, and HALO® radars
• Easy autopilot integration with NAC-1, NAC-2, NAC-3 and NAC-D pilots
• Simrad® App integration for Waypoint management and offline trip planning

Third-party integration

• Now compatible with SiriusXM® WM-4 Weather and Fish Mapping with 1.9 software update
• Best-in-class Mercury® Integration, inc. SmartCraft® Connect
• Integration with leading propulsion brands such as Honda and Suzuki
• CZone® digital switching
• OmniSense
• Dometic
• Lumishore lighting
• Multiple audio partners
• IP cameras
• HTML5 app compatible
• Much, much more...

Charts and Navigation

• Optimized for C-MAP® DISCOVER™ X AND REVEAL™ X charts
• X-Chart Manager
• 3x faster autorouting*
• *vs SIMRAD® GO

Fishfinding & Sonar Capabilities

• Sonar sharing between NSX® devices
• Compatible with Active Imaging™, featuring CHIRP, SideScan, and DownScan Imaging™, as well as the S3100 & S5100 sonar modules*
• *Requires minimum 1.7 software update

Network Connectivity

• Wireless
• Ethernet
• USB
• NMEA 2000®

Additional Features:

• The latest Simrad® operating system, for game-changing ease of use
• Ultrawide SolarMAX™ IPS HD touchscreen with extreme viewing angles
• Intuitive setup wizard
• Bracket mount sold separately

Specifications:

• Screen Size: 12"
• Transducer Included: No
• Box Dimensions: 7"H x 13"W x 17"L WT: 7.8 lbs
• UPC: 9420064135745

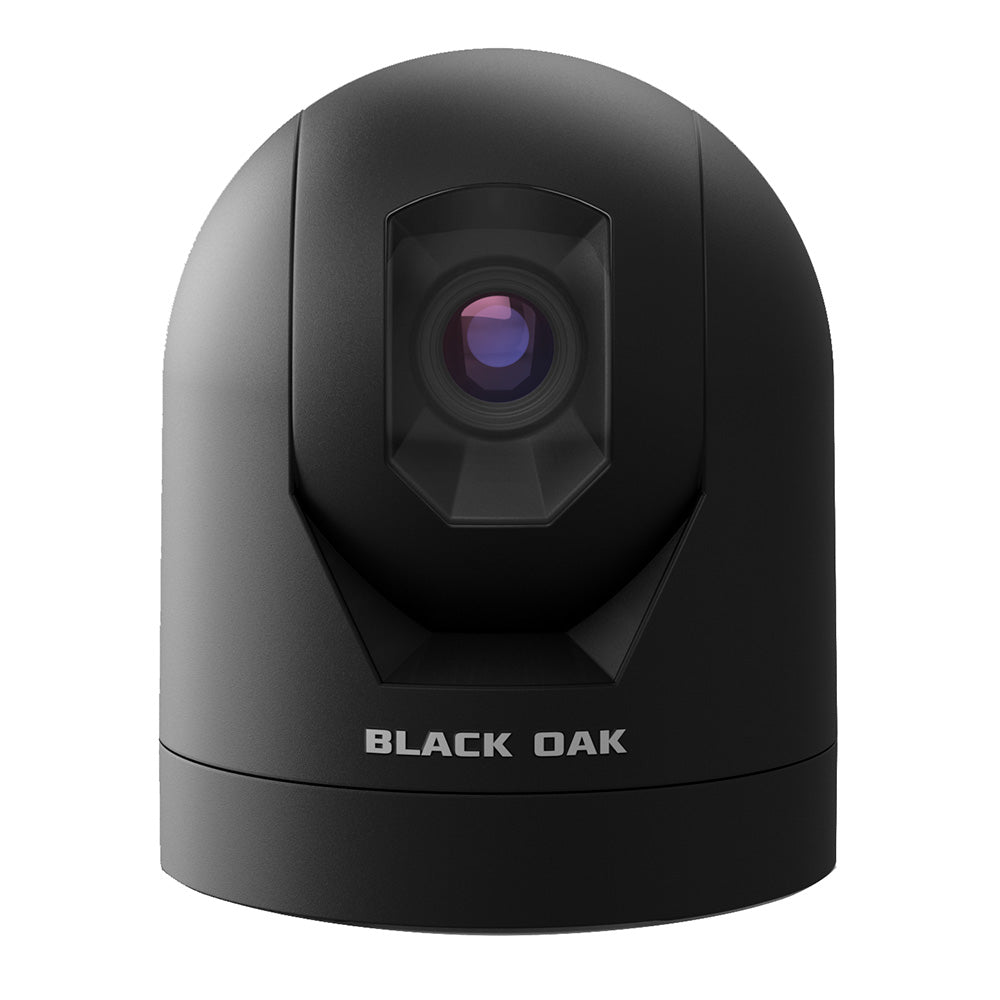

Nitron XR1 Color Night Vision Camera - HDMI - Black

Navigate the Night with Brilliant HD Color

Enhance your nighttime adventures with the new Nitron XR1 Color Camera, the ultimate low-light navigation tool for boaters, anglers, and maritime professionals. Designed for seamless integration on any vessel, this cutting-edge camera delivers crystal-clear imagery in near-total darkness, ensuring you stay safe and in control—no matter the conditions.

Maximize Your Night Vision Advantage!

Unlock the full potential of the Nitron XR1 Camera by pairing it with one of our high-performance IR light bars. This powerful combination takes nighttime navigation to the next level, providing unmatched visibility in total darkness.

With advanced IR technology, you can preserve your natural night vision while significantly enhancing the camera’s clarity, range, and performance. Navigate with greater confidence, detect obstacles with precision, and experience crystal-clear imaging even in the darkest environments. Upgrade your setup and own the night!

Compact, Flush, and Built to Last

The sleek, low-profile design allows for multiple mounting options, ensuring a perfect fit on any boat.

Full Color HD Video

Our advanced low-light sensor technology captures every detail in ultra-clear 1920 X 1080 color video, allowing you to navigate confidently without blinding spotlights or guesswork.

Optimized Field of View

With a 42-degree field of view, the Nitron XR1 offers precise and focused visibility, allowing you to detect objects ahead with exceptional color and clarity.

Built for the Harsh Marine Environment with a Sleek, Integrated Design

Engineered with an IP67 waterproof rating, the Nitron XR1 Camera withstands heavy rain, saltwater exposure, and extreme temperatures. Its rugged, corrosion-resistant housing ensures long-term durability in offshore and coastal environments.

Features:

• Ultra Low-Light Sensor: Crystal clear color night vision
• 42 Degree Field of View: Focused and precise visibility
• Easy Plug-and-Play: Connects directly into your MFD
• Marine-Grade Durability: Built with IP67 waterproof housing to withstand harsh marine environments
• Compact and Lightweight: Easy install

Specifications:

• Operating Voltage: 12V DC
• Frame Rate: 60 FPS
• Resolution: Up to 4K
• Filter: Auto Day to Night
• Field of View: 50° FOV Horizontal
• Image: Full Color
• Waterproof Rating: IP67
• Warranty: 2 Years
• Guarantee: 30 Day Money Back
• Wire Harness Included? Yes
• Wire Harness Length: 25'
• Fuse Size: 5 Amp
• Connector Type: 4 Pin Quick Connect
• Mounting Screw Size: #8 1-1/4" Stainless
• Weight: 1.8 lbs

What's In The Box?

• Nitron XR1 Camera
• 25' Wire Harness
• Installation Hardware

B175L Bronze 12 Degree Thru-Hull 1kW - Requires Mix & Match Cable

Airmar’s low-profile, Chirp-ready transducers are the perfect addition to smaller boats such as center consoles. The B175L transmits across low frequencies from 40 to 60 kHz, delivering excellent coverage and tracking. This transducer has up to 20 kHz of total bandwidth in just one installation for tremendous deep-water performance.

Tilted Element™ transducers have the ceramic element fixed at a 20°, 12°, or 0° angle within the housing. When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings.

Features:

• Requires Mix & Match Cable for Chirp Transducers
• Depth and fast-response water-temperature sensing
• 1 kW of power for great deep-water performance
• Low frequency: 40 to 60 kHz
• 32° to 21° beamwidth
• Maximum depth of 762 m (2500')
• Low-profile, thru-hull housing provides good display resolution at speed when installed properly
• Recommended for stepped, planing, or displacement hull
• Bronze housing for use in a fiberglass or wood hull
• Also available in a stainless steel housing (SS175L) for use with all hull materials
• Patented Xducer ID® technology

Specifications:

• Power Rating: 1 kW
• Max Deadrise Angle: 24°
• Housing: Bronze
• Functions: Depth, Temperature
• Hull Material: Fiberglass or wood
• Max Vessel LOA: Up to 11 m (36')
• Hole Size: Fiberglass or wood hull 95 mm (3-3/4"), Metal hull 105 mm (4-1/8")
• Usable Shaft Length: 71 mm (2.80")
• Mounting Style: Tilted Element Thru-Hull
• Acoustic Window: Urethane
• Common Use: Fishing
• Low Frequency: 40-60 kHz
• Low Frequency Beamwidth: 32°-21°
• Max Deadrise: Up to 24°
• Max Depth: 762 m (2500')
• Retractable housing: No
• Single or Dual Frequency: CHIRP-Ready Single-Band
• Tilted Element: Yes
• Weight: 2.7 kg (6 lbs.)

B275LH-W Bronze Thru-Hull for Garmin with 12-Pin Connector

Get more coverage under your boat with Airmar’s unique wide-beam, low and high-frequency, Chirp-ready B275LHW. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies, which results in superior resolution. The constantly wide beam provides twice the coverage and clear fish arches on the display compared to most high-frequency, narrow-beam transducers.

The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 152 m (500'). The low-frequency band and 1 kW of power also support great deep-water performance. Get the best of both worlds with Airmar’s Chirp-ready transducers with wide-beam coverage.

The included High-performance Fairing improves broadband results at speeds over 30 knots (34 MPH).

Features:

• Garmin 12-Pin Mix & Match Cable for Chirp Transducers
• Depth and fast-response water-temperature sensing
• 1KW of power for great deep-water performance from the low frequency
• Low frequency: 42 to 65 kHz
• 25° to 16° beamwidth
• Maximum depth of 914 m (3000')
• High frequency: 150 to 250 kHz
• 25° constant beamwidth
• Maximum depth of 152 m (500')
• 123 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50 and 200 kHz, plus everything else in the bandwidth
• High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation
• High wide beamwidth yields more coverage for detecting fish in the upper water column
• Bronze housing with High-performance Fairing for optimal performance at higher speeds
• Also available as transom (TM275LHW) and pocket (PM275LHW) mounts
• Patented Xducer ID® technology

Specifications

• Brand: Airmar Technology
• Acoustic Window: Urethane
• Cable-Length: 10 m (33')
• Common Use: Fishing, Commercial Fishing
• Connector: Garmin 12-Pin
• Country of Origin: USA
• Cross Reference: 010-12183-20
• Deadrise Range: Up to 28° with fairing
• Display Connector: 12G
• Frequency Band: Low-High Wide
• High Frequency: 150-250 kHz
• High-Wide Beamwidth: 25°
• Low Frequency: 42-65 kHz
• Low Frequency Beamwidth: 25°-16°
• Material: Bronze
• Max Deadrise: Up to 20° with fairing
• Max Depth: Low frequency- 914 m (3000'), High wide frequency- 152 m (500')
• Mix and Match Series: 12-Pin Chirp
• Sensor Connector: MMC
• Single or Dual Frequency: CHIRP-Ready Dual-Band
• Tilted Element: No
• Weight: 7.3 kg (16 lbs.)
• Power Rating: 1 kW
• Max Deadrise Angle: 20°
• Functions: Depth, Temperature
• Hull Material: Fiberglass or wood
• Mounting Style: Thru-Hull with Fairing
• Max Vessel LOA: 8 m (25') and above
• Hole Size: 30 mm (1-3/16")
• Usable Shaft Length: 121 mm (4.75")

CM599LH 1-3kW Pocket Mounted Transducer - No Connector

Having the right tool for the job makes the job easier and gives better results. The right tool for covering deep-water haunts of swordfish, tuna, and other species is a 2 to 3 kW, low and high-frequency transducer. The Chirp-ready CM599LH gives the deep-water performance of the low frequency down to 3000 m (10000') plus the incredible resolution that the high-frequency band delivers.

The CM599LH is packed with a twenty-four-element, low-frequency array that operates at anywhere between 28 and 60 kHz. The single, high-frequency ceramic operates at any frequency between 130 and 210 kHz and has a narrow, 8° to 4°, beamwidth.

Features:

• Depth and fast-response water-temperature sensing
• 2 to 3 kW of power for exceptional deep-water performance
• Low frequency: 28 to 60 kHz
• 23° to 9° port-starboard beamwidth
• 11° to 5° fore-aft beamwidth
• Maximum depth to 3048 m (10000')
• High frequency: 130 to 210 kHz
• 8° to 4° beamwidth
• Maximum depth to 457 m (1500')
• 112 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50 and 200  kHz plus everything else in the bandwidth
• Resin housing with curved-edge design for wet-box installation
• Can be installed in a cavity or welded tank
• Also available as thru-hull external (R509LH) and in-hull (R599LH) mounts
• Patented Xducer ID® technology

Specifications:

• Frequency Band: Low-High
• Functions: Depth, Temperature
• Material: Urethane
• Mounting Style: Tank, Cavity, Pocket/Keel Mount
• Connector: Bare Wire
• Display Connector: 0
• Hull Material: Fiberglass or metal
• Max Vessel LOA: 8 m (25') and above
• High Frequency: 130-210 kHz
• Common Use: Fishing, Commercial Fishing
• Max Deadrise Angle: Any
• Tilted Element: No
• Low Frequency Beamwidth: 11°x23°-5°x9°
• Low Frequency: 28-60 kHz
• High Frequency Beamwidth: 8°-4°
• Max Deadrise: Accommodates any deadrise angle based on custom installation
• Power Rating: 2-3 kW
• Single or Dual Frequency: CHIRP-Ready Dual-Band
• Country of Origin: USA
• Cable-Length: 15 m (49')
• Weight: 14.2 kg (31.2 lb.)
• Max Depth: Low frequency- 3048 m (10000'), High frequency- 457 m (1500')

B275C-LHW Bronze Thru-Hull - Low & High Wide Frequency

Requires Mix & Match Cable

Get more coverage under the boat with Airmar's wide beam CHIRP product line. Offering a high frequency range of 150-250 kHz and a constant 25° beam width, these transducers are truly broadband at its best. In addition to improving the performance of CHIRP-ready echosounders, anglers using the new wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency CHIRP transducers.

A unique property of the high frequency transducers is that the beambwidth is a constant 25° angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's wide beam format also creates crisper and larger return images on the display. We've got you covered!

Features:

• Depth & Temperature
• 42-65 kHz L Frequency
• 150-250 kHz H Frequency
• Bronze
• 1 kW
• Wide 25° Beam

Specifications:

• Mounting Style: Thru-Hull
• Chirp: Low/High Wide
• Box Dimensions: 7"H x 18"W x 25"L WT: 24.1 lbs
• UPC: 801769001952

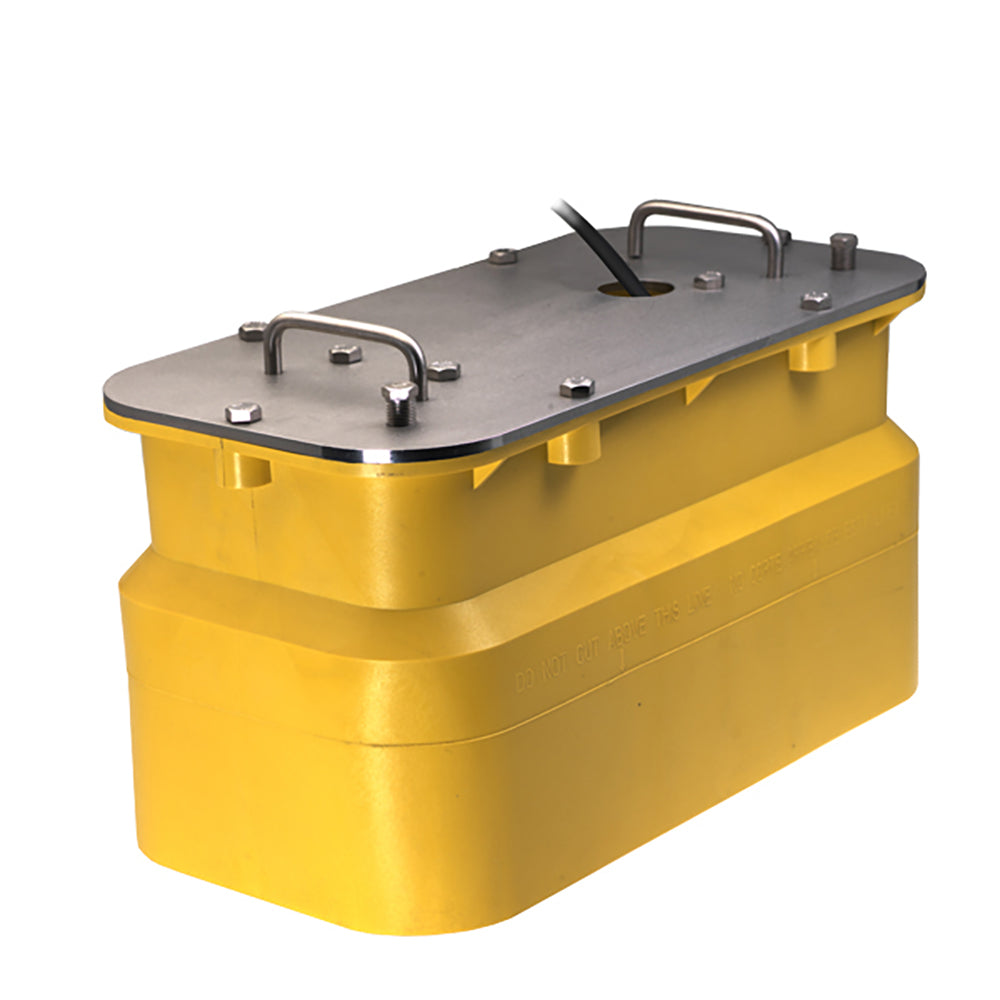

Low/High Frequency - In-Hull Chirp Transducer without Connector

Rely on Airmar's new broadband transducers for your ultimate fishing mission. Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000') with 5 to 10 times greater detail and resolution so precise it_s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 112 kHz of total bandwidth in just one installation, saving customers time and money.

As the ELITE model in the Chirp In-Hull product line, the R599 LH Chirps across the following bandwidths:

LH Model - Low Frequency 28-60 kHz/High Frequency 130-210 kHz

Features:

• Depth only
• Low-CHIRPS from 28 kHz to 60 kHz 23° to 9° beamwidth
• High-CHIRPS from 130 kHz to 210 kHz 8° to 4° beamwidth
• 112 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 28, 38, 50, and 200 kHz plus everything else in the bandwidth
• Fishing Profile: Recreational and commercial inshore and offshore fishing (deep-water canyon and sea-mount tracking)
• Epoxy transducer housing
• Hull Type: Solid fiberglass only

Specifications:

• Hull Deadrise: 0° to 22°
• Acoustic Window: Epoxy/urethane
• All mounting hardware provided, including tank
• Weight: 19.7 kg (43.4 lb)

Specifications:

• Temperature: No
• Speed Included: No
• Mounting Style: In-Hull
• Chirp: Low/High
• Imaging: Standard
• Box Dimensions: 14"H x 17"W x 28"L WT: 56.4 lbs
• UPC: 801769001570

GT17M-THF SS Mid Band Chirp Transducer - 0° - 1kW - 8-Pin

Designed for reduced drag and optimum sonar performance on fishing and cruising boats, this flush-mounted 1 kW mid-band CHIRP (80–165 kHz) transducer clearly defines fish arches, structure, and bottom depth returns on the display.

Features:

• See maximum depth performance to 2,400’ in freshwater
• Access CHIRP sonar frequency range from 80–165 kHz
• Search with beamwidths of 9–18 degrees
• Count on fast-response water temperature sensing
• The thru-hull design offers flush installation with a 0-degree tilt
• Auto-ID enables simple plug-and-play operation

Midband Chirp Traditional Sonar

This 8-pin 1 kW stainless steel thru-hull transducer features high-definition mid-band CHIRP sonar that clearly defines fish targets and structures down to 1,800’ in saltwater and 2,400’ in freshwater.

Broad Frequency Range

Use the perfect frequency for the waters in which users are fishing. Covering the medium frequency range, this transducer pulses from 80–165 kHz, displaying a wide coverage area, clear fish arches, and accurate depth readings.

Optimum Ping Sensitivity

Offering excellent sonar sensitivity, low noise, high resolution, and good separation of targets, this robust transducer makes it easier than ever to distinguish fish and structure on the compatible chartplotter display.

Thru-Hull Installation

A durable stainless steel housing and stem offer straightforward thru-hull flush mounting for minimum drag and optimum beam orientation for clear sonar returns.

Auto-ID Technology

Enjoy simple plug-and-play operation with Garmin auto-identification technology, which enables the sonar to automatically configure itself to the transducer being used.

Fits Various Hull Types

Configurable for a wide variety of boat hull materials, including fiberglass, composite, steel, aluminum, and wood, the transducer is available in a range of tilt versions to accommodate deadrise angles of 0–24 degrees without a fairing block.

In the Box:

• GT17M-THF transducer
• Jam nut
• Spacer
• 2 washers
• 2 set screws
• Thread isolator
• Hull isolator
• Documentation

Specifications:

• Transducer Frequency: Medium band CHIRP (80-165 kHz)
• Transducer Power: 1 kW
• Transducer Beamwidth: 9°-18°
• Transducer Maximum Depth: 1800 ft saltwater; 2400 ft freshwater
• RapidReturn™ Sonar Compatible: Yes
• Transducer Cable Length: 50 ft
• Transducer Depth/Speed/Temperature: Depth, temperature
• Transducer Number of PINs: 8-pin
• Transducer Supported Deadrise/Transom Angles: 0° supports hull deadrise angles from 0° to 7°
• Housing Material: Stainless steel

Specifications:

• Cable Length (Feet): 50'
• Chirp: Medium
• Imaging: Standard
• Mounting Style: Thru-Hull
• Pins: 8
• Speed Included: No
• Temperature: Yes
• Box Dimensions: 7"H x 8"W x 13"L WT: 11 lbs
• UPC: 753759338459
