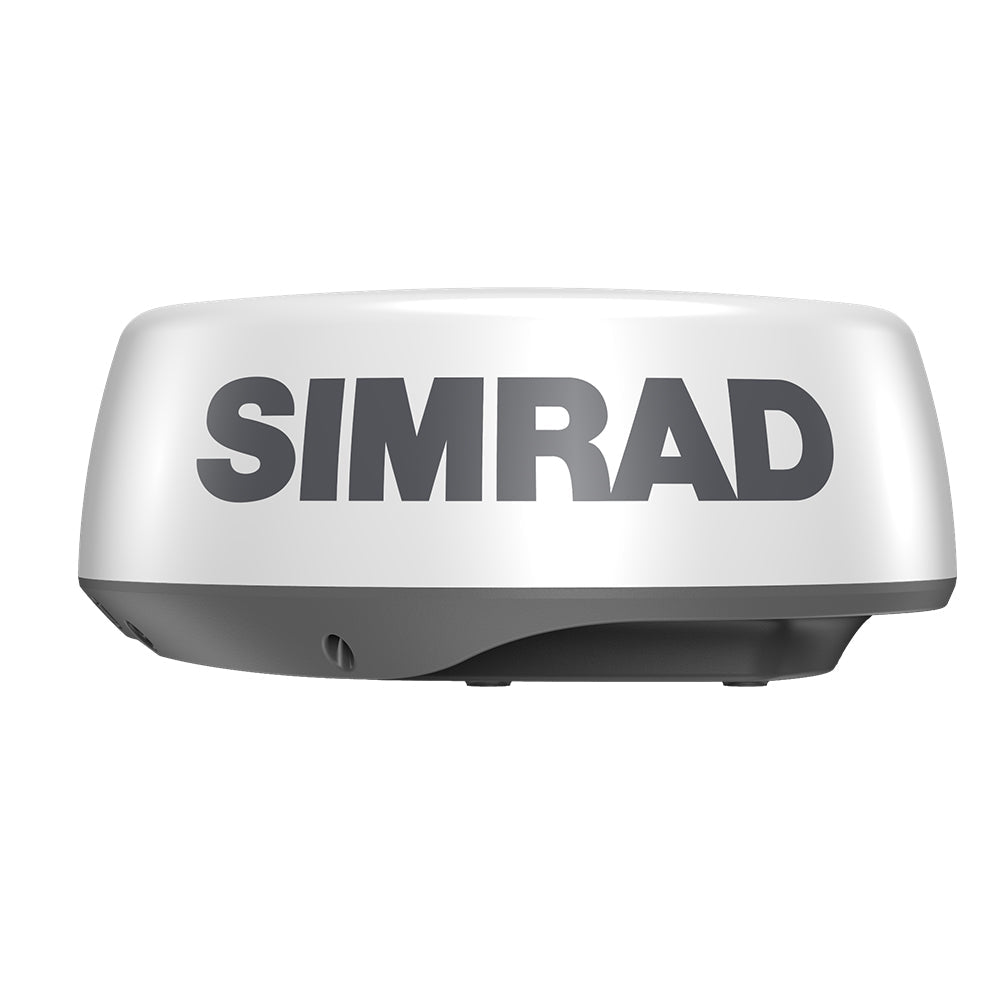

Simrad HALO20 20" Radar Dome w/10M Cable [000-14537-001]

HALO20 20" Radar Dome with 10M Cable

Unrivalled Short-To-Mid-Range Performance

Extend your view from the bow of your boat out to 24 nautical miles with pulse-compression radar technology that not only delivers a powerful mix of short and long-range detection, but provides precise target definition with minimal clutter.

Better Situational Awareness, Collision Avoidance

HALO20 radar delivers a comprehensive range of features to enhance your situational awareness and on-water safety. Monitor selected collision hazards with MARPA target tracking, tracking up to 10 targets, or 20 in dual range. Whether you’re navigating through crowded waterways or contending with poor visibility, HALO20 radar cuts through the clutter to give you a clear and current picture of your surroundings.

Ready Instantly

HALO20 Radar wakes instantly from its low-power standby mode, delivering radar coverage exactly when and where you want it. Even if your HALO20 radar is completely powered down start-up is a matter of seconds, not minutes like traditional pulse radar.

Easy to Use

Harbour, offshore, weather and custom modes tune HALO20 Radar’s advanced signal processing to help ensure that targets can be seen vividly – even in the toughest environmental conditions.

Features:

• 10W Pulse Compression
• 24 nm range from a compact 20-inch dome
• Unrivalled short range
• Radiation safe
• Easy operation with harbour, offshore and weather mode
• MARPA target tracking
• InstantOn™
• Low Power Consumption
• Guard Zones

Included:

• 20" dome
• 10m cable (000-14548-001)
• Ethernet Adapter Cable (000-14552-001)

Specifications:

• Range - Max (Miles): 24nm
• Array Size (Inches): 20"
• Box Dimensions: 11"H x 23"W x 26"L WT: 24.2 lbs
• UPC: 9420024173794

Simrad HALO 3006 Radar w/6 Open Array  20M Cable [000-15764-001]

HALO® 3006 Radar with 6' Open Array & 20M Cable

Features:

• HALO® 3000 - 130W power for a longer range (from 6m to up to 96nm) and higher-resolution target detection
• Advanced pulse compression technology with beam sharpening
• Simultaneous Dual Range operation
• Easy operation with Harbour, Offshore, Weather, and Bird modes
• Track up to 50 targets per defined area with ZoneTrack (two areas can be defined)
• VelocityTrack Doppler technology for collision avoidance
• Dangerous Target Alerts for radar and AIS targets
• Ready instantly from standby, and in 16-25 seconds from power-on
• 6' Open Array

More Power Matters

The HALO® 3000 array radar offers a premium experience on the water. An impressive 130 W of power – equivalent to a 25 kW magnetron radar – delivers an unrivaled combination of short- and long-range coverage that enables you to see targets from six meters (20 feet) out to 96 nautical miles with exceptional clarity. Pulse Compression technology powers confident navigation through marinas, and superior storm and hazard detection across a greater distance. The HALO® array series not only increase situational awareness and collision avoidance but also offer higher-resolution target detection you won’t find in lower-powered radars.

Safer Navigation

The HALO 3000-series boast an array of new features that make navigation safer and offer peace of mind. ZoneTrack™ brings the best of professional boating technology to recreational users, allowing them to track up to 50 vessels within a defined area, automatically detecting their course and speed. HALO’s Dangerous Target Alerts highlight range, graphical bearing, and heading of other vessels relative to yours. Meanwhile, VelocityTrack™ uses Doppler technology to show targets color-coded so you can identify potential threats at a glance. Because, when it comes to safety, situational awareness is everything.

Building on the HALO Legacy

The next generation of pulse compression radars, HALO 2000 and 3000 build on the features that have made HALO an established choice for boaters across the globe. The solid-state technology gets you up and running quickly, and HALO’s low-power pulsed transmissions make it safe to run in harbors and marinas. Dual Range mode allows you to keep an eye on distant weather cells while monitoring channel markers and high-speed watercraft up close. Advanced digital signal processing gives you a clearer view of targets, helping eliminate sea clutter, while Beam Sharpening provides enhanced separation between small or distant targets. Finally, HALO 2000 and 3000 have the same footprint as their predecessors, making it easy to upgrade your current system. It’s also compatible with a range of Simrad® chart plotters, including NSS™, NSX™, NSO™, and GO™.

Easier Operation

Designed with an intuitive interface HALO arrays make operation easier with smart features like Harbour, Offshore, Bird, and Weather modes. These Preset Modes require no manual tuning – just select your chosen mode and go. This simple approach also extends to fishing, with HALO’s powerful bird-finding capability which enables boaters to find flocks of birds and – more importantly – schools of fish at a distance.

HALO 3000 with Bird + Mode

Designed with an intuitive interface, HALO 3000 has smart features like Harbour, Offshore, Bird, and Weather modes. These Preset Modes require no manual tuning – just select your chosen mode and go. This simplified approach also extends to fishing, with HALO 3000’s powerful Bird+ mode – a must-have tool for sportfishing enthusiasts. Bird+ mode allows you to focus the full 130W of HALO 3000’s power on bird finding, enabling boaters to find schools of fish up to 8nm away.

What's Included:

• 000-11466-001 HALO Antenna - 6ft
• 000-15766-001 HALO 300X Pedestal
• 000-15768-001 20M Cable
• 000-15757-001 RI-50 Power Supply

Specifications:

• Array Size (Inches): 6FT
• Power - Output: 130W
• Range - Max (Miles): 96nm

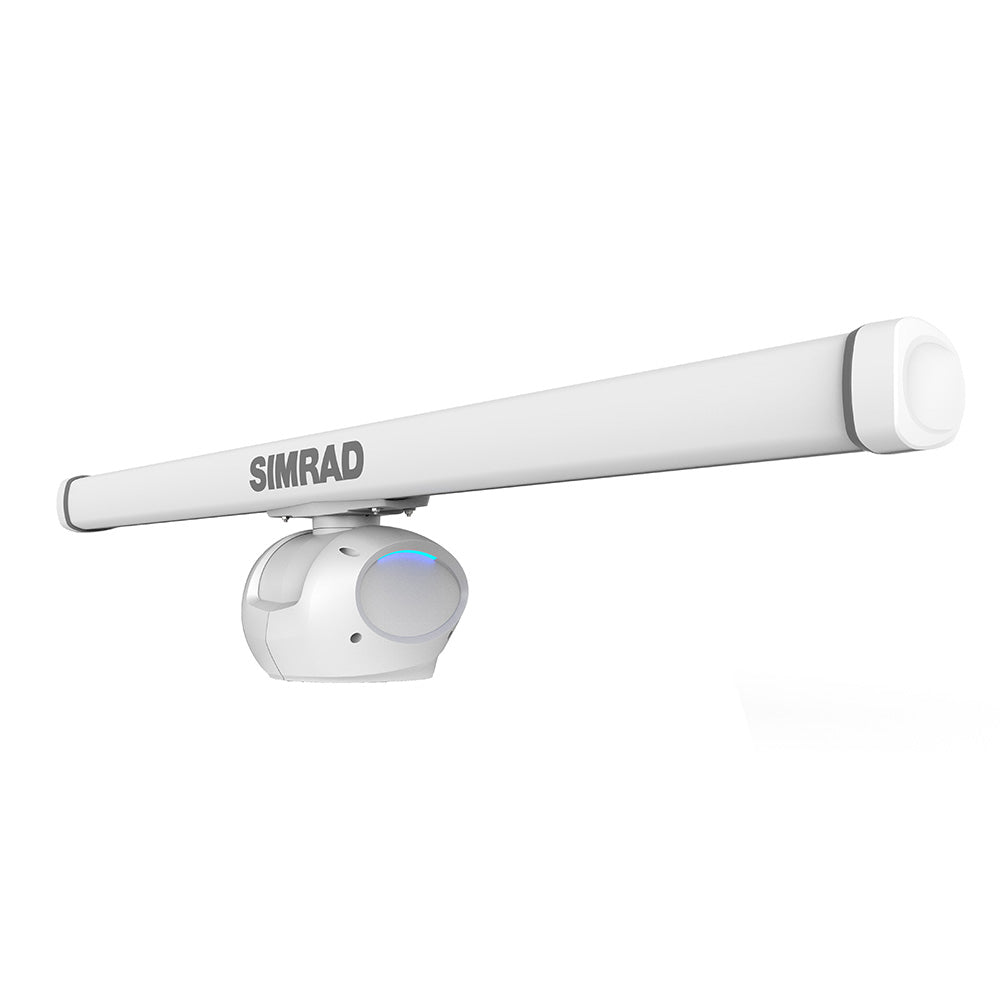

Simrad HALO 2006 Radar w/6 Open Array  20M Cable [000-15760-001]

HALO® 2006 Radar with 6' Open Array & 20M Cable

Features:

• HALO® 2000 - 50W power for a longer range (from 6m to up to 72nm) and higher-resolution target detection
• Advanced pulse compression technology with beam sharpening
• Simultaneous Dual Range operation
• Easy operation with Harbour, Offshore, Weather, and Bird modes
• Track up to 50 targets per defined area with ZoneTrack (two areas can be defined)
• VelocityTrack Doppler technology for collision avoidance
• Dangerous Target Alerts for radar and AIS targets
• Ready instantly from standby, and in 16-25 seconds from power-on
• 6' Open Array Antenna

Benefit from safer navigation and unmatched ease of use with the new HALO® 2000 and 3000 Open Array radars. Advanced Pulse Compression technology allows you to detect birds, hazards, and storms with superior precision across both short and long distances. While the range of Preset Modes and enhanced power provide constant peace of mind.

More Power Matters

The HALO® 2000 radar offers a premium experience on the water. An impressive 50 W of power – equivalent to a 12 kW magnetron radar – delivers an unrivaled combination of short- and long-range coverage that enables you to see targets from six meters (20 feet) out to 72 nautical miles with exceptional clarity. Pulse Compression technology powers confident navigation through marinas, and superior storm and hazard detection across a greater distance. The HALO® array series not only increase situational awareness and collision avoidance but also offer higher-resolution target detection you won’t find in lower-powered radars.

Safer Navigation

The HALO 2000 series boast an array of new features that make navigation safer and offer peace of mind. ZoneTrack™ brings the best of professional boating technology to recreational users, allowing them to track up to 50 vessels within a defined area, automatically detecting their course and speed. HALO’s Dangerous Target Alerts highlight range, graphical bearing, and heading of other vessels relative to yours. Meanwhile, VelocityTrack™ uses Doppler technology to show targets color-coded so you can identify potential threats at a glance. Because, when it comes to safety, situational awareness is everything.

Building on the HALO Legacy

The next generation of pulse compression radars, HALO 2000 and 3000 build on the features that have made HALO an established choice for boaters across the globe. The solid-state technology gets you up and running quickly, and HALO’s low-power pulsed transmissions make it safe to run in harbors and marinas. Dual Range mode allows you to keep an eye on distant weather cells while monitoring channel markers and high-speed watercraft up close. Advanced digital signal processing gives you a clearer view of targets, helping eliminate sea clutter, while Beam Sharpening provides enhanced separation between small or distant targets. Finally, HALO 2000 and 3000 have the same footprint as their predecessors, making it easy to upgrade your current system. It’s also compatible with a range of Simrad® chart plotters, including NSS™, NSX™, NSO™, and GO™.

Easier Operation

Designed with an intuitive interface HALO arrays make operation easier with smart features like Harbour, Offshore, Bird, and Weather modes. These Preset Modes require no manual tuning – just select your chosen mode and go. This simple approach also extends to fishing, with HALO’s powerful bird-finding capability which enables boaters to find flocks of birds and – more importantly – schools of fish at a distance.

What's Included:

• 000-11466-001 HALO Antenna - 6ft
• 000-15762-001 HALO 200X Pedestal
• 000-15768-001 20M Cable
• 000-15757-001 RI-50 Power Supply

Specifications:

• Array Size (Inches): 6FT
• Power - Output: 50W
• Range - Max (Miles): 72nm

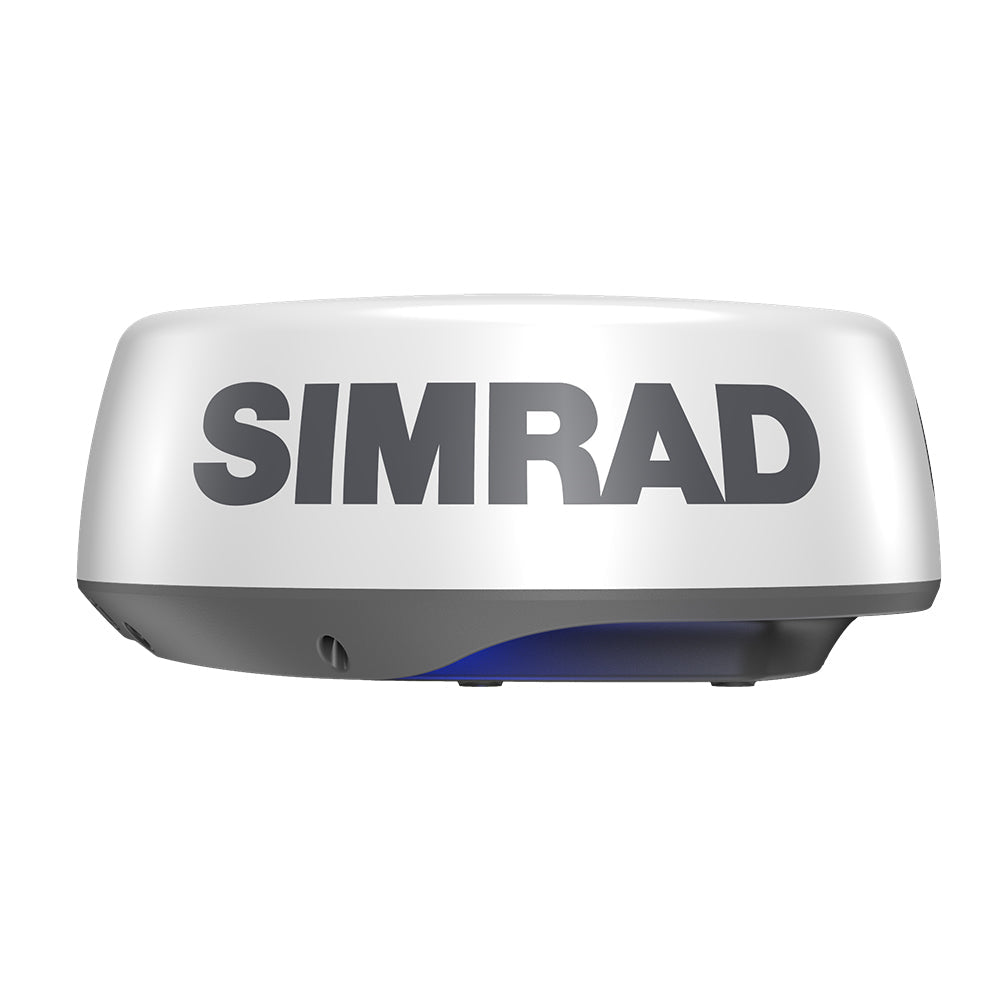

Simrad HALO20+ 20" Radar Dome w/10M Cable [000-14536-001]

HALO20+ 20" Radar with 10M Cable

See Far And Near With One Compact Dome

Perfect for a wide mid-sized to large sailboats, HALO20+ comes in a compact 20-inch dome antenna and delivers high-quality short, mid and long-range detection. Monitor two distance ranges at once in Dual Range mode so you can keep an eye on far away weather cells while watching for collision hazards up close. HALO20+ radar’s pulse compression technology means no compromises in detection at either selected range, while beam sharpening provides enhanced separation between small or distant targets.

The Best View To Avoid Collision

HALO20+ radar does a full 360 degree sweep every second, thanks to its industry-first 60 RPM rotation at ranges up to 1.5 nautical miles. These ultra-fast updates give you an almost real-time view at close range, offering the ultimate view for collision avoidance of fast moving targets.

Built-in VelocityTrack™ Doppler Technology

VelocityTrack™ technology grands instant visual feedback on whether targets are coming towards you or moving away with colour-coding approaching vessels for high visibility while de-emphasizing diverging targets, increasing situational awareness and decreasing the risk of collision. HALO20+ radar automatically checks every target in range; there’s no need to manually select individual targets, and no limit to the number of targets on screen at one time.

Ready Whenever You Are

HALO20+ Radar wakes instantly from its low-power standby mode, delivering this high-speed radar coverage exactly where and when you require it. Even if your HALO20+ Radar is completely powered down, start-up only takes some seconds, not minutes like traditional pulse radar.

Easy to Use Radar

Harbour, offshore, weather and custom modes tune HALO20+ Radar’s advanced signal processing to help ensure that targets can be seen vividly – even in the toughest environmental conditions.

Features:

• 36 nm range from a compact 20-inch dome
• Advanced pulse compression technology with beam sharpening
• Simultaneous Dual Range operation sees both far and near
• Ultra-fast 60 RPM operation at ranges up to 1.5 nm
• VelocityTrack™ Doppler technology to avoid collision
• Easy operation with harbour, offshore, weather and custom modes
• MARPA target tracking (up to 10 targets, 20 in dual range)
• Ready instantly from standby
• Low power consumption

Included:

• 20" dome
• 10m cable (000-14548-001)
• Ethernet Adapter Cable (000-14552-001)

Specifications:

• Range - Max (Miles): 36nm
• Array Size (Inches): 20"
• Box Dimensions: 11"H x 23"W x 26"L WT: 25.75 lbs
• UPC: 9420024173787

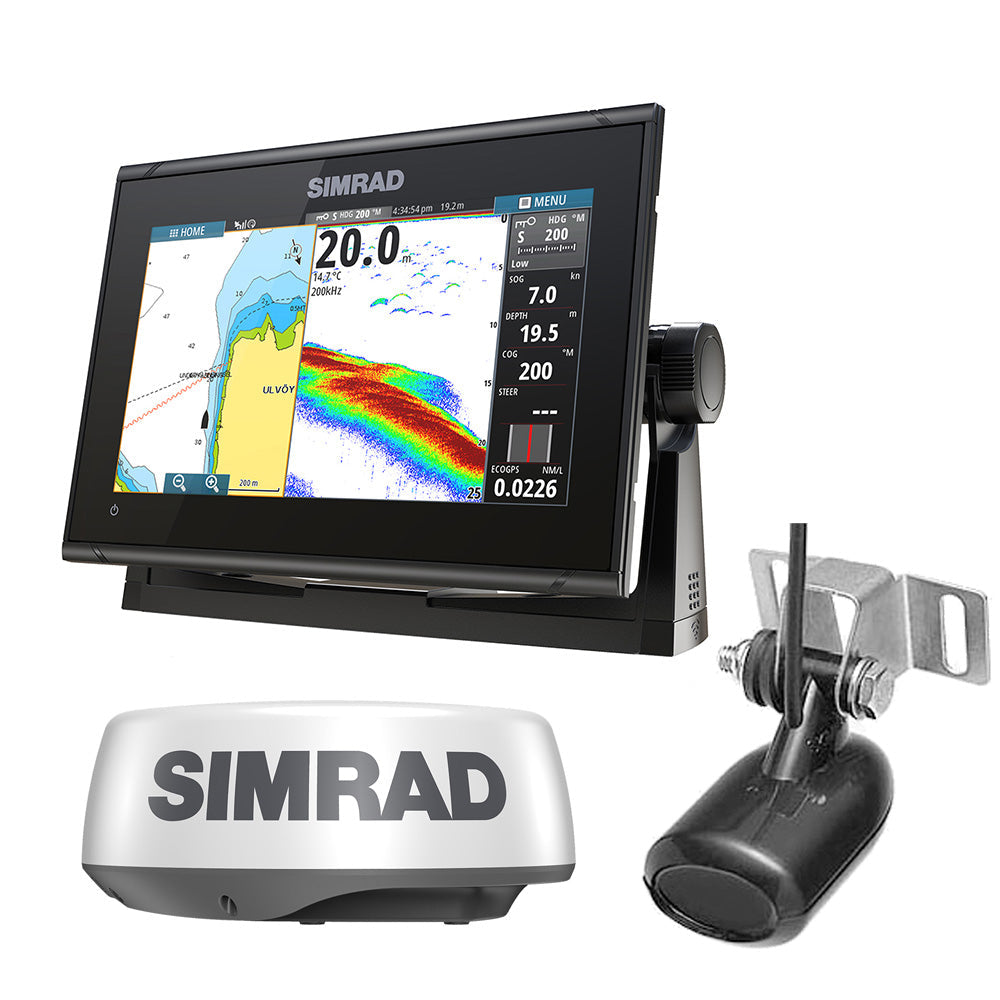

Simrad GO9 XSE Combo w/Transom Mount Transducer 83/200 kHz  HALO20 Package [000-16294-001]

GO9 XSE Combo with Transom Mount Transducer 83/200 kHz & HALO20 Package

This kit combines Simrad’s GO9 XSE with Navico’s 9-Pin High-Speed Skimmer Transducer and Simrad’s HALO20 20" Radar Dome.

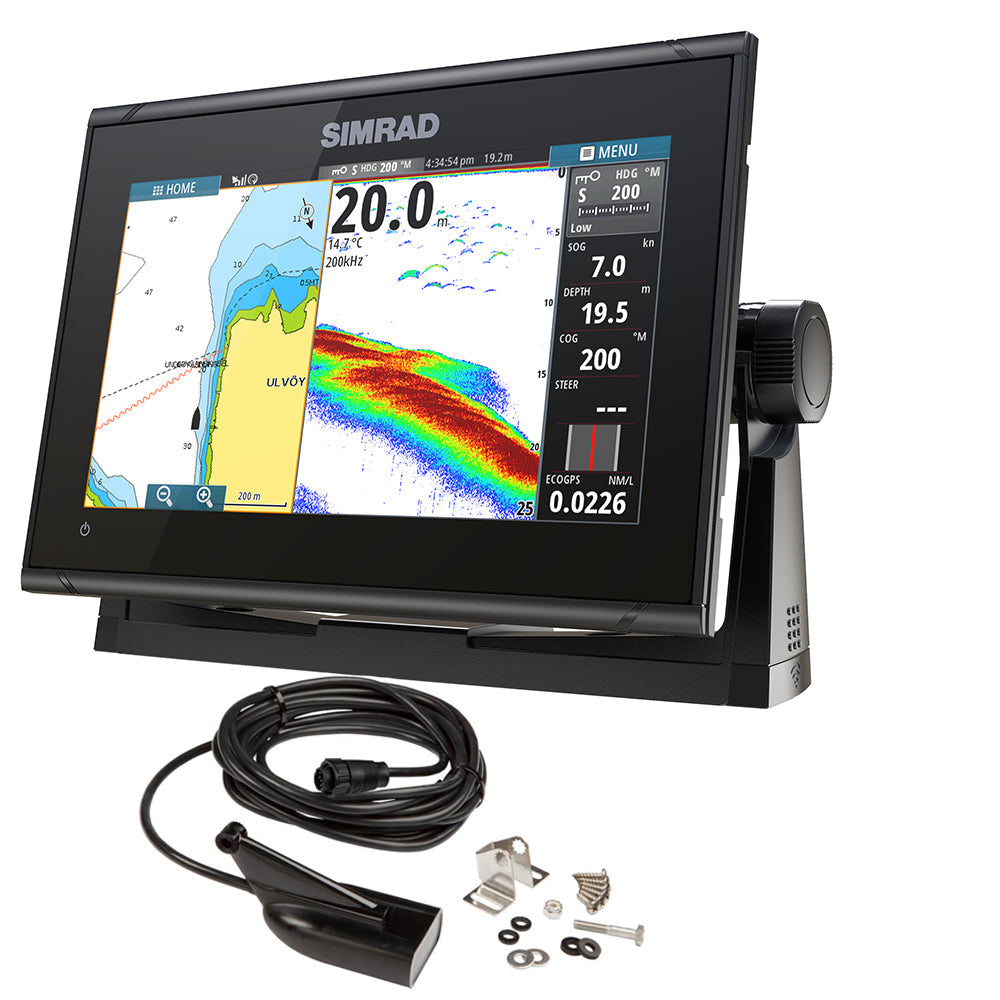

Simrad GO9 XSE Chartplotter/Fishfinder w/C-MAP Discover Chart

GO9 XSE Multi-function display with built-in Echosounder, GPS, and Wi-Fi. Super-bright, 9" multi-touch widescreen display with NMEA 2000 and radar interface.

Features:

• Easy to use, High brightness 9" tablet-style touchscreen
• Built-in advanced echosounder capable of displaying CHIRP, Forwardscan, Sidescan, and Downscan images
• Radar port for connection to a Simrad solid-state radar
• Direct Audio, Autopilot, communication, and engine connection and control over NMEA2000
• Built-in WiFi for mobile device mirroring and internet downloads of charting and software
• Easy-to-use multi-touch software
• Safely and easily navigate using your favorite cartography (Insight, Navionics, CMAP)
• Determine depth, and bottom type and find fish using one of the many echosounder technology options
• Quick and simple control of entertainment systems connected to NMEA2000
• Vessel circuit control when connected to a C-zone digital switching system
• View and monitor engine data while underway
• Low Profile Glass dash styling
• Super bright widescreen display
• Built-in Wi-Fi connectivity
• Software update notifications and downloads when connected to the internet
• Screen mirroring when connected to a mobile device
• Built-in 10 Hz GPS antenna
• Dual Micro SD card slot
• Built-in echosounder (Broadband & Chirp) (transducer required)
• Built-in DownScan and Sidescan Imaging (transducer required)
• Built-in Forwardscan Imaging (transducer required)
• Radar port for direct connection to Simrad 3G/4G or Halo Radar scanners
• Operable with OP40/OP50 Remote
• Advanced NMEA2000 networking

Easy-to-Use Multi-Touch Display

The GO9 XSE offers true ease of use with intuitive touchscreen controls that smartphone and tablet users will find instantly familiar. Tap to create or select waypoints, pinch to zoom, or tap and drag to pan smoothly across charts. Simple home screen and menu layouts make all functions quickly accessible, with large and clearly-captioned icons that are easy to recognize and tap.

Chartplotter Navigation & Waypoint Management

The GO9 XSE is a full-featured chartplotter, with support for the widest available range of cartography options including C-MAP® MAX-N+, Navionics®, Insight®, Insight Genesis®, and NV Digital® Charts. Navigate confidently to destinations near and far, with the flexibility to choose charts that best fit your needs and location. Set and record those destinations easily with simple waypoint management: mark waypoints with a touch, and assign meaningful names that make it easy to look up your desired destination whether you've mapped out ten places or a thousand.

Expand Your View with a Simrad Radar Solution

The Simrad GO9 XSE is a full-featured radar display with plug-and-play connectivity to Simrad Broadband 3G, Broadband 4G, and Halo Pulse Compression radar systems. Cruise confidently through crowded harbors, navigate safely in poor visibility, keep an eye on distant weather cells, and find flocks of feeding birds that hint at good fishing spots. Automatic tuning helps to provide a clear radar picture in any conditions, while radar overlay combines radar data with navigational charts for an easy-to-interpret view of your surroundings.

Fully Customisable Interface

The Simrad GO9 XSE is fully customizable to suit your vessel and your favorite on-water activities from power boating, to fishing, to water sports. Customize your home screen with shortcuts to the features you use most, and personalize it with your choice of wallpaper. Adjustable split-screen views and customizable panel layouts let you see everything you need on-screen at once, whatever your activity.

Plan Smarter with TripIntel™ Technology

Designed for power boaters, TripIntel technology tracks and displays the key information you need to plan safe and enjoyable days on the water. Make smart decisions with fuel range overlaid on charts, easy access to current and future tide levels, and a detailed history of your previous trips including the route you took and how your boat performed.

Built-in 10 Hz GPS receiver*

With a high-speed GPS receiver updating your position ten times every second, the Simrad GO9 XSE is ideal for use aboard fast-moving RIBs and powerboats. Watch your boat's movement tracked smoothly, accurately, and in real-time, without 'jumping' from point to point on the display.

Cruise Charting View

Designed with power boating in mind, the Simrad GO9 XSE offers a unique Cruise Charting page that brings together crucial navigation data and charts in one easily readable display. Choose the information most relevant to your cruising style and on-water activities with the ability to edit on-screen data items.

NMEA 2000® Engine Monitoring & Instrumentation

The Simrad GO9 XSE connects to any NMEA 2000®-capable equipment aboard your vessel including outboard and inboard engines; fuel level and flow meters; speed, heading, and water temperature sensors; and much more. Create your custom digital instrument displays, bringing a wealth of information to even the most crowded dash while keeping a clean look with as few gauges as possible.

Watch Your Depth with Built-in Sonar

Knowing the true depth beneath your hull can help you enjoy your time on the water with fewer worries, and makes it easier to locate suitable anchorages in unfamiliar waters. With built-in sonar, just add a suitable sonar transducer for accurate, real-time depth tracking. A scrollable depth history view lets you track back and easily set waypoints for promising anchorages, while StructureScan Imaging combines DownScan and SideScan sonar to offer a picture-like view of the bottom beneath your vessel.

Cruise Confidently with ForwardScan Sonar

Using an optional ForwardScan transducer, this forward-looking sonar technology provides a clear two-dimensional image of the bottom in front of your vessel, allowing you to navigate shallow or poorly charted waters with confidence. With real-time updates and a forward-looking view of up to eight times your current depth, ForwardScan lets you relax and enjoy a safer day on the water.

Find fish with CHIRP & StructureScan® HD sidescan imaging

Whether fishing is your life or just a casual hobby, any fishing trip will benefit from the extensive array of built-in sonar technology on the Simrad GO9 XSE. Add a suitable transducer, available separately or bundled with your display, and the GO9 XSE works as a powerful fishfinder with CHIRP-enabled broadband sonar for clear detection of fish throughout the water column. With an optional HDI or Active Imaging 3-in-1,  the GO9 XSE also offers StructureScan HD sidescan imaging for a picture-like view of the fish-holding structure beneath and around your boat.

Simrad SonicHub®2 & Bluetooth® Audio Integration

If you're not at home on the water without a good soundtrack, the Simrad SonicHub®2 marine audio system is the perfect companion to a GO9 XSE display. Stream music from Bluetooth® connected tablets, smartphones, and other mobile devices, play MP3 files from a USB flash drive or listen to the SonicHub 2's built-in AM/FM radio. SonicHub 2 brings complete control of your audio entertainment to your GO9 XSE display, eliminating the need for a separate stereo head unit and letting you listen to your music, your way.

GoFree™ cloud enabled with Built-in Wi-Fi

With Wi-Fi built-in, the Simrad GO9 XSE provides direct access to GoFree cloud services including easy wireless map downloads, software updates, and more. Whether hooked up to your home Wi-Fi with your boat trailered in the driveway, logged in to your marina's Wi-Fi, or tethered to your smartphone out on the lake, you can access GoFree cloud services anywhere you have an internet connection. On the water, GoFree connects the Simrad GO9 XSE to your mobile devices, mirroring your display's screen on your smartphone or giving you full remote control from your tablet with the free GoFree Controller app.

SiriusXM Weather Integration

The Simrad GO9 XSE is the only GO Series display compatible with SiriusXM Marine satellite weather, via the optional WM-4 expansion module, for real-time access to weather information right on your display. With onboard access to weather radar, surface buoy reports, NOAA Marine Zone forecasts, and more, you can check out the conditions offshore before you even leave the dock. SiriusXM Marine is a subscription service, exclusively available within North America.

* Built-in GPS receiver works in any bracket-mount installation, and when flush-mounted with most fiberglass hulls. When flush-mounted in a metal hulled vessel, an external GPS receiver such as the Simrad GS25 may be required.

Specifications:

• Casing: PC/ABS
• Operating temp: -15°C to +55°C (+5°F to +131°F)
• Water ingress: IPX6 and 7
• Weight (excluding mounting hardware): 1.315 kg (2.9 lbs) - GO9 XSE
• Screen brightness: 1200 nits
• Screen resolution: 480 x 800 (H x W)
• Viewing angle in degrees (typical value at contrast ratio = 10): L/R: 70, top: 50, bottom: 60
• Operating voltage: 10 - 17 V DC
• Current draw at 13.6 V (sonar off, max B/L): 1 A
• Low power standby mode: yes
• Protection: reverse polarity and temporary over-voltage to 36 V
• Alarm output current: 1 A max
• Processor: iMX61 single core
• Conformity: CE, C-Tick
• NMEA 2000 (compliant):1 port (Micro-C male) -, network load 1 LEN: 1 combined port Power and NMEA 2000 (7 pin connector)
• Sonar 1 port (9-pin connector) Radar 1 port (5-pin Ethernet connector)
• Card reader: Dual microSD

Comes With:

• 000-13702-001 - Gimbal bracket, GO9,V9
• 000-13700-001 - GO9 / V9 Bezel Replacement
• 000-13699-001 - GO9/V9 Dash mount kit
• 000-00128-001 - Power Cable
• 000-13698-001 - GO9 XSE Suncover

C-MAP Discover Chart Features

• Full-Featured Vector Charts
• Custom Depth Shading
• High-Resolution Bathymetry
• Easy-Routing
• Tides & Currents

Navico 9-Pin High-Speed Skimmer Transducer 83/200 kHz

9-Pin High-Speed Skimmer M/H PK ASY: 83/200 kHz transom-mount skimmer depth/temp - Black 9-pin connector.

Features:

• Transom Transducer
• High-Speed Skimmer
• 83/200kHz with Temp
• 9-Pin Connector

Simrad HALO20 20" Radar Dome with 10M Cable

Unrivalled Short-To-Mid-Range Performance

Extend your view from the bow of your boat out to 24 nautical miles with pulse-compression radar technology that not only delivers a powerful mix of short and long-range detection but provides precise target definition with minimal clutter.

Better Situational Awareness, Collision Avoidance

HALO20 radar delivers a comprehensive range of features to enhance your situational awareness and on-water safety. Monitor selected collision hazards with MARPA target tracking, tracking up to 10 targets, or 20 in dual range. Whether you’re navigating through crowded waterways or contending with poor visibility, HALO20 radar cuts through the clutter to give you a clear and current picture of your surroundings.

Ready Instantly

HALO20 Radar wakes instantly from its low-power standby mode, delivering radar coverage exactly when and where you want it. Even if your HALO20 radar is completely powered down start-up is a matter of seconds, not minutes like traditional pulse radar.

Easy to Use

Harbor, offshore, weather, and custom modes tune HALO20 Radar’s advanced signal processing to help ensure that targets can be seen vividly – even in the toughest environmental conditions.

Features:

• 10W Pulse Compression
• 24 nm range from a compact 20-inch dome
• Unrivalled short range
• Radiation safe
• Easy operation with harbor, offshore, and weather mode
• MARPA target tracking
• InstantOn™
• Low Power Consumption
• Guard Zones

Included:

• 20" dome
• 10m cable (000-14548-001)
• Ethernet Adapter Cable (000-14552-001)

Specifications:

• Array Size (Inches): 20"
• Cartography Brand: Navionics/C-Map
• Included Transducer: 000-14884-001
• Range - Max (Miles): 24nm
• Screen Size: 9"
• Touchscreen: Yes
• Transducer Included: Yes

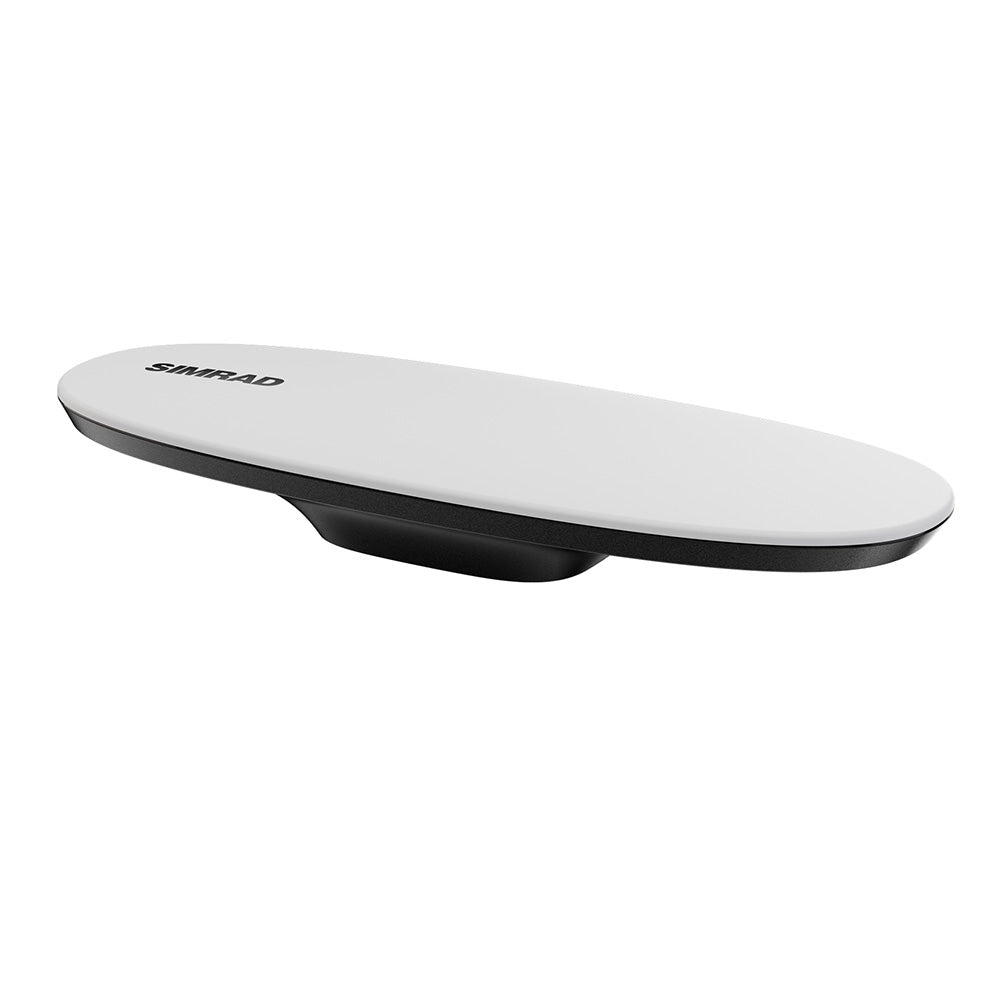

Simrad HS65 GNSS Heading Sensor [000-16235-001]

HS65 GNSS Heading Sensor

The HS65 is an all-in-one GNSS-based heading sensor that combines compass and positioning functionality in a single device, simplifying installation while delivering stable, precise heading information critical to navigation, autopilot control, radar overlay, and overall system performance.

The HS65 replaces the Simrad HS60 and represents an evolution in both performance and installation flexibility, informed by real-world customer and installer feedback.

The Simrad HS65 is a GNSS-based heading sensor that provides accurate, interference-free heading and positioning data for Simrad® marine electronics systems. Using satellite-based heading rather than magnetic sensors eliminates interference from onboard electronics and metals.

Features:

• All-in-one heading and position sensor combining a compass and a satellite in a single device
• High-precision performance with less than 2° heading accuracy and under 1 meter position accuracy
• Dead reckoning capability to maintain heading temporarily if the satellite signal is lost
• Seamless integration with Simrad® systems via NMEA 2000® connectivity
• Modern low-profile design with improved cable routing and flexible installation options

Why It Was Created?

Modern marine systems rely on precise heading data to support accurate navigation, radar overlay, chart alignment, and autopilot performance. The HS65 was developed to deliver a more reliable and simplified heading solution that improves system accuracy and installation flexibility. It provides consistent, satellite-based heading data, simplifies integration with Simrad® chartplotters and autopilot systems.

The HS65 provides critical heading and positioning data that supports multiple onboard systems, including:

• Autopilot systems for accurate course keeping
• Radar overlay and MARPA target tracking
• Chart orientation and navigation accuracy
• Overall situational awareness and vessel control
• Designed to integrate seamlessly with Simrad® marine electronics systems running on both NOS and NEON™ OS, including NSO®, NSS®, and NSX® platforms.

Simrad GO9 XSE Chartplotter/Fishfinder w/MED/HI Downscan Transom Mount Transducer  C-MAP Discover Chart [000-13211-002]

GO9 XSE Chartplotter/Fishfinder with Medium/High DownScan Transom Mount Transducer & C-MAP Discover Chart

GO9 XSE Multi-function display with built-in Echosounder, GPS and Wi-Fi. Super-bright, 9" multi-touch widescreen display with NMEA 2000 and radar interface. Includes Medium / DownScan transducer

Features:

• Easy to use, High brightness 9" tablet-style touchscreen
• Built-in advanced echosounder capable of displaying CHIRP, Forwardscan, Sidescan and Downscan images
• Radar port for connection to a Simrad solid state radar
• Direct Audio, Autopilot, communication and engine connection and control over NMEA2000
• Built-in WiFi for mobile device mirroring and internet downloads of charting and software
• Easy to use multi-touch software
• Safely and easily navigate using your favorite cartography (Insight, Navionics, CMAP)
• Determine depth, bottom type and find fish using one of the many echosounder technology options
• Quick and simple control of entertainment systems connected on NMEA2000
• Vessel circuit control when connected to a C-zone digital switching system
• View and monitor engine data while underway
• Low Profile Glass dash styling
• Super bright widescreen display
• Built-in Wi-Fi connectivity
• Software update notifications and downloads when connected to the internet
• Screen mirroring when connected to a mobile device
• Built-in 10 Hz GPS antenna
• Dual Micro SD card slot
• Built-in echosounder (Broadband & Chirp) Transducer required
• Built-in DownScan and Sidescan Imaging (HDI Transducer included)
• Built-in Forwardscan Imaging (transducer required)
• Radar port for direct connection to Simrad 3G/4G or Halo Radar scanners
• Operable with OP40/OP50 Remote
• Advanced NMEA2000 networking

Easy to Use Multi-Touch Display

The GO9 XSE offers true ease of use with intuitive touchscreen controls that smartphone and tablet users will find instantly familiar. Tap to create or select waypoints, pinch to zoom, or tap and drag to pan smoothly across charts. Simple home screen and menu layouts make all functions quickly accessible, with large and clearly-captioned icons that are easy to recognize and tap.

Chartplotter Navigation & Waypoint Management

The GO9 XSE is a full-featured chartplotter, with support for the widest available range of cartography options including C-MAP® MAX-N+, Navionics®, Insight®, Insight Genesis®, and NV Digital® Charts. Navigate confidently to destinations near and far, with the flexibility to choose charts that best fit your needs and location. Set and record those destinations easily with simple waypoint management: mark waypoints with a touch, and assign meaningful names that make it easy to look up your desired destination whether you've mapped out ten places or a thousand.

Expand Your View with a Simrad Radar Solution

The Simrad GO9 XSE is a full-featured radar display with plug-and-play connectivity to Simrad Broadband 3G, Broadband 4G, and Halo Pulse Compression radar systems. Cruise confidently through crowded harbors, navigate safely in poor visibility, keep an eye on distant weather cells, and find flocks of feeding birds that hint at good fishing spots. Automatic tuning helps to provide a clear radar picture in any conditions, while radar overlay combines radar data with navigational charts for an easy-to-interpret view of your surroundings.

Fully Customisable Interface

The Simrad GO9 XSE is fully customizable to suit your vessel and your favorite on-water activities from power boating, to fishing, to water sports. Customise your home screen with shortcuts to the features you use most, and personalize it with your choice of wallpaper. Adjustable split-screen views and customizable panel layouts let you see everything you need on-screen at once, whatever your activity.

Plan Smarter with TripIntel™ Technology

Designed for power boaters, TripIntel technology tracks and displays the key information you need to plan safe and enjoyable days on the water. Make smart decisions with fuel range overlaid on charts, easy access to current and future tide levels, and a detailed history of your previous trips including the route you took and how your boat performed.

Built-in 10 Hz GPS receiver*

With a high-speed GPS receiver updating your position ten times every second, the Simrad GO9 XSE is ideal for use aboard fast-moving RIBs and powerboats. Watch your boat's movement tracked smoothly, accurately, and in real-time, without 'jumping' from point to point on the display.

Cruise Charting View

Designed with power boating in mind, the Simrad GO9 XSE offers a unique Cruise Charting page that brings together crucial navigation data and charts in one easily readable display. Choose the information most relevant to your cruising style and on-water activities with the ability to edit on-screen data items.

NMEA 2000® Engine Monitoring & Instrumentation

The Simrad GO9 XSE connects to any NMEA 2000®-capable equipment aboard your vessel including outboard and inboard engines; fuel level and flow meters; speed, heading, and water temperature sensors; and much more. Create your own custom digital instrument displays, bringing a wealth of information to even the most crowded dash while keeping a clean look with as few gauges as possible.

Watch Your Depth with Built-in Sonar

Knowing the true depth beneath your hull can help you enjoy your time on the water with fewer worries, and makes it easier to locate suitable anchorages in unfamiliar waters. With built-in sonar, just add a suitable sonar transducer for accurate, real-time depth tracking. A scrollable depth history view lets you track back and easily set waypoints for promising anchorages, while StructureScan Imaging combines DownScan and SideScan sonar to offer a picture-like view of the bottom beneath your vessel.

Cruise Confidently with ForwardScan Sonar

Using an optional ForwardScan transducer, this forward-looking sonar technology provides a clear two-dimensional image of the bottom in front of your vessel, allowing you to navigate shallow or poorly-charted waters with confidence. With real-time updates and a forward-looking view of up to eight times your current depth, ForwardScan lets you relax and enjoy a safer day on the water.

Find fish with CHIRP & StructureScan® HD sidescan imaging

Whether fishing is your life or just a casual hobby, any fishing trip will benefit from the extensive array of built-in sonar technology on the Simrad GO9 XSE. Add a suitable transducer, available separately or bundled with your display, and the GO9 XSE works as a powerful fishfinder with CHIRP-enabled broadband sonar for clear detection of fish throughout the water column. With an optional HDI or Active Imaging 3-in-1,  the GO9 XSE also offers StructureScan HD sidescan imaging for a picture-like view of fish-holding structure beneath and around your boat.

Simrad SonicHub®2 & Bluetooth® Audio Integration

If you're not at home on the water without a good soundtrack, the Simrad SonicHub®2 marine audio system is the perfect companion to a GO9 XSE display. Stream music from Bluetooth® connected tablets, smartphones, and other mobile devices, play MP3 files from a USB flash drive, or listen to the SonicHub 2's built-in AM/FM radio. SonicHub 2 brings complete control of your audio entertainment to your GO9 XSE display, eliminating the need for a separate stereo head-unit and letting you listen to your music, your way.

GoFree™ cloud enabled with Built-in Wi-Fi

With Wi-Fi built-in, the Simrad GO9 XSE provides direct access to GoFree cloud services including easy wireless map downloads, software updates, and more. Whether hooked up to your home Wi-Fi with your boat trailered in the driveway, logged in to your marina's Wi-Fi, or tethered to your smartphone out on the lake, you can access GoFree cloud services anywhere you have an internet connection. On the water, GoFree connects the Simrad GO9 XSE to your mobile devices, mirroring your display's screen on your smartphone or giving you full remote control from your tablet with the free GoFree Controller app.

SiriusXM Weather Integration

The Simrad GO9 XSE is the only GO Series display compatible with SiriusXM Marine satellite weather, via the optional WM-4 expansion module, for real-time access to weather information right on your display. With onboard access to weather radar, surface buoy reports, NOAA Marine Zone forecasts and more, you can check out the conditions offshore before you even leave the dock. SiriusXM Marine is a subscription service, exclusively available within North America.

* Built-in GPS receiver works in any bracket-mount installation, and when flush-mounted with most fibreglass hulls. When flush-mounted in a metal hulled vessel, an external GPS receiver such as the Simrad GS25 may be required.

Specifications:

• Casing: PC/ABS
• Operating temp: -15°C to +55°C (+5°F to +131°F)
• Water ingress: IPX6 and 7
• Weight (excluding mounting hardware): 1.315 kg (2.9 lbs) - GO9 XSE
• Screen brightness: 1200 nits
• Screen resolution: 480 x 800 (H x W)
• Viewing angle in degrees (typical value at contrast ratio = 10): L/R: 70, top: 50, bottom: 60
• Operating voltage: 10 - 17 V DC
• Current draw at 13.6 V (sonar off, max B/L): 1 A
• Low power standby mode: yes
• Protection: reverse polarity and temporary over-voltage to 36 V
• Alarm output current: 1 A max
• Processor: iMX61 single core
• Conformity: CE, C-Tick
• NMEA 2000 (compliant):1 port (Micro-C male) -,network load 1 LEN : 1 combined port Power and NMEA 2000 (7 pin connector)
• Sonar 1 port (9 pin connector) Radar 1 port (5 pin Ethernet connector)
• Card reader: Dual microSD

Comes With:

• 000-12728-001 - MED/HIGH 455/800 9PIN
• 000-13702-001 - Gimbal bracket, GO9,V9
• 000-13700-001 - GO9 / V9 Bezel Replacement
• 000-13699-001 - GO9/V9 Dash mount kit
• 000-00128-001 - Power Cable
• 000-13698-001 - GO9 XSE Suncover

C-MAP Discover Chart Features

• Full-Featured Vector Charts
• Custom Depth Shading
• High-Resolution Bathymetry
• Easy-Routing
• Tides & Currents

Specifications:

• Touchscreen: Yes
• Screen Size: 9"
• Cartography Brand: Navionics/C-Map/Lowrance
• Included Transducer: 000-12570-001
• Transducer Included: Yes
• Box Dimensions: 9"H x 9"W x 13"L WT: 7.4 lbs
• UPC: 9420064120147

Simard AP44 VRF High Capacity Autopilot Pack [000-13562-002]

AP44 VRF High Capacity Autopilot Pack - AP44, NAC-3, Precision 9 & Pump-3 MK2

The AP44 Autopilot Controller combines Simrad Continuum steering technology with a full-color display, intuitive rotary dial and button controls, and modern glass helm styling. Free your hands from the wheel, cruise in comfort, and discover new ways to search for fish; this dedicated controller offers easy access to automated turn patterns, No Drift steering, depth contour tracking, and other advanced pilot features. Connect your chart plotter to add waypoint and route navigation, and enjoy full autopilot control from compatible Simrad displays.

Features:

• Rotary-dial course adjustment with new intuitive autopilot control
• Optically bonded 4.1-inch color display
• Easy setup with auto-tuning and calibration
• Simrad Continuum steering technology
• Intuitive autopilot control
• Automated turn patterns
• No Drift steering
• Depth contour tracking
• Low-profile 'Glass Helm' design
• Low power consumption
• Certified NMEA 2000® connectivity

  Intuitive Autopilot Control

The point of a dedicated autopilot controller is to enable immediate access to auto-steering functionality, placing key controls within easy reach. Designed with that purpose in mind, the AP44 includes an intuitive interface with just four buttons and a push-to-enter rotary control dial

Automated Turn Patterns

Your Simrad autopilot can do much more than keep you on course. The AP44 gives you easy access to a range of built-in turn patterns designed to assist with fishing, diving, or just making a quick and efficient U-turn.

Simrad Continuum Steering

Every Simrad steering innovation builds upon a legacy encompassing over sixty years of autopilot development, which continues today at Simrad Yachting's autopilot research hub in Norway.

Easy Setup with Auto-Tuning & Calibration

Autopilot installation and commissioning don't have to be difficult or time-consuming. The AP44 offers automatic tuning to ensure optimal auto-steering performance, with a simple on-screen commissioning process including dockside configuration and sea trial.

NAC-3

The NAC-3 Autopilot Computer is the brain behind your autopilot system. NAC-3 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-3 was designed for boats up to 10M (33') in length and is suitable for low-current hydraulic drives, mechanical drives, or solenoid valves with a current rating of 30 Amps continuous (50 Amps peak).

Precision-9

The Precision-9 Compass supplies heading and rate-of-turn information to Simrad, B & G, and Lowrance autopilot, radar, and navigation systems. Based on reliable solid-state sensor technology, this compact compass offers easy installation aboard any vessel.

Pump-3 MK2

The PUMP-3 MK2 type 2 is a reversible hydraulic steering pump for boats up to 50ft.

Unique Selling Points:

• Heading, Rate Of Turn (ROT), roll, and pitch output over NMEA 2000®
• Heading and ROT calculated using sensor data from 9 axes of rotation and motion
• Accurate and reliable solid-state sensor technology
• Heading accuracy after calibration
• Easily adjustable mounting bracket allows bulkhead or up-mast installation
• IPX7 waterproof. Best in class
• Simple installation with a single NMEA 2000® connection

Specifications:

• Steering Type: Hydraulic
• Box Dimensions: 10"H x 11"W x 17"L WT: 5 lbs
