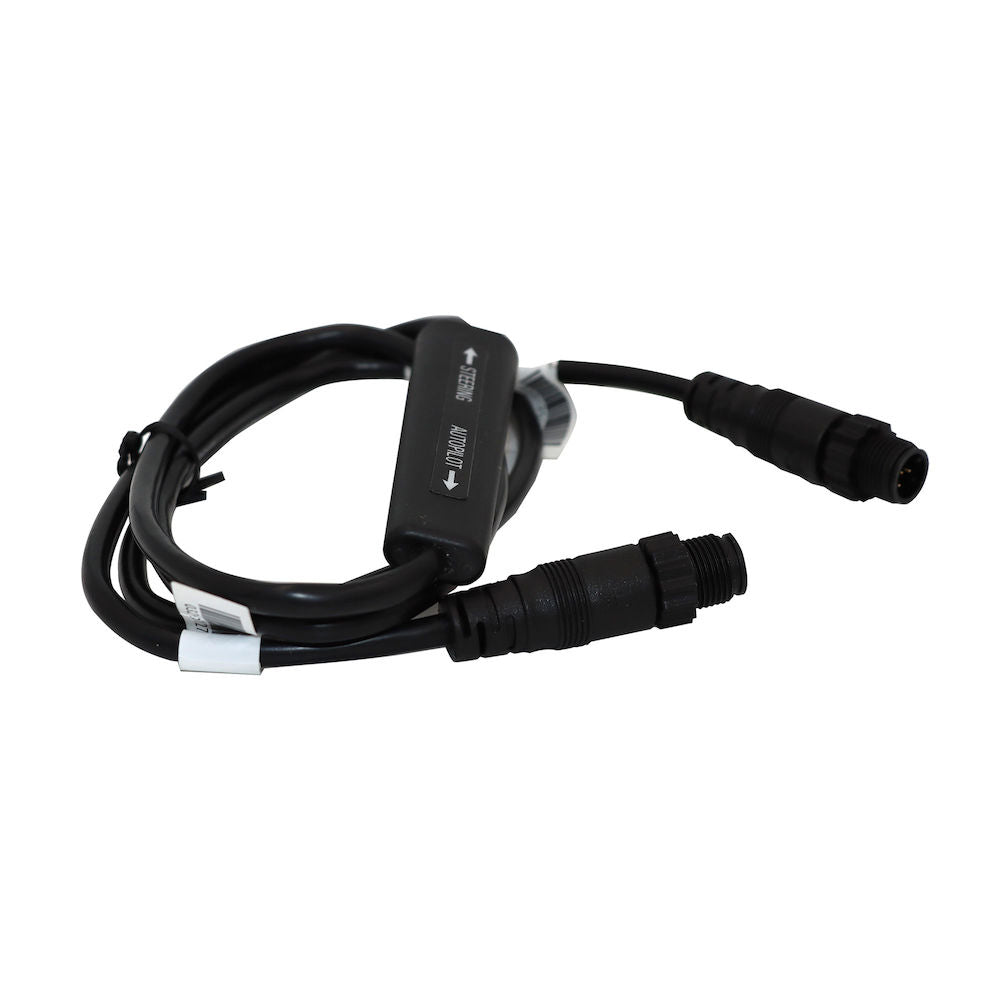

Simrad NAC-D Autopilot Computer f/Steer By Wire [000-15621-001]

NAC-D Autopilot Computer for Steer By Wire

NAC-D is a steer-by-wire autopilot solution for Electronic Vessel Control Systems (steering systems with a digital interface).

With NAC -D, boaters with SeaStar® Optimus®, Yanmar® VC10/JC10, Volvo® IPS/EVC or Yamaha® helm master/single-engine control systems can benefit from all the full features and performance of Simrad® autopilots.

Easy to install

Requires only the connection of two Micro-C connectors – there is no requirement for an additional hydraulic pump, rudder sensor installation, or dockside rudder calibration. This saves boaters time and money.

Automatic switching

Featuring Continuum® steering and support for the SteadySteer™, the NAC -D allows automatic switching between two-speed profiles delivering optimal steering performance at both low and high speeds.

Flexible choice

Choose the controller to suit your preference from dedicated controllers like the AP™ 44 or AP 48.

Simrad® autopilot systems incorporate state-of-the-art electronics and represent over 70 years of experience and development. Simrad® autopilots can reduce your workload and fatigue and improve your situational awareness and safety, helping you arrive fresher at your destination.

Features

• SeaStar Solutions®, Volvo®, Yanmar® and Yamaha® approved control system interface
• Control via AP™ 44, AP 48
• No need for an additional hydraulic pump, rudder sensor, or dockside calibration
• SteadySteer™ feature included
• Steer to a waypoint, heading, or set turn pattern, such as a U-turn, Spiral turn, and many more – the NAC™ -D can even initiate a zigzag turn
• CAN-bus data connectivity - connection to Optimus® steering systems via the CAN-bus data network

Specifications:

• Steering Type: Steer-By-Wire
• Box Dimensions: 3"H x 4"W x 10"L WT: 0.5 lbs
• UPC: 9420064115747

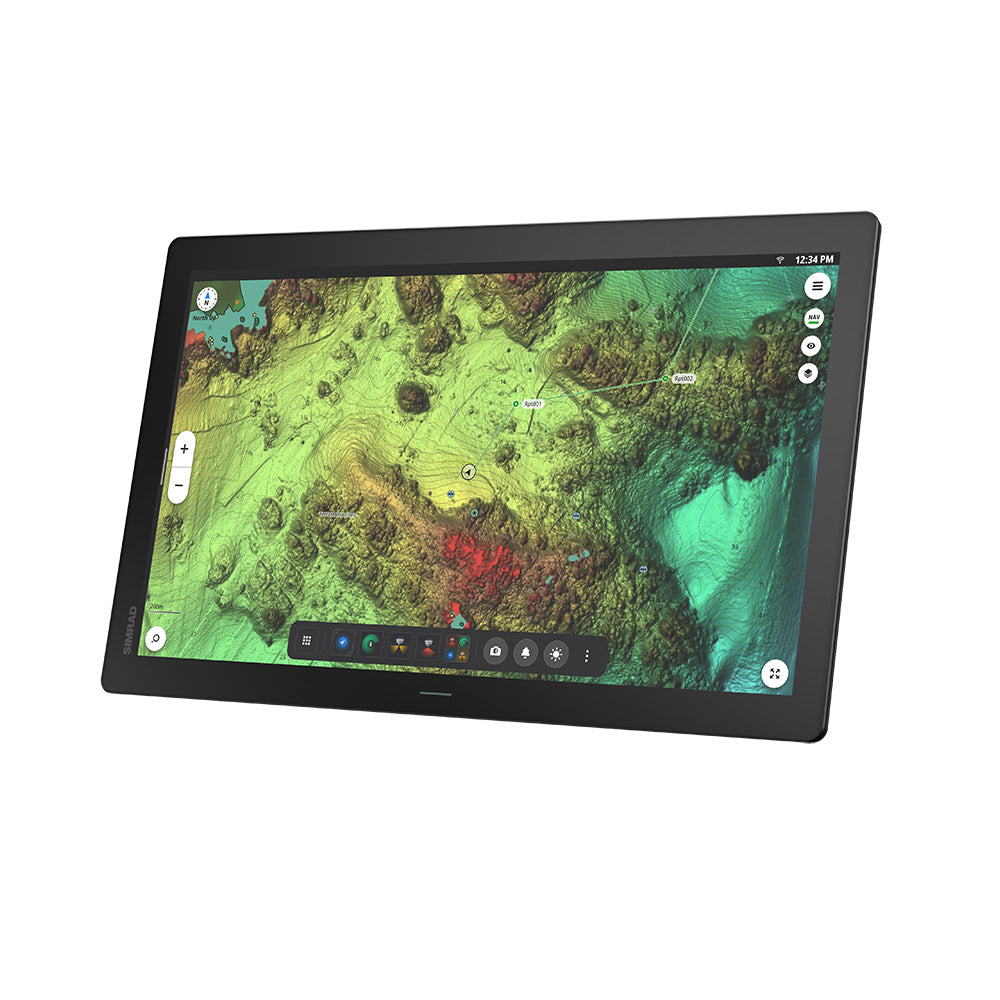

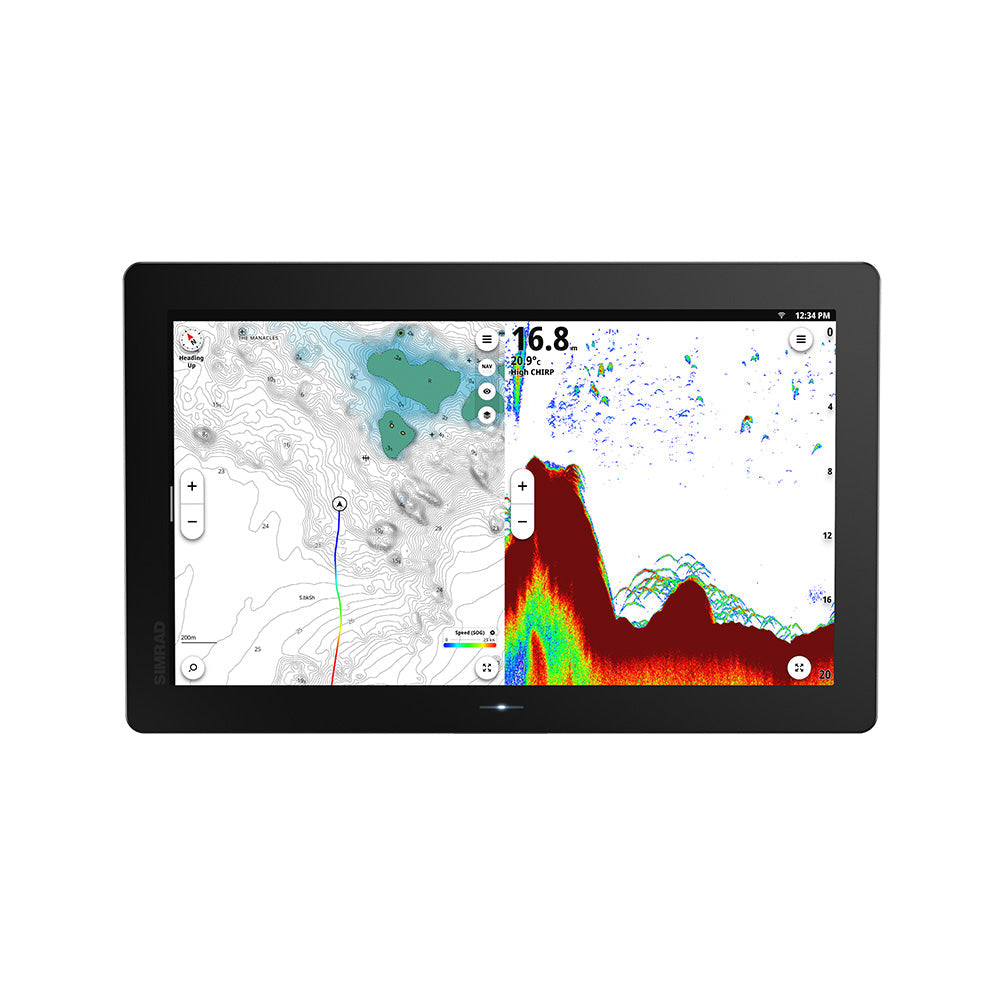

Simrad NSO 4 16" MFD w/C-MAP Discover X North America Chart [000-16559-001]

NSO 4 16" MFD with C-MAP Discover X North America Chart

Redesigned from the ground up, responsive & intuitive control, unmatched situational awareness, and wide-ranging compatibility are the cornerstones of NSO 4, making it the only choice for serious offshore adventures.

Features:

• 3 Sizes available: 16” / 22” / 24”
• Powerful 8 Core processor delivering fast boot, instantaneous chart redraw, and fast page transitions
• Full-HD, Sunlight Viewable display
• Edge-glass aesthetic, optimized for premium teak isle
• Rear-mount for a clean, flush, trouble-free fit
• Rugged waterproof design for the harshest marine environment
• New branding, out of sight lines for a cleaner, more sophisticated look
• More Ethernet Ports, making integration a breeze
• Wide-ranging compatibility now with Plug-and-Play CZONE App
• High-definition Video In & Out with built-in Audio Splitter, so you can keep an eye on the game or the kids entertained

Updated Aesthetics

• Edge-to-edge glass and rounded corners deliver a modern, refined look.
• Subtle branding and a power button keep the display clean and uninterrupted.
• Designed to integrate flawlessly with high-end vessels, enhancing helm style and fit.
• Screen calibration provides more consistent white point across sizes and batches.

Built for the Elements

• Durable waterproof design with active cooling for improved performance in high ambient temperatures.
• Sunlight viewable SolarMax HD Display suitable for use with Polarized Sunglasses.
• Individual galvanically isolated connectors provide ground loop mitigation.
• Vibration and shock tested to simulate the harshest marine conditions.

Simplified Installation

• Rear-mount system simplifies installation with assembly or tools required - simply cut, fit, twist, and turn.
• Designed to reduce stress points and improve serviceability for teak isle installations.
• Twist-fit, lockable connectors ensure a watertight connection.
• Up to 20% lighter than competitor models.

Unmatched Simplicity, Finally Scaled

Now in the format that larger boats have been waiting for, NSO 4 delivers the most intuitive and modern OS on the market today.

Enjoy a familiar experience with intuitive touch and swipe controls that put you instantly at ease, so you can feel confident and ready for your next adventure.

Symbolic of the leap into the future, the modern UI is refined yet powerful – a focus on usability ensures that the most common features and functions are at your fingertips

Speed isn’t just a number; it’s a feeling, and from the moment you power the unit, you know the difference – ultra-fast boot, instantaneous chart redraw, and seamless page transitions elevate your on-water experience.

NSO 4 is the control center of your smart vessel, connecting and controlling everything from engines and radar to lighting, AV, and entertainment. Take full control with a system built for total vessel integration.

Wide Range Compatibility

Whether you are fishing, cruising, or anything in between, Simrad® makes it easy to build the boat of your dreams by being designed to support large multi-helm systems with up to 10 NEON™ Displays.

Plug-and-play connectivity with a variety of 3rd party products, including RGB Lighting, Audio control, HTML5 integration, and more.

Control at your Fingertips

Flexible integration tools for OEM customization, including branded interfaces and custom graphics.

Capable of delivering different levels of integration to suit your customer needs, from digital switching with CZONE® to rich custom graphics through an OP Box.

External controller support with the updated OP 55 Remote Control for greater flexibility and a custom key to suit your style.

Your AV Center

Providing total awareness, NSO 4 features 4-way IP video support, high-definition video in with limited sharing across Ethernet, and out to keep you connected and aware.

Never miss a moment by connecting a streaming device to view live sports or keep the kids entertained with their favorite TV show or movie. The optional audio out cable allows you to connect to your vessel's audio system with ease

In the Box:

• Simrad NSO 4 MFD
• Magnetic sun cover
• Rear mount kit and dash gasket
• Power cable
• Documentation pack
• C-MAP Discover X Card

Specifications:

• Cartography Brand: C-Map Discover X
• Screen Size: 16"
• Touchscreen: Yes
• Transducer Included: No

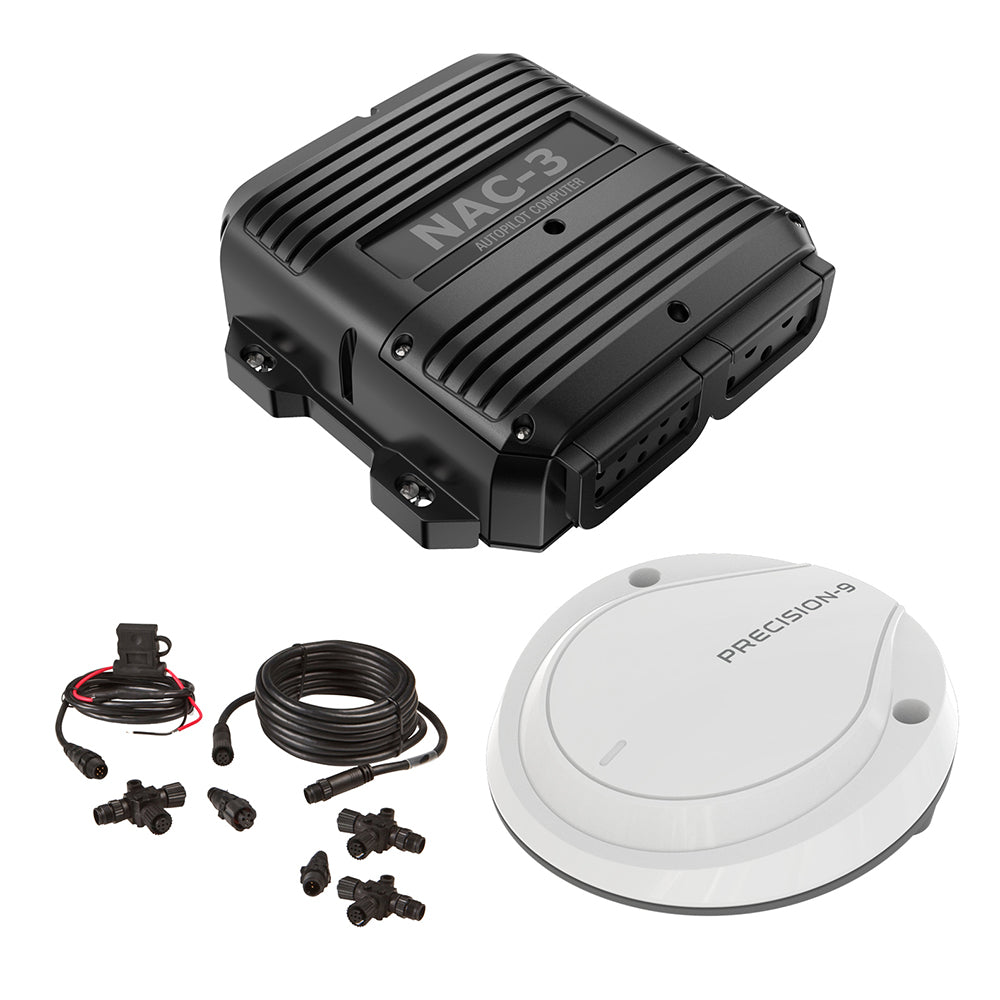

Simrad NAC-3 VRF Core Pack - NAC-3, Precision-9 & N2k Starter Kit

NAC-3 VRF Core Pack - NAC-3, Precision-9 & N2k Starter Kit

Comprising of the high-current NAC-3 Autopilot computer, Precision-9 compass & N2k Starter Kit.

The NAC-3 Autopilot Computer is the brains behind your autopilot system. NAC-3 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-3 was designed for boats 10M(33') or greater in length and is rated to operate high-current hydraulic drives, mechanical drive units, and solenoid valves with a current rating of 30 Amps continuous (50 Amps peak).

Precision-9 Compass
The Precision-9 Compass supplies heading and rate-of-turn information to Simrad, B&G and Lowrance autopilot, radar and navigation systems. Based on reliable solid-state sensor technology, this compact compass offers easy installation aboard any vessel.

N2k Backbone Starter Kit
NMEA 2000 Micro-C Network starter kit: Includes Network power cable, 4.5M (15') N2K cable, 3 x T-connectors, 2 x network terminators

Features:

• Heading, Rate Of Turn (ROT), roll, and pitch output over NMEA 2000®

• Heading and ROT calculated using sensor data from 9 axes of rotation and motion

• Accurate and reliable solid-state sensor technology

• Heading accuracy of ±2° after calibration

• Easily adjustable mounting bracket allows bulkhead or up-mast installation

• IPX7 waterproof. Best in class.

• Simple installation with a single NMEA 2000® connection

Specifications:

• Temperature, operation: 0 to +55°C

• Temperature, storage: -32 to +70°C

• Protection: IPx7

• Weight in Kg: 0.7kg, 1.6lbs

• Dimmension Max size, mm (length x width x height): 211 x 196 x 65.5mm, 8.31" x 7.72" x 2.58"

• Mounting: Bulkhead

• Construction: Plastic

• Color: Black

• Cable inlet: Grommet (Spare Incl)

• Local power supply: 12/24 V DC +10-30%

• NMEA 2000 Load Equivalent number (50mA): 1

• Reversible motor control of rudder: Max continious load 30A, peak 50A for 1s

• On/off solenoid control of rudder: 12/24V DC, common, load range 10mA to 10A, off current <1mA

• Engage output for bypass/clutch: 12/24V DC, min 10mA, max 3A

• Rudder angle, frequency input: 15V, 1.4 to 5kHz, resol. 20Hz/° OR NMEA2000

• NFU port/stbd input and mode indicator output: External open/close contact, common ret, contact current max 30mA

• Mode input: External open/close or pulse contact for SYSTEM SELECT, common ret, close to activate, contact current max 30mA

• External alarm output for buzzer/relay: Max 100mA, voltage level as local supply

• IEC 61162-1 input (NMEA0183 In): 1 ch

• IEC 61162-1 output (NMEA0183 Out): 1 ch

• IEC 61162-1 speed: 4.8 & 38.4 kbaud

• NMEA2000: Certified (pending)

Specifications:

• Steering Type: Hydraulic
• Box Dimensions: 10"H x 10"W x 16"L WT: 7 lbs
• UPC: 9420024155660

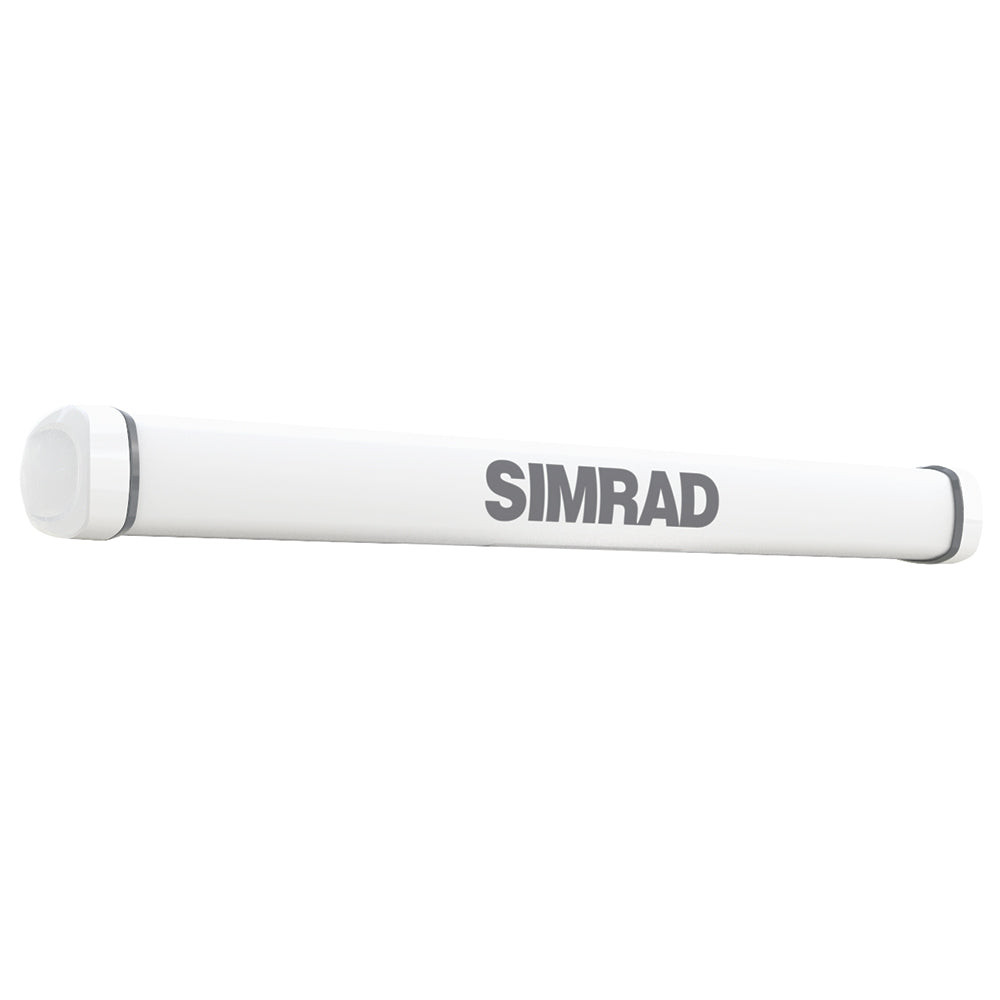

Simrad HALO Radar Antenna Only - 4 [000-11465-001]

HALO™ Radar Antenna Only - 4'

Features:

• Radar only
• 4'

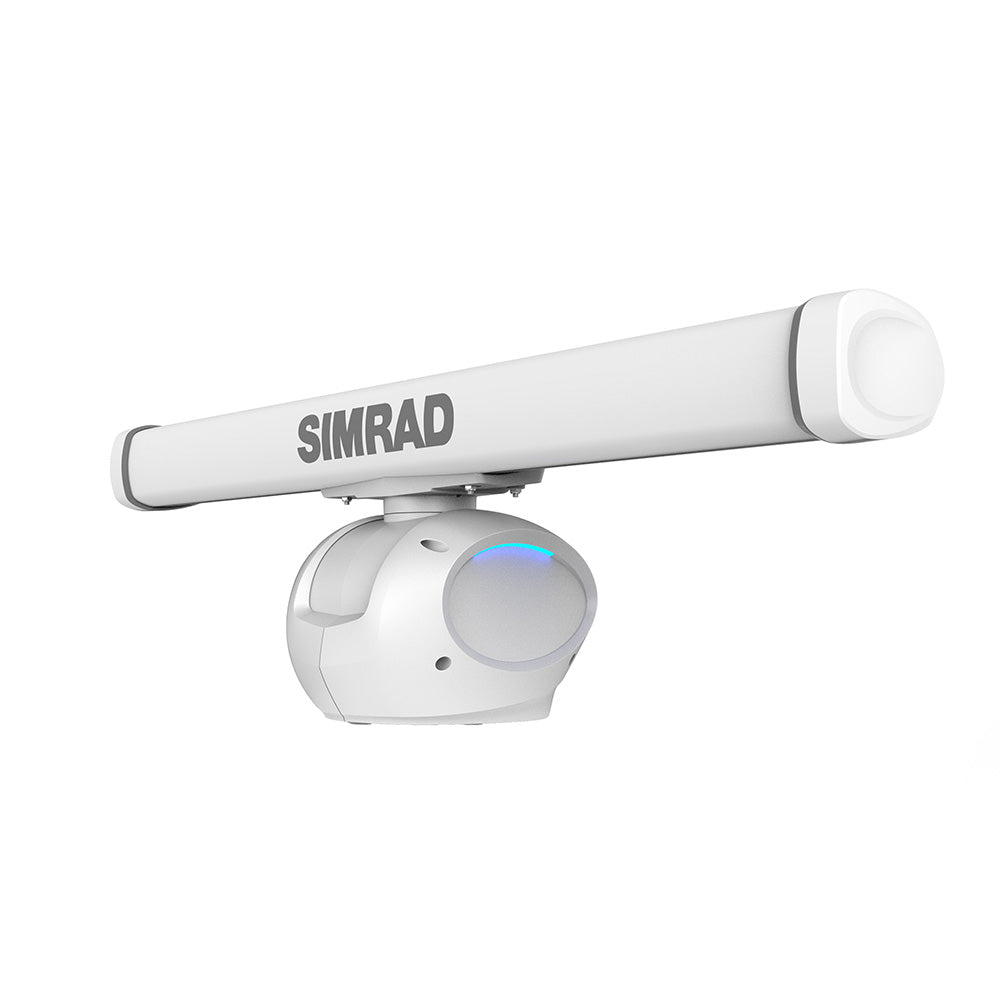

Simrad HALO 2004 Radar w/4 Open Array  20M Cable [000-15759-001]

HALO® 2004 Radar with 4' Open Array & 20M Cable

Features:

• HALO® 2000 - 50W power for a longer range (from 6m to up to 72nm) and higher-resolution target detection
• Advanced pulse compression technology with beam sharpening
• Simultaneous Dual Range operation
• Easy operation with Harbour, Offshore, Weather, and Bird modes
• Track up to 50 targets per defined area with ZoneTrack (two areas can be defined)
• VelocityTrack Doppler technology for collision avoidance
• Dangerous Target Alerts for radar and AIS targets
• Ready instantly from standby, and in 16-25 seconds from power-on
• 4' Open Array Antenna

Benefit from safer navigation and unmatched ease of use with the new HALO® 2000 and 3000 Open Array radars. Advanced Pulse Compression technology allows you to detect birds, hazards, and storms with superior precision across both short and long distances. While the range of Preset Modes and enhanced power provide constant peace of mind.

More Power Matters

The HALO® 2000 radar offers a premium experience on the water. An impressive 50 W of power – equivalent to a 12 kW magnetron radar – delivers an unrivaled combination of short- and long-range coverage that enables you to see targets from six meters (20 feet) out to 72 nautical miles with exceptional clarity. Pulse Compression technology powers confident navigation through marinas, and superior storm and hazard detection across a greater distance. The HALO® array series not only increase situational awareness and collision avoidance but also offer higher-resolution target detection you won’t find in lower-powered radars.

Safer Navigation

The HALO 2000 series boast an array of new features that make navigation safer and offer peace of mind. ZoneTrack™ brings the best of professional boating technology to recreational users, allowing them to track up to 50 vessels within a defined area, automatically detecting their course and speed. HALO’s Dangerous Target Alerts highlight range, graphical bearing, and heading of other vessels relative to yours. Meanwhile, VelocityTrack™ uses Doppler technology to show targets color-coded so you can identify potential threats at a glance. Because, when it comes to safety, situational awareness is everything.

Building on the HALO Legacy

The next generation of pulse compression radars, HALO 2000 and 3000 build on the features that have made HALO an established choice for boaters across the globe. The solid-state technology gets you up and running quickly, and HALO’s low-power pulsed transmissions make it safe to run in harbors and marinas. Dual Range mode allows you to keep an eye on distant weather cells while monitoring channel markers and high-speed watercraft up close. Advanced digital signal processing gives you a clearer view of targets, helping eliminate sea clutter, while Beam Sharpening provides enhanced separation between small or distant targets. Finally, HALO 2000 and 3000 have the same footprint as their predecessors, making it easy to upgrade your current system. It’s also compatible with a range of Simrad® chart plotters, including NSS™, NSX™, NSO™, and GO™.

Easier Operation

Designed with an intuitive interface HALO arrays make operation easier with smart features like Harbour, Offshore, Bird, and Weather modes. These Preset Modes require no manual tuning – just select your chosen mode and go. This simple approach also extends to fishing, with HALO’s powerful bird-finding capability which enables boaters to find flocks of birds and – more importantly – schools of fish at a distance.

What's Included:

• 000-11465-001 HALO Antenna - 4ft
• 000-15762-001 HALO 200X Pedestal
• 000-15768-001 20M Cable
• 000-15757-001 RI-50 Power Supply

Specifications:

• Array Size (Inches): 4ft
• Power - Output: 50w
• Range - Max (Miles): 72NM

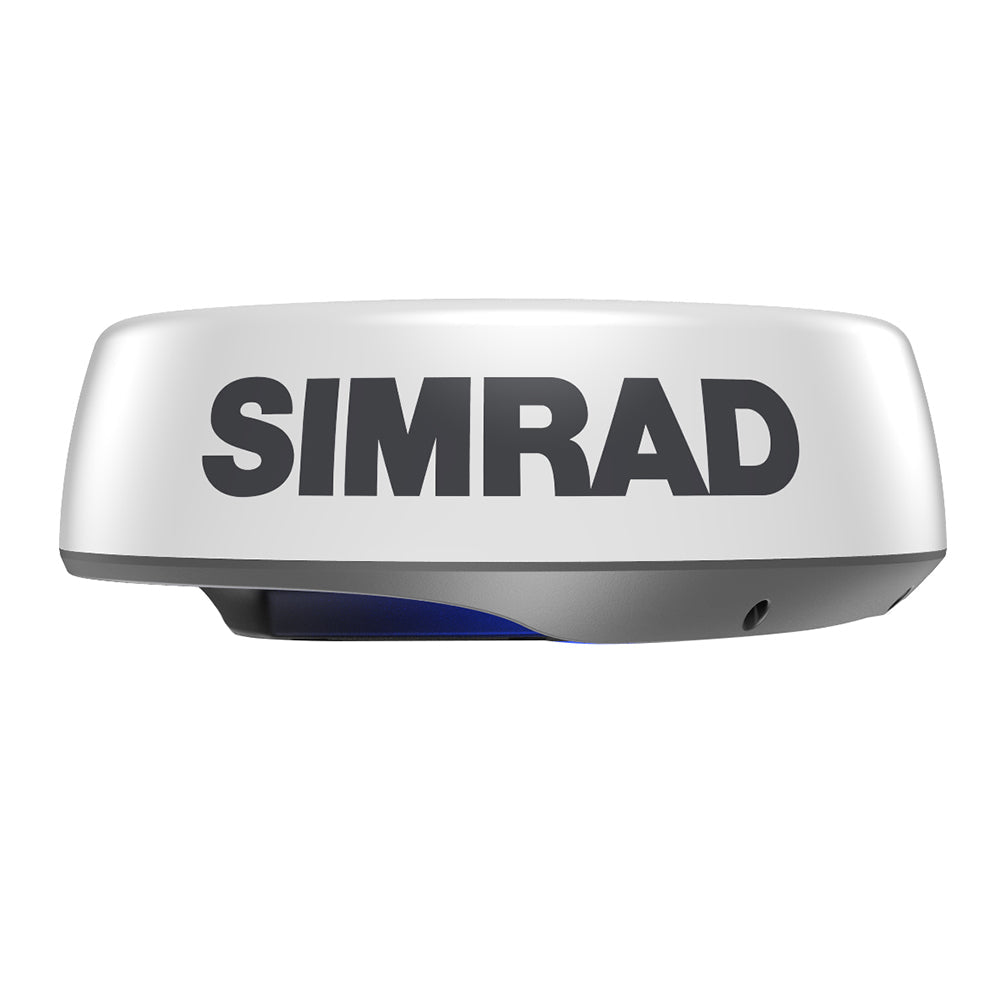

Simrad HALO24 Radar Dome w/Doppler Technology [000-14535-001]

HALO24 Radar Dome with Doppler Technology

HALO24 radar offers an almost real-time view, with industry-first 60 RPM operation at close range for the ultimate in collision avoidance. Identify hazards in an instant with VelocityTrack™ Doppler technology, and enjoy simultaneous short and long-range coverage—up to 48 nautical miles—from one compact 24-inch dome antenna.

See Near and Far with One Compact Dome

Perfect for a wide range of sailboats, fishing boats and smaller powerboats, HALO24 comes in a compact dome antenna and delivers high-quality short, mid and long-range detection. Monitor two distance ranges at once in Dual Range mode, which enables you to keep an eye on far away weather cells while watching for collision hazards up close. HALO24 radar’s pulse-compression technology means no compromises in detection at either selected range, while beam sharpening provides enhanced separation between small or distant targets.

The Ultimate View for Collision Avoidance

HALO24 radar introduces industry-first 60 RPM rotation at ranges up to 2 nautical miles, delivering a full 360-degree sweep every single second. These ultra-fast updates give you an almost real-time view at close range, offering the ultimate view for collision avoidance. Whether you’re navigating through crowded waterways or contending with poor visibility, Halo radar cuts through the clutter to give you a clear and current picture of your surroundings

VelocityTrack™ Doppler Technology Built-In

VelocityTrack™ technology provides instant visual feedback on whether targets are coming towards you or moving away. Using the Doppler effect, this feature automatically checks every target seen by your radar; there’s no need to manually select individual targets, and no limit to the number of targets on screen at one time. Simple colour coding highlights potential hazards, improving your situational awareness and further reducing your risk of collision.

Key Features:

• 48 nm range from a compact 24" dome
• Advanced pulse compression technology with beam sharpening
• Simultaneous Dual Range operation sees both near and far
• Ultra-fast 60 RPM operation at ranges up to 2nm
• VelocityTrack™ Doppler technology for collision avoidance
• Easy operation with harbour, offshore, weather, and bird modes
• MARPA target tracking (up to 10 targets, 20 in dual range).
• Ready instantly from standby
• Lightweight, low profile dome design, with integrated LED lights
• 10m Radar Cable

Specifications:

Environmental

• Operating Temperature: -25° to +55°C (-13° to +130°F)
• Relative humidity: +35° C (95° F), 95% RH
• Waterproof: IPX6
• Max relative wind velocity: 51 m/sec (100 Knots)
• Complience: CE, FCC (ID:RAY3G4G), IC: 4697A-3G4G, IEC60945 : 2002

Power & Dimensions

• Power consumption (with 10M cable): Operating: 14.5 to 27W at 13.8 V
• Standby: 3.9 W (Typ.) at 13.8 V DC 170 mA
• DC input (at end of radar cable): 9 V to 31.2 V DC (12/24 V systems)
• Reverse polarity protection: Yes
• Minimum startup voltage: 10.75 V DC
• Transmitter source (pre-heating time): No magnetron – Instant On

Physical

• Outside dimensions: Ø Diameter 610 mm (24”), Height 225 mm (8.9”)
• Scanner weight (no cable): 6.75kg (14.9 lbs)

Radar and Antenna Parameters

• Radar ranges: 100M (328 ft) to 48nm with 18 range settings, (nm/sm/km)
• Rotation (mode dependent): 20 - 60 rpm (mode and MFD dependent)
• Transmitter frequency: X-band - 9.4 to 9.5 Ghz
• Transmitter source (warm-up time): No Magnetron – all solid state. Instant On™
• Plane of polarization: Horizontal Polarization
• Transmitter peak power output: 25W
• Minimum range: 6M (19.7')
• Sweep repetition frequency: 700-2400 Hz (mode dependent)
• Pulse length: 0.04 - 64 usec
• Sweep bandwidth: 48 MHz max
• Horizontal beam width (Tx and Rx antenna): 3.9° nominal (-3 dB width)
• Target Seperation Control: OFF: 3.9°+/-10% (-3 dB width nominal), LOW: 3.4°+/-10% (-3 dB width nominal), MED: 2.5°+/-10% (-3 dB width nominal), HIGH: 2.0°+/-10% (-3 dB width nominal)
• Vertical beam width (Tx and Rx antenna): 22° (-3B width nominal)
• Side lobe level (Tx and Rx antenna): Below -18 dB (within ±10°);Below -24 dB (outside ±10°)
• Noise figure: Less than 5 dB nominal

Communications/Cabling

• Protocol: Ethernet 100 Base T
• Maximum inter connecting cable length: 30M (98.5') – available as option, use NEP-2 for longer cable runs

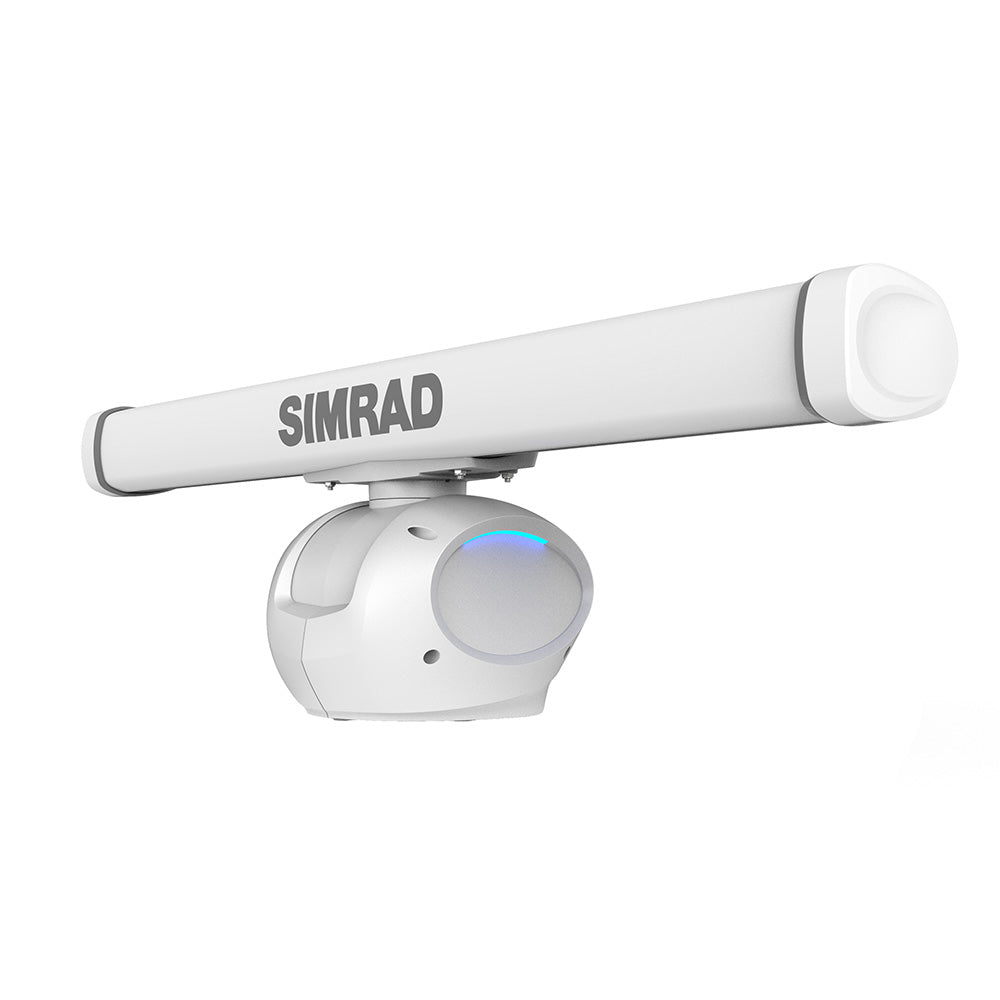

Simrad HALO 3004 Radar w/4 Open Array  20M Cable [000-15763-001]

HALO® 3004 Radar with 4' Open Array & 20M Cable

Features:

• HALO® 3000 - 130W power for a longer range (from 6m to up to 96nm) and higher-resolution target detection
• Advanced pulse compression technology with beam sharpening
• Simultaneous Dual Range operation
• Easy operation with Harbour, Offshore, Weather, and Bird modes
• Track up to 50 targets per defined area with ZoneTrack (two areas can be defined)
• VelocityTrack Doppler technology for collision avoidance
• Dangerous Target Alerts for radar and AIS targets
• Ready instantly from standby, and in 16-25 seconds from power-on
• 4' Open Array

More Power Matters

The HALO® 3000 array radar offers a premium experience on the water. An impressive 130 W of power – equivalent to a 25 kW magnetron radar – delivers an unrivaled combination of short- and long-range coverage that enables you to see targets from six meters (20 feet) out to 96 nautical miles with exceptional clarity. Pulse Compression technology powers confident navigation through marinas, and superior storm and hazard detection across a greater distance. The HALO® array series not only increase situational awareness and collision avoidance but also offer higher-resolution target detection you won’t find in lower-powered radars.

Safer Navigation

The HALO 3000-series boast an array of new features that make navigation safer and offer peace of mind. ZoneTrack™ brings the best of professional boating technology to recreational users, allowing them to track up to 50 vessels within a defined area, automatically detecting their course and speed. HALO’s Dangerous Target Alerts highlight range, graphical bearing, and heading of other vessels relative to yours. Meanwhile, VelocityTrack™ uses Doppler technology to show targets color-coded so you can identify potential threats at a glance. Because, when it comes to safety, situational awareness is everything.

Building on the HALO Legacy

The next generation of pulse compression radars, HALO 2000 and 3000 build on the features that have made HALO an established choice for boaters across the globe. The solid-state technology gets you up and running quickly, and HALO’s low-power pulsed transmissions make it safe to run in harbors and marinas. Dual Range mode allows you to keep an eye on distant weather cells while monitoring channel markers and high-speed watercraft up close. Advanced digital signal processing gives you a clearer view of targets, helping eliminate sea clutter, while Beam Sharpening provides enhanced separation between small or distant targets. Finally, HALO 2000 and 3000 have the same footprint as their predecessors, making it easy to upgrade your current system. It’s also compatible with a range of Simrad® chart plotters, including NSS™, NSX™, NSO™, and GO™.

Easier Operation

Designed with an intuitive interface HALO arrays make operation easier with smart features like Harbour, Offshore, Bird, and Weather modes. These Preset Modes require no manual tuning – just select your chosen mode and go. This simple approach also extends to fishing, with HALO’s powerful bird-finding capability which enables boaters to find flocks of birds and – more importantly – schools of fish at a distance.

HALO 3000 with Bird + Mode

Designed with an intuitive interface, HALO 3000 has smart features like Harbour, Offshore, Bird, and Weather modes. These Preset Modes require no manual tuning – just select your chosen mode and go. This simplified approach also extends to fishing, with HALO 3000’s powerful Bird+ mode – a must-have tool for sportfishing enthusiasts. Bird+ mode allows you to focus the full 130W of HALO 3000’s power on bird finding, enabling boaters to find schools of fish up to 8nm away.

What's Included:

• 000-11465-001 HALO Antenna - 4ft
• 000-15766-001 HALO 300X Pedestal
• 000-15768-001 20M Cable
• 000-15757-001 RI-50 Power Supply

Specifications:

• Array Size (Inches): 4FT
• Power - Output: 130W
• Range - Max (Miles): 96nm

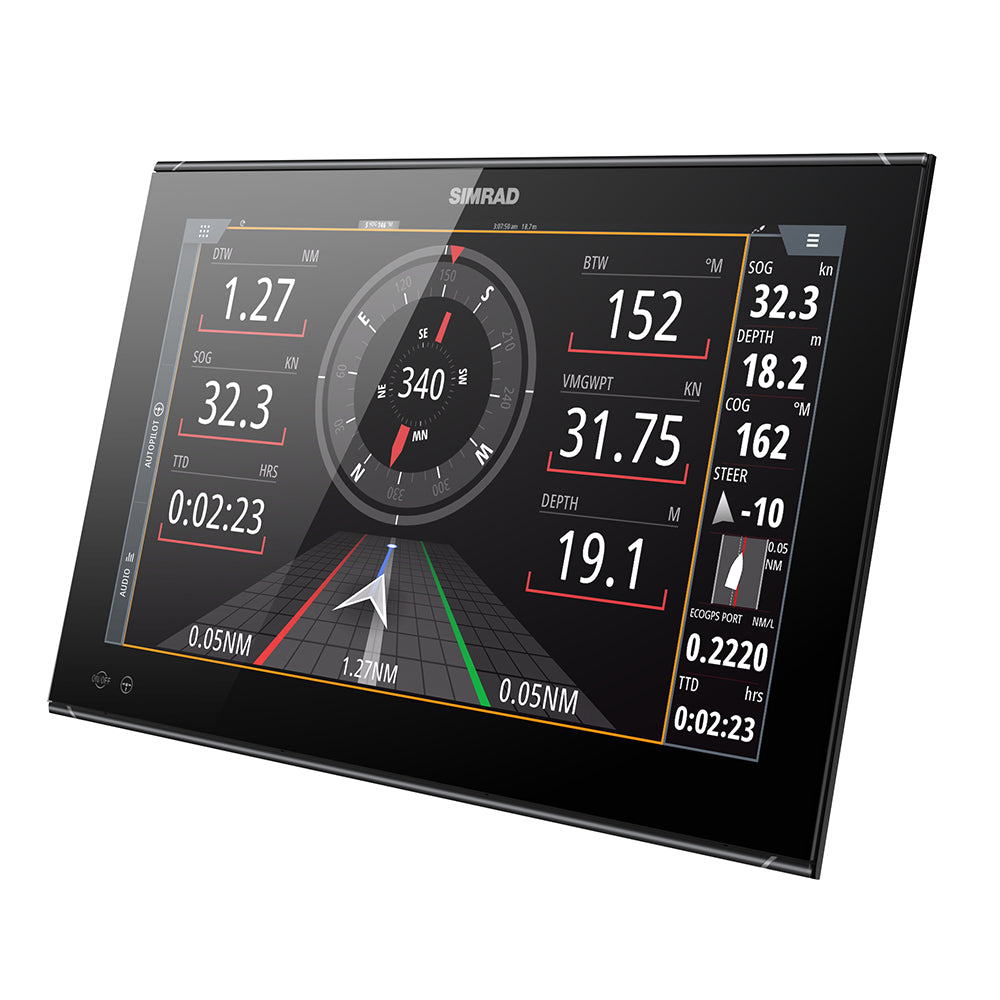

Simrad NSO evo3S 19" MFD Display Only [000-15049-001]

NSO evo3S 19" MFD Display Only

Ultimate Clarity

NSO evo3S delivers the ultimate view with an ultra-bright 19-inch display, ideal for both indoor and outdoor installations. Wide viewing angles keep the screen in view from anywhere in sight, even if you’re wearing polarised sunglasses. See more than ever with Full HD resolution, and the option to combine up to six panels in a split-screen layout.

Intuitive Control

A responsive, multi-touch display places control of your on-board electronics at your fingertips. Intuitively navigate charts, define waypoints, and take control of connected systems such as autopilot, radar, and sonar with a touch. A range of optional keypads add classic controls, perfect for fine adjustments or use in rough conditions.

Swift Response

Every NSO evo3S display features an integrated six-core processor for ultimately smooth response, from charting to StructureScan® 3D imaging. Enjoy swift access to the information you need, as you need it, whether you’re cruising the open ocean or carefully navigating a crowded harbour.

Glass Helm Style

NSO evo3S glass helm systems offer the perfect combination of form and function. Create your own custom helm layouts to suit any activity, and switch seamlessly between those layouts in an instant. Low-profile glass helm styling complements any helm design, from ultra-modern to timeless classic.

Fully Connected

Built-in wireless connectivity links NSO evo3S to your existing mobile devices for remote viewing and control, and delivers easy online software upgrades via any wireless internet hotspot. Wired Ethernet, NMEA 2000®, and J1939 networking provide almost limitless integration options, from vessel-wide display systems to radar, sonar, engine integration, and much more.

Features:

• Ultra-bright, Full HD 19-inch display
• Easy touchscreen control of your entire Simrad system
• Integrated six-core processor for ultimate performance
• Low-profile glass helm styling

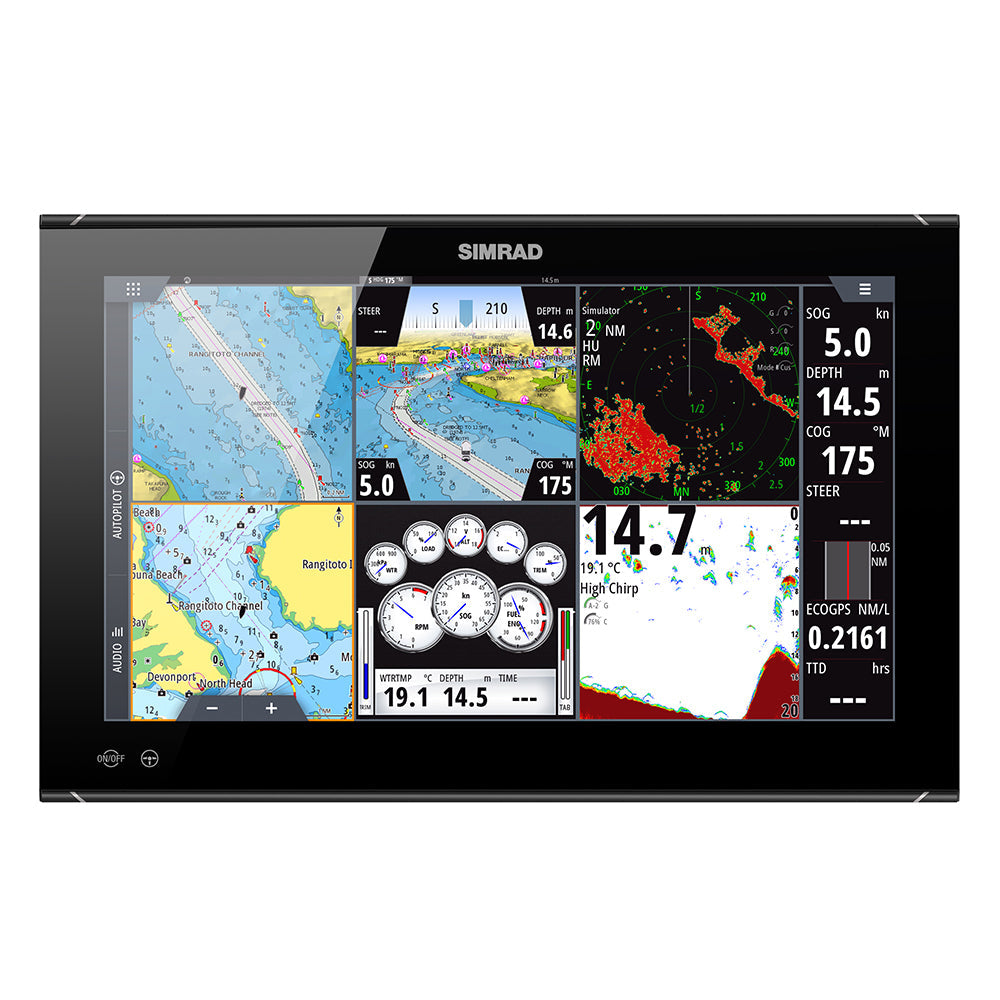

• See more than ever with six-panel split screen option
• Connect with smartphones, tablets, and internet hotspots

In The Box:

• Display unit
• Suncover
• Bezels
• Power cable and connector block
• RJ45 to 5-pin Ethernet adapter cable
• NMEA 0183 connector block
• Documentation pack
• Cable retainer kit
• Panel mounting kit

Connections:

• NMEA 2000 - NMEA 2000 data
• J1939 - J1939 engine data
• USB - mouse, keyboard or mass storage
• NETWORK 1-3 - Ethernet network
• SD - microSD card reader
• HDMI OUT - HDMI video output
• VIDEO IN - composite video input
• HDMI IN - HDMI video input
• NMEA 0183 - NMEA 0183 data
• POWER - 12 - 24 V DC input, external alarm and power control

Specifications:

• Touchscreen: Yes
• Box Dimensions: 7"H x 17"W x 24"L WT: 19 lbs
• UPC: 9420064105038

Quick Guide (pdf)
Owner's Manual (pdf)
