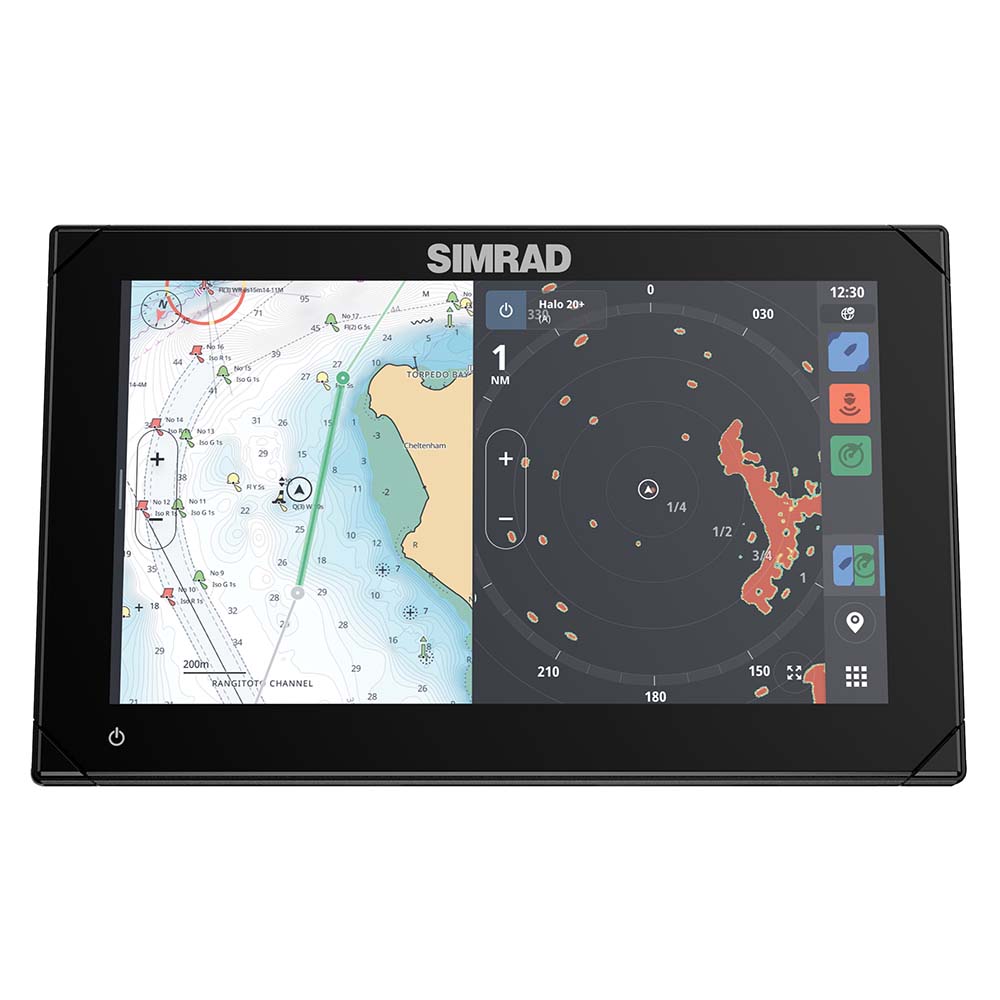

Simrad NSX 3009 9" Combo Chartplotter  Fishfinder - Display Only - No Transducer [000-15218-001]

NSX™ 3009 9" Chartplotter & Fishfinder - Display Only - No Transducer

Everything about NSX™ is designed to bring your fishing adventures closer. Enjoy our fastest-ever Autorouting and next-gen C-MAP® charts. Experience intuitive touch screens and a simple sonar setup with hints to assist you when you need it. Count on high-resolution imagery from state-of-the-art sonar technology, like FishReveal™, DownScan Imaging™, and SideScan.

Add compatibility with a wide range of 1 kW transducers for even more target resolution, and there is nothing between you and your next adventure but open water.

An Intuitive Touchscreen Experience

Easily access all NSX™ features via a modern and simple interface, including drag-and-drop screen customization and enhanced day and night modes. Get crystal clear views of chart detail with the vibrant SolarMAX™ IPS touchscreen - viewable from any angle, in direct sunlight, and even through polarized lenses.

Bring Navigation to Life with NSX™

See map details in a different way with next-generation C-MAP® DISCOVER™ X and REVEAL™ X marine-optimized charts for day and night. Experience our fastest-ever Autorouting and with the Simrad® Companion App plan trips, review Tracks, plot Waypoints, and sync directly.

Full Suite of Simrad® Technology at Your Fingertips

Expand your system with advanced Simrad® technology. Experience high-resolution imagery from state-of-the-art sonar technology, like Active Imaging™, as well as compatibility with a wide range of 1 kW transducers. Identify hazards immediately and see near and far simultaneously with award-winning pulse compression HALO® radars, and stay on course with legendary Simrad® Autopilots.

Simple to Set Up, Easy to Manage

Get up and running quicker than ever. The Setup Wizard features step-by-step instructions and guidance throughout your initial setup and with future adjustments. In addition, Sonar Device Setup provides easy-to-understand prompts for each step of the process, while the Simrad® App allows access to the best planning tools and hassle-free software updates and data transfer.

Features:

• Features a marine-optimized C-MAP® DISCOVER™ X chart with a fresh, intuitive chart presentation and daily updates – plus support for C-MAP REVEAL™ X charts
• High definition IPS touch screen with extreme viewing angles, viewable through polarized lenses
• Support for high-resolution views of fish and structure with Active Imaging™ featuring CHIRP, SideScan, and DownScan Imaging™, plus 1kW transducer capability to reach greater depths
• Setup Wizard to get you up and running quickly, plus a simpler sonar setup
• Full integration with the capability to expand the system with Simrad® sonar, autopilot, radar, and more
• Faster Autorouting with seamless accessibility
• See near and far simultaneously (up to 48nm), with HALO® Radar support and get ultra-fast updates every second
• Stay on course with full Simrad® autopilot integration
• Clean and simple interface
• Simrad® App integration – keep your chart data at your fingertips, both on and off the water
• Third-party app integration
• Wireless connectivity, plus full Ethernet and NMEA 2000® networking capability
• IP Video Support

Specifications:

• Cartography Brand: C-Map
• Screen Size: 9"
• Touchscreen: Yes
• Transducer Included: No
• Box Dimensions: 5"H x 12"W x 16"L WT: 6.6 lbs
• UPC: 9420064110056

Brochure (pdf)

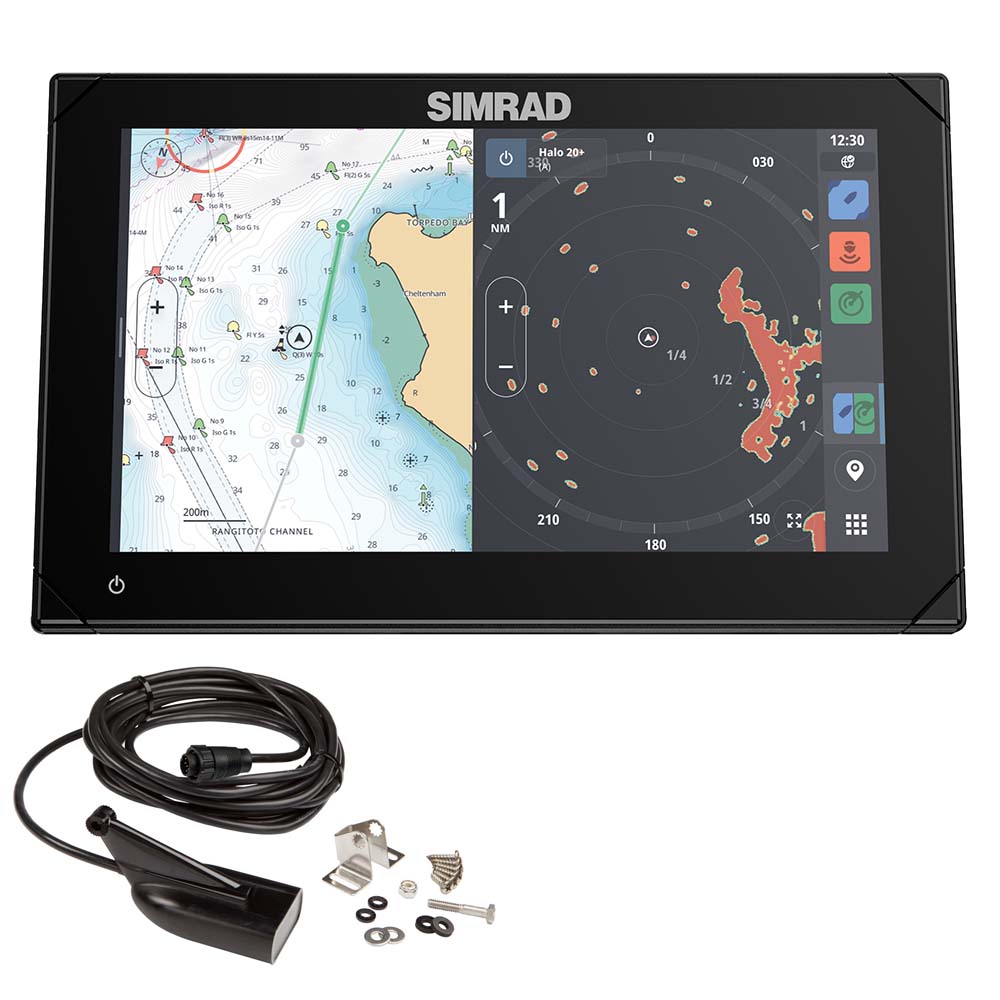

Simrad NSX 3009 9" Combo Chartplotter  Fishfinder w/HDI Transducer [000-15372-001]

NSX™ 3009 9" Chartplotter & Fishfinder with HDI Transducer

Everything about NSX™ is designed to bring your fishing adventures closer. Enjoy our fastest-ever Autorouting and next-gen C-MAP® charts. Experience intuitive touch screens and a simple sonar setup with hints to assist you when you need it. Count on high-resolution imagery from state-of-the-art sonar technology, like FishReveal™, DownScan Imaging™, and SideScan.

Add compatibility with a wide range of 1 kW transducers for even more target resolution, and there is nothing between you and your next adventure but open water.

An Intuitive Touchscreen Experience

Easily access all NSX™ features via a modern and simple interface, including drag-and-drop screen customization and enhanced day and night modes. Get crystal clear views of chart detail with the vibrant SolarMAX™ IPS touchscreen - viewable from any angle, in direct sunlight, and even through polarized lenses.

Bring Navigation to Life with NSX™

See map details in a different way with next-generation C-MAP® DISCOVER™ X and REVEAL™ X marine-optimized charts for day and night. Experience our fastest-ever Autorouting and with the Simrad® Companion App plan trips, review Tracks, plot Waypoints, and sync directly.

Full Suite of Simrad® Technology at Your Fingertips

Expand your system with advanced Simrad® technology. Experience high-resolution imagery rom state-of-the-art sonar technology, like Active Imaging™, as well as compatibility with a wide range of 1 kW transducers. Identify hazards immediately and see near and far simultaneously with award-winning pulse compression HALO® radars, and stay on course with legendary Simrad® Autopilots.

Simple to Set Up, Easy to Manage

Get up and running quicker than ever. The Setup Wizard features step-by-step instructions and guidance throughout your initial setup and with future adjustments. In addition, Sonar Device Setup provides easy-to-understand prompts for each step of the process, while the Simrad® App allows access to the best planning tools and hassle-free software updates and data transfer.

Features:

• Features a marine-optimized C-MAP® DISCOVER™ X chart with a fresh, intuitive chart presentation and daily updates – plus support for C-MAP REVEAL™ X charts
• High definition IPS touch screen with extreme viewing angles, viewable through polarized lenses
• Includes HDI transducer with CHIRP Sonar and DownScan Imaging™, plus support for Active Imaging™ 3-in-1 and a wide range of compatible 1kW transducers to reach even greater depths
• Quickly identify fish with FishReveal™
• Setup Wizard to get you up and running quickly, plus a simpler sonar setup
• Full integration with the capability to expand the system with Simrad® sonar, autopilot, radar, and more
• Faster Autorouting with seamless accessibility
• See near and far simultaneously (up to 48nm), with HALO® Radar support and get ultra-fast updates every second
• Stay on course with full Simrad® autopilot integration
• Clean and simple interface
• Simrad® App integration – keep your chart data at your fingertips, both on and off the water
• Third-party app integration
• Wireless connectivity, plus full Ethernet and NMEA 2000® networking capability
• IP Video Support

Specifications:

• Cartography Brand: C-Map
• Included Transducer: 000-12728-001
• Screen Size: 9"
• Touchscreen: Yes
• Transducer Included: Yes
• Box Dimensions: 6"H x 13"W x 16"L WT: 8.05 lbs
• UPC: 9420064111978

Brochure (pdf)

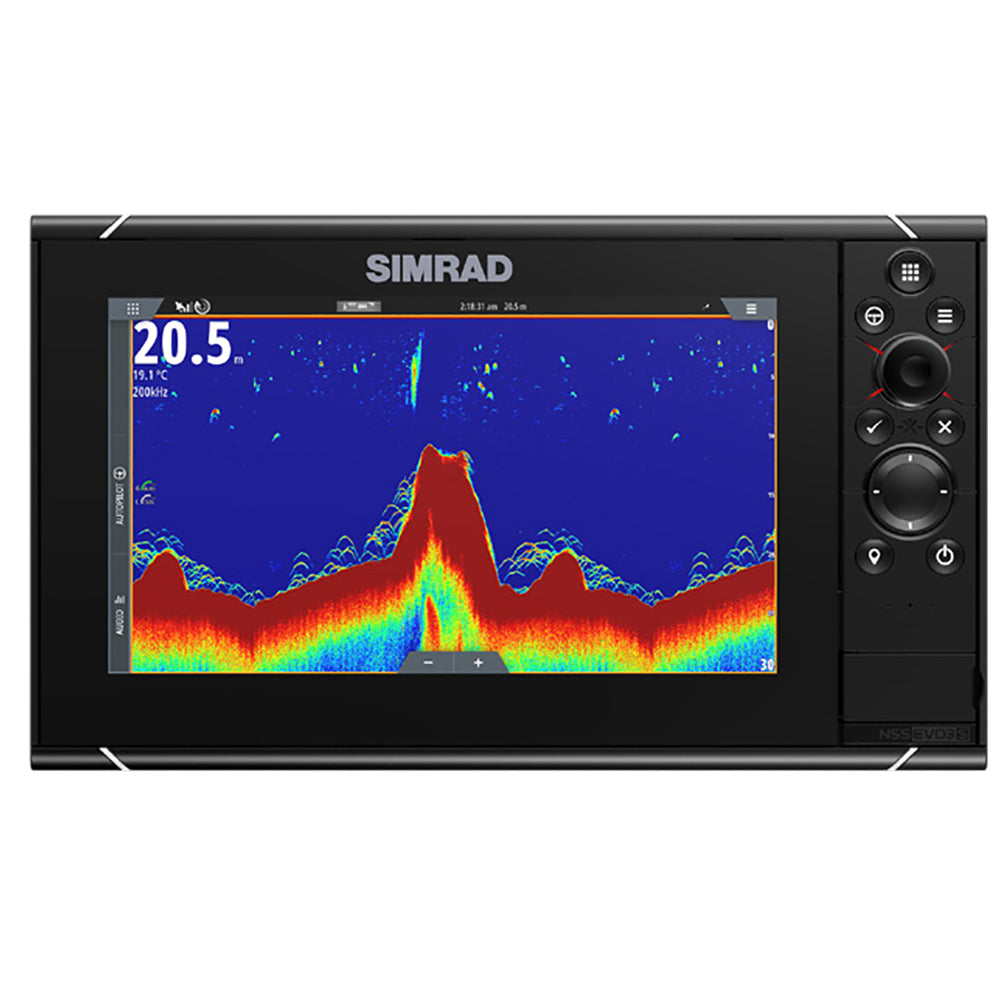

Simrad NSS9 evo3S Chartplotter/Fishfinder MFD [000-15402-001]

NSS9 evo3S Multi-Function Chartplotter/Fishfinder

Improved Charting experience with iMX8 processor

With a 2X faster page loading time, choosing any split screen combination with views in 3D or Navigation perspective has never been easier. NSSevo3S™ features a preloaded US Chart with high-resolution inland and coastal coverage, plus a C-MAP® Reveal layer of the ocean floor in Florida.

In addition to the preloaded C-MAP chart, NSSevo3S is compatible with a wide range of charting providers, including C-MAP, Navionics®, CMOR and Florida Marine Tracks.

Enhanced Sonar with superior on-water performance

1kW CHIRP-enabled sonar provides exceptional bottom-tracking and fish-finding performance. Dual transducer ports offer the convenience of connecting multiple transducers to a single display.

Better-than-ever processing power ensures Active Imaging™ delivers picture-like views of fish-holding structure, and crystal clear views of the bottom ahead using ForwardScan® sonar.

SolarMAX™ IPS displays for high-definition views

Clear views under any lighting condition with SolarMAX™ IPS technology, and ultra-wide viewing angles to keep everything in sight, even when viewed through polarized sunglasses.

These all-weather screens have been engineered to withstand the heat of the summer sun and are optically bonded to prevent condensation or fogging within the display.

UI Improvements

• A dark-themed wallpaper for less light pollution from a dash of multiple screens.
• The Audio side bar can now expand into a full page view.
• The addition of a chart orientation button to switch instantly between North up, Heading up and Course up without having to open the menu.
• The addition of a Tide Graph in the instrument bar to monitor tide changes without having to leave the existing page

Wireless connectivity for smartphones and tablets

Displays can be mirrored to compatible iOS and Android devices to access charts, radar, sonar, engine data and more. Wireless connectivity also enables online software upgrades through any internet hotspot, access to the latest features and accessory support.

The Simrad App can also be downloaded for added benefits – from device registration and manual downloads, to saving waypoints and your favorite fishing spots – accessible both on and off the water.

Radar Options

HALO® Pulse Compression radar systems can be added to negotiate crowded harbors, navigate safely in poor visibility, monitor distant weather squalls and even locate flocks of feeding birds in order to locate fishing spots.

FLIR IP Camera Support

Day and night situational awareness can be improved by adding a FLIR M232 thermal imaging camera. The M232 features a resolution of 320x240 and offers the ability to pan and tilt the camera to allow for 360 degree viewing while underway. The M232 distributes video over Ethernet allowing for both display and control from a NSSevo3S™.

WM-4 Receiver

Get up-to-date, detailed weather forecasts, weather radar, lightning, storm warnings, sea surface temperature, insight on favorable areas for particular fish species and more, when you complete your boat’s system with a WM-4 Receiver and a SiriusXM® Marine Satellite Weather subscription. Add audio to your Marine Weather or Fish Mapping* subscription and get access to more than 140 SiriusXM® radio channels at a discount.

Fast & Simple Networkingand Connectivity

Industry-standard connectivity to create multi-display systems and link to all on-board electronics, engine and fuel monitoring in real-time, control of on-board sound systems and much more.

Includes system expansion with Simrad modules and accessories, advanced fish-finding tools such as deep water S5100, Active Imaging™ 3-in-1 or TotalScan™, increased situational awareness with legendary HALO® Pulse Compression radar, and automated control with a fully integrated Simrad autopilot.

In The Box:

• Display Unit
• Bezel Trim
• Documentation pack
• Power cable kit
• U-bracket kit
• Panel mounting kit

Connections:

• Ethernet - Ethernet network
• Power - power, power control, and external alarm
• Video- composite video and NMEA0183
• NMEA 2000 - NMEA 2000 data
• Sonar CH1
• Sonar CH2

Specifications:

• Transducer Included: No
• Touchscreen: Yes
• Screen Size: 9"
• Cartography Brand: Navionics/C-Map/Lowrance
• Box Dimensions: 10"H x 12"W x 16"L WT: 9.15 lbs
• UPC: 9420064113569

Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)

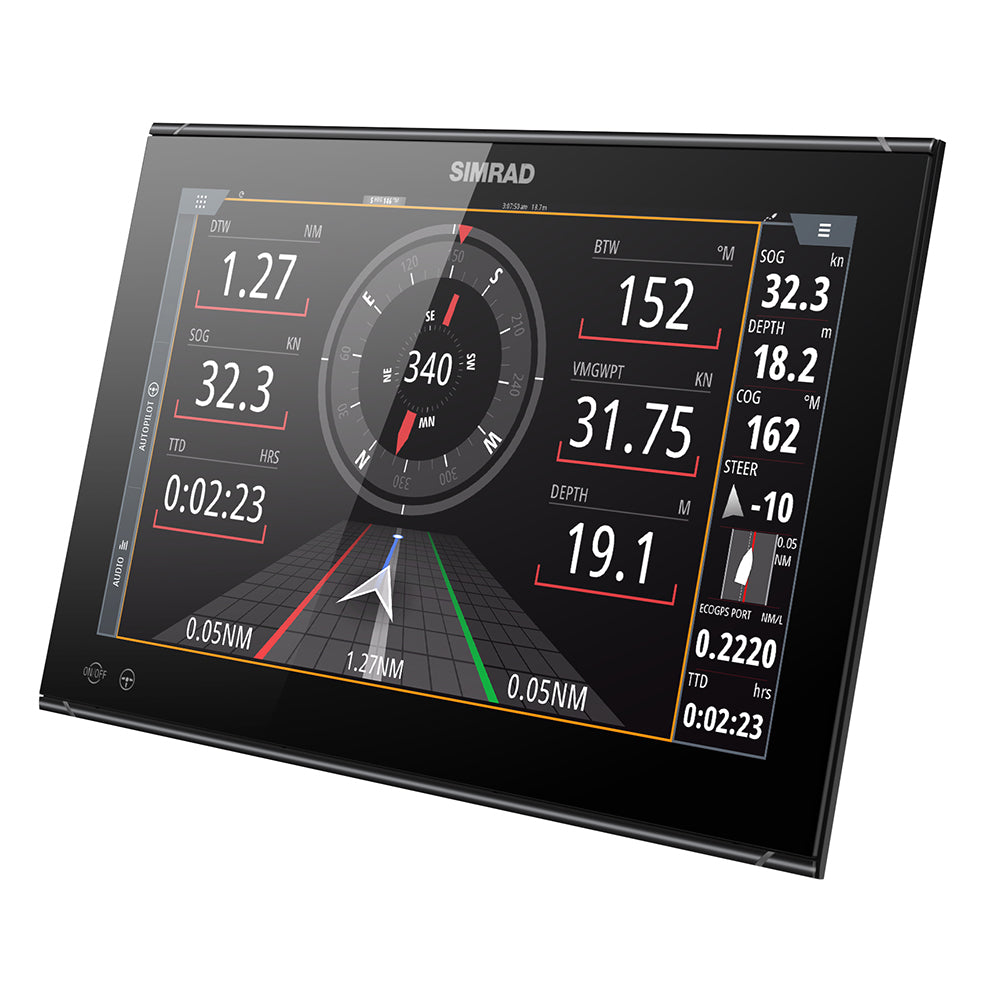

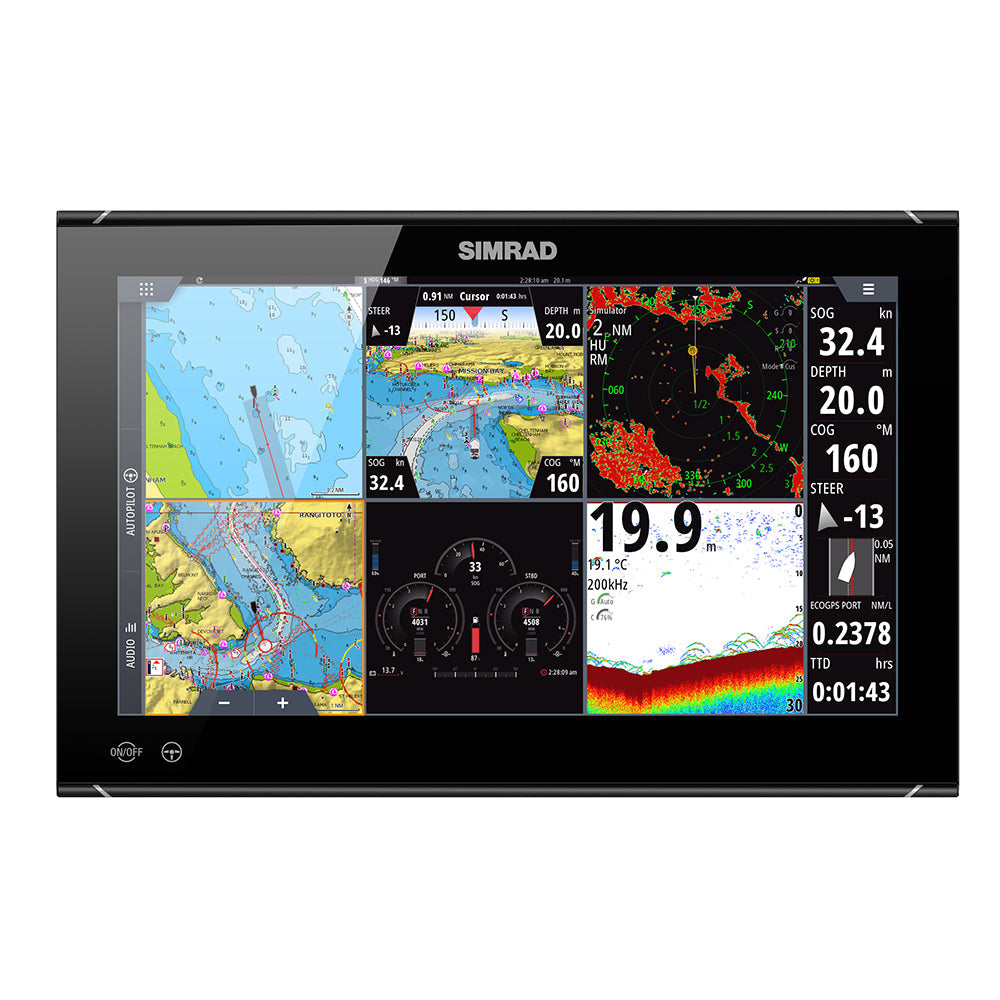

Simrad NSO evo3S 16" MFD Display Only [000-15047-001]

NSO evo3S 16" MFD Display Only

Ultimate Clarity

NSO evo3S delivers the ultimate view with an ultra-bright 16-inch display, ideal for both indoor and outdoor installations. Wide viewing angles keep the screen in view from anywhere in sight, even if you’re wearing polarised sunglasses. See more than ever with Full HD resolution, and the option to combine up to six panels in a split-screen layout.

Intuitive Control

A responsive, multi-touch display places control of your on-board electronics at your fingertips. Intuitively navigate charts, define waypoints, and take control of connected systems such as autopilot, radar, and sonar with a touch. A range of optional keypads add classic controls, perfect for fine adjustments or use in rough conditions.

Swift Response

Every NSO evo3S display features an integrated six-core processor for ultimately smooth response, from charting to StructureScan® 3D imaging. Enjoy swift access to the information you need, as you need it, whether you’re cruising the open ocean or carefully navigating a crowded harbour.

Glass Helm Style

NSO evo3S glass helm systems offer the perfect combination of form and function. Create your own custom helm layouts to suit any activity, and switch seamlessly between those layouts in an instant. Low-profile glass helm styling complements any helm design, from ultra-modern to timeless classic.

Fully Connected

Built-in wireless connectivity links NSO evo3S to your existing mobile devices for remote viewing and control, and delivers easy online software upgrades via any wireless internet hotspot. Wired Ethernet, NMEA 2000®, and J1939 networking provide almost limitless integration options, from vessel-wide display systems to radar, sonar, engine integration, and much more.

Features:

• Ultra-bright, Full HD 16-inch display
• Easy touchscreen control of your entire Simrad system
• Integrated six-core processor for ultimate performance
• Low-profile glass helm styling
• See more than ever with six-panel split screen option
• Connect with smartphones, tablets, and internet hotspots

In The Box:

• Display unit
• Suncover
• Bezels
• Power cable and connector block
• RJ45 to 5-pin Ethernet adapter cable
• NMEA 0183 connector block
• Documentation pack
• Cable retainer kit
• Panel mounting kit

Connections:

• NMEA 2000 - NMEA 2000 data
• J1939 - J1939 engine data
• USB - mouse, keyboard or mass storage
• NETWORK 1-3 - Ethernet network
• SD - microSD card reader
• HDMI OUT - HDMI video output
• VIDEO IN - composite video input
• HDMI IN - HDMI video input
• NMEA 0183 - NMEA 0183 data
• POWER - 12 - 24 V DC input, external alarm and power control

Specifications:

• Screen Size: 16"
• Cartography Brand: Navionics/C-Map/Lowrance/CMOR
• Transducer Included: No
• Touchscreen: Yes
• Box Dimensions: 7"H x 16"W x 21"L WT: 16.1 lbs
• UPC: 9420064105014

Quick Guide (pdf)
Owner's Manual (pdf)

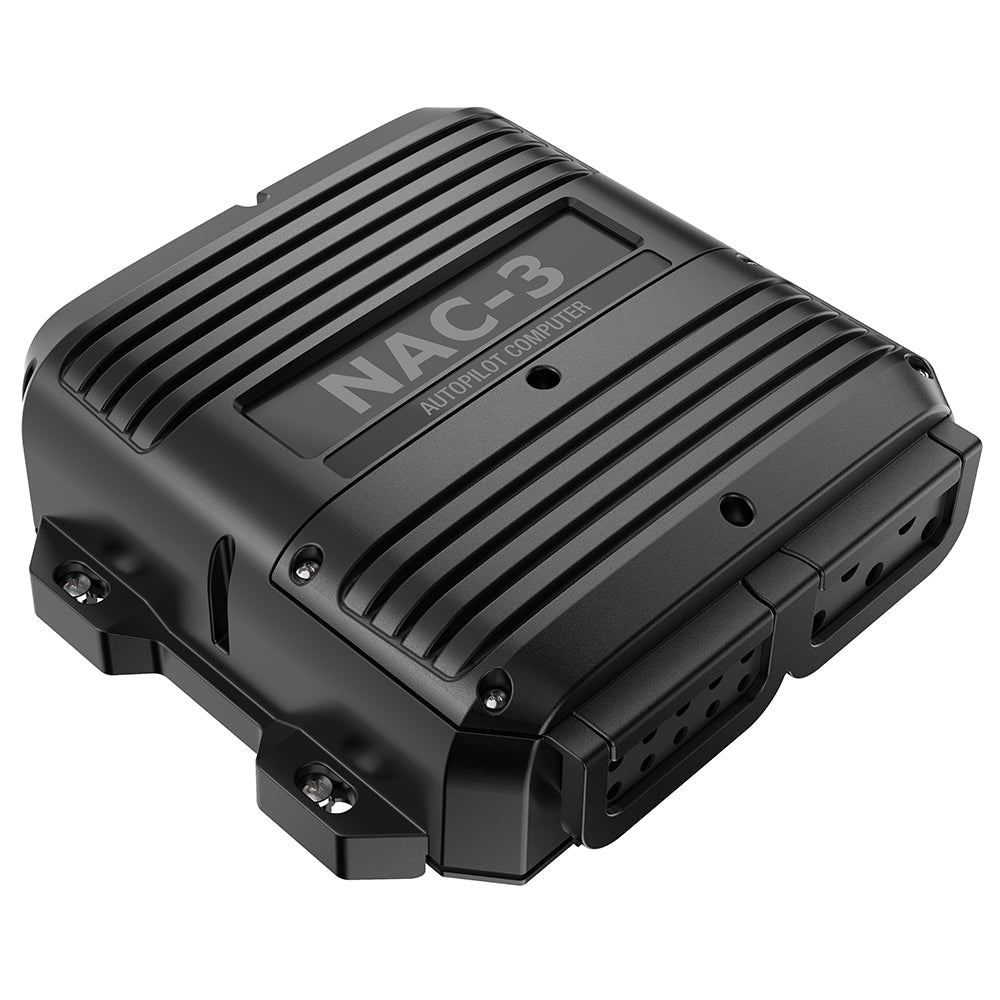

Simrad NAC-3 High Current Course Computer [000-13250-001]

NAC-3 High Current Course Computer

The NAC-3 Autopilot Computer is the brains behind your Simrad autopilot system. It contains the electronics needed to operate a hydraulic steering pump or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-3 was designed for boats 10M (33') or greater in length and is rated to operate high-current pumps, mechanical drive units, and solenoid valves (30 Amps continuous/50 Amps peak).

Features:

• Reliable autopilot performance based on Simrad Continuum™ steering technology

• Recommended for boats above 10M (33') in length

• High-current output of 30 Amps continuous, 50 Amps peak

• Clutch output (3 Amps maximum)

• Compatible with high-current drive pumps, mechanical drives, hydraulic linear drives, and solenoid valves

• Virtual rudder feedback for simplified installation aboard outboard and sterndrive (inboard/outboard) boats

• Supports Simrad RF25 and RF300 rudder feedback units

• NMEA 2000® connectivity to heading sensors, rudder feedbacks, dedicated autopilot controllers, and multifunction displays

• NMEA 0183® input

Specifications:

• Type: Parts
• Box Dimensions: 5"H x 9"W x 10"L WT: 3.2 lbs
• UPC: 9420024154397

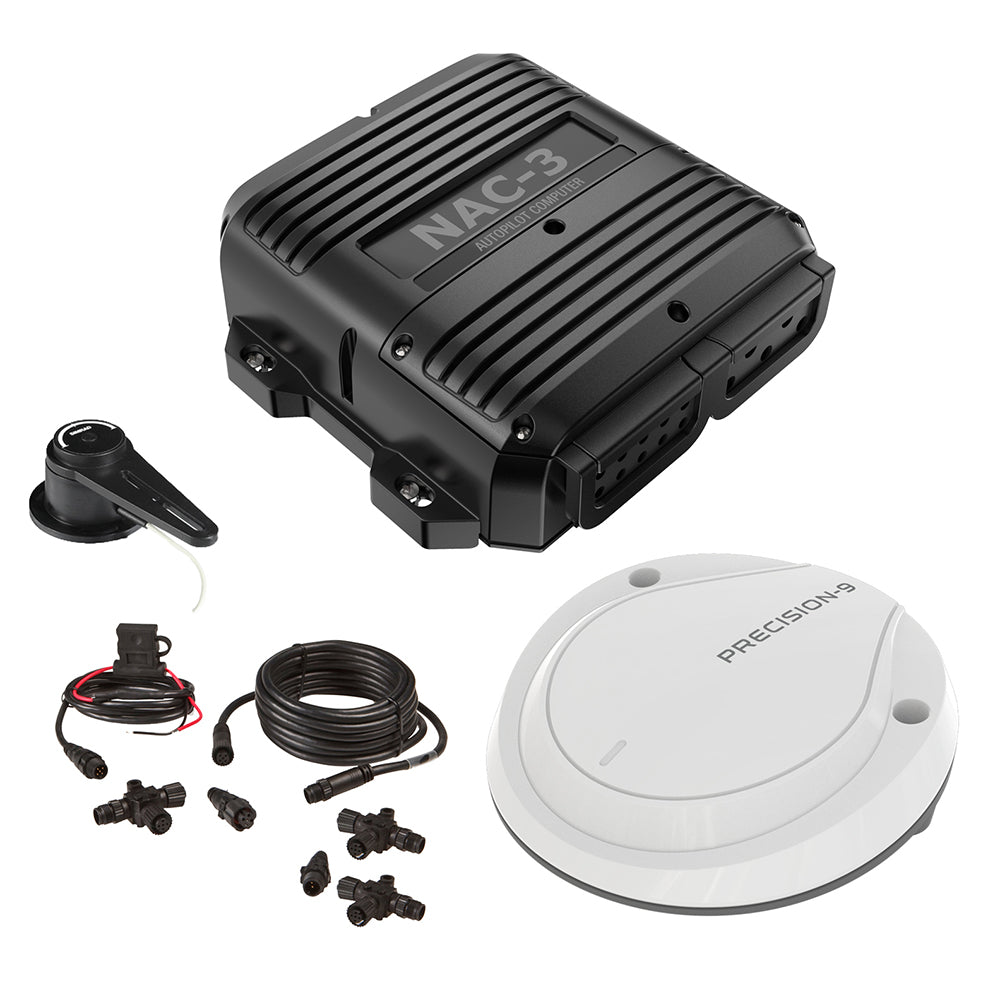

Simrad NAC-3 Autopilot Core Pack - NAC-3, Precision-9, RF25N & N2k Starter Kit [000-13336-001]

NAC-3 Autopilot Core Pack - NAC-3, Precision-9, RF25N & N2k Starter Kit

Comprising of the high-current NAC-3 autopilot computer, Precision-9 compass, RF-25 rudder feedback unit & N2k Starter Kit.

The NAC-3 Autopilot Computer is the brains behind your autopilot system. NAC-3 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-3 was designed for boats 10M (33') or greater in length and is rated to operate high-current hydraulic drives, mechanical drive units, and solenoid valves with a current rating of 30 Amps continuous (50 Amps peak).

Precision-9 Compass
The Precision-9 Compass. Outputs Heading (20 hZ), Rate Of Turn (20 hZ), roll, and pitch (10 hZ) over the NMEA 2000® network.

RF25N NMEA2000
RF25N, Rudder Feedback Unit: With transmission link and 5M (16.5') NMEA2000 Micro-C cable

N2k Backbone Starter Kit
NMEA 2000 Micro-C Network starter kit: Includes Network power cable, 4.5M (15') N2K cable, 3 x T-connectors, 2 x network terminators

Specifications:

• Temperature, operation: 0 to +55°C

• Temperature, storage: -32 to +70°C

• Protection: IPx7

• Weight in Kg: 0.7kg, 1.6lbs

• Dimmension Max size, mm (length x width x height): 211 x 196 x 65.5mm, 8.31" x 7,72" x 2.58"

• Mounting: Bulkhead

• Construction: Plastic

• Color: Black

• Cable inlet: Grommet (Spare Incl)

• Local Power supply: 12/24 V DC +10-30%

• NMEA 2000 Load Equivalent number (50mA): 1

• Reversible motor control of rudder: Max continious load 30A, peak 50A for 1s

• On/off solenoid control of rudder: 12/24V DC, common, load range 10mA to 10A, off current <1mA

• Engage output for bypass/clutch: 12/24V DC, min 10mA, max 3A

• Rudder angle, frequency input: 15V, 1.4 to 5kHz, resol. 20Hz/x OR NMEA2000

• NFU port/stbd input and mode indicator output: External open/close contact, common ret, contact current max 30mA

• Mode input: External open/close or pulse contact for SYSTEM SELECT, common ret, close to activate, contact current max 30mA

• External alarm output for buzzer/relay: Max 100mA, voltage level as local supply

• IEC 61162-1 input (NMEA0183 In): 1 ch

• IEC 61162-1 output (NMEA0183 Out): 1 ch

• IEC 61162-1 speed: 4.8 & 38.4 kbaud

• NMEA2000: Certified (pending)

Specifications:

• Steering Type: Hydraulic
• Box Dimensions: 14"H x 14"W x 18"L WT: 8.8 lbs
• UPC: 9420024155646

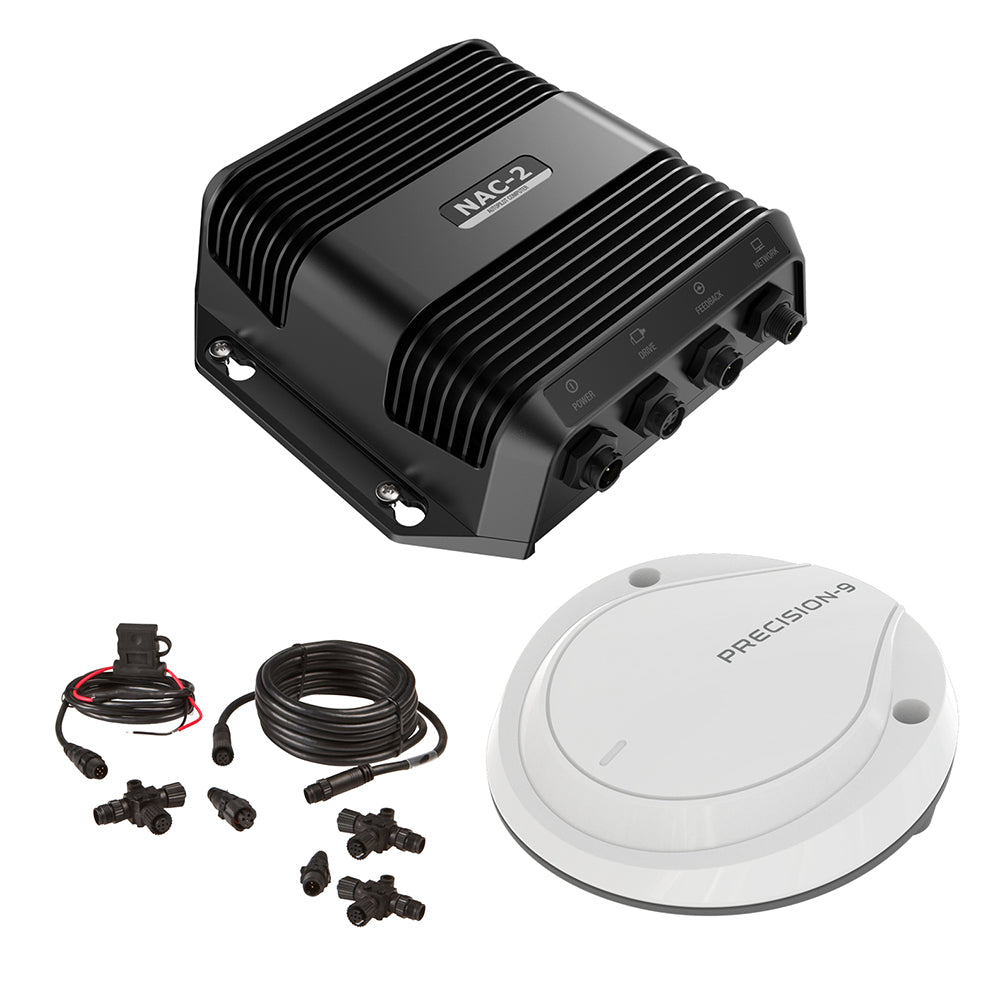

Simrad NAC-2 VRF Core Pack - NAC-2, Precision-9 & N2k Starter Kit [000-13337-001]

NAC-2 VRF Core Pack - NAC-2, Precision-9 & N2k Starter Kit

Comprising of the high-current NAC-2 autopilot computer, Precision-9 compass and N2k Starter Kit.

The NAC-2 Autopilot Computer is the brains behind your autopilot system. NAC-2 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-2 was designed for boats up to 10M (33') in length and is suitable for low-current hydraulic drives, mechanical drives, or solenoid valves with a current rating of 8 Amps continuous (12 Amps peak).

Precision-9 Compass

The Precision-9 Compass supplies heading and rate-of-turn information to Simrad, B & G and Lowrance autopilot, radar and navigation systems. Based on reliable solid-state sensor technology, this compact compass offers easy installation aboard any vessel.

N2k Backbone Starter Kit

NMEA 2000 Micro-C Network starter kit: Includes Network power cable, 4.5M (15') N2K cable, 3 x T-connectors, 2 x network terminators.

Features:

• Heading, Rate Of Turn (ROT), roll, and pitch output over NMEA 2000®
• Heading and ROT calculated using sensor data from 9 axes of rotation and motion
• Accurate and reliable solid-state sensor technology
• Heading accuracy of ±2° after calibration
• Easily adjustable mounting bracket allows bulkhead or up-mast installation
• IPX7 waterproof. Best in class.
• Simple installation with a single NMEA 2000® connection

  Specifications:
  • Operating temperature: -25°C to +55°C (13°F to 131°F)
  • Protection: Splashproof, IPx5
  • Weight: 0.6 kg (1.3 lbs)
  • Overall Dimensions: Width: 7.1" \ 180mm / Height: 2.2" \ 57mm
  • Power supply: 9-31.2 V DC
  • Load: 140 mA + drive unit load
  • Performance: Drive: 8 A cont., 16A for 1s
  • Network: 1xMicroC (NMEA2000)
  • Feedback: Variable voltage/resistive 0-5V
  • Drive output: To PUMP-1 or HELM-1
  • Power supply: 9-31.2 V DC
  • Solenoid: 12/24V DC, common, load range 10mA to 10A, off current <1mA
  • Clutch: 12/24V DC, min 10mA, max 3A

Precision-9 Specifications:

• Dimensions: H: 36mm (1.42"), W & D: 119mm (4.69")
• Weight: Module - 165g (5.8oz), Bracket - 130g (4.6oz)
• Supply and interface: 8-16 V via NMEA 2000
• Power consumption: 0.4 W
• NMEA 2000 Load Equivalence No. (LEN): 1
• NMEA 2000 ports (input/output): 1
• Calibration: Automatic (User Prompted)
• Repeatability: ± 1.0° (or better)
• Roll/Pitch range: ± 45°
• Heading accuracy: ± 2° after calibration
• Dynamic performance: with random excitation of ± 10° at max 1 Hz: |Heading error <2°: with heading step input of 90° at a rate of 10°/s: |Heading error 10 sec. after turn <2°
• Environmental protection: IPx7
• Compass safe distance: 0.5M(1.7')
• Temperature range operation: -25 to +65°C (-13 to +149°F)
• Temperature range Storage: -30 to +70°C (-22 to +158°F)

Specifications:

• Steering Type: Hydraulic
• Box Dimensions: 10"H x 10"W x 16"L WT: 7.2 lbs
• UPC: 9420024155653

Simrad NSO evo3S MPU Processor [000-15100-001]

NSO evo3S MPU Processor

Create truly customized multi-display systems with the NSO evo3S Processor – the ideal solution aboard powerboats 33' (10M) and larger.  This marine processor can drive two independent displays, supporting both touchscreen and non-touch monitors.  Expand and integrate to build your preferred system including navigation, radar, sonar, autopilot, and more.

 Features:

• Build a tailored, multi-display system that is perfect for you and your boat with the modular NSO evo3S system. The NSO evo3S marine processor is a compact ‘black box’ solution containing two Quad-Core processors and the connectivity options needed to integrate and expand your system vessel-wide.
• Dual monitor support - enabling two independent stations
• Quad-Core processors for supreme performance. The NSO evo3S processor features two quad-core processors delivering category-leading response times across connected displays.
• Industry-standard vessel-wide connectivity. NSO evo3S systems offer vessel-wide integration, with Ethernet and industry-standard NMEA 2000® connectivity with an extensive selection of Simrad and third-party accessories.

 Technical Specifications:

• Connectivity - NMEA 2000, NMEA 0183, ethernet, video inputs x 2, video output x 1, Wi-fi compatible with external module
• Languages - Standard Simrad language pack
• Supply Voltage - 9 - 31.2 V DC
• Waterproof rating - IPX2
• Dimensions (W x H x D) - 11" x 9.1" x 2.5" (281 x 232 x 66 mm)
• Weight - 2.33lb (1.06kg)

In the Box:

• Processor x 1
• Power cable - 6.5' (2 M) 4 pin to bare wire x 1
• Ethernet cable - 4" (.1 M) x 1
• NMEA 0183 cable - 6.5" (2 M) x 1
• NMEA 2000 cable - 6' (1.8 M) x 1
• NMEA 2000 power cable with T-Connector - x 1
• NMEA 200 terminal resistor kit x 1
• NMEA 2000 T-Connector x 2
• Instruction manual

*Sold as an Individual

Owner's Manual (pdf)
