Marine Navigation & Instruments

B75HW High Wide Tilted Element Chirp Transducer - 20 Degree Deadrise, 600W Thru Hull

Requires Mix and Match Cable for the appropriate Fishfinder it will be connected to.

Airmar’s low-profile Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The B75HW combines the benefits of the high-frequency band for amazing target separation on baitfish and schooling gamefish, with a wide 30° beamwidth for maximum coverage under the boat. The B75H transducer delivers up to 100 kHz of total bandwidth in just one installation and delivers amazing coverage under the boat in depths to 106 meters (350').

B75HW transmits across the following bandwidth: High frequency 150 to 250 kHz

The transducer is installed almost flush to the hull. The tilt of the element corrects for the hull deadrise by orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings. Fixed 20° tilted version for 16° to 24° hull deadrise

Features:

•  Depth and fast-response water-temperature sensor
• 600 W with a maximum depth performance of 106 m (350')
• High frequency: 150 to 250 kHz
• 30° beamwidth
• High frequency delivers great shallow-water performance, bottom detail, and clear fish-target returns
• Low-profile, thru-hull housing provides good resolution at speed when installed properly
• Bronze housing for use on stepped, planing, or displacement hull
• Exclusive Xducer ID® technology
• Fixed 20° tilted version for 16° to 24° hull deadrise
• Hole Size: 70 mm (2-13/16")
• CHIRP-Ready Single-Band

Specifications:

• Cable Length (Feet): 30'
• Chirp: High Wide
• Imaging: Standard
• Mounting Style: Thru-Hull
• Pins: 12
• Speed Included: No
• Temperature: Yes
• Box Dimensions: 5"H x 8"W x 12"L WT: 5.9 lbs
• UPC: 801769018141

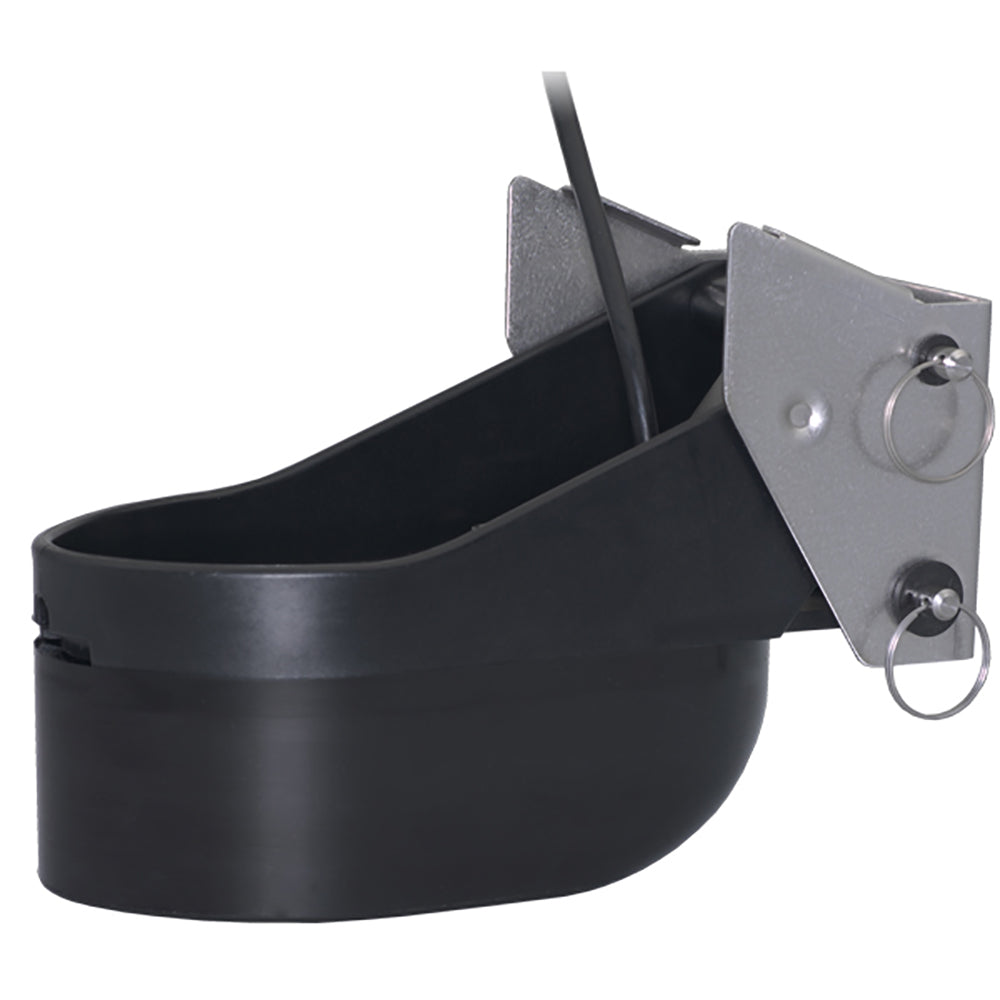

TM275LHW Transom Mount CHIRP Transducer with Temp - 12-Pin Connector for TZT3

The 275LH-W series transducers are truly broadband at its best. Paired with Furuno’s DFF1-UHD, the transom mounted TM275LH-W provides a high frequency range of 150-250Khz and a constant 25° beamwidth. The “W” stands for wide and that’s what the TM275LH-W really delivers. Unlike traditional high frequency (200kHz) transducers that provide narrow performance, this unique, new wide beam/high frequency design achieves over six times the coverage under the boat compared to standard high-frequency CHIRP Transducers.

The TM275LH-W is also compatible with the FCV295 and FCV1150 variable frequency Fish Finders, providing the same frequency range with a 25° wide beamwidth provided at every frequency.

Features:

• Plastic
• Transom Mount CHIRP Transducer with Temp
• Low Freq: 42-65 kHz
• High Freq: 150-250 kHz

Octopus Autopilot Pump Type 2 - Adjustable Reversing Pump - 12V up to 18 CI Cylinder [OCTAF1212]

Autopilot Pump Type 2 - Adjustable Reversing Pump - 12V up to 18 CI Cylinder

Now with ORB Port Connection manifold

Reversing pumps are used when hydraulic steering is fitted on boats up to 65 feet L.O.A. (depending on rudder torque). The pumps are switched on by the automatic pilot and make a steering correction to left or right determined by the direction of rotation of the pump motor. The motors are of the permanent magnetic type and reversing direction is accomplished by reversing the motor input current.

The pump has only three moving parts and requires no complicated check valves to prevent rudder movement when de-energized. Output flow is completely adjustable to 50% of rated flow allowing the pump output to be adjusted precisely to the volume of steering cylinder fitted. The pump is exceptionally reliable and delivers more than twice the hydraulic output per watt of input than gear pumps manufactured by competitors.

Motors are heavy duty, a full 85mm in diameter with long brushes and sealed ball bearings for long service life. The molded rubber mounting foot can be rotated to allow the pump to be mounted on any surface.

A useful range of accessories can be used to enhance the pump by incorporating added valves and solid state FET switching. The valves mount directly to the pump body. The FET switch mounts adjacent to the pump. No other autopilot pump made offers such advantages.

Benefits of the Octopus Reversing Pumps
Piston pump technology giving higher efficiency and accuracy Fewer moving parts giving increased reliability Variable flow rate to make sure the pump is matched as accurately as possible to the manual steering system Professional cut off valves for simple servicing.

Features:

• Average Current 4-6 amps
• Max Current 19amps
• 12vDC
• Cylinder Size: 11-22ci
• Flow Rate(adjustable): 600cc - 1.2 litre/min

Specifications:

• Type: Pumps/Drives
• Box Dimensions: 5"H x 6"W x 12"L WT: 8.35 lbs
• UPC: 628309272777

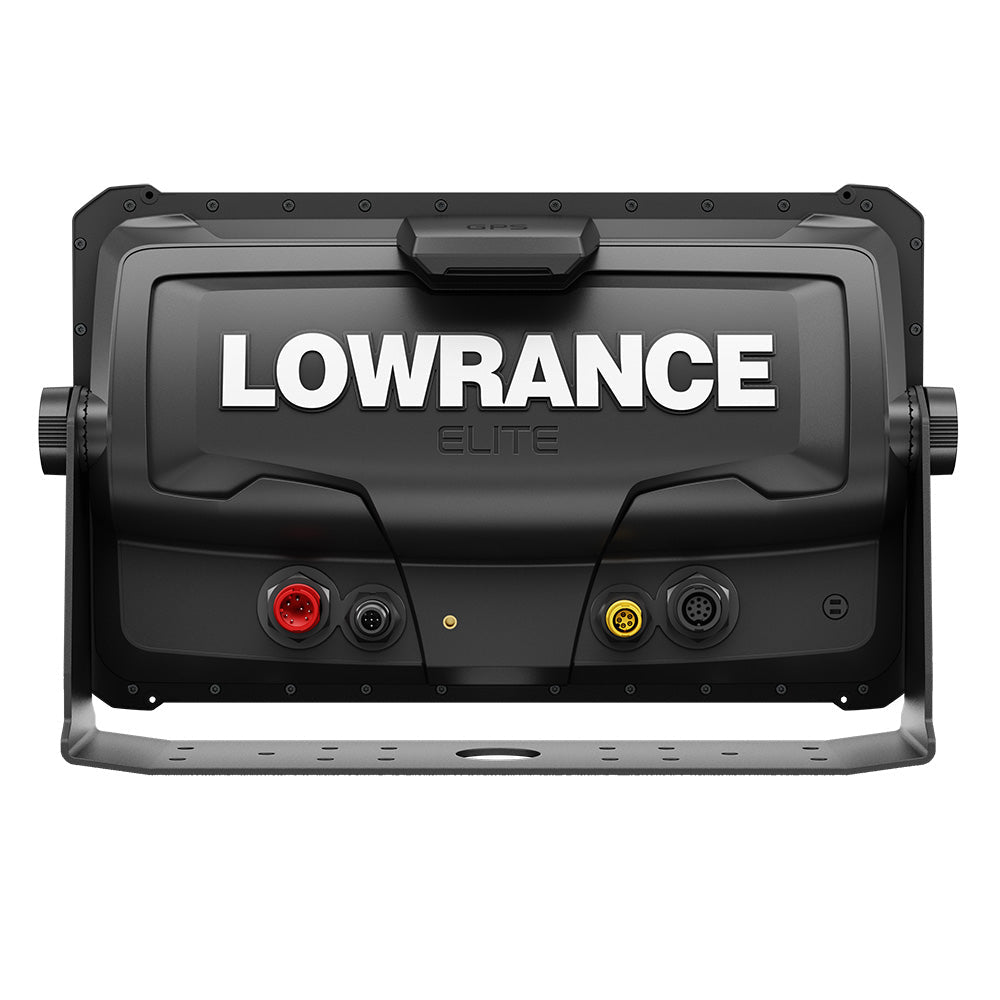

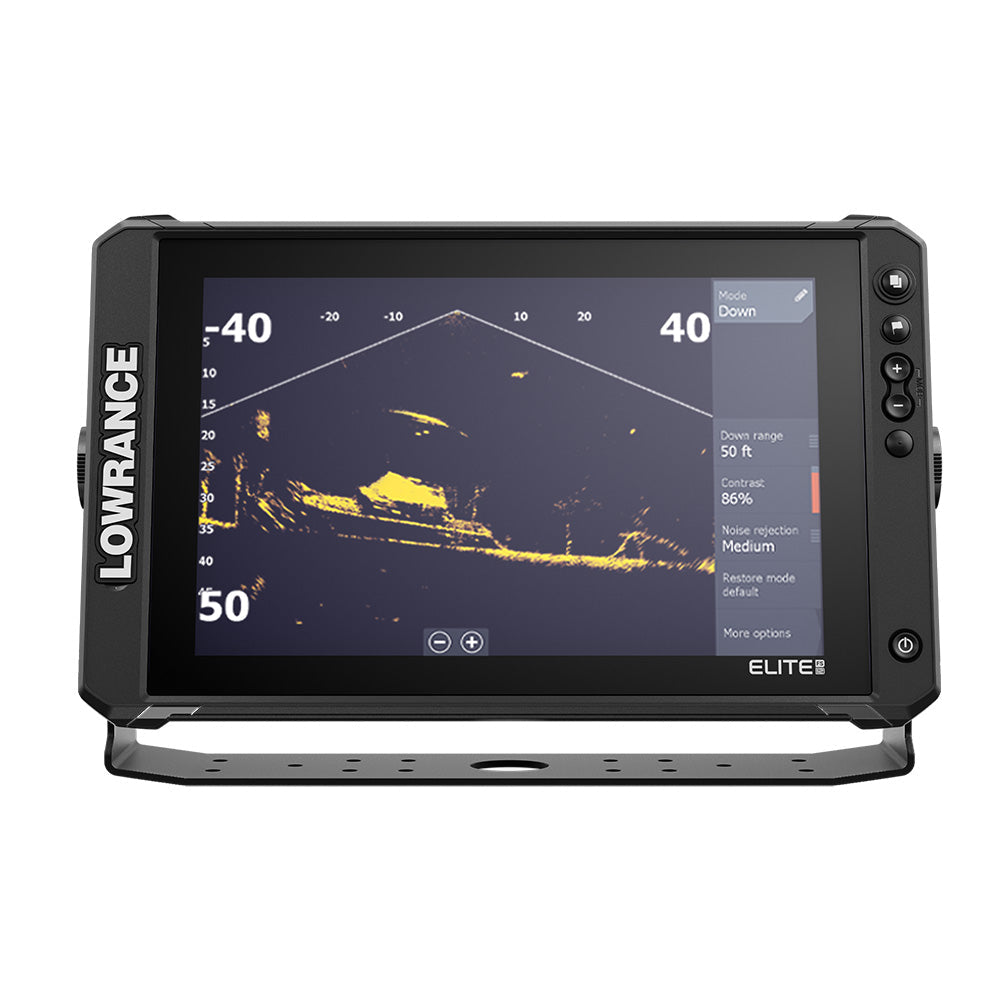

Lowrance Elite FS 12 - No Transducer [000-16431-001]

Elite FS 12 - No Transducer

The Elite Fishing System (FS) gives you access to the full line-up of Lowrance fishfinding tools – including ActiveTarget™ 2 live sonar, Active Imaging™, Active Imaging HD*, and preloaded C-MAP®Discover Onboard charts – to help you make the most of your time on the water.

Target Fish Live with ActiveTarget 2 Live Sonar

Fish smarter when you know exactly what fish are doing – in real-time – with ActiveTarget™ 2 Live Sonar. Enjoy high-resolution views of fish movements, tracking them as they swim in and around the cover.

Watch their real-time response to your lure and you will know if your current technique is working or if it’s time to switch things up.  Note: No ActiveTarget 2 split screen options in 10 & 12 models

Find More Fish With Active Imaging 3-In-1

See structure and cover with a new level of refined detail and at a range unmatched by any other structure imaging technology with Active Imaging™  and Active Imaging™ HD* 3-in-1 sonar featuring CHIRP, SideScan, and DownScan Imaging™ with FishReveal™.

Get the best of CHIRP sonar and DownScan Imaging™ on one screen with FishReveal, a Lowrance exclusive that helps you easily recognize fish from structure and cover on high-detailed DownScan images.

Find Key Fishing Areas With C-MAP Discover Onboard

Spend more time trying to catch fish and less time trying to find them with the high-resolution detail of C-MAP® Discover Onboard inland and coastal charts built into Elite FS displays.

From finding key fishing areas, like ledges, drop-offs, and ditches to navigating with precision to fish-holding areas, you will have more success on the water with high-resolution 1-foot contours on 19,000 lakes across the U.S. and more than 9,400 in Canada.

Features:

• ActiveTarget™ 2 Live Sonar ready
• Active Imaging 3-in-1 ready
• Active Imaging HD 3-in-1 ready with a S3100 Sonar Module
• FishReveal™
• Preloaded C-MAP Discover Onboard with 1-foot contours 19,000 lakes across the U.S. and more than 9,400 in Canada, plus mapping options including C-MAP, Navionics®, and more C-MAP® Easy Routing, Navionics® Autorouting™ capability
• C-MAP Genesis Live onscreen mapping
• High-resolution multi-touch touchscreen
• Integrated wireless, NMEA 2000® and Ethernet connectivity
• Full touchscreen control of Recon and Ghost® Trolling Motor, as well as Power Pole® Anchors
• Sirus XM weather compatibility with WM4

*Active Imaging HD requires S3100 Module

Specifications:

• Cartography Brand: Navionics/C-Map/Lowrance
• Screen Size: 12"
• Touchscreen: Yes
• Transducer Included: No
• Box Dimensions: 7"H x 16"W x 18"L WT: 11.3 lbs
• UPC: 9420064137466

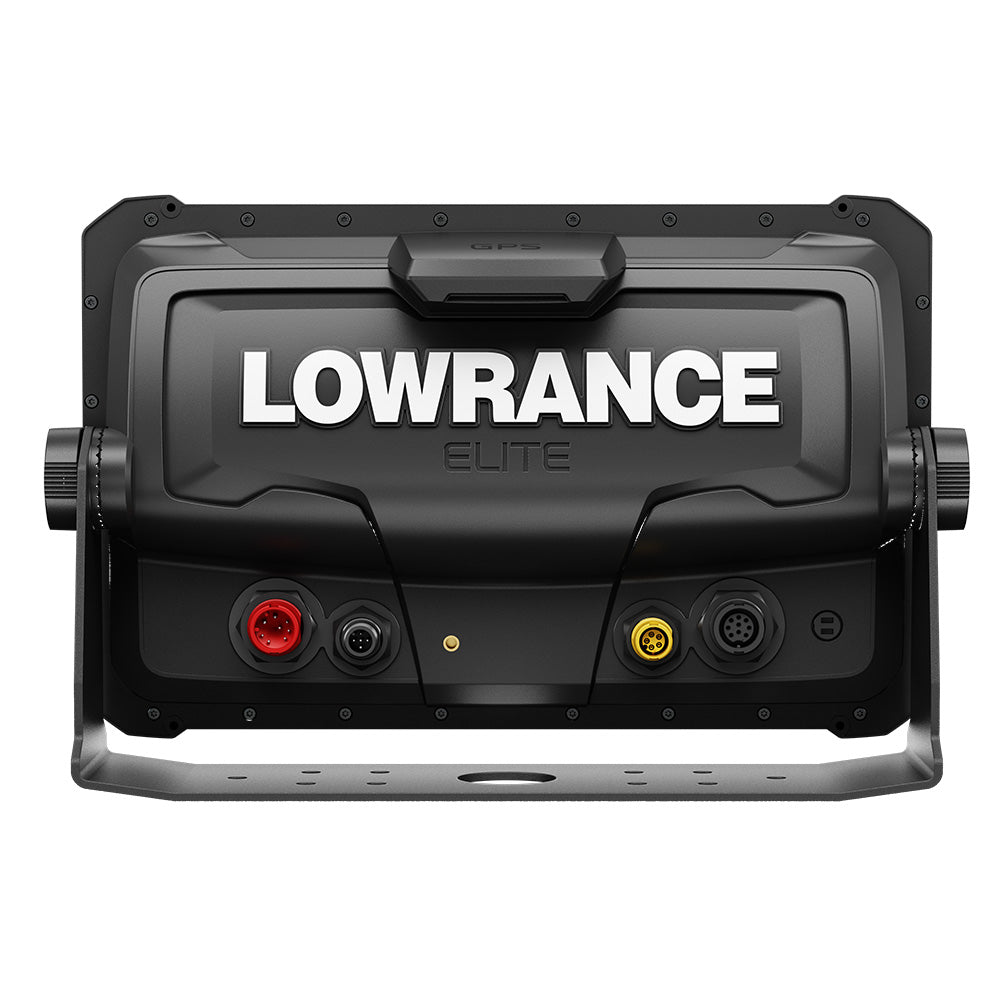

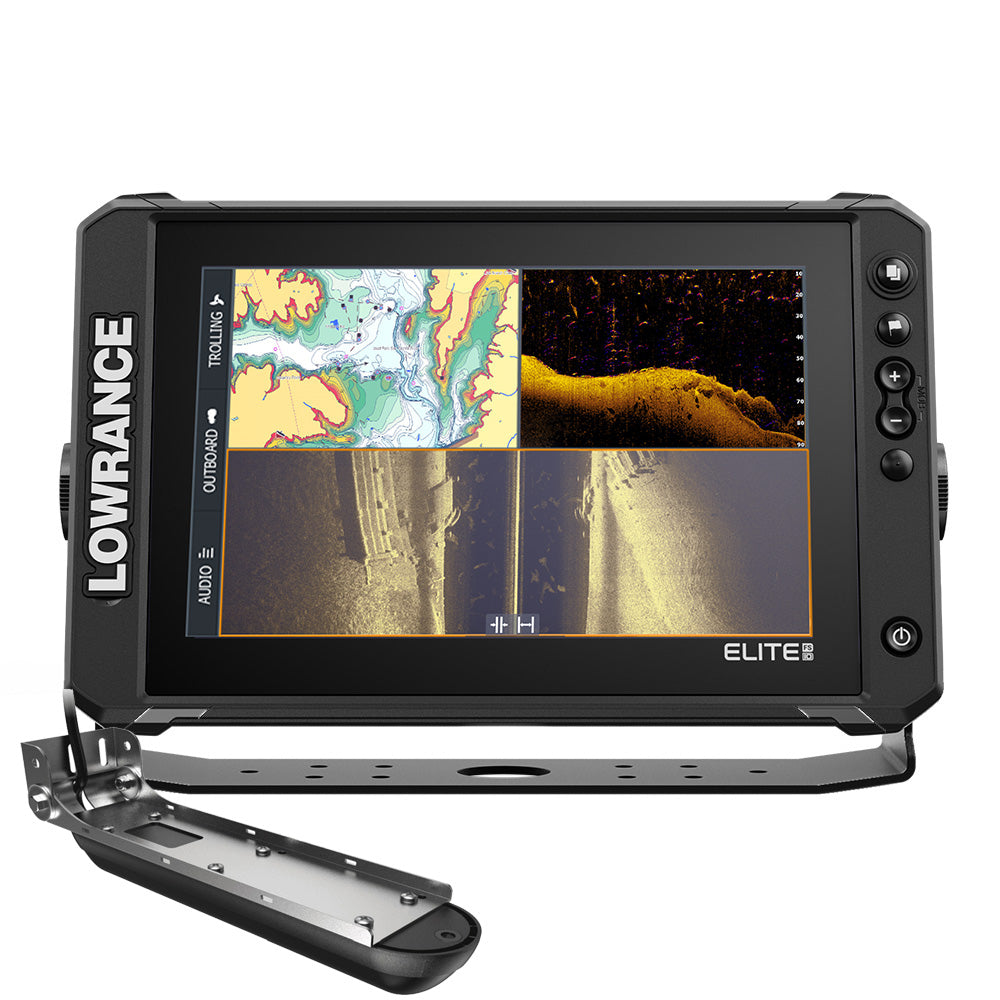

Lowrance Elite FS 10 w/Active Imaging 3-In-1 [000-16430-001]

Elite FS 10 with Active Imaging 3-In-1

The Elite Fishing System (FS) gives you access to the full line-up of Lowrance fishfinding tools – including ActiveTarget™ 2 live sonar, Active Imaging™ and Active Imaging™ HD*, and preloaded C-MAP® Discover Onboard charts – to help you make the most of your time on the water.

Target Fish Live With ActiveTarget 2 Live Sonar

Fish smarter when you know exactly what fish are doing – in real-time – with ActiveTarget™ 2 Live Sonar. Enjoy high-resolution views of fish movements, tracking them as they swim in and around the cover.

Watch their real-time response to your lure and you will know if your current technique is working or if it’s time to switch things up.  Note: No ActiveTarget 2 split screen options in 10 & 12 models

Find More Fish With Active Imaging 3-In-1

See structure and cover with a new level of refined detail and at a range unmatched by any other structure imaging technology with Active Imaging™  and Active Imaging™ HD* 3-in-1 sonar featuring CHIRP, SideScan, and DownScan Imaging™ with FishReveal™.

Get the best of CHIRP sonar and DownScan Imaging™ on one screen with FishReveal, a Lowrance exclusive that helps you easily recognize fish from structure and cover on high-detailed DownScan images.

Find Key Fishing Areas With C-MAP Discover Onboard

Spend more time trying to catch fish and less time trying to find them with the high-resolution detail of C-MAP® Discover Onboard inland and coastal charts built into Elite FS displays.

From finding key fishing areas, like ledges, drop-offs, and ditches to navigating with precision to fish-holding areas, you will have more success on the water with high-resolution 1-foot contours on 19,000 lakes across the U.S. and more than 9,400 in Canada.

Features:

• ActiveTarget™ 2 Live Sonar ready
• Active Imaging 3-in-1 ready
• Active Imaging HD 3-in-1 ready with a S3100 Sonar Module
• FishReveal™
• Preloaded C-MAP Discover Onboard with 1-foot contours 19,000 lakes across the U.S. and more than 9,400 in Canada, plus mapping options including C-MAP, Navionics®, and more C-MAP® Easy Routing, Navionics® Autorouting™ capability
• C-MAP Genesis Live onscreen mapping
• High-resolution multi-touch touchscreen
• Integrated wireless, NMEA 2000® and Ethernet connectivity
• Full touchscreen control of Recon™ and Ghost® Trolling Motor, as well as Power Pole® Anchors
• Sirus XM weather compatibility with WM4

*Active Imaging HD requires S3100 Module

Specifications:

• Cartography Brand: Navionics/C-Map/Lowrance
• Included Transducer: 000-14489-001
• Screen Size: 10"
• Touchscreen: Yes
• Transducer Included: Yes
• Box Dimensions: 6"H x 14"W x 16"L WT: 11.7 lbs
• UPC: 9420064137459

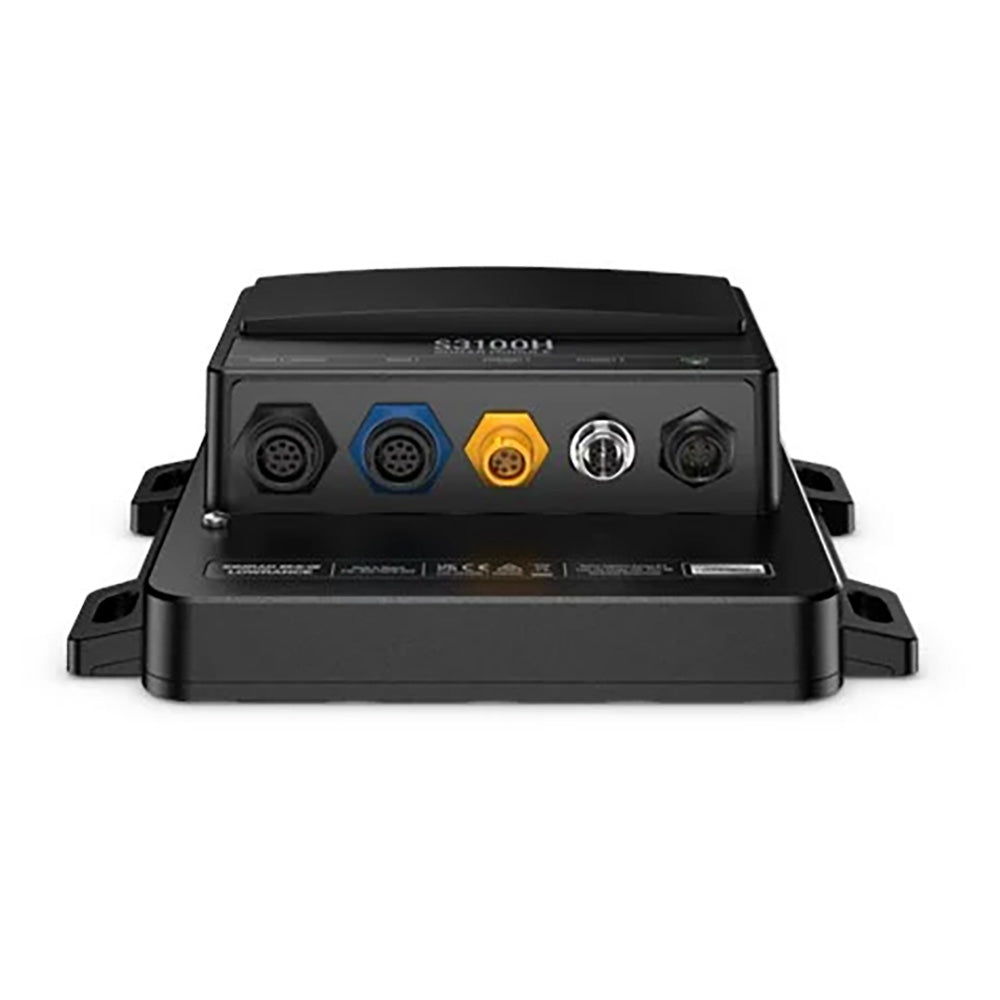

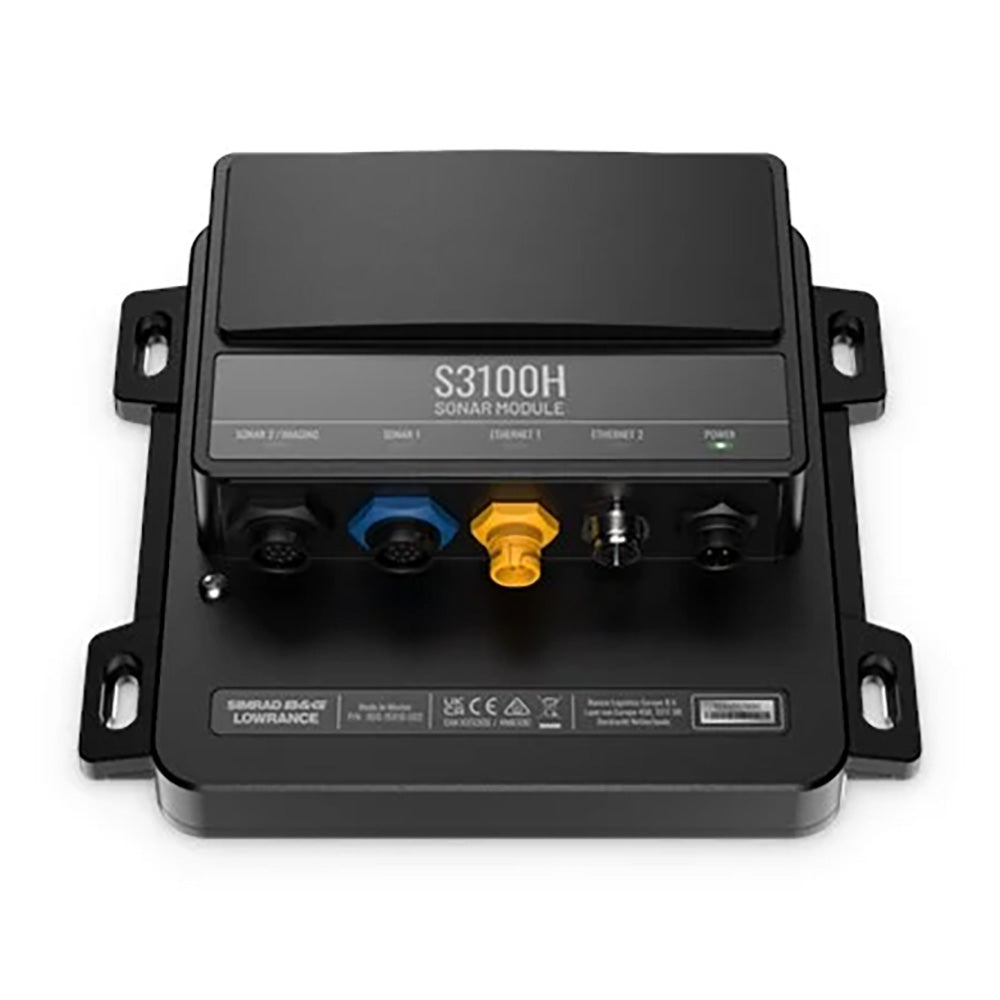

Lowrance S3100H Sonar Module [000-15918-002]

S3100 Sonar Module

The compact S3100H sonar module takes your fishing to the next level, with a wealth of powerful fishing features packed into one small but intelligent box. The S3100H brings heave-compensated Active Imaging™ HD to select Simrad® & Lowrance® displays for next-level fishing in all conditions. Experience superior underwater clarity and a FishReveal™ view on SideScan, so you’ll never miss another fish.

Add heave compensation

Fish with a clearer picture in all conditions with heave compensation. This added feature automatically counteracts rocky waters, reducing noise on your sonar images and ensuring it’s easy to spot fish and underwater structure even when the water’s churning.

Boost your clarity

By unlocking compatibility with Active Imaging™ HD on more Simrad® and Lowrance® displays, the S3100H introduces enhanced clarity to your underwater views. Benefit from the cutting-edge of CHIRP sonar technology, and get crystal-clear views of fish and structure beneath and around your boat.

Add FishReveal™ to SideScan

The S3100H doesn’t just boost clarity, it also brings additional underwater views. With the FishReveal feature on SideScan, you’ll see a more complete picture of the waters around your boat, meaning you’ll never miss another fish.

Track multiple depths

Don’t be limited by the size of your boat. With two fully independent 1kW sonar channels, you can turn your small or mid-sized cruising vessel into a sportfishing powerhouse, connecting two additional transducers to track multiple depth ranges simultaneously.

Smaller, more sustainable design

Designed for easy installation and broad compatibility, the S3100’s reduced size means it can be placed almost anywhere on the boat. Centrally positioned for easy access, the updated offset connectors enable more compact, cleaner installations.

As we look to safeguard the future of our waters, the S3100’s housing is manufactured using 50% recycled plastics, as part of our ongoing commitment to sustainability.

Features:

• Brings Active Imaging™ HD support to select Simrad® & Lowrance® displays
• Heave compensation provides a clear picture in all conditions
• Opens up SideScan and DownScan Imaging™ to an impressive 1.2 MHz for superior resolution and clarity
• Adds FishReveal™ to SideScan
• Compatible with wide-angle transducers for improved coverage
• Track multiple depth ranges simultaneously by combining any two CHIRP frequency ranges.
• 1GB Ethernet capability
• Compact footprint
• Made from recycled plastics

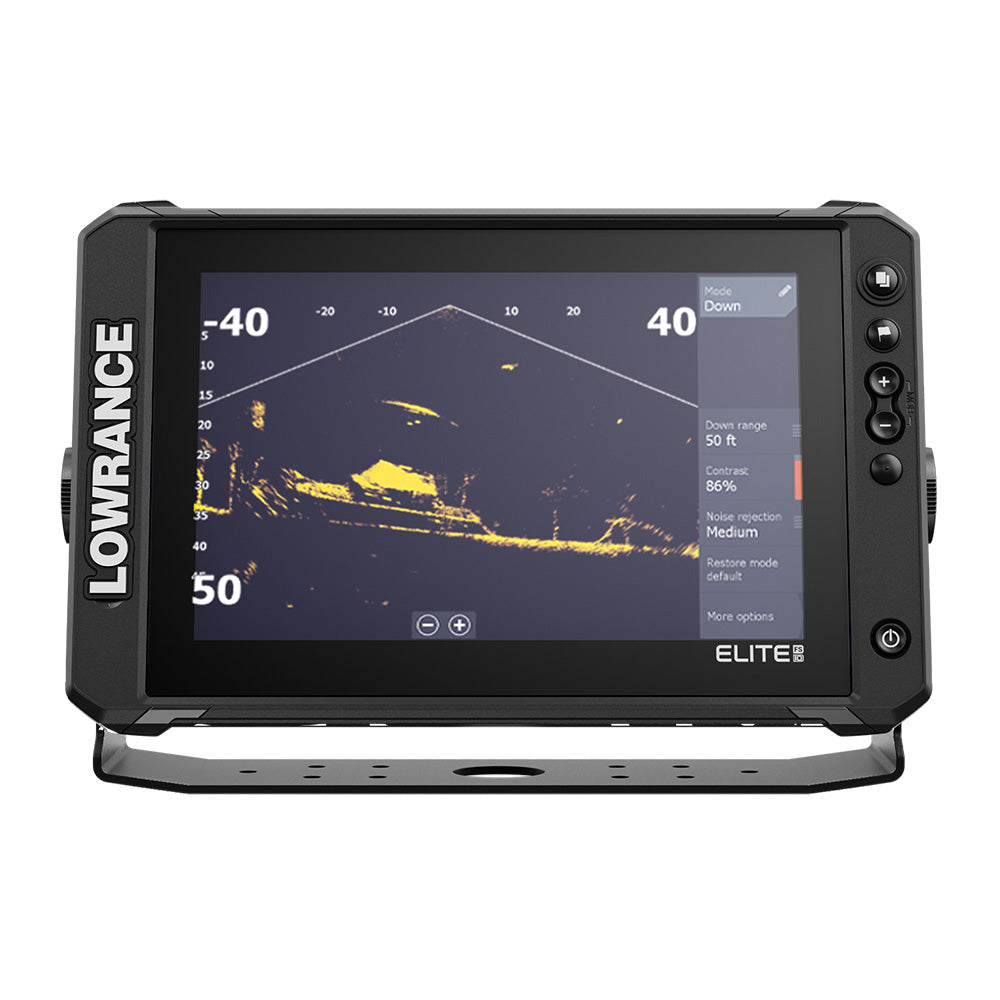

Lowrance Elite FS 10 - No Transducer [000-16429-001]

Elite FS 10 - No Transducer

The Elite Fishing System (FS) gives you access to the full line-up of Lowrance fishfinding tools – including ActiveTarget™ 2 live sonar, Active Imaging™, Active Imaging HD*, and preloaded C-MAP®Discover Onboard charts – to help you make the most of your time on the water.

Target Fish Live with ActiveTarget 2 Live Sonar

Fish smarter when you know exactly what fish are doing – in real-time – with ActiveTarget™ 2 Live Sonar. Enjoy high-resolution views of fish movements, tracking them as they swim in and around the cover.

Watch their real-time response to your lure and you will know if your current technique is working or if it’s time to switch things up.  Note: No ActiveTarget 2 split screen options in 10 & 12 models

Find More Fish With Active Imaging 3-In-1

See structure and cover with a new level of refined detail and at a range unmatched by any other structure imaging technology with Active Imaging™  and Active Imaging™ HD* 3-in-1 sonar featuring CHIRP, SideScan, and DownScan Imaging™ with FishReveal™.

Get the best of CHIRP sonar and DownScan Imaging™ on one screen with FishReveal, a Lowrance exclusive that helps you easily recognize fish from structure and cover on high-detailed DownScan images.

Find Key Fishing Areas With C-MAP Discover Onboard

Spend more time trying to catch fish and less time trying to find them with the high-resolution detail of C-MAP® Discover Onboard inland and coastal charts built into Elite FS displays.

From finding key fishing areas, like ledges, drop-offs, and ditches to navigating with precision to fish-holding areas, you will have more success on the water with high-resolution 1-foot contours on 19,000 lakes across the U.S. and more than 9,400 in Canada.

Features:

• ActiveTarget™ 2 Live Sonar ready
• Active Imaging 3-in-1 ready
• Active Imaging HD 3-in-1 ready with a S3100 Sonar Module
• FishReveal™
• Preloaded C-MAP Discover Onboard with 1-foot contours 19,000 lakes across the U.S. and more than 9,400 in Canada, plus mapping options including C-MAP, Navionics®, and more C-MAP® Easy Routing, Navionics® Autorouting™ capability
• C-MAP Genesis Live onscreen mapping
• High-resolution multi-touch touchscreen
• Integrated wireless, NMEA 2000® and Ethernet connectivity
• Full touchscreen control of Recon and Ghost® Trolling Motor, as well as Power Pole® Anchors
• Sirus XM weather compatibility with WM4

*Active Imaging HD requires S3100 Module

Specifications:

• Cartography Brand: Navionics/C-Map/Lowrance
• Screen Size: 10"
• Touchscreen: Yes
• Transducer Included: No
• Box Dimensions: 6"H x 14"W x 16"L WT: 8.65 lbs
• UPC: 9420064137442

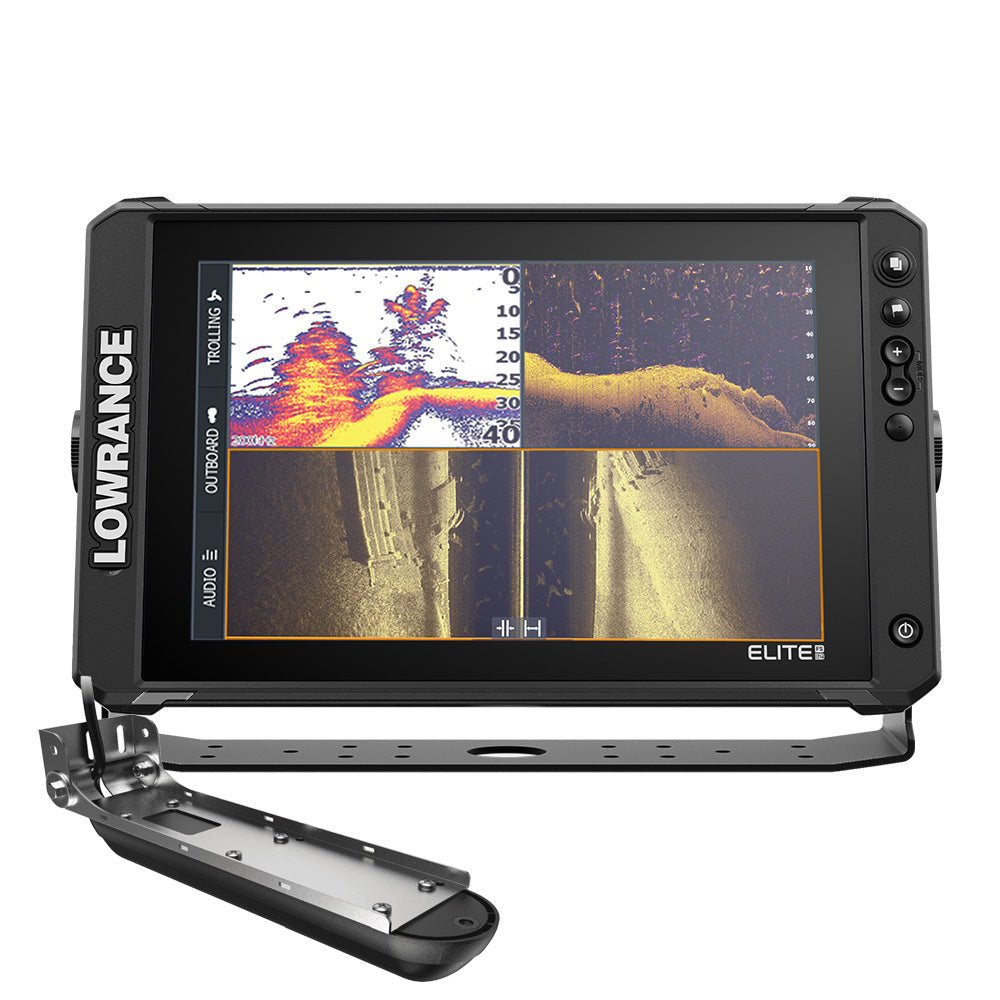

Lowrance Elite FS 12 w/Active Imaging 3-In-1 [000-16432-001]

Elite FS 12 with Active Imaging 3-In-1

The Elite Fishing System (FS) gives you access to the full line-up of Lowrance fishfinding tools – including ActiveTarget™ 2 live sonar, Active Imaging™ and Active Imaging™ HD*, and preloaded C-MAP® Discover Onboard charts – to help you make the most of your time on the water.

Target Fish Live With ActiveTarget 2 Live Sonar

Fish smarter when you know exactly what fish are doing – in real-time – with ActiveTarget™ 2 Live Sonar. Enjoy high-resolution views of fish movements, tracking them as they swim in and around the cover.

Watch their real-time response to your lure and you will know if your current technique is working or if it’s time to switch things up.  Note: No ActiveTarget 2 split screen options in 10 & 12 models

Find More Fish With Active Imaging 3-In-1

See structure and cover with a new level of refined detail and at a range unmatched by any other structure imaging technology with Active Imaging™  and Active Imaging™ HD* 3-in-1 sonar featuring CHIRP, SideScan, and DownScan Imaging™ with FishReveal™.

Get the best of CHIRP sonar and DownScan Imaging™ on one screen with FishReveal, a Lowrance exclusive that helps you easily recognize fish from structure and cover on high-detailed DownScan images.

Find Key Fishing Areas With C-MAP Discover Onboard

Spend more time trying to catch fish and less time trying to find them with the high-resolution detail of C-MAP® Discover Onboard inland and coastal charts built into Elite FS displays.

From finding key fishing areas, like ledges, drop-offs, and ditches to navigating with precision to fish-holding areas, you will have more success on the water with high-resolution 1-foot contours on 19,000 lakes across the U.S. and more than 9,400 in Canada.

Features:

• ActiveTarget™ 2 Live Sonar ready
• Active Imaging 3-in-1 ready
• Active Imaging HD 3-in-1 ready with a S3100 Sonar Module
• FishReveal™
• Preloaded C-MAP Discover Onboard with 1-foot contours 19,000 lakes across the U.S. and more than 9,400 in Canada, plus mapping options including C-MAP, Navionics®, and more C-MAP® Easy Routing, Navionics® Autorouting™ capability
• C-MAP Genesis Live onscreen mapping
• High-resolution multi-touch touchscreen
• Integrated wireless, NMEA 2000® and Ethernet connectivity
• Full touchscreen control of Recon™ and Ghost® Trolling Motor, as well as Power Pole® Anchors
• Sirus XM weather compatibility with WM4

*Active Imaging HD requires S3100 Module

Specifications:

• Cartography Brand: Navionics/C-Map/Lowrance
• Included Transducer: 000-14489-001
• Screen Size: 12"
• Touchscreen: Yes
• Transducer Included: Yes
• Box Dimensions: 7"H x 16"W x 17"L WT: 14.25 lbs
• UPC: 9420064137473
