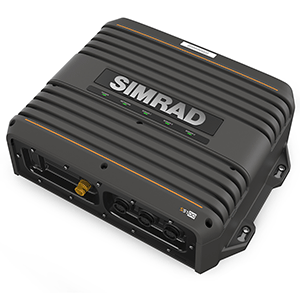

Simrad S5100 Module Redefining High-Performance Sonar [000-13260-001]

S5100 Module Redefining High-Performance Sonar

The S5100 high-performance CHIRP sonar module delivers true simultaneous coverage of up to three different depth ranges, at high resolution, making it the perfect sonar solution for offshore sportfishing anglers.

Simultaneous split-screen viewing capability puts you in complete control of the water column; while advanced processing technology allows you to fish with noise-free clarity at all depth ranges without ever losing bottom depth tracking.

Mix and match your favorite transducer coverage and transmit power for wide and narrow beam-widths to reveal more fish, detecting small and tightly spaced fish and identifying thermoclines - or adjust specific CHIRP frequencies from 28 to 250 kHz to precisely target specific depths producing big, crisp arches with clear target separation.

Features:

• 3 fully independent sonar channels deliver high-resolution coverage

• Noise-free clarity at all depth ranges

• Combine any three frequency ranges to target multiple depths, including Ultra-Low, Low, Medium, or High CHIRP

• Compatible with wide-angle CHRIP transducers for greater coverage of the water column

• Simultaneous split-screen viewing of multiple depth ranges on your display

• Maximum depth of 3,000 meters/10,000 feet (transducer dependent)

• Easy to install with three plug-and-play 9-pin transducer connectors

• Compatible with Simrad NSS evo3 and NSS evo2 multifunction displays, NSO evo2 systems and S2000-series fishfinders

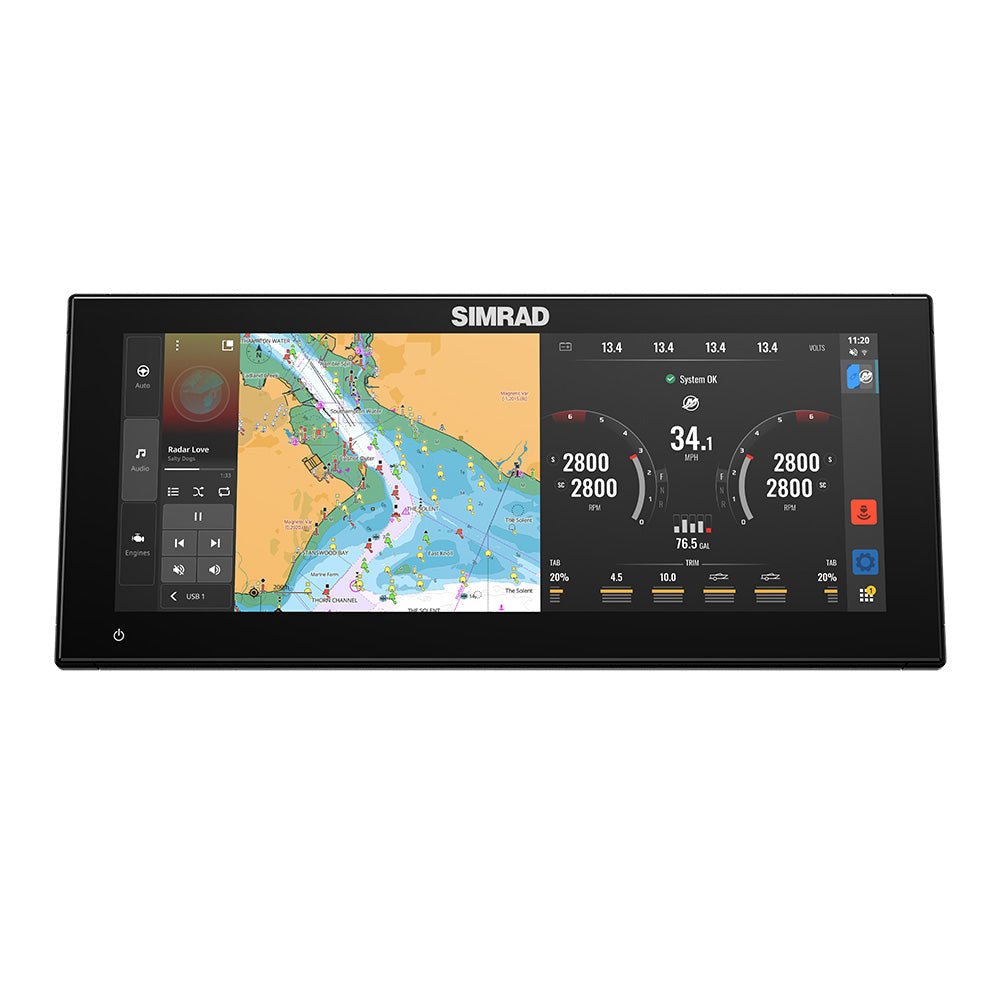

Simrad NSX 3015UW Combo w/Active Imaging 3-in-1 Transducer [000-16213-001]

NSX 3015UW Combo with Active Imaging™ 3-in-1 Transducer

Expand your horizons with the world's first fully-featured ultrawide marine display. NSX® ULTRAWIDE brings all the benefits of dual screens to a single display for our most immersive experience yet. Get a truly unique, eye-catching dash, see apps as they were meant to be seen, and experience C-MAP®'s X-Gen charts in more detail than ever.

Get a Fresh Perspective

NSX ULTRAWIDE offers a new perspective on boating. Discover an all-new aspect ratio for our most immersive on-the-water experience yet.

Simpler Boating with Simrad's Latest Operating System

NSX ULTRAWIDE also delivers game-changing simplicity. Use the intuitive activity bar to pin your favorite apps and switch between them with a single touch. The fully customizable instruments panel lets users make the NSX their own by ensuring users always have the right data at hand and nothing more.

The simplified interface means users spend less time navigating menus and more time navigating water. Even that is quicker considering Simrad's fastest-ever auto-routing calculates routes in one-third of the time.

Superior Engine Control

Connectivity is at the heart of NSX ULTRAWIDE. The display feeds more information than ever to the helm, giving superior control over the full suite of on-board technology.

It all begins with superior engine control. Nobody integrates better with Mercury® than Simrad does, and NSX ULTRAWIDE also offers superior integration with other leading propulsion brands such as Honda and Suzuki.

Bow-To-Stern Integration

Control with NSX ULTRAWIDE extends across the entire vessel, with support for CZone® digital switching, RGBW lighting, IP cameras, and audio—with an intuitive Setup Wizard to help you get it all connected.

A Fishing Superpower

Anglers benefit from leading sonar tech like FishReveal™ and Active Imaging®, which provide high-res images 300 feet to the sides and below the boat. Compatibility includes a wide range of 1kW transducers, meaning users can fish even in the deepest waters.

*Requires additional sonar module and a minimum 1.7 software update.

Features

Simrad® Suite Integration:

• See near and far with full support for 3G, 4G, and HALO® radars
• Easy autopilot integration with NAC-1, NAC-2, NAC-3 and NAC-D pilots
• Simrad® App integration for waypoint management and offline trip planning

Third-Party Integration:

• Best-in-class Mercury® Integration, inc. SmartCraft® Connect
• Integration with leading propulsion brands such as Honda and Suzuki
• CZone® digital switching
• OmniSense
• Dometic
• Lumishore lighting
• Multiple audio partners
• IP cameras
• HTML5 app compatible
• Much, much more...

Charts & Navigation:

• Optimized for C-MAP® DISCOVER™ X AND REVEAL™ X charts
• X-Chart Manager
• 3x faster autorouting*
• *vs SIMRAD® GO

Fishfinding & Sonar Capabilities:

• Sonar sharing between NSX® devices
• Compatible with Active Imaging™, featuring CHIRP, SideScan, and DownScan Imaging™, as well as the S3100 & S5100 sonar modules*
• *Requires minimum 1.7 software update

Network Connectivity:

• Wireless
• Ethernet
• USB
• NMEA 2000®

Additional Features:

• The latest Simrad® operating system, for game-changing ease of use
• Ultrawide SolarMAX™ IPS HD touchscreen with extreme viewing angles
• Intuitive setup wizard
• Bracket mount sold separately

Specifications:

Display:

• Backlight Color: White
• Display Resolution: 1920 x 720 px
• Display Size: 15 inches
• Screen Brightness: >1000 nits
• Viewing Angles: 85° (top, bottom, left, and right)

Physical:

• Compass Safe: 50 cm (1.7 ft)
• Dimensions (W x H x D): No Bracket, no suncover W: 390.0 mm (15.55") x H: 170.4 mm (6.71") x D: 88.5 mm (3.48"). With gimbal bracket H: 180. mm (7.10") D:96.5 mm (3.80")
• Mounting Type: Rear mount (bracket supplied), bracket mount (bracket optional)
• Weight: 1.9 kg (1.2 lbs)

Electrical:

• Power Consumption Max: 25 W (1811 mA at 13.8 V)
• Recommended Fuse Rating: 3A
• Supply Voltage: 12 V DC (10 - 17 V DC min-max)

Environment:

• Humidity: IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr)
• Operating Temperature Range: -15°C to 55°C (5°F to 131°F)
• Shock Vibration: 100,000 cycles of 20 G
• Storage Temperature Range: -20°C to 60°C (-4°F to 140°F)
• Waterproof Rating: IPx6 and IPx7

Connectivity:

• Bluetooth: Bluetooth 4.0 with support for Bluetooth Classic
• Ethernet Ports: 1 port (5-pin connector)
• Connectivity Wi-Fi: IEEE 802.11b/g/n
• NMEA 2000 Connectivity: 1 x NMEA 2000 Micro-C port, 1 LEN
• PC Connectivity: No
• SD Card Storage: 1 MicroSD slot, 1 x USB
• Video: IP Camera support

MFD:

• Cartography Included: Discover X chart card of North America
• Digital Switching: Czone / Simrad DDS
• GPS: Internal, 10Hz
• Sonar Compatibility: One 9-pin Xsonic 1 kW Sonar port. Single channel CHIRP, 50/200 kHz, HDI, Active Imaging
• Waypoints, Routes, Tracks: 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.
• Weather: No

GPS:

• GPS Receiver Channels: 32 Channels
• Position Accuracy: Horizontal Accuracy 3 m (9.8 ft)
• Update rate: 10 Hz high-speed update (internal)WASS, MSAS, EGNOS, GLONASS

Other:

• Interface: Multi-touch screen
• Languages: German -English -Dutch -Danish -Spanish-French-Italian -Norwegian -Portuguese -Finnish -Swedish -Icelandic -Greek -Chinese-Turkish -Estonian -Croatian -Lithuanian -Latvian -Polish -Chinese Simplified -Japanese -Korean -Ukrainian
• Warranty Period: 2 Years

Specifications:

• Cartography Brand: C-Map
• Screen Size: 15"
• Touchscreen: Yes
• Transducer Included: Yes

Brochure (pdf)

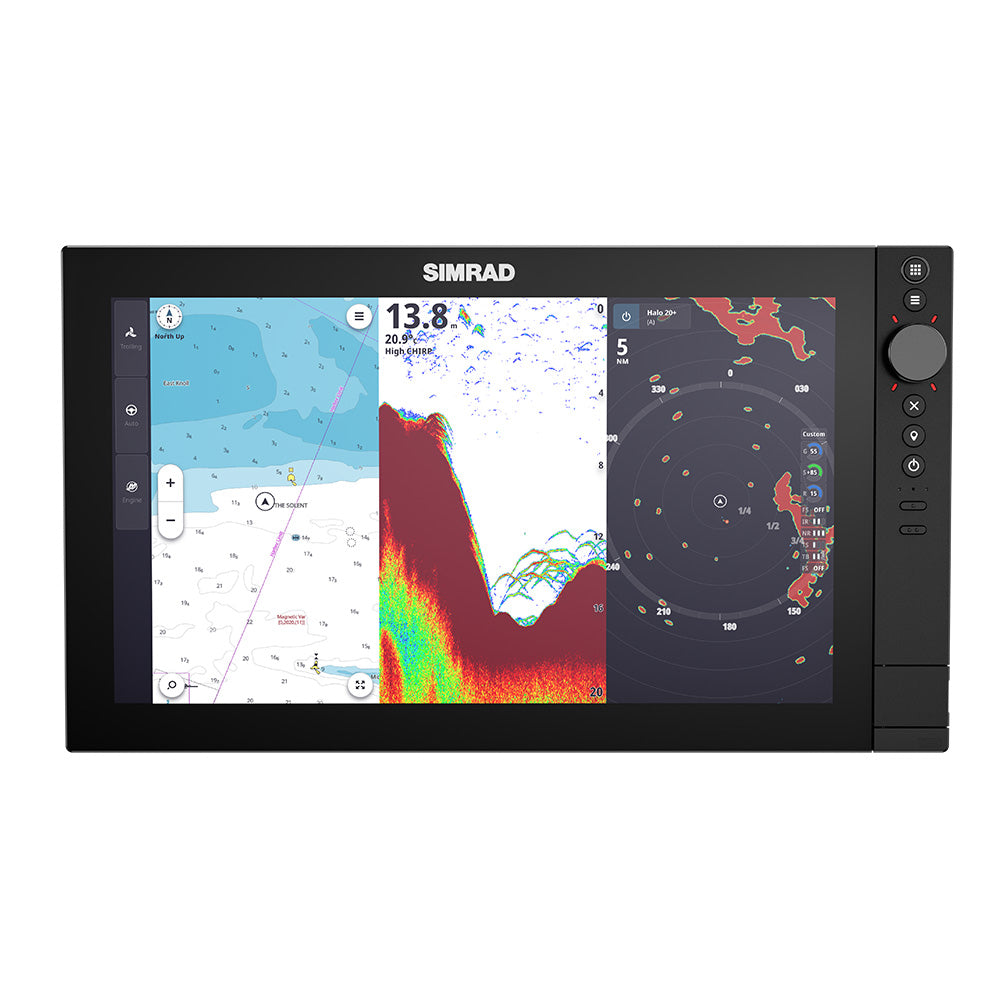

Simrad NSS 4-16 16" MFD - No Sonar [000-16277-001]

NSS4-16 16" MFD - No Sonar

NSS 4 brings a trio of control options, designed to provide maximum control in all settings and conditions. The touchscreen is ideal for exploring charts, which is smoother than ever on NSS 4. Drag to discover new areas, pinch to zoom in and out, and tap for more detail on areas of interest. The rotary dial lets you scroll through menus and adjust data displays in an instant. The keypad brings a selection of one-touch functions for easy navigation.

Main Menu/Pages Button

Switch instantly to full-screen mode, giving a clear overview of all key data without clutter.

App Menu: Provides quick access to the settings menu to make tweaks on the fly.

Rotary Dial

Useful for a variety of functions: menu navigation, Used to zoom in/out, push to select, and more.

X Button

Return to the previous screen or cancel the current action.

Waypoint Button

A super quick and easy way to mark waypoints accurately on your chart.

Power Button: Power your device on and off.

Configurable Custom Keys

These fully customizable buttons are designed to provide instant access to your favorite apps and features. The buttons can be assigned multiple functions, each triggered by a short or long press. (10” includes only one custom key)

Dual SD Card Slot

Convenient front-facing slots for easy access to chart cards and memory cards.

Unmatched Speed

Experience the power of a lightning-fast Qualcomm® 8-core processor, designed to keep up with every move on the water.

Instant Response

Navigate seamlessly from one app to the next with zero lag and smooth transitions. So you can focus on boating and fishing – and not on the screen.

Ultra-fast Charting

NSS 4 delivers our fastest-ever auto-routing and rapid chart rendering, helping you hit your next spot quickly.

Advanced Angling Tech for the Ultimate Sportfishing System

Tap into intelligent sonar technology via sonar modules or another networked display. Active Imaging™ HD provides ultra-clear, high-resolution sonar that reveals fish and underwater structures in stunning detail – making it easier to pinpoint the best angling spots.

Seamless integration with the full suite of Simrad® electronics puts you in total control. Connect effortlessly with our most powerful HALO® radars, the RECON™ trolling motor, the incredible Simrad® app, and more...

Built for Complete Customization

Make NSS 4 yours with its extensive range of customization options. Build instrument screens that work for you, tweaking our pre-configured dashboards to match your boating style. And create custom split screens based on your preferences and screen setup.

Features:

• A trio of hybrid controls: touch, rotary, and keypad
• Premium glass-to-edge design
• Lightning fast Qualcomm® 8-core processor
• Redesigned operating system
• Support for various 1kW CHIRP echo sounders
• Support for Active Imaging™ & Active Imaging™ HD
• Support for C-MAP® X-gen charts and others
• Simrad® RECON™, Rhodan® and Motorguide® Trolling Motor Compatible
• Compatible with Simrad suite: S3100 & S5100 sonar modules, radar, and more...
• Support for Mercury®, CZone®, SiriusXM®, and more...
• 2-year limited warranty

Autopilot

• Maneuvers / Turn Patterns: U-Turn, C-Turn, Spiral, S-Turn, Square, Zig-zag, Depth
• Steering Modes: Heading Hold, No Drift, Follow-up, Non-Follow-up, Nav

Cartography

• Chart Format: C-MAP Tile (CMT) Discover X, Reveal X C-MAP Tile (CMT) Reveal X
• Charts Supported: C-MAP Discover™ X, C-MAP Reveal™ X. Third-party charts CMOR, StikeLines (check with provider for available content)

Connectivity

• Bluetooth: Bluetooth 4.0 with support for Bluetooth Classic (currently not used)
• Ethernet: 1 port (X-Coded M12 GbE) 1 port (yellow, 5-pin)
• NMEA 0183: No
• NMEA 2000: 1 x NMEA 2000 Micro-C port, 1 LEN
• PC Connectivity: No
• Video: Video In, Video out via USB. IPCAM-1, FLIR 232/300 series. ONVIF IP Camera IP Cameras: IPCAM-1, FLIR 232/300 series. ONVIF IP Cameras
• WiFi: Wi-Fi 5 (IEEE 802.11ax)

Display

• Backlight Color: White
• Resolution: 1920 x 1080
• Screen Brightness: >1200 nits
• Size and Type: 16" SolarMax IPS Touchscreen display for wide viewing angles, extreme clarity, and sunlight viewability with polarized sunglasses
• Viewing Angles: 80° top/bottom, 80° left/right
• Waterproof rating: IPX6 and IPX7

Electrical

• Power Consumption, max.: 40 W
• Recommended Fuse Rating: 5 A
• Supply Voltage: 12/24 V DC (10 - 31.2 V DC min-max)
• Humidity: IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr)

GPS

• Correction: 10 Hz high-speed update (internal)
• GPS Receiver Channels: 32 Channels
• Position Accuracy: Horizontal Accuracy 3 m (9.8 ft)
• Update rate: 10Hz

MFD

• AIS: Receive AIS data over NMEA 2000
• Autopilot: NAC-1, NAC-2, NAC3, NAC-D compatible
• Cartography included: Worldwide basemap (not for navigation). A detailed chart card on the network required
• Cartography supported: C-MAP Discover™ X, C-MAP Reveal™ X. Third-party charts CMOR, StikeLines (check with provider for available content)
• Digital Switching: Czone / DDS
• External Storage: 2x (microSD®, SDHC®)
• GPS: 10 Hz GNSS receiver for GPS and GLONASS, supports combinations with Galileo, Beidou, QZSS SBAS (WAAS)
• Radar (inc. compatibility): Halo dome radars, Halo open array radars, 3G/4G, 10/25 kW HD Radars
• Sonar (inc. compatibility): No built-in Echosounder ports. Compatible with Network Sonar modules S3100, S5100, and other MFDs with echosounder ports
• Waypoints, Routes, Tracks: 10,000 waypoints: 75,000 trackpoints: 75 saved tracks: 125 routes. Note: NSS/NSO evo2/3 maximums will apply if on the same network
• Weather: SiriusXM via WM4 module (USA only)
• Compass Safe Distance - Metric, imperial: 35 cm (1.15 ft)

Physical

• Dimensions (W x H x D): Display only: 423.5 mm x 241.6 mm x 88.6 mm (16.67″ x 9.51″ x 3.49″) With bracket: 453.4 mm x 266.4 mm x 88.6 mm (17.85″ x 10.49″ x 3.49″)
• Mounting Type: Bracket mount (bracket optional). Rear mount (brackets supplied)
• Weight: 3.8 kg (8.38 lb)

Other

• Warranty Period: 2 Years
• Interface: Hybrid multi-touch screen, buttons, and rotary knob

Specifications:

• Cartography Brand: C-Map Reveal X
• Internal/External Antenna: Internal
• Screen Size: 16"
• Touchscreen: Yes

Simrad NSS16 evo3S Chartplotter/Fishfinder MFD [000-15404-001]

NSS16 evo3S Multi-Function Chartplotter/Fishfinder

Improved Charting experience with the iMX8 processor

With a 2X faster page loading time, choosing any split screen combination with views in 3D or Navigation perspective has never been easier. NSSevo3S™ features a preloaded US Chart with high-resolution inland and coastal coverage, plus a C-MAP® Reveal layer of the ocean floor in Florida.

In addition to the preloaded C-MAP chart, NSSevo3S is compatible with a wide range of charting providers, including C-MAP, Navionics®, CMOR and Florida Marine Tracks.

Enhanced Sonar with superior on-water performance

1kW CHIRP-enabled sonar provides exceptional bottom-tracking and fish-finding performance. Dual transducer ports offer the convenience of connecting multiple transducers to a single display.

Better-than-ever processing power ensures Active Imaging™ delivers picture-like views of fish-holding structure, and crystal clear views of the bottom ahead using ForwardScan® sonar.

SolarMAX™ IPS displays for high-definition views

Clear views under any lighting condition with SolarMAX™ IPS technology, and ultra-wide viewing angles to keep everything in sight, even when viewed through polarized sunglasses.

These all-weather screens have been engineered to withstand the heat of the summer sun and are optically bonded to prevent condensation or fogging within the display.

UI improvements

• A dark-themed wallpaper for less light pollution from a dash of multiple screens.
• The Audio side bar can now expand into a full page view.
• The addition of a chart orientation button to switch instantly between North up, Heading up and Course up without having to open the menu.
• The addition of a Tide Graph in the instrument bar to monitor tide changes without having to leave the existing page

Wireless connectivity for smartphones and tablets

Displays can be mirrored to compatible iOS and Android devices to access charts, radar, sonar, engine data and more. Wireless connectivity also enables online software upgrades through any internet hotspot, access to the latest features and accessory support.

The Simrad App can also be downloaded for added benefits – from device registration and manual downloads, to saving waypoints and your favorite fishing spots – accessible both on and off the water.

Radar Options

HALO® Pulse Compression radar systems can be added to negotiate crowded harbors, navigate safely in poor visibility, monitor distant weather squalls and even locate flocks of feeding birds in order to locate fishing spots.

FLIR IP Camera Support

Day and night situational awareness can be improved by adding a FLIR M232 thermal imaging camera. The M232 features a resolution of 320x240 and offers the ability to pan and tilt the camera to allow for 360 degree viewing while underway. The M232 distributes video over Ethernet allowing for both display and control from a NSSevo3S™.

WM-4 Receiver

Get up-to-date, detailed weather forecasts, weather radar, lightning, storm warnings, sea surface temperature, insight on favorable areas for particular fish species and more, when you complete your boat’s system with a WM-4 Receiver and a SiriusXM® Marine Satellite Weather subscription. Add audio to your Marine Weather or Fish Mapping* subscription and get access to more than 140 SiriusXM® radio channels at a discount.

Fast & Simple Networkingand Connectivity

Industry-standard connectivity to create multi-display systems and link to all on-board electronics, engine and fuel monitoring in real-time, control of on-board sound systems and much more.

Includes system expansion with Simrad modules and accessories, advanced fish-finding tools such as deep water S5100, Active Imaging™ 3-in-1 or TotalScan™, increased situational awareness with legendary HALO® Pulse Compression radar, and automated control with a fully integrated Simrad autopilot.

In The Box:

• Display Unit
• Bezel Trim
• Documentation pack
• Power cable kit
• Panel mounting kit

Connections:

• Ethernet - 2x Ethernet network
• Power - power, power control, and external alarm
• Video- composite video and NMEA0183
• NMEA 2000 - NMEA 2000 data
• Sonar CH1
• Sonar CH2
• HDMI - HDMI video output
• USB connector - mouse, keyboard or mass storage

Specifications:

• Transducer Included: No
• Touchscreen: Yes
• Screen Size: 16"
• Cartography Brand: Navionics/C-Map/Lowrance
• Box Dimensions: 9"H x 14"W x 22"L WT: 19.3 lbs
• UPC: 9420064113583

Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)

Simrad NSX 3012UW Combo w/Active Imaging 3-in-1 Transducer [000-16216-001]

NSX 3012UW Combo with Active Imaging™ 3-in-1 Transducer

Expand your horizons with the world's first fully-featured ultrawide marine display. NSX® ULTRAWIDE brings all the benefits of dual screens to a single display for our most immersive experience yet. Get a truly unique, eye-catching dash, see apps as they were meant to be seen, and experience C-MAP®'s X-Gen charts in more detail than ever.

Get a Fresh Perspective

NSX ULTRAWIDE offers a new perspective on boating. Discover an all-new aspect ratio for our most immersive on-the-water experience yet.

Simpler Boating with Simrad's Latest Operating System

NSX ULTRAWIDE also delivers game-changing simplicity. Use the intuitive activity bar to pin your favorite apps and switch between them with a single touch. The fully customizable instruments panel lets users make the NSX their own by ensuring users always have the right data at hand and nothing more.

The simplified interface means users spend less time navigating menus and more time navigating water. Even that is quicker considering Simrad's fastest-ever auto-routing calculates routes in one-third of the time.

Superior Engine Control

Connectivity is at the heart of NSX ULTRAWIDE. The display feeds more information than ever to the helm, giving superior control over the full suite of on-board technology.

It all begins with superior engine control. Nobody integrates better with Mercury® than Simrad does, and NSX ULTRAWIDE also offers superior integration with other leading propulsion brands such as Honda and Suzuki.

Bow-To-Stern Integration

Control with NSX ULTRAWIDE extends across the entire vessel, with support for CZone® digital switching, RGBW lighting, IP cameras, and audio—with an intuitive Setup Wizard to help you get it all connected.

A Fishing Superpower

Anglers benefit from leading sonar tech like FishReveal™ and Active Imaging®, which provide high-res images 300 feet to the sides and below the boat. Compatibility includes a wide range of 1kW transducers, meaning users can fish even in the deepest waters.

*Requires additional sonar module and a minimum 1.7 software update.

Features

Simrad® Suite Integration:

• See near and far with full support for 3G, 4G, and HALO® radars
• Easy autopilot integration with NAC-1, NAC-2, NAC-3 and NAC-D pilots
• Simrad® App integration for waypoint management and offline trip planning

Third-Party Integration:

• Best-in-class Mercury® Integration, inc. SmartCraft® Connect
• Integration with leading propulsion brands such as Honda and Suzuki
• CZone® digital switching
• OmniSense
• Dometic
• Lumishore lighting
• Multiple audio partners
• IP cameras
• HTML5 app compatible
• Much, much more...

Charts & Navigation:

• Optimized for C-MAP® DISCOVER™ X AND REVEAL™ X charts
• X-Chart Manager
• 3x faster autorouting*
• *vs SIMRAD® GO

Fishfinding & Sonar Capabilities:

• Sonar sharing between NSX® devices
• Compatible with Active Imaging™, featuring CHIRP, SideScan, and DownScan Imaging™, as well as the S3100 & S5100 sonar modules*
• *Requires minimum 1.7 software update

Network Connectivity:

• Wireless
• Ethernet
• USB
• NMEA 2000®

Additional Features:

• The latest Simrad® operating system, for game-changing ease of use
• Ultrawide SolarMAX™ IPS HD touchscreen with extreme viewing angles
• Intuitive setup wizard
• Bracket mount sold separately

Specifications:

Display:

• Backlight Color: White
• Display Resolution: 1920 x 720 px
• Display Size: 12 inches
• Screen Brightness: >1000 nits
• Viewing Angles: 85° (top, bottom, left, and right)

Physical:

• Compass Safe: 50 cm (1.7 ft)
• Dimensions (W x H x D): No Bracket, no suncover W: 337.0 mm (13.30") x H: 147.9 mm (5.82") x D: 88.5 mm (3.48"). With gimbal bracket| H: 157.9 mm (6.22") D:96.5 mm (3.80")
• Mounting Type: Rear mount (bracket supplied), bracket mount (bracket optional)
• Weight: 1.5 kg (3.3 lbs)

Electrical:

• Power Consumption Max: 19.8 W (1434 mA at 13.8 V)
• Recommended Fuse Rating: 3A
• Supply Voltage: 12 V DC (10 - 17 V DC min-max)

Environment:

• Humidity: IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr)
• Operating Temperature Range: -15°C to 55°C (5°F to 131°F)
• Shock Vibration: 100,000 cycles of 20 G
• Storage Temperature Range: -20°C to 60°C (-4°F to 140°F)
• Waterproof Rating: IPx6 and IPx7

Connectivity:

• Bluetooth: Bluetooth 4.0 with support for Bluetooth Classic
• Ethernet Ports: 1 port (5-pin connector)
• Connectivity Wi-Fi: IEEE 802.11b/g/n
• NMEA 2000 Connectivity: 1 x NMEA 2000 Micro-C port, 1 LEN
• PC Connectivity: No
• SD Card Storage: 1 MicroSD slot, 1 x USB
• Video: IP Camera support

MFD:

• Cartography Included: Discover X chart card of North America
• Digital Switching: Czone / Simrad DDS
• GPS: Internal, 10Hz
• Sonar Compatibility: One 9-pin Xsonic 1 kW Sonar port. Single channel CHIRP, 50/200 kHz, HDI, Active Imaging
• Waypoints, Routes, Tracks: 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.
• Weather: No

GPS:

• GPS Receiver Channels: 32 Channels
• Position Accuracy: Horizontal Accuracy 3 m (9.8 ft)
• Update rate: 10 Hz high-speed update (internal)WASS, MSAS, EGNOS, GLONASS

Other:

• Interface: Multi-touch screen
• Languages: German -English -Dutch -Danish -Spanish-French-Italian -Norwegian -Portuguese -Finnish -Swedish -Icelandic -Greek -Chinese-Turkish -Estonian -Croatian -Lithuanian -Latvian -Polish -Chinese Simplified -Japanese -Korean -Ukrainian
• Warranty Period: 2 Years

Specifications:

• Cartography Brand: C-Map
• Screen Size: 12"
• Touchscreen: Yes
• Transducer Included: Yes

Simrad NSX 3012 12" Combo Chartplotter  Fishfinder w/Active Imaging 3-in-1 Transducer [000-15367-001]

NSX™ 3012 12" Chartplotter & Fishfinder with Active Imaging™ 3-in-1 Transducer

Everything about NSX™ is designed to bring your fishing adventures closer. Enjoy our fastest-ever Autorouting and next-gen C-MAP® charts. Experience intuitive touch screens and a simple sonar setup with hints to assist you when you need it. Count on high-resolution imagery from state-of-the-art sonar technology, like FishReveal™, DownScan Imaging™, and SideScan.

Add compatibility with a wide range of 1 kW transducers for even more target resolution, and there is nothing between you and your next adventure but open water.

An Intuitive Touchscreen Experience

Easily access all NSX™ features via a modern and simple interface, including drag-and-drop screen customization and enhanced day and night modes. Get crystal clear views of chart detail with the vibrant SolarMAX™ IPS touchscreen - viewable from any angle, in direct sunlight, and even through polarized lenses.

Bring Navigation to Life with NSX™.

See map details in a different way with next-generation C-MAP® DISCOVER™ X and REVEAL™ X marine-optimized charts for day and night. Experience our fastest-ever Autorouting and with the Simrad® Companion App plan trips, review Tracks, plot Waypoints, and sync directly.

Full Suite of Simrad® Technology at Your Fingertips.

Expand your system with advanced Simrad® technology. Experience high-resolution imagery rom state-of-the-art sonar technology, like Active Imaging™, as well as compatibility with a wide range of 1 kW transducers. Identify hazards immediately and see near and far simultaneously with award-winning pulse compression HALO® radars, and stay on course with legendary Simrad® Autopilots.

Simple to Set Up, Easy to Manage.

Get up and running quicker than ever. The Setup Wizard features step-by-step instructions and guidance throughout your initial setup and with future adjustments. In addition, Sonar Device Setup provides easy-to-understand prompts for each step of the process, while the Simrad® App allows access to the best planning tools and hassle-free software updates and data transfer.

Features:

• Features a marine-optimized C-MAP® DISCOVER™ X chart with a fresh, intuitive chart presentation and daily updates – plus support for C-MAP REVEAL™ X charts
• High definition IPS touch screen with extreme viewing angles, viewable through polarized lenses
• Active Imaging™ 3-in-1 transducer featuring CHIRP, SideScan, and DownScan Imaging™, plus support for 1kW transducer capability to reach greater depths
• Quickly identify fish with FishReveal™
• Setup Wizard to get you up and running quickly, plus a simpler sonar setup
• Full integration with the capability to expand the system with Simrad® sonar, autopilot, radar, and more
• Faster Autorouting with seamless accessibility
• See near and far simultaneously (up to 48nm), with HALO® Radar support and get ultra-fast updates every second
• Stay on course with full Simrad® autopilot integration
• Clean and simple interface
• Simrad® App integration – keep your chart data at your fingertips, both on and off the water
• Third-party app integration
• Wireless connectivity, plus full Ethernet and NMEA 2000® networking capability
• IP Video Support

Specifications:

• Cartography Brand: C-Map
• Included Transducer: 000-14489-001
• Screen Size: 12"
• Touchscreen: Yes
• Transducer Included: Yes
• Box Dimensions: 5"H x 15"W x 16"L WT: 14 lbs
• UPC: 9420064111923

Brochure (pdf)

Simrad NSS4-10 10" Combo w/U.S. C-MAP [000-16012-001]

NSS4-10 10" Combo with U.S. C-MAP

Redesigned inside and out, NSS® 4 is SLEEKER, FASTER and SMARTER. The touchscreen, rotary dial, and keypad all work in harmony for superior control. Inside, our most powerful 8-core processor delivers smoother transitions and faster updates. Advanced fishfinding capabilities such as dual channel 1kW CHIRP sonar, Active Imaging™ HD support, and enhanced customization complete the package for our premium, all-in-one sports chartplotter and fishfinder. Perfect for sportfishing enthusiasts and cruisers.

SLEEKER - Next-gen design, inside & out

NSS® 4 looks stunning from the moment you lay eyes on it. A trio of hybrid control options revolutionizes the way you interact with your display, and an updated glass-to-edge design delivers a more premium look to the helm, revolutionizing dashboards instantly.

FASTER - Lightning-quick user experience

At the heart of NSS® 4 lies our most powerful Qualcomm® 8-core processor, delivering smoother page transitions, faster auto-routing, and ultimately, faster boating. Speed is also built into the latest operating system, which is quicker at every touchpoint with a streamlined UI.

SMARTER - Advanced angling

A dual channel 1kW CHIRP echosounder provides enhanced target separation and a clearer and more complete picture of the waters below, and support for the stunning Active Imaging™ HD means images of underwater structure and fish are clearer than ever.

Integrated for the future

Our latest OS has integration at its core. Connect effortlessly with our most powerful HALO® radars, the RECON™ trolling motor, the incredible Simrad® app, and more...

NSS® 4 also boasts extensive (and always expanding) support for third-party techs such as Mercury® SmartCraft Connect, SiriusXM®*, CZone® digital switching, and much more.

Features:

• A trio of hybrid controls: touch, rotary, and keypad
• Premium glass-to-edge design
• Lightning fast Qualcomm® 8-core processor
• Redesigned operating system
• Built-in dual channel 1kW CHIRP echosounder
• Support for Active Imaging™ & Active Imaging™ HD
• Support for C-MAP® X-gen charts and others
• Simrad® RECON™, Rhodan® and Motorguide® Trolling Motor Compatible
• Compatible with Simrad suite: S3100H & S5100 sonar modules, radar, and more...
• Support for Mercury®, CZone®, SiriusXM®, and more...

Specifications:

• Ethernet: 1 port (X-Coded M12 GbE)1 port (yellow, 5-pin)
• NMEA 0183: No
• NMEA 2000: 1 x NMEA 2000 Micro-C port, 1 LEN
• PC Connectivity: No
• Video: HDMI Video In, IPCAM-1, FLIR 232/300 series. ONVIF IP Camera
• WiFi: Wi-Fi 5 (IEEE 802.11ax)
• Backlight Color: White
• Resolution: 1280 x 800
• Screen Brightness: >1200 nits
• Size and Type: 10" SolarMax IPS Touchscreen display for wide viewing angles, extreme clarity, and sunlight viewability with polarized sunglasses
• Viewing Angles: 80° top/bottom, 80° left/right
• Power Consumption, max.: 28 W
• Recommended Fuse Rating: 5 A
• Supply Voltage: 12/24 V DC (10 - 31.2 V DC min-max)
• Operating Temperature Range: -15°C to 55°C (5°F to 131°F)
• Storage Temperature Range: -20°C to 60°C (-4°F to 140°F)
• Waterproof rating: IPX6 and IPX7
• AIS: Receive AIS data over NMEA 2000
• Autopilot: NAC-1, NAC-2, NAC3, NAC-D compatible
• Cartography included: Discover X chart card of North America
• Cartography supported: C-MAP Discover™ X, C-MAP Reveal™ X. Third-party charts CMOR, StikeLines (check with provider for available content)
• Digital Switching: Czone / DDS
• External Storage: 2x (microSD®, SDHC®)
• GPS: 10 Hz GNSS receiver for GPS and GLONASS, supports combinations with Galileo, Beidou, and QZSS SBAS (WAAS)
• Radar (inc. compatibility): Halo dome radars, Halo open array radars, 3G/4G, 10/25 kW HD Radars
• Sonar (inc. compatibility): Two 9-pin Xsonic 1 kW Sonar ports. Sonar port: Low, Medium, and High Chirp up to 1kW RMS: Downscan: 455 kHz, 800 kHz, 700 kHz CHIRP, 1200 kHz CHIRP. Imaging port: Sonar: Low, Medium, and High Chirp up to 1kW RMS. Downscan: 455 kHz, 800 kHz, 700 kHz CHIRP, 1200 kHz CHIRP. Sidescan: 455 kHz, 800 kHz, 455 kHz CHIRP, 1200 kHz CHIRPNetwork Sonar modules S3100, S5100
• Weather: Sirius XM via WM4 module (USA only) *Subscription required, sold through SiriusXM
• Waypoints, Routes, Tracks: 10,000 waypoints: 75,000 trackpoints: 75 saved tracks: 125 routes. Note: NSS/NSO evo2/3 maximums will apply if on the same network
• Compass Safe Distance - Metric, imperial: 35 cm (1.15 ft)
• Dimensions (W x H x D): Display only: 287.9 mm x 176.1 mm x 79.6 mm (11.33″ x 6.93″ x 3.13″)With bracket: 315.8 mm x 196.5 mm x 79.6 mm (12.43″ x 7.73″ x 3.13″)
• Mounting Type: Bracket mount (bracket supplied). Rear mount (brackets supplied)
• Weight: 1.8 kg (3.97 lb)
• Warranty Period: 2 Years
• Interface: Hybrid multi-touch screen, buttons, and rotary knob

Specifications:

• Cartography Brand: C-Map Reveal X
• Screen Size: 10"
• Touchscreen: Yes
• Transducer Included: No
