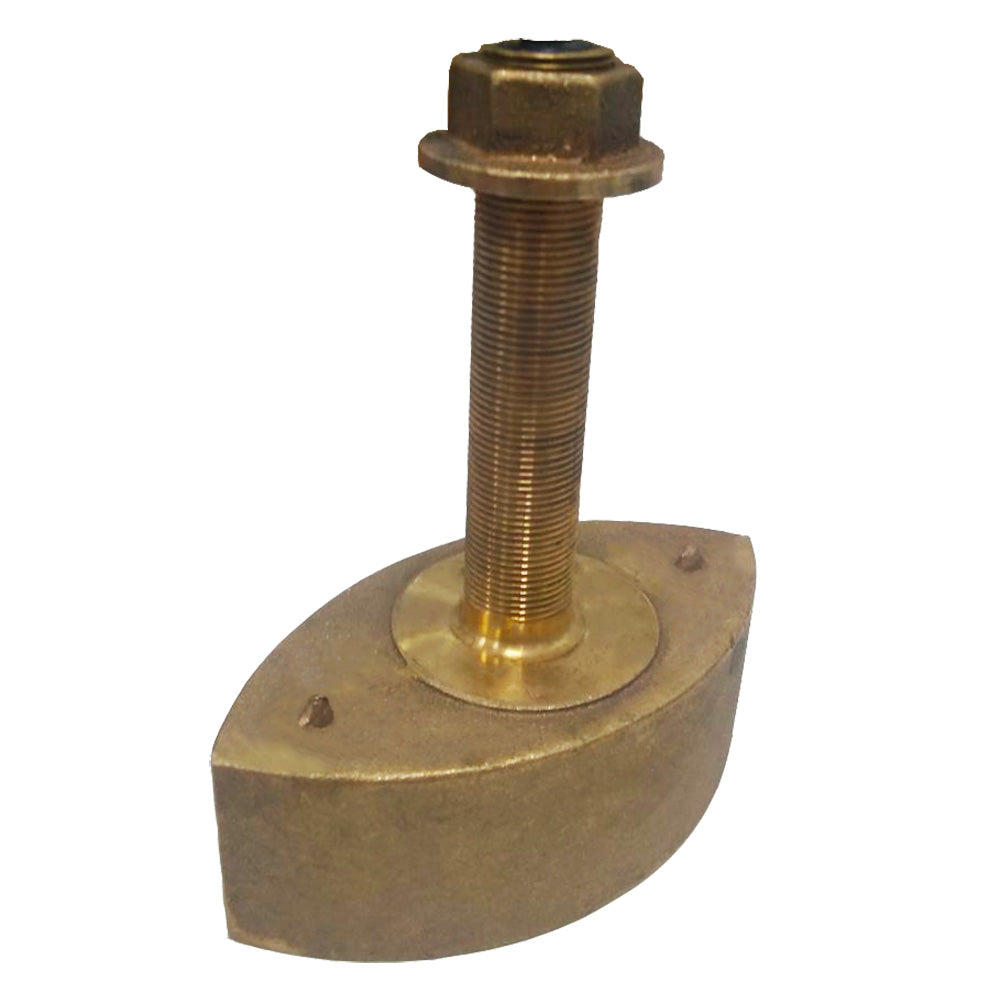

Echonautics Bronze Stem Thru-Hull High-Frequency CHIRP Transducer - 600W  130 - 210kHz [CB131H600]

Bronze Stem Thru-Hull High-Frequency CHIRP Transducer - 600W & 130 - 210kHz

Echonautics presents a range of powerful transducers from Dual Frequency CW to Low/Medium/High CHIRP and digital sensors, with excellent value for money.

Technical Specifications:

• Frequency 130-210kHz
• 600W
• Mounting Style - Thru-Hull
• Bronze Stem

Specifications:

• Cable Length (Feet): 26'
• Chirp: High
• Imaging: Standard
• Mounting Style: Thru-Hull
• Pins: 8
• Speed Included: No
• Temperature: Yes

Echonautics Bronze Stem Thru-Hull High-Frequency CHIRP Transducer - 1kW  130 - 210kHz [CB131H1KW]

Bronze Stem Thru-Hull High-Frequency CHIRP Transducer - 1kW & 130 - 210kHz

Echonautics presents a range of powerful transducers from Dual Frequency CW to Low/Medium/High CHIRP and digital sensors, with excellent value for money.

Technical Specifications:

• Frequency 130-210kHz
• 1kW
• Mounting Style - Thru-Hull
• Bronze Stem

Specifications:

• Cable Length (Feet): 26'
• Chirp: High
• Imaging: Standard
• Mounting Style: Thru-Hull
• Pins: 8
• Speed Included: No
• Temperature: Yes

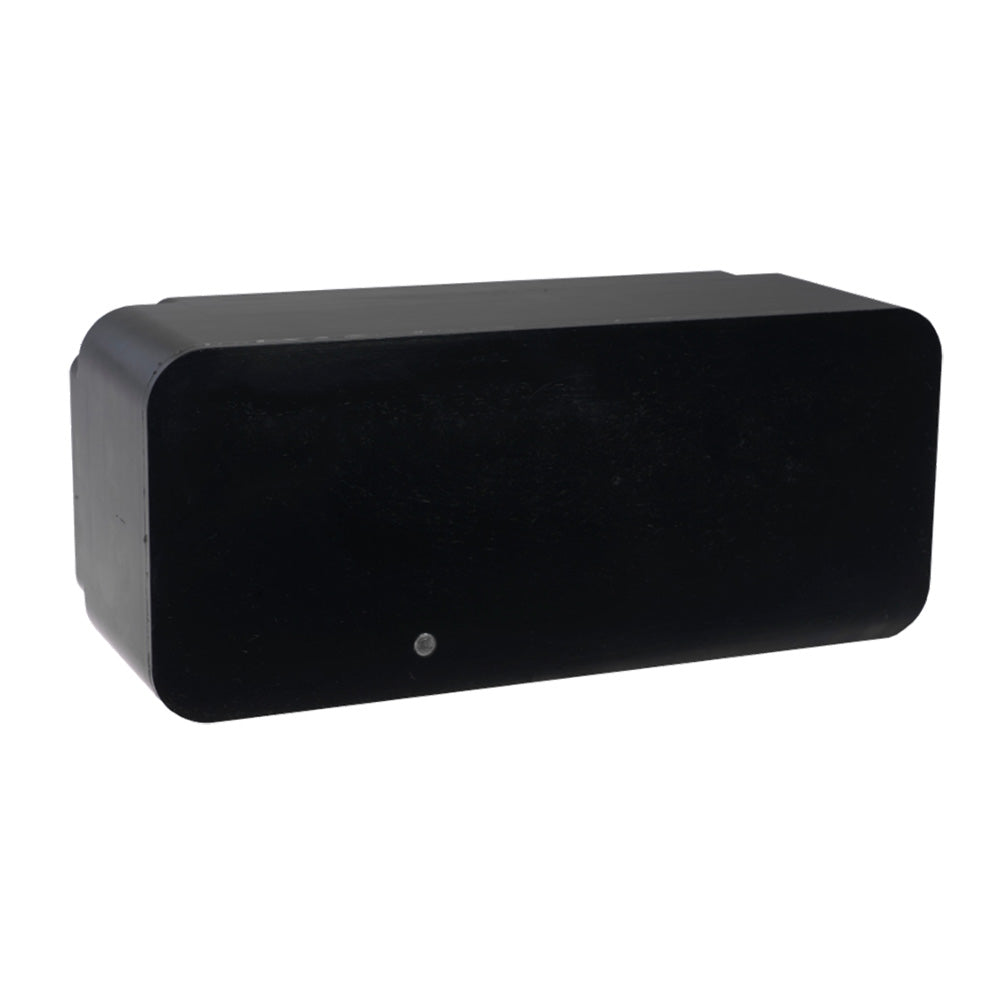

Airmar PM411C-LWM Ultra Wide Pocket Mount 2kW Transducer - Low-Med - Depth/Temp - No Connector [PM411C-LWM]

Ships Direct From Manufacturer

PM411C-LWM Ultra Wide Pocket Mount 2kW Transducer - Low-Med - Depth/Temp - No Connector

Today’s top billfish-tournament captains are calling Airmar’s PM411LWM their “go-to” transducer for seeking out targets and pinpointing them in deep water. This ultra-wide transducer features a 40° beamwidth for a fantastic amount of fish-finding coverage under the boat. Coupling the low-frequency range of 40 to 60 kHz with the medium range of 80 to 130 kHz, this tournament-series transducer reveals more fish in the water column than ever before.

Features:

• The depth and fast-response water-temperature sensing
• 2 kW of power
• Low frequency: 40 to 60 kHz
• 40° beamwidth for ultra-wide coverage
• Maximum depth of 1219 m (4000')
• Medium frequency: 80 to 130 kHz
• 13° to 8° beamwidth
• Maximum depth of 914 m (3000')
• 70 kHz of total bandwidth from one transducer
• It covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
• Curved-edge design for wet-box installation
• Designed for custom pocket/keel/welded-tank mounting
• SEALCAST™, seamless, urethane housing for long life underwater
• Also available as a thru-hull external (R409LWM) mount
• Patented Xducer ID® technology
• MFG #41-806-1-02

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Brochure (pdf)

Airmar PM111 LHW CHIRP 2kW Wide-Beam Chirp-Ready Pocket/Keel Mount - No Connector [PM111C-LHW]

Ships Direct From Manufacturer

PM111 LHW CHIRP 2kW Wide-Beam Chirp-Ready Pocket/Keel Mount - No Connector

Get more coverage under your boat with Airmar’s unique wide-beam, high-frequency, Chirp-ready transducer. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high-frequency band results in superior resolution. The constantly wide beam provides twice the coverage and excellent fish arches on the display compared to most high-frequency, narrow-beam transducer options.

The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essentially down to 152 m (500').

The low-frequency band and 2 kW of power also support great deep-water performance. Get the best of both worlds with Airmar’s dual-frequency, Chirp-ready transducer with wide-beam coverage.

Features:

• The depth and fast-response water-temperature sensor
• 2 kW of power for great deep-water performance from the low frequency
• 2 kW low frequency: 38 to 75 kHz
  • 19° to 10° port-starboard beamwidth
  • 10° to 5° fore-aft beamwidth
  • Maximum depth of 1,829 m (6,000')
• 1 kW high frequency: 150 to 250 kHz
  • 25° constant beamwidth
  • Maximum depth of 152 m (500')
• 137 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50, 68, and 200 kHz plus everything else in the bandwidth
• High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation
• High wide beamwidth yields more coverage for detecting fish in the upper-water column
• Urethane housing designed for custom mounting in a cavity
• Also available in an external (R109LHW) mount
• Exclusive Xducer ID® technology

Specifications:

• Weight: 13.6 kg (30 lb.)
• Recommended Boat Length: 12 m (40') and above
• Hull Material: Solid fiberglass only
• Hull Deadrise: Accommodates any deadrise angle based on custom cavity construction
• Acoustic Window: Epoxy/urethane
• Transducer Element: 16 internal broadband ceramic assemblies

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Brochure (pdf)

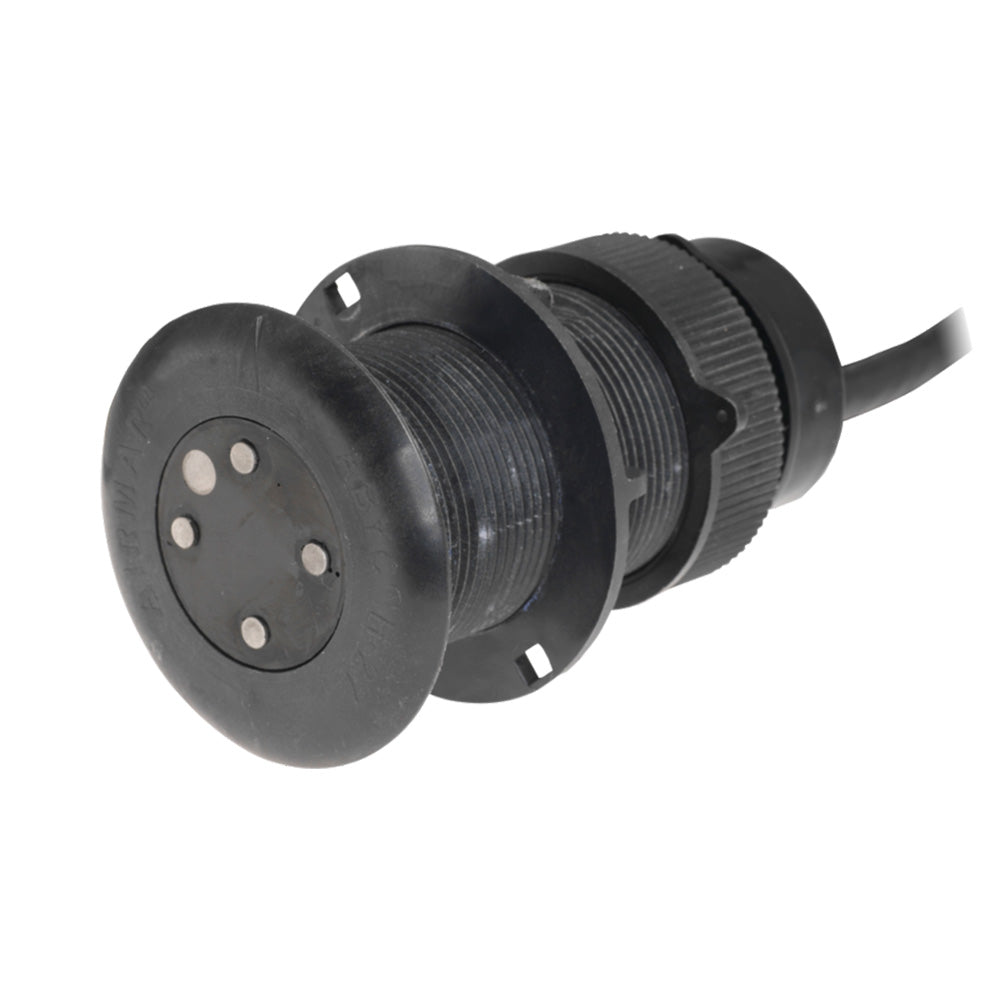

Airmar DX900+ Multilog Smart Electromagnetic Speed Sensor Thru‑Hull NMEA0183 [DX900-ST-0]

Ships Direct From Manufacturer

DX900+ Multilog Smart™ Electromagnetic Speed Sensor Thru‑Hull NMEA 0183

Say goodbye to the paddlewheel and hello to Smart® Sensor technology. The DX900+ uses electromagnetic technology to accurately measure dual-axis speed through water plus immediately calculate leeway travel. Paddlewheels need cleaning and only measure speed longitudinally. The DX900+ measures water flow at 360° and will immediately deliver the leeway data to your instrument. There are no moving parts to clean or maintain. Performance sailors, racers, or long-distance cruisers will immediately see the benefits of the accuracy and reliability of the DX900+.

The DX900+ is available as a Speed and Water-temperature sensor.

Features:

• Electromagnetic dual-axis speed, and water temperature with no moving parts
• Measures transverse and longitudinal speed that instantaneously calculates leeway angle and speed through water with no latency
• Connects and shares data wirelessly with AIRMAR’s CAST™ app. Perfect for displaying performance data on phones or tablets, plus makes calibration fast and easy.
• Outputs heel and trim
• The sensing pins in contact with the water are made from very high-quality alloy, allowing very stable measurements and high resistance to corrosion. (Do not use any bottom paint on exposed sensing pins.)
• Thru-hull, low-profile housing with water valve
• Retractable insert for safe storage
• Available in a plastic (P717V) or stainless steel (SS617V) housing
• Retrofits to existing P617V housing

Specifications:

• Weight (sensor, box, and cable):
  • Plastic—1 kg (2.3 lb.)
  • Stainless steel—2 kg (4.4 lb.)
• Hull Material: Plastic housing for fiberglass or metal hull/Stainless steel housing compatible with all hull materials
• Deadrise Angle: Up to 22°
• Hole Diameter: Fiberglass or wood—51 mm or 2", Stainless steel housing in metal hull—57 mm or 2-1/4"
• Transverse Speed Range: ±6 knots
• Longitudinal Speed Range: ±60 knots
• Accuracy of Transverse and Longitudinal Speed: ±0.1 knots for speeds under 10 knots, ±1% for speeds above 10 knots
• Display Resolution: 0.01 knots
• Outputs: NMEA 0183—speed and temperature
• Configurable Data Update Rate: Up to 10 Hz
• Operating Temperature Range: -15°C to 55°C (5°F to 131°F)
• Water Temperature Accuracy: +0.5°C (+1.0°F)
• Power: Supply Voltage: 9 to 16 VDC
• Average Power Consumption: NMEA 0183 - 2.5 W
• Standard Cable Length: NMEA 0183 - 6M (20')
• Includes: Blanking plug
• CE Compliant: Yes to IEC60945

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Brochure (pdf)

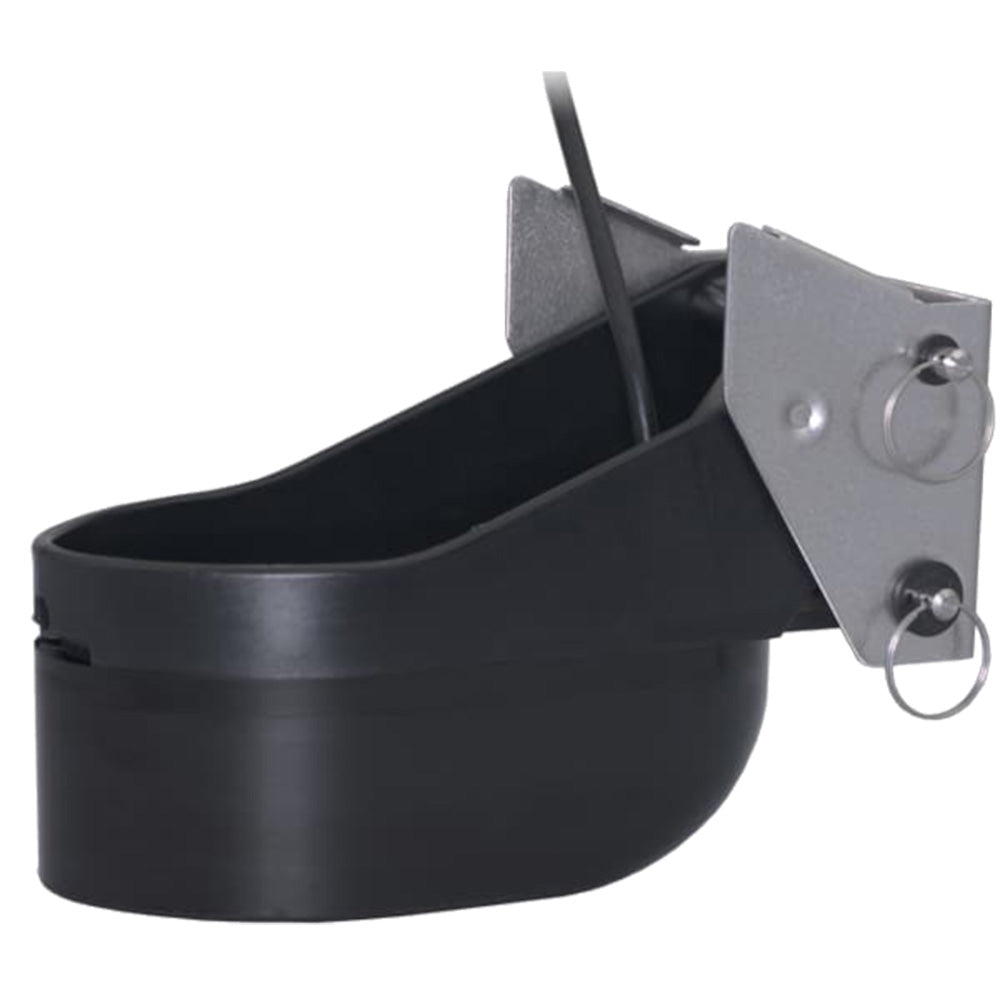

Airmar TM260-9N Transom Mount Transducer 1kW 50/200kHz 9-Pin f/Navico [TM260-9N]

Ships Direct From Manufacturer

TM260-9N Transom Mount Transducer 1kW 50/200kHz 9-Pin for Navico

TM260 takes the legendary performance of the B260 to your vessel’s transom. This top-of-the-line 1kW transom-mount brings crystal clear imaging to any of today’s fishfinders. The large 200 kHz element and the seven-element 50 kHz array are excellent for bait and game fish separation along with detecting ground fish holding tight to the bottom. The TM260’s high-performance mounting bracket is easy-to-install and has a streamlined shape that delivers high-speed performance up to 30 knots (35 MPH).

Fishing Applications:

• Blue-water trolling using 50 kHz
• Deep-water bottom and wreck fishing up to 800 m (2,625’)

Features:

• Top-of-the-line narrow-beam transom-mount
• Designed for bottom fishing
• Wide 19° beam at 50 kHz
• Narrow 6° beam at 200 kHz
• Interfaces to any 600 W or 1 kW sounder
• The depth and fast-response water-temperature sensor
• Kick-up assembly locks in the “up” position and will not damage the transom
• Accommodates transom angles between 3° and 21°
• Urethane housing
• Boat Size: Up to 12 m (40’)

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Quick Guide (pdf)

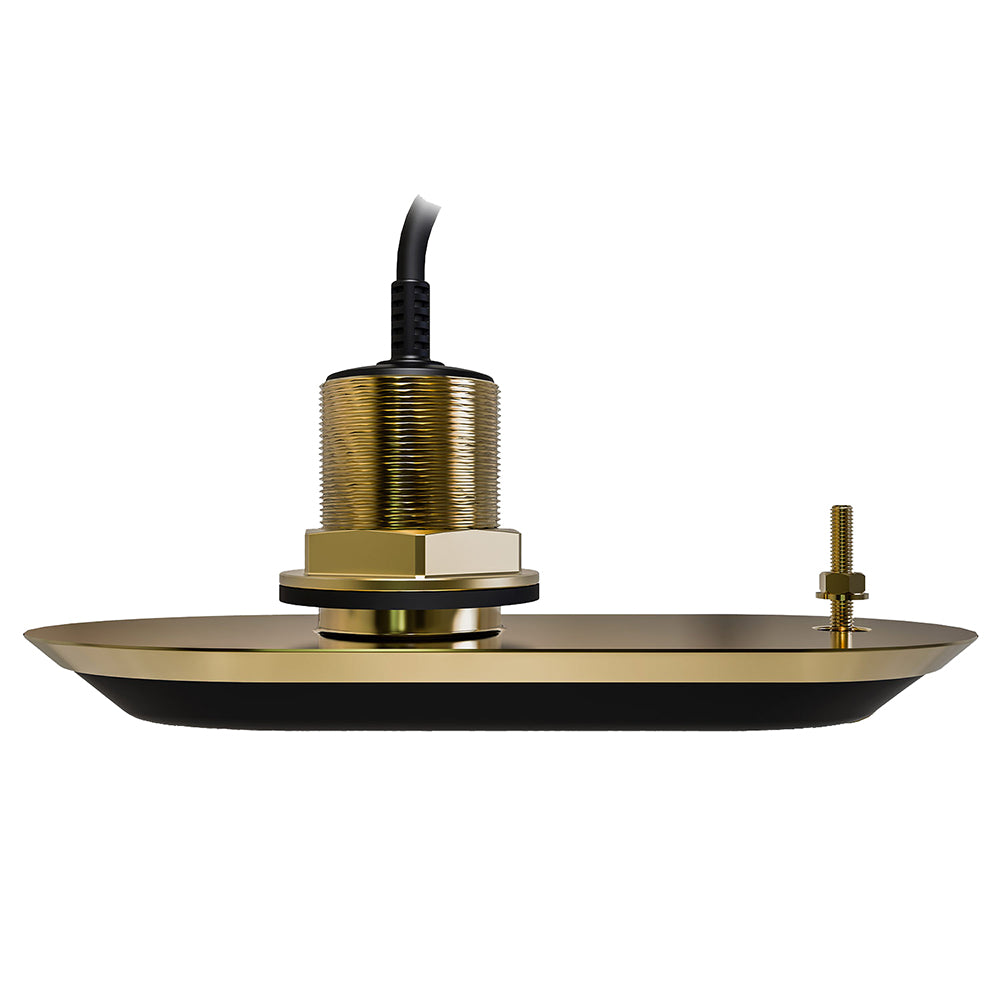

Raymarine RV-220S RealVision 3D Starboard Side Thru-Hull CHIRP Bronze Transducer - 20 - 2M Cable [A80469]

RV-220S RealVision 3D™ Starboard Side Thru-Hull CHIRP Bronze Transducer - 20° - 2M Cable - Replacement transducer

The RV-220 system features rugged cast-bronze thru-hull bodies suitable for fiberglass or wooden hulls. One transducer transmits and receives to port and downward, the other to starboard and downward, ensuring a full 180° of underwater coverage even on boats with deep keels or other underwater protrusions.

Features:

• Gyro-stabilized sonar technology: Gyro stabilization compensates for boat movement, delivering lifelike 3D sonar imagery.
• Wide spectrum CHIRP sonar: Transmits on 60 different frequencies for the most lifelike sonar imagery and simply the best fish targeting – hands down!
• Easy fish identification: Easily identify structure and locate fish with the lifelike clarity of RealVision™ 3D sonar
• Powerful four-channel sonar: Supports RealVision 3D, CHIRP DownVision, SideVision, high frequency CHIRP, and 600W  50/200kHz traditional sonar

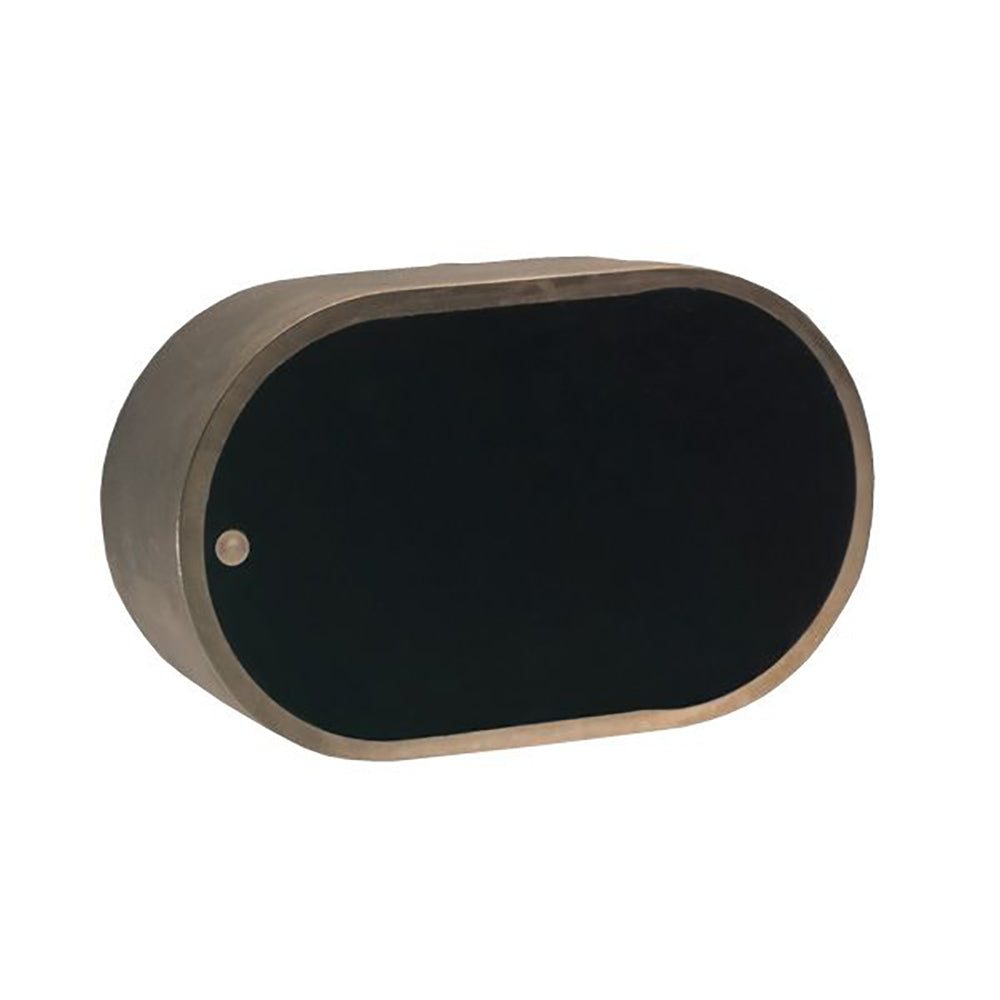

Airmar PM275C-LHW CHIRP Transducer [PM275C-LHW-MM]

Ships Direct From Manufacturer

PM275C-LHW CHIRP Transducer

Keel-mount 1kW dual-band CHIRP fishfinder transducer.

The PM265 is a Pocket/Keel mount unit available in the Low/Medium and Low/High bands. The PM275 is a wide beam version of the PM265 with Low/High bands and a wide beam.

Specifications:

• Type: CHIRP dual-band fishfinder transducer
• LM Version: Low Band 42-65 kHz / Beam width 25-16° // Medium Band 85-135 kHz / Beam width 16-11°
• LH Version: Low Band 42-65 kHz / Beam width 25-16° // High Band 130-210 kHz / Beam width 10-6°
• LHW Version: Low Band 42-65 kHz / Beam width 25-16° // High Wide Band 150-250 kHz / Beam width 25°
• Power Rating: 1000 watts
• Mounting: Pocket/Keel Mount
• Housing: Urethane
• Hull Aperture: 1.75" (44.5mm)

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
