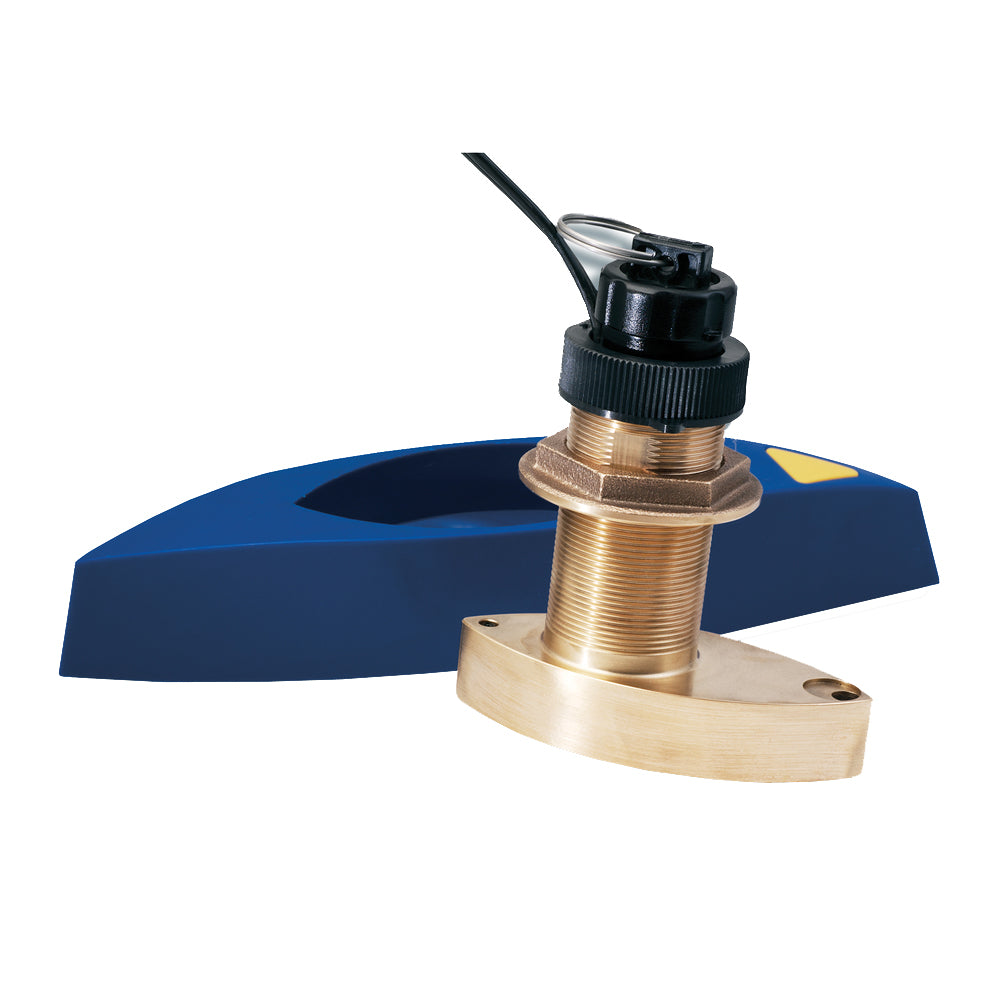

Navico B744V 50/200 kHz Smart xSonic 9-Pin TH w/Fairing Block [B744V-9N]

B744V 50/200 kHz Smart xSonic 9-Pin TH with Fairing Block

Bronze Thru-Hull with High-Speed fairing block. The Lowrance Bronze Thru-Hull, style B744V, 600w, multisensor provides accurate depth, speed, and temp readings and comes with a High-Speed Fairing Block. The high-speed fairing block provides a streamlined installation and allows for a vertical beam.

Compatible with Lowrance HDS, HDS Gen2, HDS Gen2 Touch, HDS Gen3, Lowrance BSM-1, Lowrance Hook, Simrad NSS, Simrad NSS evo2, and Simrad BSM-1.

Specifications:

• Temperature: Yes
• Speed Included: Yes
• Pins: 9
• Mounting Style: Thru-Hull
• Imaging: Standard
• Chirp: No
• Cable Length (Feet): 33'

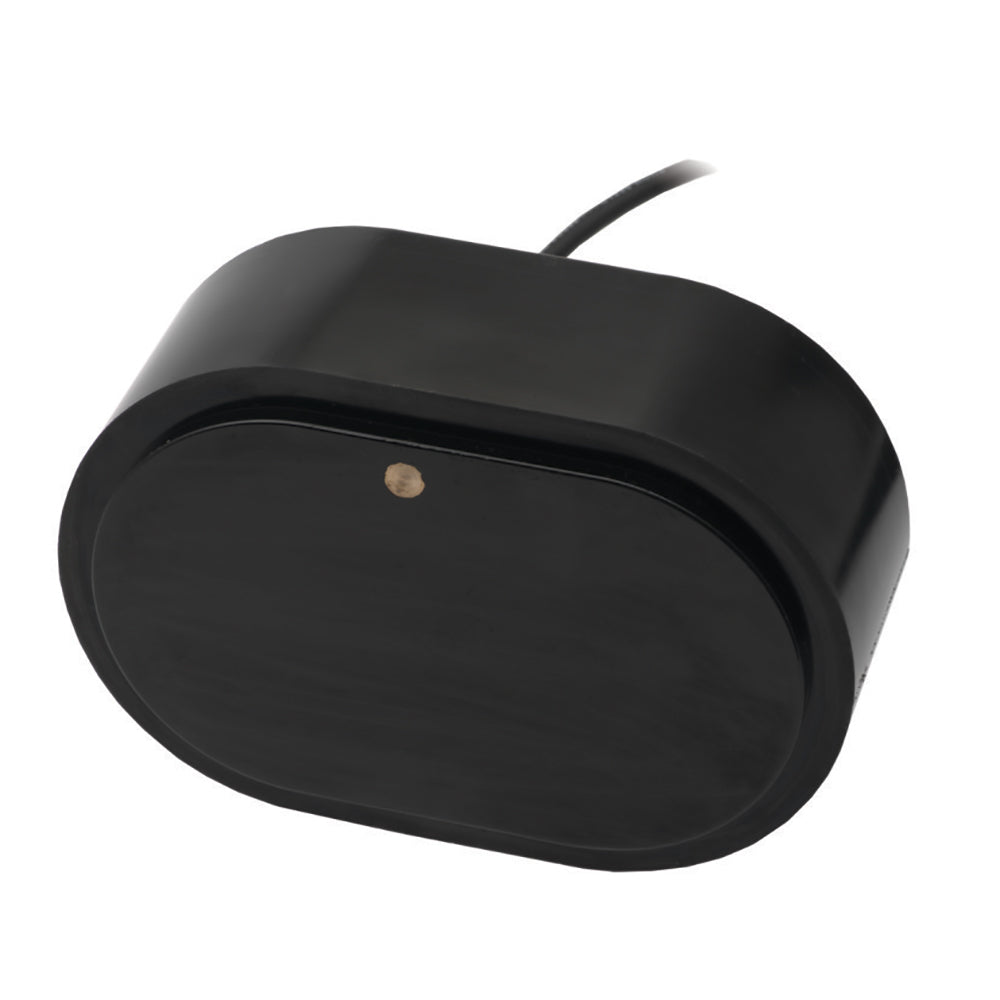

Furuno CM275LH-W Urethane Pocket Mount Transducer - 12-Pin [CM275LH-W-12P]

Ships Direct From Manufacturer

CM275LH-W Urethane Pocket Mount Transducer - 12-Pin

Urethane, 1kW Tank/Cavity/Pocket Mount CHIRP Transducer with 12-Pin Connector, 42-65kHz and 150-250kHz.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

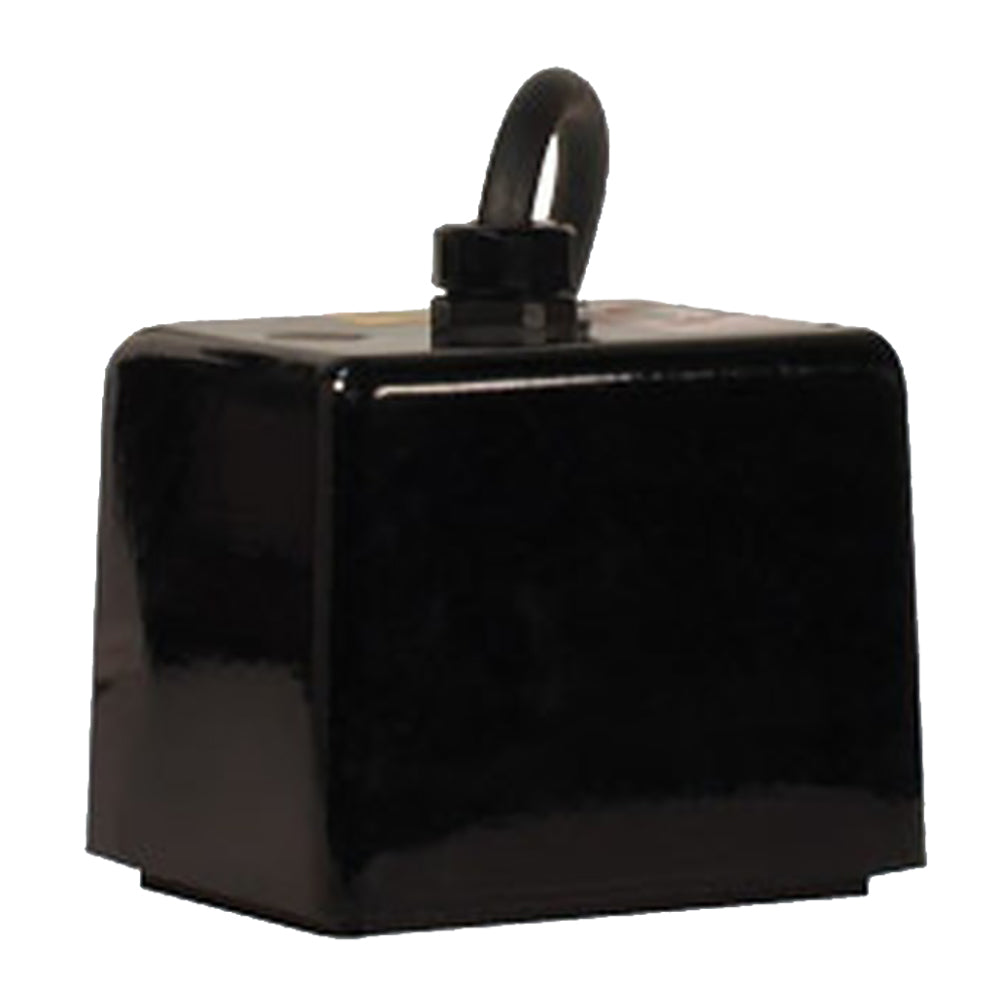

Furuno CA28BL-6HR FRP Transducer - 2kW - No Plug [CA28BL-6HR]

Ships Direct From Manufacturer

CA28BL-6HR FRP Transducer - 2kW - No Plug

FRP Transducer (BLT), Type 28BL-6HR, 2kW (No Plug)

Features:

• 28kHz FRP Transducer
• 2kW
• 22 x 32 degree Directional Pattern
• 15m Cable, no connector
• Weight = 6.5kg
• 120mm x 150mm x 123mm

Specifications:

• Beam Angle: 22 x 32 Degrees
• Housing Type: FRP
• Power Rating: 2kW
• Frequency: 28 kHz
• Install Type: External

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

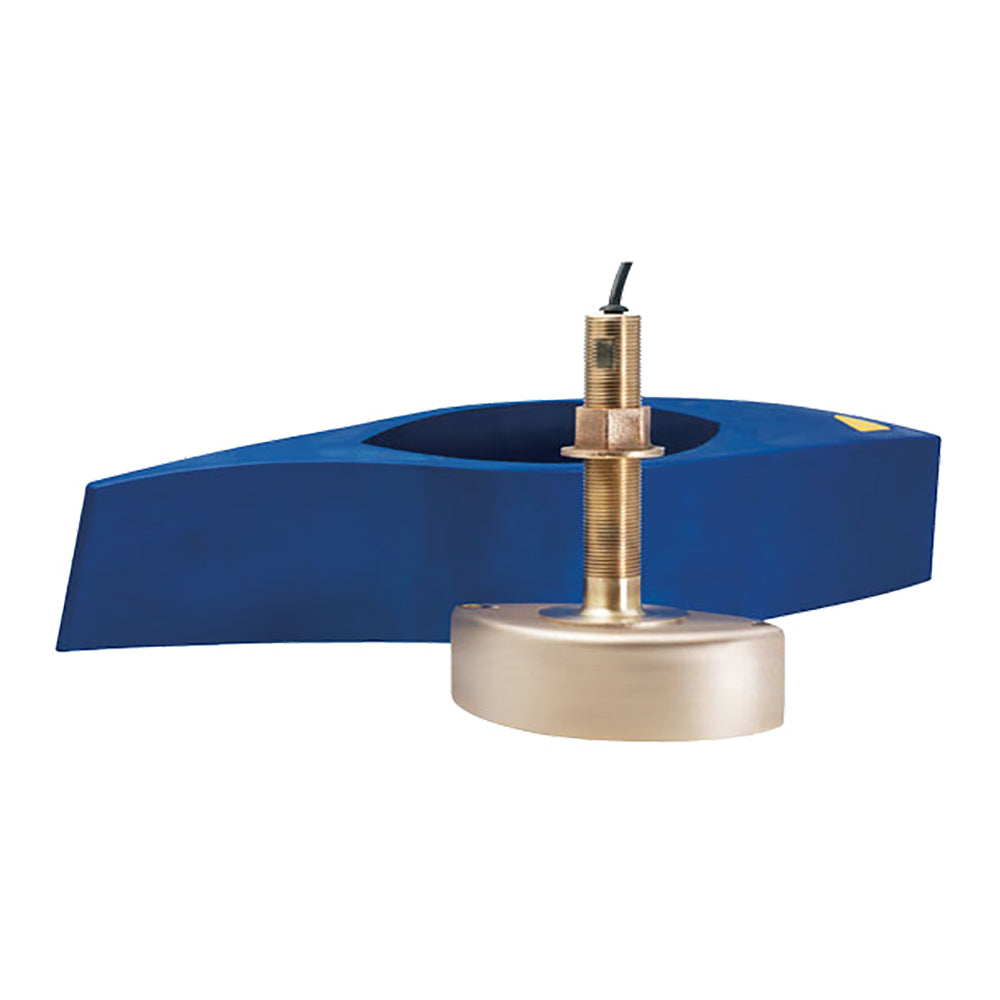

Airmar B285M Single Band CHIRP Thru-Hull Reqs Mix  Match Cable [B285C-M-MM]

Ships Direct From Manufacturer

B285M Single Band CHIRP Thru-Hull Req's Mix & Match Cable

Medium frequency delivers the right combination of coverage under the boat, extended depth range and the ability to produce clean and accurate target and structure returns in the mid to deeper water depths. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths (up to 1,500') and delivers ultra-clear target resolution.

This model is also ideal for single channel sounder applications where operating in Chirp mode provides a greater opportunity to see what is in the water column. Simply create pre-sets for 85 kHz and 135 kHz to toggle between wide and narrow beams to adjust for scouting an area and then pinpointing structure.

The included high-performance fairing improves broadband performance at speeds over 30 knots (34 MPH).

The B285M transmits across the medium frequency 85 to 135 kHz band.

Features:

• Depth and fast-response water-temperature sensor
• 1 kW with a maximum depth of 457 m (1500')
• Medium Frequency: 85 kHz to 135 kHz
  • 16° to 11° beamwidth
• 50 kHz of total bandwidth
• Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth
• Medium frequency provides excellent shallow to mid-depth performance, bottom detail and fish target separation
• Bronze housing for use on planing or displacement hulls in fiberglass or wood
• Recommended boat size: 8 m (25') and above
• Also available in a transom-mount (TM185M), thru-hull (B175M) and in-hull (M135M) models
• Exclusive Xducer ID® technology

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

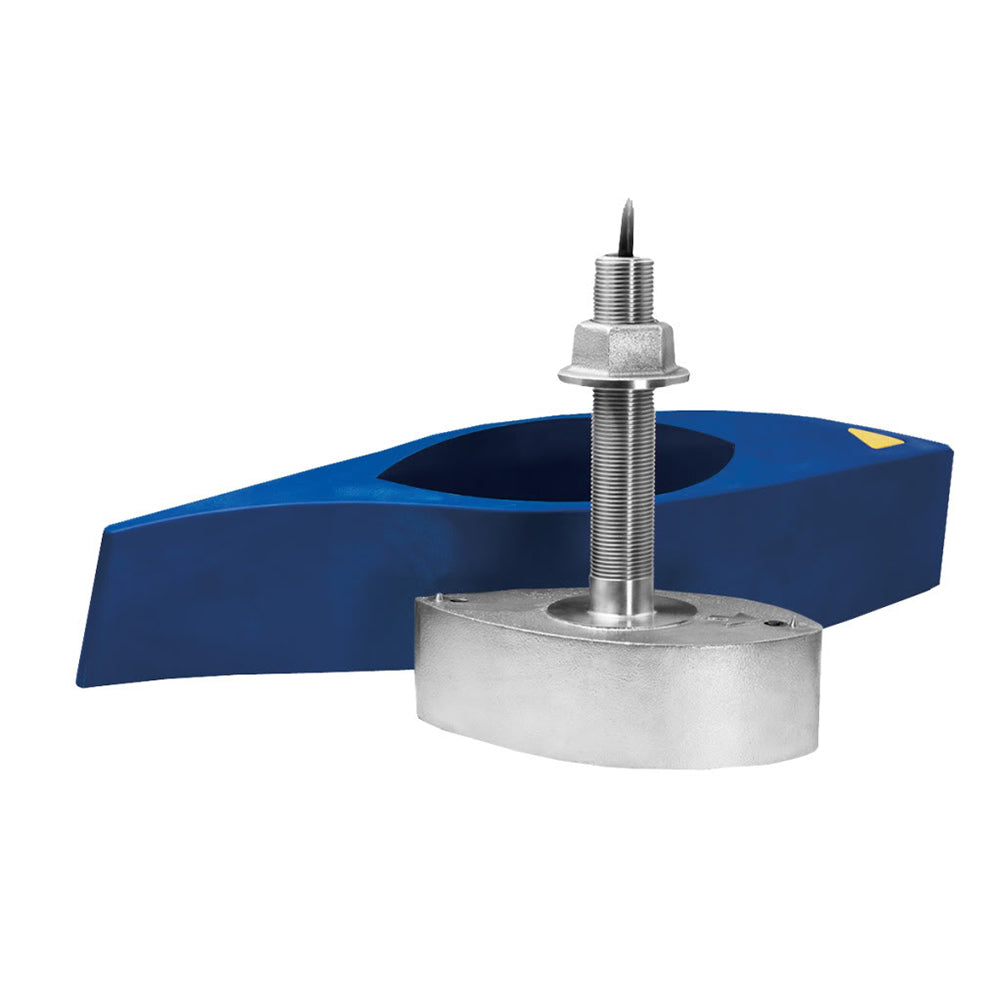

Furuno SS260 Thru-Hull Transducer - Stainless Steel - 1kW - 50/200 - No Plug [556TID-HDN]

Ships Direct From Manufacturer

SS260 Thru-Hull Transducer - Stainless Steel - 1kW - 50/200 - No Plug

Airmar SS260 Housing Style Transducer. Stainless Steel Thru-Hull Transducer with Temp and Fairing Block, 1 kW (No Plug).

Features:

• 1,000 Watts Power
• 50/200 kHz, no Diplexer
• 20/6 degree Beam Angles
• Stainless Steel Thru-Hull with Temperature
• No Connector
• High Speed Fairing Block included

Specifications:

• Beam Angle: 20° and 6°
• Housing Type: Stainless Steel
• Power Rating: 1kW
• Frequency: 50kHz and 200kHz
• Install Type: Thru-Hull

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

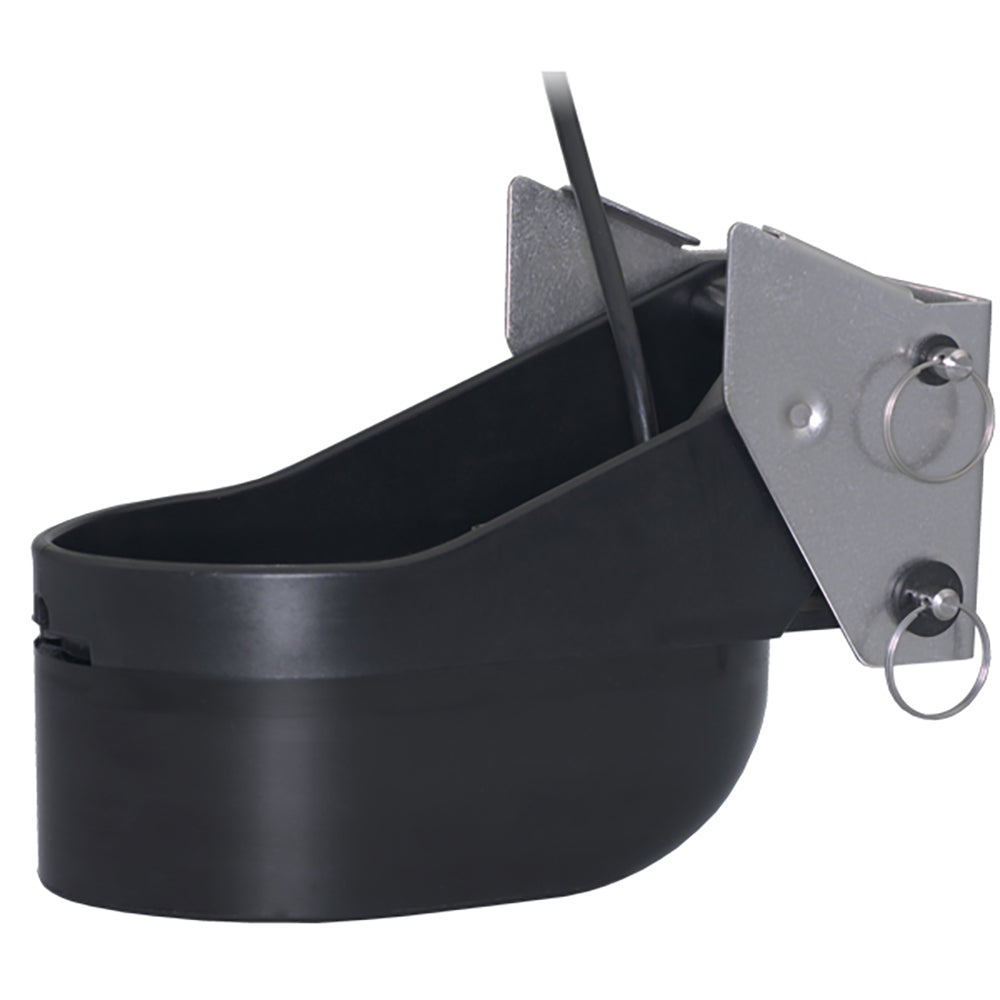

Airmar TM185C-M-8G 1kW CHIRP-Ready Transom Mount [TM185C-M-8G]

Ships Direct From Manufacturer

TM185C-M-8G 1kW CHIRP-Ready Transom Mount

The TM185M is a transom-mounted, Chirp-ready transducer designed for offshore fishing and freshwater anglers spending their time in shallow to mid-range depths. The medium frequency delivers the right combination of coverage under the boat, extended depth range, and the ability to produce clean and accurate target and structure returns in mid to deeper water. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths down to 457 m (1,500') and delivers ultra-clear target resolution.

The TM185M transmits across the following bandwidth:

• Medium frequency 85 to 135 kHz

Features:

• The depth and fast-response water-temperature sensor
• 1 kW with a maximum depth of 457 m (1,500')
• Medium frequency: 85 to 135 kHz
  • 16° to 11° beamwidth
• 50 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth
• Medium frequency provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation
• Transom-mount, urethane housing with a stainless steel bracket for installation on outboard and I/O powered boats
• Also available as thru-hull (B285M, B175M) and in-hull (M135M) models
• Exclusive Xducer ID® technology

Specifications:

• Weight: 4.2 kg (9.2 lb.)
• Recommended Boat Length: Up to 10 m (32')
• Transom Angle: 3° to 21°
• Acoustic Window: Urethane
• Includes: Adjustable, stainless steel bracket and mounting hardware
• Transducer Element: One internal broadband ceramic assembly

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Brochure (pdf)

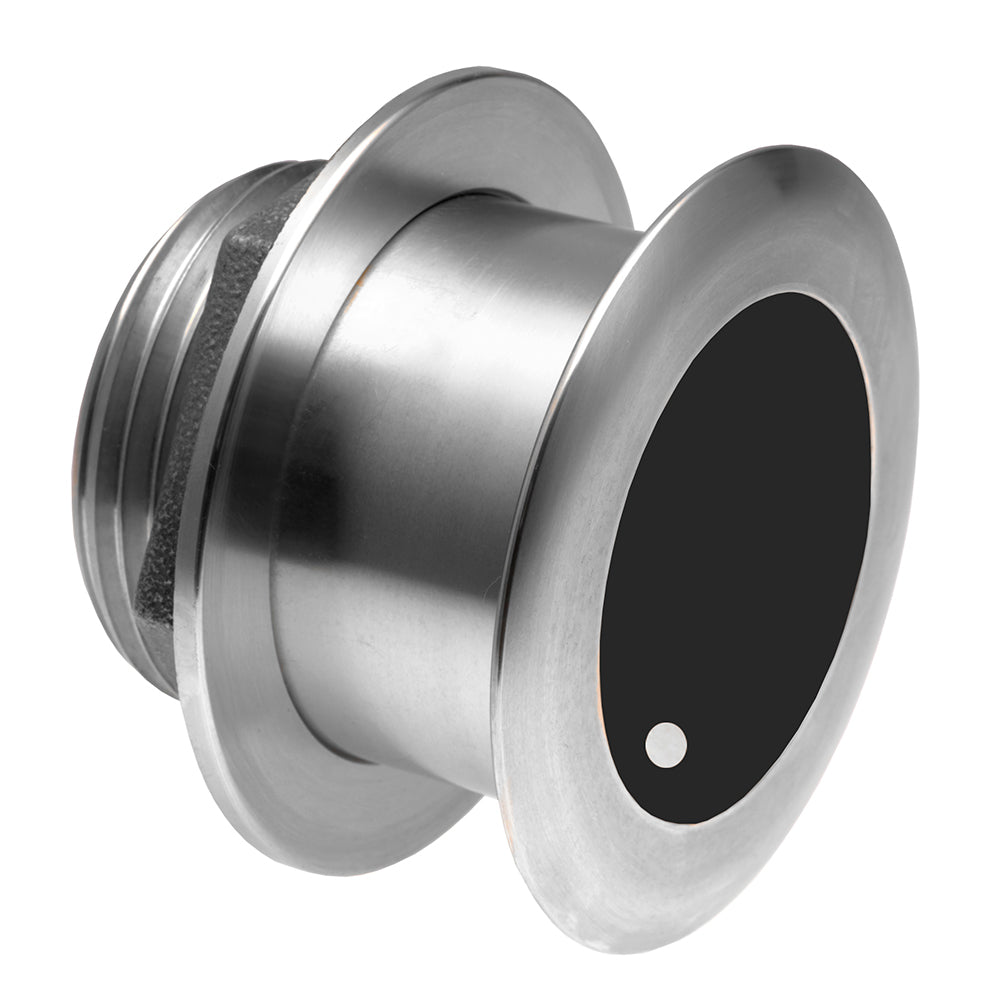

Raymarine SS164 Stainless Steel Thru-Hull - 0 Tilted Element - 1KW f/CP370 Sounder [A80451]

Ships Direct From Manufacturer

SS164 Stainless Steel Thru-Hull - 0° Tilted Element - 1KW for CP370 Sounder

Step up to a 1 kW—without a fairing! Airmar’s innovative Tilted Element™ technology to a higher power. The 1 kW, flush-mount, tilted element transducer is perfect for fast, trailered, tournament sportfishing vessels that cannot accomodate a high-performance fairing. The flush-mounted, stainless steel housing protrudes less than 6.35 mm (0.25") outside your hull and can sit on trailer rollers and bunks. The ceramic arrays are tilted inside the housing providing the perfect vertical beam with maximum energy on what is directly below the boat.

Features:

• Depth and fast-response water-temperature sensor
• 1 kW power for performance to 500 m (1640'), 50 kHz with a wide 22° beam, 200 kHz with a 6° beam
• Interfaces to any 600 W or 1 kW echosounder
• Engineered for center-console and trailered boats
• Low-profile protrusion - less than 6.35 mm (0.25") outside your hull
• Fixed 0° tilted version for 0° to 7° hull deadrise
• No affect on boats running performance
• Stainless steel transducer housing for use on all hull materials
• Recommended boat size: up to 11 m (35')
• Exclusive Xducer ID® technology

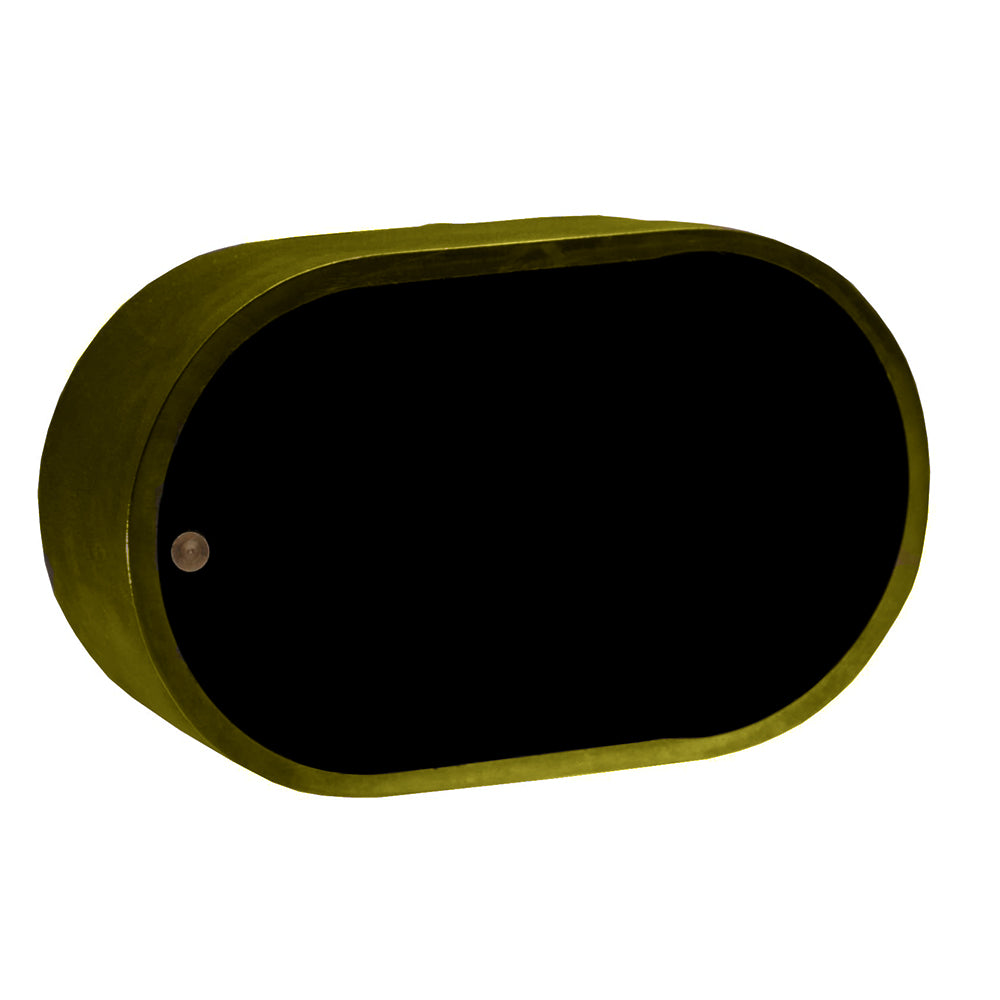

Furuno PM275LHW Bronze Pocket Mount CHIRP Transducer - 12-Pin [PM275LHW-12P]

PM275LHW Bronze Pocket Mount CHIRP Transducer - 12-Pin

Bronze, Pocket Mount CHIRP Transducer with Temp, with 12-Pin Connector, Low-Freq: 42-65 kHz, High-Freg: 150-250kHz.

The 275LH-W series transducers are truly broadband at its best. Paired with Furuno’s DFF1-UHD, the pocket mounted PM275LH-W provides a high frequency range of 150-250Khz and a constant 25° beamwidth. The “W” stands for wide and that’s what the PM275LH-W really delivers. Unlike traditional high frequency (200kHz) transducers that provide narrow performance, this unique, new wide beam/high frequency design achieves over six times the coverage under the boat compared to standard high-frequency CHIRP Transducers.

The PM275LH-W is also compatible with the FCV295 and FCV1150 variable frequency Fish Finders, providing the same frequency range with a 25° wide beamwidth provided at every frequency.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
