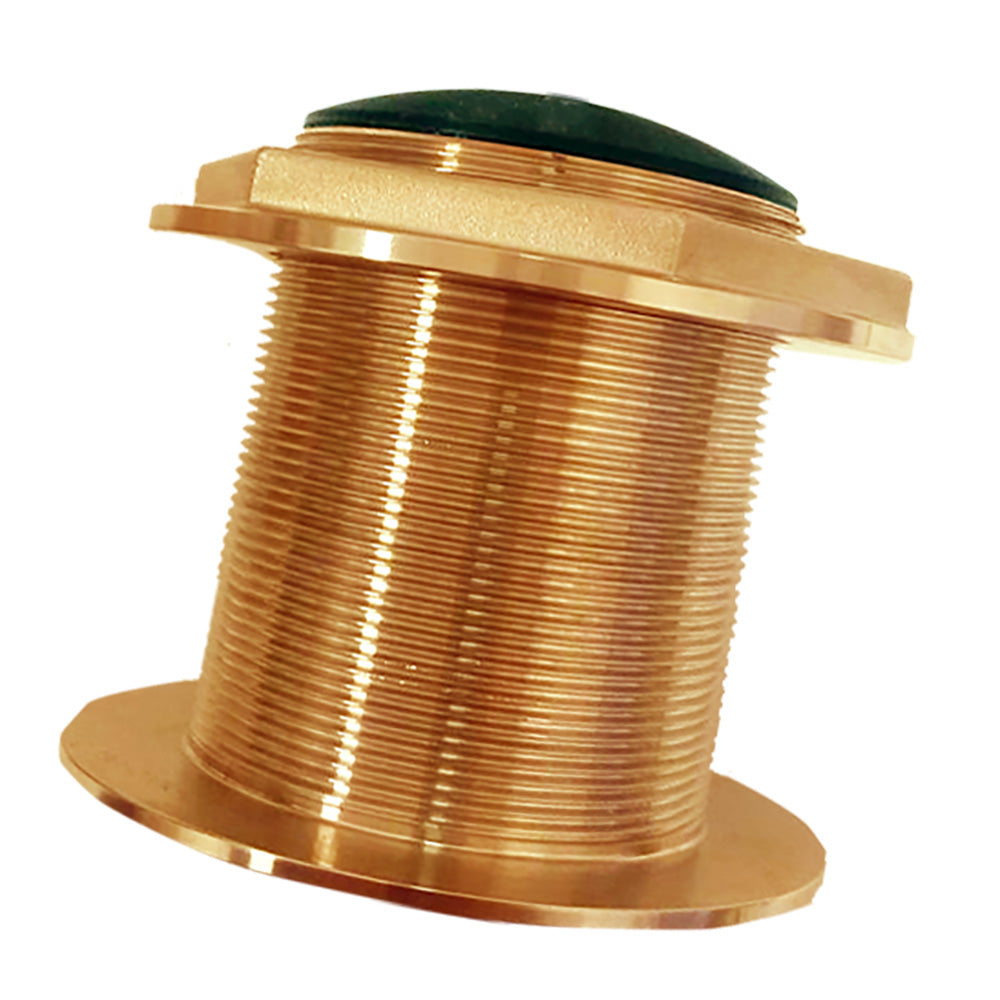

Echonautics Bronze Low-Profile Thru-Hull High-Frequency CHIRP Transducer - 1kW, 18 Tilt, 130-210kHz [BT87H1KW-18]

Bronze Low-Profile Thru-Hull High-Frequency CHIRP Transducer - 1kW, 18° Tilt, 130-210kHz

Echonautics presents a range of powerful transducers from Dual Frequency CW to Low/Medium/High CHIRP and digital sensors, with excellent value for money.

Technical Specifications:

• Frequency - 130-210kHz
• 1kW
• Mounting Style - Thru-Hull
• Material - Bronze
• 18° Tilt

Specifications:

• Cable Length (Feet): 26'
• Chirp: High
• Imaging: Standard
• Mounting Style: Thru-Hull
• Pins: 8
• Speed Included: No
• Temperature: Yes

Brochure (pdf)

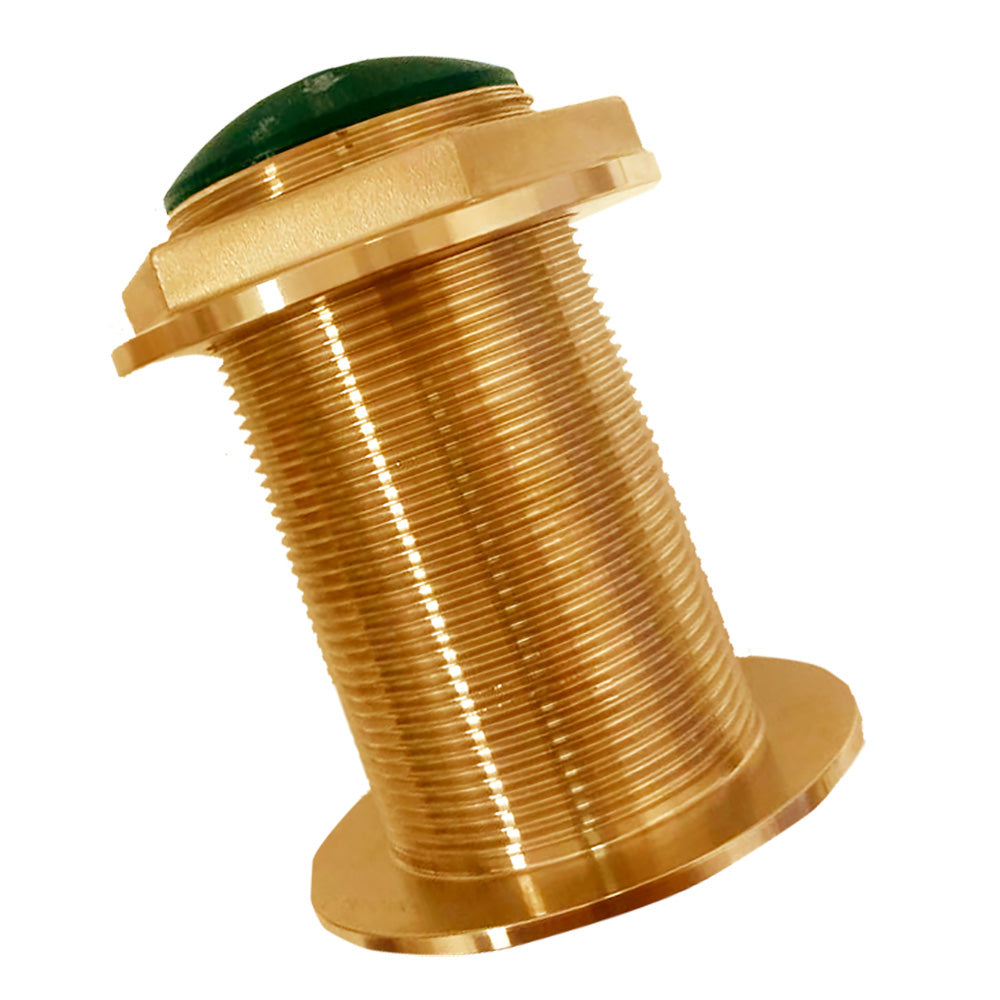

Echonautics Bronze Low-Profile Thru-Hull High-Frequency CHIRP Transducer - 600W, 0 Tilt, 130-210kHz [BT70H600-00]

Bronze Low-Profile Thru-Hull High-Frequency CHIRP Transducer - 600W, 0° Tilt, 130-210kHz

Echonautics presents a range of powerful transducers from Dual Frequency CW to Low/Medium/High CHIRP and digital sensors, with excellent value for money.

Technical Specifications:

• Frequency - 130-210kHz
• 600W
• Mounting Style - Thru-Hull
• Material - Bronze
• 0° Tilt

Specifications:

• Cable Length (Feet): 26'
• Chirp: High
• Imaging: Standard
• Mounting Style: Thru-Hull
• Pins: 8
• Speed Included: No
• Temperature: Yes

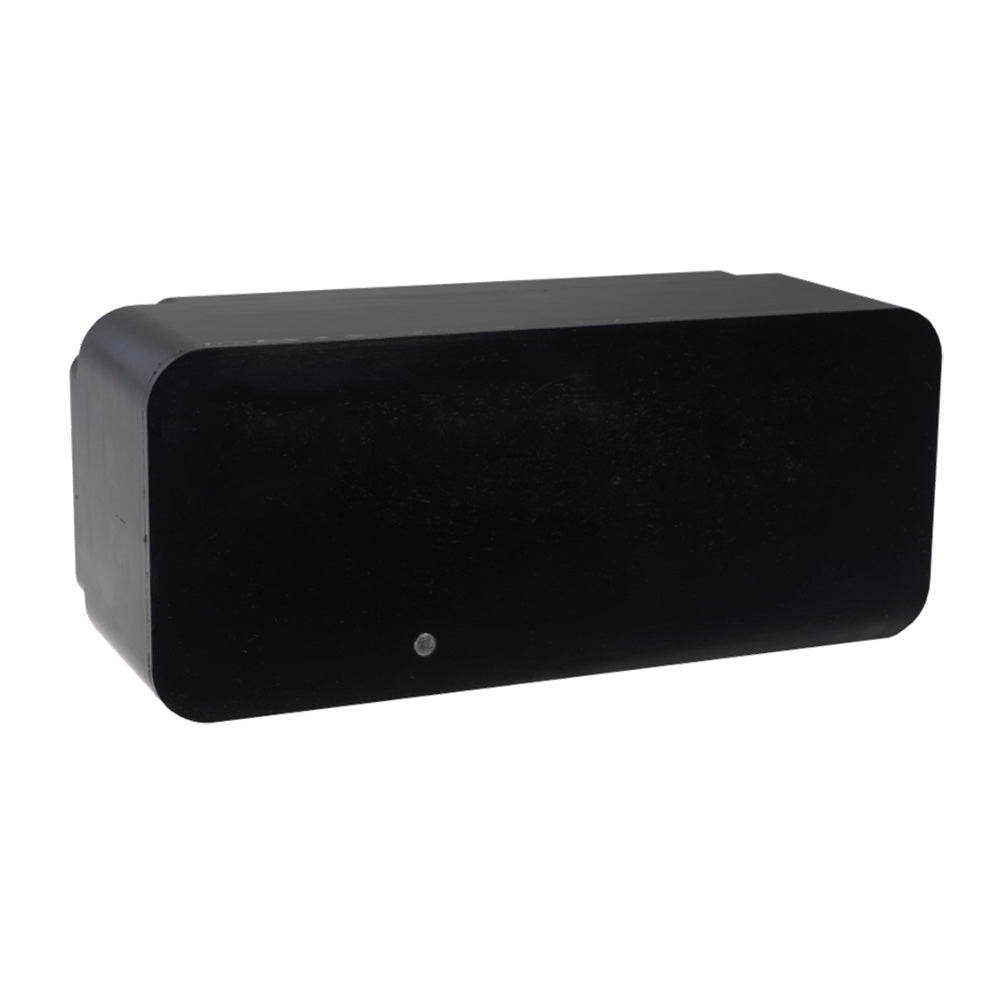

Airmar PM111LH Pocket Mount - Low-High Chirp 2kW - No Connector [PM111C-LH]

Ships Direct From Manufacturer

PM111LH Pocket Mount - Low-High Chirp 2kW - No Connector

A popular choice for boat builders, pocket mount transducers is installed within a small custom pocket in your vessel’s hull or keel, flush to the surface. Though retrofit installation is possible, these transducers are most commonly used in vessels with a suitable pre-cut pocket.

Pocket-mounted transducers provide reliable and accurate sonar performance, with some impact on boat speed and fuel efficiency. As a common alternative, thru-hull transducers with a fairing block deliver comparable sonar performance and vessel impact.

Features:

• Depth & fast-response water-temperature sensor
• Fiberglass and metal stepped, planing, or displacement hull types

Advantages:

• All the benefits of a thru-hull without the need for a high-performance fairing
• Can accommodate any deadrise angle
• Can be used with all propulsion types

Specifications:

Low (38 kHz to 75 kHz):

• 19° to 10° port/star
• 10° to 5° fore-aft beam
• Maximum depth 6000 ft.

High (130 kHz to 210 kHz):

• 8° to 4° beamwidth
• Max. depth 1500 ft.

Bottom Coverage Relative to Frequency and Depth

• Depth (50 ft.): 6 ft.
• Depth (100 ft.): 14 ft.
• Depth (300 ft.): 42 ft.
• Depth (600 ft.): 84 ft.
• Depth (1000 ft.): 140 ft.
• Depth (1500 ft.): 210 ft.
• Depth (2000 ft.): Too deep

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Chirp: Low/High
• Temperature: Yes

Brochure (pdf)

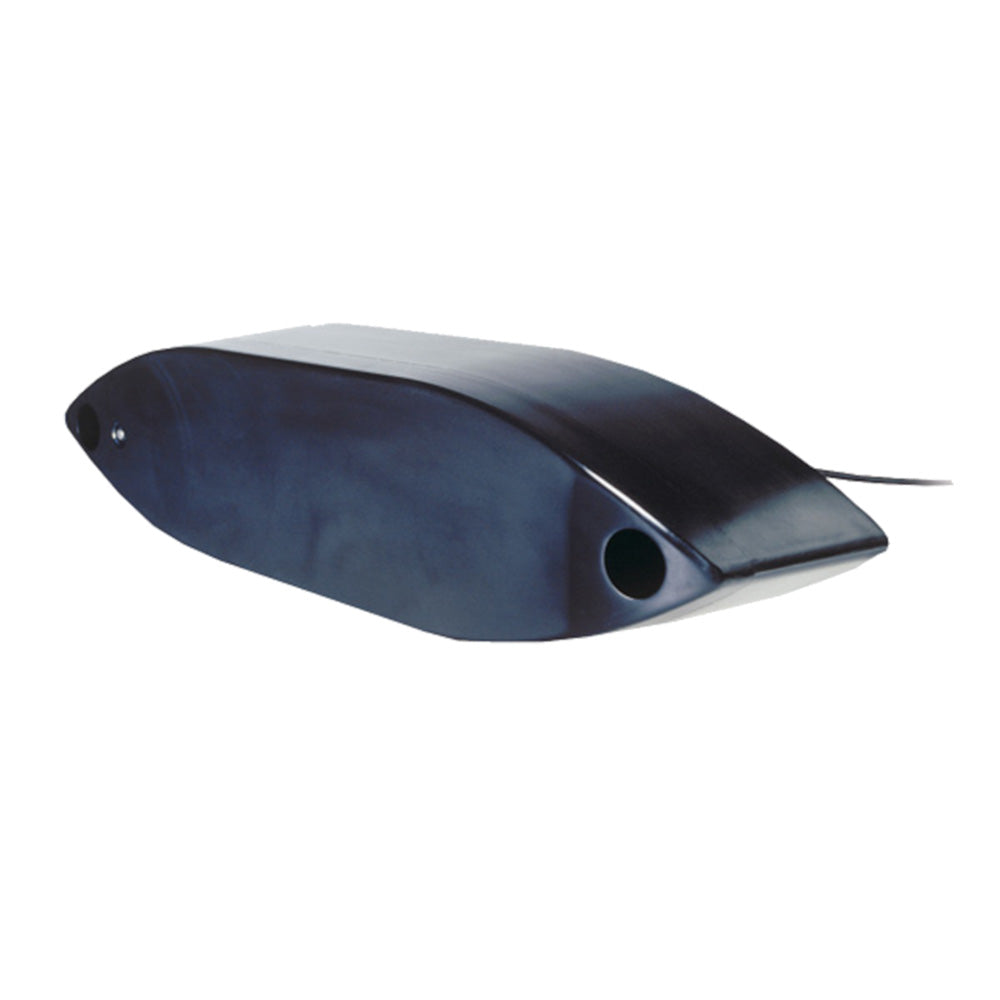

Airmar R509C-LM CHIRP 3KW Transducer [R509C-LM]

Ships Direct From Manufacturer

R509C-LM CHIRP 3KW Transducer

Unlock the true potential of your fish-finder with the superior quality and performance of an AIRMAR Chirp-ready transducer.

Features:

• Depth & fast-response water-temperature sensor
• Epoxy transducer housing with high-performance fairing
• For use on hulls up to 25° deadrise
• 82 kHz of total bandwidth from one transducer

Benefits of Thru-Hull Transducers with High-Performance Fairing:

• The best performance on vessels 25 feet and up because the transducer face is in “clean” water below the boundary layer (bubbles running down the hull)
  • The fairing compensates for hull deadrise and reduces turbulence over the transducer face, which allows tracking at speeds over 30 knots (35 MPH)
  • When mounted in clean water (forward of propellers and running gear), thru-hulls produce the most effective signal return since nothing on the vessel interferes with the transducer’s active surface

Specifications:

• Boat Size: 12 m (40 ft.) and above
• Hull Type: Fiberglass, wood, or metal
• Engine Type: Inboard, outboard or I/O

Low (28 kHz to 60 kHz):

• 23° to 9° port/starboard
• 11° to 5° fore-aft beamwidth
• Maximum depth 10000 ft

Medium (80 kHz to 130 kHz):

• 13° to 8° beamwidth
• Maximum depth 3000 ft.

Bottom Coverage Relative to Frequency and Depth

• Depth (50 ft.): 10 ft.
• Depth (100 ft.): 24 ft.
• Depth (300 ft.): 68 ft.
• Depth (600 ft.): 136 ft.
• Depth (1000 ft.): 228 ft.
• Depth (1500 ft.): 340 ft.
• Depth (2000 ft.): 456 ft.
• Depth (2500 ft.): 570 ft.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Chirp: Low/Medium
• Box Dimensions: 14"H x 17"W x 28"L WT: 56.1 lbs
• UPC: 801769001594

Brochure (pdf)

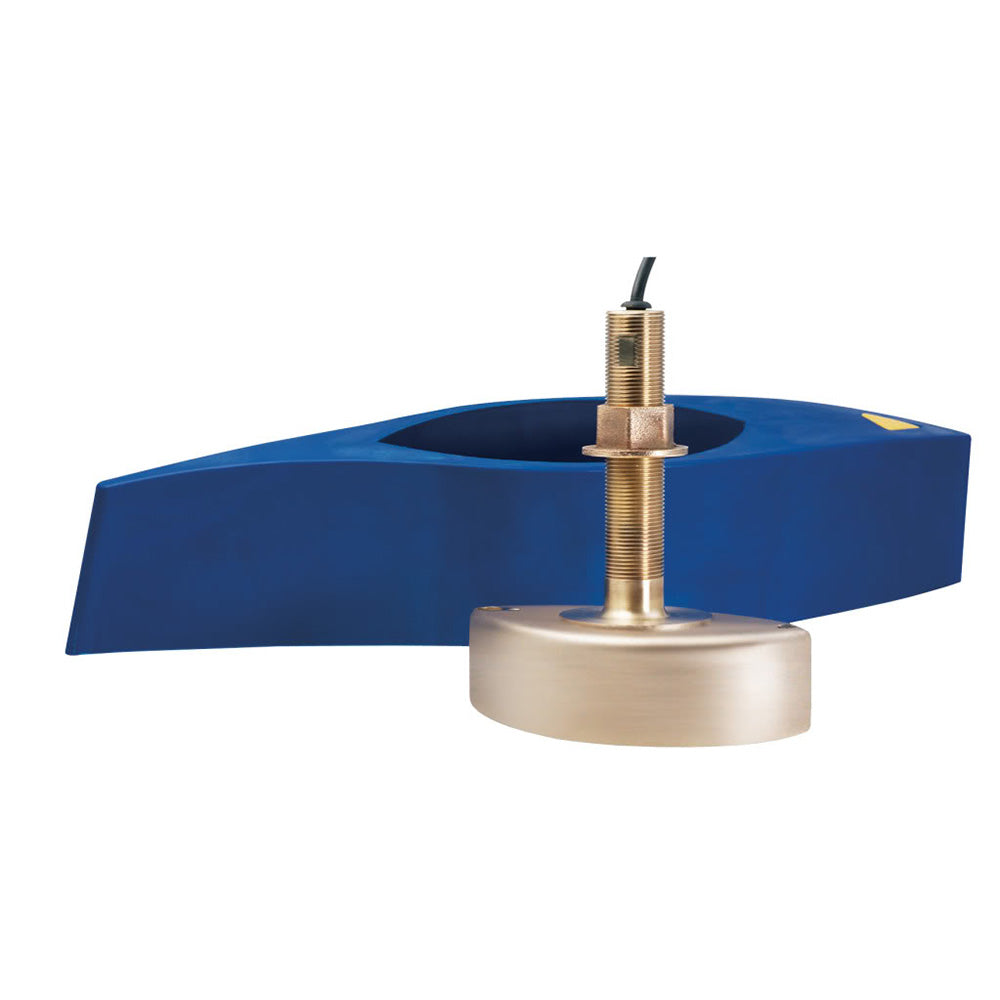

Furuno B285HW CHIRP Bronze Transducer w/FB 10-Pin [B285HW]

Ships Direct From Manufacturer

B285HW CHIRP Bronze Transducer with FB 10-Pin

High-Frequency, Wide-Beam CHIRP Transducer with Temperature - Bronze Thru-Hull with High-Speed Fairing Block.

Features:

• Power: 1kW
• Function: Depth, Temperature
• Frequency: 150-250 kHz
• Mount Style: Thru-Hull
• Housing Material: Bronze

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Echonautics Bronze Stem Thru-Hull Medium Frequency CHIRP Transducer - 600W  80-130kHz [CB131MA600]

Bronze Stem Thru-Hull Medium Frequency CHIRP Transducer - 600W & 80-130kHz

Echonautics presents a range of powerful transducers from Dual Frequency CW to Low/Medium/High CHIRP and digital sensors, with excellent value for money.

Technical Specifications:

• Frequency 80-130kHz
• 600W
• Mounting Style - Thru-Hull
• Bronze Stem

Specifications:

• Cable Length (Feet): 26'
• Chirp: Medium
• Imaging: Standard
• Mounting Style: Thru-Hull
• Pins: 8
• Speed Included: No
• Temperature: Yes

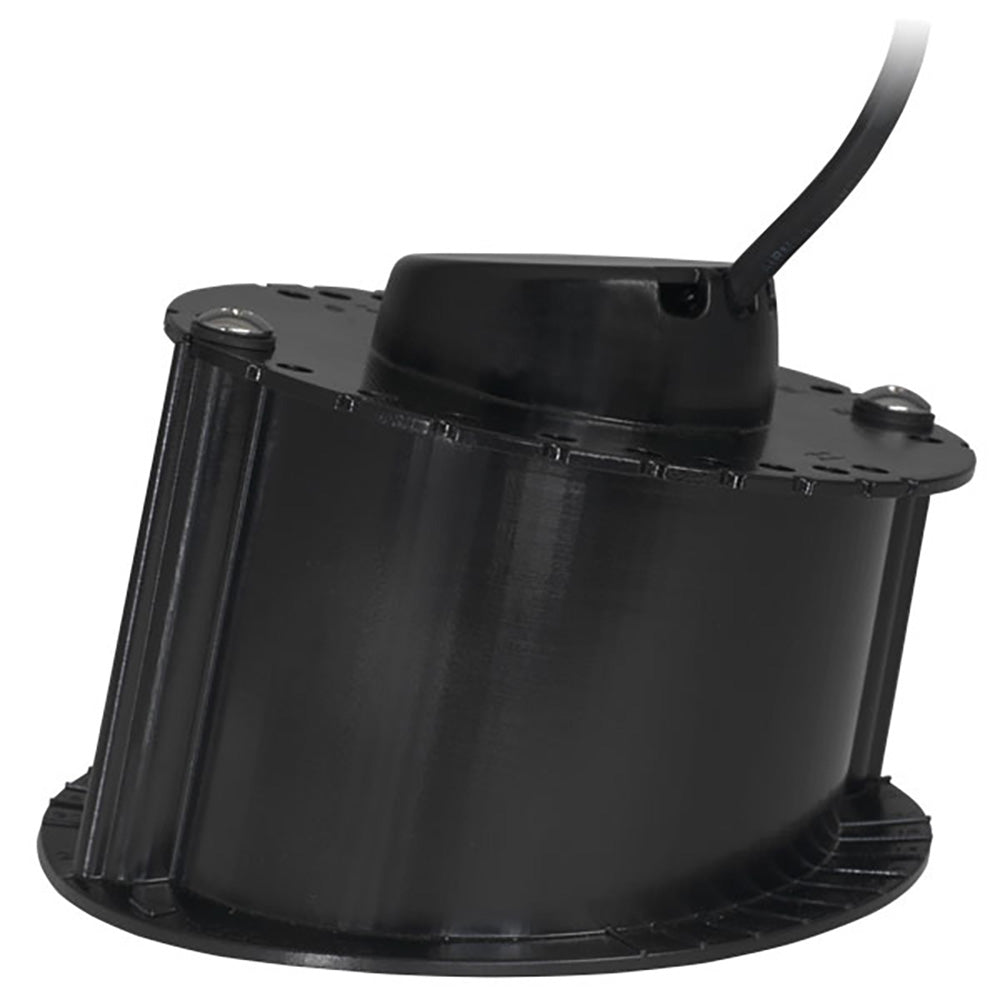

Airmar xSonic M135M Medium Chirp 1 kW In‑Hull Transducer - 9-Pin [M135C-M-9N]

Ships Direct From Manufacturer

xSonic M135M Medium Chirp 1 kW In-Hull Transducer - 9-Pin

The M135M’s medium frequency delivers the right combination of coverage under the boat, an extended depth range, and the ability to produce clean and accurate target and structure returns in mid- to deeper water. Medium frequency also delivers excellent shallow to mid-depth performance, bottom detail, and fish-target separation. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths up to 457 m (1500 ft) and gives ultra-clear target resolution.

Airmar’s M135M includes a plastic mounting base that is aligned with the centerline and secured inside the hull. Then it is filled with non-toxic antifreeze. The transducer is inserted into the base and adjusted for the proper deadrise offset, ensuring the beam is shooting straight down for maximum echo returns. The eco-friendly coolant is the best medium to transmit through solid fiberglass and into the surrounding water. The major benefit of an in-hull transducer is that there are no protruding features on the exterior of the hull, making it the perfect choice for trailered or lifted boats. Designed for smaller boats up to 11 m (36') with a solid fiberglass hull.

Features:

• Depth only
• 1 kW of power
• 50 kHz of total bandwidth from one transducer
• Recommended for use on planing and displacement hulls
• Plastic transducer and mounting base
• Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth
• Also available as transom (TM185M), thru-hull low-profile (B175M), and thru-hull with fairing (B285M) mounts
• Patented Xducer ID® technology

Specifications:

• Medium frequency: 85 to 135 kHz
• Beamwidth: 16 degrees to 11 degrees
• Maximum Depth: 457 m (1500 ft.)
• Weight: 4.2 kg (9.2 lb.)
• Recommended Boat Length: Up to 11 m (36 ft.)
• Hull Material: Solid fiberglass only
• Hull Deadrise: Up to 22 degrees
• Acoustic Window: Urethane
• Transducer Element: One broadband ceramic assembly
• Includes: Adjustable mounting base

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Chirp: Medium
• Mounting Style: In-Hull
• Pins: 9
• Box Dimensions: 5"H x 8"W x 12"L WT: 5.1 lbs
• UPC: 801769002119

Owner's Manual (pdf)
Brochure (pdf)

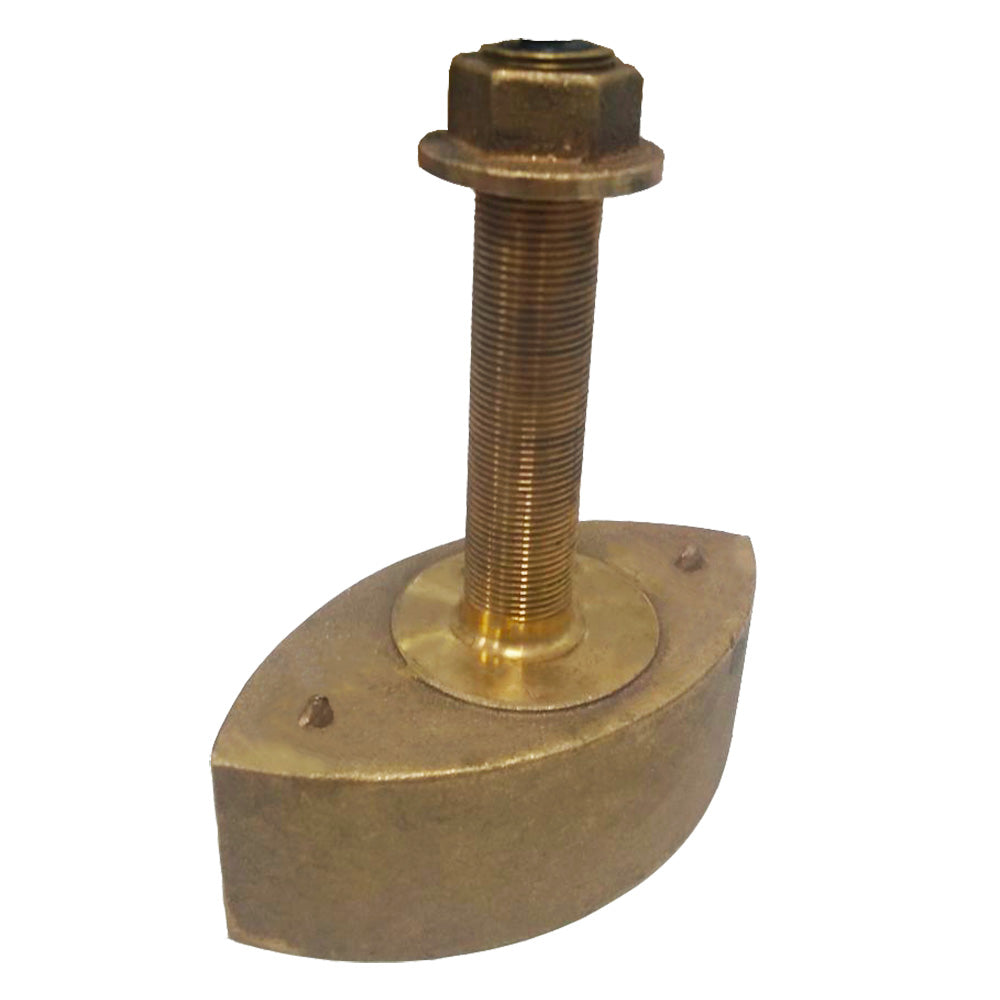

Echonautics Bronze Stem Thru-Hull Medium Frequency CHIRP Transducer - 1kW  85 - 135kHz [CB131M1KW]

Bronze Stem Thru-Hull Medium Frequency CHIRP Transducer - 1kW & 85 - 135kHz

Echonautics presents a range of powerful transducers from Dual Frequency CW to Low/Medium/High CHIRP and digital sensors, with excellent value for money.

Technical Specifications:

• Frequency 85-135kHz
• 1kW
• Mounting Style - Thru-Hull
• Bronze Stem

Specifications:

• Cable Length (Feet): 26'
• Chirp: Medium
• Imaging: Standard
• Mounting Style: Thru-Hull
• Pins: 8
• Speed Included: No
• Temperature: Yes
