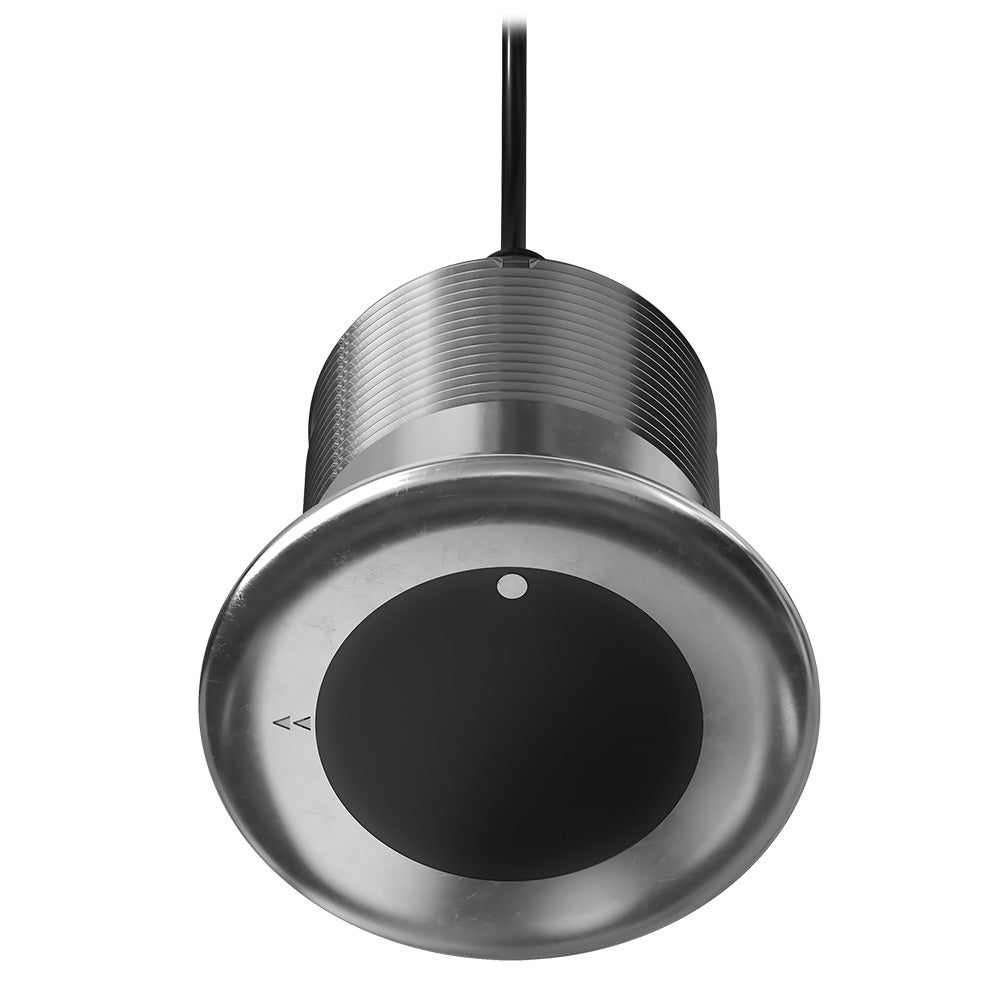

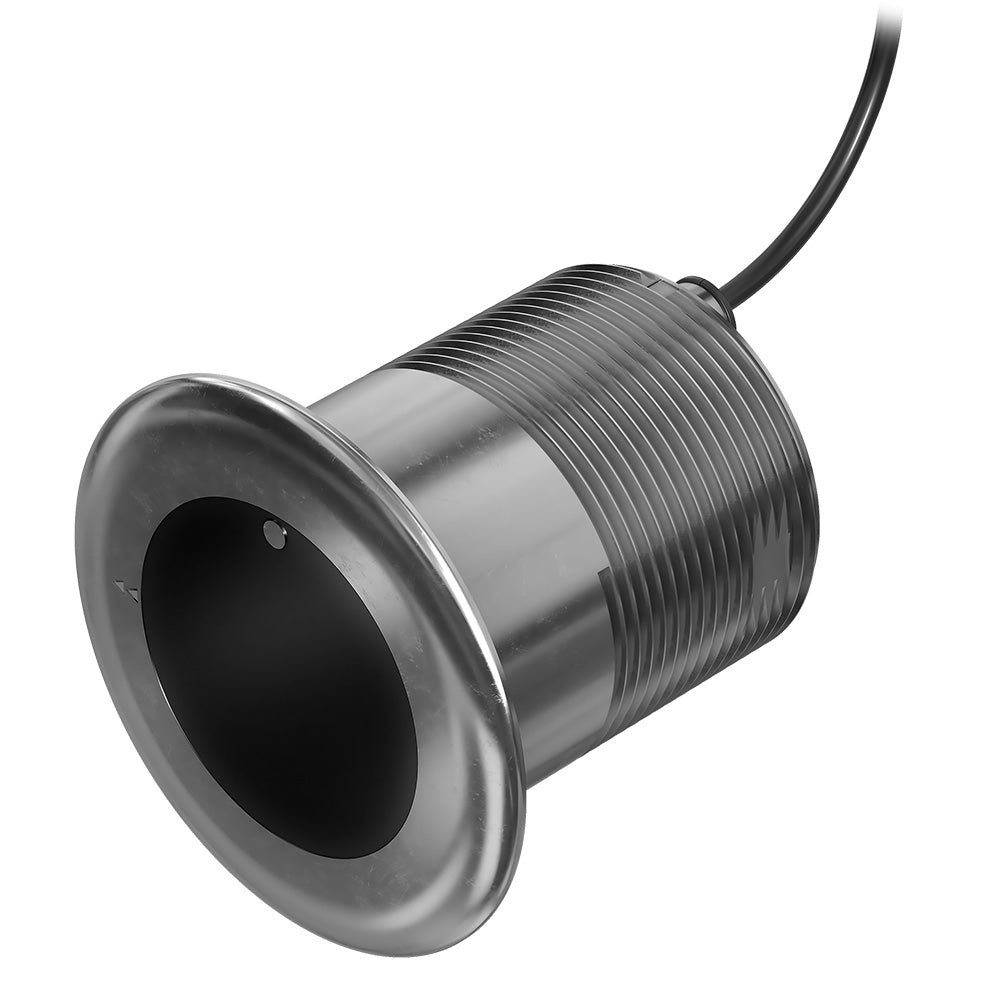

GT17M-THF SS Mid Band Chirp Transducer - 12° - 1kW - 8-Pin

Designed for reduced drag and optimum sonar performance on fishing and cruising boats, this flush-mounted 1 kW mid-band CHIRP (80–165 kHz) transducer clearly defines fish arches, structure, and bottom depth returns on the display.

Features:

• See maximum depth performance to 2,400’ in freshwater
• Access CHIRP sonar frequency range from 80–165 kHz
• Search with beamwidths of 9–18 degrees
• Count on fast-response water temperature sensing
• The thru-hull design offers flush installation with a 12-degree tilt
• Auto-ID enables simple plug-and-play operation

Midband Chirp Traditional Sonar

This 8-pin 1 kW stainless steel thru-hull transducer features high-definition mid-band CHIRP sonar that clearly defines fish targets and structures down to 1,800’ in saltwater and 2,400’ in freshwater.

Broad Frequency Range

Use the perfect frequency for the waters in which users are fishing. Covering the medium frequency range, this transducer pulses from 80–165 kHz, displaying a wide coverage area, clear fish arches, and accurate depth readings.

Optimum Ping Sensitivity

Offering excellent sonar sensitivity, low noise, high resolution, and good separation of targets, this robust transducer makes it easier than ever to distinguish fish and structure on the compatible chartplotter display.

Thru-Hull Installation

A durable stainless steel housing and stem offer straightforward thru-hull flush mounting for minimum drag and optimum beam orientation for clear sonar returns.

Auto-ID Technology

Enjoy simple plug-and-play operation with Garmin auto-identification technology, which enables the sonar to automatically configure itself to the transducer being used.

Fits Various Hull Types

Configurable for a wide variety of boat hull materials, including fiberglass, composite, steel, aluminum, and wood, the transducer is available in a range of tilt versions to accommodate deadrise angles of 0–24 degrees without a fairing block.

In the Box:

• GT17M-THF transducer
• Jam nut
• Spacer
• 2 washers
• 2 set screws
• Thread isolator
• Hull isolator
• Documentation

Specifications:

• Transducer Frequency: Medium band CHIRP (80-165 kHz)
• Transducer Power: 1 kW
• Transducer Beamwidth: 9°-18°
• Transducer Maximum Depth: 1800 ft saltwater; 2400 ft freshwater
• RapidReturn™ Sonar Compatible: Yes
• Transducer Cable Length: 50 ft
• Transducer Depth/Speed/Temperature: Depth, temperature
• Transducer Number of PINs: 8-pin
• Transducer Supported Deadrise/Transom Angles: 12° supports hull deadrise angles from 8° to 15°
• Housing Material: Stainless steel

Specifications:

• Cable Length (Feet): 50'
• Chirp: Medium
• Imaging: Standard
• Mounting Style: Thru-Hull
• Pins: 8
• Speed Included: No
• Temperature: Yes
• Box Dimensions: 7"H x 8"W x 13"L WT: 10.95 lbs
• UPC: 753759338466

Echonautics Bronze Low-Profile Thru-Hull High-Frequency CHIRP Transducer - 600W, 12 Tilt, 130-210kHz [BT70H600-12]

Bronze Low-Profile Thru-Hull High-Frequency CHIRP Transducer - 600W, 12° Tilt, 130-210kHz

Echonautics presents a range of powerful transducers from Dual Frequency CW to Low/Medium/High CHIRP and digital sensors, with excellent value for money.

Technical Specifications:

• Frequency - 130-210kHz
• 600W
• Mounting Style - Thru-Hull
• Material - Bronze
• 12° Tilt

Specifications:

• Cable Length (Feet): 26'
• Chirp: High
• Imaging: Standard
• Mounting Style: Thru-Hull
• Pins: 8
• Speed Included: No
• Temperature: Yes
• Box Dimensions: 4"H x 8"W x 8"L WT: 3.4 lbs
• UPC: 010407340227

Echonautics Bronze Low-Profile Thru-Hull Medium-Frequency CHIRP Transducer - 600W, 12 Tilt, 80-130kHz [BT70MA600-12]

Bronze Low-Profile Thru-Hull Medium-Frequency CHIRP Transducer - 600W, 12° Tilt, 80-130kHz

Echonautics presents a range of powerful transducers from Dual Frequency CW to Low/Medium/High CHIRP and digital sensors, with excellent value for money.

Technical Specifications:

• Frequency - 80-130kHz
• 600W
• Mounting Style - Thru-Hull
• Material - Bronze
• 12° Tilt

Specifications:

• Cable Length (Feet): 26'
• Chirp: Medium
• Imaging: Standard
• Mounting Style: Thru-Hull
• Pins: 8
• Speed Included: No
• Temperature: Yes
• Box Dimensions: 4"H x 8"W x 8"L WT: 3.3 lbs
• UPC: 010407340203

Brochure (pdf)

Echonautics Bronze Low-Profile Thru-Hull Medium-Frequency CHIRP Transducer - 600W, 18 Tilt, 80-130kHz [BT70MA600-18]

Bronze Low-Profile Thru-Hull Medium-Frequency CHIRP Transducer - 600W, 18° Tilt, 80-130kHz

Echonautics presents a range of powerful transducers from Dual Frequency CW to Low/Medium/High CHIRP and digital sensors, with excellent value for money.

Technical Specifications:

• Frequency - 80-130kHz
• 600W
• Mounting Style - Thru-Hull
• Material - Bronze
• 18° Tilt

Specifications:

• Cable Length (Feet): 26'
• Chirp: Medium
• Imaging: Standard
• Mounting Style: Thru-Hull
• Pins: 8
• Speed Included: No
• Temperature: Yes
• Box Dimensions: 5"H x 8"W x 8"L WT: 3.4 lbs
• UPC: 010407340210

Brochure (pdf)

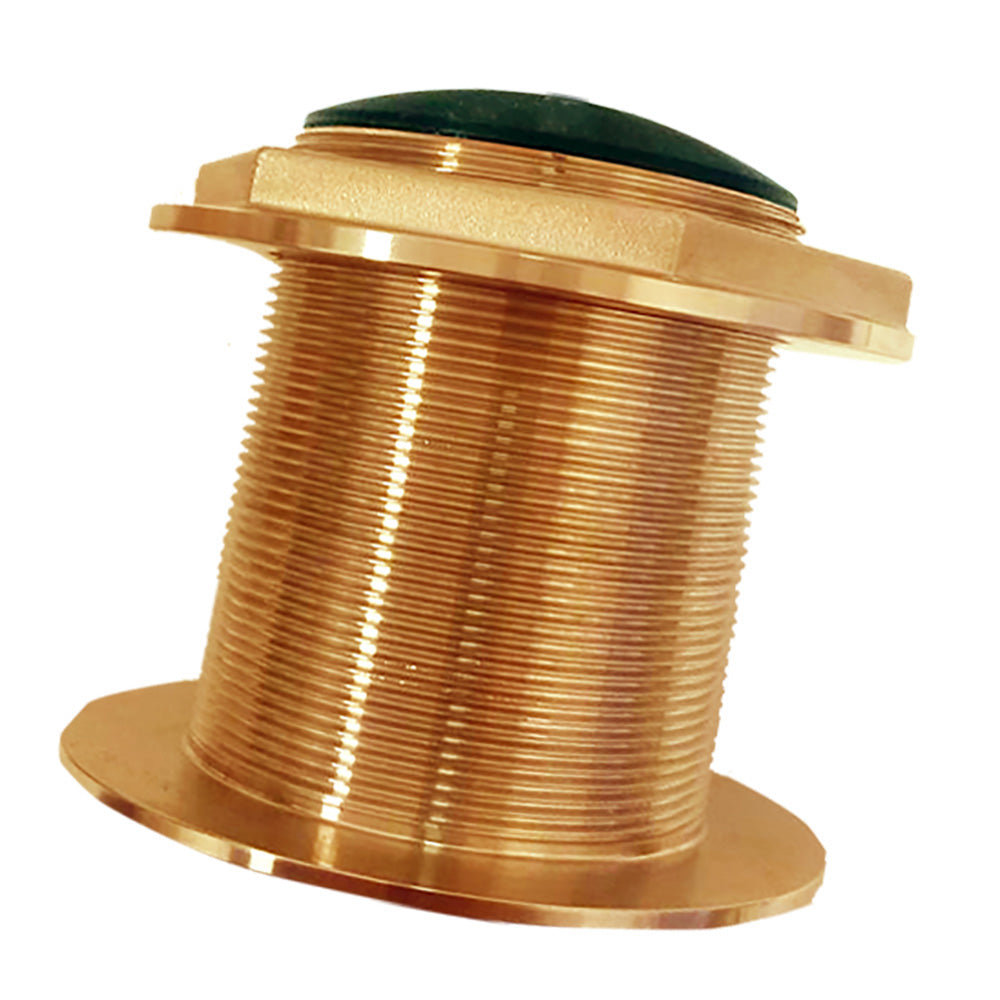

Echonautics Bronze Low-Profile Thru-Hull Medium-Frequency CHIRP Transducer - 1kW, 18 Tilt, 85-135kHz [BT87M1KW-18]

Bronze Low-Profile Thru-Hull Medium-Frequency CHIRP Transducer - 1kW, 18° Tilt, 85-135kHz

Echonautics presents a range of powerful transducers from Dual Frequency CW to Low/Medium/High CHIRP and digital sensors, with excellent value for money.

Technical Specifications:

• Frequency - 85-135kHz
• 1kW
• Mounting Style - Thru-Hull
• Material - Bronze
• 18° Tilt

Specifications:

• Cable Length (Feet): 26'
• Chirp: Medium
• Imaging: Standard
• Mounting Style: Thru-Hull
• Pins: 8
• Speed Included: No
• Temperature: Yes
• Box Dimensions: 6"H x 8"W x 9"L WT: 6.4 lbs
• UPC: 010407340272

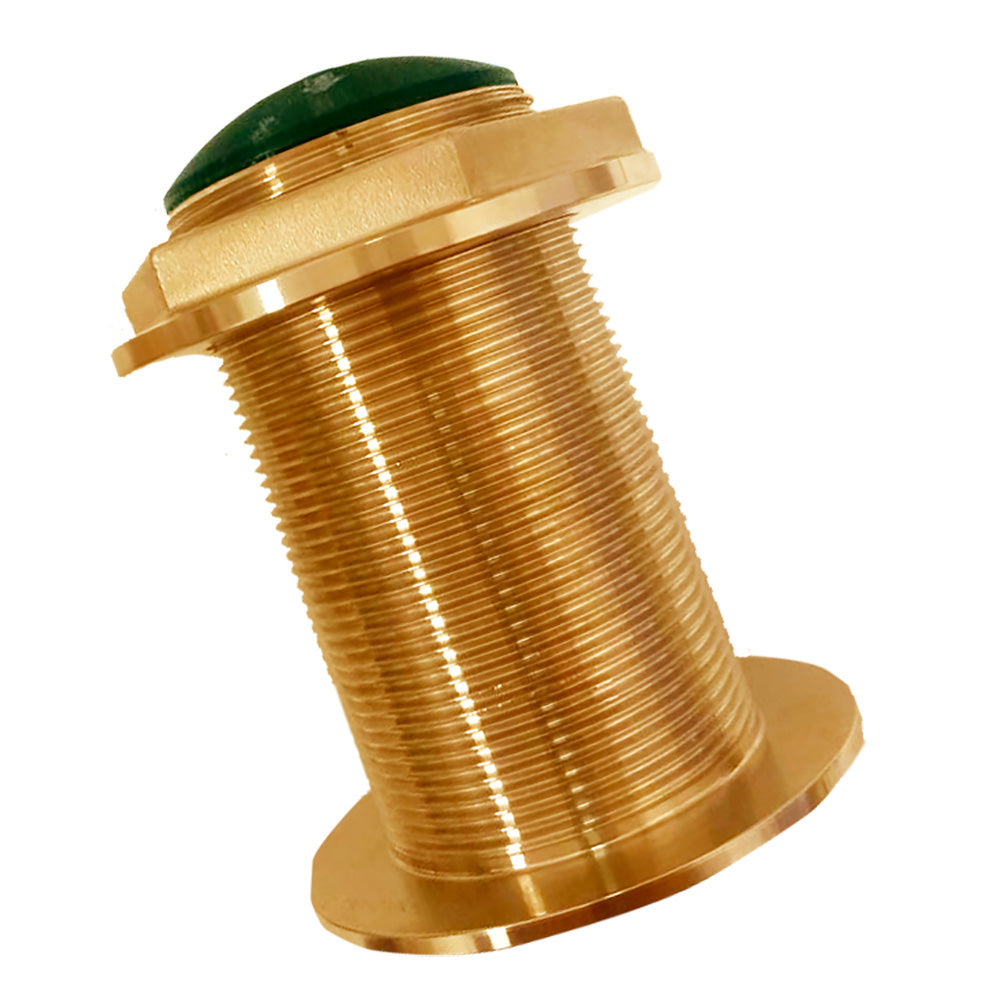

Echonautics Bronze Low-Profile Thru-Hull High-Frequency CHIRP Transducer - 600W, 18 Tilt, 130-210kHz [BT70H600-18]

Bronze Low-Profile Thru-Hull High-Frequency CHIRP Transducer - 600W, 18° Tilt, 130-210kHz

Echonautics presents a range of powerful transducers from Dual Frequency CW to Low/Medium/High CHIRP and digital sensors, with excellent value for money.

Technical Specifications:

• Frequency - 130-210kHz
• 600W
• Mounting Style - Thru-Hull
• Material - Bronze
• 18° Tilt

Specifications:

• Cable Length (Feet): 26'
• Chirp: High
• Imaging: Standard
• Mounting Style: Thru-Hull
• Pins: 8
• Speed Included: No
• Temperature: Yes
• Box Dimensions: 4"H x 8"W x 8"L WT: 3.4 lbs
• UPC: 010407340234

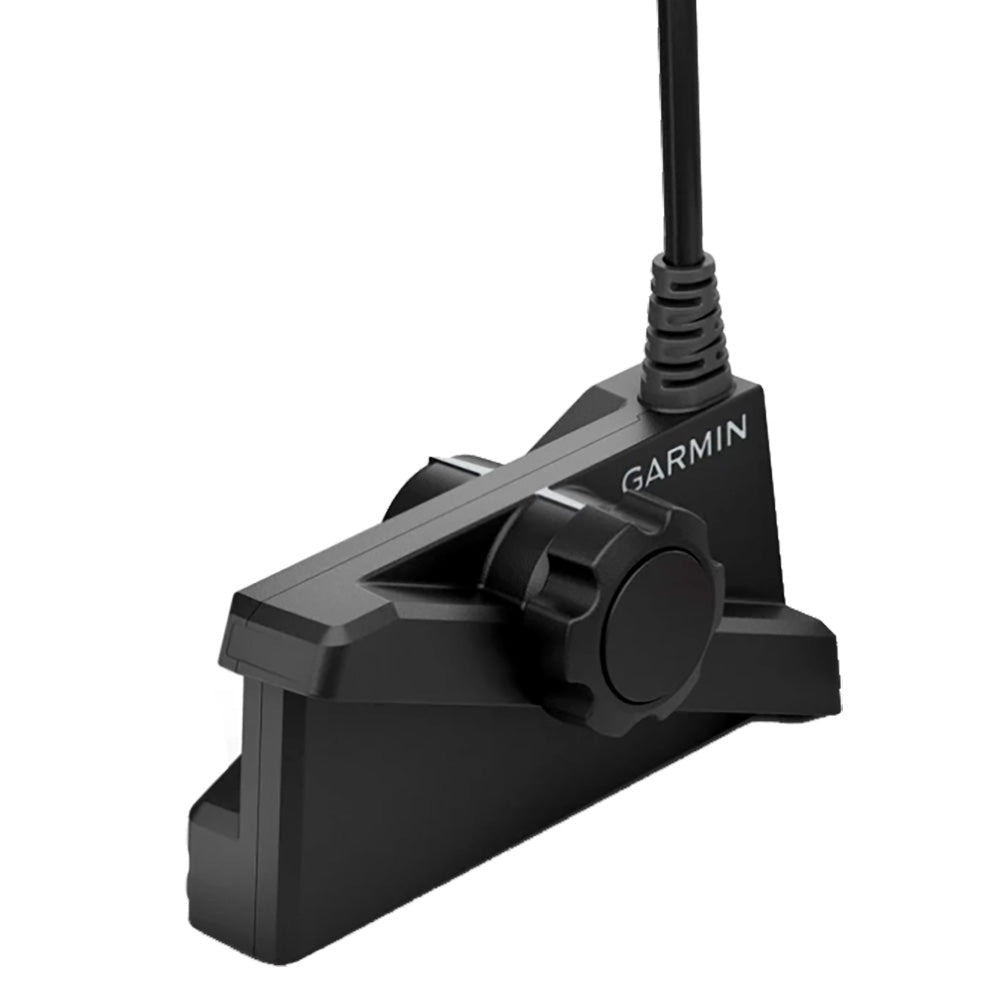

LiveScope™ Plus LVS34-IF Ice Fishing Transducer

The best of the best just broke new ice with the LiveScope Plus LVS34-IF ice fishing transducer. Pair it with your compatible Garmin chartplotter via your GLS™ 10 sonar black box to get improved resolution, reduced noise, clearer images, and better target separation in LiveScope™ Forward and LiveScope™ Down modes. With a durable, flexible cold-weather transducer cable, you’re set for a day on the ice.

In the Box:

• LiveScope Plus LVS34-IF
• 0-degree LiveScope pole mount
• Documentation

Specifications:

• Sonar Type: LiveScope™ Plus

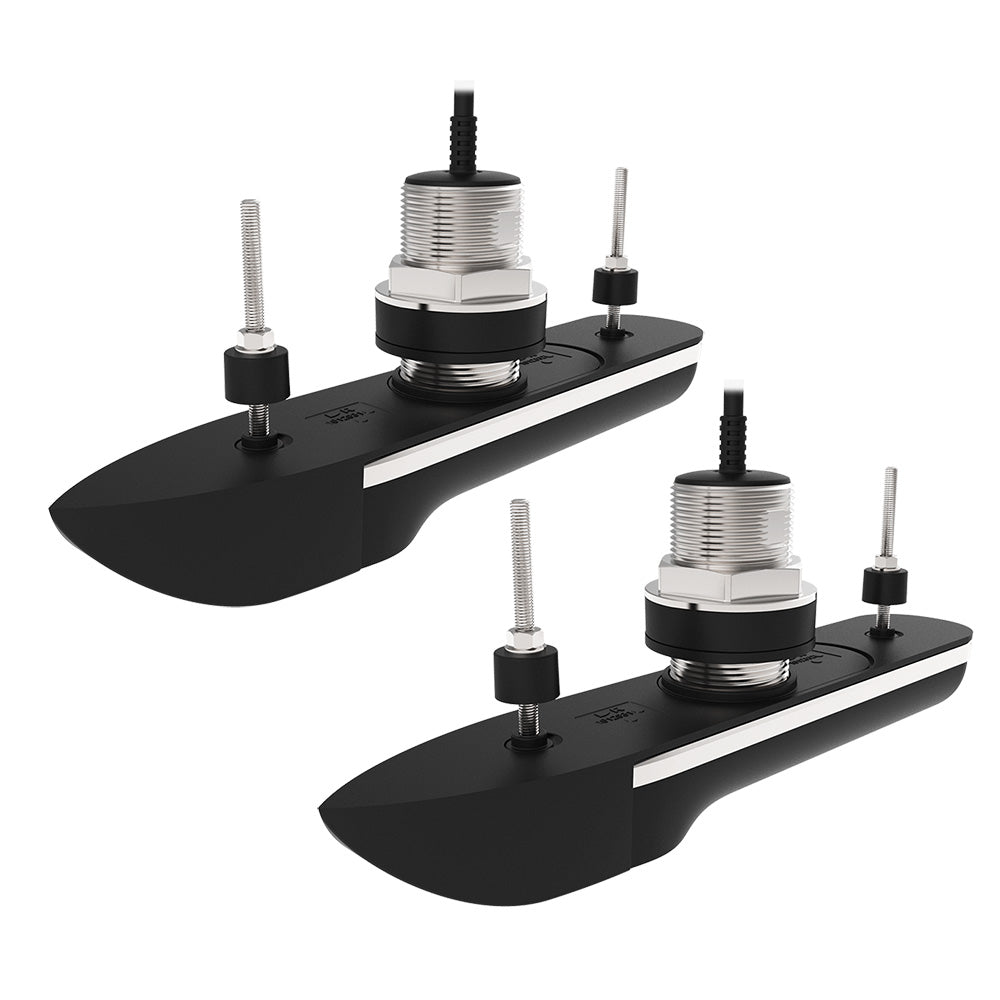

RVM-420 Stainless Steel Thru-Hull Pair, 20 Degree Deadrise & 10M Cable

The RVM-400 series transducers feature DownVision™, SideVision™, 600-Watt High CHIRP, and 3D sonar capability. The transducer has a built-in attitude and heading reference system (AHRS) that stabilizes 3D sonar imagery, automatically compensating for vessel motion. The RVM-400 series also has a built-in fast-response water temperature sensor for quick, accurate readings.

The RVM-420 is a port and starboard transducer pair designed for boats with 15° to 25° of deadrise. Each transducer element is tilted at 20° to compensate for the hull deadrise.

The RVM-420 transducer pairs feature titled offset sonar elements inside their surface mount housings. The tilted elements ensure the sonar's beam patterns are correctly aligned for maximum performance while eliminating the drag and turbulence associated with a fairing-blocked transducer installation. Bundled transducer pairs include a Y-Cable harness that internally joins the two transducers together and an 8-meter transducer extension cable.

*Works with Axiom 2 Pro RVM series, and RVM1600 Sounder Module

Features:

• 600-Watt traditional CHIRP
• High-performance Down and SideVision ceramics
• High-speed housing with isolation plate
• 10M Cable
• RVM-420 port and starboard pair accommodates hulls with a deadrise between 15° and 25°
