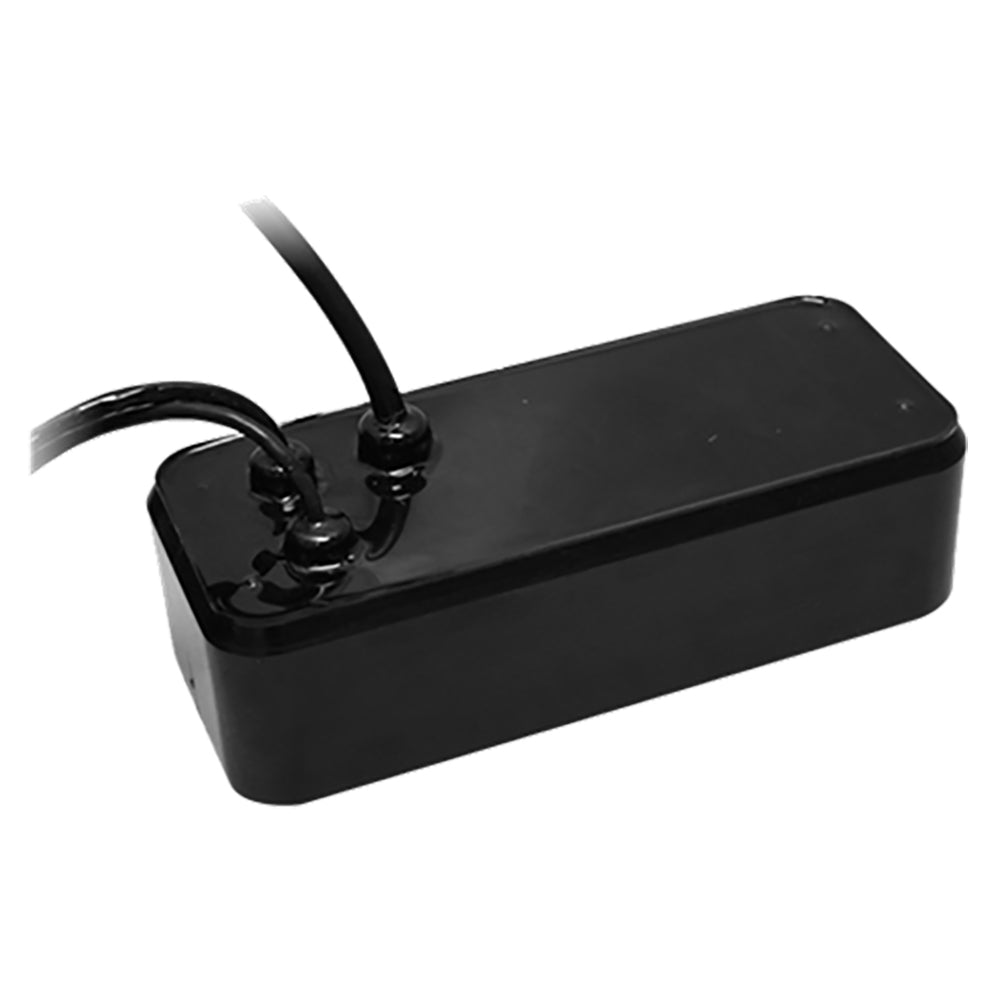

165T/275LHW-12P Pocket Mount Combo Transducer for DFF3D & TZT3 Displays

Pocket Mount Combination Transducer

This is a new size housing (12 LX 5 W X 3.5 H) that contains DFF3D elements along with CHIRP elements.

Standard Features

• DFF3D operating frequency 165 kHz
• Low—CHIRPS from 42 kHz to 65 kHz, Beamwidth 25° to 16°
• High—CHIRPS from 150 kHz to 250 kHz, Beamwidth 25°
• 12M Cables
• Recommended for a TZT3 and DFF3D installation
• Built-in motion sensor
• Built in temp sensor

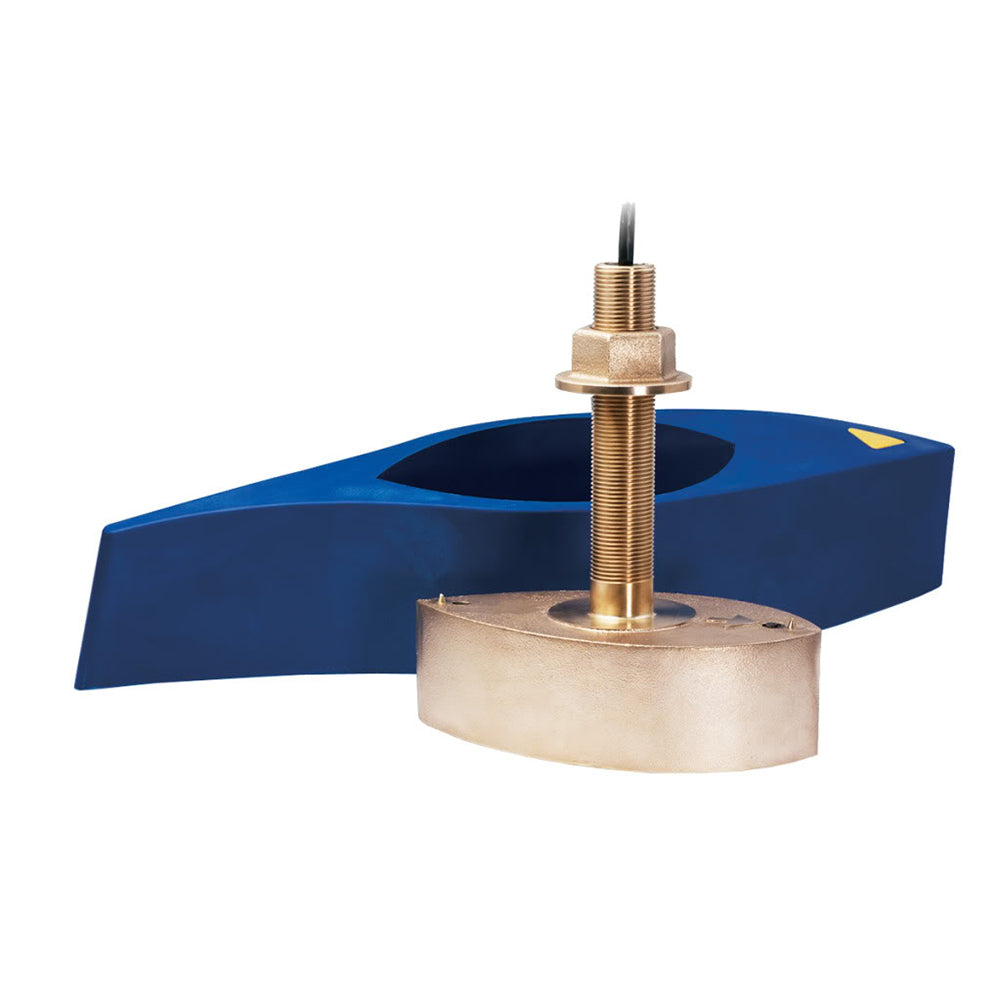

B275LH-W Bronze Thru-Hull Transducer - 12-Pin

Get more coverage under your boat with Airmar’s unique wide beam, high frequency Chirp-ready transducers. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high frequency band results in superior resolution. The constant wide beamwidth provides twice the coverage under the boat and excellent fish arches on the display compared to most high frequency narrow beam transducer options.

The included high-performance fairing improves broadband performance at speeds over 30 knots (34 MPH).

The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 500'.

The low frequency band and 1 kW of power also provides great deeper water performance. Get the best of both worlds with Airmar’s dual frequency Chirp-ready transducers with wide beam coverage.

Features:

• Depth and fast-response water-temperature sensor
• 1 kW for great deep water performance from the low frequency
• Low Frequency: 42 kHz to 65 kHz with maximum depth of 914 m (3000')
• 25° to 16° beamwidth
• High Frequency: 150 kHz to 250 kHz with maximum depth of 152 m (500')
  • 25° constant beamwidth
• 123 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
• High frequency provides superior shallow water performance, bottom detail and fish target separation
• High wide beamwidth provides more coverage under the boat for detecting fish in the upper water column
• Bronze transducer housing with high-performance fairing for optimal performance at higher speeds
• Recommended boat size: 8 m (25') and above
• Hull Type: Fiberglass or wood
• Exclusive Xducer ID® technology

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Mounting Style: Thru-Hull
• Imaging: Standard
• Chirp: Low/High Wide
• Cable Length (Feet): 39'
• Temperature: Yes
• Speed Included: No
• Pins: 12
• Box Dimensions: 7"H x 19"W x 26"L WT: 24.15 lbs
• UPC: 753759123574

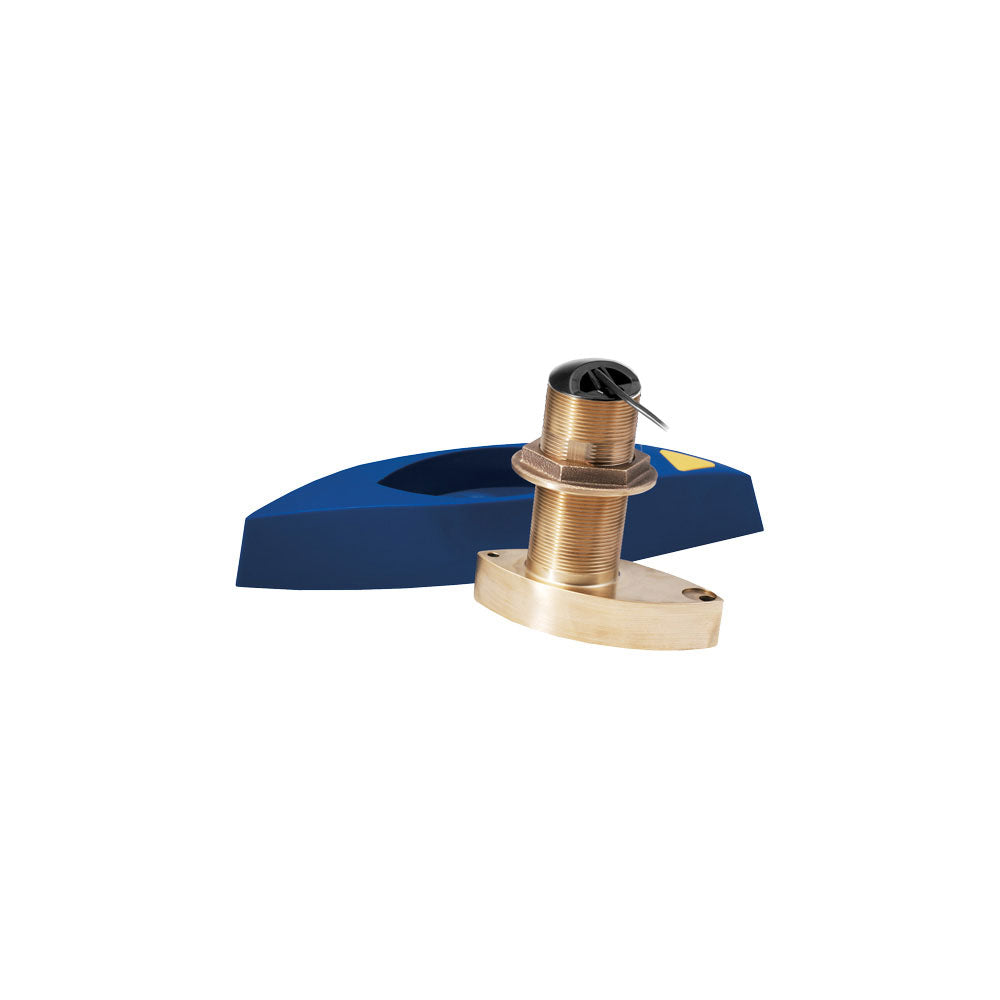

B765C-LM Bronze CHIRP Transducer - Needs Mix & Match Cable - Does NOT Work with Simrad & Lowrance

Rely on Airmar’s broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 85 kHz of total bandwidth in just one installation, saving customers time and money.

A Thru-Hull Chirp transducer perfectly suited for smaller fishing boats, the B765L/M Chirps across the following bandwidths:*L/M -Low Frequency 40-75 kHz, Medium Frequency 80-130 kHz

* Please Note: The low frequency operating band is 300 W. The medium frequency operating band is 600 W.

Features

• Depth & fast-response water-temperature sensor
• Low—CHIRPS from 40 kHz to 75 kHz, 32° to 21° beamwidth
• Medium—CHIRPS from 80 kHz to 130 kHz, 24° to 16° beamwidth
• 85 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50, 88, and 107 kHz plus everything else in the bandwidth
• All the advantages of the larger Thru-Hull Chirp transducers, suitable for smaller boats
• Bronze transducer housing with High-Performance Fairing
• Boat Size: Up to 9 m (30’) and above
• Hull Type: Fiberglass or wood
• Exclusive Xducer ID® technology
• Hull Deadrise: Up to 24° with a fairing
• Acoustic Window: Urethane
• Weight: 2.5 kg (5.5 lb)

Specifications:

• Temperature: Yes
• Speed Included: No
• Pins: Bare Wires
• Mounting Style: Thru-Hull
• Imaging: Standard
• Chirp: Low/Medium
• Cable Length (Feet): 40'
• Box Dimensions: 4"H x 12"W x 16"L WT: 7.7 lbs

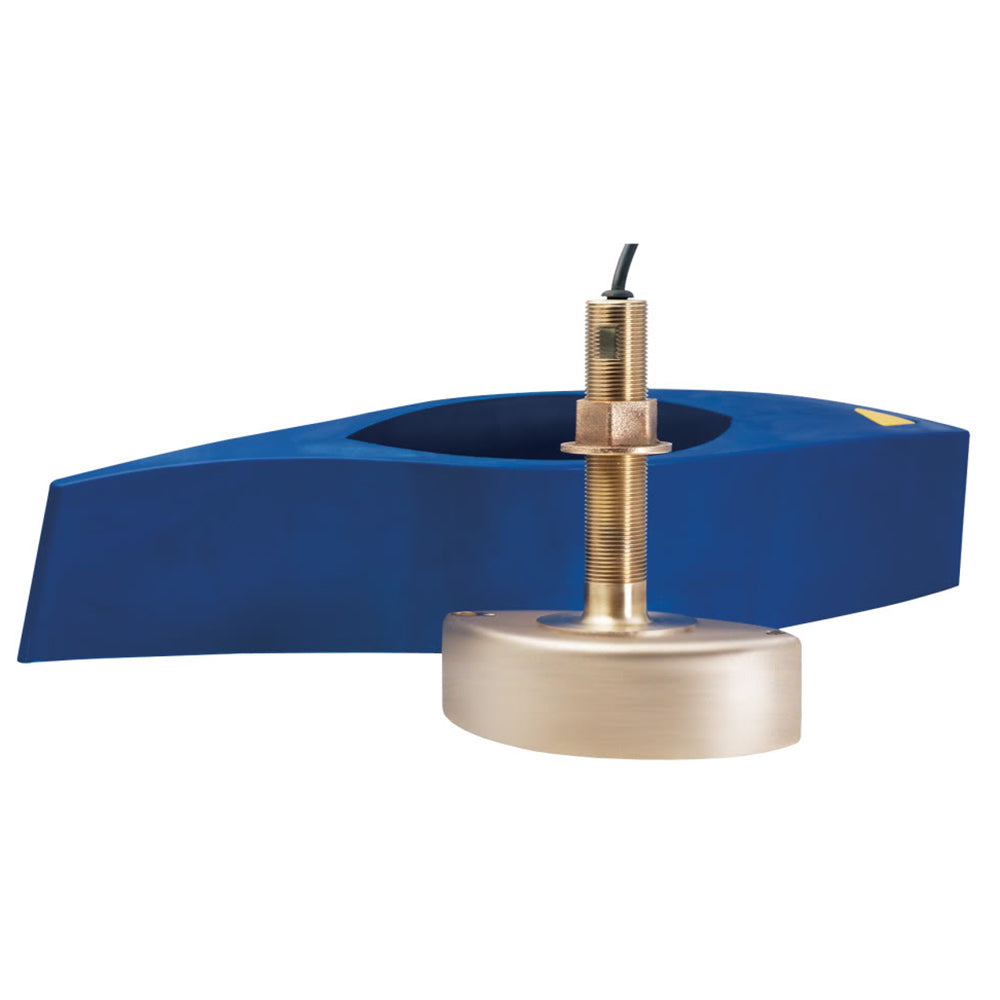

B285HW Bronze 1kW Wide Beam Chirp Thru-Hull Transducer

Requires Mix and Match Cable

Get more coverage under the boat with Airmar's wide beam Chirp product line. Offering a high frequency range of 150-250 kHz and a constant 25° Beamwidth, these transducers are truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the single band, wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducers

A unique property of the high frequency transducers is that the Beamwidth is a constant 25° angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's new wide beam format also creates crisper and larger return images on the display. We've got you covered.

Features:

• Depth & temperature
• 150-250 kHz High frequency
• Bronze housing
• 1 kW
• Wide 25° beam
• Exclusive Xducer ID® technology
• Boat Size: Up to 9M (30')

Specifications:

• Hull Deadrise: Up to 24°
• Acoustic Window: Urethane

Specifications:

• Mounting Style: Thru-Hull
• Chirp: High Wide
• Box Dimensions: 7"H x 18"W x 25"L WT: 18.8 lbs
• UPC: 801769002263

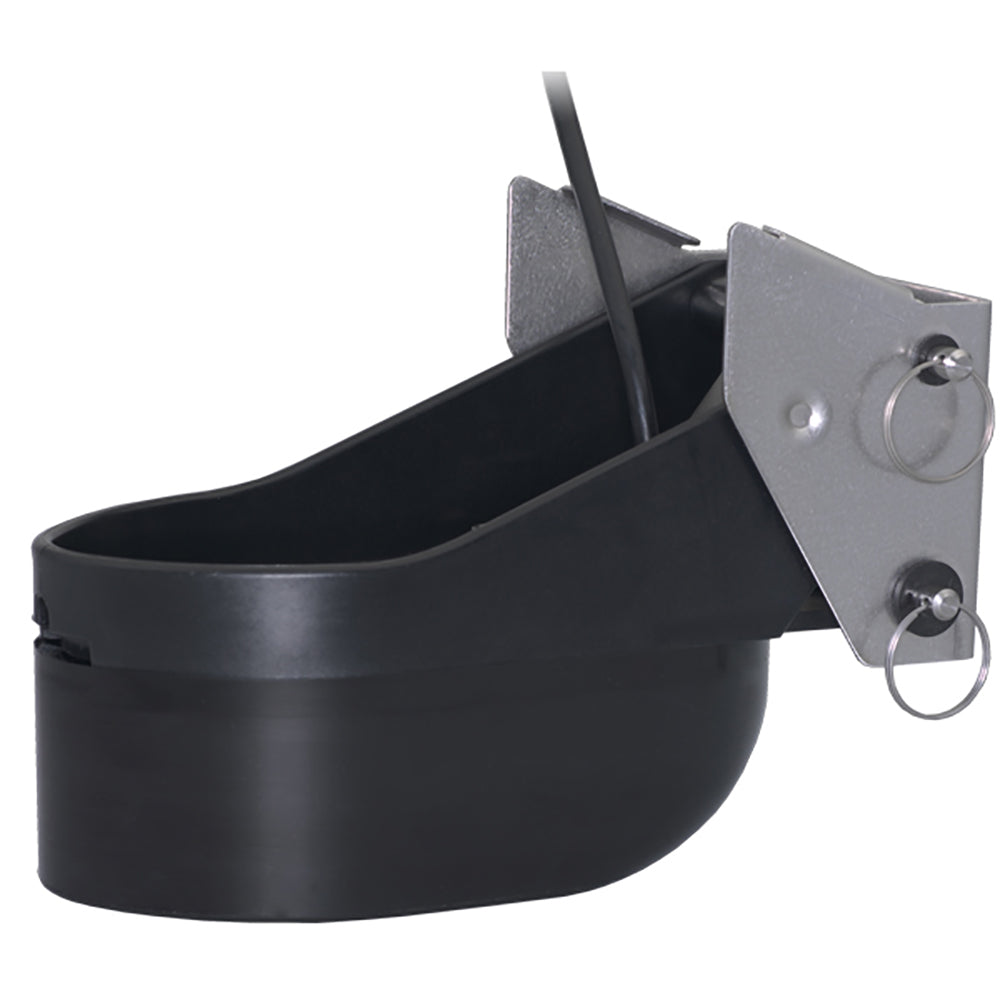

Transom Mount Multi-Beam Transducer

The 165T-TM54 is a multi-beam transducer for the DFF3D that affords a 120 degree port-starboard view of the underwater world. A built-in motion sensor stabilizes the display to give clear and stable images.

Features:

• Transom mount with stainless steel kick-up bracket
• DFF3D operating frequency: 165 kHz
• 2 x 10M Cables
• Bare ended cable for DFF3D sonar
• 7 pin connector for the motion
• Built-in motion sensor
• Built in temp sensor

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

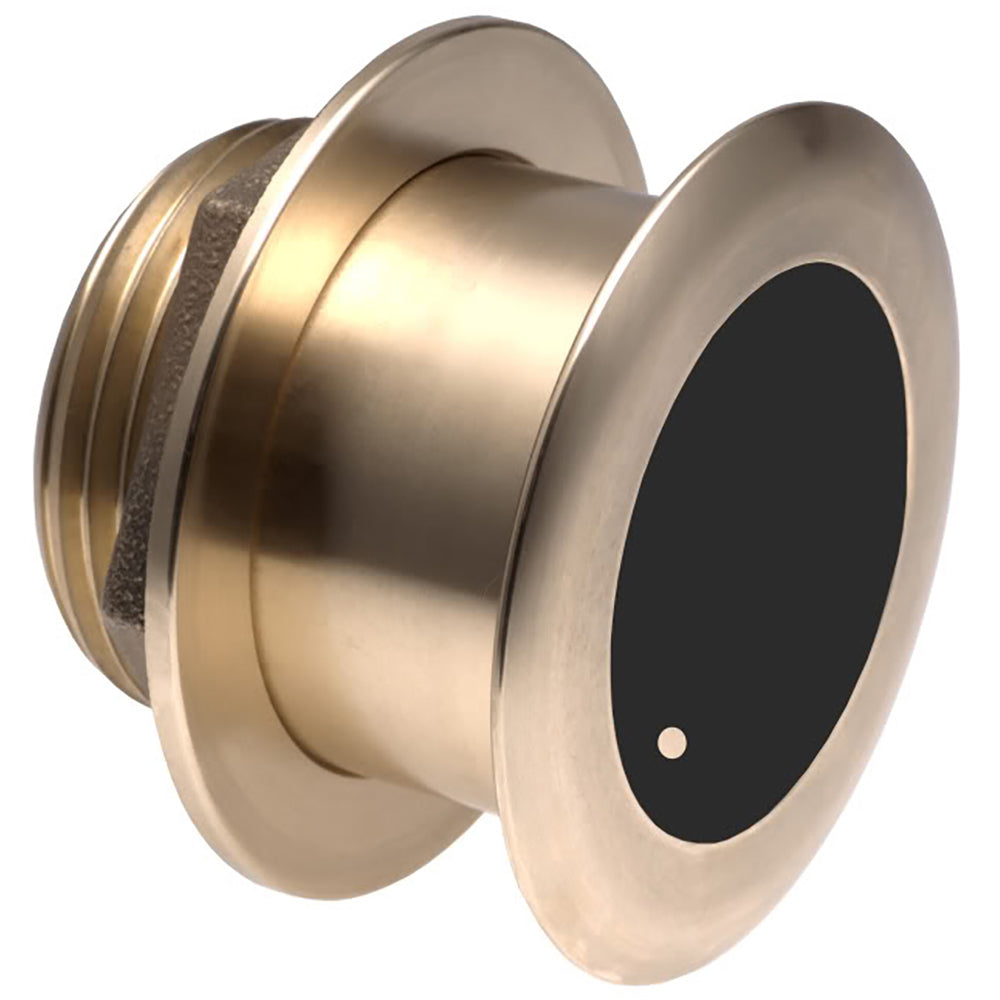

B175M Bronze CHIRP 0° Thru-Hull Transducer

Features:

• Depth/Temperature
• Thru-Hull
• Hull deadrise = 0º to 7º
• CP450C Plug on Cable
• Urethane
• Frequency: Medium 80-130 kHz
• Power: 1KW
• Medium: 24-16 degree beamwidth
• Hull type: Fiberglass and Wood
• Note: Requires A80328 Single B75/B175 Operation Cable

Specifications:

• Mounting Style: Thru-Hull
• Chirp: Medium
• Imaging: Standard
• Temperature: Yes
• Speed Included: No
• Box Dimensions: 8"H x 11"W x 12"L WT: 11.6 lbs
• UPC: 723193729069

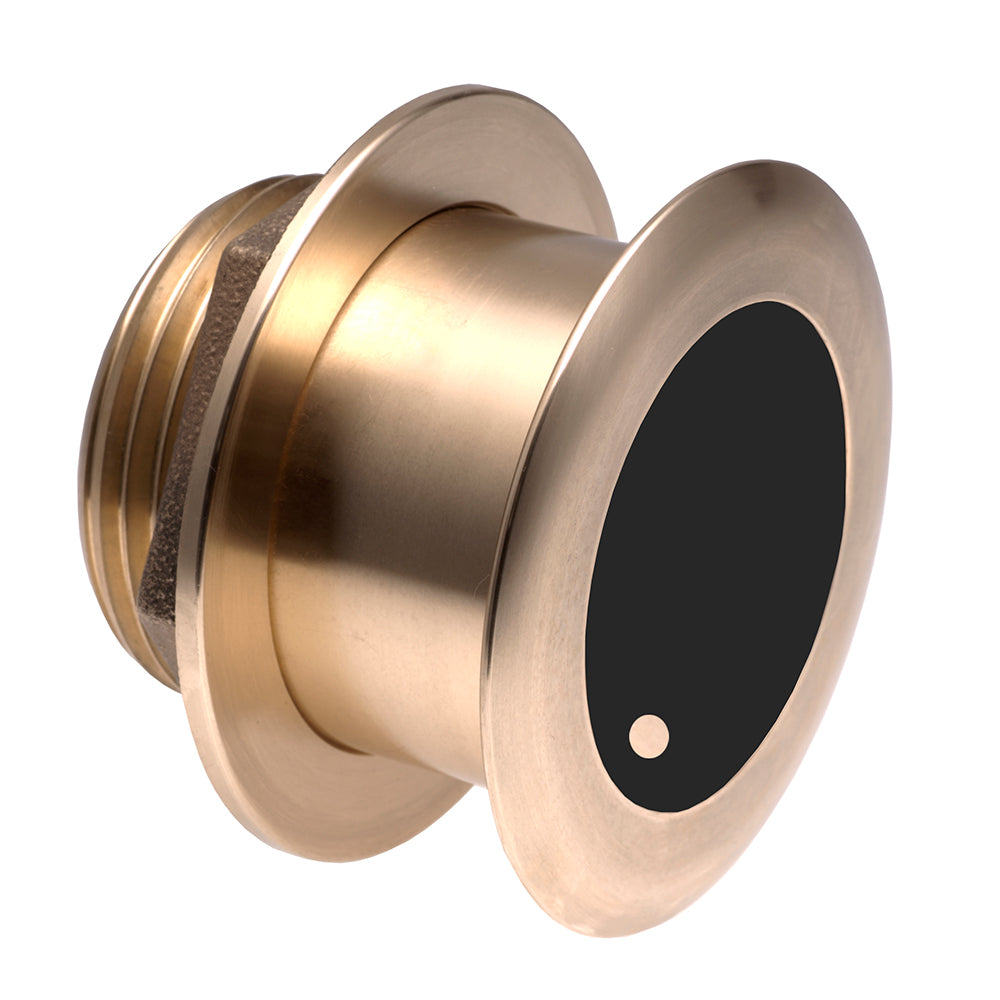

B175H Bronze Thru Hull 12° Tilt - 1kW

Requires Mix and Match Cable

B175H Bronze Thru Hull 20 degree Tilt 1KWRely on Airmar’s new broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 80 kHz of total bandwidth in just one installation, saving customers time and money.

Features:

• High—CHIRPS from 130 kHz to 210 kHz, 15° to 9° beamwidth
• 12° tilted version, 1KW
• 80 kHz of total bandwidth from one transducer
• Depth & fast-response water-temperature sensor
• Bronze transducer housing
• Boat Size: Up to 11 m (36’)
• Hull Type: Fiberglass or wood
• Exclusive Xducer ID® technology

Specifications:

• Mounting Style: Thru-Hull
• Chirp: High
• Box Dimensions: 8"H x 11"W x 12"L WT: 10.8 lbs
• UPC: 801769001914

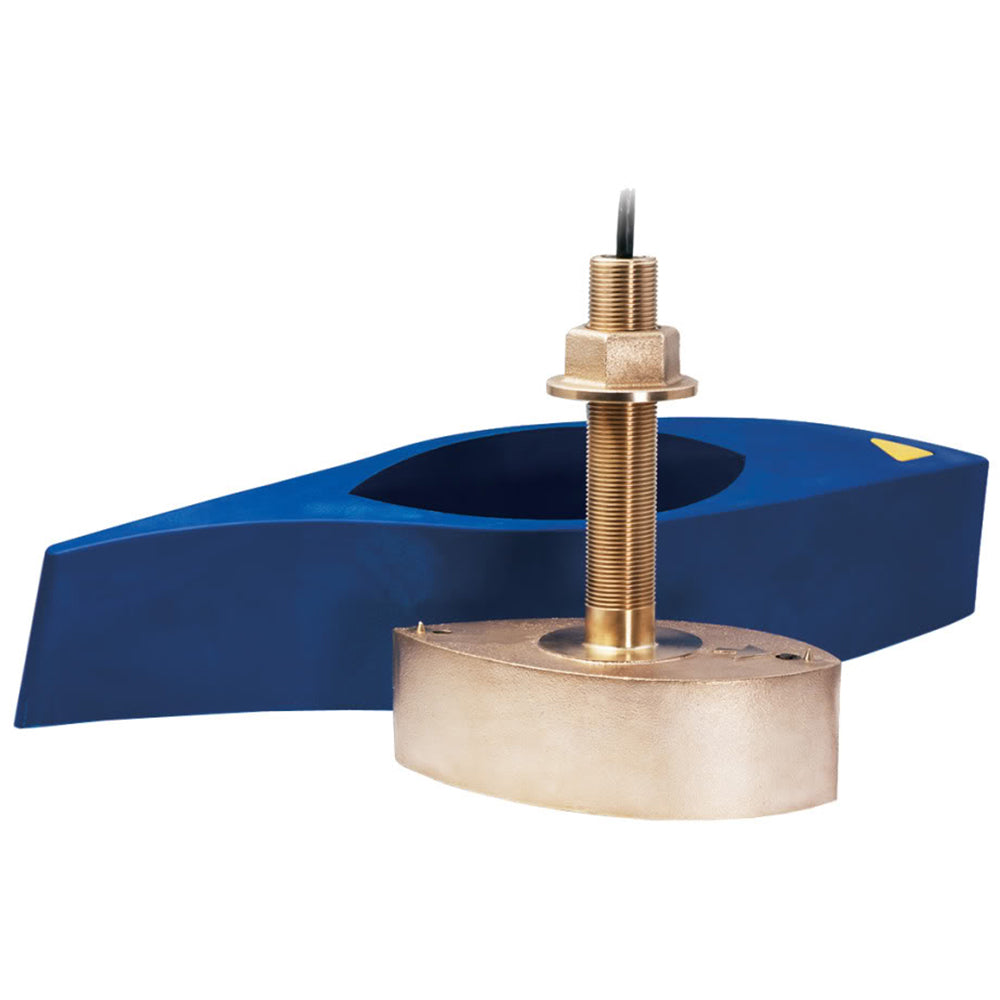

B275C-LHW Bronze Thru-Hull - Low & High Wide Frequency

Requires Mix & Match Cable

Get more coverage under the boat with Airmar's wide beam CHIRP product line. Offering a high frequency range of 150-250 kHz and a constant 25° beam width, these transducers are truly broadband at its best. In addition to improving the performance of CHIRP-ready echosounders, anglers using the new wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency CHIRP transducers.

A unique property of the high frequency transducers is that the beambwidth is a constant 25° angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's wide beam format also creates crisper and larger return images on the display. We've got you covered!

Features:

• Depth & Temperature
• 42-65 kHz L Frequency
• 150-250 kHz H Frequency
• Bronze
• 1 kW
• Wide 25° Beam

Specifications:

• Mounting Style: Thru-Hull
• Chirp: Low/High Wide
• Box Dimensions: 7"H x 18"W x 25"L WT: 24.1 lbs
• UPC: 801769001952
