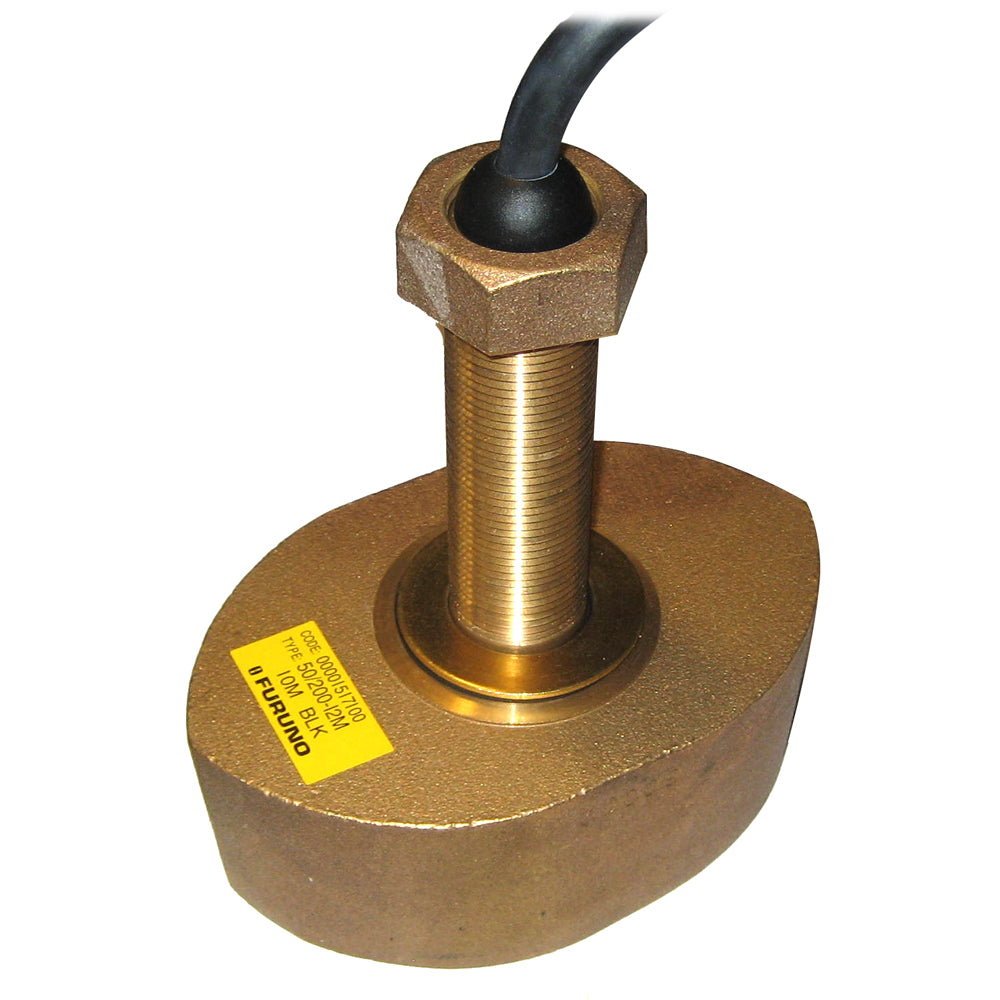

Furuno CA50/200/12M Bronze Thru-Hull Transducer, 1kW (No Plug) [CA50/200-12M]

Ships Direct From Manufacturer

Bronze Thru-Hull Transducer, 1kW (No Plug)

• 1 kW

• 50/200 kHz

• 28/8.5 degree Beam Angles

• Bronze Thru-Hull

• 10 Meter Cable, no connector provided

• MB1100 required for some applications - contact Furuno for more information

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Temperature: No
• Speed Included: No
• Mounting Style: Thru-Hull
• Box Dimensions: 9"H x 13"W x 15"L WT: 14.3 lbs
• UPC: 611679110992

Quick Guide (pdf)

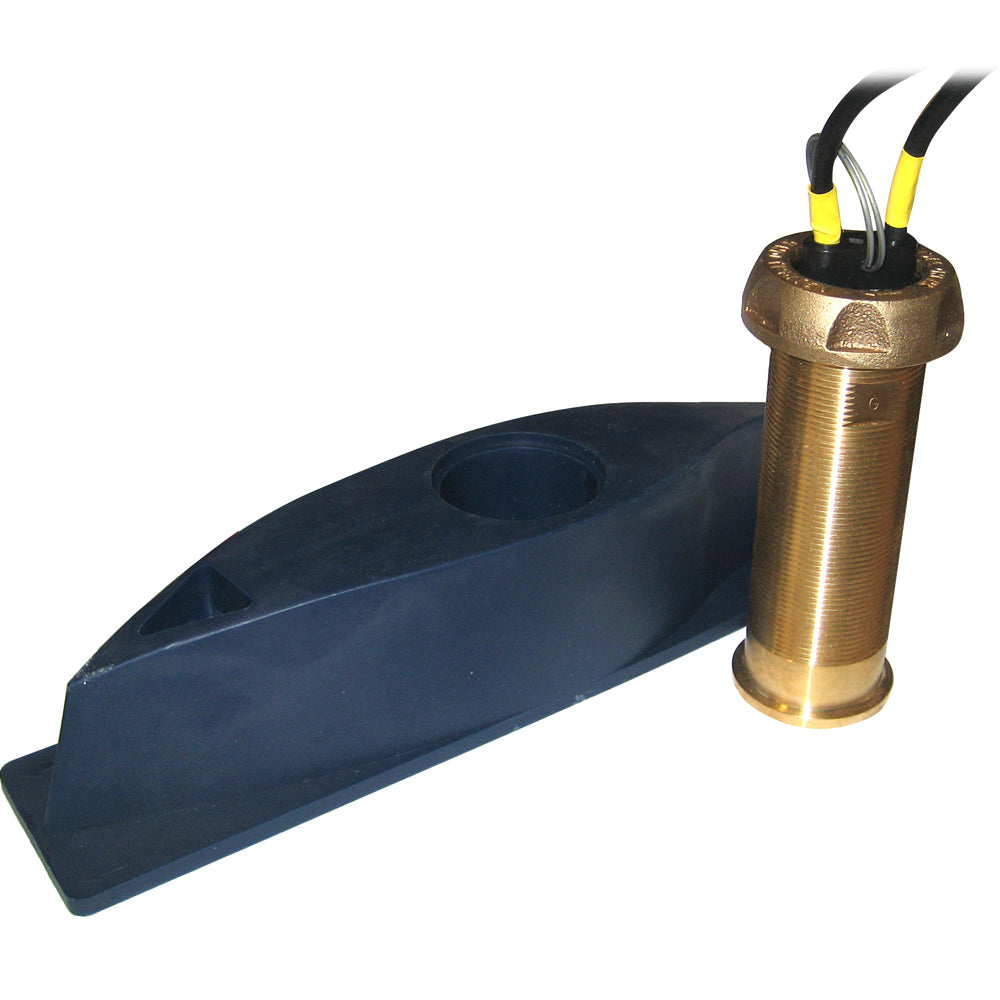

Furuno 235DHT-LMSE Bronze Thru-Hull, Digital Depth & High-Precision Temp Sensor, 7" Stem & High Speed Block (7-Pin) [235DHT-LMSE]

Bronze Thru-Hull, Digital Depth and High-Precision Temp Sensor, with 7 Inch Stem and High Speed Fairing Block (7-Pin)

Features:

• 200 Watts

• 235 kHz

• Bronze Thru-Hull with 7" Stem

• Depth and High-Precision Temperature ( + / - .02 degree )

• 10-Meter Cable with 7-Pin Connector

• Fairing Block and Installation Materials Included

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Mounting Style: Thru-Hull
• Temperature: Yes
• Box Dimensions: 4"H x 12"W x 16"L WT: 8.3 lbs
• UPC: 611679249654

Quick Guide (pdf)
Brochure (pdf)

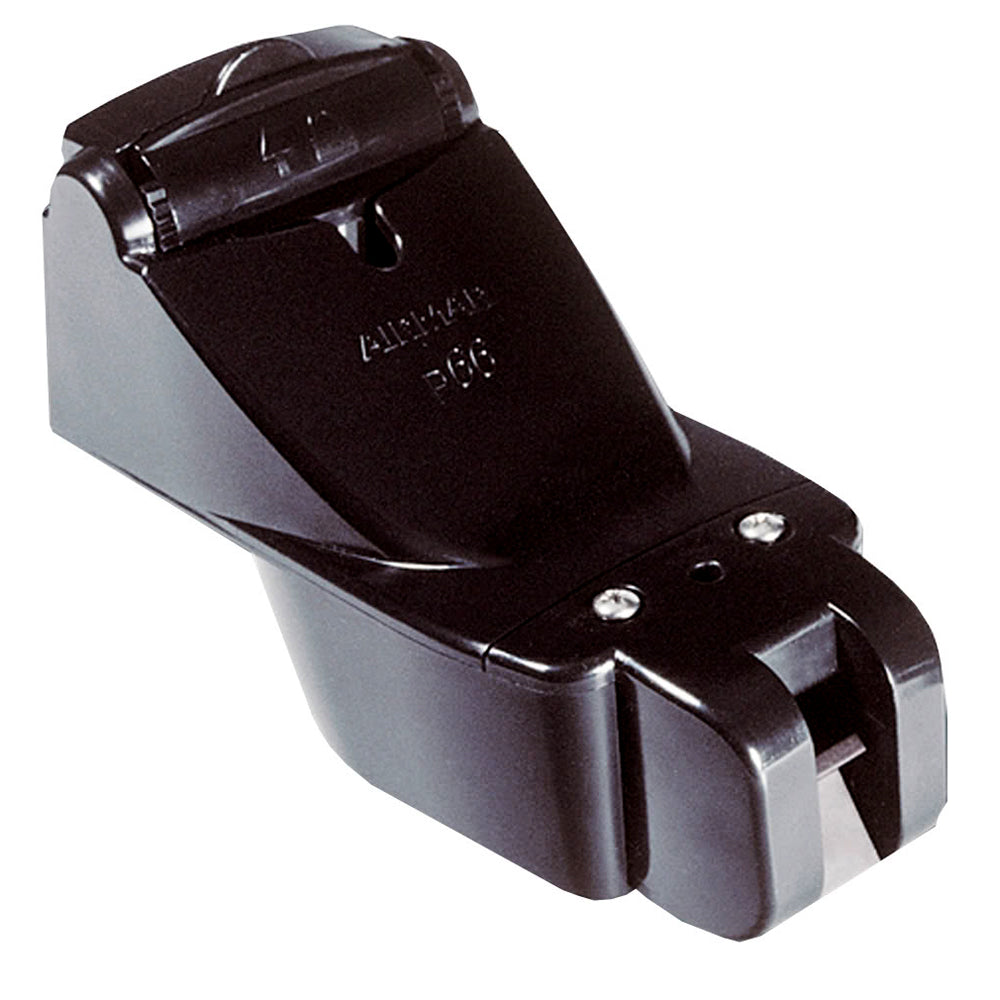

Furuno 235DST-PWE Plastic TM, Digital Depth, Speed & Temp Sensor (7-Pin) [235DST-PWE]

Plastic Transom Mount, Digital Depth, Speed & Temp Sensor (7-Pin)

• 200 Watts

• 235 kHz

• Plastic Transom Mount

• Depth, Speed and Temperature (+/ - 1 degree )

• 10-Meter Cable with 7-Pin Connector

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Temperature: Yes
• Speed Included: Yes
• Box Dimensions: 4"H x 8"W x 10"L WT: 2.3 lbs
• UPC: 611679249630

Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)

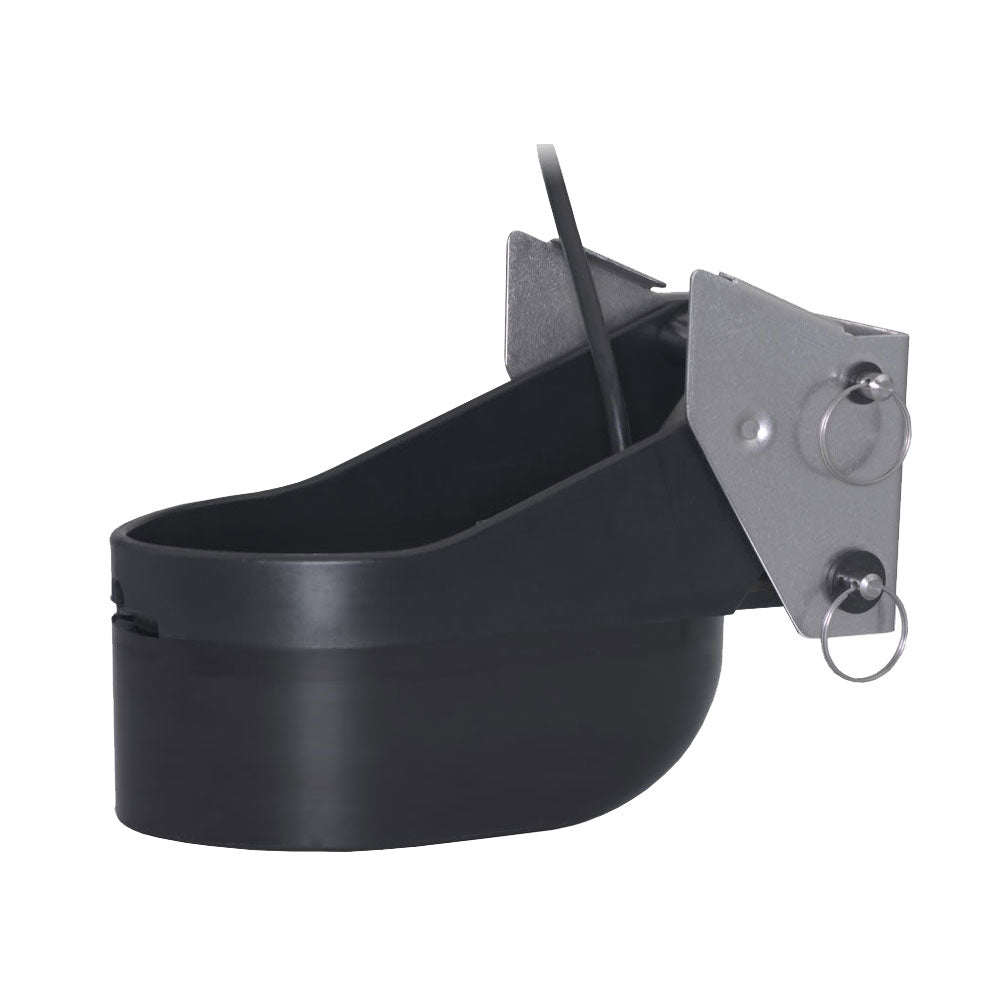

Furuno 525TID-TMD TM Transducer w/Temp, 1kW (10-Pin) [525TID-TMD]

Transom Mount Transducer w/ Temp, 1kW (10-Pin)

• M258 Transducer with Transom Mount Bracket

• 1 kW

• 50/200 kHz

• 14x23 degree/3x5 degree Beam Angles

• Transom Mount with Temperature

• 10 Meter Cable with 10-Pin Connector

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Temperature: Yes
• Speed Included: No
• Box Dimensions: 8"H x 10"W x 12"L WT: 8.65 lbs
• UPC: 611679310651

Owner's Manual (pdf)
Brochure (pdf)

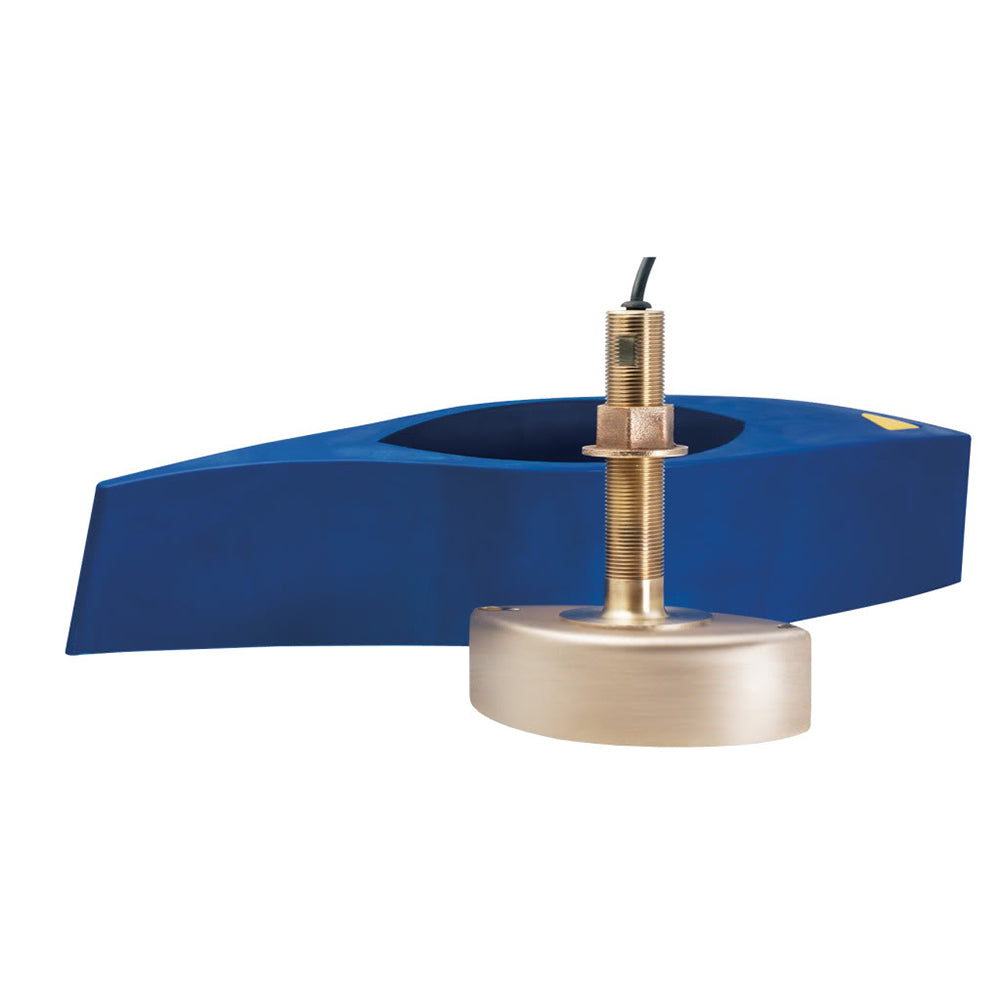

B285M Medium-Frequency CHIRP Transducer with Temperature - Bronze Thru-Hull with High Speed Fairing Block

Features:

• Frequency: Chirp 85 - 135 kHz
• Power Rating: 1 KW
• Connector: 10 Pin
• Fairing Block: High Speed Fairing Block Included

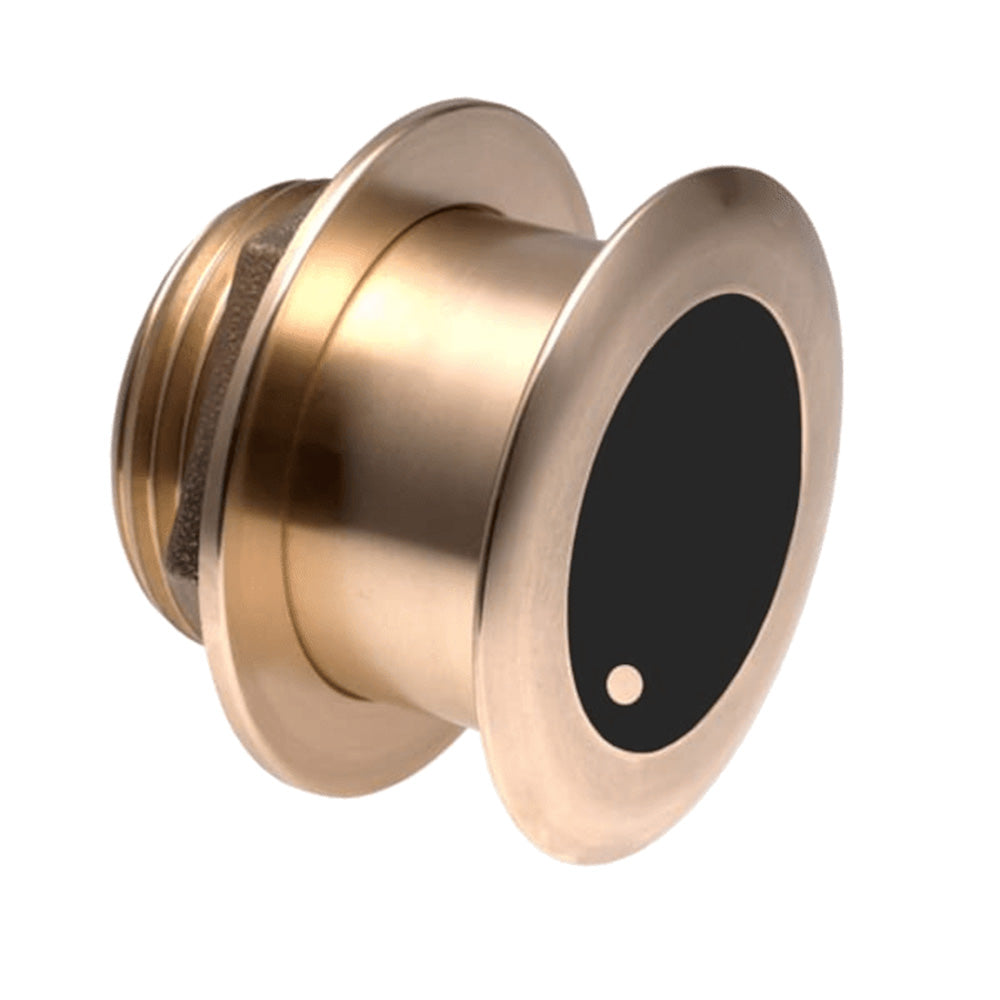

B164 Bronze Thru-Hull - 50/200 kHz - 1 kW - 12° Tilted Element - Requires Mix & Match Cable

12° tilted version for 8 to 15° hull deadrise angles. Step up to a 1 kW—without a fairing! The 1 kW, flush-mount, Tilted Element™ transducer is perfect for fast, trailered vessels that cannot accommodate a High-performance Fairing. The flush-mounted, bronze housing extends less than 6.35 mm (1/4") below the hull so that it can sit on trailer rollers and bunks. The ceramic arrays are tilted within the housing, providing a perfectly vertical beam with maximum energy at the point directly below the boat.

Features:

• Depth and fast-response water-temperature sensing
• 1 kW of power
• Dual-frequency elements:
• 50 kHz with a wide 22° beamwidth for depth performance to 549 m (1800')
• 200 kHz with a 6° beamwidth for depth performance to 244 m (800')
• Interfaces to any 600 W or 1 kW echo sounder
• Engineered for center-console and trailered boats
• Low-profile bronze housing extends less than 6.35 mm (0.25") below the hull
• No effect on the boat’s running performance
• Available in a stainless steel housing (SS164) for use in all hull materials
• Patented Xducer ID® technology

Specifications:

• Acoustic Window: Urethane
• Cable-Length: 2 M (6.5')
• Common Use: Leisure/Yachting, Fishing
• Connector: Airmar 9-Pin (MM1)
• Conventional Beam: 22°x20°/6°
• Country of Origin: USA
• Deadrise Range: 8° to 15°
• Frequency Band: 50/200 kHz
• Material: Bronze
• Max Deadrise: Up to 15°
• Max Depth: Low frequency- 549 m (1800'), High frequency- 244 m (800')
• Mix and Match Series: 9-Pin 1000 Watt
• Mounting Style: Tilted Element Thru-Hull
• Retractable housing: No
• Sensor Connector: MM1
• Single or Dual Frequency: Conventional Dual Frequency
• Tilt Angle: 12°
• Tilted Element: Yes
• Weight: 2.7 kg (6 lbs)
• Power Rating: 1 kW
• Functions: Depth, Temperature
• Hull Material: Fiberglass or wood
• Max Vessel LOA: Up to 11 m (36')
• Hole Size: 95 mm (3-3/4")
• Usable Shaft Length: 71 mm (2.80")
• Display Connector: Cable Required

Specifications:

• Cable Length (Feet): 6.5'
• Chirp: No
• Imaging: Standard
• Mounting Style: Thru-Hull
• Speed Included: No
• Temperature: Yes
• Box Dimensions: 8"H x 11"W x 12"L WT: 9.6 lbs

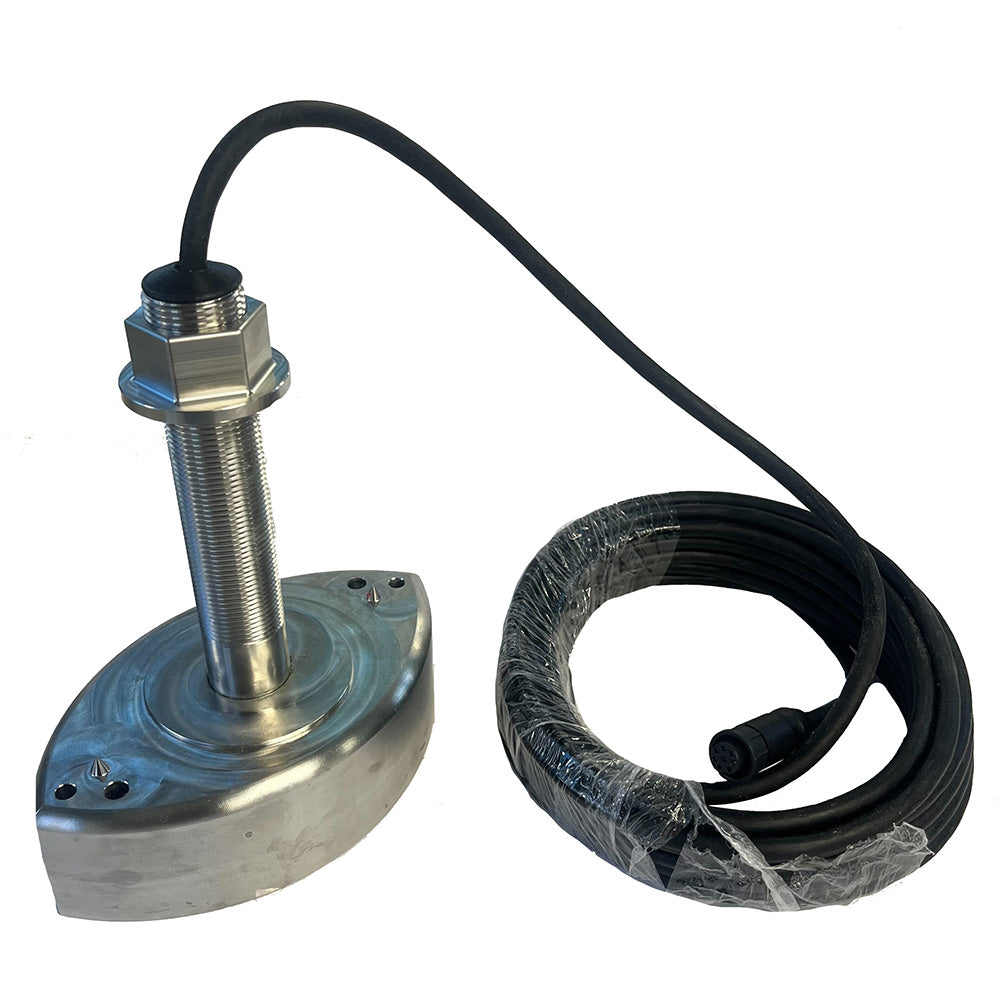

Echonautics ST180D 1kW Thru-Hull Stainless Steel Transducer - 50/200kHz [ST180D1KWCW]

ST180D 1kW Thru-Hull Stainless Steel Transducer - 50/200kHz

The Echonautics ST180D is a low-profile, high-frequency CHIRP thru-hull transducer, ideal for enhancing the sonar capabilities of a boat. It is designed to provide detailed imaging and excellent fish-finding performance in freshwater and saltwater.

Specifications:

• 1kW
• 50/200kHz
• Stainless Steel
• Thru-Hull Transducer

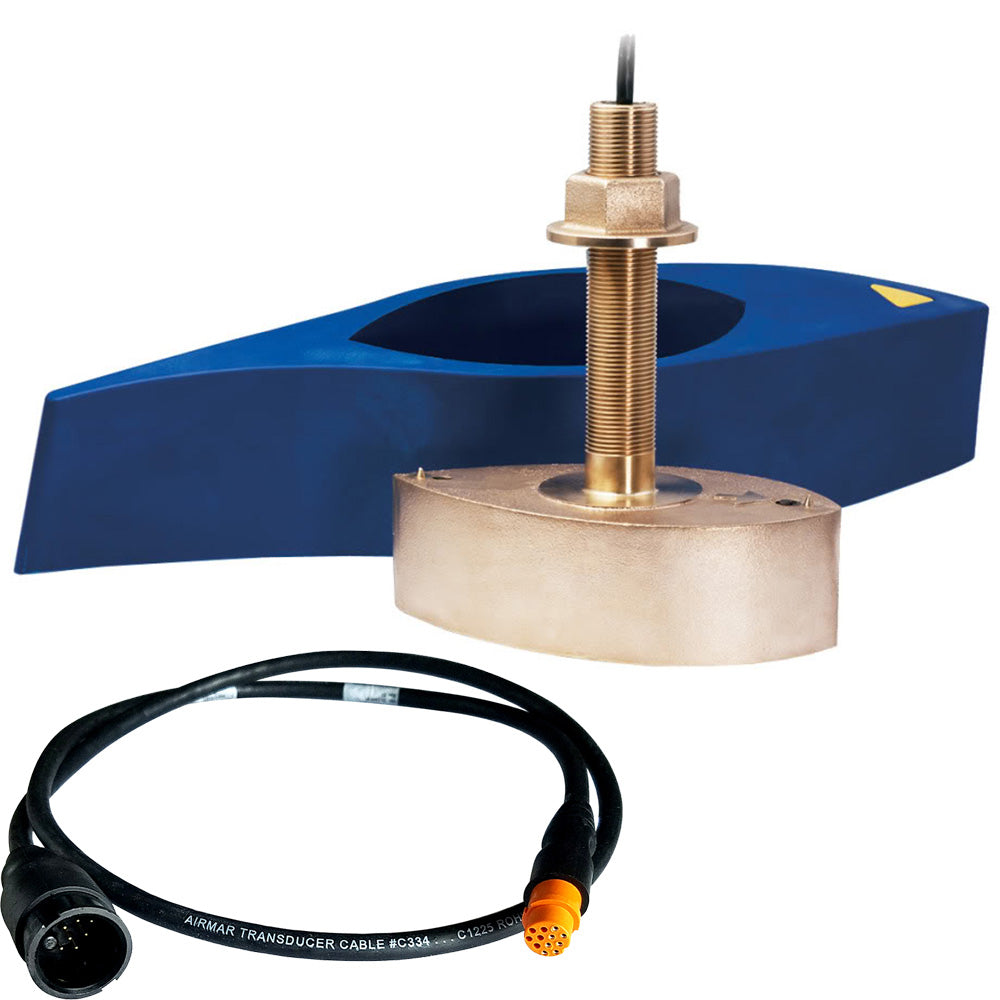

B275LH-W Bronze Thru-Hull for Garmin with 12-Pin Connector

Get more coverage under your boat with Airmar’s unique wide-beam, low and high-frequency, Chirp-ready B275LHW. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies, which results in superior resolution. The constantly wide beam provides twice the coverage and clear fish arches on the display compared to most high-frequency, narrow-beam transducers.

The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 152 m (500'). The low-frequency band and 1 kW of power also support great deep-water performance. Get the best of both worlds with Airmar’s Chirp-ready transducers with wide-beam coverage.

The included High-performance Fairing improves broadband results at speeds over 30 knots (34 MPH).

Features:

• Garmin 12-Pin Mix & Match Cable for Chirp Transducers
• Depth and fast-response water-temperature sensing
• 1KW of power for great deep-water performance from the low frequency
• Low frequency: 42 to 65 kHz
• 25° to 16° beamwidth
• Maximum depth of 914 m (3000')
• High frequency: 150 to 250 kHz
• 25° constant beamwidth
• Maximum depth of 152 m (500')
• 123 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50 and 200 kHz, plus everything else in the bandwidth
• High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation
• High wide beamwidth yields more coverage for detecting fish in the upper water column
• Bronze housing with High-performance Fairing for optimal performance at higher speeds
• Also available as transom (TM275LHW) and pocket (PM275LHW) mounts
• Patented Xducer ID® technology

Specifications

• Brand: Airmar Technology
• Acoustic Window: Urethane
• Cable-Length: 10 m (33')
• Common Use: Fishing, Commercial Fishing
• Connector: Garmin 12-Pin
• Country of Origin: USA
• Cross Reference: 010-12183-20
• Deadrise Range: Up to 28° with fairing
• Display Connector: 12G
• Frequency Band: Low-High Wide
• High Frequency: 150-250 kHz
• High-Wide Beamwidth: 25°
• Low Frequency: 42-65 kHz
• Low Frequency Beamwidth: 25°-16°
• Material: Bronze
• Max Deadrise: Up to 20° with fairing
• Max Depth: Low frequency- 914 m (3000'), High wide frequency- 152 m (500')
• Mix and Match Series: 12-Pin Chirp
• Sensor Connector: MMC
• Single or Dual Frequency: CHIRP-Ready Dual-Band
• Tilted Element: No
• Weight: 7.3 kg (16 lbs.)
• Power Rating: 1 kW
• Max Deadrise Angle: 20°
• Functions: Depth, Temperature
• Hull Material: Fiberglass or wood
• Mounting Style: Thru-Hull with Fairing
• Max Vessel LOA: 8 m (25') and above
• Hole Size: 30 mm (1-3/16")
• Usable Shaft Length: 121 mm (4.75")
